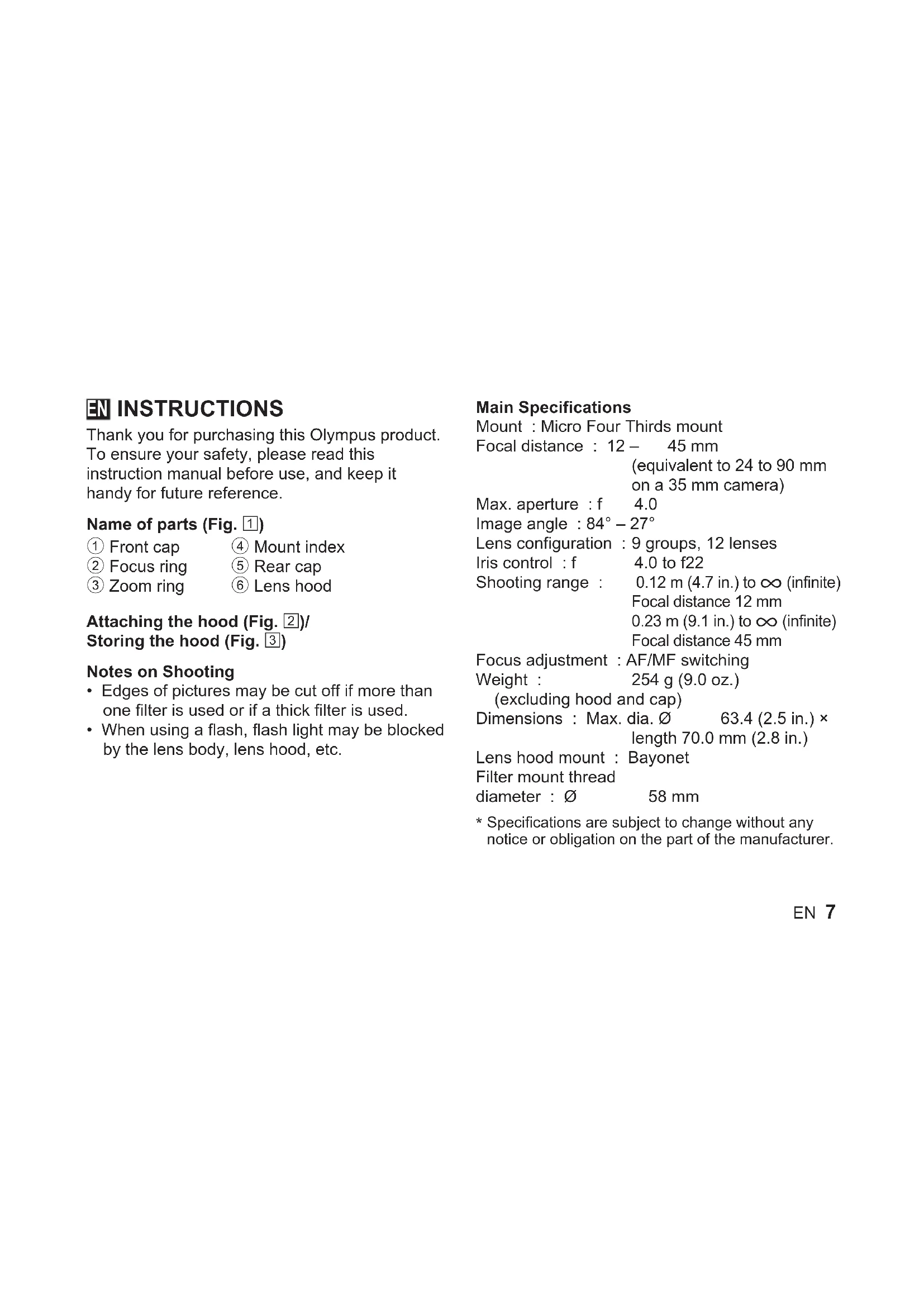

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

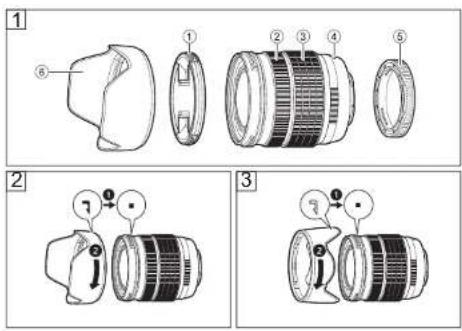

Name of parts (Fig. 1)

① Frontcap

④ Mount index

② Focus ring

⑤ Rear cap

③ Zoom ring

⑥ Lens hood

Attaching the hood (Fig. 2)/ Storing the hood (Fig. 3)

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 12 – 45 mm

(equivalent to 24 to 90~mm on a 35~mm camera)

Max.aperture:f 4.0

Image angle: 84^ - 27^

Lens configuration : 9 groups, 12 lenses

Iris control : f 4.0 to f22

Shooting range : 0.12 m (4.7 in.) to (infinite) Focal distance 12 mm 0.23 m (9.1 in.) to (infinite) Focal distance 45 mm

Focus adjustment : AF/MF switching

Weight : 254 g (9.0 oz.) (excluding hood and cap)

Dimensions: Max. dia. 63.4 (2.5 in.) × length 70.0 mm (2.8 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : 0 58 mm

• Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.
