USER MANUAL ADS6T QSC

AcousticDesign™ Series

QSC

User Guide

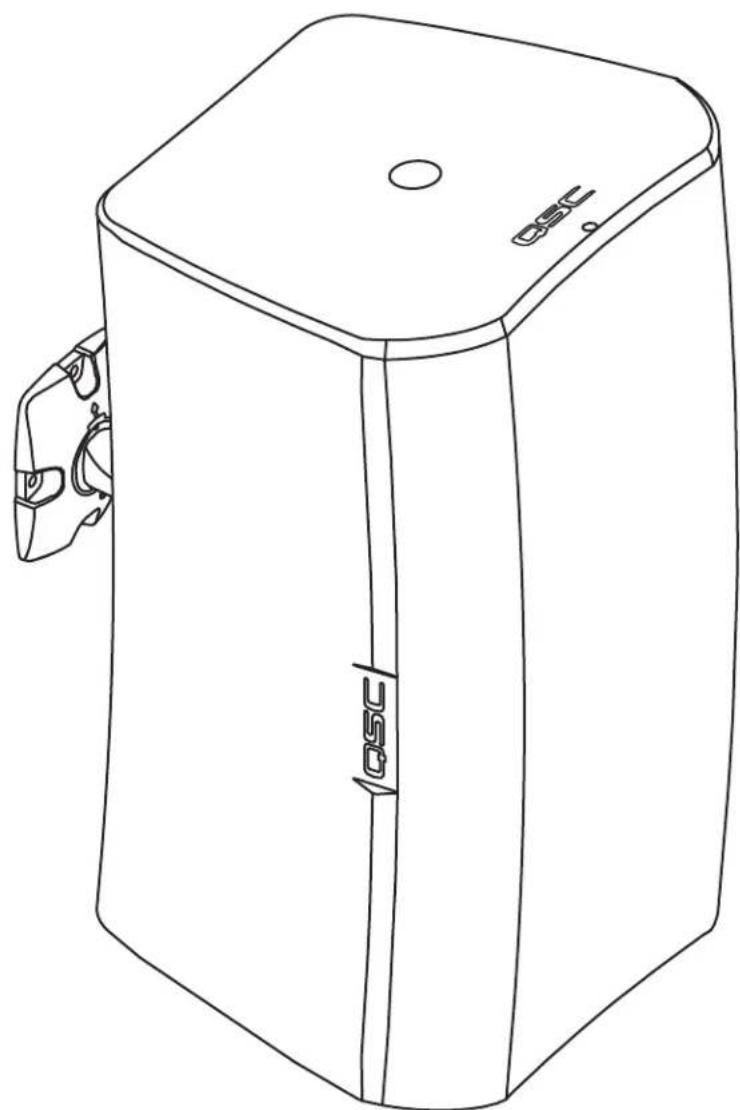

AD-S6T - 6" two-way , foreground/background loudspeaker with 70/100V transformer

AD-S8T - 8" two-way, foreground/background loudspeaker with 70/100V transformer

AD-S10T - 10" two-way, foreground/background loudspeaker with 70/100V transformer

AD-S12-12" two-way, foreground/background loudspeaker

AD-S112sw-12" direct-radiating subwoofer

TD-000329-00-C

TD-000329-00

EXPLANATION OF SYMBOLS

The term "WARNING!" indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.

The term "CAUTION!" indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.

The term "IMPORTANT!" indicates instructions or information that are vital to the successful completion of the procedure.

The term "NOTE" is used to indicate additional useful information.

NOTE: The intent of the lightning flash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous" voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans.

NOTE: The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating and maintenance instructions in this manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

WARNING: While it is possible for one person to lift a loudspeaker, it is important to use proper lifting techniques. Suggested reading: OSHA Technical Manual on Back Disorders and Injuries (http://www.osha.gov/dts/osta/otm/otm_vii/otm_vii_1.html#app_vii:1_2).

• Keep these instructions.
  Heed all warnings.
• Follow all instructions.
  Clean only with a dry cloth.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Only use attachments/accessories specified by the manufacturer.
  Refer all servicing to quali ed service personnel.
• Adhere to all applicable, local codes.
• Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

Introduction

AcousticDesign series is a line of premium surface-mount loudspeakers intended for permanent installation applications. Housed in rugged ABS molded enclosures, each loudspeaker (except the AD-S12 and AD-S112sw) features a 70/100V transformer for use with distributed-audio lines. The unique X-Mount™ Bracket and Euro-style connector, supplied with each AcousticDesign loudspeaker, are designed for maximum flexibility and a quick install. Featuring a knurled ball-mount and discrete angle deployment marks, installers can set loudspeaker deployment angles quickly and securely. The Euro-style connector allows pre-wiring of the system and when combined with the quick "snap-on" deployment of the loudspeaker to the mount, installation is completed in a fraction of the time required versus competitive models.

Unpacking

Package Contents

1. Quick-Start Guide
2. AcousticDesign Loudspeaker

3. Euro-style Connector, 4-pin

4. Terminal Weather Protection Cover

5. Phillips Screws (4) M4 (Terminal Weather Protection Cover)
6. X-Mount™ Bracket (Yoke Mount for AD-S112sw)

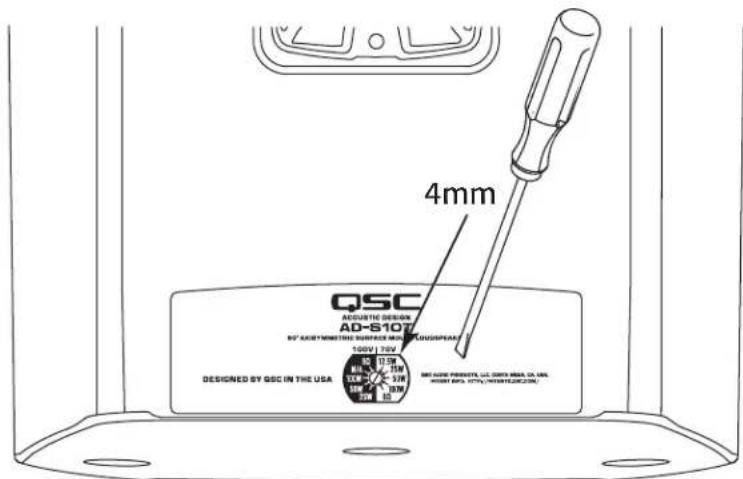

Set the Transformer Tap Switch

Refer to - Figure 1

1. Insert a 4mm fl at-tip screwdriver into Transformer Tap hole and engage the slot.
2. At fully clockwise the transformer is in 8 -bypass.

AD-S10T

100 Volt 70	Volt
8 Ω8 Ω
N/A 100W
100W 50W
50W 25W
25W 12.5W

Figure 2

Figure 1

AD-S6T, AD-S8T

100 Volt 70	Volt
8 Ω8 Ω
N/A 60W
60W 30W
30W 15W
15W 7.5W

Figure 3

EN

Mount the Loudspeakers

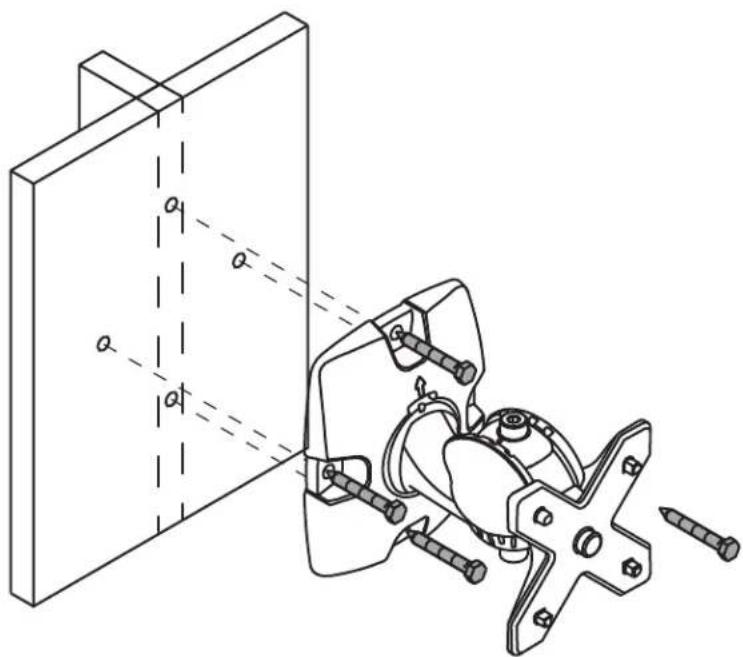

Install the X-Mount™ Bracket

Refer to - Figure 4

WARNING! Install the system in accordance with local building codes and regulations. Use a licensed contractor or professional engineer. QSC Audio Products is not responsible for damages resulting from the negligent installation of any bracket or loudspeaker.

1. Mount to a surface capable of supporting the weight of the loudspeaker.

Figure 4

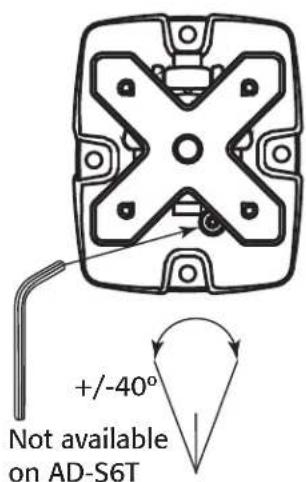

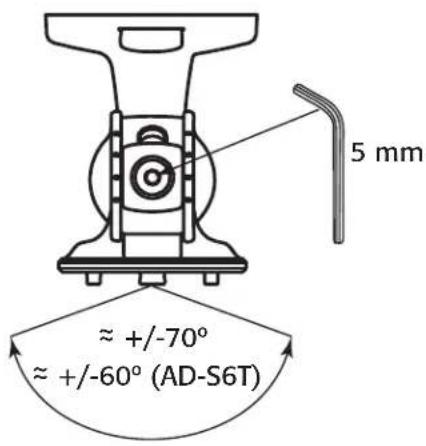

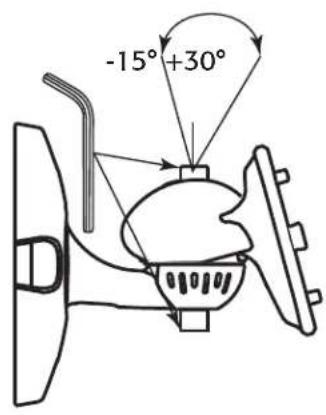

Adjust the Angle of the X-Mount™ Bracket

Refer to - Figure 5

NOTE: This step may be done now or after mounting the loudspeaker.

1. Use a 5mm hex wrench to loosen the adjustment locking screws.
2. Orient the bracket as necessary.

SIDE

TOP

FRONT
Figure 5

1. Tighten the adjustment locking screws.

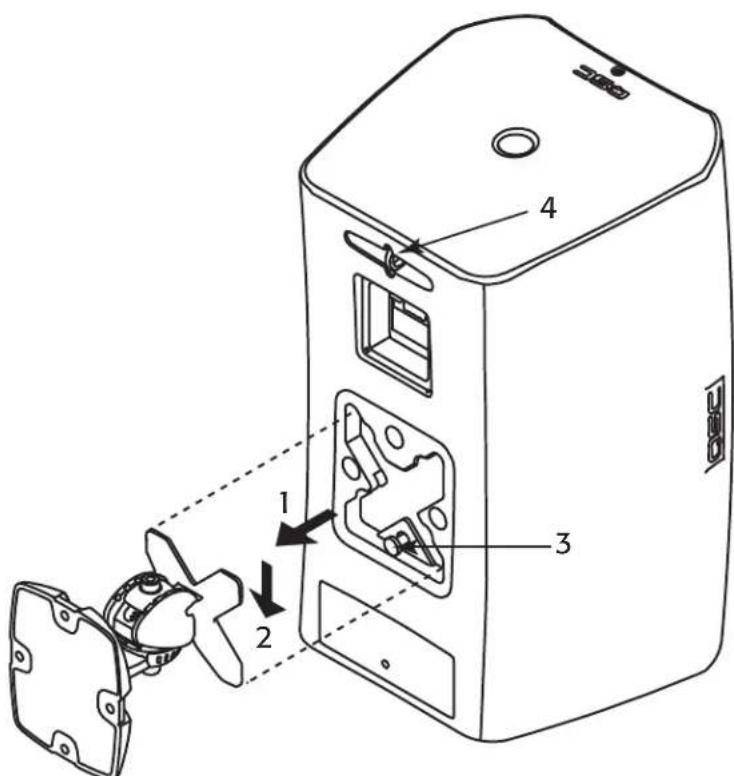

Mount the Loudspeaker on the Bracket

Refer to - Figure 6.

NOTE: The loudspeaker can be placed on the mount in ANY direction (Up, Down, Left, Right).

1. Align the "X" slot with the X-Mount™ bracket and push the loudspeaker onto the bracket. (1)
2. When seated, pull the loudspeaker down to lock the loudspeaker onto the bracket. (2)
3. (Optional) Remove and retain the security tab (3); pull straight out. To remove the loudspeaker, re-install the security tab, press in and then remove the loudspeaker.

Connect a Safety Tether (Not supplied)

WARNING: DO NOT connect the tether to the mounting bracket or the screws holding the mounting bracket.

1. It is recommended that you connect a safety tether from the safety ring (4) on the back of the loudspeaker to a spot on the wall that is structurally sufficient to hold the weight of the loudspeaker in the event the loudspeaker should fall.

Figure 6

EN

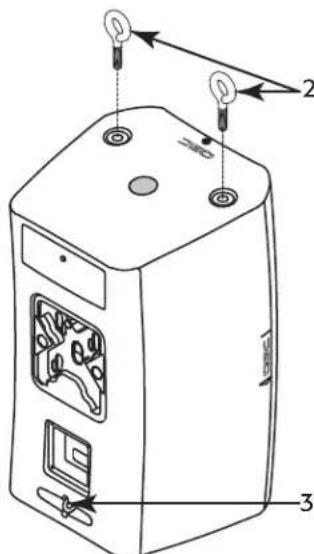

Suspend the Loudspeaker

Refer to - Figure 7

WARNING!: Suspend the loudspeaker in accordance with local building codes and regulations. Use a licensed contractor or professional engineer. QSC Audio Products is not responsible for damages resulting from the negligent installation of suspension cabling, or loudspeaker.

The AcousticDesign loudspeakers (models AD-S8T, AD-S10T and AD-S12) may be suspended using the pullback point and M10 eyebolts you install at the bottom of the enclosures.

NOTE: Suspending the enclosure woofer side up positions the HF closer to the listener and helps improve bass response when coupled against the ceiling and wall planes.

1. Remove 2 M10 plugs (not shown) from the bottom of the loudspeaker enclosure.
2. Install two M10-1.5 eyebolts (2) (accessory M10 Kit-C) in the M10 installation points on the bottom of the loudspeaker enclosure.
3. Attach an appropriate cable to the tether Safety Ring (3) for the pull-back point.

Figure 7

Yoke-mount the Loudspeaker

In addition to the mounting methods listed above, you can mount the loudspeaker using the optional Yoke mounting kit Refer to instructions provided in the Yoke kit. See the "Specifications" on page 12 for information.

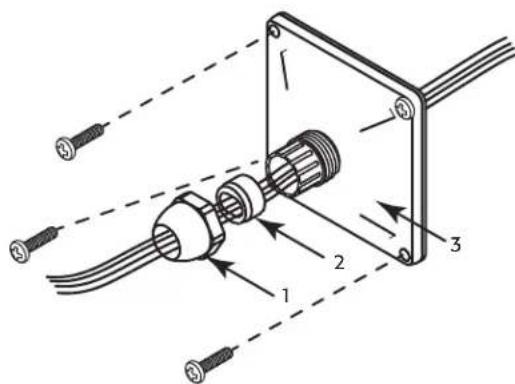

Install the Weather Cover (Optional)

Refer to - Figure 8

1. Slide the nut (1), compression gasket (2), and weather cover / gasket (3) over the wiring for the loudspeaker.
2. Terminate the wiring to the Euro-style connector, refer to "Wire the Loudspeaker" on page 6
3. Install the Euro-style connector.
4. Slide the weather cover/gasket (3) up next to the connection box, use a small amount of wire, inside the cover, to provide strain relief.
5. Attach the weather cover to the enclosure with four screws (supplied).
6. Slide the compression gasket (2) into the weather cover receptacle.
7. Slide the nut over the weather cover receptacle and tighten.

Figure 8

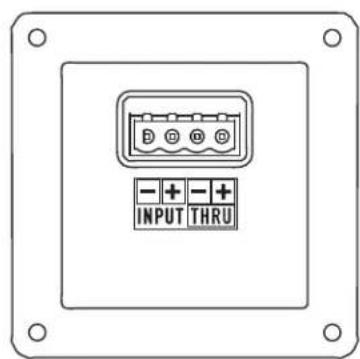

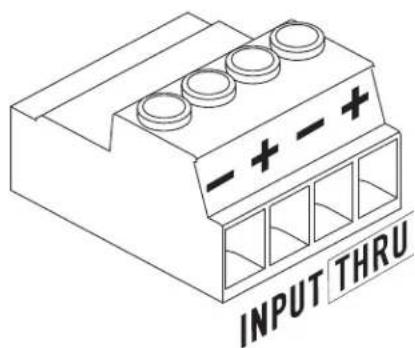

Wire the Loudspeaker

Use up to 12 gage wiring as appropriate. Refer to - Figure 9.

1. If you are using the optional weather cover, make sure the wiring is inserted through all three parts of the weather cover in the proper order.
2. Install the negative and positive wires in the "Input" + / - as shown. Tighten the wire-clamp screws.
3. Install the daisy-chaining wires into the "Thru" +/- as shown. These wires go to the next loudspeaker in the daisy-chain.

Figure 9

Remove the Loudspeaker

1. Make sure all the wiring is disconnected, and the safety tether is removed.
2. If the security tab, located at the base of the loudspeaker mount, has NOT been removed, push the tab in and slide the loudspeaker in the opposite direction of how it was installed.
3. If the security tab has been removed, re-insert it, or use a small rod (< 4mm / 0.16^ ) to push in and release the mount lock.

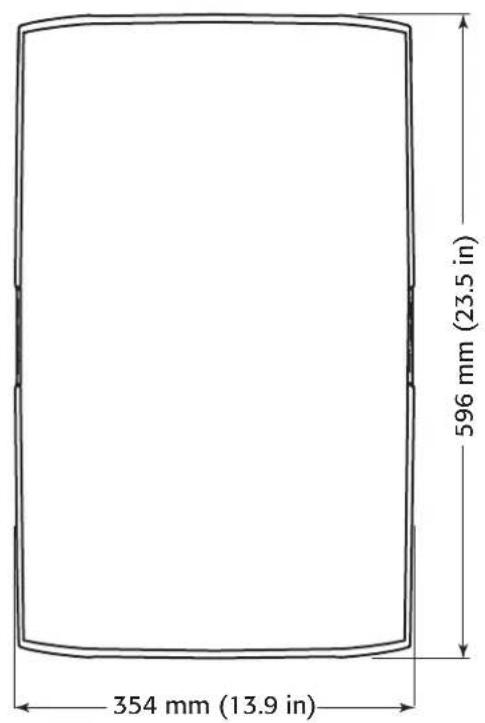

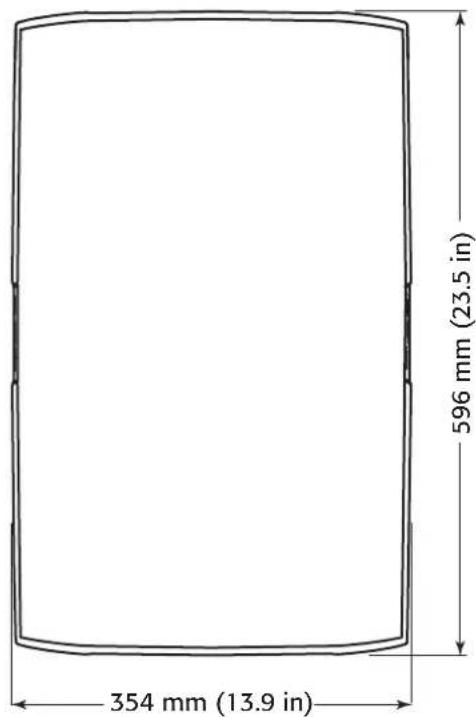

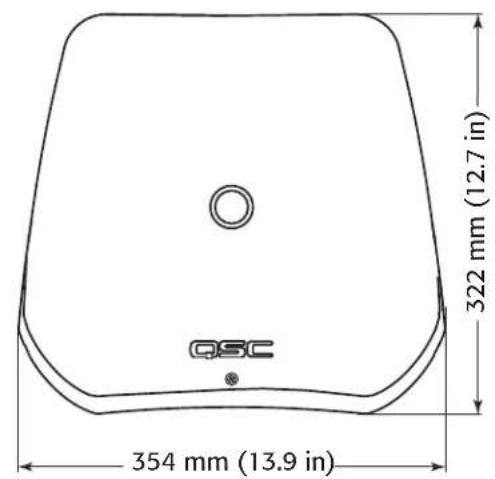

AD-S12 Dimensions

Figure 10

EN

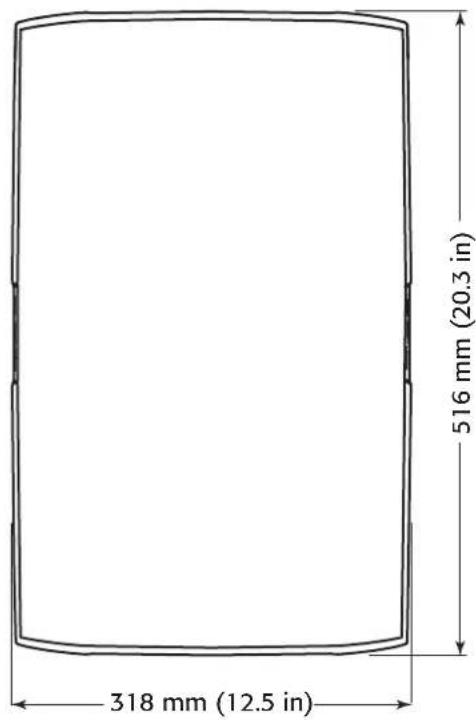

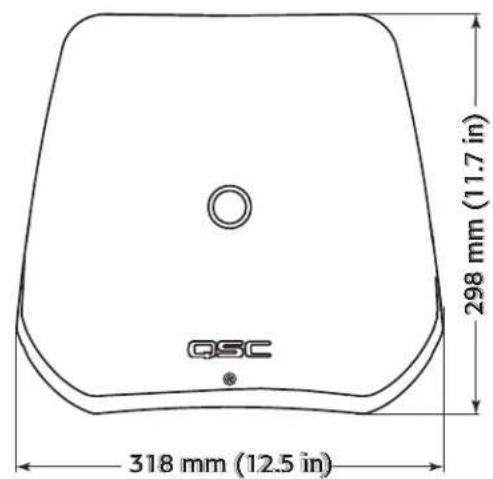

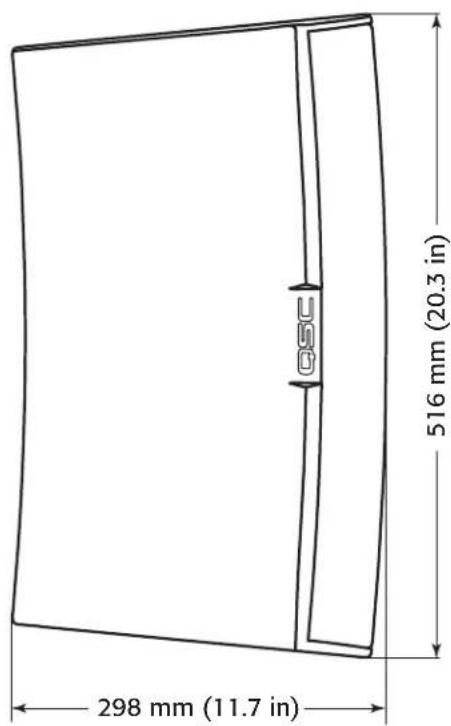

AD-S10T Dimensions

EN

Figure 11

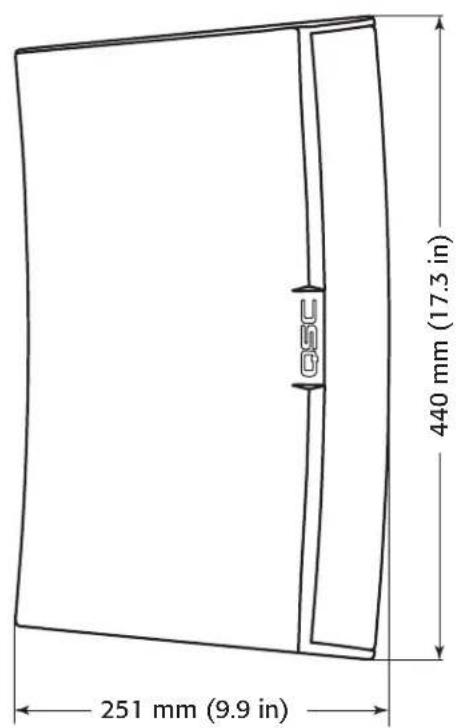

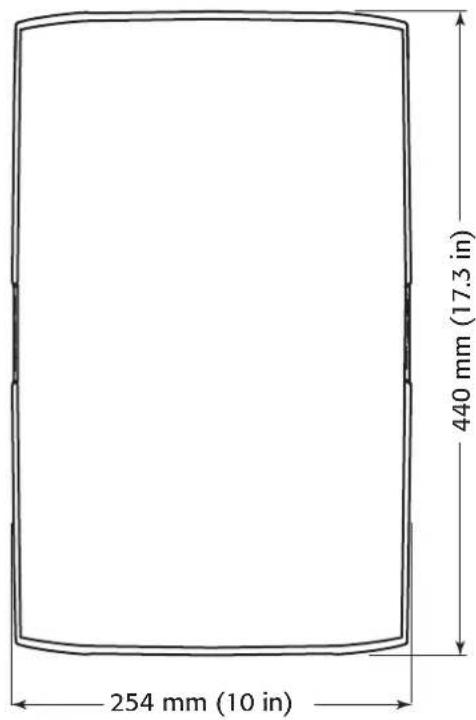

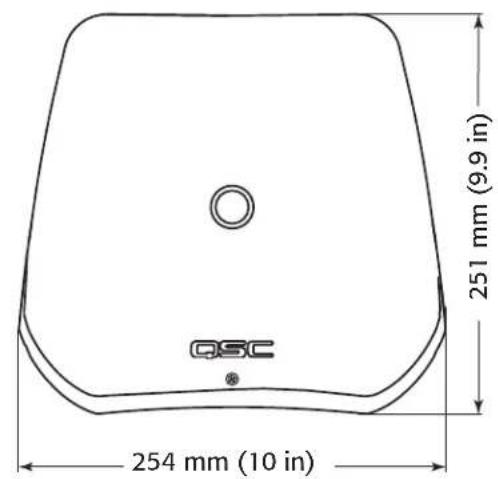

AD-S8T Dimensions

Figure 12

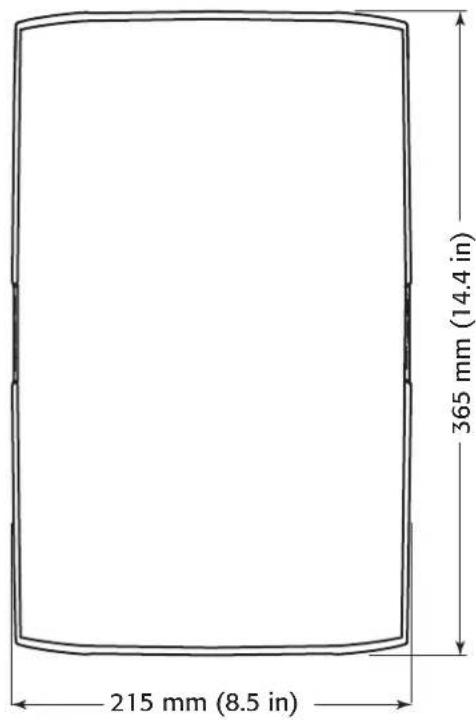

AD-S6T Dimensions

EN

Figure 13

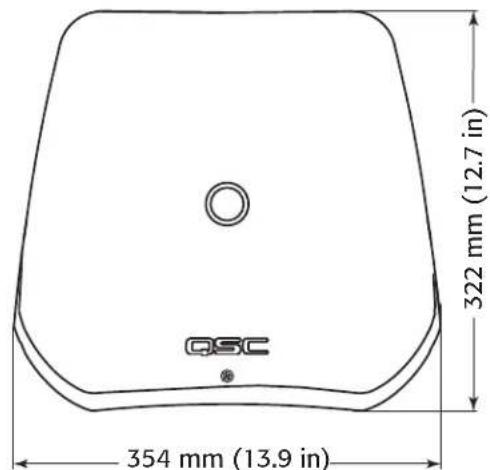

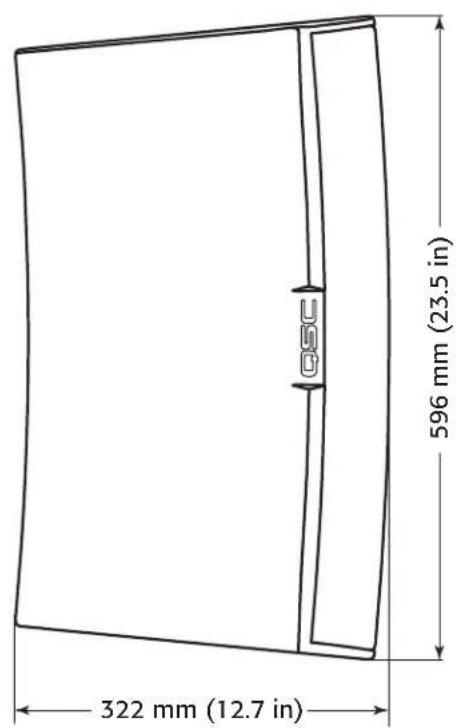

AD-S112sw Dimensions

Figure 14

EN

Specifications

AD-S6T AD-S8T AD-S10T

Confi guration 6" 2-way with transformer 8" 2-way with transformer 10" 2-way with transformer
Effective Frequency Range (-10 dB)1	60 - 20 kHz 55 - 20 kHz 50 - 19 kHz
Rated Voltage / Power2	35 Vrms / 150 W 40 Vrms / 200 W 45 Vrms / 250 W
Broad-band Sensitivity3	89 dB SPL 90 dB SPL 92 dB SPL
Coverage Angle (-6 dB)4	105° 105° 90°
Directivity Factor (Q) 5	7		10
Directivity Index	7 dB 9 dB	10 dB
Maximum SPL Continuous (1 m)5	110 dB	113 dB	116 dB
Maximum SPL Peak (1 m)5	116 dB	119 dB	122 dB
Nominal Impedance	8Ω	8Ω	8Ω
Recommended Amplifier Power	300 W	400 W	500 W
Transformer Tap 70 V	60, 30, 15, 7.5 W and 8Ω bypass	60, 30, 15, 7.5 W and 8Ω bypass	100, 50, 25, 12.5 W and 8Ω Bypass
Transformer Tap 100 V	60, 30, 15 W and 8Ω bypass	60, 30, 15 W and 8Ω bypass	100, 50, 25 W and 8Ω Bypass
High-frequency Transducer	1" silk dome tweeter / 1" voice-coil horn loaded	1" Exit / 1.4" Voice-coil Compression Driver	1" Exit / 1.4" Voice-coil Compression Driver
Low-frequency Transducer	6" weather resistant paper cone woofer, 38 mm / 1.5" voice-coil	8" Weather Resistant Paper Cone Woofer, 50 mm / 2" Voice-coil	10" Weather Resistant Paper Cone Woofer, 64 mm / 2.5" Voice-coil
Input Connector	Euro-style Connector with Parallel Output
Enclosure Details
Material	ABS Polymer
Finish	Black RAL 9011 or White RAL 9010 Paint
Grille	Powder-coated Aluminum
X-Mount Material	Powder-coated Aluminum
Ingress Protection	Meets IP-54 for dust and splash resistance.
Operating Environment	Designed for indoor and outdoor use
Operating Temperature Range	-20 to 50 °C / -4 to 122 °F
Testing: Qualifi ed for outdoor use using the following tests:	Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
	Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
	High and low temperature: tested to QSC internal standards between -20° and 50°C
Weight (Net)	6.2 kg / 13.6 lbs	11 kg / 24 lbs	14 kg / 31 lbs
Dimensions (HWD)	365 mm x 215 mm x 215 mm	440 mm x 254 mm x 251 mm	516 mm x 318 mm x 298 mm
	14.4" x 8.5" x 8.5"	17.3" x 10.0" x 9.8"	20.3" x 12.5" x 11.7"
Included Accessories	X-MountTM system, Euro-style connector, input panel cover	X-MountTM system, Euro-style connector	X-MountTM system, Euro-style connector
Optional Accessories	N/A	Yoke Mount Bracket Kit – YMS8T-WHT / YMS8T-BLK M10 Kit-C	Yoke Mount Bracket Kit – YMS10T-WHT / YMS10T-BLK M10 Kit-C

1 Free-field, -10 dB from on-axis sensitivity
2 IEC60268-1 noise signal for 2 Hrs
3 On-Axis, free-field sensitivity, 2.83V, 1 m

4 Coverage angle measured with 3 - 10 kHz bandwidth

5 Calculated from rated noise voltage and sensitivity

Specifications

AD-S12 AD-S112sw
Confi guration 12" 2-way 12" direct-radiating subwoofer
Effective Frequency Range (-10 dB)1	52 - 20 kHz 30 - 135 Hz
Rated Voltage / Power2	50 Vrms / 300 W 50 Vrms / 300 W
Broad-band Sensitivity3 95 dB SPL 90 dB SPL
Coverage Angle (-6 dB)4	75° M10 Kit-C
Directivity Factor (Q) 12 N/A
Directivity Index 11 dB	N/A
Maximum SPL Continuous (1 m)5	120 dB 115 dB
Maximum SPL Peak (1 m)5	126 dB 121 dB
Nominal Impedance	8Ω 8Ω
Recommended Amplifier Power	600 W 600 W
Transformer Tap 70 V	N/A N/A
Transformer Tap 100 V	N/A N/A
High-Frequency Transducer	1" Exit / 1.4" Voice-coil Compression Driver N/A
Low-frequency Transducer	12" Weather Resistant Paper Cone Boofer, 64 mm / 2.5" Voice-coil 12" weather resistant paper cone woofer, 64 mm / 2.5" voice-coil
Input Connector	Euro-style Connector with Parallel Output
Enclosure Details
Material	ABS Polymer
Finish	Black RAL 9011 or White RAL 9010 Paint Black RAL 9011 Paint
Grille	Powder-coated Aluminum
Yoke Material	Powder coated galvanized steel
Ingress Protection Meets IP-54 for dust and splash resistance.
Operating Environment	Designed for indoor and outdoor use
Operating Temperature Range	-20 to 50 °C / -4 to 122 °F
Testing: Quali ed for outdoor use using the following tests:	Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low temperature: tested to QSC internal standards between -20° and 50°C
Weight (Net)	16 kg / 35.0 lbs 13.2 kg / 29 lbs
Dimensions (HWD)	596 mm x 354 mm x 323 mm 596 mm x 354 mm x 322 mm 23.5" x 13.9" x 12.7"
Included Accessories	X-MountTM system, Euro-style connector 596 mm x 354 mm x 323 mm 23.4" x 13.9" x 12.7"
Optional Accessories	Yoke Mount Bracket Kit - YMS12-WHT / YMS12-BLK M10 Kit-C M10 Kit-C

1 Free-field, -10 dB from on-axis sensitivity
4 Coverage angle measured with 3 - 10 kHz bandwidth
2 IEC60268-1 noise signal for 2 Hrs
5 Calculated from rated noise voltage and sensitivity
3 On-Axis, free-field sensitivity, 2.83V, 1 m
