IAN 93019 - Wristwatch AURIOL - Free user manual and instructions

Product type	Automatic wristwatch
Brand	Auriol
Model	IAN 93019
Movement	Automatic movement (self-winding by wrist motion)
Water resistance	5 bars (50 meters) according to DIN 8310
Main functions	Time display (hours, minutes, seconds), second time zone with 24h display, day/night indicator
Display	Hands (hours, minutes, seconds), 24h dial for second time zone
Winding	Automatic; manual winding by crown (position G)
Time setting	Crown in position F: clockwise rotation to set the second time zone, then counterclockwise for the main time
Warranty	3 years from purchase date, service by digi-tech gmbh
Customer service	DE 0080055156616, AT 0080055156616, CH 0800563862
Care	Cleaning with a dry, lint-free cloth
Safety	Keep out of reach of children; risk of suffocation from plastic packaging
Intended use	Time display and additional functions as described; private use, not commercial
Supplier	digi-tech gmbh, Volterweg 27A (not service address)
Repairability	Repair by a qualified watchmaker recommended annually
Movement	Automatic, no battery

Frequently Asked Questions - IAN 93019 AURIOL

What is the movement type of the Auriol IAN 93019 watch?

The watch is equipped with an automatic movement that winds itself through wrist movements. It does not require a battery.

How do I manually wind the watch?

Make sure the crown is in position G (start). Turn it 10 to 15 times clockwise.

How do I set the time and the second time zone?

Pull the crown to position F. Turn clockwise until the 24h hand (second time zone) is at 24. Then turn counterclockwise to set the main time.

What is the water resistance of this watch?

The watch is water-resistant up to 5 bars (50 meters) according to DIN 8310. This allows use in rain or when washing hands, but not swimming.

How do I care for the watch?

Clean it with a dry, lint-free cloth, like for eyeglass lenses. Avoid contact with chemicals.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not wearing parts.

What to do in case of a problem with the watch?

First contact customer service at the numbers given: DE 0080055156616, AT 0080055156616, CH 0800563862. Have your receipt and article number (93019) ready.

Can I swim with this watch?

No, the 5-bar water resistance allows resistance to splashes but not swimming or diving. Avoid exposing it to high water pressure.

Does the watch work without a battery?

Yes, it is a mechanical automatic movement. No battery is needed; energy comes from wrist movements or manual winding.

Where to find the model number?

The model number (IAN 93019) is found on an identification plate, an engraving, or a label on the back of the watch.

USER MANUAL IAN 93019 AURIOL

Usage and safety information

IAN 93019

AT CH

Usage and safety information. 19

3 BAR	✓	×	×	×
5 BAR	✓	✓	×	×
10 BAR	✓	✓	✓	×
20 BAR	✓	✓	✓	✓

3 BAR	✓	×	×	×
5 BAR	✓	✓	×	×
10 BAR	✓	✓	✓	×
20 BAR	✓	✓	✓	✓

Important indication 14

3 BAR	✓	×	×	×
5 BAR	✓	✓	×	×
10 BAR	✓	✓	✓	×
20 BAR	✓	✓	✓	✓

Usage and safety information

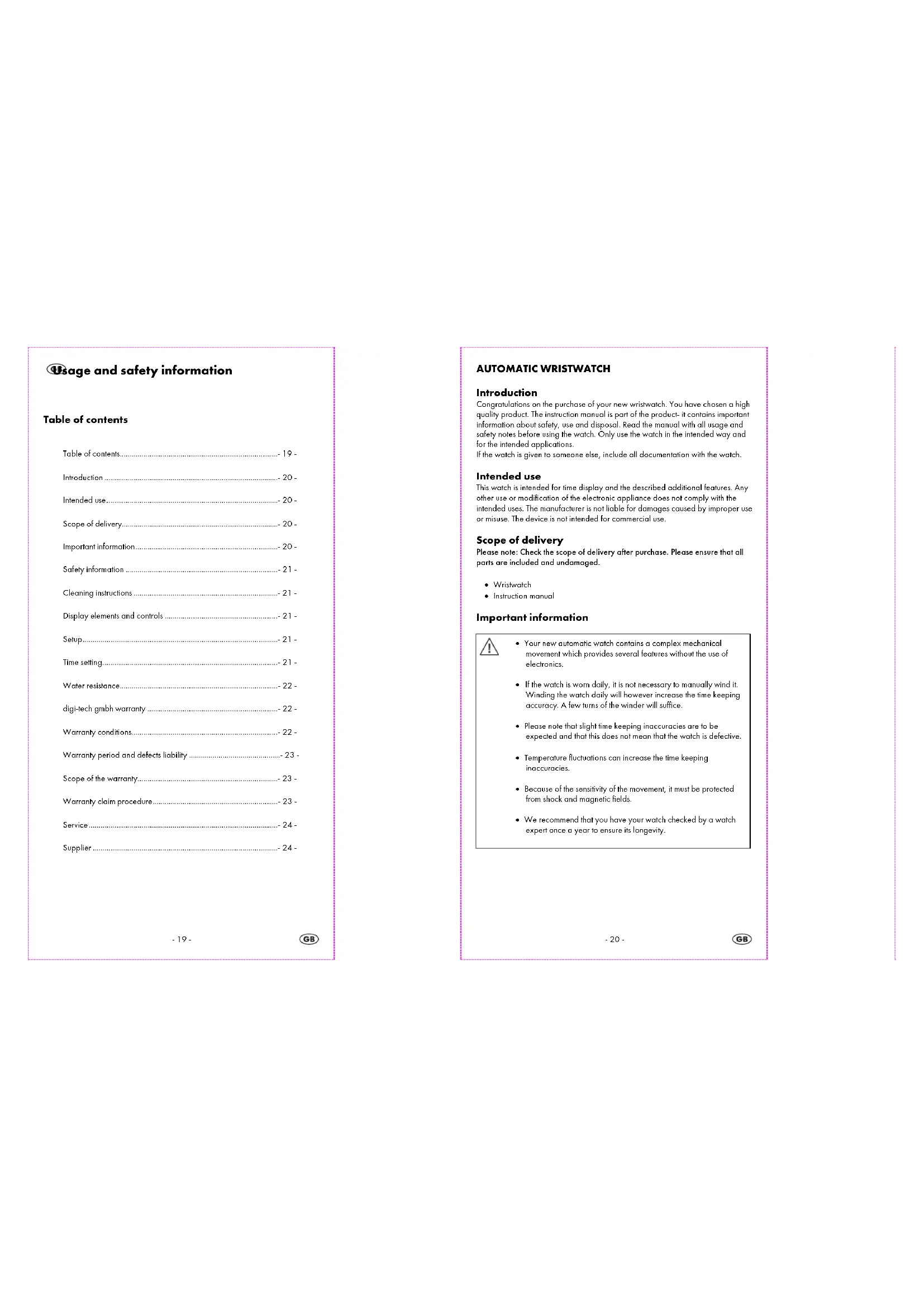

Table of contents

Table of contents. 19

Introduction 20

Intended use 20

Scope of delivery 20

Important information. 20

Safety information 21

Cleaning instructions 21

Display elements and controls 21

Setup 21

Time setting. 21

Water resistance. 22

digi-tech gmbh warranty 22

Warranty conditions. 22

Warranty period and defects liability 23

Scope of the warranty. 23

Warranty claim procedure 23

Service 24-

Supplier 24-

AUTOMATIC WRISTWATCH

Introduction

Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product-it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications.

If the watch is given to someone else, include all documentation with the watch.

Intended use

This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• Wristwatch

• Instruction manual

Important information

• Your new automatic watch contains a complex mechanical movement which provides several features without the use of electronics.
• If the watch is worn daily, it is not necessary to manually wind it. Winding the watch daily will however increase the time keeping accuracy. A few turns of the winder will suffice.
  Please note that slight time keeping inaccuracies are to be expected and that this does not mean that the watch is defective.
• Temperature fluctuations can increase the time keeping inaccuracies.
• Because of the sensitivity of the movement, it must be protected from shock and magnetic fields.
  We recommend that you have your watch checked by a watch expert once a year to ensure its longevity.

Safety information

The wristwatch should not be in the hands of children The wristwatch should not be in the hands of children Never let children use electrical devices unsupervised. Children can't always recognize the possible dangers properly. Also keep the packaging foils away from children. Danger of suffocation.

Cleaning instructions

Clean the product with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Display elements and controls

A hour hand D minute hand
B 24-hour time display (second time zone)	E Day and night display
C second hand F winder in setting position
G winder in initial position [winding]

Setup

While wearing the watch, the normal motions of your arm will wind the movement. When using the watch for the first time or after it has not been worn for a while, the watch must be wound manually. Ensure that the winder is in the initial position (G) and turn the winder 10-15 turns in the clockwise direction. Now continue with the settings.

Time setting

Carefully pull the winder to the setting position. Turn the winder clockwise (hands move backward), until the hand of the 24-hour display (second time zone) stops at the 24 position. Now set the difference between your main time zone bei turning the winder clockwise only (please see the following examples).

-21

GB

Example for England

Main time zone Germany: Time zone +1 Second time zone England: Time zone

Time difference between Germany and England: +1 hours to Turn the crown clockwise until:

SSeandd1frreroneeor24

D

Example for Japan

Main time zone Germany: Time zone+1
Second time zone Japan: Time zone +9 Time difference between Germany and Japan-8 hours Turn the crown clockwise unit:
5Scuundfinsgcoe 224

Ddogrodolghghtdhjdpnepfofoqgtg

Now turn the winder counter clockwise [hands move forward], until the correct time is set. Press the winder back to the initial position.

Water resistance

Water resistant up to 5 bar. The bar value specifies the atmospheric overpressure which is applied during testing [DIN 8310].

3 BAR	✓	x	x	x
5 BAR	✓	✓	x	x
10 BAR	✓	✓	✓	x
20 BAR	✓	✓	✓	✓

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

-22

GB

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass.

This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired.

For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided.

The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

Have your receipt (as proof of purchase) and the article number (93019) handy.
The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
In case defects occur, please contact this service center (see below) by phone or email.

Visit www.idli-service.com to download this and many other manuals, product videos and software.

-23

Service

Telephone:[phone]

Based in: Germany

DE 0080055156616
AT 008005515A616
CH 0800563862

AN93019

Supplier

Please note that the following address is not a service address. Please first contact the service address (see above).

Name: digi-tech gmbh

Street:Valterweg27A

Town:Eppstein 65817

Country: Germany

-24

digi-tech gmbh

Volerweg 27A

D-65817 Eppstein
