USER MANUAL VHD 166 I86S HOOVER

Washing machine Instructions for use

Touche "Selection Essorage" H

Ecran Inter@ct L

Touche "Selection Température" N

ANNULATION D'UN PROGRAMME

Option "REPASSAGE FACI

Please read these instructions for use carefully and all other information enclosed with the washing machine.

Keep all documentation in a safe place for future reference or for any future owners.

Note: this machine is solely for domestic use.

Notes on disposal

All packaging material used is environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means.

Your supplier or local council will be able to give you details of current means of disposal.

Valuable materials can be salvaged from an old appliance via scrap reprocessing.

Note: pull out the mains plug from any old appliance. Cut the power cable and dispose of it, together with the plug.

When disposing of an old washing machine, please ensure that the door lock is rendered inoperable to prevent children shutting themselves in the appliance.

Contents Page

Introduction 38

General delivery notes 40

Safety notes 40

Quick start 41

Using inter@ct for the first time 42

A detailed guide around your Inter@ct menu 44

Description of controls 47

Programme Table 54

Programme selector 56

Detergent drawer 59

Detergents, washing aids and amounts to use 60

Useful advice for the user 61

The main wash 62

Cleaning and routine maintenance 64

Investigating malfunctions 66

Technical data 67

Setting up + installation 68

BEFORE SWITCHING ON THE APPLIANCE MAKE SURE IT IS CORRECTLY INSTALLED AND THAT THE TRANSIT BRACKETS ARE REMOVED AS SHOWN IN PAGE 68.

General delivery notes

Please check that the following items are delivered with the appliance:

• Instruction manual
  Certificate of guarantee
• Inlet hose
  Liquid detergent or liquid bleach compartment

Check that no damage has occurred during transit, and if so, call your nearest Authorised

Technical Support Service agent.

Safety notes.

Note: for cleaning or maintenance of the washing machine.

A) Pull out the plug
B) Turn off the tap
C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person.
D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet.
E) The use of adapters, multiple connectors and/or extensions is not recommended.

Note: water temperature can reach 90^ during the wash cycle.

F) Check there is no water left in the drum before opening the door.
G) Do not allow children or unauthorised persons to use the appliance without supervision.
H) Do not pull the power cable or the appliance itself to remove the plug from the socket.
1) The appliance must not be exposed to weather conditions (rain, direct sun, etc...)
L) When moving the appliance never lift it by the controls or by the detergent drawer. When in transit never rest the door against the trolley or transport the appliance without the polystyrene base.

M) N.B!

If the appliance is installed on a carpeted floor ensure that the ventilation holes on the base of the appliance are not obstructed.

N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.

Consult only the Authorised Technical Support Service for possible repair and ask them to use original spare parts.

Failure to comply with the above can compromise the safety of the appliance.

O) If the appliance's power cable should ever need replacing, consult the Authorised

Technical Support Service

Quick start

Washing

• Press the button inside the door handle to open the door.
• Select laundry and put it in the machine.
• C lose the door.
  Put detergent in the dispenser compartments, compartment 1 for pre wash and compartment 2 for all other programmes.
• Select programme by turning the programme knob (Your desired programme may be seen on the display).
• Select any function buttons required and then press the Start/Pause button.
• There may be a short time delay from pressing the start/pause bottom to the start of the programme, while the machine senses the water required and sets the parameters for the programme.

When the programme has finished

• The display will read "DOOR LOCKED-WAIT TO OPEN".
• After 2 minutes the display will read "PROGRAM ENDED - DOOR OPEN"
• Switch off the machine by turning the control knob to the off position.
• O pen the door and remove the laundry.
• Disconnect the plug from the mains power supply and turn off the water supply after every 24 h use.

Ensure that the machine is correctly installed in line with the instructions found on page 68.

When using your new Inter@ct for the first time

A quick guide around your Hoover Inter@ct menu:

Connect product up to the electric / water supplies and drainage (see pag. 69). Select any wash programme. After a short time a message will be displayed:

	WELCOME! 0.00
16	COTTON WHITE HEAVY SOIL	90

accurate time can be reset later

this is displayed if prog. 1 is selected

Prior to entering the Inter@ct pre set, remember time is limited while you decide on your options (30 sec. / section). If you run out of time start from this point again. Hold down at the same time the (^) and ( 100) buttons for 5 sec. until screen changes to:

SET CONTRAST

to adjust contrast, press the ( 100) button

Press（ _Temp^

ADOPT LANGUAGE ENGLISH

Press (^_Temp) (This confirm and enters an option)

SET NEW TIME hh:

Press (^ C) Temp

SET NEW TIME mm:

Press (^ C)

SET TIME MODE ABSOLUTE

Press (°C Temp.

to change hours press the (× 100) until correct

to change mins press the (× 100) until correct

if RELATIVE is displayed press (x^100) (This changes a menu option)

SET FINAL BEEP YES

Press (°C Temp.)

ENABLE MEMORY? YES

Press (^ C) temp

SET DEMO MODE? NO

Press (^ C Temp.

EXIT MENU? YES

Press (°C) Terma.

16

COTTON WHITE HEAVY SOIL

90

if NO is displayed press ( 100 )

if NO is displayed press the ( 100)

always select NO, if YES press ( 100)

if NO is displayed press the ( 100

reverts back to the wash programme selected

You are now able to select any wash programme. You can if you wish also set a delay start. Where more detailed information is required refer to the relevant section from the following pages.

A detailed guide around your Inter@ct menu

This machine will operate prior to programming the Inter@ct set up. However, this machine has Start Delay and Programme End functions and for these functions to work efficiently the Inter@ct set must be programmed. This is a simple operation and special care has been taken during manufacture to ensure that the user can operate this machine simply and effectively.

Programming the machine

Inter@ct needs to be programmed so that the correct clock setting, language and personal requirements are set. When the machine is turned on and the programme dial is moved away from the "off" position to the programme selections a welcome message will appear.

WELCOME 00.00

This message is displayed for a short time while the machine recognises which programme has been selected. When the machine is ready, the programme details will appear on the display and from here you may now beging programming the machine.

Example

16

COTTON WHITE HEAVY SOIL

90

Enter the Menu

Prior to entering the Inter@ct menu please note you have 30 seconds per operation to make your selection. Should you run out of time the display will return to the start screen, and you simply have to re-enter the Inter@ct menu at continue with the programming.

From this stage the menu can be programmed. Hold down the (^) and the ( 100) buttons together for 5 seconds or until the beep sounds.

The menu options can be changed by pressing the ( 100) button.

Toconfirm and enter an option press the (^_Temp) button.

Set Contrast

Toadjust contrast. press the ( × 100 ) button.

The contrast level will decrease to a minimum level for each push of the button and then increase to the maximum level.

To enter your selection press the (^) button and the display will then shown if you wish to "Set the language".

Setting the language

Your washing machine is automatically set to English. If you require another language (it is this language you will read when utilising the machine) follow this procedure:

Hold down the (^_ Tamp ) and the (x^100) buttons together for 5 seconds or until the beep sounds to enter the Menu selection the display will then ask you to choose the desired language.

Release the ( 100) and (温) buttons and scroll through the language options by pressing the ( 100) button until you reach the language of your choice.

Release the (x^100) button and press the ( ^*C Temp. ) button to enter your selection.

When you have entered your chosen language, the display will then ask for the "New time" to be set.

Set New Time

This function needs to be set for two reasons: firstly to display the current time of day on the screen and secondly for the programme end/delay start settings to work correctly.

You will notice in the display window that the hours on the clock will be flashing

Set the hours by continually pressing the (× 100) button and then press the (^_Temp.) button to enter the hour.

Next the minutes on the clock will begin to flash, again press the ( 100) button until the required minutes are displayed and press ( C) to input the selection.

When you have Set the New Time, the display will then ask if you wish to "Setting the time mode".

Setting the time mode

There are two ways to select the time mode.

The first is if you wish programme end or delay start to be programmed by starting the actual time you want the programme to end or begin, e.g., programme to end 18.00. This is called Absolute Time Mode.

When utilising the programme end function (or start delay), an example can be seen below when the Absolute Time Mode has been selected in the menu set-up stage.

PROGRAM END 8:00

Therefore, when setting the Programme end time the programme (as shown above) will end at 18.00.

The second is if you wish programme end time or delay start to be programmed by adding hours; e.g., programme to end in 1 12 hours. This is called Relative Time Mode.

When utilising the programme end function (or start delay), an example can be seen below when the Relative Time Mode has been selected in the menu set-up stage.

PROGRAMEND IN 1H3

Both options are very useful, but we feel that the Absolute Time Mode will be more beneficial and easier to use since there will be no need to calculate how many hours you will need to leave before you want the machine to end or start.

On reaching the set time mode you will be asked if you would like to select "Relative" time or by scrolling through using the ( 100) button - "Absolute" time.

Enter the preferred setting by pressing the (^) button

When you have entered your preferred time-mode, the display will then ask for the Enable Final Beeping to be set.

Enable Final Beeping

Here you have the option to have a beeping alarm to let you know the wash cycle has finished. By pressing the (× 100) button you can scroll through the "yes" and "no" options.

To enter your selection press the ( ) button and the screen will then move to the next stage and ask you to "Enable memory" Temp.

Enable Memory

This is a useful feature if you frequently wash laundry using the same programme.

Selecting "Enable Memory" will tell the machine to remember the last programme/functions used and set them in the memory. This function works only on cottons, delicates, synthetics and woolens programme. The memory does not retain settings within the special programme group. Select "Yes" or "No" to this option by using the ( 100) and ( C) button to input the selection.

The display will then shown a message that asks if you require demo mode to be set.

Demo mode

(default setting - NO)

Please set this option to "No" if not done so already - as this is for SERVICE use only.

If the demo mode option is not set on "NO" when exiting the inter@ct menu the wash programme WILL NOT commence. Demo Mode must be set at "NO" for the wash cycle to commence. On entering "No" via the (°C) button you will then be asked if you wish to "Set Contrast".

Set Contrast

To adjust contrast, press the ( 100) button.

The contrast level will decrease to a minimum level for each push of the button and then increase to the maximum level.

To enter your selection press the (^_Temp) button and the display will then show if you wish to "Exit Menu".

Exit Menu

If you are happy with the settings you have selected, you can now exit the menu by selecting "Yes" via the (× 100) and (12) buttons.

However, if you are not happy with any of the settings selected you must select "No" to the exit menu command and you can then commence the programming from the beginning. By pressing the (^_Temp) button you are able to enter and bypass each option individually until you reach the option you would like to re-set.

When you are completely satisfied with your menu selection, you may exit the menu and testing of the installation may now commence.

If, after the initial installation you may want to change of any of the menu at a later date, again run through the menu options from the beginning and change the options you want to reset. This may be useful to change the "Set New Time" when the clocks go forward or back.

Once set, the menu options will remain in the memory of the machine even if the machine is unplugged or if a power cut occurs.

Description of controls

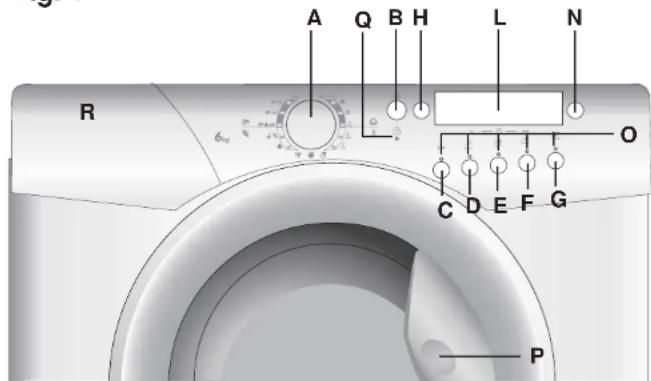

Fig. 1

Programme selector with "OFF" position A

"Start/Pause" button B

"Child Lock" button C

"Pre Wash" button D

"Delay Start" button E

"Extra Rinse" button F

"Crease Guard" button G

"Spin Speed" button H

Display Inter@ct L

Wash temperature button N

Buttons indicator light O

Door handle P

"Door Security" indicator light Q

Detergent drawer R

Description of controls

All of the buttons and dials on the washing machine control panel are listed below.

When you have selected the desired programme and any option buttons, the information you have selected will appear on the screen in the Inter@ct.

When programmes and option buttons are compatible the light above the option button selected remain illuminated. If you select an option button that is not compatible with the programme you require, the button light will not illuminate. To select an option button press it once; to deselect an option button, press it again.

Carefully read the relevant descriptions detailed below:

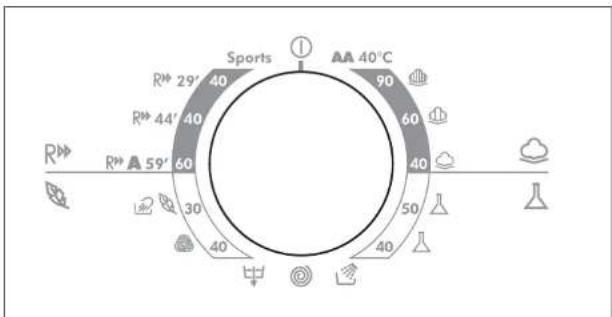

Programme Selector Dial

A

Rotates in both directions

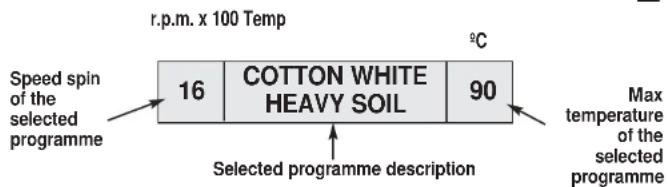

When you turn the programme selector dial and after the welcome message has disappeared, you will see a display showing the following details:

Reading from left to right:

1. The spin speed
2. The programme name
3. The wash temperature

Example

16

COTTON WHITE HEAVY SOIL

90

START/PAUSE Button

#

B

START

Tostart a programme press this button once.

The Inter@ct panel will then display the time to complete the programme and then the wash cycle will commence. Inter@ct calculates the time to the end of the selected programme based upon a standard 6 Kg load, during the cycle. Inter@ct corrects the time to that applicable to the size and composition of the load.

Example

16

END:1H:50M WASHING

90

PAUSE

The programme may be paused at any time during the wash cycle by holding down the Start/Pause button for about 3 seconds and a beep will sound. A message will appear on the display to inform you that the programme has been paused.

Example

16

PAUSED PROGRAM

90

If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door.

To restart the programme press the Start/Pause button once again. The display will inform you that the programme will continue.

CANCEL A PROGRAMME

To cancel the programme turn the programme selector dial to the "OFF" position and then select a different programme. The display will inform you that the programme has been cancelled.

Example

CANCELLED PROGR.

Return the programme selector dial to the "OFF" position.

CHILD LOCK button

C

This is a useful feature to prevent children playing with the option buttons and tampering with the programme you have set.

After you have set the programme and option buttons you require, press start and then programme lock. This "locks" the control panel.

You may cancel this function by pressing the programme lock button briefly until you see the light above the button flash. While this light is flashing, press the "Crease Guard" button - the display will inform you that the options are no longer locked and further changes can now be made.

PRE-WASH button

D

This option is particularly useful for heavily soiled loads and can be used only on some programmes as shown in the programmes table.

Detergent for this programme should be added to the compartment of the soap drawer labelled "1" (Please refer to Detergent Drawer Section of manual). We recommend you use only 20% of the recommended quantities shown on the detergent pack and fabric conditioner should not be used for this programme.

DELAY START button

E

The programme end time/delay start options can be used if you want the washing to be ready at a later time (but within 24 hours).

1. Set delay start

Press delay start/set end time button once and press the hours and minutes buttons (to the left and right) until the required time is set. The display returns to the programme option if the button is pressed within 5 seconds.

Press the start button

To cancel delay start, hold down the button for 5 seconds.

2. Programme end time

Press delay start/set end time button twice and press the hours and minutes buttons (to the left and right) until the required time is set. When entering the programme end option, the display will show the minimum time which you can set the programme to end by. This time may only be extended as you require.

NOTE: When using the delay start/set end time functions, only use detergents and laundry also via the dispenser drawer. Adding detergents etc. to the drum and then leaving them to stand for long period of time may damage your laundry.

EXTRA RINSE BUTTON

F

Thanks to the new electronic system, acting on the button is possible to effect a new special rinse cycle. The addition of a lot of more water and the new action combined of cycles of rotation of the drum with load and unloading of water, allow to get laundry perfectly rinsed.

This function has been studied for the people with delicate and sensitive skin, for which also a least residue of detergent can cause irritations or allergies.

It advises to also use this function for the children items and in case of washings of very dirty items, for which it is due to use a lot of detergent, or in the washing of towelling items whose fibers mostly have the tendency to hold the detergent.

This option is not available on SPECIALS programmes excluding the SPORTS programme.

CREASE GUARD button

G

The Crease Guard function (Not available on COTTON programmes) minimizes creases as much as possible with a uniquely designed anti-crease system that is tailored to specific fabrics.

MIXED FABRICS - the water is gradually cooled throughout the final two rinses with no spinning and then a delicate spin assures the maximum relaxation of the fabrics.

DELICATE FABRICS - final two rinses with no spinning and then the fabrics are left in water until it is time to unload. When you are ready to unload, press the "Crease Guard" button - this will drain.

WOLLENS/SILK - after the final rinse the fabrics are left in water until it is time to unload and the button indicator blinking.

When you are ready to unload, press the "Crease Guard" button, this will drain and spin ready for emptying.

If you do not want to spin the clothes and activate drain only:

• Turn the programme selector to the "OFF" position;
• Select programme drain only 中；
• Switch on the appliance again by pressing the "Start/Pause" button.

SPIN SPEED button x100

On selecting the wash programme the display will inform you of the maximum spin speed permitted for that programme. By repeatedly pressing the select spin button the speed will decrease by increments of 100 rpm. The minimum speed permitted is 400 rpm, or by continuously pressing the select spin option the spin may be cancelled if desired.

Note: this model is fitted with an electronic "sensor" device that checks the load is balanced correctly. If the load is slightly unbalanced the machine will re-balance it automatically to then carry out the normal spin. If, after several attempts, balance is not restored a reduced spin speed will be used. If loads are seriously unbalanced the spin stage will be cancelled. This helps limit vibration, reduce noise and improve the washing machine's reliability and life.

Display INTER@CT

WASH TEMPERATURE button Temp

The Wash Temperature button allows a reduction in the wash temperature in each programme.

Each time the button is pressed the temperature decreases by 10^ until a minimum of 15^ (cold wash).

BUTTONS INDICATOR LIGHT

The indicator light around the option buttons will light when specific options are selected. If you select an option button that is not compatible with the programme you require the button light will not illuminate.

DOOR HANDLE

Press the finger-bar inside the door handle to open the door.

DOOR SECURITY indicator light

The "Door Security" indicator light is illuminated when the door is fully closed and the machine is ON. When "Start/Pause" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.

If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the "Door Security" light has gone out before opening the door. At the end of the cycle turn the programme selector to "OFF".

TABLE OF PROGRAMMES

PROGRAM FOR		PROGRAMMES SELECTOR ON:	DISPLAY INTERCEPT	WEIGHT MAX Kg	TEMP. °C	CHARGE DETERGENT
						2		1
Resistant fabrics		AA 40°C	SPECIAL AA CLASS 40°	6	Up to: 40°	●	●
Resistant fabrics Cotton,linen		90 -	COTTON WHITE HEAVY SOIL	6	Up to: 90°	●	●	(●)
Cotton,mixed resistant		60 -	COTTON COLOURFAST	6	Up to: 60°	●	●	(●)
Cotton		40 -	COTTON NON-FAST	6	Up to: 40°	●	●	(●)
Mixed fabrics and synthetics Mixed,resistant		50 -	SYNTHETICS	3	Up to: 50°	●	●	(●)
Very delicate fabrics		40 -	ACRYLCS	1,5	Up to: 40°	●	●
Specials	RINSE		RINSES ONLY	-	-	△	●
	SPIN		SPIN ONLY	-	-
	DRAIN ONLY		DRAIN ONLY	-	-
	WOOLMARK	-40	WOOLLENS	1	Up to: 40°	●	●
	SILK-HAND WASH	-30	SPECIAL SILK	1	Up to: 30°	●	●
	RESISTANT FABRICS	R»A 59' -60	SPECIAL 59' CLASS A	3	Up to: 60°	●	●
	RESISTANT or MIXED FABRICS	R»A 44' -40	SPECIAL DAILY FAST 44'	3,5	Up to: 40°	●	●
	RESISTANT or MIXED FABRICS	R»A 29' -40	SPECIAL DAILY FAST 29'	2	Up to: 40°	●	●
	MIXED FABRICS	Sports -30	SPECIAL SPORTSWEAR	2.5	Up to: 30°	●	●	●

Please read these notes

When washing heavily soiled laundry it is recommended the load is reduced to 3kg maximum.

• Programme also recommended for low temperature wash (below the indicated Max. temperature). Programmes according to CENELEC EN 60456.
  () Only with the Prewash button selected. (Programmes with Prewash button available)

The spin speed may also be reduced to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button.

The variable temperature selector allows a reduction in the wash temperature in each programme.
When only a limited number of articles have stains which require treatment with liquid bleaching agents, preliminary removal of stain can be carried out in the washing machine. Pour the bleach into the liquid bleach container, inserted into the compartment marked "2" in the detergent drawer, and set the special programme "RINSE". When this phase has terminated, turn the programme selector on the "OFF" position, add the rest of the fabrics and proceed with a normal wash on the most suitable programme.

PROGRAMME SELECTOR

For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and lenght of cycle (see table of washing cycle programmes).

AA SPECIAL PROGRAMME at 40^

This special programme has been studied to allow you to obtain the best washing performance, even at full load, as the 60^ Cotton programme (the normative cycle), but with the advantage of an energy saving due to 40^ temperature, instead of 60^ .

The length of this programme lasts almost the 3 hours.

RESISTANTS FABRICS

The programmes have been designed for a maximum wash and the rinses, with spin intervals, ensure perfect rinsing.

The final spin gives more efficient removal of water.

MIXED AND SYNTHETIC FABRICS

The main wash and the rinse gives best results thanks to the rotation rhythms of the drum and to the water levels.

A gentle spin will mean that the fabrics become less creased.

SPECIAL DELICATE FIBRES

This is a new wash cycle which alternates washing and soaking and is particularly recommended for very delicate fabrics.

The wash cycle and rinses are carried out with high water levels to ensure best results.

SPECIAL "RINSE" PROGRAMME

This programme carries out three rinses with a intermediate spin (which can be reduced or excluded by using the correct button). It can be used for rinsing any type of fabric. eg. use after hand-washing.

This program can be also used as cycle of Bleaching (see table of washing cycle programmes).

90-

60-

40-

50-

SPECIAL "FAST SPIN" PROGRAMME

Programme "Fast spin" carries out a maximum spin (which can be reduced by using the correct button).

DRAIN ONLY

This programme drains out the water.

WOOLMARK PROGRAMME

A programme dedicated to washing fabrics labelled with the woolmark. The cycle comprises of alternate periods of activity and pauses. The programme has a maximum temperature of 40^ and concludes with 3 rinses and a short spin.

SPECIAL SILK PROGRAMME

This washing machine also has a gentle Silk and Hand Wash programme cycle. This programme allows a complete washing cycle for garments specified as 'Hand Wash only' and laundry items made from Silk on the fabric label.

The programme has a maximum temperature of 30^ and concludes with 3 rinses and no final spin.

"A" WASH 59'

This specially designed programme maintains the high quality wash performance identified with the "A" rating whilst greatly reducing the wash time. The programme is designed for a maximum load of 3kg with a temperature of 60^ and concludes with 2 rinses and a high speed spin sequence.

DAILY WASH 40^ - FAST PROGRAMMES

By maintaining exceptional washing performance, these programmes allow you to know in advance the necessary time for your everyday laundry. In fact, this washing machine is equipped with 2 daily rapid programmes at 40^ , that were just studied for lightly soiled fabrics and medium or little load.

60

DAILY WASH 40^ - FAST 44

A complete washing cycle (wash, rinse and spin), able to wash in approximately 44 minutes:

• a maximum load of 3.5kg

• lightly soiled fabrics (cotton and mixed fabrics)

We recommend, with this programme, a 30% detergent loading dose (compared to the normal one), in order to avoid detergent waste.

DAILY WASH 40^ -FAST 29

A complete washing cycle (wash, rinse and spin), able to wash in approximately 29 minutes:

• a maximum load of 2 kg;

• lightly soiled fabrics (cotton and mixed fabrics)

We recommend, with this programme, a 20% detergent loading dose (compared to the normal one), in order to avoid detergent waste.

SPORTS

Hoover has given sports items their own wash care programme.

The washing machine has a unique Sportswear programme. It is specially designed to wash mixed sportswear fabrics that cannot be washed on hotter programmes and is designed to remove the soil and staining created by participation in sports activities. This programme starts with a cold prewash that breaks down and loosens any excess dirt and then washes at a cool 30^ , rinses and spins slowly for the best care of your heavily soiled, delicate garments.

The length of this programme lasts almost the 2 hours.

R 44

40

R29

40

Sports

POWER JET

The HOOVER VISION HD is fitted with an additional pump system called "POWER JET" that sprays water directly into the wash load. This system optimises the dissolving of the detergent and directs it into the garments to be washed. The effect is a perfect wash result, demonstrated by the awarding of the "AA wash classification. During the rinsing cycle the POWER JET constant flow of clean water is used to totally remove all detergent residue from the garments.

Auto Half Load

The washing machine is fitted with a self adjusting water level system.

This system enables the machine to use only the right amount of water needed to wash and rinse the laundry in relation to the particular load.

This results in a reduction of the water and electricity used, without in any way compromising the washing and rinsing performance.

In fact the amount of water and electricity used will always be appropriate for the clothes load.

The washing machine automatically ensures excellent washing results at minimum cost whilst respecting the environment.

Detergent drawer

The detergent drawer is split into 3 compartments:

• the compartment labelled "1" is for prewash detergent;
• the compartment labelled " for special additives, fabric softeners, fragrances, starch, brighteners etc;
• the compartment labelled "2" is for main wash detergent.

If liquid detergents are used, please insert the special container supplied into the compartment marked "2" in the detergent drawer. This ensures that the liquid detergent enters the drum at the right stage of the wash cycle.

This special container must be inserted into the compartment marked "2" in the detergent drawer, also when you wish to use the "RINSE" programme as BLEACHING cycle.

NOTE:

Some Detergents are Difficult to utilise. Ensure to use an in drum dispenser if recommended by the detergent Manufacturer.

Note: only put liquid products in the compartment labelled " Ⓒ". The machine is programmed to automatically take up additives during the final rinse stage for all wash cycles.

Detergents, washing aids and amounts to use

Choice of detergent

General purpose detergents

• Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry.
  Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil. These detergents are not suitable for washing stained laundry, as they do not contain bleach.
  Biological detergents, not all the products available give a really thorough wash.

Additional laundry aids

Water softener, means less detergent can be used where water hardness is classed as hard to very hard.
- Prewash substances, for the programmed treatment of stains prior to the main wash. Using them means the subsequent wash can be at a low temperature or with bleach-free detergents.
Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics. If you own a tumble dryer, clothes are softened even without the use of a fabric softener.

Do not put solvents in the washing machine!

Keep detergents and other laundry products out of children's reach. Before pouring in the detergent check that there are no foreign bodies in the detergent drawer.

Dosage details are usually shown on the detergent packaging. Follow those instructions.

Dosages

Only use detergents which are suitable for use in a washing machine.

You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

• water hardness: depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.
• the degree of soiling: it is possible to reduce the amount of detergent used depending on the degree of soiling.
• amount of laundry: it is possible to reduce the amount of detergent when washing only a small amount of laundry.

Dosage for powder detergent

For normal and low concentration detergents: for normally soiled laundry choose a programme without prewash.

Put the detergent in compartment "2" of the drawer.

For heavily soiled laundry, choose a programme with prewash. Put 1/4 of the detergent in compartment "1", 3/4 in compartment "2" of the drawer. When using water softeners, first put in the detergent, then add the softener to compartment "2". For highly concentrated detergents not in single dose format, follow what is shown on pack exactly as regards type and amount of dosage. To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids provided in the detergent packaging.

Liquid detergent dosage

Liquid detergents may be used in accordance with the instructions on the relevant packaging, for all programmes without prewash. by using the special container which is placed in the drum or, for those models that have it, in the special insert for liquid detergents.

Useful advice for users

Tips on using your domestic appliance in the most environmentally-friendly and economical way

Do a full load in your washing machine

To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the recommended maximum load size. Up to 50% energy saving can be made with one full load compared to two half load washes

When is prewashing really needed?

Only with particularly dirty loads! Energy savings of 5 to 15% are made by not selecting the prewash option for normal soiled laundry.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60^ Energy savings of up to 50% can be made by using a 60^ wash temperature rather than 90^

Main wash

Sorting the laundry

• It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items.
• If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.
• Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry

Laundry for hot wash

Coloured, easy-care materials 60° 50° 40

Delicates and wool 40/30

Wash by hand

Items labelled with the following symbol are not suitable for machine washing:

Dry clean

For very delicate items, such as net curtains, underwear, tights etc., you are advised to use a laundry net or wash bag.

• Woollen items must be labelled with the "Pure New Wool" symbol to be washed in the machine and must also be labelled "non-matting" or "machine washable".
  Colour often leaks from new coloured items.

This can then colour other lighter items being washed.

We therefore recommend that coloured items should be washed for the first time separately.

For future washes, colourfast items can only be washed with whites up to 40^

Note: when sorting laundry

• check there are no metal objects in the laundry

(such as paper clips, safety pins, pins, coins etc...);

• button up pillowcases, fasten zips, hook & eye fasteners, belts and long dressing gown cords;
• remove curtain hook;
• pay close attention to the labels on items
• if you notice stubborn stains whilst sorting the laundry, remove them using a special detergent or a special stain remover.

• We recommend that you do not do a full load of towelling items only as these become too heavy since they absorb a lot of water.

The correct way to wash

Preparing the laundry

A) Select the laundry.

Loading the laundry
B) Open the porthole.

C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of laundry are obstructing the lock.

Putting detergent in machine

D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer's instructions and the advice on page60.

Add any other laundry aids (see page 60). Close the drawer again.

Selecting the wash programme

Refer to the programme guide to select the most suitable programme.

The programme is selected by turning the programme selector clockwise and aligning the programme number with the indicator.

Check that the tap is turned on and that the discharge hose is positioned correctly. Press additional function buttons if you require.

Press the start button, the programme will begin.

When the programme has finished

• The display will read "DOOR LOCKED-WAIT TO OPEN".
• After 2 minutes the display will read "PROGRAM ENDED - DOOR OPEN".
• Switch off the machine by turning the control knob to the off position.
• O pen the door and remove the laundry.
  Disconnect the plug from the mains power supply and turn off the water supply after every use.

Cleaning and routine maintenance

Do not use alcohol-based scourers and or thiners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:

• Cleaning the drawer compartments.
• Cleaning the filter.
• Cleaning the door glass.

Cleaning the drawer compartments

Even if it is not strictly necessary, it is good to clean the compartments for bleaching detergents and additives occasionally.

A) To do this you just need to pull them out firmly, but without forcing them.
B) Clean everything in the compartment under running water.
C) Put everything back in its proper place.

Cleaning the filter

The washing machine is fitted with a special filter for handling large deposits which could block the discharge hose (coins, buttons etc.) and which can, therefore, be easily retrieved.

We recommend that the filter be cleaned at least once a month.

The cleaning operation is as follows:

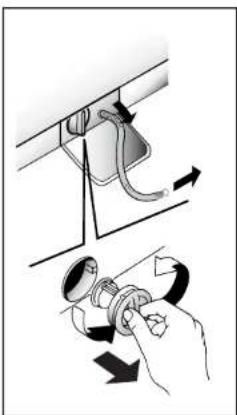

1) Open the flap
2) Only available on certain models: Pull out the corrugated hose, remove the stopper and drain the water into a container.
3) Before removing the filter, place an absorbent towel below the filter cap to collect the small amount of water likely to be inside the pump
4) Turn the filter anti-clockwise until it stops in the vertical position. Remove and clean.
5) After cleaning, replace the filter and lock by tightening the filter screw. Then follow all procedures described above in reverse order.

Attention: if the filter needs cleaning while there is washing still in the drum, follow the instructions on the following page to empty the water. This will prevent excessive loss of water via the filter.

Cleaning the door glass

Regularly clean the door glass with a damp cloth. A build up of soiling and

residues from the water may result in water leaking from the door.

Do not use abrasive cleaners as they can scratch the surface.

Transporting the appliance or long periods when appliance is not in use

If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from the hoses.

Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out.

When finished, repeat the operation in the reverse order.

Trouble shooting

What might be the cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.If the problem persists after completing the recommended checks, please call the GIAS Service, they may be able to assist you over the telephone.

	CAUSE REMED	YPROBLEM
1. Does not work on any programme	Plug not in socket.Not switched on.Power failure.Fuse blown.Door open.RCD tripped (trip switch)Has the Delay start been set.	Plug it in.Switch on.Check and refer to "Power Failure" section.Check.Close door Reset RCD.Check.
2. Does not fill with water	See cause 1.Water supply turned off.Programme selector not correctly positioned.	Check.Turn on water supply.Position programme selector correctly.
3. Water does not drain away	Kink in discharge hose.Foreign bodies in filterThe machine has been plumbed in incorrectly.	Straighten discharge hose.Examine filter.Check installation.
4. Water on floor around the washing machine	Leaking gasket between tap and water inlet hose.Strand of clothing or dirt between door rubber gasket and door glass.Incorrect plumbing.	Replace gasket and tighten connection.Re-load the machine and keep rubber door gasket/door glass clean.Check plumbing.
5. Does not spin	Water has not yet drained away."Spin Cance" option selected(certain models only).Unbalanced load.	Wait a few minutes for machine to empty.Check.Rearrange load evenly.
6. Machine vibrates a lot during spin	Washing machine not completely level.Load not distributed evenly.Transit brackets not removed.	Adjust the special adjustable feet.Rearrange the laundry evenly.Remove transit brackets (see instalator section).
7. Door will not open	Two minutes have not elapsed since the programme finished.	Wait two minutes.
8. Display reads error0, 1, 5, 7, 8, 9	-	Call service.
9. Display reads error 2	No water fill.	Check water supplies are on.
10. Display reads error 3	No pump out.	Check drain is clear.Check drain hose is not kinked.
11. Display reads error 4	Machine overfilled with water. Turn off water supply to machine.Call service.

Note:

The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected;
- presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
- The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing.
- Anionic surfactants used in washing detergent formulae often prove to be difficult to remove from the laundry itself and, even in small quantities, can still cause considerable foam production.
- Carrying out more rinse cycles does not serve any purpose in such cases.

Fig. 2

Technical data
• Max. load of dry laundry • Water pressure	6 kg 0,05 ÷ 0,8 MPa
Measurements
• Width	60 cm
• Depth	54 cm
• Height	85 cm

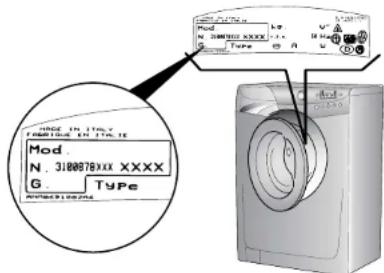

NB: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area) - as shown in diagram above.

EC Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

SETTING UP + INSTALLATION

Remove the polystyrene base and place the machine near its permanent position (diagram 1).

Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2).

Unscrew the central bolt (A); unscrew the 4 lateral screws (B) and remove the cross piece (C) (diagram 3).

Lean the machine forward and remove the plastic bags containing the two polystyrene blocks at the sides, pulling downwards (diagram 4).

Press the plug (to be found in the envelope with the instructions) into the hole (diagram 5).

WARNING: DO NOT LEAVE THE PACKAGING WITHIN REACH OF CHILDREN AS IT IS A POTENTIAL SOURCE OF DANGER.

Apply the insulation sheet of corrugated material to the base as shown.

Use the 4 feet to level the machine with the floor: a) Turn the nut clockwise to release the screw adjuster on the foot. b) Rotate the foot to raise or lower it until it stands firmly on the ground. c) Lock the foot in position by turning the nut anti-clockwise until it comes up against the bottom of the machine.

Note: we recommend you keep the transit bracket, braces and screws to immobilise the machine for future transit.

The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation.

Water connection

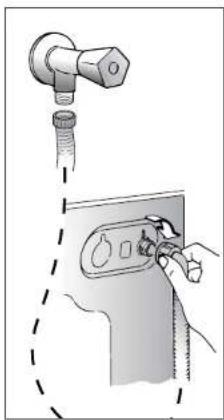

The appliance must be connected to the water mains using new hose-sets.

The old hose-sets should not be re-used. The machine has an inlet hose with 3/4^ B.S.P threaded end connection to attach between the threaded connector on the appliance and the cold water supply.

This machine only uses cold water, therefore only one hose is needed to connect to the cold water supply. Do not connect to the hot supply. Cold fill is an energy efficient system. Only the water required for the washing is heated. There is no loss of heat in the pipeline from a hot water tank or boiler to the machine.

Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply.

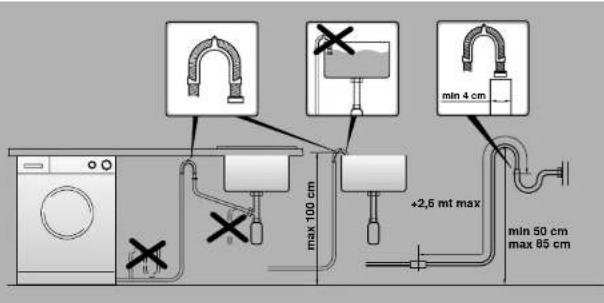

For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50~cm and a maximum of 85~cm from the ground.

Electricity supply and safety advice

Washing machines are supplied to operate at a voltage of 230V , 50 Hz single-phase. Check that the conductor is powerful enough to supply at least 3.0 kW, then connect the plug to a 10A earthed socket.

After installation, the appliance must be positioned so that the plug is accessible. Check that the electricity supply to your home has an earthing system.

The socket in your home and the plug on the appliance must be of the same type.

It is generally not advisable to use multiple adapters and/or extension leads.

All Hoover washing machines comply with the safety requirements laid down by the Quality Trademark Institute.

Índice Página

Introdução 72

Nota Geral sobre a Consignacao 73

Nota Sobre a Segurarca 73

Guia Breve 74

Instalacao 75

SEL.MODO ORA ABSOLUTO

se visualizar RELATIVO premir o botao ( 100) para passar a ABSOLUTO

Premir o botao (^_temp) para confirmar.

ALARME SIM

se visualizar NAO premir o botao (x^100) para Mudar para SIM.

Premir o botao (0^ Temp.) para confirmar.

SELEC. MEMÓRIA? SIM

se visualizar NAO premir o botao (x^100) para mudar para SIM.

Premir o botao (^aC) para confirmar.

SELEC. DEMO? NAO

manter NAO no caso de SIM premir o botao (× 100)

Premir o botao ^ Temp.) para confirmar.

SAIR DO MENU? SIM

se visualizar NAO premir o botao ( 100) para mudar para SIM.

Premir o botao (^_temp.) para confirmar.

16

ALGODAO RESISTENTE
