USER MANUAL Vento 14DC Silent Eurom

Instruction manual (EN) (21)

White electric fan with visible grille and base, no text or symbols on the fan body

VENTO 14 SILENT

384772

Dank

Exploded view diagram of a mechanical device with numbered parts for identification

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts for identification

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your heater in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Vento 14 Silent!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize and technically adjust this manual at any time.

Technische daten

Adapter input	AC100-240V~50/60 Hz
Adapter output	24VDC, 1,0A
∅ blades	14"/ 35 cm
Weight	3,7 kg
Dimensions	37 x 40 x 84-109 cm

General safety guidelines

1. This device is only to be used indoors.
2. Before using the fan, assemble it completely. Always keep the plug out of the socket when assembling/dissembling.

3. This device should only be used for the purposes (ventilating a domestic space) and in the way as set out in the booklet. Any other usage may be dangerous (could cause fire, injury, damage, electric shock etc.), will invalidate the guarantee

4. Check fan, adapter, plug and cable for damage before use. Do not turn on the appliance if you have discovered damage to the appliance, adapter, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts. The appliance (incl. adapter, cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.

5. Remove the plug from the wall socket and immediately switch off the fan when you hear strange noises, smell or see smoke.

6. Before every use, check that the voltage on the socket to be used matches the input voltage indicated on the adapters specification plate.

7. Avoid the use of extension cables. If unavoidable, use an approved cable with sufficient power. Completely unroll the cable.

8. The electrical cable may never come into contact with sharp, hot or moving objects, must not be wound around the fan and must not be bent or rolled up too tightly.

9. Never use the fan with a damaged adapter, electrical cable or connection plug-fan side. Replace it in its entirety with an original identical copy. Never try to repair it yourself.

10. Always ensure that the floor is sturdy, flat and horizontal.

11. Do not leave a fan operating unsupervised in a room.

12. This device in not suitable for use in wet or damp spaces such as bathrooms and laundry rooms. Do not place the device in the vicinity of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the device itself. If, at any time, the device does fall into water, unplug it immediately! Do not use a device that has a damp interior but have it repaired.

13. Never immerse the device, adapter, cord or plug in water or other liquids and never touch the device and adapter with wet hands or feet.

14. Do not place the appliance in an open window to avoid rain or on wet surfaces and avoid that no moisture spillage.

15. Never hang things over the device. Ensure that curtains, clothing and other materials do not come into the vicinity of the fan.

16. Watch out that long hair is not sucked into the fan.

17. Keep the suction and extraction grill clean and free from dust and make sure that a minimum of 30 cm of free space is left around the fan.

18. Ensure that there are no objects in the vicinity of the fan that can prevent oscillation.
19. Never insert a finger, pen or any other object through the protective grille when the fan is in use!
20. Never spray any products (anti-insect, cleaning agent etc.) on or in the fan.
21. Do not store or use the fan:

- in locations where it could become wet or fall into water;

- near flammable, explosive or gaseous substances;

- near acids, alkalis, oil or other corrosive substances.

1. Never connect the fan to a timer or dimmer.
2. Do not use the fan at temperatures above 40^ C, not in the vicinity of heating apparatuses and not in dusty areas.
3. First turn off the fan and then remove the plug from the socket before moving, cleaning or carrying out maintenance. Do that when the fan is not in use as well. Pull on the plug to remove from the socket, never pull on the cord!
4. Be sure that the plug has been disconnected from the power outlet before removing the protective grill from the fan for cleaning and maintenance work.
5. Always unplug the appliance after use. Note that the plug must be removed from the socket, not the plug from the base of the fan.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
7. Children shall not play with the appliance.
8. Prevent the device from constantly blowing on small children, patients or people who have difficulty moving.
9. Cleaning and user maintenance shall not be made by children without supervision.

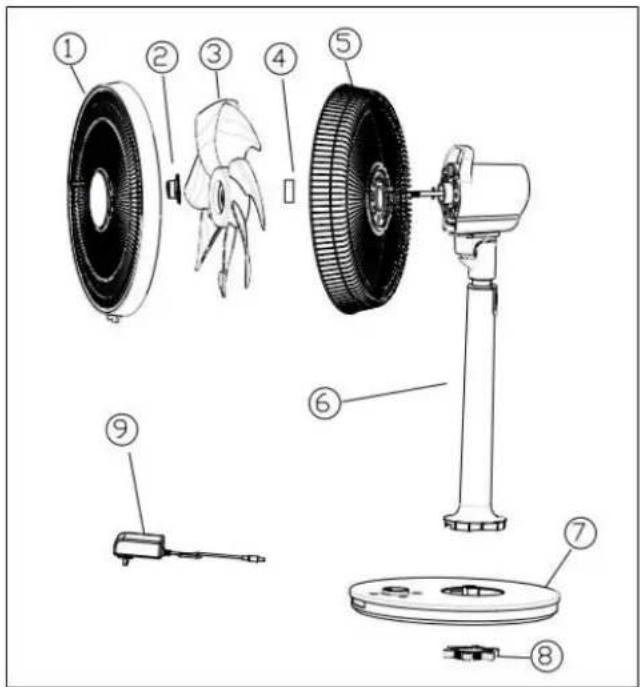

Description and assembling

1. Protective grill front (with ring)
2. Plastic screw cap fan blade attachment
3. Fan blade
4. Plastic screw gland (attachment protective grill)
5. Protective grill back
6. Standard
7. Plastic base
8. Plastic screw gland (attachment base)
9. Adapter inclusive connection plug fan side

Exploded view diagram of a mechanical device with numbered parts for identification

Step 1 Remove the packaging material and keep it out of the reach of children.

Step 2 Before continuing, make sure that the plug is not inserted in the socket.

Step 3 Remove (8) the plastic screw gland (foot fastening) from the stand (6) and place the stand (6) in the plastic base (7), this fits through the design in only one way. Mount the plastic foot (7) firmly to the stand (6) using (8) the plastic screw fitting (foot mounting).

Step 4 Turn (2) the plastic screw cap (fan blade fastening) of the fan shaft, paying attention to rotate clockwise to disassemble this screw cap. (LOOSEN).

Step 5 Turn (4) the plastic screw gland (protective grid fastening) of the motor housing, counterclockwise to remove this screw gland

Step 6 Place (5) the rear protective grid against the front of the motor housing. Make sure that the positioning pins on the motor housing are correctly positioned in the holes in the protective grid.

Step 7 Now tighten (4) the plastic screw gland (protective grid fastening) tightly clockwise on the thread of the motor housing.

Step 8 Remove the PVC sleeve from the motor shaft.

Step 9 Place (3) the fan blade on the motor shaft. Important! Make sure that the pins on the motor shaft are correctly positioned in the recesses in the fan blade.

Step 10 Tighten (2) the plastic screw cap (fan blade attachment) firmly anticlockwise on the motor shaft to secure the fan blade.

Step 11 Check that the fan blade rotates properly.

Step 12 Now place (1) the front protective grille (including the pre-assembled plastic ring) on (5) rear protective grille. Make sure that the rear protective grid fits into the recesses of the plastic ring. This is easiest working from top to bottom.

Step 13 Close the transparent locking flap and secure this flap with the supplied screw.

Step 14 Insert (9) the supplied adapter with the connecting plug fan side into the plastic base (7).

Step 15 Place 2 pieces AAA batteries (not included) in the remote control.

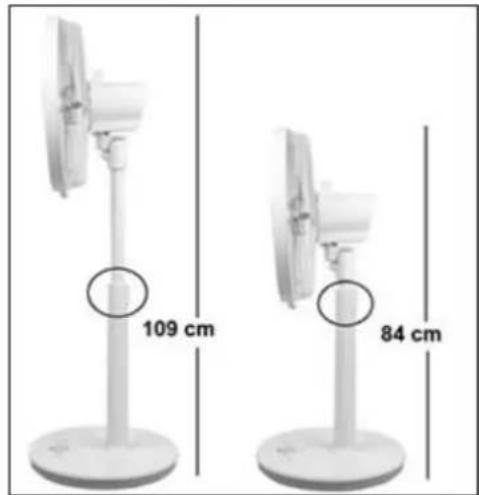

Step 16 Set the fan to the desired height (length 84 or 109 cm).

109 cm 84 cm

Operation

- Do not start using the fan until:

- All packaging is removed and places away from children

- All safety instructions have been observed

- The fan is places on a stable flat surface

• Put the fan in the correct position and desired height.
• Insert the plug into a suitable socket. The red light on the control panel lights up.
• Press the ON/OFF button. The red light changes from red to green, the fan starts to run at the pre-set speed of about 850 rpm. The speed button lights up.
• Select the required mode on the control panel or the remote control.
• The control panel and the remote control have the similar functions.

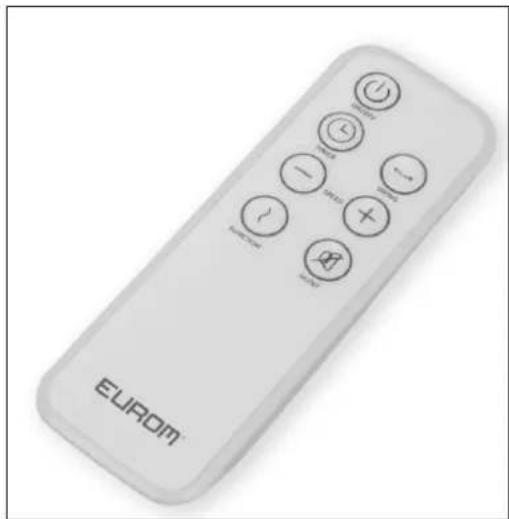

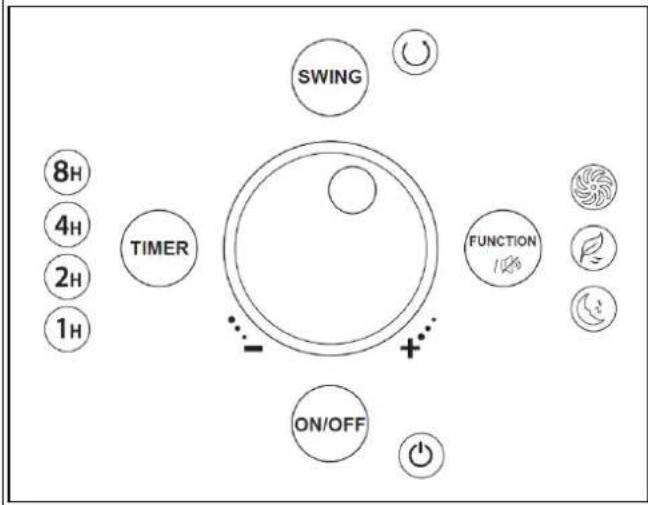

Picture operation panel		Picture remote control
Picture	Function
On/Off	Press the button to turn the fan On or Off
Timer	Press this button to set the number of hours that the fan should operate; it can be set to 1-15 hours. Pressing 1x=1 hour, pressing 2x=2 hours etc. The corresponding lights will light up
Mode :Standard-modus	Setting Function:Standard-modus, in this mode you can set the fan speed manually.____Natural-modus, in this mode the fan speed is automatically alternated to imitate a natural wind. The fan speed cannot be manually adjusted in this mode____Sleep mode, in this mode the fan speed is alternated automatically to imitate a natural wind. The average fan speed is lower than in the Natural mode because of the noise level. The fan speed cannot be manually adjusted in this mode.
Natura-modus
Sleep-mode
Speed	Setting fan speed:Turn clockwise (+) to increase fan speed and counterclockwise (-) to decrease fan speed. 24 speeds can be set, from 240 rpm to about 1160 per minute. (each step is 40 revolutions per minute). The illuminated ring around the speed knob indicates the set fan speed. With each two steps of the speed button, a light lights up more or less. Note that the speed button can be rotated several times. Note the illuminated ring to see at what speed the fan is working.
Swing	Automatic oscillating: Swiveling left/right

The "beep" sound on the button operation can be switched off by pressing the MODE button for 3 seconds on the fan control panel or the SILENT button on the remote control.

Cleaning and maintenance

Switch the fan off and remove the plug from the socket if you wish to clean the device or perform maintenance.

The fan only needs general, exterior maintenance. Dust it regularly with a soft cloth or duster or use a vacuum cleaner with a soft brush to clean. If it is very dirty, open the grille and clean grilles and blades using a soft, damp cloth and a mild household cleaning agent. Dry everything thoroughly and allow the fan to dry properly before reassembling and using again. Ensure that water does not come into contact with anything other than the grille and blades. Never rinse or spray the fan!

In order to prevent material discolouration or deformities, never use aggressive or corrosive (cleaning) products.

If the fan is to be stored at the end of the season, repack in its original packaging: this offers the best protection. Store it in a safe and dry place that is not subject to extremes of heat or cold.

Problems and solutions

The fan blades do not rotate even though the device is switched on

• Is the plug in the socket?
• Is there power to the socket?
• Is the blade blocked, e.g. by damage, a deformity on the grille or a foreign object?

There is strange noise when starting

• Check to ensure the blades are placed as far over the motor axle as possible.
• Check if there are any burrs around the edges of the blades.
• Check whether the blades have become deformed and are touching the protective grille.

Warning: Repairs must be carried out by qualified engineers. Please request original parts if the device needs to be repaired.

If the device is subjected to modifications or repairs are carried out by unqualified persons, the guarantees from the supplier, importer and manufacturer will become null and void.

Removal

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - Declaration

It is hereby declared by: Eurom, Kokosstraat 20, 8281 JC Genemuiden - NL that the device below:

Make: EUROM

Model: Vento 14 Silent

Description: Fan

fulfil the requirements of the Low Voltage Directive and the EMC directive and correspond to the following norms:

LVD 2014/35/EU:

EN 60335-2-80:2003+A1:20014+A2:2009

EN 60335-1:2012+A11:2014+A13:2017

EN 62233:2008

EMC 2014/30/EU:

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

RoHS 2011/65/EU&(EU)2015/863

Genemuiden, 22-10-2019

W.J. Bakker, alg. dir.

akker.
