USER MANUAL M Series CSO30CMS WOLF

Customer Care The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to page 5 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this information below for future reference. SERVICE INFORMATION Model Number Serial Number Date of Installation Certied Service Name Certied Service Number Authorized Dealer Dealer Number If your product ever needs attention, be sure to use a Wolf Factory Certied Service provider recommended by our customer care center, or select one from our list of providers available at wolfappliance.com/locator. All Factory Certi- ed Service providers are carefully selected and thoroughly trained by us. Important Note To ensure this product is installed and operated as safely and efciently as possible, take note of the following types of highlighted information throughout this guide: IMPORTANT NOTE highlights information that is especially important. CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed. WARNING states a hazard that may cause serious injury or death if precautions are not followed. IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specied. Contents 4 Safety Precautions6 Convection Steam Oven Features7 Convection Steam Oven Operation16 Care Recommendations17 Troubleshooting19 Wolf Warrantywolfappliance.com

SAFETY PRECAUTIONS SAFETY PRECAUTIONS This oven was built to achieve recognized standards in technology and safety regulations and is designed for use in the home for preparing food. It is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless supervised or unless they have been given instruction concerning the use of the appliance by a person responsible for their safety. Proper use is essential to avoid damage or accidents. Installation and connection to power supply must be performed by a qualied electrician in accordance with provided installation instructions. Before rst use, ll the water tank and perform related duties as outlined in the Prior to Use section. Please retain this guide for future reference. If you sell the appliance or pass it on to a third party, ensure these instructions accompany the appliance with the instructions on installation. WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm— www.P65Warnings.ca.gov4

Wolf Customer Care 800.222.7820 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against electrical shock, do not immerse cord or plug in water or other liquid.

• Close supervision is necessary when any appliance is used by or near children.

• Unplug the appliance from outlet when not in use and before cleaning. Allow the appliance to cool before putting on or taking off parts.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Factory Certied Service facility for examination, repair, or adjustment. SAFETY PRECAUTIONS

• The use of accessory attachments not recom- mended by the appliance manufacturer may cause injuries.

• Do not use outdoors.

• Do not let the cord hang over the edge of the table or counter or touch hot surfaces.

• Do not place on or near a hot gas or electric burner or in a heated oven.

• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

• Always attach plug to appliance rst, then plug the cord into the wall outlet. To disconnect, turn all controls off and then remove the plug from the wall outlet.

• Do not use the appliance for other than intended use.

Getting Started We know you are eager to start cooking, but before you do, please take some time to read this use and care guide. Whether you are an occasional cook or an expert chef, it will be to your benet to familiarize yourself with the safety practices, features, operation, and care recommendations of your Wolf convection steam oven. To ensure the best results, review cooking modes and special features on page 11.

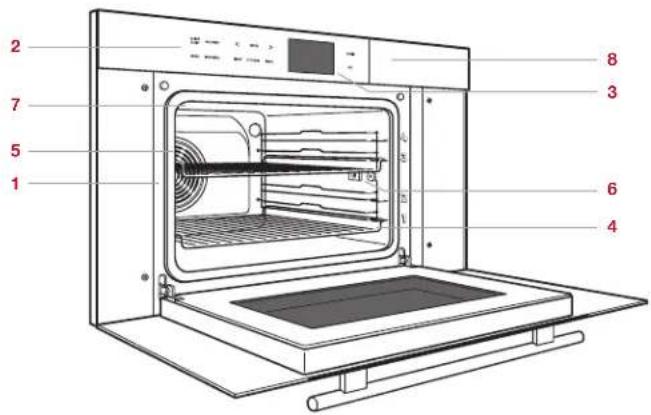

CONVECTION STEAM OVEN FEATURES

Convection Steam Oven Features FEATURES

Water Tank Access Door Convection steam oven (CSO30TM shown)

Wolf Customer Care 800.222.7820 OVEN OPERATION Control Panel Use the control panel to set cooking modes and access all the features of the convection steam oven for exceptional results. The control panel will become inactive after 15 min- utes of inactivity. Touch any control to activate the display. User Settings The user settings allow the user to select preferences as listed in the chart below. SETTING Set Language Adjust Display Set Clock Congure Notications Descale Appliance Set Water Hardness Set Loudness Set Assistance Functions Congure Temperature Set Childproof Lock Display Appliance Info Demo Mode Check Connection Restore Factory Settings Setting user settings: 1 With the oven on, touch SETTINGS.2 Use the arrows to select the desired setting.3 Touch ENTER.4 Follow the instructions on the display.5 Touch ENTER. Control panelwolfappliance.com

OVEN OPERATION Oven Operation COOKING MODES Select Cooking Mode: 1 Touch QUICK START.2 Use the arrows to select the desired cooking mode.3 Touch ENTER.4 Review the information on the display. 5 Touch ENTER. The unit will start 20 seconds after the last key touch. To start the mode immediately, use the arrows to select Start Operation, then touch ENTER. OPTIONS Set Temperature: 1 Use the arrows to select the desired temperature.2 Touch ENTER. Set Duration: The oven heats immediately and turns off after the specied duration. The oven light illuminates three minutes prior to the end time. If the temperature probe is used, the probe overrides the switch-off time and turns the oven off when set temperature is reached. 1 Use the arrows to select the desired cooking duration.2 Touch ENTER. Set End: The set end feature automatically turns the oven on and off at specied times. The oven remains idle until the desired start time and turns off at the desired switch-off time. The clock must be set to the correct time for delayed start to function properly. If the temperature probe is used, the probe overrides the switch-off time and turns the oven off when set temperature is reached. If the probe temperature is not reached before the switch-off time, it will not extend operating time. 1 Use the arrows to select the desired end time.2 Touch ENTER. Set Food Probe Temp: 1 Use the arrows to select the desired probe temperature.2 Touch ENTER.8

Wolf Customer Care 800.222.7820 Oven Operation Prior to use, use the test strip provided to determine the water hardness. The oven defaults to hard water. Refer to User Settings on page 6 to adjust water hardness. Follow the steps below to ensure all residual oil from the manufacturing process has been removed. Prior to Use: 1 Clean the oven thoroughly with hot water and a mild detergent. 2 Rinse and dry with a soft cloth.3 Turn on cooking ventilation. Some smoke and odor is normal. 4 Fill and install the water tank.5 Select Convection Steam and adjust the temperature to 410°F (210°C). Heat oven (empty) for 30 minutes. Door at-rest position OVEN OPERATION After Each Use: 1 Touch OFF or POWER. For modes using steam, do not remove the water tank until “WATER IS BEING PUMPED OFF” no longer appears on the display. 2 Open the door to the at-rest position and allow to cool. Refer to the illustration below. 3 Once cool, wipe the interior dry.4 Close the door.wolfappliance.com

TIMER The timer can be set for a maximum of 9 hours and 59 min- utes. Once the timer is set, the countdown appears on the display. The timer is independent from the oven. Setting the timer does not affect operating time or switch-off time. Setting Timer: 1 Touch TIMER.2 Use the arrows to set the desired duration.3 Touch ENTER. To adjust the timer, use the arrows to adjust the duration. To cancel the timer, use the left arrow to decrease the duration to 0, then touch ENTER. OVEN OPERATION Oven Operation WATER TANK Touch WATER to remove the water tank. The water tank holds enough water for 1

/2 hours of con- tinuous steam, typically enough for 4–5 cooking sessions. Use fresh, cold tap water. Do not use demineralized, ltered, or distilled water. When the oven is turned off, water is pumped back into the tank once the water temperature is below 175°F (80°C). If the tank needs to be lled during cooking, limit the amount of water to less than two cups to prevent overow when water is pumped back into the tank.10 Wolf Customer Care 800.222.7820 Oven Operation TEMPERATURE PROBE Use only the black temperature probe shipped with this appliance. Refer to the illustration below. The temperature probe measures the internal temperature of food while cooking. It can be used with all cooking modes except More Gourmet. When the temperature probe is installed, the actual probe temperature will be displayed. CAUTION Use only the probe shipped with this oven. Do not use a probe from any other appliance. Temperature probe OVEN OPERATION Setting controls: 1 Place probe in the thickest part of the food.2 Place the food in the oven and insert the connector into the receptacle. Refer to the illustration below. 3 Select the desired cooking mode.4 Touch ENTER.5 Use the arrows to select Set Food Probe Temperature.6 Touch ENTER.7 Use the arrows to select the desired probe temperature.8 Touch ENTER. The probe temperature set point appears on the display above the icon. To adjust probe temperature, select Set Food Probe Temp, use the arrows to select the desired temperature, then touch ENTER. CAUTION The probe and probe receptacle will be very hot. Handle with care. Probe receptaclewolfappliance.com

For foods typically boiled and foods that benet from gentle handling such as seafood, vegetables, and rice. Convection 90 – 440°F (30 – 230°C)

For foods that benet from even browning such as chicken, potatoes, bis- cuits, and roasts. The convection fan distributes heat evenly for consistent browning. Cooking temperatures may be 25° less and cooking times may be 25% faster. Convection Steam 180 – 440°F (80 – 230°C)

For foods that are tender inside and roasted or crisped outside. Steam, along with the convection fan, transfer energy to food more efciently, which helps the food retain moisture. Cooking temperatures may be 25° less and cooking times may be 25% faster. Convection Humid 90 – 440°F (30 – 230°C)

For foods that already have enough moisture such as cakes, casseroles, grain dishes, and lasagna. The oven does not produce steam, but the cavity remains sealed so the moisture created while cooking remains in the oven. Cooking temperatures may be 25° less and cooking times may be 25% faster. Reheat 180 – 390°F (80 – 200°C)

For foods typically reheated in an oven or microwave. Steam and hot air gently rehydrate the food. Gourmet — — Use to prepare specied foods (refer to page 12), fresh, refrigerated, or frozen. Select the food and desired doneness, and the sensor adjusts time, temperature, and humidity so no baking instructions are required. Preset temperature and range are dependent on food and desired doneness.12

Wolf Customer Care 800.222.7820 OVEN OPERATION Cooking Modes GOURMET Use Gourmet to prepare any of the foods listed below, fresh or refrigerated. Select the food and desired doneness, and the sensor adjusts time, temperature, and humidity so no baking instructions are required. FOOD Vegetables Meat Poultry Potatoes Fresh Pizza One Dish Meals Side Dishes Fish Eggs Baked Goods Grains Fruit Yogurt Desserts Setting Gourmet: 1 Touch GOURMET.2 Use the arrows to select the desired food.3 Touch ENTER.4 Follow instructions on the display.5 Touch ENTER. The unit will start 20 seconds after the last key touch. To start the mode immediately, use the arrows to select Start Operation, then touch ENTER. Oven Operation

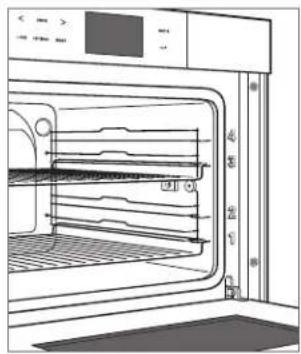

The oven racks can be placed in any of the four positions labeled on the right front face of the convection steam oven. Refer to the illustration below. Rack positionwolfappliance.com

OVEN OPERATION Favorites Commonly used cooking modes or foods can be saved in the system for easy access through the FAVORITES func- tion. Up to 24 favorites can be stored at a time. Creating a Favorite: 1 Select the desired food and doneness or cooking mode and temperature. 2 Before the cooking mode starts, touch FAVORITES.3 Select an open le.4 Touch ENTER.5 Using the arrows, enter a name for the le.6 Touch ENTER. Selecting a Favorite: 1 With the oven on, touch FAVORITES.2 Use the arrows to select the le to be used.3 Touch ENTER. More Cooking Modes Touch MORE to access additional Gourmet items and cooking modes. Use the arrows to choose the option you want and touch ENTER. MODE USES Recipes Allows the user to store individual cooking modes and temperatures or cooking sequences used to prepare custom foods. Up to 24 different user recipes can stored in the system for easy access. More Gourmet Use to prepare specied foods; fresh, refrigerated or frozen. Select the food and desired doneness and the sensor adjusts time, temperature, and humidity so no instructions are required. Preset temperature and range are dependent on food and desired doneness. Auto Steam Bake By heating with steam rst, then using convec- tion heat to nish baking, baked goods acquire a tender interior and an exterior with natural shine, without the need for an egg wash. Use for breads, buns, cakes, and pastries whether fresh, par- baked, or frozen. Do not preheat. Slow Roast Use to keep meats tender by slow roasting. Insert temperature probe into the prepared meat, select a Slow Roast setting and completion time. Auto Reheat Reheat mode uses steam and hot air to rehydrate food gently. Use to reheat any food you would have reheated in the oven, range, or microwave. Spa Spa uses combinations of gentle convection and steam heat to warm towels, wraps or stones for use in massages or relaxation. Sanitize Cleanse uses steam to clean baby bottles and canning jars and is faster and safer than conven- tional methods. Keep Warm Keep Warm uses a combination of convection and steam heat to keep foods warm.14 Wolf Customer Care 800.222.7820 CARE RECOMMENDATIONS Care Recommendations DESCALE Descale lasts approximately 45 minutes. Depending on water conditions, the oven may need to be descaled every 6–18 months. When the oven needs to be descaled, “Boiler scaled up—please descale” appears on the display. The duration between notications is based on the water hard- ness specied in user settings. To adjust water hardness levels, refer to page 6. Use only Durgol

Swiss Steamer descaling solution and follow the manufacturers instructions. Durgol

can be ordered online at subzerowolfstore.com. Setting Descale: 1 With the oven off, touch SETTINGS.2 Use the arrows to select Descale, then touch ENTER. “Add 1 pt (0.5 L) descaler—and touch ENTER” appears on the display. 3 Touch WATER and remove the water tank from the unit.4 Pour the entire Durgol

Swiss Steamer descaling solu- tion into the tank. 4 Install the tank and touch ENTER.5 After approximately 30 minutes, “Pour away descaler— Add 2 pt (1 L) water” appears on the display. Remove the water tank, turn on the sink faucet and pour the descaler down the drain. CAUTION Failure to dilute descaling solution before discarding may discolor sink and drain. 6 Fill the tank with warm tap water and install the tank. “Descale appliance—1st rinsing cycle” appears on the display. After approximately 45 minutes, “Pour away water—Descaling completed” appears on the display. 7 Depending on the level of soil in the rinse water, the oven determines whether additional rinse cycles are necessary. Follow instructions on the display. 8 Once the rinse cycles are complete, remove, empty, and dry the water tank. Wipe all stainless steel surfaces.wolfappliance.com

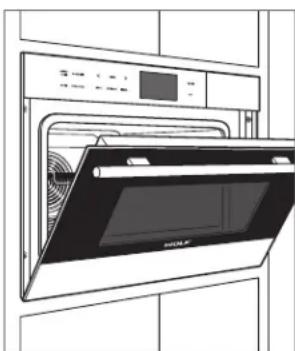

The oven door can be removed for a thorough cleaning. To remove, open the oven door completely. Rotate both hinge latches forward to the open position. Close the door to the at-rest position, then lift up and out. Refer to the illustrations below. To reinstall, insert door hinges into the frame openings. Open the oven door completely and rotate both hinge latches back to the closed position. CARE RECOMMENDATIONS

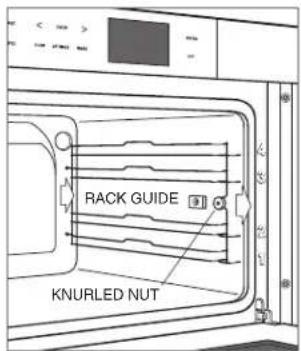

To remove rack guides, unscrew the knurled nut on the front of the rack guide. Pull the rack guide to the side of the threaded stud and remove from the front. Refer to the illustration below.

Wolf Customer Care 800.222.7820 CARE RECOMMENDATIONS Care Recommendations CLEANING Stainless steel Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe surface with a water-dampened microber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel. Door front Spray glass cleaner on a cloth to clean. Control panel Use a spray degreaser to remove ngerprints and food soil. Spray on a cloth before wiping panel. Do not spray cleaners directly on the control panel. Interior For general cleaning, initiate Steam mode at 175°F (80°C) for 30 minutes. This will loosen fat and cooking debris from the oven. Turn the oven off and wipe the interior with a cloth. Use a damp cloth and lemon juice to wipe away water and blue tarnish spots. Do not use a steam cleaner. Oven racks and rack guides Oven racks and rack guides can be cleaned in the dishwasher. Stainless steel pans The solid and perforated stainless steel pans can be cleaned in the dishwasher. Water tank Water marks and calcium build-up can be removed using a standard descaler. Do not clean the water tank in the dishwasher. Temperature probe Wipe with a cloth and water. Mild detergent may be used for tough stains. Do not submerge the probe in water or clean in the dishwasher.wolfappliance.com

TROUBLESHOOTING Troubleshooting OPERATION Oven does not operate.

• Verify electrical power to oven and home circuit breaker is on. Oven temperature issue.

• Contact Wolf Customer Care at 800-222-7820 for recommendations. Illumination is not working.

• The light bulb is defective, call Wolf Factory Certied Service. Oven starts making noise during operation.

• The oven may emit switching and pumping sounds during operation. These sounds are normal. Oven pans are difcult to remove.

• Some combinations of heat, moisture, and food place- ment may cause the oven pans to warp, pans will return to their original shape when cool. “Do not remove water tank” appears on the display.

• Water in the boiler is not pumped off until the water temperature drops below 175°F (80°C). “Boiler scaled up, please descale!” appears on the display.

• Descale the oven. Refer to page 14. “Appliance blocked, descaling necessary” appears on the display.

• Maintain the quality built into your product by contacting Wolf Factory Certied Service. For the name of the nearest Wolf Factory Certied Service, check the contact & support section of our website, wolfappliance.com, or call Wolf Customer Care at 800-222-7820.

• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to page 5 for rating plate location.

• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 2 of this guide. Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries.Wolf Appliance Residential Limited Warranty

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf factory certied service, unless otherwise specied by Wolf Appliance, Inc. Service will be provided during normal business hours.

LIMITED FIVE YEAR WARRANTY

For ve years from the date of original installation, Wolf Appliance will repair or replace the following parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and induction generators. If the owner uses Wolf factory certied service, the service provider will repair or replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certi- ed service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certied service or other sources.

TERMS APPLICABLE TO EACH WARRANTY

The warranty applies only to products installed for normal residential use. The warranty applies only to products installed in any one of the fty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair. THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE, INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDEN- TAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may also have other legal rights that vary from state to state. To receive parts and/or service and the name of Wolf factory certied service nearest you, contact Wolf Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the contact & support section of our website, wolfappliance.com, email us at customerservice@subzero.com or call 800-222-7820. *Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects. *Replacement lters for ventilation hood recirculating kits are not covered by the product warranty.2
