USER MANUAL DSXM80 SONY

FM/AM
Bluetooth®
Marine Audio

Operating Instructions

GB

Mode d'emploi

FR

Owner's Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your

Sony dealer regarding this product.

Model No. DSX-M80

Serial No.

To cancel the demonstration (DEMO) display, see page 10.

To switch the FM/AM tuning step, see page 9.

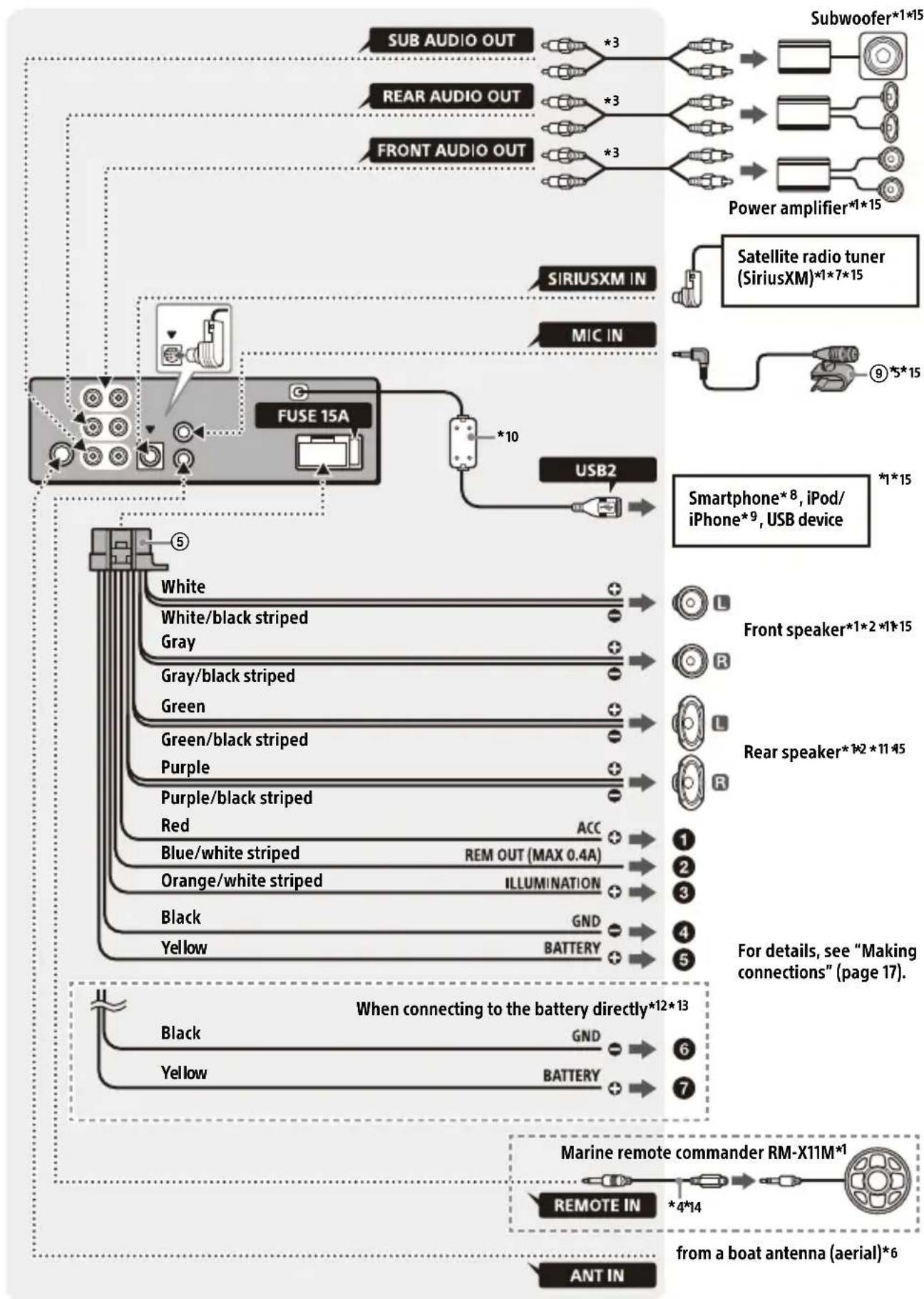

For the connection/installation, see page 14.

For safety, be sure to install this unit in the dashboard of the boat as the left side of the unit becomes hot during use. For details, see "Connection/Installation" (page 14).

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area) and Switzerland. The validity of the UKCA marking is restricted to only those countries where it is legally enforced, mainly in the UK.

WARNING

This product contains a button cell or coin battery.

▲WARNING

!

·INGESTION HAZARD: This product contains a button cell or coin battery. ·DEATH or serious injury can occur if ingested. ·A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. ·KEEP new and used batteries OUT OF REACH of CHILDREN. ·Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

• Remov and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.
• Ren used batteries may cause severe injury or death.
• all a local poison control center for treatment information.
• compatible Battery Type: CR2025.
• Nominal Battery Voltage: 3.0 V.
• Bn-rechargeable batteries are not to be recharged.

• Dnot force discharge, recharge, disassemble, heat above 65^ (149°F) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.

• Ensure the batteries are installed correctly according to polarity (+ and -).

• Dot mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
• Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.
• Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children.

FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUEBEC.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules as this equipment has very low levels of RF energy.

If you have any questions about this product:

Visit: https://www.sony.com/electronics/support

Contact: Sony Customer Information Service Center at 1-800-222-7669

Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913

Supplier's Declaration of Conformity

Trade Name:SONY

Model: DSX-M80

Responsible Party: Sony Electronics Inc.

Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,

including interference that may cause undesired operation.

For the State of California, USA only

Perchlorate Material - special handling may apply, See

www.dttsc.ca.gov/hazardouswaste/

perchlorate

Made in Thailand

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives and/or UK applying relevant statutory requirements

This product has been manufactured by or on behalf of Sony Corporation.

EU Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized

representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://compliance.sony.eu

Hereby, Sony Corporation declares that this equipment is in compliance with the UK relevant statutory requirements.

The full text of the declaration of conformity is available at the following internet address:

https://compliance.sony.co.uk

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with

separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead.

By ensuring that these products and batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

CAUTION

The following frequency 1,606.5 - 1,710 kHz range is not allocated to sound broadcasting in the European Common Allocations table and cannot be used in Europe.

WARNING: Do not ingest battery, Chemical Burn Hazard.

The remote commander contains a

coin button cell battery. If the coin button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

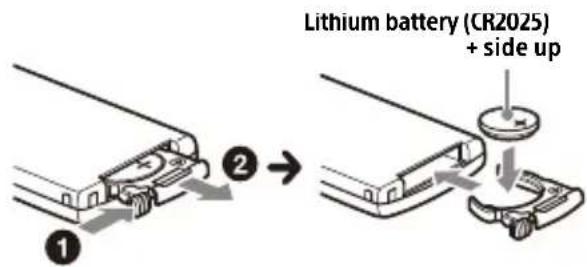

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

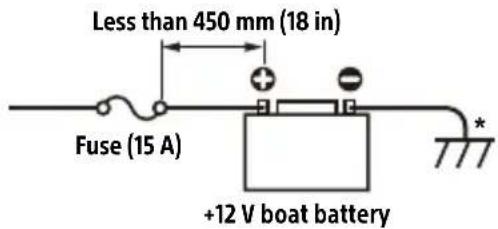

Warning if your boat's ignition has no ACC position

Be sure to set the AUTO OFF function. The unit will shut off completely and automatically in the set time after the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second), which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Important notice

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio transmitter.

According to UNECE Regulation no. 10, vessel manufacturers may impose specific conditions for installation of radio transmitters into boats.

Please check your boat's operation manual or contact the manufacturer or your boat dealer, before you install this product.

Emergency calls

This BLUETOOTH boat handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).

On BLUETOOTH communication

• Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident.

• where inflammable gas is present, in a hospital, train, airplane, or petrol station

• near automatic doors or a fire alarm
• His unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.
• W do not take any responsibility for the leakage of information during BLUETOOTH communication.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Guide to Parts and Controls

Main Unit and Remote Commander

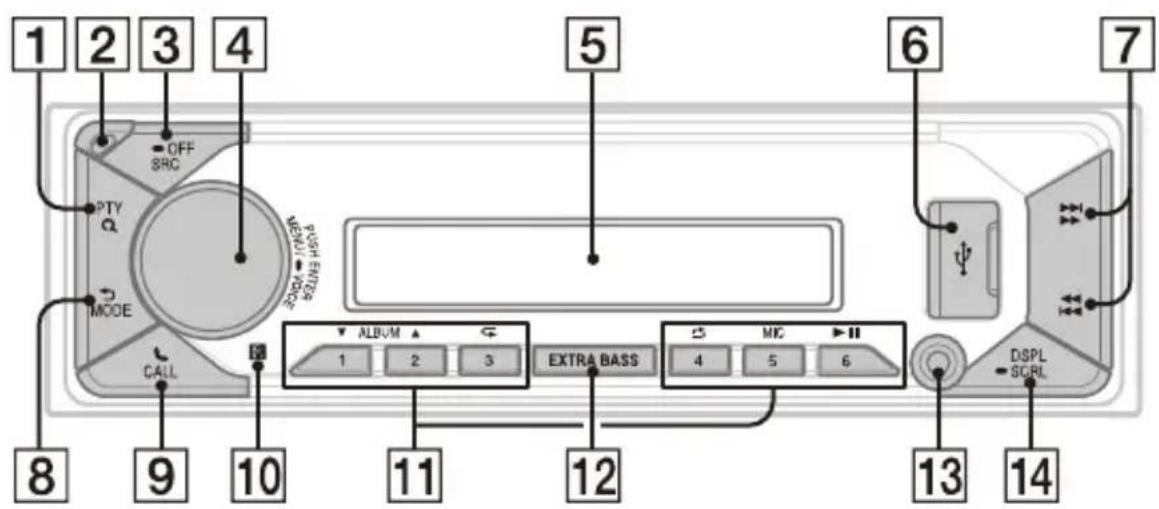

Main unit

Front panel removed (inner panel)

1 PTY (program type)

Selects PTY in RDS.

Q (browse)

Enters the browse mode during playback.

(Not available when a USB device in

AndroidTM mode or iPod is connected.)

2 ront panel release button

3 SRCsource)

Tums on the power.

Changes the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

If the unit is turned off and the display disappears, operation by the remote commander is not available.

4 Control dial

Adjusts the volume.

PUSH ENTER

Enters the selected item.

Press SRC, rotate then press to change the source (timeout in 2 seconds).

MENU

Opens the setup menu.

VOICE

Press and hold for more than 2 seconds to activate voice dial, voice recognition (Android smartphone only), or the Siri function (iPhone only).

5 play window
6 USport
7 (SEEK-/+）

Tunes in radio stations automatically. Press and hold to tune manually.

1/（prev/next)

( fast-reverse/fast-forward)

back)

Returns to the previous display.

MODE

Selects the radio bands or function modes.

9CALL

Enters the call menu. Receive/end a call. Press and hold for more than 2 seconds to switch the BLUETOOTH signal.

Receptor for the remote commander

11 Amber buttons (1 to 6)

Receives preset radio stations.

Press and hold to store stations.

ALBUM▼/▲

Skips an album for audio device.

Press and hold to skip albums continuously.

(Not available when a USB device in

Android mode or iPod is connected.)

Press to thumbs up, or to thumbs down in Pandora.

(repeat)

(Not available when a USB device in

Android mode is connected.)

(shuffle)

(Not available when a USB device in Android mode is connected.)

MIC

Adjusts the microphone settings.

II (play/pause)

12 EXTRA BASS

Reinforces bass sound in synchronization with the volume level.

Press to change the EXTRA BASS setting: [1], [2], [OFF].

13 A input jack

14 DSL(display)

Changes display items.

SCRL (scroll)

Press and hold to scroll a display item.

15 RSET (inner panel)

Restarts the unit (press with a ballpoint pen, etc.).

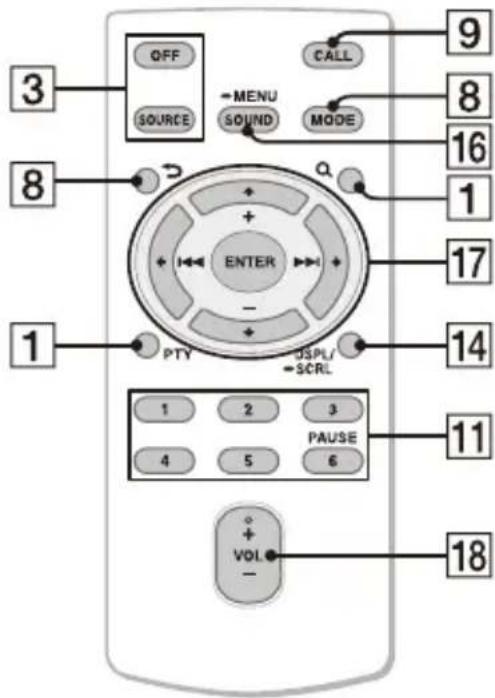

RM-X232 Remote commander

The VOL (volume) + button has a tactile dot.

16 SOND

Opens the SOUND menu directly.

-MENU

Press and hold to open the setup menu.

17 / /

Selects a setup item, etc.

ENTER

Enters the selected item.

Press and hold for more than 2 seconds to establish or terminate the "Sony | Music Center" function.

I/ (prev/next)

+/- (album +/-)

18 VD(volume) +/-

Remove the insulation film before use.

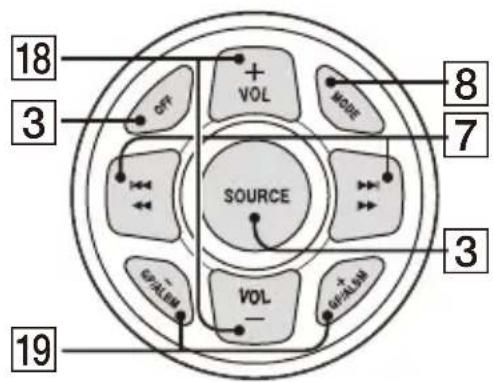

RM-X11M Marine remote commander (not supplied)

18 VOL (volume) +/-
19 B(group)/ALBM (album) + / - Receives stored stations.

Basic Operations

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Attaching the front panel

Switching the FM/AM Tuning Step

Set the FM/AM tuning step of your country. This setting appears only while the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it.
2 Rotate the control dial to select [TUNING STEP], then press it.
3 Rotate the control dial to select from [FM50K/AM9K], [FM100K/AM10K] or [FM200K/AM10K], then press it.

Pairing with a BLUETOOTH Device

When connecting a BLUETOOTH device for the first time, mutual registration (called "pairing") is required. Pairing enables this unit and other devices to recognize each other. This unit can connect two BLUETOOTH devices (two mobile phones, or a mobile phone and an audio device).

1 Press MENU, then rotate and press the control dial to select [BLUETOOTH]

[PAIRING] [DEVICE 1]/[DEVICE 2]*.

flashes while the unit is in pairing standby mode.

• [DEVICE 1] or [DEVICE 2] will be changed to the paired device name after pairing is complete.

2 Perform pairing on the BLUETOOTH device so it detects this unit.
3 Select your model name shown in the display of the BLUETOOTH device*.

When pairing is made, stays lit.

• If passkey input is required on the BLUETOOTH device, input [0000].

Canceling the Demonstration Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it.
2 Rotate the control dial to select [DEMO], then press it.
3 Rotate the control dial to select [DEMO-OFF], then press it. The setting is complete.
4 Press back) twice. The display returns to normal reception/ play mode.

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Note During the update, do not remove the USB device.

Initializing the Unit

Initializing the unit will erase the clock settings and all your settings stored in the backup memory. [INITIALIZE] appears only while the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it.
2 Rotate the control dial to select [INITIALIZE], then press it.
3 Rotate the control dial to select [INIT-YES], then press it.

Note Initialize the unit before discarding the unit to prevent the leakage of phone information.

Additional Information

Precautions

• Do not leave the front panel or audio devices brought in inside the boat.
• When the unit is turned on, the power antenna (aerial) extends automatically.
• Do not splash liquid onto the unit.

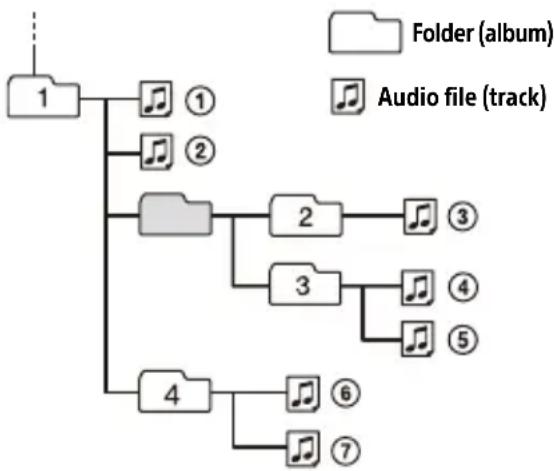

Playback order of audio files

About iPod

• You can connect to the following iPod models. Update your iPod devices to the latest software before use.

Compatible iPhone/iPod models

Compatible Model	Bluetooth®	USB
iPhone XR✓✓
iPhone Xs max✓	✓
iPhone Xs✓✓
iPhone X✓✓
iPhone 8✓✓
iPhone 8 Plus✓	✓
iPhone 7✓✓
iPhone 7 Plus✓	✓
iPhone SE✓✓
iPhone 6s✓✓
iPhone 6s Plus	✓
iPhone 6✓	✓
iPhone 6 Plus	✓
iPhone 5s✓	✓
iPhone 5c✓	✓
iPhone 5✓	✓
iPhone 4s✓	✓
iPod touch (6th generation)	✓	✓
iPod touch (5th generation)	✓	✓
iPod nano (7th generation)		✓

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• Please note that the use of this accessory with an Apple product may affect wireless performance.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery (CR2025) of the remote commander

When the battery becomes weak, the range of the remote commander becomes shorter.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Note on the lithium battery

Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.

Cleaning the connectors

Avoid touching the connectors directly. The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 8) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Note

For safety, do not remove the front panel while driving.

Specifications

FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.

POUR LES CLIENTS AUX ETATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUEBEC.

AUDIO POWER SPECIFICATIONS

CTA2006 Standard

Power Output: 45 Watts RMS × 4

at 4 Ohms < 1% THD+N

SN Ratio: 80 dBA

(reference: 1 Watt into 4 Ohms)

Radio section

FM

Tuning range:

87.5 MHz - 108.0 MHz (at 50 kHz step)
87.5 MHz - 108.0 MHz (at 100 kHz step)
87.5 MHz - 107.9 MHz (at 200 kHz step)

FM tuning step:

50 kHz/100 kHz/200 kHz switchable

Usable sensitivity: 8 dBf

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

AM

Tuning range:

531 kHz - 1,602 kHz (at 9 kHz step)
530 kHz - 1,710 kHz (at 10 kHz step)

AM tuning step:

9 kHz/10 kHz switchable

Sensitivity: 26 V

USB Player section

Interface:

USB1 port (front): USB (Hi-speed)

USB2 port (rear): USB (Hi-speed)

Maximum current:

USB1 port(front): 1A

USB2 port (rear): 1.5 A

The maximum number of recognizable files (tracks): 10,000

Compatible Android Open Accessory protocol (AOA): 2.0

Corresponding codec:

MP3 (.mp3)

Bit rate: 8 kbps - 320 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 16 kHz - 48 kHz

WMA (.wma)

Bit rate: 32 kbps - 192 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

AAC (.m4a, .mp4)

Bit rate: 8 kbps - 320 kbps

Sampling rate: 11.025 kHz - 48 kHz

WAV (.wav)

Bit depth: 16 bit

Sampling rate: 44.1 kHz, 48 kHz

FLAC(.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Supported file system: FAT16, FAT32

Wireless Communication

Communication System:

BLUETOOTH Standard version 3.0

Output:

BLUETOOTH Standard Power Class 2

(Max. Conducted +1 dBm)

Maximum communication range*1: Line of sight approx. 10m (33 ft)

Frequency band:

2.4 GHz band (2.4000 GHz - 2.4835 GHz)

Modulation method: FHSS

Compatible BLUETOOTH Profiles*2:

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

Corresponding codec:

SBC (.sbc), AAC (.m4a)

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial)'s performance, operating system, software application, etc.

*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Power amplifier section

Output: Speaker outputs

Speaker impedance: 2 /4 -8

Maximum power output: 100W× 4 (at 2 / 4

General

Power requirements: 12 V DC boat battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178mm× 50mm× 177mm

(7 1/8 in × 2 in × 7 in) (w/h/d)

Mounting dimensions:

Approx. 182mm× 53mm× 160mm

(7 1/4 in × 2 1/8 in × 6 3/8 in) (w/h/d)

Mass: Approx. 1.0kg (2 lb 4 oz)

Package contents:

Main unit (1)

Remote commander (1): RM-X232

Parts for installation and connections (1 set)

Optional accessories/equipment*:

SiriusXM Connect Vehicle Tuner: SXV100,

SXV200, SXV300

Marine remote commander: RM-X11M

• Accessories/equipment other than the marine remote commander RM-X11M are not waterproof. Do not subject them to water.

Ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

((SiriusXM))

SiriusXM Connect Vehicle Tuner and Subscription sold separately.

www.siriusxm.com

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Apple, iPhone, iPod, iPod nano, iPod touch, and Siri are trademarks of Apple Inc., registered in the U.S. and other countries.

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, LLC. Used with permission.

Android is a trademark of Google LLC.

libFLAC

Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the boat's ignition off to avoid short circuits.
• Connect the yellow and red power supply leads only after all other leads have been connected.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.
• Choose the installation location carefully so that the unit will not interfere with normal boating or car driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Select carefully the mounting location to avoid internal damage by water entering the unit. Areas subject to water splashes should be avoided. The Waterproof Car Stereo Cover (not supplied) is recommended.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the boat circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Note on installing in boats with a start-stop system

The unit may restart when starting the engine from start-stop. In this case, turn off the start-stop system of your boat.

Mounting angle adjustment

Adjust the mounting angle to less than 30^ .

Parts List for Installation

① Mounting sleeve (1) ② Release keys (2)

③ Trim ring (1)

④ Mounting screws (5× .8mm (7 / 32× .5 / 16in)) (4)

⑤ Power supply leads(1)

⑥ Mounting plate (1)

⑦ Mounting screw (Max.size M4× 6mm V4 in))1

⑥ Mounting screw (1)

⑨ Microphone (1) ⑩ Flat-mount base (1)

① Double-sided tape (1)

• This parts list does not include all the package contents.
  The mounting sleeve ① and the trim ring ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the mounting sleeve ① from the unit. For details, see "Removing the trim ring and the mounting sleeve" (page 19).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your boat.

Connection

1 Not supplied
2 Speaker impedance: 4 Ω to 8 Ω × 4
3 RCA pin cord (not supplied)
4 Depending on the type of boat, use an adaptor for a wired remote control (not supplied).
5 Whether in use or not, route the microphone input cord such that it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet. For details on installing the microphone, see "Installing the microphone" (page 19).
6 Depending on the type of boat, use an adaptor (not supplied) if the antenna (aerial) connector does not fit.
7 For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner.
8 To connect a smartphone to the main unit, an appropriate cable (not supplied) is required.
9 To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).
10 Ferrite sleeve
11 Use speakers with 50W RMS or higher power input capacity. Using Sony XB series full range speakers is recommended.
12 When the amperage rating of the fuse used on your boat is 10 A, make the power connection to the battery directly to avoid short circuits.
13 Before connection, arranging the yellow and black leads of the power supply leads ⑤ is required.
14 Supplied with the marine remote commander RM-X11M.
*15 Not waterproof

Making connections

To the +12V power terminal which is energized when the ignition switch is set to the accessory position

If there is no accessory position, connect to the +12V power (battery) terminal which is energized at all times.

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

the power antenna (aerial) control lead or the power supply lead of the antenna (aerial) booster

It is not necessary to connect this lead if there is no power antenna (aerial) or antenna (aerial) booster, or with a manually-operated telescopic antenna (aerial).

To AMP REMOTE IN of an optional power amplifier

This connection is only for amplifiers and a power antenna (aerial). Connecting any other system may damage the unit.

a boat's illumination signal

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

4 a common ground (earth) point

First connect the black ground (earth) lead, then connect the yellow and red power supply leads.

5 the +12V power terminal which is energized at all times

Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

When connecting to the battery directly

When the amperage rating of the fuse used on your boat is 10A , make the power connection to the battery directly to avoid short circuits.

6 ta metal point of boat

to th positive battery terminal

Notes

• Despite connecting to the power supply lead of the boat, the unit may not fully provide its performance due to insufficient power. In this case, make the power connection to the battery directly.
• All power wires connected to the positive battery post should be fused within 450~mm (18 in) of the battery post, and before they pass through any metal.

• Make sure that the boat battery wires connected to the boat (ground (earth) to chassis)* are of a wire gauge at least equal to that of the main power wire connected from the battery to the head unit.

• During full-power operation, a current of more than 15 A will run through the system. Therefore, make sure that the wires to be connected to the +12 V and GND terminals of this unit are at least 14-Gauge (AWG14) or have a sectional area of more than 2mm^2 (3/32 in). When making the speaker parallel connection, use wires with more than 12-Gauge (AWG12) or wires that have a sectional area of more than 3.5mm^2 (5/32 in).

If you have any questions or problems concerning the connection, consult the dealer for details.

Memory backup

General setup (except [CLOCK]), Sound setup, Display setup, BLUETOOTH setup, radio presets, SiriusXM preset, and last-connected device are automatically stored in the internal memory of the unit:

• 10 seconds after the ignition is turned off from the ACC position.
• 10 seconds after the unit is turned off by pressing and holding OFF.

Connecting the speakers

Before connecting the speakers, turn the unit off.
- Use speakers with a 2 impedance or 4 to 8 impedance, and with adequate power handling capacities to avoid damage.

Subwoofer direct connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker lead.

To enable the connection, set [SUBW MODE] in [SUBW DIRECT] to [1] to [3].

Note

Use a subwoofer with a 2 impedance or 4 to 8 impedance, and with adequate power handling capacities to avoid damage.

Speaker connection for high volume playback

For high volume playback, you can connect front speaker in parallel.

For this connection:

• Set [SPEAKER LOAD] in [GENERAL] to [2 OHM].
• Connect the subwoofoers to right and left rear speaker leads or use a dual voice coil subwoofer with 4 to 8 impedance.

Notes

• When using a subwoofer with dual voice coil, or using subwoofer(s) by connecting to the right and left rear speaker leads, be sure to set [SPEAKER LOAD] in [GENERAL] to [2 OHM].
• To exert the speaker's potential, make the power connection to the battery directly (page 17).

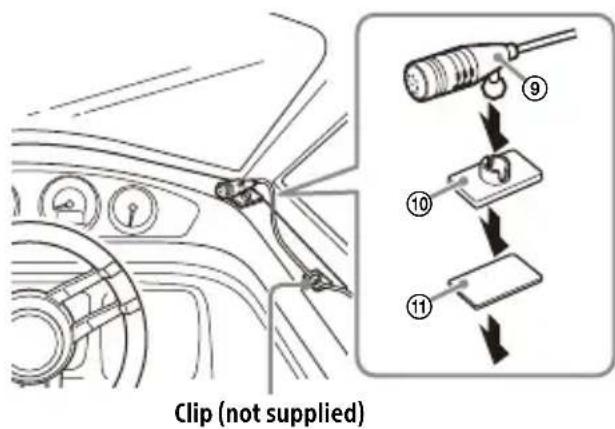

Installing the microphone

To capture your voice during handsfree calling, you need to install the microphone ⑨.

Cautions

It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
- If any other shock-absorbing equipment is in your boat, contact the store where you purchased this unit, or the boat dealer, before installation.

Notes

• When mounting on the dashboard, remove the visor clip carefully from the microphone ⑨ , then attach the flat-mount base to the microphone ⑨ .
• Before attaching the double-sided tape ① clean the surface of the dashboard with a dry cloth.

Installation

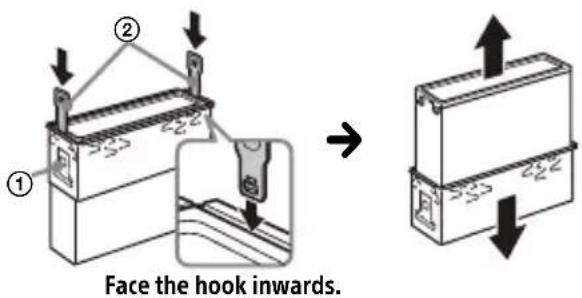

Removing the trim ring and the mounting sleeve

Before installing the unit, remove the trim ring ③ and the mounting sleeve ① from the unit.

1 Pinch both edges of the trim ring ③ then pull it out.

2 Insert both release keys ② until they click, and pull down the mounting sleeve ① , then pull up the unit to separate.

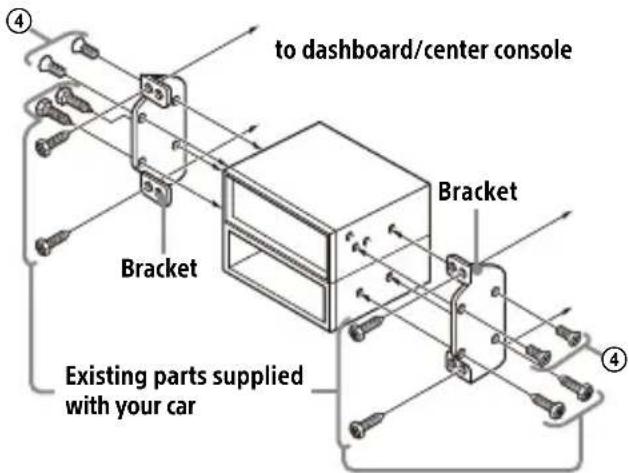

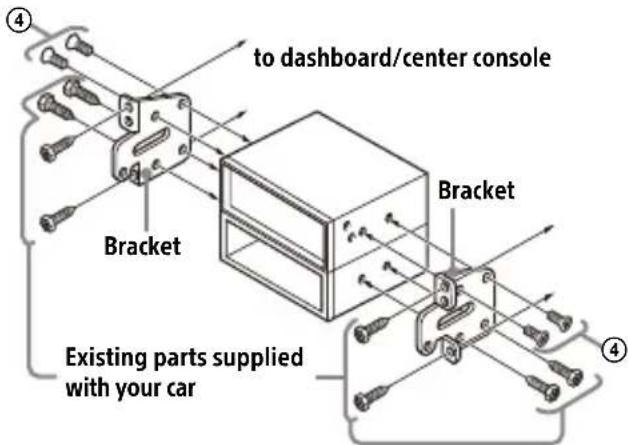

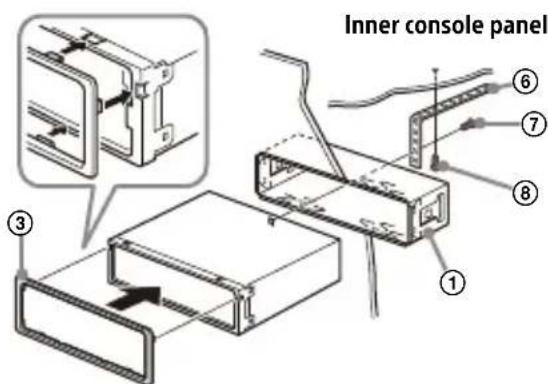

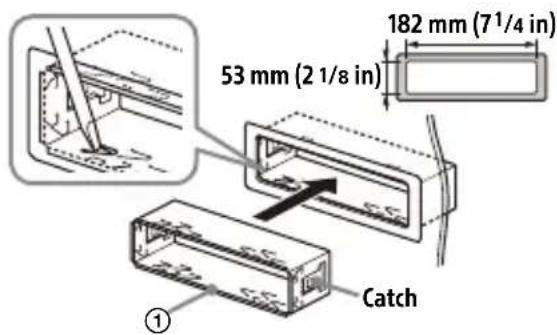

Mounting the unit in the dashboard or the cutout hole on boat

• Before installing, make sure the catches on both sides of the mounting sleeve ① are bent inwards 2mm (3/32 in).
• For Japanese cars, see "Mounting the unit in a Japanese car" (page 20).

CAUTION

Do not touch the left side of the unit when removing from the dashboard. The heatsink on the left side of the unit remains hot right after use.

1 Position the mounting sleeve ① inside the dashboard, then bend the claws outward for a tight fit.

2 Mount the unit onto the mounting sleeve ①, then attach the trim ring ③.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
• Make sure the 4 catches on the trim ring ③ are properly engaged in the slots of the unit.

Mounting the unit in a Japanese car

You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.

TOYOTA

NISSAN

Note

To prevent malfunction, install only with the mounting screws ④.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 8).

Initializing the unit

For details, see "Initializing the Unit" (page 10).

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace

fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Avtissement

https://compliance.sony.eu

Communication BLUETOOTH

Protocole Android Open Accessory (AOA)

compatible:2.0

Norme BLUETOOTH version 3.0

Sortie:

Norme BLUETOOTH Power Class 2

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

Codecsscorrespondants:

SBC (.sbc), AAC (.m4a)

Appareil principal (1)

Raccordement/Installation

Mises en garde

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Eesti keel

https://compliance.sony.eu

Lietuvič kalba

https://compliance.sony.eu

Polski

https://compliance.sony.eu

Portugues

https://compliance.sony.eu

Româna

https://compliance.sony.eu

Slovensky

Sony Corporation tymto vyhlasuje, ze zariadenie je v sulade so smernicou 2014/53/EU.

https://compliance.sony.eu

Espanol

https://compliance.sony.eu

Svenska

https://compliance.sony.eu

Türkce

https://compliance.sony.eu

Shqip

Me ane tě kětij dokumenti, Sony Corporation deklaron se kjo pajispje éshte né pajtueshmeri me Direktiven 2014/53/BE.

Teksti i plote i deklarates sè pajtueshmerise sè BE-sè disponohet ne adresen e mēposhtme tè tè internetit:

https://compliance.sony.eu

MaKeDoHcN

Co OBOJ DOKUMENT, Sony Corporation n3jabyBa Deka OBaa ONpeMa e BO corJaacHOCT co DnapeKTUBata 2014/53/EY.

LcIeIOChNt TeKCT Ha I3jaBaTa 3a COO6pa3HocT Ha EY e DoCTaPeH Ha CNeIHaBa aIpeCa Ha INHTepHET:

https://compliance.sony.eu

Srprski

Sony Corporation ovm izjavljupe da je ova oprema u skladu sa direktivom 2014/53/EU.

https://compliance.sony.eu

Support site

If you have any questions or for the latest support information on this product, please visit the web site below:

Site d'assistance

https://www.sony.com/am/support

If you have any questions/problems regarding this product, try the following:

1 Read Troubleshooting in Help Guide (online manual).
2 Please contact (U.S.A. only); Call 1-800-222-7669

URL https://www.SONY.com

Help Guide (online manual)

For more details, please visit the following web site and refer to your unit name as shown below.

https://rd1.sony.net/help/ev/dsx-m80/h_zz/

Made for

iPhone

iPod

Concu pour

iPhone

iPod

Bluetooth

pandora

((SiriusXM))
