Product Type	Kitchen Scale
Brand	Orbegozo
Model	PC 1022
Power Supply	2 lithium CR2032 batteries (3V each)
Measurement Units	grams (g), kilograms (kg), pounds (lb), ounces (oz)
Tare Function	Yes, with reset to zero
Auto Shut-off	Yes, after 2 minutes of inactivity
Low Battery Indicator	Yes, displays "LO"
Overload Indicator	Yes, displays "EEEEE"
Display	LCD
Care and Cleaning	Clean with a slightly damp cloth; do not immerse in water; do not use abrasive cleaners
Safety Instructions	Use on a stable, flat, and horizontal surface; do not use on a carpet; do not shake or drop
Intended Use	Household use only
Compliance	EMC Directive 2004/108/EC

Frequently Asked Questions - PC 1022 Orbegozo

How to change the batteries of the Orbegozo PC 1022 scale?

Open the battery cover on the back of the scale. Remove the used battery with a non-conductive tool. Insert two CR2032 batteries, observing polarity. Close the cover.

How to switch between weight units?

Press the unit conversion key to toggle between grams, kilograms, pounds, and ounces.

How to use the tare function?

Place an empty container on the scale and press the TARE key to zero the display. Then add the ingredient. You can repeat the operation without exceeding the maximum capacity.

Why does the scale display 'LO'?

The 'LO' symbol indicates low batteries. Replace them with new CR2032 batteries.

What does the 'EEEEE' display mean?

'EEEEE' indicates overload. Remove the object immediately to avoid damaging the scale. The maximum capacity is indicated on the device.

The scale turns off by itself, is this normal?

Yes, the scale has an auto shut-off after 2 minutes of inactivity or if the displayed weight remains constant.

How to clean the Orbegozo PC 1022 scale?

Use a slightly damp cloth. Never immerse the scale in water and do not use chemical or abrasive cleaners.

On what surface to use the scale?

Place it on a solid, flat, and horizontal surface. Never use it on a carpet or unstable surface.

What is the maximum capacity of the scale?

The maximum capacity is not specified in the manual, but it is indicated on the device itself. Do not exceed this limit.

Can children use this scale?

Yes, from 8 years old and under supervision. The device must be used in accordance with the safety instructions.

USER MANUAL PC 1022 Orbegozo

Digital kitchen counter with fresh apples and a green ring, showing a digital timer reading '0.00' (no text on main image)

MODELO PC 1020 – PC 1021 – PC 1022

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

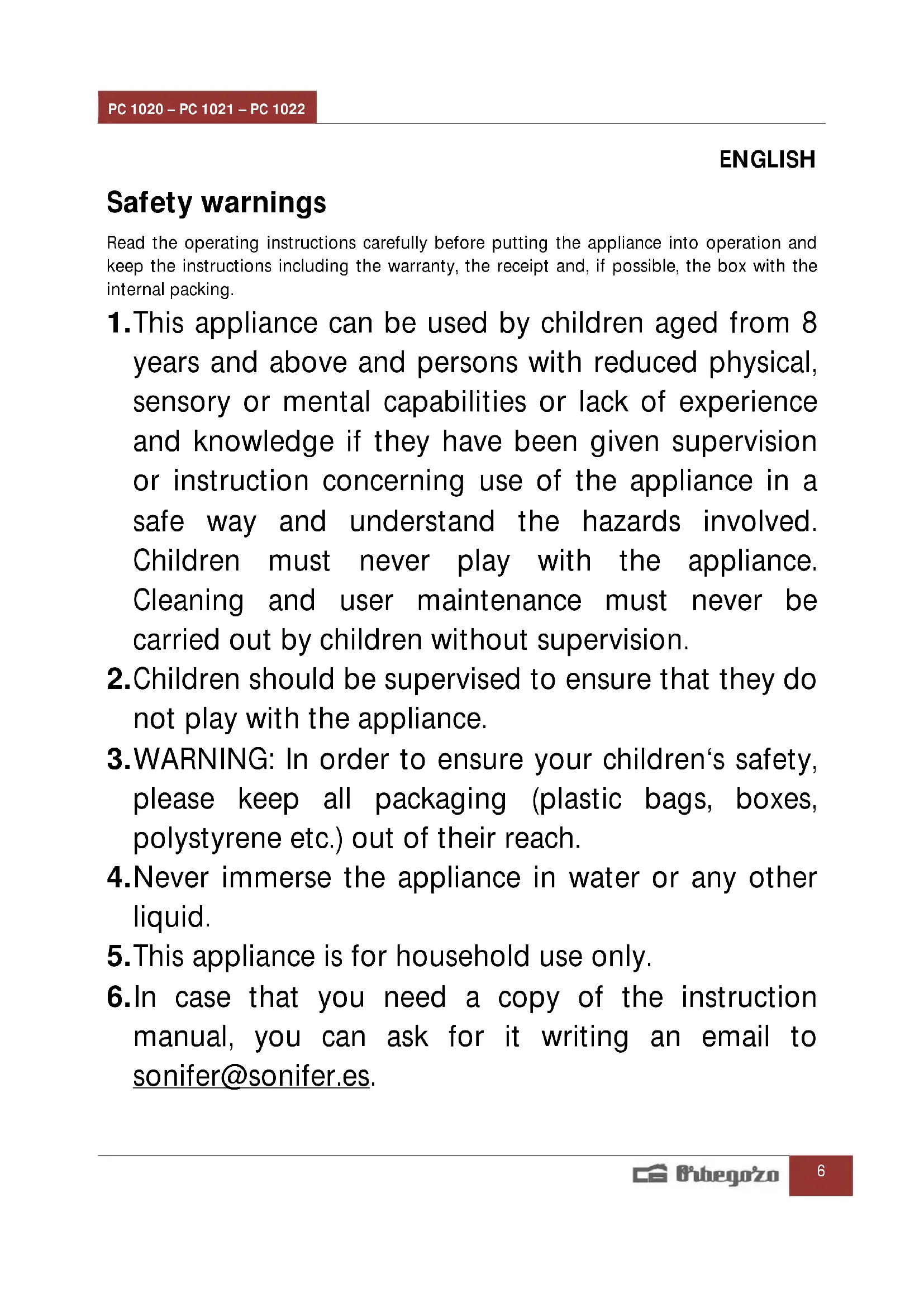

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. Never immerse the appliance in water or any other liquid.
5. This appliance is for household use only.

6. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

7. Use the device only for the intended purpose.
   • Always place the appliance on a stable, level and horizontal surface when you use it.

8. Make sure your hands and the appliance are dry when you insert the batteries.

FEATURES

1. With high precision strain gauge sensor
2. Changeable measurement units gr/lb/oz/kg
3. Low battery and overload indicators
4. With tare function
5. Auto off

TO INSTALL OR REPLACE BATTERY

• This product uses 2 × 3V CR2032 lithium batteries. Remove isolation sheet before use.
• Open the battery case cover at backside of scale.
• Insert the batteries respecting the polarity and place the cover.

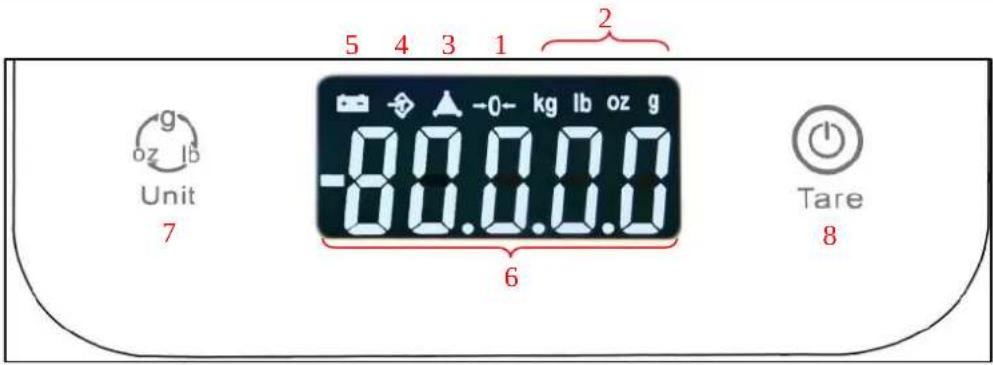

LCD SCREEN

1. Zero weight
2. Measurement units
3. Stable weight

4. Negative tare more than 750
   gr

5. Low batteries

6. Weight
7. Measurement unit change
8. ON-OFF-Tare

CHANGING UNITS

This scale lets you to change the measurements units. Press the button to choose one unit: gr/Kg/Lb/Oz.

WEIGHT FUNCTION

1. Place the scale in a hard and plane surface.
2. Put a container (in case of use it) in the scale before turning it on.
3. Press soft but firmly the ON-OFF-TARE button to turn it on.
4. Wait a few seconds until all the information is showed.
5. Put in the food in the container and the weight will be showed.

TARE FUNCTION

To weigh different loads consecutively without removing loads from the scale, put the first load on the scale and get the weight reading. Then press the TARE button to reset the LCD reading to "0" before adding next load. You can repeat this operation all the times you need up to the maximum weight capacity of the scale.

NOTE: once pushed the TARE button if you take away weight from the scale, the sign “-” will be showed. If this weight is more than 750 gr, the symbol no.4 will appear.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes.

WARNING INDICATORS

1."LO" = Replace new battery.
2. "EEEE" = Scale overload. Remove item to avoid damage.

CLEANING AND CARE

1. Clean the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical / abrasive cleaning agents.
2. Always use the scale on a hard, flat surface. DO NOT use on carpet.
3. DO NOT strike, shake or drop the scale.
4. The scale is high precision device. Please take care of it.
5. Please keep it dry.
6. Please check whether battery is installed or in high level if scale cannot be turned on.
7. Do not mix batteries with other household wastes.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the EMC directive 2004/108/EC.
