USER MANUAL HTCT150 SONY

Operating Instructions US

Mode d'emploi____FR

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc.

Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.

For the customers in the U.S.A

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

Owner's Record

The model and serial numbers are located at the rear of the subwoofer. Record the serial numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. HT-CT150

Serial No.

Important Safety Instructions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comply with FCC technical regulations.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Precautions

On safety

• Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not climb on the subwoofer, as you may fall down and injure yourself, or system damage may result.

On power sources

• Before operating the system, check that the operating voltage is identical to your local power supply. The operating voltage is indicated on the nameplate at the rear of the subwoofer.
• If you are not going to use the system for a long time, be sure to disconnect the system from the wall outlet (mains). To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet (mains) only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord (mains lead) must be changed only at the qualified service shop.

On heat buildup

Although the system heats up during operation, this is not a malfunction. If you continuously use this system at a large volume, the system temperature of the back and bottom rises considerably. To avoid burning yourself, do not touch the system.

On placement

• Place the system in a location with adequate ventilation to prevent heat buildup and prolong the life of the system.
• Do not place the system near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything at the rear of the subwoofer that might block the ventilation holes and cause malfunctions.
• Do not place the system near equipment such as a TV, VCR, or tape deck. (If the system is being used in combination with a TV, VCR, or tape deck, and is placed too close to that equipment, noise may result, and picture quality may suffer. This is especially likely when using an indoor antenna. Therefore, we recommend using an outdoor antenna.)
• Use caution when placing the system on surfaces that have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result.

• Take care to avoid any possible injury on the corners of the subwoofer.

On operation

Before connecting other components, be sure to turn off and unplug the system.

If you encounter color irregularity on a nearby TV screen

The system is magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets.

If color irregularity is observed...

Turn off the TV set, then turn it on again after 15 to 30 minutes.

If color irregularity is observed again...

Place the system further away from the TV set.

On cleaning

Clean the system with a soft dry cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any question or problem concerning your system, please consult your nearest Sony dealer.

Copyrights

This system incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

This system incorporates High-Definition Multimedia Interface (HDMI ^TM ) technology.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

"BRAVIA Sync" is a trademark of Sony Corporation.

"PlayStation" is a registered trademark of Sony Computer Entertainment Inc.

“x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.

ENERGY STAR ^® is a U.S.

registered mark.

As an ENERGY STAR ^® partner, Sony Corporation has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Table of contents

Precautions 3

Getting Started

Unpacking 6

Positioning the system ....7

Connecting the speaker 9

Connecting the TV and player, etc. .....10

Connecting other components......12

Connecting the AC power cord (mains lead)....13

Setting up the sound output of the connected component ....13

Playback Options

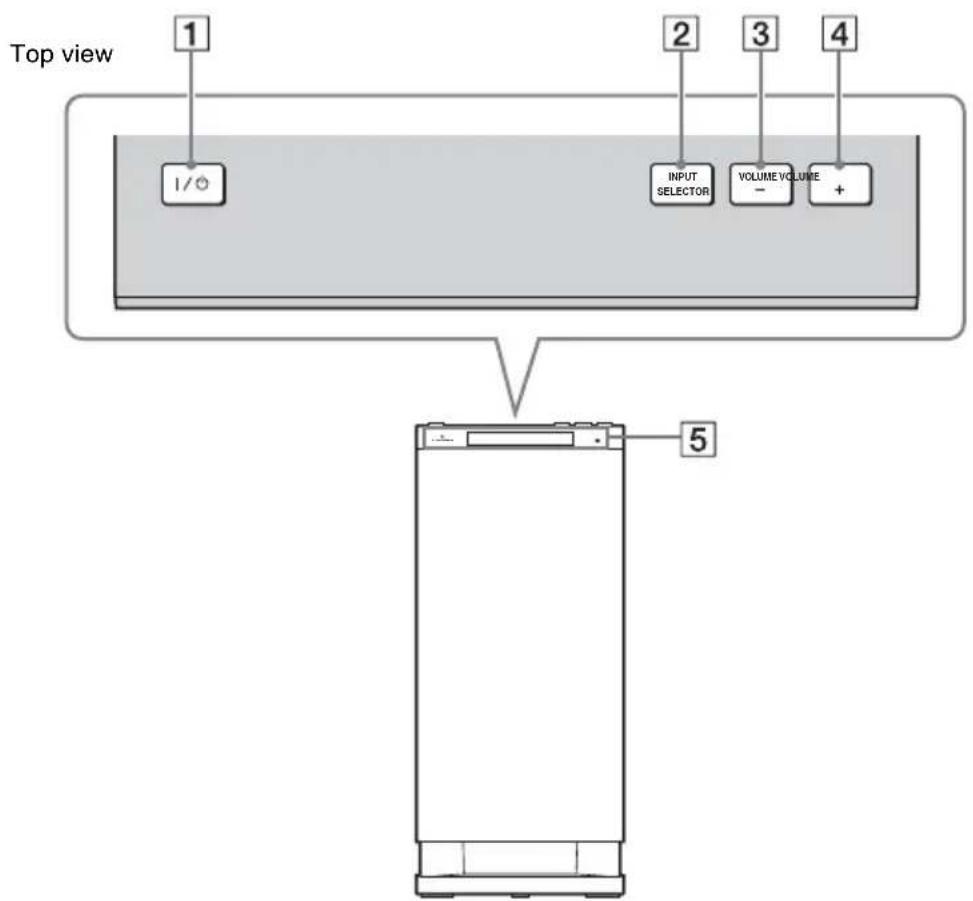

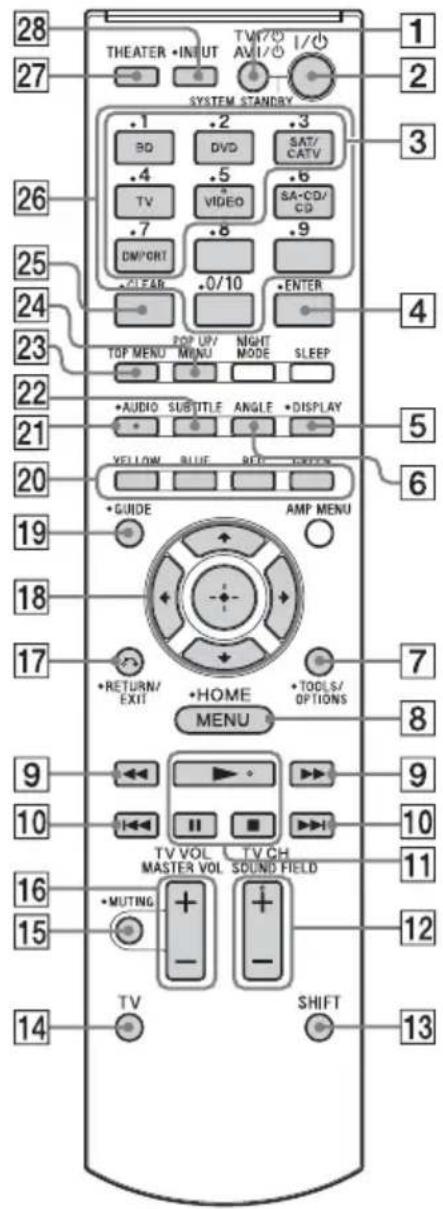

Index to parts and controls......14

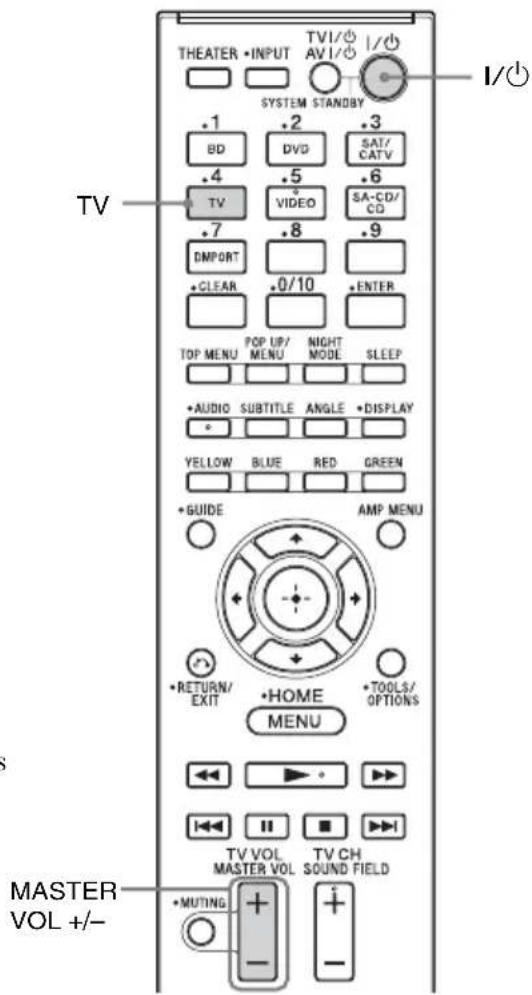

Enjoying TV....16

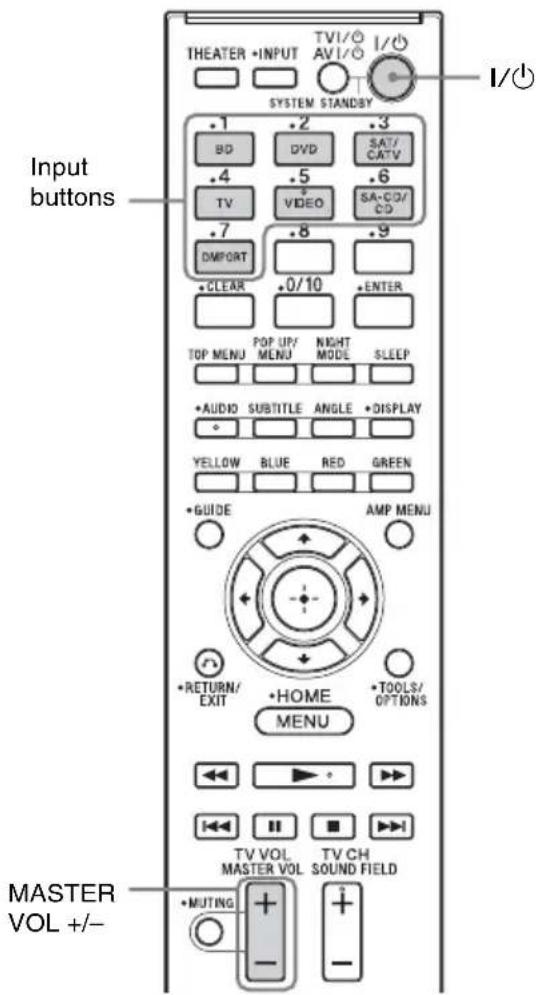

Enjoying other components .....17

Surround Function

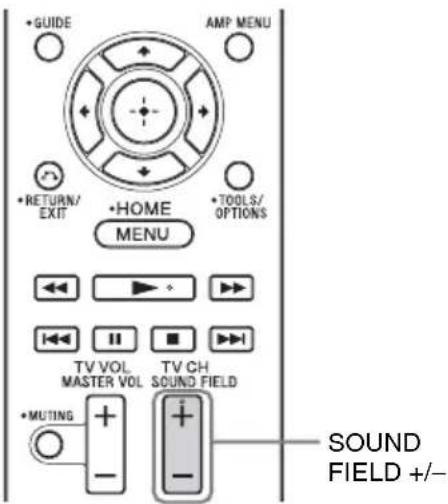

Enjoying the surround effect......19

"BRAVIA" Sync Features

What is “BRAVIA” Sync?......20

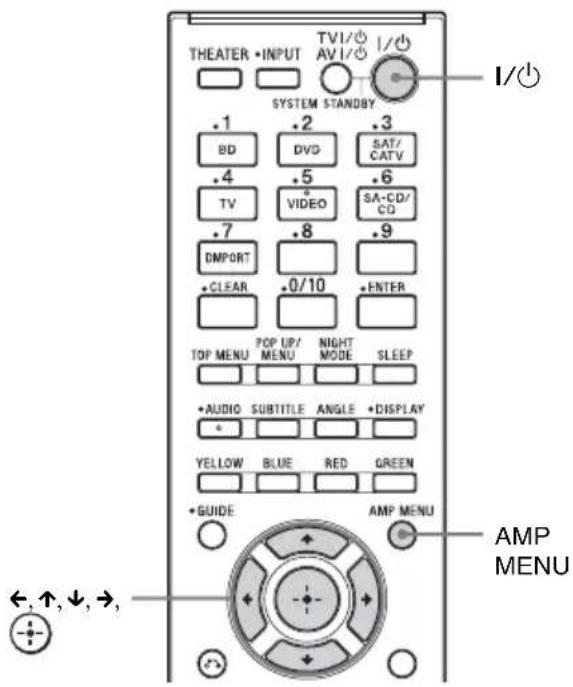

Preparing for “BRAVIA” Sync ......20

Enjoying Blu-ray Disc/DVD....21 (One-Touch Play)

Enjoying the TV sound from the system ....22 (System Audio Control)

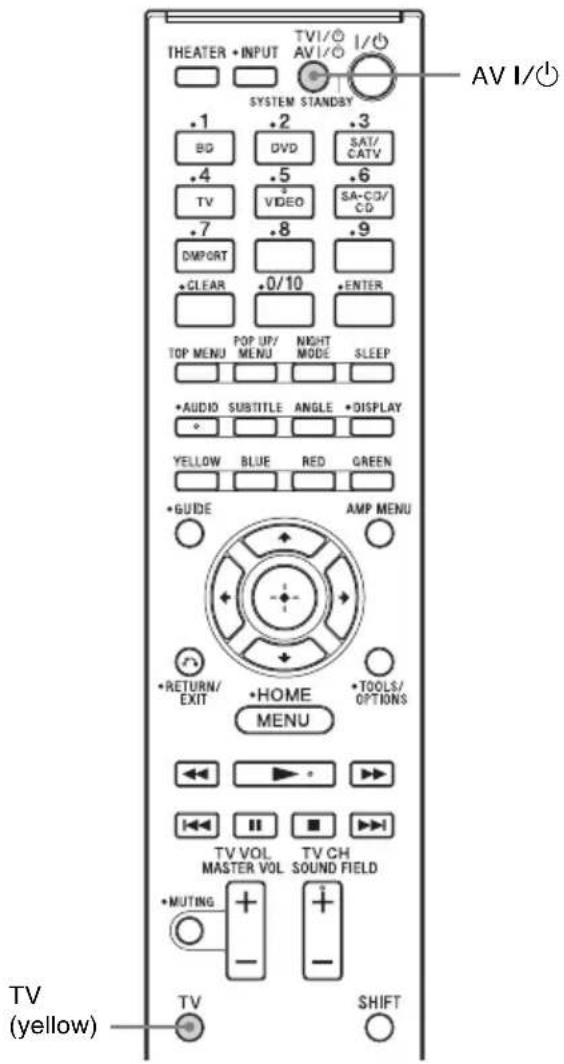

Turning off the system, TV and the connected components....23 (System Power Off)

Using the power saving function ....23 (HDMI SIGNAL PASS THRU)

Setting the Audio Return Channel function to off ....24

Advanced Settings

Controlling connected Sony components with the remote ....25

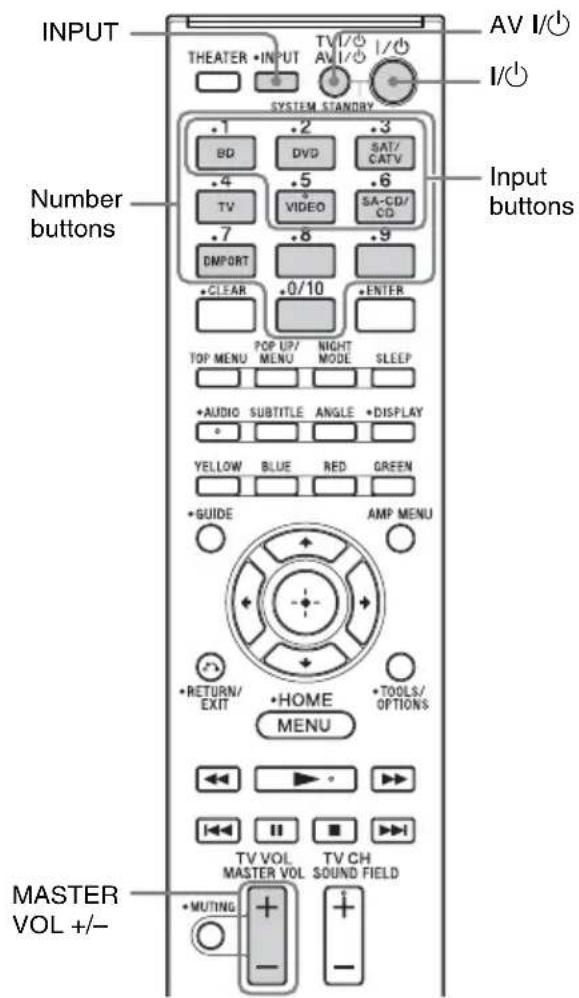

Changing the input button assignments of the remote 28

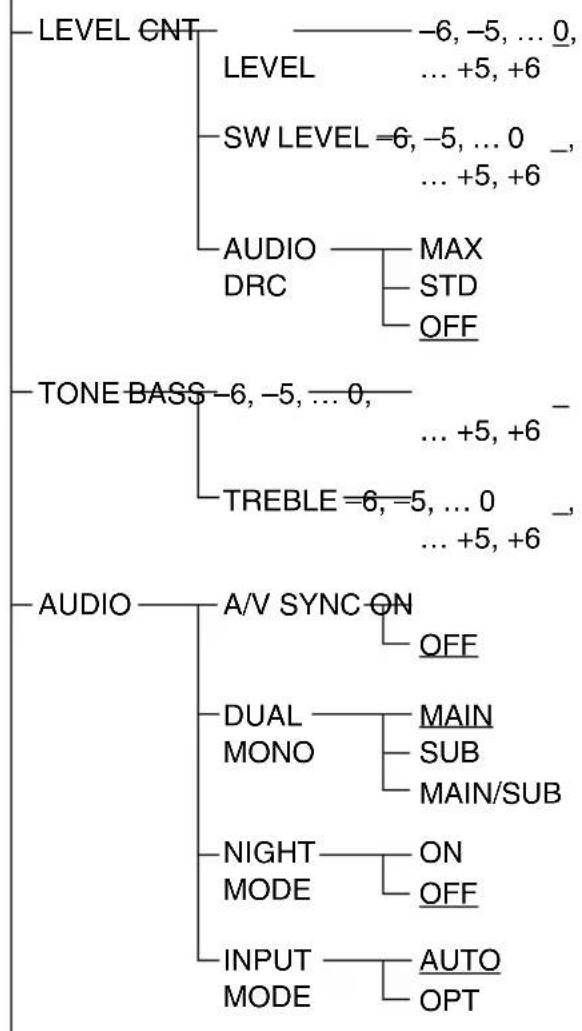

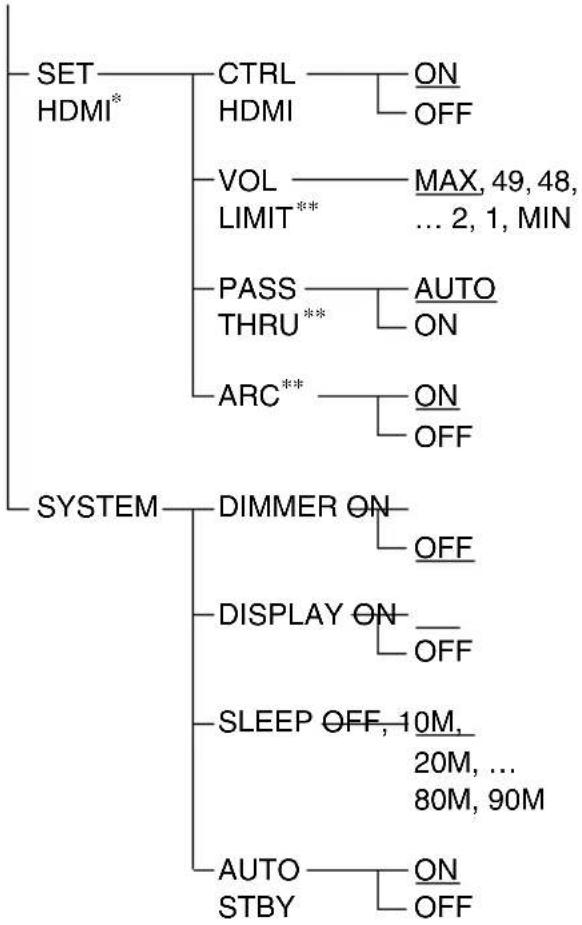

Settings and adjustments using the amplifier menu....30

Additional Information

Troubleshooting 34

Specifications 36

Index.... 38

Getting Started

Unpacking

- Subwoofer (SA-WCT150) (1)

- Speaker (SS-CT150) (1)

- Speaker cord (1)

• Digital optical cord for a TV (2.5 m) (1)

Coiled cable with two connectors at ends (no text or symbols)

- Remote commander (RM-AAU072) (1)

• R6 (size AA) batteries (2)

- Warranty (1)

- Operating Instructions (1)

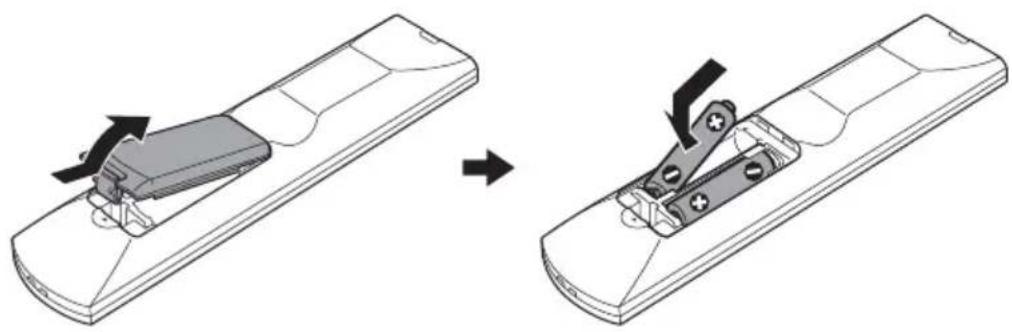

Inserting batteries into the remote

Insert two R6 (size AA) batteries (supplied) by matching the and ends on the batteries to the markings inside the compartment. To use the remote, point it at the remote sensor R in the front panel display of the subwoofer.

Diagram showing a remote control panel being adjusted to form a cable or switch (no text or symbols present)

Notes

• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.

- Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

- Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.

- If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Positioning the system

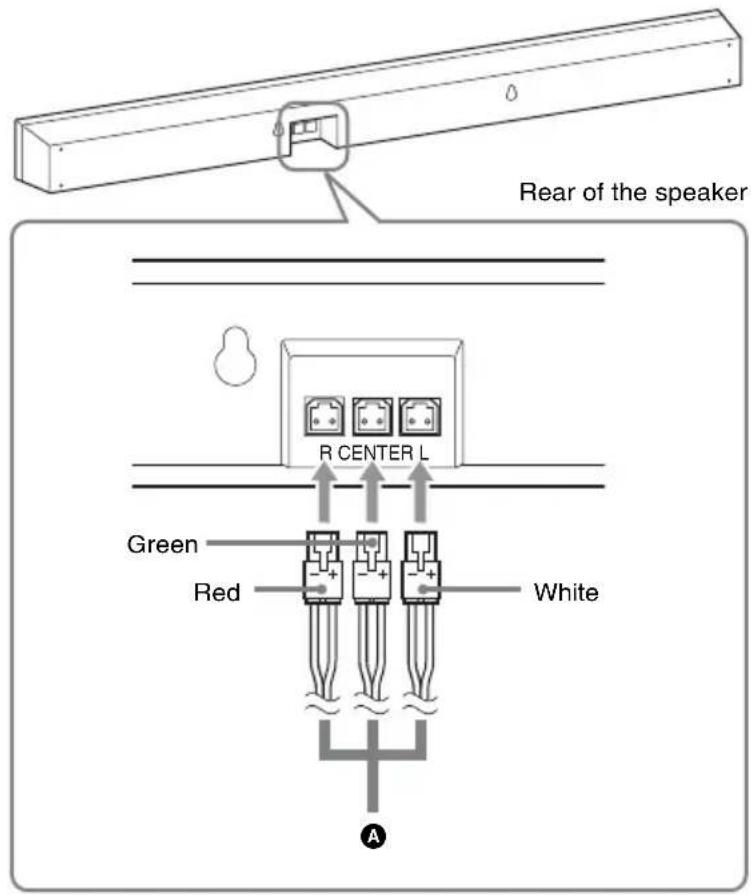

Connecting the speaker cord to the speaker

The connectors of the speaker cord are color-coded depending on the type of speaker. Connect the connectors of the speaker cord to match the color of the speaker jacks.

Rear of the speaker R CENTER L Green Red White A

A Speaker cord (supplied)

Note

- When you install the speaker on a wall, be careful not to stumble over the cord connected to the speaker.

Installing the speaker on a wall

You can install the speaker on the wall.

Notes

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a wall beam. Install the speaker on a vertical and flat reinforced area of the wall.
• Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation.
• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength, improper screw installation or natural calamity, etc.

1 Prepare screws (not supplied) that are suitable for the holes on the back of the speaker. See the illustrations below.

4 mm (1/6 inches) more than 25 mm (1 inch)

5 mm (1/5 inches) 10 mm (2/5 inches)

Hole on the back of the speaker

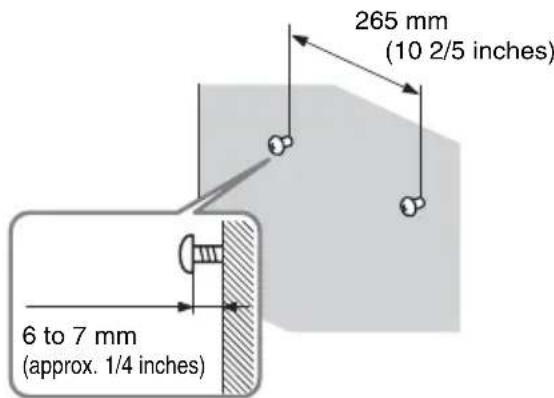

2 Fasten the screws to the wall. The screws should protrude 6 to 7 mm (approx. 1/4 inches).

265 mm (10 2/5 inches) 6 to 7 mm (approx. 1/4 inches)

3 Hang the speaker onto the screws.

Align the holes on the back of the speaker to the screws, then hang the speaker onto the two screws.

Diagram of a rectangular object with a curved arrow passing through it, showing directional flow (no text or symbols)

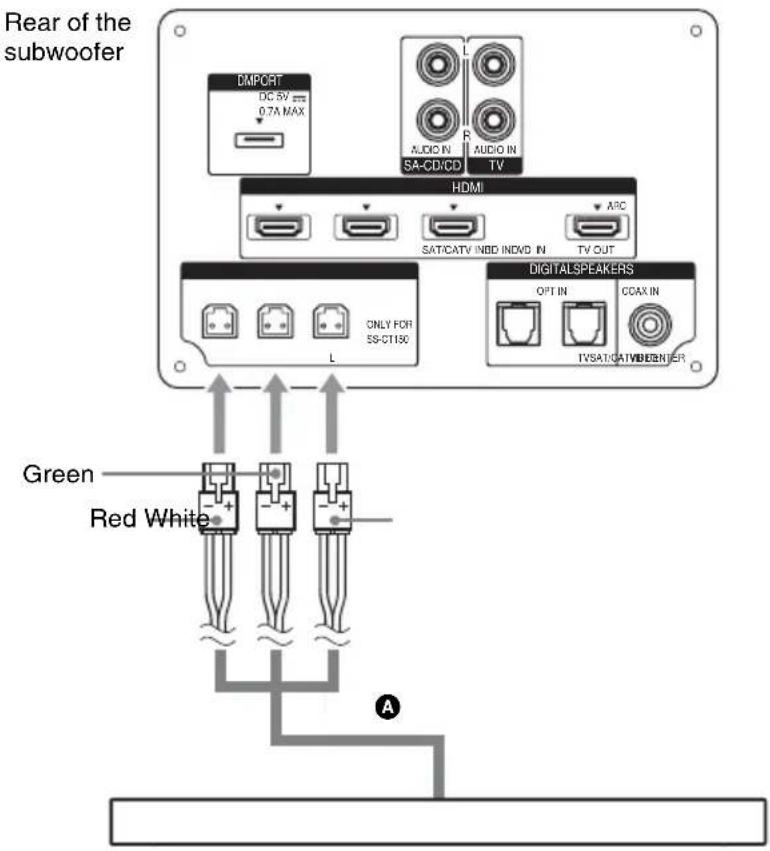

Connecting the speaker

The connectors of the speaker cord are color-coded depending on the type of speaker. Connect the connectors of the speaker cord to match the color of the SPEAKERS jacks.

Rear of the subwoofer IMPORT DC 5V 0.7A MAX L AUDIO IN SA-CD/CD AUDIO IN TV HDMI SAT/CATV INBD INVD IN TV OUT DIGITALSPEAKERS OPT IN CCAX IN TVSAT/CATV/DEENTER ONLY FOR 55-CT150 L Green Red White A

Speaker
A Speaker cord (supplied)

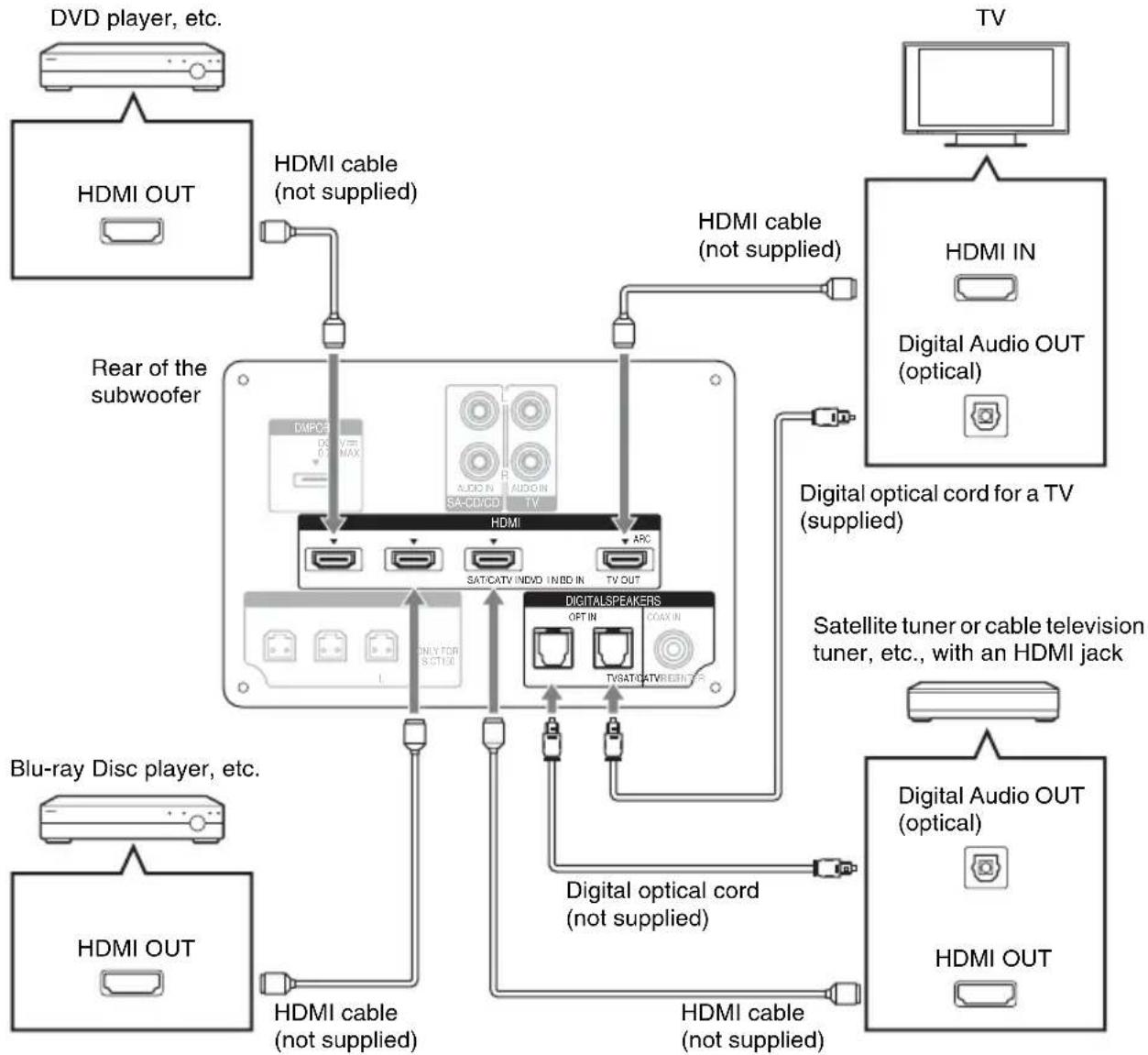

Connecting the TV and player, etc.

Connect the TV and/or player, etc., with HDMI jacks to the system using an HDMI cable. By connecting Sony “BRAVIA” Sync-compatible components using HDMI cables and by setting the Control for HDMI function via the TV for each connected component, operation can be simplified. See ““BRAVIA” Sync Features” (page 20).

Notes

• The system is compatible with the Audio Return Channel (ARC) function. If you connect the system to the ARC-compatible TV's HDMI jack via an HDMI cable, you do not need to connect the TV to the system with the digital optical cord (page 24).
• You can see the letters “ARC” beside the TV’s HDMI jack if it is compatible with the ARC function. Even if you connect an HDMI cable to the jack, if the HDMI input jack is not compatible with the ARC function, you cannot use the ARC function.
• The ARC function is available only when Control for HDMI is set to on.
• Depending on the satellite tuner, multi-channel sound may not be output. In this case, connect a digital optical cord in addition to an HDMI cable and set “INPUT MODE” to “OPT” in the AMP menu (page 32).
• Connect a “PlayStation 3,” etc., to any available HDMI jack. All the HDMI jacks on the system function in the same way.
• The HDMI jack connections have priority when you connect different components to the system using the INPUT OPT/INPUT COAX and HDMI jacks.
• When connecting a TV that does not have a digital optical audio output jack, connect the TV to the system using an analog audio cord (not supplied).

Tip

- Even if the system is turned off (active standby mode), the HDMI signal will be sent from the connected component to the TV via the HDMI connection. You can enjoy image and sound from the component on the TV.

Notes on HDMI connections

• Use a High Speed HDMI cable. If you use a Standard HDMI cable, 1080p, Deep Color, or 3D images may not be displayed properly.
• Sony recommends that you use an HDMI-authorized cable or Sony HDMI cable.
• Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the HDMI cable.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected component.
• Sound may be interrupted when the sampling frequency or the number of channels of audio output signals from the playback component is switched.
• When the connected component is not compatible with copyright protection technology (HDCP), the image and/or the sound from the HDMI TV OUT jack may be distorted or may not be output. In this case, check the specification of the connected component.
• We do not recommend using an HDMI-DVI conversion cable.
• When “TV,” “DMPORT,” “SA-CD/CD,” or “VIDEO” is selected for the input source of the system, video signals via the HDMI input jack (BD, DVD, SAT/CATV) that was selected last time are output from the HDMI TV OUT jack.
• This system supports Deep Color, "x.v.Color," and 3D transmission.
• To enjoy 3D images, connect 3D-compatible TV and video components (Blu-ray Disc player, Blu-ray Disc recorder, “PlayStation 3,” etc.) to the system using High Speed HDMI cables, put on 3D glasses, and then play back 3D-compatible content.

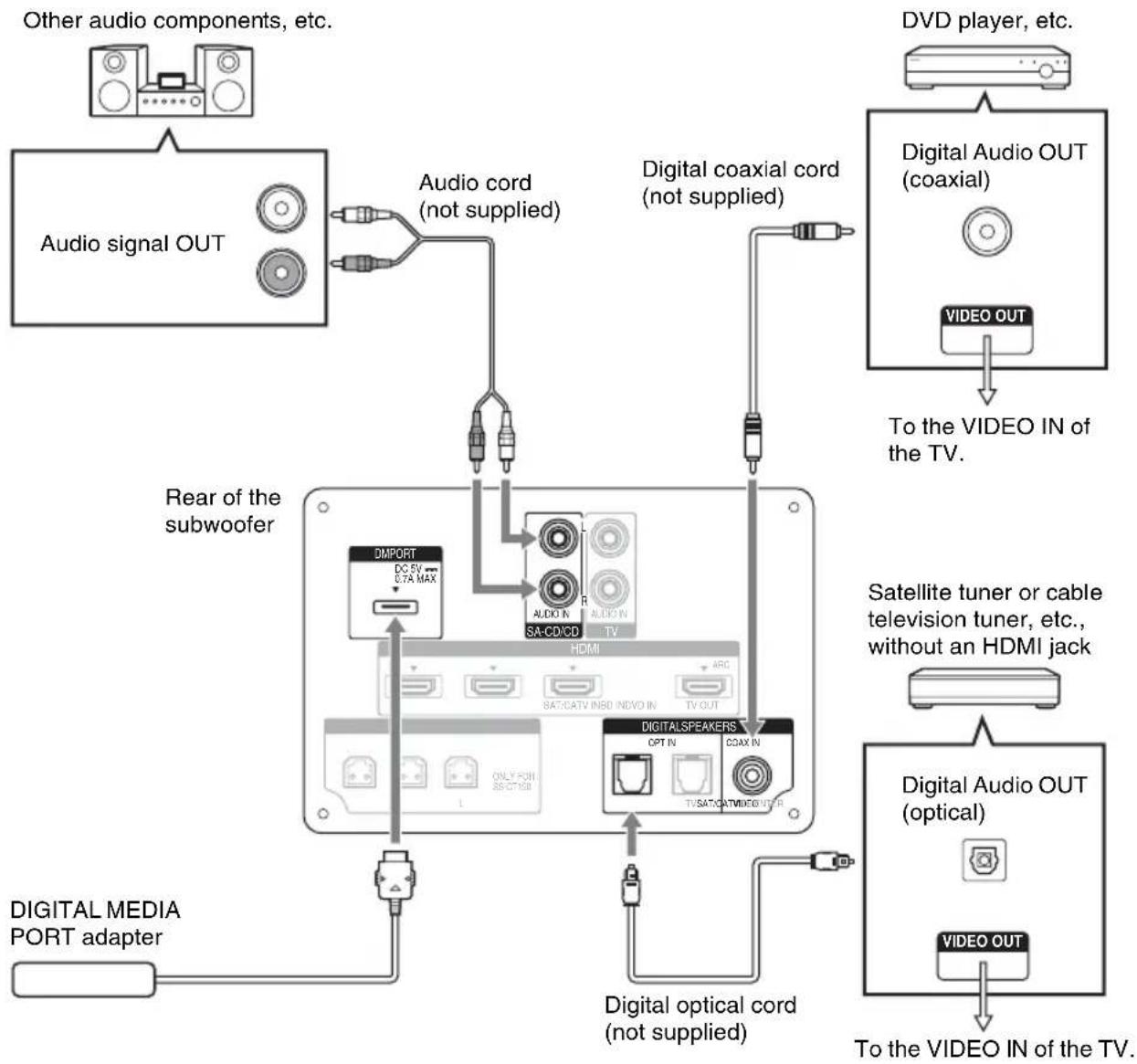

Connecting other components

When connecting components that do not have HDMI jacks, such as a “PlayStation 2,” a DVD player, a satellite tuner, or a cable television tuner, etc., set “CTRL HDMI” to “OFF” in the AMP menu of the system (page 21).

Notes

• Do not connect or disconnect the DIGITAL MEDIA PORT adapter while the system is turned on.
• When you connect the DIGITAL MEDIA PORT adapter, be sure the connector is inserted with the arrow mark facing toward the arrow mark on the DMPORT jack. To detach the DIGITAL MEDIA PORT adapter, press and hold A and then pull out the connector.

Diagram of an electrical connector with labeled parts and directional arrows (no text or symbols)

Connecting the AC power cord (mains lead)

Before connecting the AC power cord (mains lead) of the system to a wall outlet (mains), connect all the other components and TV to the system.

Notes

• After connecting the AC power cord (mains lead), wait about 20 seconds before turning on the power by pressing I/⏻.
• Connect the system to an easily accessible AC outlet (mains). Should you notice an abnormality in the system, disconnect the main plug from the AC outlet (mains) immediately.

Setting up the sound output of the connected component

To enjoy sound in multi-channel format (DTS, Dolby Digital, multi-channel LPCM), you need to make the audio output settings of the connected component. Set the connected component to output sound in multi-channel format. For details on audio output settings, refer to the operating instructions supplied with the connected component.

Playback Options

Index to parts and controls

For more information, see the pages indicated in parentheses.

Subwoofer

Top view 1 I/O 2 INPUT SELECTOR 3 VOLUME VOLUME - + 5

1I/ (on/standby)
2 INPUT SELECTOR

Press to select the input source to play back. Every time you press the button, the input source changes cyclically as follows: TV → BD → DVD → SAT/CATV → VIDEO → SA-CD/CD → DMPORT → TV......

3 VOLUME -
4VOLUME +
5 Front panel display

Green: The system is turned on.

Amber: Only HDMI parts of the system are on (The Control for HDMI function is working).

No light: The system is turned off.

Note

- The amber light turns off 30 seconds after you turn off the TV. However, if you set “PASS THRU” to “ON” in the AMP menu, the indicator stays amber even if you turn off the TV.

2 Audio format indicators

Light up according to the audio format that is being input to the system.

D: Dolby Digital

PLII: Dolby Pro Logic II

LPCM: Linear PCM

DTS

3 NIGHT (page 32)

Lights up in NIGHT MODE.

4 SLEEP (page 33)

Flashes when the sleep timer is active.

5 HDMI (page 10)

Lights up when HDMI components are being used or when an ARC signal is being input to the system while TV is selected as the input source.

6 COAX/OPT

Light up according to the cable which you are using.

7 MUTING

Lights up when the sound is turned off.

8 Remote sensor

9 Message display area

Displays volume, selected input source, audio input signal, etc.

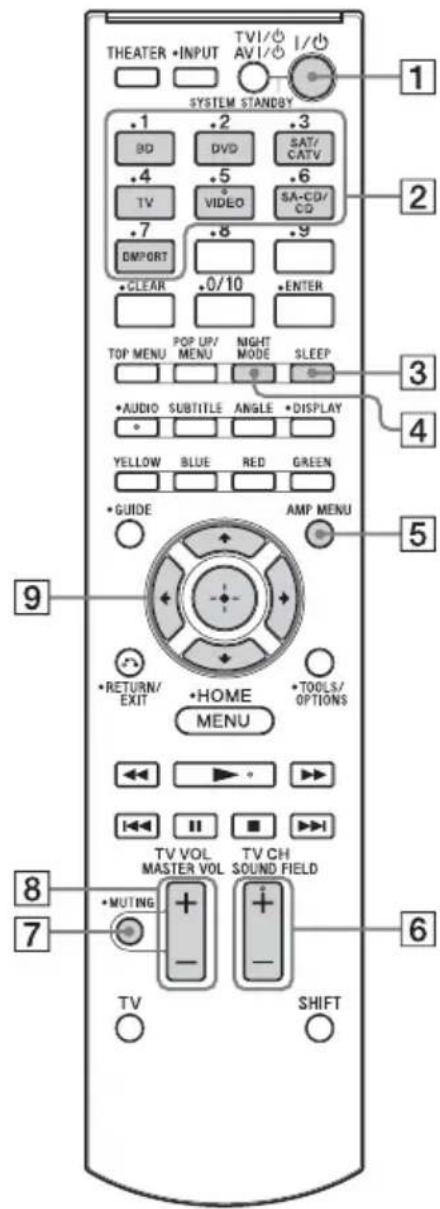

Remote control

This section describes subwoofer and speaker button operation. See page 25 for details on the button operation of connected components.

Note

- Point the remote towards the remote sensor ( ) of the subwoofer.

THEATER • INPUT TVI/○ AVI/○ I/○ SYSTEM STANDSY 1 .1 .2 .3 BD DVD SAT/ CATV .4 .5 .6 TV VIDEO SA-CD/ CO .7 .8 .9 IMPORT CLEAR 0/10 ENTER TOP MENU POP UP/ MENU NIGHT MODE SLEEP AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU •RETURN/ EXIT •HOME •TOOLS/ OPTIONS MENU TV VOL TV CH MASTER VOL SOUND FIELD •MUTING + - + - TV SHIFT 8 7 6

* The 5, ▶, AUDIO and SOUND FIELD + buttons have a tactile dot. Use it as a guide during operation.

1 I/⏻ (on/standby)
② Input buttons

Press one of the buttons to select the component you want to use.

3 SLEEP

Press to turn off at a preset time when you want to fall asleep listening to music. You can preset the time in 10-minute increments.

4 NIGHT MODE

Press to reproduce dialog clearly even at a low volume level. This function is useful for enjoying sound at night.

5 AMP MENU (page 30)
6 SOUND FIELD +/- (page 19)
7 MUTING
8 MASTER VOL +/-

Press to adjust the volume.

9 ←, ↑, ↓, → or ⊕

Press ←, ↑, ↓ or → to select the menu items.

Then press ⓣ to enter the selection.

Enjoying TV

THEATER • INPUT TVI/○ AV I/○ I/○ SYSTEM STANDBY .1 .2 .3 BD DVD SAT/ .4 .5 .6 TV VIDEO SA-CD/ .7 .8 .9 DMPORT • CLEAR .0/10 • ENTER TOP MENU POP UP/ NIGHT SLEEP MENU MODE • AUDIO SUBTITLE ANGLE • DISPLAY YELLOW BLUE RED GREEN • GUIDE AMP MENU • RETURN/ HOME • TOOLS/ EXIT EXIT MENU • OPTIONS • RETURN / • RETURN / TV VOL TV CH MASTER VOL MASTER VOL SOUND FIELD • MUTING + -

1 Turn on the TV and choose a program. Refer to the operating instructions of your TV for details.
2 Turn the system on.
3 Press TV on the remote.
4 Adjust the volume by pressing MASTER VOL +/-.

Tip

- The sound may be output from the TV's speaker. In this case, turn the volume of the TV's speaker down to minimum.

If you are using "BRAVIA" Sync (System Audio Control)

You do not need to perform steps 2 and 3 above. When you turn on the TV, the system is also turned on, and the input source changes automatically. You can also adjust the system's volume using the TV's remote. If you turn off the system, sound is output from the TV's speaker. For details on setting "BRAVIA" Sync, see "Preparing for "BRAVIA" Sync" (page 20).

Tip

- The system is not turned on when you turn the TV on if sound was being output from the TV speakers the last time the TV was turned off.

Enjoying other components

THEATER •INPUT TVI/0 I/ AVI/0 SYSTEM STANDBY •1 .2 .3 BD DVD SAT/ •4 .5 .6 TV VIDEO SA-GO/ •7 .8 .9 DMPORT •CLEAR .0/10 •ENTER TOP MENU POP UP/ NIGHT MENU MODE SLEEP •AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU •RETURN/ EXIT •HOME •TOOLS/ MENU •OPTIONS •MASTER VOL +/- •MUTING + + - -

1 Play the connected component.
2 Turn on the system.

3 Press the input buttons to display the input source in the front panel display.

Input source Playable component

TV TV, etc. connected to the TVjack

BD Blu-ray Disc player, etc.connected to the BD jack

DVD DVD player, etc. connected tothe DVD jack

SAT/CATV Satellite tuner or cabletelevision tuner, etc. connectedto the SAT/CATV jack

VIDEO DVD player, etc. connected tothe DIGITAL COAX INVIDEO jack

SA-CD/CD CD player, etc. connected to theSA-CD/CD AUDIO IN jack

DMPORT Portable audio player, etc.connected to the DMPORT jack

4 For video components, change the TV's input to the HDMI input you chose in step 3.

For details, refer to the operating instructions of your TV.

5 Adjust the volume by pressing MASTER VOL +/-.

Tips

• The sound may be output from the TV's speaker. In this case, turn the volume of the TV's speaker down to minimum.
• Even if you playback Dolby True HD, Dolby Digital Plus or DTS HD with a connected component compatible with these sound formats, the system accepts the signal as Dolby Digital or DTS. When you playback these high-quality sound formats, set the connected component to output the sound in multi-channel PCM, if possible.

Notes

• When you connect the video output jack of the DIGITAL MEDIA PORT adapter to the video input jack of the TV, set “CTRL HDMI” to “OFF” in the AMP menu of the system (page 21). The images of a component connected to the DIGITAL MEDIA PORT adapter will not be played on the TV if “CTRL HDMI” is set to “ON.”
• To enjoy the sound of a component without displaying the images when “CTRL HDMI” is set to “ON,” turn off the TV first and then reset the power of the system.

If you turn on the system first and then turn off the TV, all components connected to the TV will be turned off because of the Control for HDMI function.

If you are using "BRAVIA" Sync (One-Touch Play)

You do not need to perform steps 2 to 4 above. When you turn on the connected components, the system and the TV are also turned on, and the input source changes automatically. You can also adjust the system's volume using the TV's remote.

For details on setting “BRAVIA” Sync, see “Preparing for “BRAVIA” Sync” (page 20).

Tip

- The system is not turned on when you turn the TV on if sound was being output from the TV speakers the last time the TV was turned off.

Surround Function

Enjoying the surround effect

Selecting the sound field

This system can create multi-channel surround sound. You can select one of system's optimized pre-programmed sound fields.

+GUIDE AMP MENU +RETURN/ EXIT +HOME MENU +TOOLS/ OPTIONS TV VOL MASTER VOL TV CH SOUND FIELD +MUTING + - + - SOUND FIELD +/-

Press SOUND FIELD +/-.

The present sound field appears in the front panel display.

Each time you press SOUND FIELD +/-, the display changes cyclically as follows:

STANDARD ↔ MOVIE ↔ DRAMA ↔

Available sound fields

Sound field Effect

STANDARD* Suits various sources.

MOVIE* Recreates powerful and realistic sound, along with clear dialog.

DRAMA* Suited for TV dramas.

NEWS* Produces the announcer's voice clearly.

SPORTS* Produces the play-by-play commentary clearly and realistic sound with surround effects, such as cheering, etc.

GAME* Produces powerful and realistic sound, suited for playing video games.

MUSIC* Suited for music programs or music videos on Blu-ray Discs/DVDs.

2CH STEREO Suited for music CDs.

P.AUDIO** Suited to replay portable audio source.

* These sound fields are not available when "DMPORT" is selected by pressing INPUT SELECTOR.

** "P.AUDIO" appears only when "DMPORT" is selected.

Tips

• You can set a different sound field for each input source.
• The sound field default setting for “DMPORT” is “P.AUDIO,” and for other sources, “STANDARD.”
• When “DMPORT” is selected by pressing INPUT SELECTOR, the center speaker produces no sound.
• Some speakers will not produce sound depending on the input signal, such as monaural programs.
• When “2CH STEREO” or “P.AUDIO” is selected, the center speaker produces no sound.
• If you press the THEATER button on a Sony TV remote when “CTRL HDMI” is set to “ON,” the sound field changes to “MOVIE” (some Sony TVs excluded).

"BRAVIA" Sync Features

What is "BRAVIA" Sync?

By connecting Sony components that are compatible with “BRAVIA” Sync via an HDMI cable (not supplied), operation is simplified as below:

• One-Touch Play (page 21)
• System Audio Control (page 22)
• System Power Off (page 23)

"BRAVIA" Sync is compatible with Sony TVs, Blu-Ray Disc/DVD players, AV amplifiers, etc., with the Control for HDMI function.

CONTROL FOR HDMI is a mutual control function standard used by CEC (Consumer Electronics Control) for HDMI (High-Definition Multimedia Interface).

The Control for HDMI function will not operate correctly in the following cases:

• When you connect the system to components which do not correspond with the Control for HDMI function.
• When you connect the system and components using other than an HDMI connection.
• When you connect non-Sony components which are compatible with the Control for HDMI function.

We recommend that you connect products featuring "BRAVIA" Sync to this system.

Note

- Depending on the connected components, the Control for HDMI function may not work. Refer to the operating instructions of the components.

Preparing for "BRAVIA" Sync

To use “BRAVIA” Sync, set the Control for HDMI function to on for the connected components.

When you connect a Sony TV with the Control for HDMI function, the Control for HDMI function for the system and the connected components can be set simultaneously by setting the Control for HDMI function of the TV.

THEATER • INPUT TVI/○ AVI/○ I/○ SYSTEM STANDBY .1 .2 .3 BD DVD SAT/ CATV .4 .5 .6 TV VIDEO SA-CD/ CD .7 .8 .9 DMPORT •CLEAR .0/10 •ENTER TOP MENU POP UP/ MENU NIGHT MODE SLEEP •AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU AMP MENU ←,↑,↓,→,

1 Make sure that the system is connected to the TV and the connected components via HDMI cables (not supplied).
2 Turn on the system, the TV and the connected components.
3 Select the input of the system and the HDMI input of the TV (SAT/CATV, DVD, BD), so that an image from a connected component is displayed.

4 Display the list of the HDMI components on the TV menu, and set the Control for HDMI function to on for the connected components.

The Control for HDMI function for the system and the connected components are simultaneously set to on.

After you finish the setting, "COMPLETE" appears in the front panel display.

Note

- For details on setting the TV and the connected components, refer to their operating instructions.

If "COMPLETE" does not appear after performing the steps above

Set the Control for HDMI function to on for both the system and the connected component individually.

1 Press AMP MENU.
2 Press ↑/↓ repeatedly until “SET HDMI” appears, then press ⊕r →.
3 Press ↑/↓ repeatedly until "CTRL HDMI" appears, then press or →.
4 Press ↑/↓ to select "ON."
5 Press AMP MENU.

The AMP menu turns off. The Control for HDMI function is set to on.

6 Select the input of the system connected to the component you want to use the Control for HDMI function for (SAT/CATV, DVD, BD).

7 Set the Control for HDMI function of the connected component to on.

For details on setting the connected component, refer to its operating instructions.

If you add or reconnect a component

Perform steps of “Preparing for “BRAVIA” Sync” (page 20) and “If “COMPLETE” does not appear after performing the steps above” again.

Notes

• If the Control for HDMI function for the connected component cannot be set simultaneously by setting “CONTROL FOR HDMI” of the TV, set the Control for HDMI function using the menu of the connected component.
• For details on setting the TV and the connected components, refer to their operating instructions.

Tip

- The default setting of the Control for HDMI function of the system is “ON.”

Setting the Control for HDMI function to off

Set the Control for HDMI function to off when you connect components not compatible with “BRAVIA” Sync, or that do not have HDMI jacks, etc.

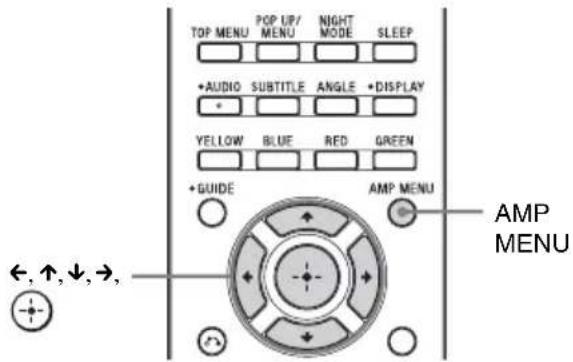

TOP MENU POP UP/ MENU NIGHT MODE SLEEP +AUDIO SUBTITLE ANGLE +DISPLAY YELLOW BLUE RED GREEN +GUIDE AMP MENU ←, ↑, ↓, →, AMP MENU

1 Press AMP MENU.
2 Press ↑/↓ repeatedly until "SET HDMI" appears, then press ⊙ or →.
3 Press ↑/↓ to select "CTRL HDMI," then press ⊕ or →.
4 Press ↑/↓ to select "OFF."
5 Press AMP MENU.

The AMP menu turns off.

Enjoying Blu-ray Disc/DVD

(One-Touch Play)

Play back a connected component.

The TV turns on automatically and switches to the appropriate HDMI input.

Tip

• Even if the system is turned off (active standby mode), the HDMI signal will be sent from the connected component to the TV via the HDMI connection. You can enjoy image and sound of the component on the TV.

Note

- Depending on the TV, the start of the content may not be output.

Enjoying the TV sound from the system

(System Audio Control)

You can enjoy the TV sound from the speakers of the system by means of a simple operation. You can also adjust the volume and turn off the sound of the system using the TV remote. For details, refer to the operating instructions of the TV.

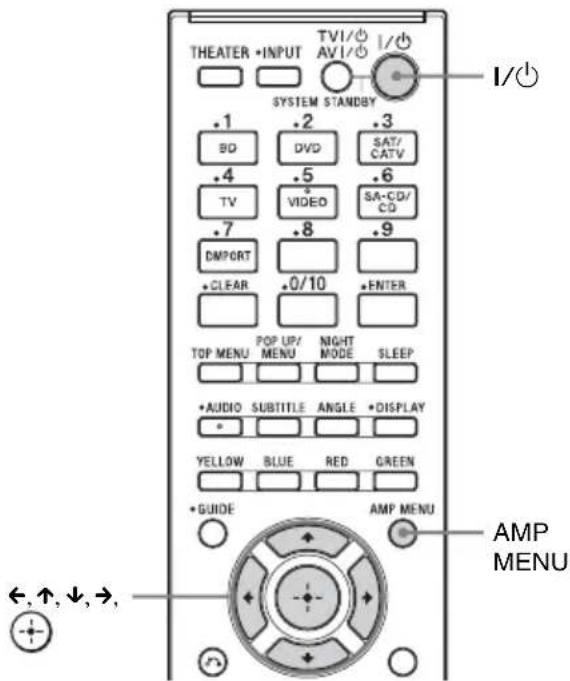

THEATER •INPUT TVI/○ AVI/○ I/○ SYSTEM STANDBY .1 .2 .3 BD DVD SAT/ .4 .5 .6 TV VIDEO SA-CD/ .7 .8 .9 DMPORT •CLEAR .0/10 •ENTER TOP MENU POP UP/ NIGHT SLEEP MENU MODE MODE •AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU ←,↑,↓,→, AMP MENU

Press I/⏻ to turn on the system.

The sound is output from the speaker of the system. Sound output reverts to the TV's speaker when you turn the system off.

Notes

• When the TV is turned on before this system is turned on, the TV sound will not be output for a moment.
• Depending on the TV, when you adjust the system's volume using TV's remote, the volume level appears on the TV screen, in the same way it would appear when you adjust the TV's volume. In this case, the volume level that appears on the TV screen and the system's front panel display may differ.

Using the Volume Limit function

When the System Audio Control function is active and the output method changes from the TV speaker to the system speakers automatically, loud sound may be output depending on the volume level of the system. You can prevent this by limiting the volume level.

1 Press AMP MENU.
2 Press ↑/↓ repeatedly until "SET HDMI" appears, then press ☐ or →.
3 Press ↑/↓ repeatedly until "VOL LIMIT" appears, then press ☑ or →.
4 Press ↑/↓ to select the volume limit you want.

The volume limit changes as follows:

$$ \mathrm{MAX} \longleftrightarrow 4 9 \longleftrightarrow 4 8 \dots 2 \longleftrightarrow 1 \longleftrightarrow \mathrm{MIN} $$

5 Press AMP MENU.

The AMP menu turns off.

Notes

• This function is available only when the Control for HDMI function is set to on.
• This function is not available when the output method changes from the system speakers to the TV speaker.

Tips

• We recommend that you set the volume limit to a little lower than the volume you usually listen to.
- Regardless of the volume limit you set, the VOLUME +/- buttons of the system and the MASTER VOL +/- buttons of the remote are operable.
- If you do not want to limit the volume level, select "MAX."

Turning off the system, TV and the connected components

(System Power Off)

When you turn the TV off by using the power button on the TV's remote, the system and the connected components turn off automatically. Also, when you turn the TV off by using the system's remote, the system and the connected components turn off automatically.

THEATER • INPUT TVI/○ AVI/○ I/○ SYSTEM STANDBY .1 .2 .3 BG DVD SAT/ .4 .5 .6 TV VIDEO SA-CD/ .7 .8 .9 DMPORT •CLEAR .0/10 •ENTER TOP MENU POP UP/ NIGHT SLEEP MENU MODE •AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU •RETURN/ HOME •TOOLS/ EXIT OPTION MENU TV VOL TV CH MASTER VOL SOUND FIELD •MUTING + - TV (yellow) •SHIFT

While pressing and holding TV (yellow), press AV I/☐.

The TV, the system, and the connected components are turned off.

Note

- Depending on the status, the connected components may not be turned off. For details, refer to the operating instructions of the connected components.

Using the power saving function

(HDMI SIGNAL PASS THRU)

When using “BRAVIA” Sync, you can enjoy image and sound from a Blu-ray Disc, etc., on the TV, even if the system is in standby mode. Power consumption in standby mode is also reduced automatically when the TV is turned off if “PASS THRU” is set to “AUTO.” The default setting is “AUTO.”

Note

- This function is available only when "CTRL HDMI" is set to "ON."

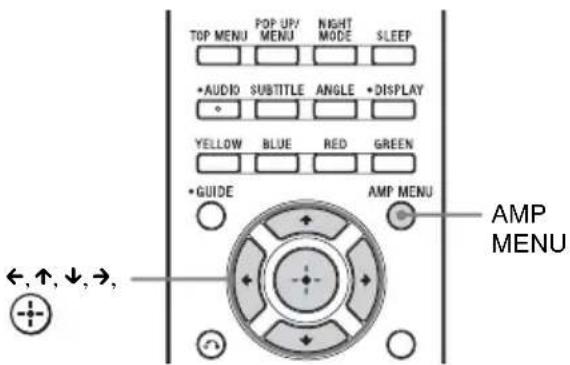

TOP MENU POP UP/ MENU NIGHT MODE SLEEP +AUDIO SUBTITLE ANGLE +DISPLAY YELLOW BLUE RED GREEN +GUIDE AMP MENU AMP MENU ←, ↑, ↓, →,

1 Press AMP MENU.
2 Press ↑/↓ repeatedly until "SET HDMI" appears, then press ⊙ or →.
3 Press ↑/↓ to select "PASS THRU," then press ⊕ or →.

4 Press ↑/↓ to select the setting.

- AUTO: When the TV is turned on while the system is in standby mode, the system outputs HDMI signals from the system's HDMI output jack. We recommend this setting if you use a TV that is compatible with “BRAVIA” Sync. This setting saves power in standby mode compared with the “ON” setting.

- ON: When the system is in standby mode, the system continuously outputs HDMI signals from the system's HDMI output jack.

Note

- When “AUTO” is selected, it may take a little more time for the picture and sound to be output to the TV than when “ON” is selected.

5 Press AMP MENU.

The AMP menu turns off.

Setting the Audio Return Channel function to off

If the TV is compatible with the Audio Return Channel (ARC) function, an HDMI cable connection also sends a digital audio signal from the TV. You do not need to make a separate audio connection for listening to TV sound. If you do not use the ARC function, connect the system and TV via digital optical cord and set "ARC" to "OFF" in the AMP menu.

TOP MENU POP UP/ MENU NIGHT MODE SLEEP •AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU AMP MENU ←,↑,↓,→,

1 Press AMP MENU.
2 Press ↑/↓ repeatedly until “SET HDMI” appears, then press ⊙ or →.

3 Press ↑/↓ repeatedly until “ARC” appears, then press ⊙ or →.
4 Press ↑/↓ to select "OFF".

• ON: The ARC function turns on.
• OFF: The ARC function turns off.

5 Press AMP MENU.

The AMP menu turns off.

Note

- When “CTRL HDMI” is set to “OFF,” the ARC function and its setting are not available.

Advanced Settings

Controlling connected Sony components with the remote

You can control connected Sony components with the remote of this system.

Some functions may not be selectable depending on the equipment. In that case, select them using the remote control supplied with the equipment.

28 27 THEATER • INPUT TWO/5 AVI/0 1/0 SYSTEM STANDRY .1 .2 .3 BD DVD SAT/ CATV .4 .5 .6 TV VIDEO SA-CD/ CD .7 .8 .9 DM/ORT .0/10 •CLEAR •ENTER 24 23 TOP MENU POP UP/ MENU NIGHT MODE SLEEP 22 AUDIO SUBTITLE ANGLE • DISPLAY YELLOW BLUE RED OFFICE 21 6 •GUIDE AMP MENU 19 18 17 •RETURN/ EXIT HOME MENU •TOOLS/ OPTIONS 7 8 9 10 11 16 •MUTING + - + - TV VOL TV CH MASTER VOL SOUND FIELD 15 14 TV SHIFT 13

* The 5, ▶, AUDIO and SOUND FIELD + buttons have a tactile dot. Use it as a guide during operation.

To control the component

1 Press one of the input buttons 3 (BD, DVD, SAT/CATV, TV, VIDEO, or DMPORT) to select the component you want to operate.

The component assigned to the selected input button becomes operable.

2 Referring to the following table, press the corresponding button for the operation.

Common operations

Remote Button Function
1 TV I/↓AV I/↓(on/standby)	Turns on or off the Sony TV or audio/video components that the remote is assigned to operate.Press 1 TV I/↓/AV I/↓and 2 I/↓ at the same time to turn off the system and all other components that the remote is assigned to operate (SYSTEM STANDBY).
4 ENTER Enters the selection.
	For TV, while pressing and holding 14 TV (yellow), press 4 ENTER.For other components, while pressing and holding 13 SHIFT, press 4 ENTER.
18 ←, ↑, ↓, →, +	Selects a menu item and enters the selection.
20 Color buttons Displays an operation guide on the TV screen when the color buttons are available. Follow the operation guide to perform a selected operation.
25 CLEAR Clears the selection.
	For TV, while pressing and holding 14 TV (yellow), press 25 CLEAR.For other components, while pressing and holding 13 SHIFT, press 25 CLEAR.

Remote Button Function

26 Number buttons Selects channels and tracks directly. For TV, press and hold 14 TV (yellow), and press the number buttons to select channels. For other components, press and hold 13 SHIFT, and press the number buttons to select channels or tracks.

To control a TV

While pressing and holding 14 TV (yellow), press the buttons with a yellow dot or yellow printing.

Remote Button Function

5 DISPLAY Displays the current channel number, etc.
7 TOOLS/ OPTIONS	Enables you to access various viewing options and change/make adjustments according to the source and screen format.
8 MENU/HOME Allows you to select channels or input sources and change the settings for your TV.
12 TV CH +/- Selects the next (+) or previous (−) channel.
15 MUTING Turns off the sound.
16 TV VOL +/- Adjusts the volume.
17 RETURN/EXIT Returns to the previous screen of any displayed menu.
18 ←, ↑, ↓, →, ⏻	Selects a menu item and enters the selection.
19 GUIDE Displays the guide when you are watching analog or digital channels.
21 AUDIO Selects the audio format/ track.

Remote Button Function

27THEATER Automatically sets the optimal picture settings for watching movies, such as low-light settings, when you connect a Sony TV that is compatible with the THEATER button function. Also, audio is automatically switched to the audio output of this system when you connect the TV and the system with HDMI connection, and the Control for HDMI function is set to on.

28

INPUT

Selects input.

To control the DVD recorder/Blu-ray Disc recorder

Remote Button Function

6 ANGLE	Switches to other viewing angles when multi-angles are recorded on a DVD VIDEO.
8 MENU/HOME Displays the menu.
9 ◀◀/▶▶	To fast reverse or to fast forward the disc when pressed during playback.
10 ◀◀◀/▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▲	To fast reverse or to fast forward the disc when pressed during playback.
11 ▶ ( playback)/■■ (pause, press again to resume normal playback)/■■ (stop)	Play mode buttons.
18 ←, ↑, ↓, →, ⊕	Selects a menu item and enters the selection.
21 AUDIO Selects the audio format/ track.
22 SUBTITLE	Selects the subtitle language when multilingual subtitles are recorded on a BD-ROM/DVD VIDEO.
23 TOP MENU	Displays the top menu/disc menu.
24 POP UP/MENU	Displays the BD-ROM’s Pop-up Menu, or the DVD’s menu.

To control the DVD player/Blu-ray Disc player

Remote Button Function

6 ANGLE Switches to other viewing angles when multi-angles are recorded on a DVD VIDEO.
8 MENU/HOME Displays the menu.
9 ◀◀/▶▶To fast reverse or to fast forward the disc when pressed during playback.
10 ◀◀/▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>	beginning of the previous or next chapter or track.
11 ▶ ( playback)/■ (pause, press again to resume normal playback)/■ (stop)	Play mode buttons.
18 ←, ↑, ↓, →, ⊕	Selects a menu item and enters the selection.
21 AUDIO Selects the audio format/ track.
22 SUBTITLE Selects the subtitle language when multilingual subtitles are recorded on a BD-ROM/DVD VIDEO.
23 TOP MENU Displays the top menu/disc menu.
24 POP UP/MENU Displays the BD-ROM's Pop-up Menu, or the DVD's menu.

To control the HDD/DVD COMBO

Remote Button Function

6ANGLE Switches to other viewing angles when multi-angles are recorded on a DVD VIDEO.

8MENU/HOME Displays the menu.

9◀◀/▶▶To fast reverse or to fast forward the disc when pressed during playback.

10◀◀/▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▲▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>

Remote Button Function

11▶ ( playback)/■ (pause, press again to resume normal playback)/■ (stop)	Play mode buttons.
18←, ↑, ↓, →, ⊕	Moves the highlight (cursor) and selects the item.
21AUDIO Selects the audio format/ track.
22SUBTITLE Selects the subtitle language when multilingual subtitles are recorded on a BD-ROM/ DVD VIDEO.
23TOP MENU Displays the top menu/disc menu.
24POP UP/MENU Displays the BD-ROM's Pop-up Menu, or the DVD's menu.

To control the SAT

Remote Button Function

8MENU/HOME Displays the menu.
18←,↑,↓,→,⊕	Selects a menu item and enters the selection.
19GUIDE Displays the guide menu.

Note

- The above explanations are intended to serve as an example only. Depending on the component, the above operations may not be possible, or may operate differently than described.

To control the connected component through DMPORT connection

Remote Button Function

5DISPLAY Press to select the setting of the front panel display.
8MENU	Displays the menu.
9◄◄/►►Press to fast reverse or to fast forward the disc when pressed during playback.
10◄◄/►►Press to skip chapters.
11► ( playback)/■ (pause)/■ (stop)	Play mode buttons.

Remote Button Function

17 ● RETURN Returns to the previous screen of any displayed menu.

18 ←, ↑, ↓, →, ⊕

Selects a menu item and enters the selection.

Changing the input button assignments of the remote

You can change the factory settings of the input buttons to suit the components in your system.

For example, if you connect a Blu-ray Disc player to the DVD jack on the system, you can set the DVD button on this remote to control the Blu-ray Disc player.

You cannot change the remote assignments for TV and DMPORT.

INPUT THEATER • INPUT TV I/O AV I/O I/O SYSTEM STANDAY Number buttons .1 .2 .3 BD DVD SAT/ .4 .5 .6 TV VIDEO SA-CD/ .7 .8 .9 DMPORT • CLEAR .0/10 • ENTER TOP MENU POP UP/ NIGHT MENU MODE SLEEP •AUDIO SUBTITLE ANGLE •DISPLAY YELLOW BLUE RED GREEN •GUIDE AMP MENU •RETURN/ HOME •TOOLS/ EXIT MENU •OPTIONS • RETURN - TV VOL TV CH MASTER VOL MASTER VOL SOUND FIELD •MUTING + - - + - MASTER VOL +/-

1 Press and hold the input button whose assignment you want to change, and then press and hold AV I/⏻ at the same time.

Example: While holding down DVD, press and hold AV I/☐.

2 While continuing to hold down AV I/∅, release the input button you selected in step 1.

Example: While continuing to hold down AV I/☐, release DVD.

3 While continuing to hold down AV I/☐, refer to the following table and press the corresponding number button for the category you want.

Example: While continuing to hold down AV I/∅, press 1.

4 Release the number button you selected in step 3, and then release AV I/⏻.

Example: Release 1, then release AV I/⏻. Now you can use the DVD button to control the Blu-ray Disc player.

Categories and the corresponding buttons for BD, DVD, SAT/CATV, VIDEO and SA- CD/CD

Categories Press
Blu-ray Disc player (command mode BD1)a)	1
Blu-ray Disc recorder (command mode BD3)	2
DVD player (command mode DVD1)b)	3
DVD recorder (command mode DVD3)	4
VCR (command mode VTR3) 5
CD player 6
DSSc)	7

a) The initial setting of the BD button. For details on the BD1 or BD3 setting, refer to the operating instructions supplied with the Blu-ray Disc player or Blu-ray Disc recorder.
b) The initial setting of the DVD button. Sony DVD recorders are operated with a DVD1 or DVD3 setting. For details, refer to the operating instructions supplied with the DVD recorders.
^c) The initial setting of the SAT/CATV button.

To clear all remote button assignments

While holding down MASTER VOL –, press I/ ^① and INPUT. Then, release the buttons.

The remote is reset to its initial settings.

Settings and adjustments using the amplifier menu

Using the AMP menu

You can set the following items with AMP MENU on the remote. The default settings are underlined.

AMP MENU

* See ““BRAVIA” Sync Features” (page 20). ** This setting appears only when “CTRL HDMI” is set to “ON.”

TOP MENU POP UP/ MENU NIGHT MODE SLEEP +AUDIO SUBTITLE ANGLE +DISPLAY YELLOW BLUE RED GREEN +GUIDE AMP MENU ←, ↑, ↓, →, AMP MENU

1 Press AMP MENU to turn on the AMP menu.
2 Press /// repeatedly to select the item and the setting.
3 Press AMP MENU to turn off the AMP menu.

Tip

• These settings are retained even if you disconnect the AC power cord (mains lead).

The following pages show details for each setting.

Setting the speaker level (CNT LEVEL, SW LEVEL)

You can adjust the level and the balance of the center speaker and subwoofer.

1 Select "LEVEL" in the AMP menu, then press ⊕ or →.

2 Select "CNT LEVEL" or "SW LEVEL," then press or →.

• CNT LEVEL: Adjusts the center speaker level.
• SW LEVEL: Adjusts the subwoofer level.

3 Select the parameter you want and press ⏻.

The parameter of “CNT LEVEL” and “SW LEVEL” is from “-6” to “+6” in 1-step increments. The default setting is “0.”

Enjoying Dolby Digital sound at low volume (AUDIO DRC)

Narrows the dynamic range of the sound track. Useful for enjoying movies at low volume. AUDIO DRC only applies to Dolby Digital sources.

1 Select "LEVEL" in the AMP menu, then press ⊕ or →.
2 Select "AUDIO DRC," then press or →.
3 Select the setting and press .

- OFF: No compression of dynamic range.

- STD: Reproduces the sound track with the kind of dynamic range that the recording engineer intended.

• MAX: Compresses dynamic range fully.

Adjusting the bass and treble level (BASS, TREBLE)

You can adjust the bass and treble level easily.

1 Select "TONE" in the AMP menu, then press ⊕ or →.
2 Select "BASS" or "TREBLE," then press ⊕ or →.

• BASS : Adjusts the bass level.

- TREBLE: Adjusts the treble level.

3 Select the parameter you want and press ⏻.

The parameter is from “-6” to “+6” in 1-step increments. The default setting is “0.”

Adjusting the delay between the sound and the image (A/V SYNC)

You can delay the sound using this function when the image is slower than the sound.

1 Select "AUDIO" in the AMP menu, then press ⊕ or →.
2 Select "A/V SYNC," then press ⊕ or →.
3 Select the setting and press .

- OFF: No adjustment.

- ON: Adjusts the difference between picture and sound.

Notes

• You may not be able to adjust the delay between sound and image perfectly using this function.
• This function is useful only for Dolby Digital, DTS and Linear PCM (2ch) input via digital coaxial cord, digital optical cord or HDMI cable.

Enjoying multiplex broadcast sound (DUAL MONO)

You can enjoy multiplex broadcast sound when the system receives an AC-3 multiplex broadcast signal.

Note

• To receive an AC-3 signal, you need to connect a digital satellite tuner to the system with an optical cable or coaxial cable, and set the digital output mode of the digital satellite tuner to AC-3.
  1 Select "AUDIO" in the AMP menu, then press ⊕ or →.
  2 Select "DUAL MONO," then press or →.
  3 Select the setting and press .

• MAIN: Plays back only the main channel.

• SUB: Plays back only the sub channel.
• MAIN/SUB: Main sound is output from the left speaker and sub sound is output from the right speaker.

Enjoying the sound at low volume (NIGHT MODE)

You can enjoy sound effects and hear the dialog clearly even at a low volume level using this function.

1 Select "AUDIO" in the AMP menu, then press ⊕ or →.
2 Select "NIGHT MODE," then press or →.
3 Select the setting and press .

- ON: Turns on the “NIGHT MODE” function.

• OFF: Turns off the function.

Tip

- You can listen to Dolby Digital sound at low volume by using AUDIO DRC (page 31).

Setting the sound from the satellite tuner (INPUT MODE)

Even if you connect the satellite tuner to the HDMI SAT/CATV input jack of the system, multi-channel sound may not be output depending on the satellite tuner. In this case, connect a digital optical cord to the SAT/CATV OPT IN jack of the system in addition to an HDMI cable, and make the following setting.

1 Select "AUDIO" in the AMP menu, then press ⊕ or →.
2 Select "INPUT MODE," then press or →.
3 Select "OPT" and press.

- AUTO: Preferentially output the sound signal from the HDMI SAT/ CATV input jack.

- OPT: Output the signal from the SAT/ CATV OPT IN jack.

Changing the brightness of the front panel display (DIMMER)

The brightness of the front panel display can be set to one of 2 levels.

1 Select "SYSTEM" in the AMP menu, then press or →.
2 Select "DIMMER," then press ⊕ or →.
3 Select the setting and press .

• ON: Dim.
• OFF:Bright.

Changing the display setting (DISPLAY)

You can change the display behavior of the front panel display.

1 Select "SYSTEM" in the AMP menu, then press or .
2 Select "DISPLAY," then press ⊕ or →.
3 Select the setting and press .
• ON: The display stays turned on.
- OFF: The display appears for a few seconds when you operate the system.

Tip

- The display shows the kinds of input signal (digital input only) when you press DISPLAY, even if you set "DISPLAY" to "OFF."

Note

- The display stays turned on when the muting or protection function is working, even if you set “DISPLAY” to “OFF.”

Using the sleep timer (SLEEP)

You can set the system to turn off at a preset time when you want to fall asleep listening to music. You can preset the time in 10-minute increments.

1 Select "SYSTEM" in the AMP menu, then press -or
2 Select "SLEEP," then press ⏻ or →.
3 Select the preset time you want and press ⏻.

The minutes display (remaining time) changes as follows:

Note

- This function is only for this system, not for the connected TV or other components.

Auto Standby function (AUTO STBY)

You can reduce power consumption. The system enters standby mode automatically when you do not operate the system for about 30 minutes and the system is not outputting sound for about 30 minutes.

The default setting is "ON".

1 Select "SYSTEM" in the AMP menu, then press - or .

2 Select "AUTO STBY," then press or.

3 Select the setting and press.

- ON: Turns on the “AUTO STBY” function.

• OFF: Turns off the function.

Notes

- When the system is turned off via the AUTO STBY function, the system may not be turned on automatically when you turn on the TV next time.

- “AUTO STBY” begins to flash in the front panel display about two minutes before the system enters standby mode.

- When the system is turned off via the AUTO STBY function, the system may not be turned on automatically when you turn on the TV next time. - “AUTO STBY” begins to flash in the front panel display about two minutes before the system enters standby mode.

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

POWER

The power is not turned on.

- Check that the AC power cord (mains lead) is connected securely.

The system is not turned on when the TV is turned on.

- Check the TV speaker settings. The TV speaker settings control how the system is automatically turned on with the TV. To enjoy the TV sound via the system, you need to set the speaker settings of the TV to output the sound from external audio equipment. For details, refer to the operating instructions of the TV. - The system is not turned on when you turn the TV on if sound was being output from the TV speakers the last time the TV was turned off.

The System Power Off function does not work.

- Change the setting of the TV to turn connected components off automatically when you turn off the TV. For details, refer to the operating instructions of the TV.

The system is turned off when you turn off the TV.

- When the Control for HDMI function is on, the System Power Off function is active, and the system is turned off when you turn off the TV.

The system is turned off automatically.

- The AUTO STBY function is working (page 33).

SOUND

Dolby Digital or DTS multi-channel sound is not reproduced.

• Check that the Blu-ray Disc, DVD, etc., is recorded in Dolby Digital or DTS format.
• When connecting the Blu-ray Disc, DVD player, etc., to the digital input jacks of this system, check the audio setting (settings for the audio output) of the connected component.

The surround effect cannot be obtained.

- Depending on the digital signal, the surround processing may not work (page 19). Press DISPLAY to show the sound format in the front panel display. If “2.0CH” or “1.0CH” is displayed in the front panel display, the signal is stereo or monaural and does not include multi-channel sound. If “5.1CH,” etc., is displayed, the signal contains multiple channels, but the surround effect may be subtle depending on the program or disc.

No TV sound is output from the system.

• Check the connection of the digital optical cord or audio cord that is connected to the system and the TV (page 10).
• Check the sound output of the TV.
• If the TV is compatible with the ARC function, set “CTRL HDMI” and “ARC” to “ON.”

The sound is output from both the system and the TV.

- If the Control for HDMI function is set to off, or the selected component is not compatible with the Control for HDMI function, turn off the sound of the system or the TV.

Sound lags behind the TV image.

- Set “A/V SYNC” to “OFF” if “A/V SYNC” is set to “ON.”

The volume turns down when the output method changes from the TV speaker to the system speakers.

- The Volume Limit function is working. For details, see “Using the Volume Limit function” (page 22).

No sound or only a very low-level sound of the connected component is heard from the system.

• Press MASTER VOL + and check the volume level.
• Press MUTING or MASTER VOL + to cancel the muting function.
• Check that the input source is correctly selected.
• Check that all the cables and cords of the system and the connected components are fully inserted.
• Check the HDMI setting of the connected components.

No sound is output from specific speakers.

• Check that the connectors of the speaker cord are fully inserted into the jacks.
• Depending on the sound source that is input to the system or selected sound field of the system (page 19), no sound is output from the center speaker.

Sound is interrupted or there is noise.

- Check “Formats supported by this system” (page 36).


No image appears on the TV.

• Check that the TV and the system are connected correctly.
• Check that the TV is selected correctly.
• Set the TV to the appropriate input mode.
• Check whether HDMI IN and HDMI OUT are connected in reverse.
• Check that the cords are fully inserted into the jacks on both the component and this system (pages 10, 12).

No 3D image appears on the TV.

- Depending on the TV or the video component, 3D images may not be displayed. Check the 3D image formats supported by the system (page 37).

When the system is in standby mode, there is no image or sound on the TV.

• “CTRL HDMI” is set to “OFF.”
• When the system is in standby mode, image and sound are output from the HDMI component selected the last time you turned off the system. If you want to play a component other than the HDMI component you selected last time, play the component via One-Touch Play, or turn on the system to select the HDMI component you want to enjoy.
• Make sure “PASS THRU” is set to “ON” in the AMP menu if you connect components not compatible with “BRAVIA” Sync to the system (page 23).

The remote does not function

• Point the remote at the remote sensor in the system.
• Remove any obstacles in the path between the remote and the system.
• Replace both batteries in the remote with new ones, if they are weak.
• Make sure you select the correct input on the remote.

OTHER

Control for HDMI does not work properly.

• Check the HDMI connection (pages 10).
• Set up Control for HDMI on the TV (page 20).
• Make sure the connected component is compatible with “BRAVIA” Sync.
• Check the Control for HDMI settings on the connected component. Refer to the operating instructions supplied of the connected component.
• If you change the HDMI connection, connect/disconnect the AC power cord (mains lead), or if there is a power failure, repeat the procedures of ““BRAVIA” Sync Features” (page 20).
• When you plug in or unplug the AC power cord (mains lead), wait 15 seconds or more before operating the system.

- If you connect the audio output of the video component and the system using other than an HDMI cable, no sound may be output because of “BRAVIA” Sync. In this case, set “CTRL HDMI” to “OFF” (page 21) or connect the audio output jack directly to the TV instead of the system.

If "PROTECTOR" and "PUSH POWER" appear alternately in the front panel display.

Press I/ ^① to turn off the system, and check the following item after “STANDBY” disappears.

- Is anything blocking the ventilation holes of the system?

After checking the above item and fixing any problems, turn on the system. If the cause of the problem cannot be found even after checking the above item, consult your nearest Sony dealer.

If the system still does not operate properly after performing the above measures, reset the system as follows:

Use buttons on the system for the operation.

1 Press I/⏻ to turn on the power.
2 Press I/While pressing INPUT SELECTOR and VOLUME -.

"COLD RESET" appears and the system is reset. AMP menu, sound field, etc., return to the default settings.

Specifications

Formats supported by this system

Digital input formats supported by this system are as follows.

Format Supported/Not supported
Dolby Digital
DTS
Linear PCM (2ch)*
Linear PCM (5.1ch, 7.1ch)* (Only on HDMI)
Dolby Digital Plus ×
Dolby True HD ×
DTS-HD	×

* Linear PCM accepts sampling frequencies of no more than 48 kHz.

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

(FTC)

for the U.S. model

Front L + Front R: With 4 ohms loads, both

channels driven, from 180 - 20,000 Hz; rated 50 Watts per channel minimum RMS power, with no more than 1 % total harmonic distortion from 250 milli watts to rated output.

Amplifier section

U.S. models:

POWER OUTPUT (reference)

Front L/Front R/Center: 85 W (per channel at 4 ohms, 1 kHz)

Subwoofer: 85 W (at 4 ohms, 100 Hz)

Canadian models:

POWER OUTPUT (rated)

Front L/Front R: 60 W + 60 W (at 4 ohms, 1 kHz, 1 % THD)

POWER OUTPUT (reference)

Front L/Front R/Center: 85 W (per channel at 4 ohms, 1 kHz)

Subwoofer: 85 W (at 4 ohms, 100 Hz)

Inputs

TV, SA-CD/CD Analog

TV, SAT/CATV Digital (Optical)

VIDEO Digital (Coaxial)

HDMI section

Connector HDMI™ connector

Video inputs/outputs BD, DVD, SAT/CATV;

640 × 480p@60 Hz

720 × 480p@59.94/60 Hz

1280 × 720p@59.94/60 Hz

1920×1080i@59.94/60 Hz

1920 × 1080p@59.94/60 Hz

720 × 576p@50 Hz

1280 × 720p@50 Hz

1920 × 1080i@50 Hz

1920 × 1080p@50 Hz

1920 × 1080p@24 Hz

Video inputs/outputs (3D) BD, DVD, SAT/CATV;

1280×720p@59.94/60 Hz

Frame packing

1920×1080i@59.94/60 Hz

Frame packing

1920×1080i@59.94/60 Hz

Side-by-Side (Half)

1920×1080p@59.94/60 Hz

Side-by-Side (Half)

1280 × 720p@50 Hz

Frame packing

1920 × 1080i@50 Hz

Frame packing

1920 × 1080i@50 Hz

Side-by-Side (Half)

1920 × 1080p@50 Hz

Side-by-Side (Half)

1920 × 1080p@24 Hz

Frame packing

Audio inputs BD, DVD, SAT/CATV:

Linear PCM 7.1ch/

Dolby Digital/DTS

Speaker (SS-CT150)

Front speaker unit

Speaker system Full range, Bass reflex

Speaker units 50 mm × 90 mm (2 in ×

3 5/8 in) cone type

Rated impedance 4 ohms

Center speaker unit

Speaker system Full range, Bass reflex

Speaker units 50 mm × 90 mm (2 in ×

3 5/8 in) cone type

Rated impedance 4 ohms

Dimensions (approx.) 800 mm × 66 mm × 60 mm

(31 1/2 in × 2 5/8 in ×

2 3/8 in) (w/h/d)

Mass (approx.) 1.3 kg (2 lb 14 oz)

Subwoofer (SA-WCT150)

Speaker system Subwoofer, Bass reflex

Speaker unit 130 mm (5 18 in) cone type

Rated impedance 4 ohms

Dimensions (approx.) 196 mm × 450 mm ×

410 mm (73/4 in × 17 3/4 in

× 16 ^1/4 in)

(w/h/d)

Mass (approx.) 10.5 kg (23 lb 3 oz)

General

Power requirements 120 V AC, 60 Hz

Power consumption

On: 75 Watts

Standby mode: 0.3 W or less (Control for HDMI is off)

Power output

(DIGITAL MEDIA PORT) DC OUT: 5 V, 700 mA

Design and specifications are subject to change without notice.

• Standby power consumption 0.3 W or less.
• Halogenated flame retardants are not used in the certain printed wiring boards.
  • Over 85 % power efficiency of amplifier block is achieved with the full digital amplifier, S-Master.

Index

A

A/V SYNC 31

AMP menu 30

ARC 11, 24

AUDIO DRC 31

AUTO STBY 33

B

BASS 31

"BRAVIA" Sync 20

C

CNT LEVEL 31

Connecting

Blu-ray Disc player 10

cable television tuner 10, 12

DIGITAL MEDIA PORT adapter 12

DVD player 10, 12

PlayStation 2 12

PlayStation 3 11

satellite tuner 10, 12

TV 10

D

Digital optical cord 10

DIMMER 32

DISPLAY 33

DUAL MONO 32

F

Front panel display 15

|

INPUT MODE 32

INPUT SELECTOR 14

M

Muting 16

N

NIGHT MODE 32

P

PROTECTOR 36

R

Remote

before use 6

operating 16, 25

s

Sleep timer 33

Sound field 19

SW LEVEL 31

T

TREBLE 31

V

VOLUME 14, 16

Volume Limit function 22

AVERTISSEMENT

Coiled cable with two terminal connectors (no text or symbols)

Diagram showing a device being adjusted to form a cable or switch component (no text or symbols present)

Remarques

5 mm (1/5 pouce) 10 mm (2/5 pouce)

Diagram of a rectangular object with a curved arrow passing through it, showing directional flow (no text or symbols)

Diagram of an electrical connector with labeled parts and directional arrows indicating connection or movement.

Pour commander le composant

Pour commander le SAT

Avant G/Avant D : 60 W + 60 W (sous

Dimensions (approx.) 800 mm × 66 mm × 60 mm

(31 1/2 po. × 2 5/8 po. ×

2 3/8 po.) (l/h/p)

Poids (approx.) 1,3 kg (2 li. 14 on.)

Caisson de graves (SA-WCT150)

Enceinte Caisson de graves, Bass

reflex

Dimensions (approx.) 196 mm × 450 mm ×

410 mm (7 3/4 po. × 17 3/4

po. × 16 1/4 po.) (l/h/p)

Poids (approx.) 10,5 kg (23 li. 3 on.)

tuner satellite 10, 12

S

Sourdine 16

SW LEVEL 34

T

Télécommande

Coiled cable with two connectors at ends, no text or symbols visible

Diagram showing a remote control panel being adjusted to form a cable switch (no text or symbols present)

Notas

Diagram of a rectangular object with a curved line passing through it, showing directional arrows (no text or symbols)

Diagram showing a cable connector with labeled component A and directional arrows indicating assembly or movement.

Frontal L/Frontal R/Centro:

85 W (por canal a

4 ohmios, 1 kHz)

Frontal L/Frontal R: 60 W + 60 W (a 4 ohmios,

1 kHz, 1 % THD)

Frontal L/Frontal R/Centro:

85 W (por canal a

4 ohmios, 1 kHz)

1280×720p@59.94/60 Hz

1920×1080i@59.94/60 Hz

1920×1080p@59.94/60Hz

720 × 576p@50 Hz

1280 × 720p@50 Hz

1920 × 1080i@50 Hz

1920 × 1080p@50 Hz

1920 × 1080p@24 Hz

Entradas/salidas de video (3D)

BD, DVD, SAT/CATV;

1280×720p@59.94/60 Hz

(DIGITAL MEDIA PORT) DC OUT: 5 V, 700 mA
