Dynamo 600X, Dynamo 800X, Dynamo 1100X, Dynamo 1600X Testé pour être conforme aux normes du FCC POUR UNE UTILISATION À LA MAISON OU AU BUREAU NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursu- ant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. — Consult the dealer or an experienced radio/TV technician for help. REMARQUE : cet équipement a été testé et jugé conforme aux limites d’un appareil numérique de Classe B, en vertu de la Section 15 du règlement de la FCC. Ces limites sont conçues pour offrir une protection jugée raisonnable contre l’interférence nuisible dans une installation résidentielle. Cet équipement génère des utilisations et peut émettre une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions, peut causer une interférence nuisible aux radiocommunications. Toutefois, il n‘existe aucune garantie qu’une interférence ne se produira pas dans une installation particulière. Si cet équipement cause une interférence nuisible à la réception radiophonique ou télévisuelle, qu’on peut déterminer en ouvrant et en fermant l’équipement, l’utilisateur est invité à essayer de corriger l’interférence à l’aide d’une des mesures suivantes : — Réorienter l’antenne de réception ou la changer de place. — Augmenter la distance entre l’équipement et le récepteur. — Raccorder l’équipement à une prise située sur un autre circuit que celui sur lequel le récepteur est rac- cordé. — Consulter le revendeur ou un technicien radio/TV compétent pour obtenir de l’aide.12 Safety Warnings and Installation in Brief (English) Important Safety Instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched, particu- larly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appara- tus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15 The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 16 Maintain a minimum of 20-30cm distance around the apparatus for sufficient ventilation; 17 The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.; 18 No naked flame sources, such as candles, should be placed on the apparatus; 19 The use of apparatus in tropical climates 20 This equipment is a Class II or double insulated electrical appliance 21 Mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. WARNING! Do not use this product outside of the coun- try of original sale—voltage requirements vary by country. Improper voltage can cause damage that will be poten- tially expensive to repair. The subwoofer is shipped to MartinLogan authorized distributors with the correct power supply for use in the country of intended sale. A list of authorized distributors can be accessed at www.martinlo- gan.com or by emailing info@martinlogan.com. WARNING!

• Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not expose this module to moisture.

• Turn amplifier off and unplug subwoofer should any abnormal conditions occur.

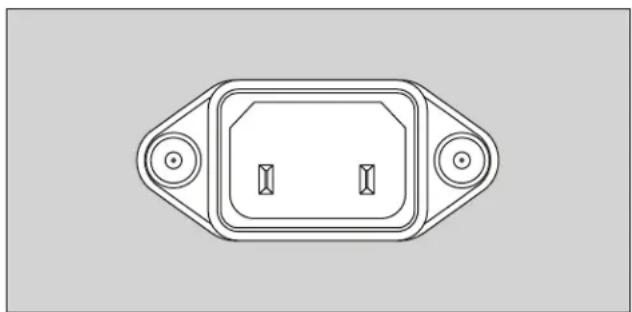

• The power cord should not be installed, removed, or left detached from the speaker while the other end is connected to an AC power source.

• No candles or other sources of open flame should be placed on the speaker.

• No liquids either in glasses or vases should be placed on speaker.

• Speaker should not be exposed to dripping or splash- ing liquids.

• The power cord should remain readily operable should any abnormal conditions occur. We know you are eager to hear your new MartinLogan subwoofer, so this section is provided to allow fast and easy set up. Once you have your subwoofer operational, please take the time to read, in depth, the rest of the information in the enclosed manual. It will give you perspective on how to attain the greatest possible performance from this most exacting woofer system. If you should experience any difficulties in the setup or operation of your MartinLogan subwoofer, please refer to the Room Acoustics, Placement or Operation sections of the enclosed owner’s manual. Should you encounter a persistent problem that cannot be resolved, please contact your autho- rized MartinLogan dealer. They will provide you with the appropriate technical analysis to alleviate the situation. Step 1: Unpacking Remove your new subwoofer from its packing. Please retain the original pack- ing materials for future use—replacement packaging may be expensive. Step 2: Placement You may choose to begin by placing the subwoofer in a corner near thefront of the room. Before deciding on a permanent corner placement, experiment with other positions. Locations away from corners often prove more effective in providing ideal low-frequency performance and blend with the main speakers. Please see the Placement section for details. Step 3: Signal Connection Use the best cables you can. High quality cables, available from your spe- cialty dealer, are recommended and will give you superior performance. Attach your preamplifier/processor outputs to the signal input connec- tors located on the subwoofer’s rear panel. Please see the Controls and Connections section for details. If you plan to connect your subwoofer using Speaker Level (high level) inputs, refer to the Speaker Level Inputs section for details. Step 4: Power Connection (AC) (see warning) Make sure the level knob is set at 0. Plug the subwoofer into a wall outlet. Review the AC Power Connection section of this manual for details. Step 5a: Setting the Controls (Using LFE Input)

• Setting Control: Set the switch to 'Local'.

• Power Mode: Set the switch to 'Auto'.

• Level: Set at one-o'clock (just right of straight up).

• Use your processor/receiver's bass management system to adjust subwoofer integration. Step 5b: Setting the Controls (Using Left/Right Inputs)

• Setting Control: Set the switch to 'App'.

• Power Mode: Set the switch to 'Auto'.

• Download the MartinLogan Sub Control app (from Google Play or the Apple App Store).

• Using the app, adjust the following settings: o Volume (level): Set at -10dB and increase until sound has deep, extended bass. o Phase: Start with 90° (with Inverted polarity turned on). o 20–30Hz Level: Start with 0dB. o Low Pass Filter: Set lower than the low-end frequency response of your main speakers. If you are uncertain of your main speaker low- frequency response, start with 35Hz. Step 6: Listen and Enjoy. 安全警告及安装简介 (中国的 / Chinese)

Right In Status USB Input Line Level Input LFE In

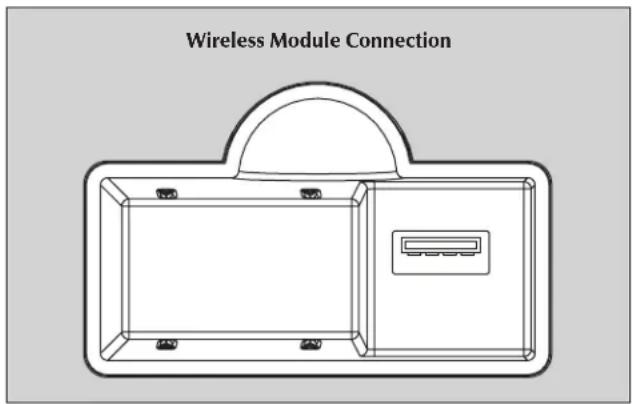

Wireless Module Connection (active when Setting Control set to ‘Local’) Setting Control Local App 12V Trigger Input Level51

Right In Status USB Input Line Level Input LFE In

Wireless Module Connection (active when Setting Control set to ‘Local’) Setting Control Local App 12V Trigger Input LevelDy n a m o 600X

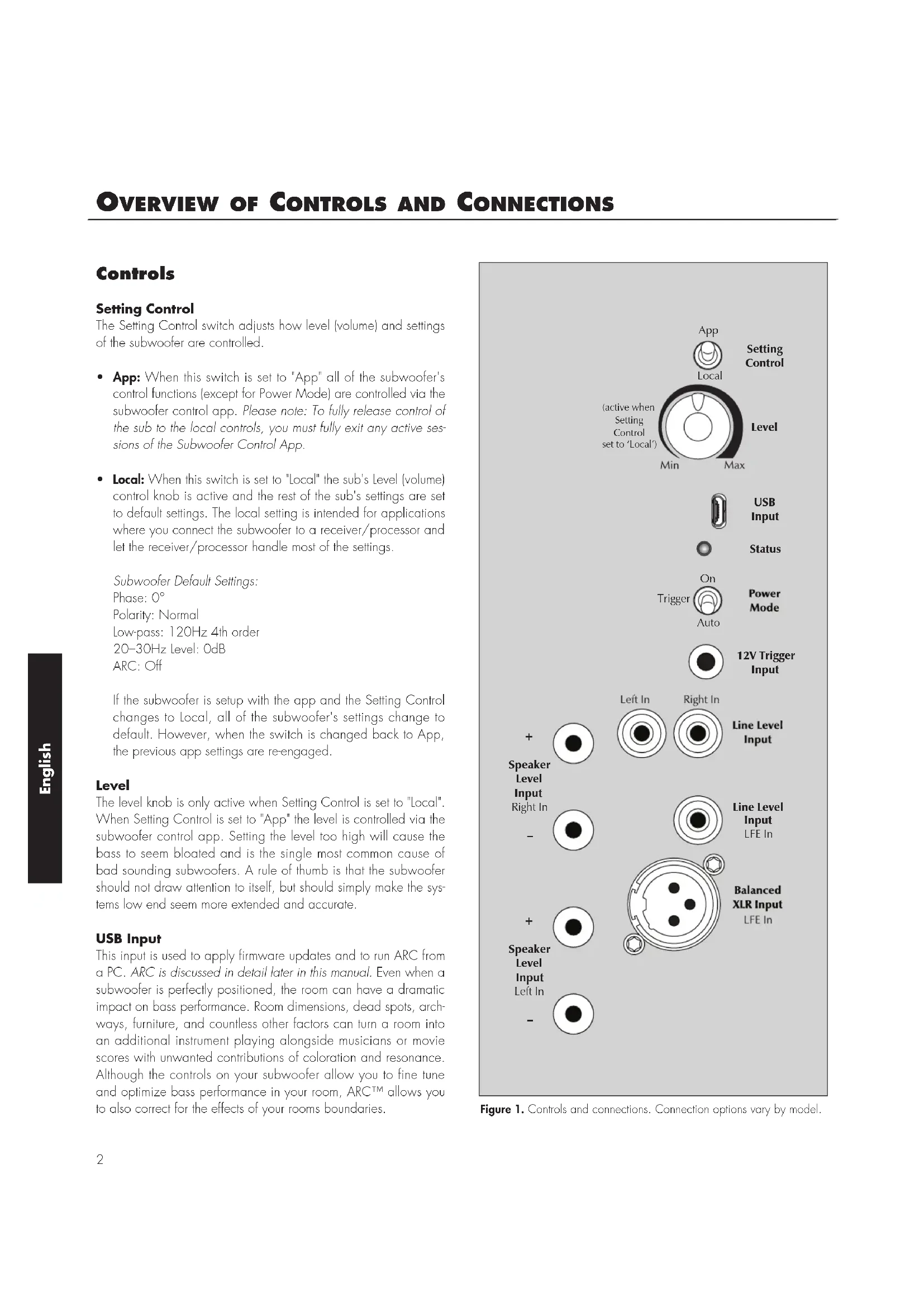

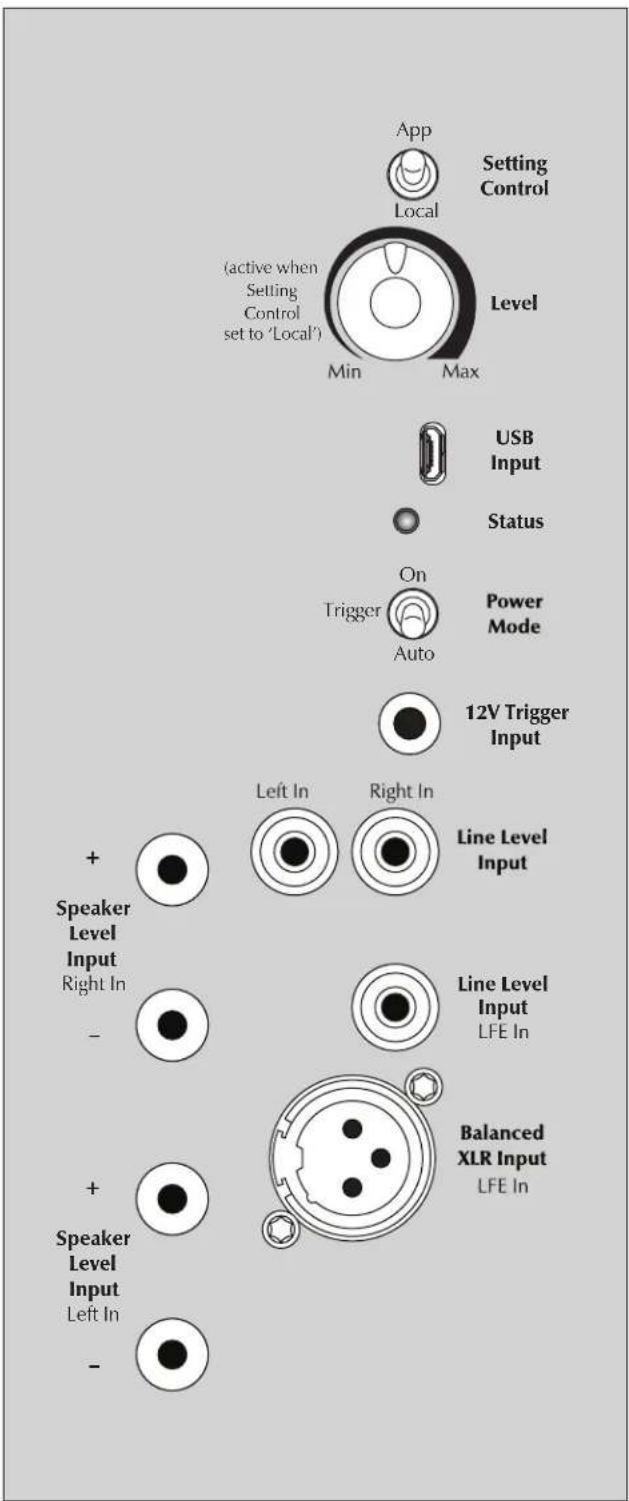

Controls Setting Control The Setting Control switch adjusts how level (volume) and settings of the subwoofer are controlled.

• App: When this switch is set to "App" all of the subwoofer's control functions (except for Power Mode) are controlled via the subwoofer control app. Please note: To fully release control of the sub to the local controls, you must fully exit any active ses- sions of the Subwoofer Control App.

• Local: When this switch is set to "Local" the sub's Level (volume) control knob is active and the rest of the sub's settings are set to default settings. The local setting is intended for applications where you connect the subwoofer to a receiver/processor and let the receiver/processor handle most of the settings. Subwoofer Default Settings: Phase: 0° Polarity: Normal Low-pass: 120Hz 4th order 20–30Hz Level: 0dB ARC: Off If the subwoofer is setup with the app and the Setting Control changes to Local, all of the subwoofer's settings change to default. However, when the switch is changed back to App, the previous app settings are re-engaged. Level The level knob is only active when Setting Control is set to "Local". When Setting Control is set to "App" the level is controlled via the subwoofer control app. Setting the level too high will cause the bass to seem bloated and is the single most common cause of bad sounding subwoofers. A rule of thumb is that the subwoofer should not draw attention to itself, but should simply make the sys- tems low end seem more extended and accurate. USB Input This input is used to apply firmware updates and to run ARC from a PC. ARC is discussed in detail later in this manual. Even when a subwoofer is perfectly positioned, the room can have a dramatic impact on bass performance. Room dimensions, dead spots, arch- ways, furniture, and countless other factors can turn a room into an additional instrument playing alongside musicians or movie scores with unwanted contributions of coloration and resonance. Although the controls on your subwoofer allow you to fine tune and optimize bass performance in your room, ARC™ allows you to also correct for the effects of your rooms boundaries. overview of Controls and ConneCtions Figure 1. Controls and connections. Connection options vary by model. SpeakerLevelInput Left In SpeakerLevelInput Right InStatus USB InputLine LevelInputLFE In

Auto Trigger(active whenSettingControlset to ‘Local’)SettingControlLocal App 12V TriggerInputLevel English3 The ARC Mobile app can use a Bluetooth connection to the subwoofer. Use of your subwoofer's built-in USB Input is not required to run Anthem Room Correction. For those who desire to run ARC using a computer, the USB Input allows connection of your subwoofer to a computer via a Micro USB connection. Depending on the version of your ARC kit (sold separately) you may need a USB (Type A) to Micro-B USB cable or a Mini-B USB (Female) to Micro-B USB (Male) adapter. The USB Input can also be used to apply firmware updates to your subwoofer. Status Your subwoofer is equipped with a multi-color LED to indicate the current status of the subwoofer.

• No color: No power. The subwoofer is not plugged in or has shutdown due to an overload condition. Unplug the subwoofer and plug it back in to correct.

• White: Play mode. This indicates the subwoofer detects an audio signal and has automatically switched into play mode.

• Red: Standby. The sub has switched into power saving mode.

• Flashing: Error. The sub is displaying an error code. Power Mode and Trigger Input The Power Mode switch allows control of when the subwoofer turns on and off.

• Auto: When set to 'Auto' the subwoofer will turn itself on when detecting an audio signal. After several minutes of inactivity the subwoofer will put itself in standby mode.

• On: When set to 'On' the subwoofer will always be on.

• Trigger: Dynamo 800X, 1100X, and 1600X are equipped with a trigger input. If you have an external source component (such as a receiver) with built in trigger controls, you may wish to turn the subwoofer on and off using this source. Connect a cable from the control component to your subwoofer's Trigger Input and set the Power Mode switch to 'Trigger'. Although this technology is commonly referred to as a 12V trigger, the subwoofer will respond to any signal between 5–24V DC. Audio Signal Connections Line Level Input (Left In / Right In) Found on Dynamo 600X, 800X, 1100X, and 1600X. Please note, on the 600X the Right In also serves as the LFE In. Connect from the Main Out or Pre Out on your receiver/pre-amp. The set- ting for the Low-Pass Filter control is applied to the signal received through these inputs. Figure 3. Audio signal inputs. Line Level (RCA) Balanced (XLR) Speaker Level (Banana Jacks) Wireless Audio (sold separately) Left In & Right In LFE In LFE In Left In & Right In Left In & Right In (LFE In) Dynamo 600X ü (Right In doubles as LFE In))

Dynamo 800X ü ü ü ü ü (+ Trigger) ü Dynamo 1100X ü ü ü ü ü (+ Trigger) ü Dynamo 1600X ü ü ü ü ü (+ Trigger) ü English4 Line Level Input (LFE In) Found on Dynamo 800X, 1100X, and 1600X. Please note, on the 600X, Right In also serves as LFE In. Connect from the Sub Out on your A/V processor. Crossover settings for LFE In are controlled through your A/V processor. The subwoofer's setting for the Low-Pass Filter is not applied to this connection, except in the Dynamo 600X (if using the 600X for LFE In, set the Low Pass Filter to Bypass). Balanced XLR Input (LFE In) Found on Dynamo 1100X and 1600X. Connect from the Sub Out on your A/V processor. The setting for the Low-Pass Filter control is not applied to this connection. Crossover settings for LFE In are controlled through your A/V processor. Please note, do not make connections using both the XLR and RCA LFE inputs at the same time. Speaker Level Input (Left In / Right In) Found on Dynamo 600X, 800X, 1100X, and 1600X. This set of inputs provides a place to connect the subwoofer using standard speaker cable. To use these connections the speaker cable should be terminated using banana style plugs. The setting for the Low-Pass Filter control is applied to the signal received through these inputs. Please note, do not make connections using both the RCA and Speaker Level Left/Right inputs at the same time. Wireless Audio Signal Connection Found on Dynamo 600X, 800X, 1100X, and 1600X. The SWT-X Subwoofer Wireless Transmitter/Receiver system is sold separately and available from your local dealer. Detail on using an SWT-X system are found later in this manual. AC Power Connection WARNING! The power cord should not be installed, removed, or left detached from the subwoofer while the other end is connected to an AC power source. The IEC power cord should be firmly inserted into the AC power receptacle on the rear connection panel of the subwoofer, then to any convenient AC wall outlet. The sub also integrates a signal sensing power supply that automatically switches off after sensing no music signal for several minutes (this will occur when the power switch is set to 'Auto'). Your subwoofer is wired for the power service supplied in the coun- try of original consumer sale. The AC power rating applicable to a particular unit is specified both on the packing carton and on the serial number plate attached to the subwoofer. If you remove your subwoofer from the country of original sale, be certain that AC power supplied in any subsequent location is suitable before connecting and operating the subwoofer. Substantially impaired performance or severe damage may occur to the subwoofer if oper- ation is attempted from an incorrect AC power source. Break-In Our custom made woofers require approximately 50 hours of break- in at moderate listening levels before their optimal performance occurs. This will factor in on any critical listening and judgment. Wireless Module Connection Figure 4. Wirless module receptacle Figure 5. AC Power receptacle English5 overview of the subwoofer Control app Dynamo 600X, 800X, 1100X, and 1600X feature an advanced app based control system (available for iOS and Android) that connects to your subwoofer using a mobile device and Bluetooth connection. Visit MartinLogan.com for details on downloading MartinLogan's free Subwoofer Control App from iOS or Android app stores. NOTE: The MartinLogan Subwoofer Control App is subject to change and, depending on future updates, functions may differ from what is outlined here. NOTE: The MartinLogan Subwoofer Control App and the ARC Mobile app may interfere with each other's ability to discover your subwoofer. If you're having trouble getting either app to run or your subwoofer is not being discovred, check to make sure the other app isn't open and running in the background. The Logo Button Located in the upper left corner of the app, the button with the MartinLogan logo will bring up a screen that display's basic subwoofer information, such as model and firmware build version. The Menu Bar The menu bar, located at the bottom of the app, lets you select the four main functions of the app.

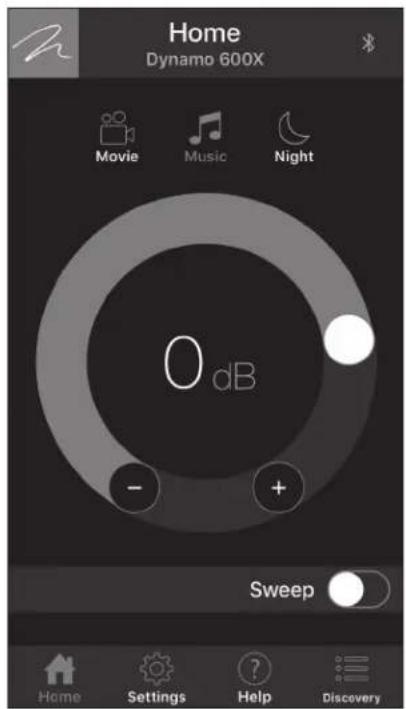

• Home: This screen lets you quickly adjust your subwoofer's vol- ume, select a listening mode, and run a tone sweep.

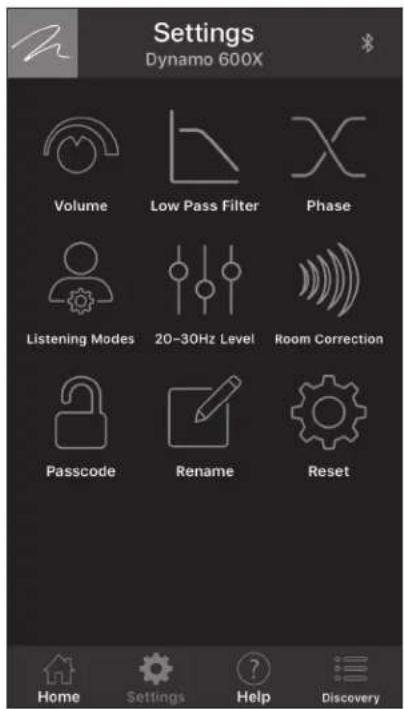

• Settings: This screen lets you select the subwoofer's control functions.

• Help: This button will display a pop-up window with a descrip- tion of the control currently displayed on the screen.

• Discovery: This screen displays a list from which you can select the subwoofer you want to control. If your subwoofer does not show in this list, check to make sure the subwoofer Setting Control is set to "App" and that ARC Mobile isn't running on your device. Additionally, check that it isn't being controlled by anoth- er mobile device running ARC or the Subwoofer Control App. Figure 7. Home screenFigure 6. MartinLogan Subwoofer Control App Figure 8. Settings screen English6 Figure 11. Settings: Listening Modes screen Settings: Volume

• Volume: The volume (level) control allows you to adjust the loudness of your subwoofer from -40dB to 12dB. For most applications a setting between -14dB and 0dB is adequate. Setting the level too high will cause the bass to seem bloated and is the most common cause of bad sounding subwoofers. A rule of thumb is that the subwoofer’s bass should not draw attention to itself. Instead it should simply make the system’s low end seem more extended and accurate.

• Sweep: The Sweep feature is useful for locating areas in your listening room where troublesome rattles or resonances may occur. The tone sweep feature may also prove useful when set- ting phase, crossover, and volume on the subwoofer. Pressing the Sweep toggle initiates a repeating tone sweep from 20–120Hz. Volume can be adjust while the tone sweep is playing. Pressing the pause button pauses the subwoofer at a specific tone frequency and also allows you to set a specific tone frequency. While a tone frequency is paused, you can select 'Continue' to adjust the level of the subwoofer. The tone sweep will continue until the Sweep toggle is set to off. Settings: Low Pass Filter The Low Pass Filter screen lets you to adjust the low-pass frequency for the left and right (RCA or speaker level) inputs. This setting is not applied to the LFE (RCA or XLR) inputs, instead leaving the task of bass management to your audio/video processor. Dynamo subwoofers offer exceptional performance in both 2-chan- nel (Left In/Right In) systems and multi-channel (LFE In) home theater systems. Dynamo 800X, 1100X, and 1600X offer the ability to con- nect both Left In/Right In and LFE In, allowing you to achieve an optimum setup for 2-channel listening while still allowing for multi- channel (movie) mode listening. When listening to stereo source material the system achieves optimum music integration with the subwoofer playing below the front speaker’s lowest response fre- quency. While watching a movie the LFE track and the bass from the surrounds can be fed to the subwoofer using (low pass) cross- over settings from the processor’s bass management system. As a general rule, the Low-Pass Filter should be set at a value approxi- mately equal to (or below) 70% of your main speaker’s lowest frequency response. For example, your speaker’s frequency response goes down to 43Hz. 70% of 43Hz equals 30.1, so you should set the subwoofer’s low pass filter to 30Hz. We advise that once you Figure 9. Settings: Low Pass Filter screen Figure 10. Settings: Phase / Polarity screen English7 try the recommended setting using the formula above, you should try the surrounding settings as well. If you are uncertain of your main speaker low-frequency response, start with a setting of 35Hz. You will not harm anything by experimenting with different settings. Remember, because this setting only applies to Left/Right inputs. This setting is not used if your subwoofer is only connected via a LFE input. However, if you're using a SWT-X wireless system to connect an LFE channel or using the Dynamo 600X as an LFE channel (connected via the Right In/LFE In), you will need to set the Low Pass Filter to Bypass.

• Bypass: Select this option if you plan to use your receiver/pro- cessor's bass management to set a low pass filter.

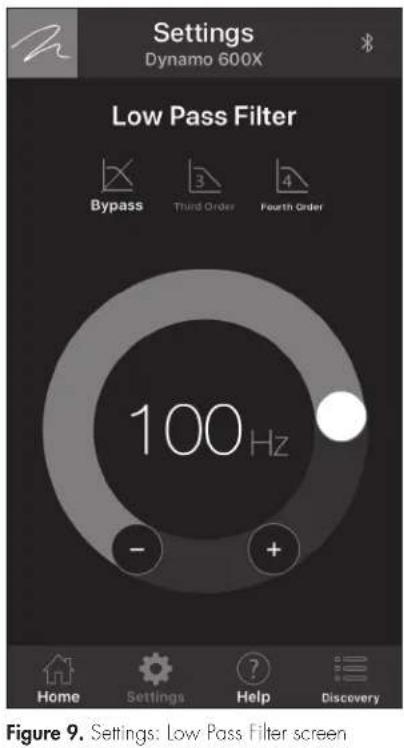

• Third Order: If you are using the subwoofers Left/Right inputs, select this option to use a third order crossover to adjust the roll off characteristics of your subwoofer's upper frequencies as they approach the low-pass filter frequency setting. A third order filter has a slope of 18dB per octave—a slower roll off than a fourth order. For most applications a third order crossover is ideal.

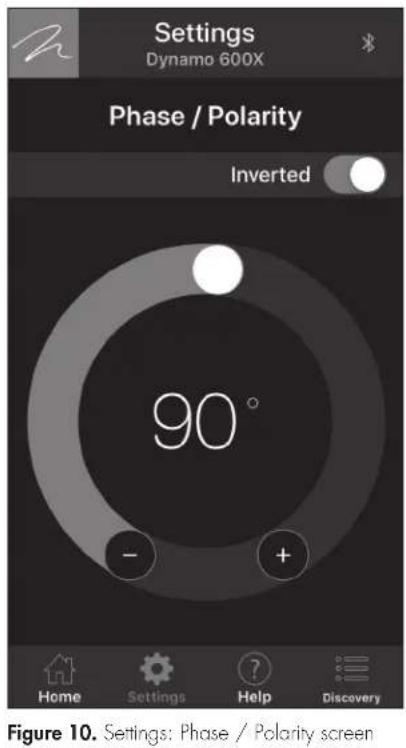

• Fourth Order: If you are using the subwoofers Left/Right inputs, select this option to use a fourth order crossover to adjust the roll off characteristics of your subwoofer's upper frequencies as they approach the low-pass filter frequency setting. A fourth order filter has a slope of 24dB per octave—a faster roll off than a third order. Settings: Phase The Phase screen allows you to adjust the phase of the subwoofer from 0–180° in increments of 1° and also allows you to invert the polarity of the phase. The Phase control is entirely dependent on numerous factors includ- ing the size and configuration of your listening environment, the placement of the unit, and seating arrangement. Due to the way bass sound waves develop in different rooms there is no rule of thumb for setting phase. For instance, if your room has a peak at the subwoofer crossover area, you may wish to set the phase so the actual acoustic outputs of the subwoofer and main speakers are out of phase. Experiment and try different settings and be patient. If you are using the subwoofer to augment other MartinLogan products, we suggest starting with the phase set at 90° (with Inverted polarity turned on). Figure 12. Settings: 20–30Hz Level screen Figure 13. Settings: Rename screen Figure 14. Settings: Passcode screen English8 In a system where phase and polarity are properly set, the main speakers and subwoofer should work together and sound as if there is more total bass in the system. If your main speakers and subwoofers are out of phase their sound waves will cancel each other and total bass output in the system will sound decreased. Again, experiment and listen for the smoothest bass without any prominent or absent notes. Settings: Listening Modes The Listening Modes screen lets you apply preset listening modes to the subwoofer's output. Listening modes are also accessible from the app's Home screen.

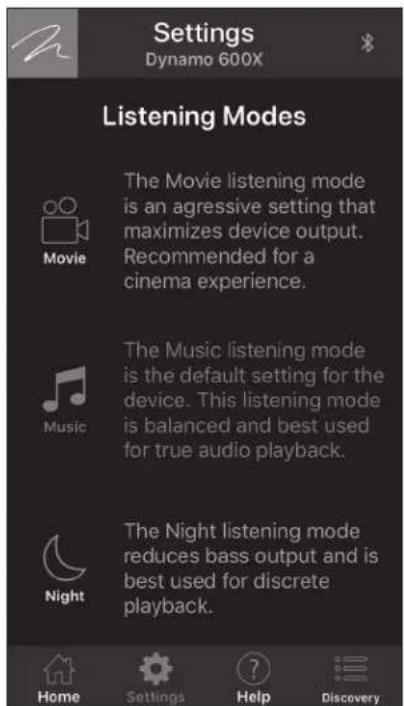

• Movie: The Movie listening mode is an aggressive setting that maximizes device output for an especially explosive experience.

• Music: The Music listening mode is the default setting for the Dynamo subwoofers. This mode is balanced and best used for an accurate musical presentation.

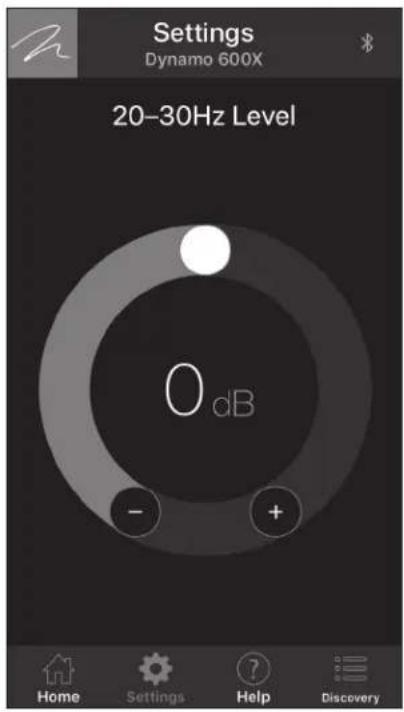

• Night: The Night listening mode reduces bass output and is best used for discrete playback. Settings: 20–30Hz Level The 20–30Hz Level screen allows you to adjust subwoofer out- put from -10dB to +10dB in the 20–30Hz range. This control and Anthem Room Correction (ARC) serve similar purposes. Where this control is limited to the 20–30Hz frequency range, ARC adjusts your subwoofer's output across its entire frequency range. If not using ARC, this control can be used to modify your sub- woofer's response to compensate for the room anomalies or to modify the subwoofers sound to your personal taste. The frequen- cies adjusted are between 20–30Hz—a range where peaks (room gain) and dips of different amplitudes often develop in lis- tening rooms. The ideal setting is dependent on room size and construction, system configuration, and personal preference. As a rule of thumb, if your low-bass sounds weak, increase this control. If your low-bass sounds bloated, decrease this control. If using ARC, this control can be used to match your personal taste by further changing the way the subwoofer sounds. Note: The 20–30Hz Level setting will not affect the ARC mea- surements or compensation filters. If you have an ARC correction uploaded to your subwoofer, we recommend first listening with this control set to 0. Remember, this setting will adjust the subwoofer output in addition to ARC's adjustments. Settings: Room Correction The Room Correction screen provides information on Anthem Room Correction (ARC). The ARC toggle allows you to turn ARC correction on and off (only available if ARC software has been used to upload a correction curve to your sub). This is an effective tool for hearing the difference that Anthem Room Correction makes! Settings: Passcode The Passcode screen lets you protect your subwoofer's settings with a custom 4-digit passcode. Once a passcode is set it can also be cleared on this screen. Settings: Rename The Rename screen lets you assign a custom name to your subwoofer. This is useful if you have multiple subwoofer's in your system. A custom subwoofer name must be between 3–13 charac- ters long. Settings: Reset The Reset screen lets you perform a factory reset on your subwoofer. A factory reset will restore all settings to their defaults. It will also erase any ARC corrections that have been uploaded to the subwoofer. English9 Before Connecting the dynamo MartinLogan developed the Dynamo subwoofer for easy setup and system integration. Before beginning to connect your subwoofer, please review the controls discussed in the last section. An under-standing of these will help speed you along. All signal connections are done on the rear connections panel of the subwoofer. Make cer-tain that all of your connections are tight.WARNING! Unplug your subwoofer before making or breaking any signal connections! 2-Channel Mode This setup is recommended if your subwoofer will be used in a 2-channel only system. When a signal is connected to the subwoofers Left In/Right In, the Low Pass Filter control is active.Signal Connection:1 Connect the left out/right out from your preamp/receiver to the Left In/Right In of the subwoofer. Use RCA interconnects or speak-er level connections, but choose only one connection method—do not use multiple methods of connection at the same time. Speaker level connections are discussed in detail later in this manual.Recommended Control Settings: IMPORTANT! If you intend to use Anthem Room Correction (ARC) room correction we recommend running ARC and optimizing placement of your subwoofer prior to adjusting the subwoofer’s controls. When engaged, ARC will alter the acoustic output of your subwoofer and influence the settings described below. 1 Set the subwoofer's Control Setting to App.2 Calculate the number equal to 70% of your main loudspeak-er’s lowest frequency rating. Set the Low Pass Filter to a setting equal to the resulting number. If the resulting number is lower than 30Hz, set this to 30Hz. 3 Play familiar music with bass content. Increase the Volume (level) until the music has deep extended bass. Be careful to avoid levels that become overwhelming.4 Try the Phase and Polarity (Inverted) in different settings until the best blending is obtained. Play familiar music with deep, repetitive bass. Adjust the Phase and Polarity (Inverted) setting so the bass notes seem their loudest and without blur when heard from your typical listening position. If you are augmenting MartinLogan loudspeakers, we suggest you start with Phase set at 90° (with Inverted polarity turned on) when experimenting. 5 If you have completed steps 1–4 and still have weak or boom-ing bass consider adjusting the 20–30Hz Level to compensate for these anomalies. Experiment by changing the Volume (level) setting while adjusting the 20–30Hz Level and try to find a position that gives you deep extended bass and good blend-ing with your main speakers. If you still have weak or booming bass you may want to consider moving your subwoofer and go through these setup steps again (especially if it is located in or near a room corner). Remember, room position has a major impact on overall bass performance. ConneCting the subwoofer and setting Controls

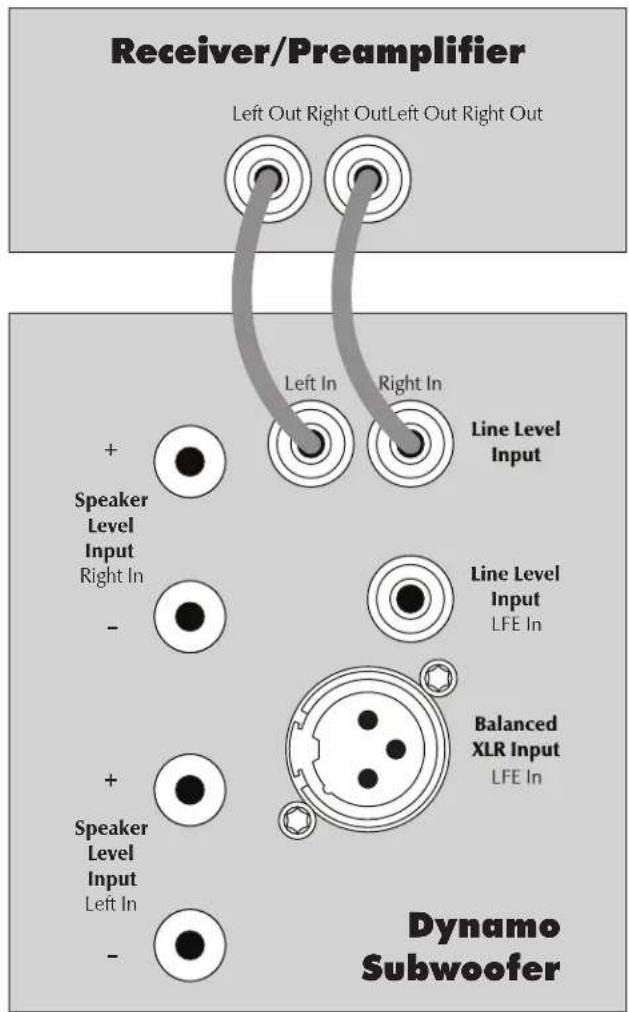

SpeakerLevelInput Left In SpeakerLevelInput Right InLine LevelInputLFE In Dynamo Subwoofer Receiver/Preamplifier Left Out Right OutLeft Out Right Out Receiver/Preamplifier Figure 15. Signal connection for 2-channel mode.English10 Multi-Channel Mode This setup is recommended if you will use your subwoofer in a dedicated home theater or other multi-channel system. When a signal is connected to the subwoofer’s LFE In, the setting for the Low-Pass Filter control is not used. Your processor handles most of the bass management.

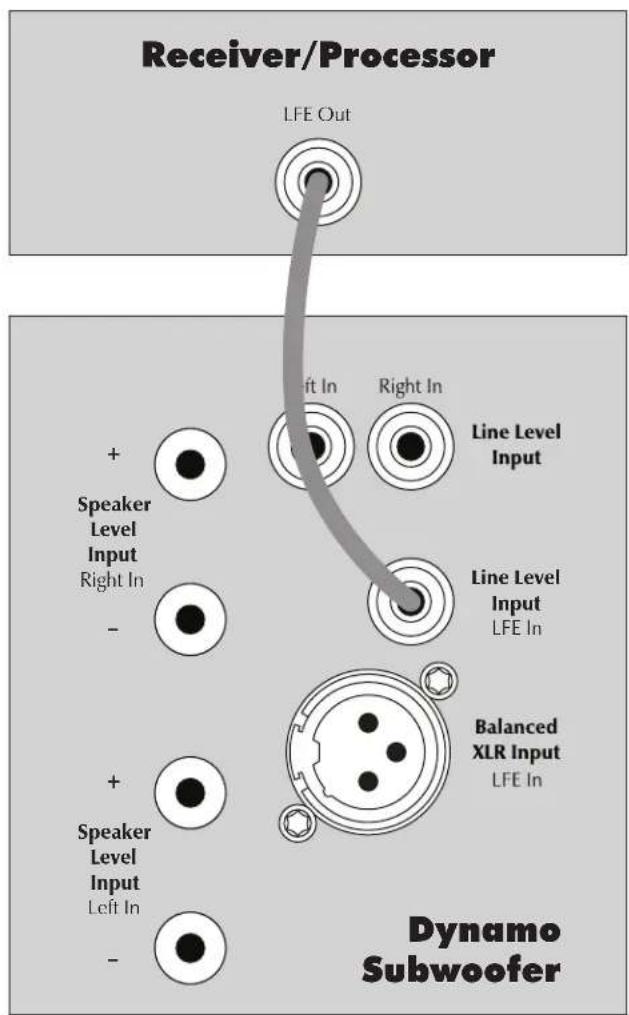

Dynamo 600X and 800X: These subwoofers do not offer the XLR LFE connections discussed here.

• Dynamo 600X: If connecting a Dynamo 600X using this meth- od, please note that the Right In doubles as the LFE In and you should set the subwoofer's Low Pass Filter to Bypass using the Subwofoer Control App.

• SWT-X Wireless System used with any subwoofer: If connect- ing the sub using a SWT-X wireless system, please note that the SWT-X receiver's Right In doubles as the LFE In and you should set the sub's Low Pass Filter to Bypass using the Subwoofer Control App. Signal Connection: 1 Connect the Sub output of the processor to the subwoofer's LFE In. Use either an RCA or an XLR interconnect—do not use both at the same time. Recommended Control Settings: IMPORTANT! If you intend to use Anthem Room Correction (ARC) room correction we recommend running ARC and optimizing placement of your subwoofer prior to adjusting the subwoofer’s controls. When engaged, ARC will affect the acoustic output of your subwoofer and influence the settings described below. 1 Set the subwoofer's Control Setting to App. 2 If your front speakers are large (e.g. full-range floorstanding type speakers) set your processor controls for front speakers to wide, large, or full mode. If your front speakers are small (e.g. bookshelf type speakers) set your processor control for front speakers to narrow, small, or limited mode. Set processor con- trols for center and effects type speakers to narrow, small, or limited mode. Remember, few center and effects type speakers are designed to go much lower than 70Hz, which means that any bass information in a soundtrack lower than this frequency will normally be lost. When you set your center and effects type speakers to narrow, small, or limited mode, all of the bass lower than the assigned crossover point will be redirected to the subwoofer along with the LFE output—guaranteeing that no bass information from these channels is lost. Please note: some processors allow the changing of speaker configuration based on source material type. Under these con- ditions the user may want to run the fronts in narrow, small, or limited mode for multi-channel source material and run the fronts in wide, large, or full mode for 2-channel stereo source material. WARNING! Based on the performance of most receivers/processors it is recommended that MartinLogan center and effects type speakers not be run in large, wide, or full range mode. Doing so may potentially damage the speaker if the pro- cessor attempts to drive the speaker beyond its rated frequency range. This warning also applies to products from other manufacturers. 3 With multi-channel source material playing, use the Subwoofer Control App to adjust the Volume (level) control to your preferred level. Be careful to avoid levels that become overwhelming.

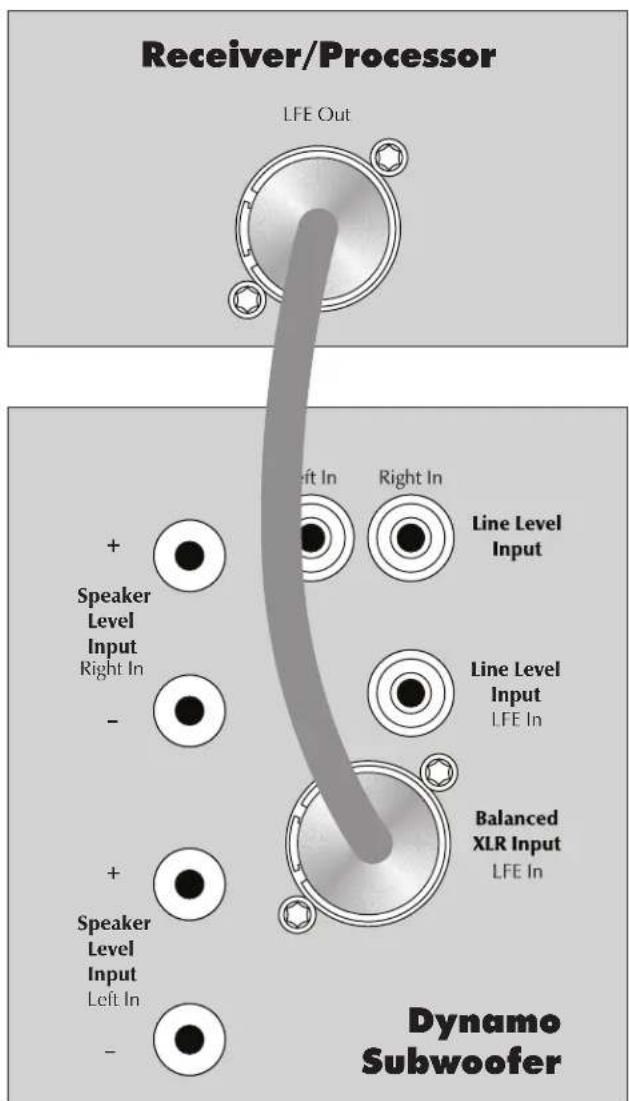

Dynamo 600X and SWT-X Wireless System used with any subwoofer: Use the Subwoofer Control App to set the Low Pass Filter to Bypass. Dynamo 800X, 1100X, and 1600X: When using a cable to connect your receiver/processor to the LFE Input changing the Low Pass Filter will have no effect on the sub's output. Their LFE input internally bypasses the sub's Low Pass Filter. 5 Use the Subwoofer Control App and try the Phase and Polarity (Inverted) in different settings until the best blending is obtained. Play familiar music with deep, repetitive bass. Adjust the Phase and Polarity (Inverted) so the bass notes seem their loudest and without blur when heard from your typical listening position. If you are augmenting MartinLogan loudspeakers, we suggest you start with Phase set at 0° (although we suggest 90° elsewhere, in this specific connection method we suggest 0° since your processor will be doing most of the bass management). 6 If you have completed steps 1–5 and still have weak or boom- ing bass consider using the Subwoofer Control App to adjust 20–30Hz Level to compensate for these anomalies. Experiment with the settings and listen to the result. Try to find a position that sounds correct to you. Experiment by changing the Volume (level) setting while adjusting the 20–30Hz Level. Find a posi- tion that gives you deep extended bass and good blending with your main speakers. English11 English

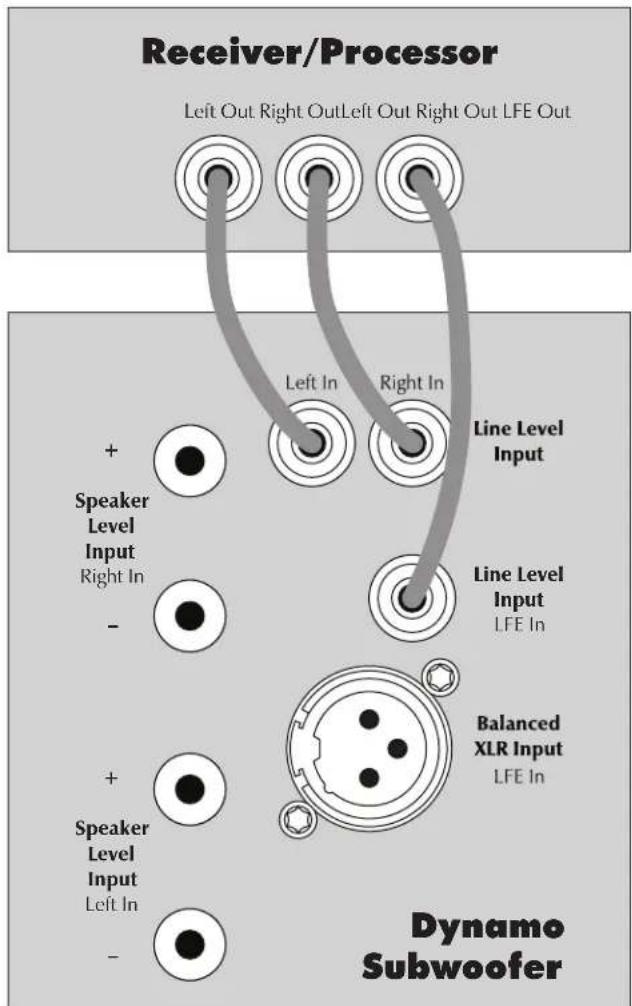

SpeakerLevelInput Left In SpeakerLevelInput Right InLine LevelInputLFE In Dynamo Subwoofer LFE Out Receiver/Processor Figure 16. Signal connection for multi-channel mode.

SpeakerLevelInput Left In SpeakerLevelInput Right InLine LevelInputLFE In Dynamo Subwoofer Receiver/Processor LFE Out Figure 17. Signal connection for multi-channel mode. 7 Use the bass management section of your receiver/proces- sor’s speaker setup to set the subwoofer level at an appropriate level. Follow the instructions in your processor’s manual to fine- tune the subwoofer level. 8 If you have completed steps 1–7 and still have weak or boom- ing bass consider using the Subwoofer Control App to further adjust the 20–30Hz Level to compensate for these anomalies (yes, you're tweaking the 20–30Hz Level again). Experiment with the settings and listen to the result. Try to find a position that sounds correct to you. Experiment by changing the Volume (level) setting while adjusting the 20–30Hz Level. Find a posi- tion that gives you deep extended bass and good blending with your main speakers. If you still have weak or booming bass you may want to consider moving your subwoofer and go through these setup steps again (especially if it is located in or near a room corner). Remember, room position has a major impact on overall bass performance.12 Simultaneous 2-Channel/Multi- Channel Mode The advantage of this dual mode is that you are able to achieve an optimum setup for stereo listening and still allow for multi-channel (movie) mode listening. When listening to stereo source mate- rial the system achieves optimum music integration. In this mode the subwoofer plays only below the front main speaker’s lowest response frequency. While in movie mode the LFE track and the bass from the surrounds can be fed to the subwoofer using cross- over settings from the processor’s bass management system.

Dynamo 600X: This connection method is not compatible with the Dynamo 600X.

• SWT-X Wireless System: This connection method is not com- patible with the SWT-X wireless receiver/transmitter system.

Dynamo 600X and 800X: These subwoofers do not offer the XLR LFE connections discussed here. Signal Connection: 1 Connect the left out/right out from your processor to the Left In/Right In of the subwoofer. Use either RCA or speaker level connections, but choose only one connection method—do not use both at the same time for left/right inputs. Use quality RCA interconnects or speaker cable. Speaker level connections are discussed in detail later in this manual. 2 Connect the Sub output of the processor to the subwoofer’s LFE In. Use quality RCA or XLR interconnects. Please note, the connection method for the LFE In does not need to match Left In/Right In. If you used RCA interconnects or speaker level con- nections for Left In/Right In it is acceptable to use XLR for the LFE Input. Be flexible, experiment, and listen to determine what sounds best in your unique installation. Do not use multiple methods of connection at the same time for the LFE input (i.e. connecting both XLR LFE In and Line Level LFE In). Recommended Control Settings: IMPORTANT! If you intend to use Anthem Room Correction (ARC) room correction we recommend running ARC and optimizing placement of your subwoofer prior to adjusting the subwoofer’s controls. When engaged, ARC will affect the acoustic output of your subwoofer and influence the settings described below. 1 Set the subwoofer's Control Setting to App. 2 Set your processor controls for front speakers to wide, large, or full mode. If your front speakers are small (e.g. bookshelf type speak- ers) we recommend that you not use this method for connecting your subwoofer and instead refer to the “Multi-Channel Mode” section. Set processor controls for center and effects type speak- ers to narrow, small, or limited mode. Remember, few center and effects type speakers are designed to go much lower than 70Hz, which means that any bass information in a soundtrack lower than this frequency will be lost. When you set your center and effects type speakers to narrow, small, or limited mode, all of the bass lower than the assigned crossover point will be redirected to the subwoofer along with the LFE output—guaranteeing that no bass information from these channels is lost. Please note: Some processors allow the changing of speaker configuration based on source material type. Under these con- ditions the user may want to run the fronts in narrow, small, or limited mode for multi-channel source material and run the fronts in wide, large, or full mode for 2-channel stereo source material. WARNING! Based on the performance of most processors it is recommended that MartinLogan center and effects type speakers not be run in large, wide, or full range mode. Doing so may potentially damage the speaker if the processor attempts to drive the speaker beyond its rated frequency range. This warning also applies to products from other manufacturers. 3 Calculate the number equal to 70% of your main loudspeaker’s lowest frequency rating. Us the Subwoofer Contrl App to set the Low Pass Filter to a setting equal to the resulting number. If the resulting number is lower than 30Hz, set this to 30Hz. 4 Play familiar music with bass content. Use the Subwoofer Control App to increase the Volume (level) until the music has deep extended bass. Be careful to avoid levels that become overwhelming. 5 Using the Subwoofer Control App, try Phase and Polarity (Inverted) in different settings until the best blending is obtained. Play familiar music with deep, repetitive bass. Adjust the Phase and Polarity (Inverted) so the bass notes seem their loudest and without blur when heard from your typical listening position. If you are augmenting MartinLogan loudspeakers, we suggest you start with Phase set at 90° (with Inverted polarity turned on) when experimenting. 6 With multi-channel source material playing, use the bass man- agement section of your receiver/processor’s speaker setup Englishto set the sub volume level at an appropriate level. Follow the instructions in your processor’s manual to fine-tune the sub level. 7 If your processor offers the option to setup crossovers for a subwoofer, we recommend that you start with the following settings—Crossover: 70Hz, High Pass: 12dB, and Low Pass: 24dB. The optimal setting for these options may vary depend- ing on your room and listening preferences. Experiment and listen for what sounds best to you. 8 If you have completed steps 1–7 and still have weak or boom- ing bass consider using the Suwoofer Control App to further adjust 20–30Hz Level to compensate for these anomalies (yes, you're tweaking the 20–30Hz Level again). Experiment with the settings and listen to the result. Try to find a position that sounds correct to you. Experiment by changing the Volume (level) setting while adjusting the 20–30Hz Level. Find a posi- tion that gives you deep extended bass and good blending with your main speakers. If you still have weak or booming bass you may want to consider moving your subwoofer and go through these setup steps again (especially if it is located in or near a room corner). Remember, room position has a major impact on overall bass performance.

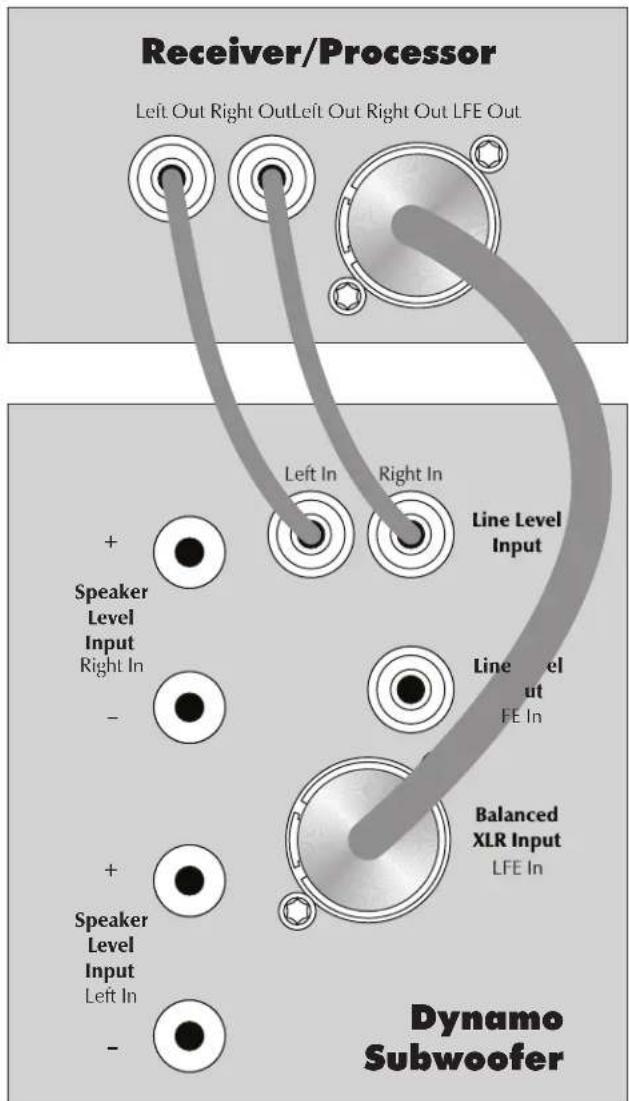

SpeakerLevelInput Left In SpeakerLevelInput Right InLine LevelInputLFE In Dynamo Subwoofer Receiver/Processor Left Out Right OutLeft Out Right Out LFE Out Figure 19. Signal connection for 2-channel/multi-channel mode.14 Using Speaker Level Inputs This connection method is recommended if your subwoofer will be used in a 2-channel only system with full-range front loudspeakers. To connect using Speaker Level Inputs the speaker cable sshould be terminated using banana style plugs. The Low-Pass Filter is applied to the signal received through these inputs. SWT-X Wireless System: This connection method is not compat- ible with the SWT-X wireless receiver/transmitter system. Speaker Level Inputs are an alternative to using RCA or XLR inter- connects. If you use the Speaker Level Inputs do not use RCA or XLR at the same time for Left In/Right In connections. If you use the Speaker Level Inputs it is okay to still use RCA or XLR for the LFE connection. Connect the left and right outputs of your amplifier to the sub’s Speaker Level Inputs (Left In/Right In). Use quality speaker cable and banana plugs. Be consistent and make sure the positive (+) and negative (–) terminals from your amplifier are attached to the matching positive (+) and negative (–) terminals on the subwoofer. If your amplifier only has one set of outputs you may connect your amplifier to your speakers as normal and run an additional set of cables from your speakers to the subwoofer’s Speaker Level Inputs. English

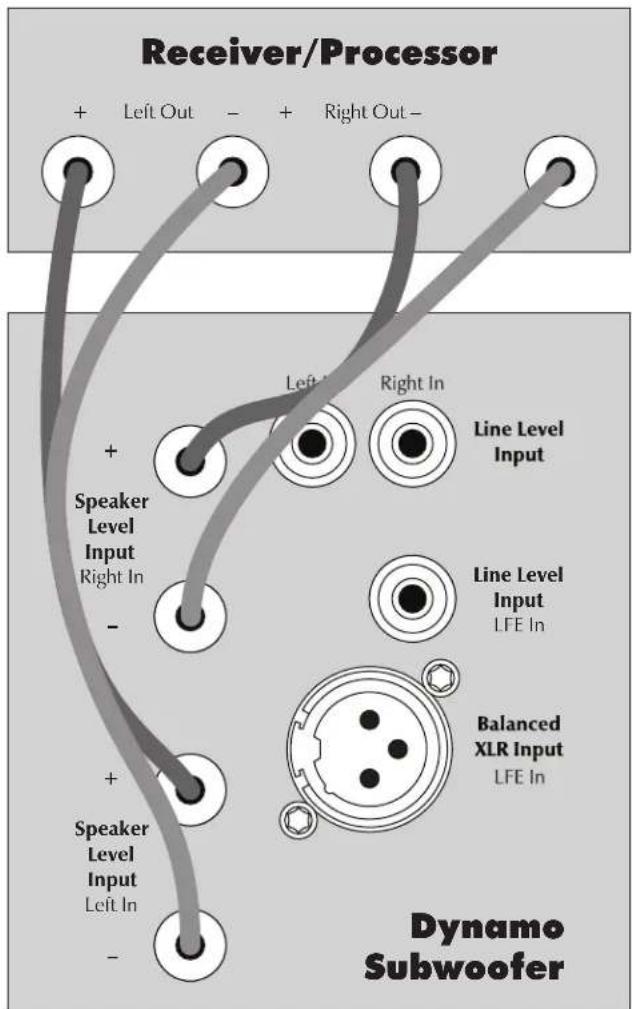

SpeakerLevelInput Left In SpeakerLevelInput Right InLine LevelInputLFE In Dynamo Subwoofer Receiver/Processor + Left Out– + Right Out – Figure 20. Signal connection for speaker level inputs.15 English SWT-X Wireless System Found on Dynamo 600X, 800X, 1100X, and 1600X. The SWT-X Subwoofer Wireless transmitter/receiver system is sold separately and available from your local dealer. The SWT-X wireless system can be used to establish either a left/ right line level connection or a LFE line level connection. To install the SWT-X wireless receiver, slide it into the Wireless Module Connection port on the back of the subwoofer. SWT-X receivers and transmitters are shipped already paired. Signal Connection: 1 Follow the instructions outlined in "2-Channel Mode" or "Multi- Channel Mode", only instead of connecting your receiver/ processor to the subwoofer, connect it to the SWT-X transmitter. Please note, "Simultaneous 2-Channel/Multi-Channel Mode" and "Speaker Level Input" connection methods are not compat- ible with the wireless system. Recommended Control Settings: 1 Follow the instructions outlined above in "2-Channel Mode" or "Multi-Channel Mode". SWT-X Status LEDs and Power The SWT-X transmitter shuts down to save power after about 20 minutes. When the transmitter shuts down the receiver will also shut

down shortly thereafter. SWT-X Transmitter LED (front) Status:

• Solid light: Transmitting wireless signals

• Flashing slowly: Waiting to be synchronized

• Flashing fast: Searching for receiver (after sync button has been pressed) SWT-X Transmitter LED (back) Status:

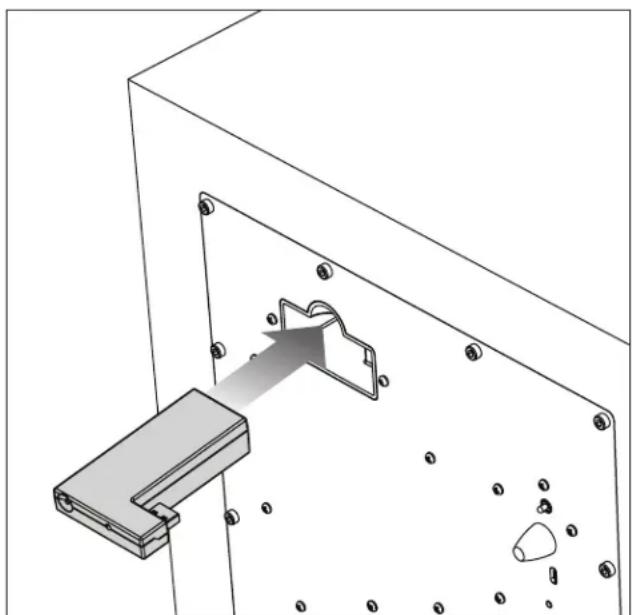

• On: Receiving power SWT-X Receiver LED (front) Status:

• Off: Standby or subwoofer is unpowered

• On: Wireless audio being received

• Flashing slowly: Waiting to be synchronized

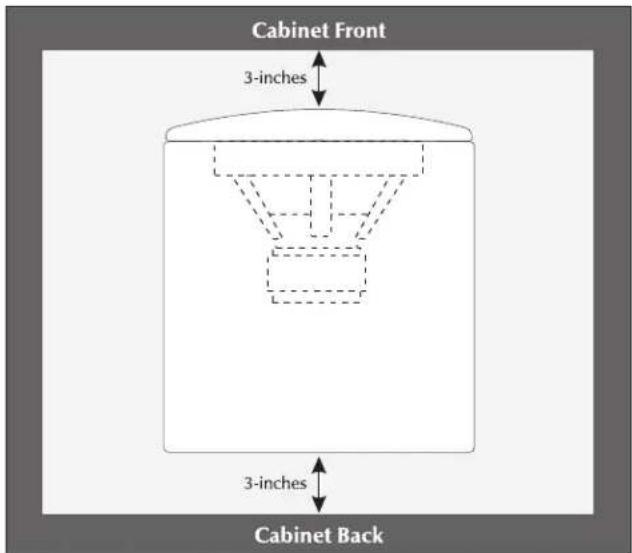

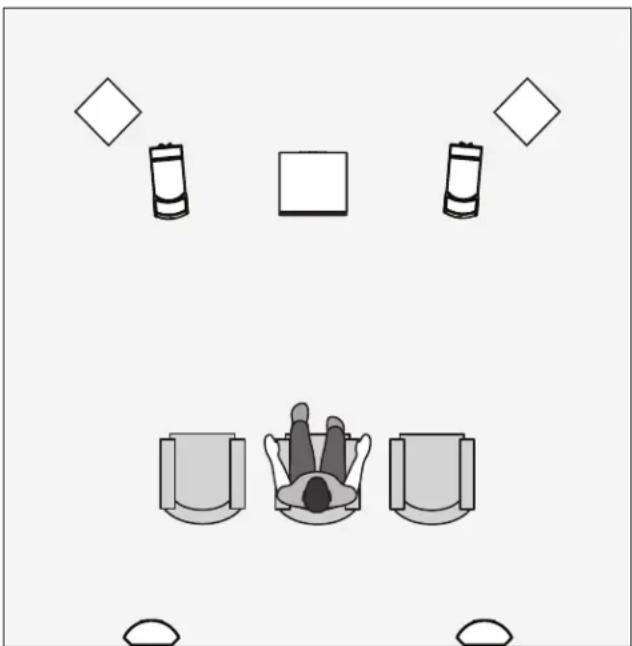

• Flashing fast: Searching for transmitter (after sync button has been pressed) Wireless Module Connection Figure 21. Wireless module receptacle Figure 22. Wireless module installation16 plaCement Subwoofer Position Generally, subwoofers have the most output when placed in the corner of a room. However, this can also exaggerate the subwoofers output making blending difficult. We recommend start- ing by placing the subwoofer in a corner. If, after the full range of tuning techniques have been employed, the subwoofer sounds like it has too much upper bass energy try pulling it away from the wall, toward the listening position. This will lessen the rein- forcement of these problematic frequencies from the wall and likely smooth out the response. Repeat the tuning techniques with the woofer controls after you move it. www.martinlogan.com/subsetup Setting up a subwoofer can be a daunting process. However, equipped with the right knowledge, exceptional results are attain- able. To assist in the process of setting up your subwoofer, we’ve created an online resource to walk you through the process. Here you will find tips and tricks to aid with placement, connection, and setting the controls. Please visit www.martinlogan.com/subsetup. Ask Your Dealer Your MartinLogan dealer can suggest many options for optimal subwoofer placement. They also have many tools at their disposal, such as experience, familiarity with the associated equipment, and even sound analysis equipment which may make the task of deter- mining optimal subwoofer placement easier. Enjoy Yourself MartinLogan subwoofers are very refined subwoofers and will ben- efit from care in setup. With the above placement tips in mind you will find, over months of listening, that small changes can result in measurable differences. As you live with your subwoofer, do not be afraid to experiment with positioning until you find the optimal relationship between your room, settings and subwoofer that gives you the best results. Your efforts will be rewarded. Installing in a Cabinet When placing the subwoofer inside of a cabinet it is recommend- ed that you use a front-firing configuration and that there be a minimum of three inches of open space between the cabinet and the front and back sides. Figure 23. MartinLogan subwoofers as the LFE channels, MartinLogan speakers as front, center, and surround (effects) channels. Note the corner placement of the subwoofers at the front of the listening room.Figure 24. Placing the subwoofer in a cabinet requires a minimum of three inches of open space on the front and back. English17 Changing Woofer Orientation Dynamo 800X, 1100X, and 1600X Please note: When configured in the front-firing orientation a right angle adaptor is required if using an XLR connection. When installing the subwoofer in a cabinet it is recommended that the subwoofer be converted to a front-firing configuration. 1 Prepare a flat surface with a blanket to protect the finish. Unplug signal and power connections. Remove the grill cloth, if installed. 2 Carefully lay the subwoofer on its side. Remove the rubber cap, unscrew the attached spike, and remove the foot. 3 Change the location of the four feet. 4 Reinstall the foot, spike, and, if desired, the rubber cap. Figure 26. To change woofer orientation, remove the rubber cap, spike, and foot, change location, and reinstall. Figure 25. Dynamo 800X, 1100X, and 1600X are capable of both front-firing and down-firing woofer orientations. English18 room aCoustiCs Your Room This is an area that requires both a little background to understand and some time and experimentation to attain the best performance from your system. Your room is actually a component and an impor- tant part of your system. This component is a large variable and can dramatically add to or subtract from a great sonic experience. All sound is composed of waves. Each frequency has its own wave size, with the lower, or bass frequencies literally encompass- ing from 10 feet to as much as 40 feet. Your room participates in this wave experience like a swimming pool with waves reflecting and becoming enhanced depending on the size and shape of the room and the types of surfaces in the room. Remember that your audio system can actually generate all of the information required to recreate a sonic event in time, space, and tonal balance. Acoustically, the role of an ideal room would be to neither delete nor contribute to that information. However, nearly every room does to some degree. Terminology Standing Waves Sound coming from a speaker bounces around in a room until a pattern emerges—this is called a standing wave. Typically, this is only a problem with frequencies below 100Hz. When this hap- pens different parts of your room experience either an excess or a lack of bass. Some people believe that having a room without parallel walls will eliminate this effect. The truth is that non-parallel walls only generate different standing wave patterns than those that occur in rectangular rooms. Usually, you can excite most of the standing waves in a room by putting the subwoofer in a corner. Listening position determines which standing waves you will experience. For instance, if you sit in a corner you will hear most of the standing waves. This can be an overpowering experience. Sitting next to a wall can also inten- sify the levels of the standing waves that are experienced. Resonant Surfaces and Objects All of the surfaces and objects in your room are subject to the frequencies generated by your system. Much like an instrument, they will vibrate and "carry on" in syncopation with the music, and may contribute in a negative way to the sound. Ringing, boomi- ness, and even brightness can occur simply because surfaces and objects are "singing along" with your speakers. Resonant Cavities Small alcoves or closet type areas in your room can be chambers that create their own "standing waves" and can drum their own "one note" sounds. Solid Footing After living and experimenting with your subwoofer, you may want to use ETC™ (Energy Transfer Coupler) spikes. With the use of these spikes, the subwoofer will become more firmly planted on the floor and, consequently, bass will tighten. It is best not to implement the spikes, however, until you are secure in the positioning, as the spikes can damage the floor if the subwoofer is moved. Spike Installation Instructions: 1 Carefully lay the subwoofer on its side to gain access to the bottom of the feet. 2 Remove the rubber cap from the foot to reveal the spike. Caution: Make sure your hands and any cabling are clear of the spikes. Do not slide the subwoofer as spikes are sharp and can damage your floor or carpet. English Figure 27. To access the spikes, remove the rubber cap..19 home theater It had long been the practice of stereo buffs to connect their televi- sion to a stereo system. The advantage was the use of the larger speakers and more powerful amplifier of the stereo system. Even though the sound was greatly improved, it was still mono and lim- ited by the broadcast signal. In the late 1970’s and early 1980’s two new home movie formats became widely available to the public: VCR and laser disc. By 1985, both formats had developed into very high qual- ity audio/video sources. In fact, the sonic performance of some video formats exceeded audio-only formats. Now, with theater- quality sound available at home, the only element missing was the "surround sound" presentation found in movie houses. Fortunately, Dolby and DTS encoded DVD’s emerged with the same surround sound information encoded on home releases as the theatrical release. Additionally, new high-resolution home- viewing formats such as Blu-ray as well as high-definition content provided via cable or satellite have evolved which include multi- channel encoded audio that is virtually master tape quality. All that is required to retrieve this information is a decoder and addi- tional speakers and amps to reproduce it. Home theater is a complex purchase and we recommend that you consult your local MartinLogan dealer, as they are well versed in this subject. Each piece of a surround system can be purchased separately. Take your time and buy quality. No one has ever complained that the movie was too real. The following list and descriptions will give you only a brief outline of the responsibilities and demands placed on each speaker. Front Left and Front Right If these speakers will be the same two used for your stereo play- back, they should be of very high quality and able to play loudly (over 102 dB) and reproduce bass below 80 Hz. Center Channel This is the most important speaker in a home theater system, as almost all of the dialogue and a large portion of the front speaker information is reproduced by the center channel. It is important that the center speaker be extremely accurate and mate well with the front speaker, and that it is recommended for use as a center speaker. This is not the place to cut corners. Surround Speakers We recommend (along with the film industry) that the surround speakers play down to at least 80 Hz. Surround speakers contain the information that makes it appear that planes are flying over your head. Some may suggest that this is the place to save money and purchase small, inexpensive speakers. If you choose to do so, be prepared to upgrade in the future as discrete multi-channel digi- tal encoding is proliferating rapidly and the demands on surround speakers have increased. Subwoofer With any good surround system you will need one or more high- quality subwoofers (the .1 in a 5.1, 6.1, or 7.1 channel surround system). Most movie soundtracks contain large amounts of bass information as part of the special effects. Good subwoofers will provide a foundation for the rest of the system. English Figure 28. Dynamo subwoofers as the LFE (effects) channels, MartinLogan speakers as front, center, and surround (effects) channels.20 anthem room CorreCtion (arC™) setup About ARC Your subwoofer includes Anthem Room Correction technology for optimizing low-frequency output within your room. Your subwoof- er's ARC system employs a mobile device connected via Bluetooth or computer and a microphone connected via USB cables. ARC utilizes multiple measurement points, at least five—but up to ten—individual data positions, allowing ARC to analyze the unique characteristics of your room. ARC software calculates correction curves for each measurement point, substantially mini- mizing the rounding errors of less sophisticated “calculators”, like those used in standard on-board room equalization systems. Additionally, ARC computer software is capable of calibrating itself to individual microphones, eliminating potential interference that would otherwise skew the data. Although ARC is designed to adjust the subwoofer’s output to mini- mize sonic anomalies caused by room interactions, it is always recommended to use traditional methods to achieve a flat response before implementing digitally based room correction. Remember, subwoofer placement is one of the most influential parameters when dealing with anomalous low-frequency room interactions. Listening position is equally important to bass response but is often dictated by other factors that are more difficult to change. The ARC in your subwoofer is not a replacement for room cor- rection systems designed to optimize multi-channel audio systems across the entire frequency range. When beginning the task of optimizing a multi-channel audio system’s performance, the first step should always be proper setup of the subwoofer and front, center, and surround speakers. The next step should be run- ning ARC to adjust the individual subwoofer's output to account for room interactions. Only after proper setup of speakers and subwoofers, including running ARC on the subwoofer(s), is it time to run your processor’s full room correction system to help balance overall system performance within the room. Before You Begin Anthem Room Correction does not always require an external microphone. ARC Mobile can use the microphone built into some mobile devices (especially those found in Apple

iOS devices). It should be noted that external microphones, designed especially for ARC, may offer superior results. For users who desire a cali- brated ARC microphone, ARC kits are sold separately and are available in several different versions. Check AnthemAV.com/ARC for compatibility of ARC Mobile with your mobile device or com- patibility of ARC software with your computer's operating system. NOTE: Use of your subwoofer's built-in USB Input is not required to run Anthem Room Correction. The ARC Mobile app can use a direct Bluetooth connection to the subwoofer. ARC Connection (Mobile Device) To run ARC Mobile your sub's Setting Control must be set to "App". If you plan to use the "Local" setting for your final installation you must temporarily set this switch to "App" for the duration of the ARC measurement and upload process. ARC Mobile connects to your subwoofer using Bluetooth. Before running ARC you will need to turn on Bluetooth in your mobile device. When you run ARC Mobile it will discover all available devices. Select your subwoofer from this list. Running ARC (Mobile Device) To run ARC on a mobile device you will need to download the latest ARC Mobile app. ARC Mobile will walk you through the measurement process with step-by-step on screen instructions. A calibrated ARC microphone, designed especially for use with mobile devices, is also available from your MartinLogan dealer. Depending on your mobile device you may be able to use the device's built-in microphone. Apple iOS devices tend to have microphones with very predictable responses. Android devices, however, prove to have less predictable microphone responses and benefit from a calibrated ARC microphone. Remember, to provide an accurate room correction curve, ARC need not only understand the sound of your subwoofer within your room, but also what coloration the microphone itself might be contributing to the measurements. Visit AnthemAV.com/ARC for details. NOTE: The MartinLogan Subwoofer Control app and the ARC Mobile app may interfere with each other's ability to discover your subwoofer. If you're having trouble getting either app to run or your subwoofer is not being discovred, check to make sure the other app isn't open and running in the background.

• Before running ARC Mobile, set up your subwoofer by adjust- ing placement.

• During measurement ARC Mobile overrides the settings of the Volume (level), Phase, Low-Pass Filter, and 20–30Hz Level controls. These controls do not effect measurements. After the correction curve has been uploaded to the speaker these con- trols can be used to fine tune the subwoofer's performance.

• If you are using an external ARC microphone, follow ARC English21 Mobile's queues for microphone connection instructions.

• When taking ARC measurements the microphone should be at locations approximately where your ears will be.

• If using an external microphone when taking ARC measure- ments, the microphone should point up, towards the ceiling.

• If using a mobile devices built-in microphone, the microphone should point in the direction of the device being measured.

• When taking ARC measurements the room should be silent. Please turn off or remove potential sources of noise.

• If using a mobile devices built-in microphone, it is recommend- ed that you remove the mobile device from its case, as a case may interfere with measurement accuracy.

• ARC Mobile will require you to measure five listening positions. The first position should be located at the primary listening position. Subsequent measurements should be taken at other listening positions and should never be closer than 2-feet from one another.

• Although it might seem logical to do so, you do not need to take measurements throughout the room (i.e. in the front corners, far off to the side, etc.). Measurement locations should focus only on positions where people will be listening to the subwoofer. ARC Connection (Computer) To run ARC on a computer you will need an ARC compat- ible microphone (available from your MartinLogan dealer). Visit AnthemAV.com/ARC for details. NOTE: If you own a MartinLogan PBK (Perfect Bass Kit) or Anthem ARC kit, the microphone included with either kit will work with the ARC computer software used to measure your subwoofer(s). Before running ARC on a computer, connect your subwoofer to the computer. Use a USB cable to connect the subwoofer's USB Input (Micro-B USB) to a USB (Type A)-input on your computer. Depending on the version of your ARC kit (sold separately) you may need an additional USB (Type A) to Micro-B USB cable or a Mini-B USB (Female) to Micro-B USB (Male) adapter. Before running ARC on a computer, Connect the ARC microphone to your computer using a Mini-B USB to USB (Type A) cable. Running ARC (Computer) To run ARC on a computer you will need to download the lat- est ARC software from AnthemAV.com/ARC. You will also need an ARC compatible microphone (available from your MartinLogan dealer). When running ARC software we recommend Automatic/Wizard Mode for most users. This mode will walk you through the mea- surement process with step-by-step on screen instructions. The ARC software's Manual Mode is recommend for advanced users. For more information, please visit AnthemAV.com/ARC.

• Before running ARC, set up your subwoofers by adjusting placement.

• During measurement ARC overrides the settings of the Volume (level), Phase, Low-Pass Filter, and 20–30Hz Level controls. These controls do not effect measurements. After the correction curve has been uploaded to the speaker these controls can be used to fine tune the subwoofer's performance.

• When taking ARC measurements the microphone should be approximately at the locations where your ears will be.

• When taking ARC measurements, the microphone should point up, towards the ceiling.

• When taking ARC measurements the room should be silent. Please turn off or remove potential sources of noise.

• ARC will require you to measure five (or more) listening posi- tions. The first position should be located at the primary listening position. Subsequent measurements should be taken at other listening positions and should be no closer than 2-fee to each other.

• Although it might seem logical to do so, you do not need to take measurements throughout the room (i.e. in the front corners, far off to the side, etc.). Measurement locations should focus only on positions where people will be listening to the subwoofer. English22 Frequently Asked Questions How do I clean my subwoofer? Use a dust free cloth or a soft brush to clean your subwoofer. Is it safe to set things on my subwoofer? While your subwoofer is designed with a durable, stain-resistant surface, we advise you not to set anything on your subwoofer—especially con- tainers holding liquids. Is there likely to be any interaction between my sub and the television in my Audio/ Video system? No. Although your sub doesn’t use a shielded driver, modern plasma, LCD, and LED television are not susceptible to magnetic interference. We recommend 3 feet between the sub and video components that are susceptible to magnetic fields. Will my electric bill go 'sky high' by leaving my subwoofer plugged in all the time? No. When the power switch is set to ‘Auto’ the subwoofer will draw very few watts when idle or in standby mode. Should I unplug my sub during a thunderstorm? Yes, or before. It's a good idea to disconnect all of your audio/video components during stormy weather. Is the Control App available for PC or Mac? No. The Subwoofer Control App is only available for iOS and Android devices. Is the Control App avialble for Windows Phone? No. The Subwoofer Control App is only available for iOS and Android devices. How do I install a firmware update? Use a USB cable to connect the subwoofer's USB Input (Micro-B USB) to a USB (Type A) input on your computer. Using ARC software (available from AnthemAV.com/ARC), choose your subwoofer when asked to select a device. The ARC software should automatically ask if you would like to install an update if one is available. ARC software will download and install the firmware update from MartinLogan servers. You may also manually initiate a firmware update by choosing the option from the software's menu. ARC also offer's the ability to manually select a firmware file if you have one saved on your computer. How do I connect my subwoofer to a receiver with two subwoofer outputs? Receivers and processors with multiple subwoofer outputs usually output the same signal on both outputs. You can connect your subwoofer to either output. If your processor/receiver offers independint control of the inputs, connect your subwoofer to one output and use the receiver/processor's menu to configure the outputs. How do I connect my sub to a 2-channel system? Your subwoofer is designed to connect to either 2-channel or multi- channel systems (or both) and offers connetions and controls for either scenario. Please review the "Connecting the Subwoofer and Setting Controls" section of this manual for details. Why does my subwoofer have so few controls? These subwoofers have moved controls to a Subwoofer Control App (available for iOS or Android). My receiver has one sub output jack, but my sub has two (or three) inputs. Which input should I use? In most installations you will connect the receiver/processor's sub output to the susbwoofer's LFE In (or Right In/LFE In in the case of the Dynamo 600X). Dynamo subs offer flexible connection options to accomodate other scenarios. These are all outlined in the "Connecting the Subwoofer and Setting Controls" section of this manual. Where should I place the subwoofer in my room? We recommend starting by placing the subwoofer in a corner. Generally, subs have the most output when placed in the corner of a room. However, this can also exaggerate the sub output making it difficult to blend with the main speakers. Additional adjustments may be necessary. Please refer to the "Placement" section of this manual or www.martinlogan.com/subsetup for more details. My receiver has a room correction system. Should I still use the subwoofer's built-in room correction? The ARC (Anthem Room Correction) system in your sub is not a replacement for room correction systems designed to optimize multi-channel audio systems across the entire frequency range. When beginning the task of optimizing a multi-channel audio sys- tem’s performance, the first step should always be proper setup of the sub and front, center, and surround speakers. The next step should be running ARC to adjust the individual sub's output to account for room interactions. Only after proper setup of speakers and subwoofers, including running ARC on the sub(s), is it time to run your processor’s full room correction system to help balance overall system performance within the room.” Troubleshooting No Output

• Check that all components are plugged in and turned on. frequently asked questions and troubleshooting English23 English

• Check all interconnecting cables.

• Check that the subwoofer is connected to the sub out (or other appropriate output) on the receiver/processor/amplifier.

• Check that subwoofer output is enabled in the receiver/proces- sor's setup menu.

• Make sure the sub's level control is not turned down.

• If the problem persists, contact your dealer. Muddy Bass

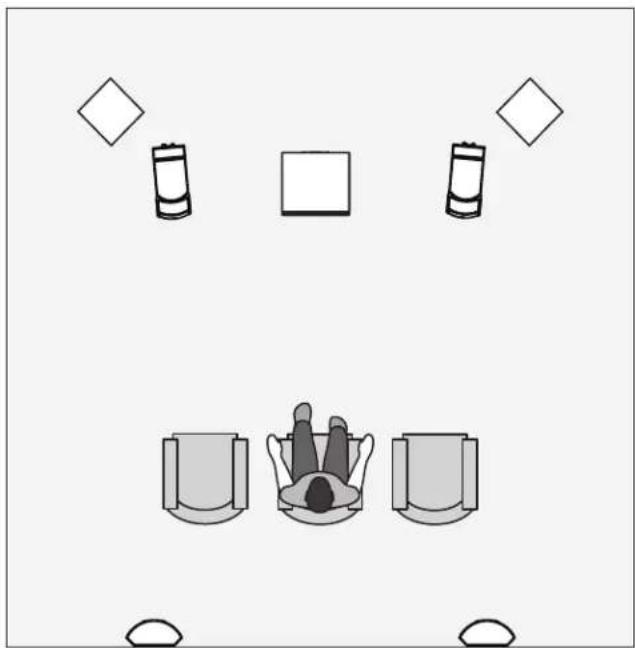

• Check placement. Try moving the subwoofer closer to the front and side walls.

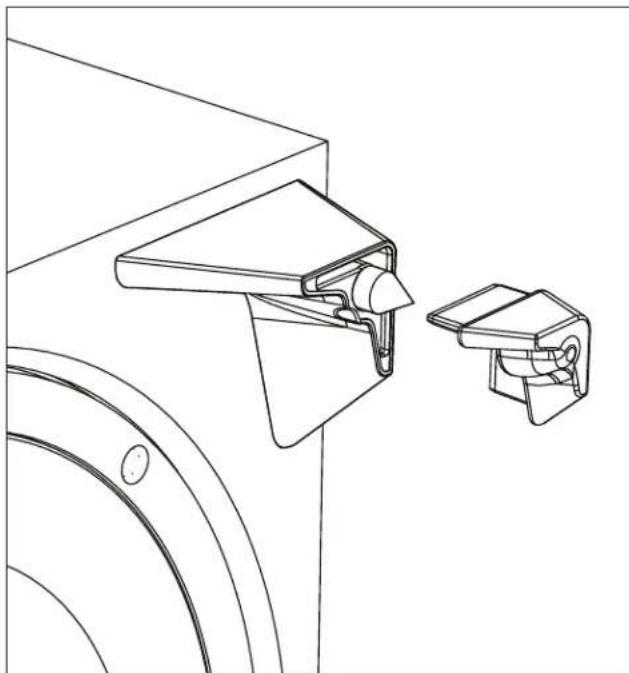

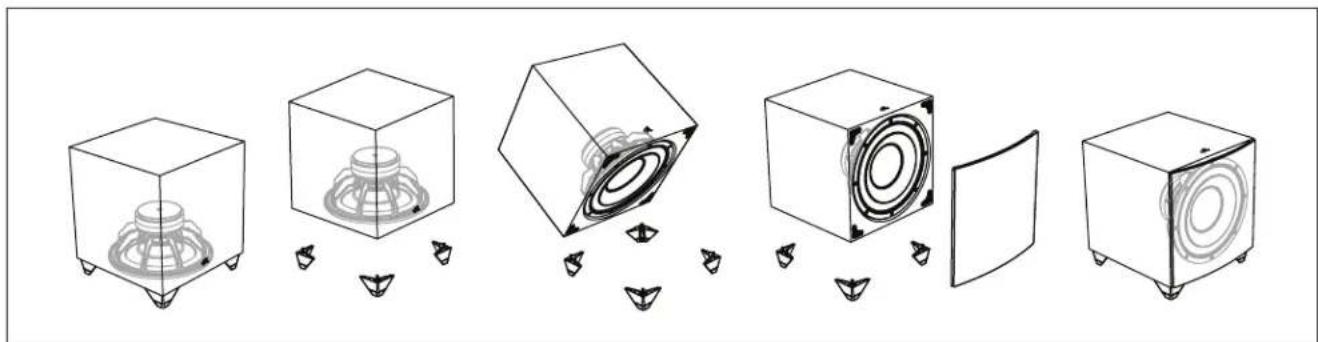

• Check the type of feet that are being used. Try installing the ETC spikes.

• Decrease the volume level.

• Check your processor setup.

• If the problem persists, contact your dealer. Hums or Unusual Sounds

• Turn the subwoofer off, unplug all signal inputs, turn the subwoofer back on and turn up the level. If the problem disap- pears, the hum is originating elsewhere in your system.

Connect the sub to the same AC circuit as the receiver/processor.

• If operating in wireless mode, move the sub away from micro- wave ovens and/or any devices that use wireless technology.

• If the problem persists, contact your dealer. Control App Troubleshooting Multiple subwoofers all have same name in the Control App or ARC (app or computer soft- ware)

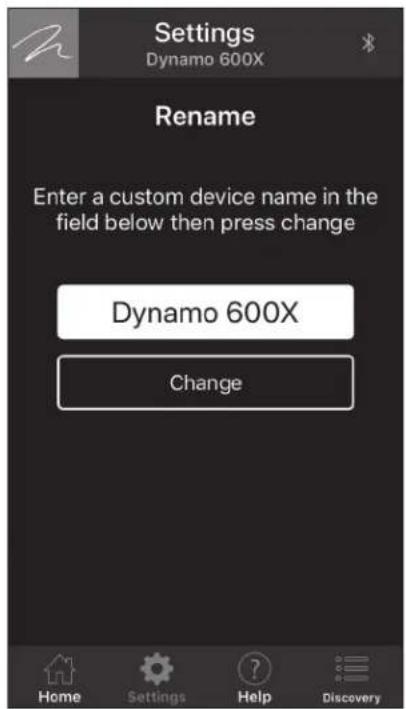

• Unplug all subwoofers. Plug the subs in one at a time and use the Subwoofer Control App to rename to each sub. Once you've given each subwoofer a custom name, plug them all back in.

• Use the Subwoofer Control App's tone sweep feature to gener- ate a tone in each sub and rename each sub accordingly. Control App not discovering subwoofer

• Make sure sub's Setting Control is set to "App"

• Make sure nothing is connected to the sub's USB Input.

• Make sure ARC Mobile is not connected to the sub on your current device or any other devices (completely close the app so that it is not running, even in the background).

• Unplug the subwoofer for 20 minutes and plug it back in. This will cause any connected devices to lose their connection.

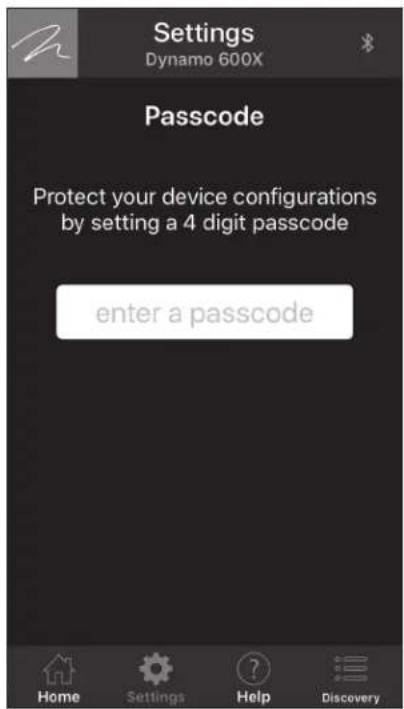

• Use ARC (for computer) to check for any available firmware updates and install if necessary. Custom passcode not working

• Use the code "0133" to bypass a custom passcode. ARC Troubleshooting ARC Mobile not discovering subwoofer

• Make sure sub's Setting Control is set to "App". The is neces- sary for the duration of the ARC process, even if you intend to use the "Local" setting.

• Make sure nothing is connected to the sub's USB Input.

• Make sure the Subwoofer Control App is not connected to the sub on your current device or any other devices (completely close the app so that it is not running, even in the background).

• Unplug the subwoofer for 20 minutes and plug it back in. This will cause any connected devices to lose their connection.

• Use ARC (for computer) to check for any available firmware updates and install if necessary. ARC (for computer) not recognizing the ARC microphone

• Unplug the microphone’s USB cable from your computer and plug it back into your computer. If your computer has more than one USB port try using a different USB port.

• While the microphone is plugged in to your computer allow one minute for the computer to install the microphone drivers.

• If driver installation fails, try connecting your subwoofer and microphone to an external USB hub and the hub to your com- puter.

• Try to re-trigger installation of the microphone drivers. On your Windows PC, go the Device Manager (right click “Computer” in the Start menu and select “Properties”). In the list of devices locate “Sound, video, and game controllers” and expand the list of available devices. Right click on the defective micro- phone and select uninstall. With the microphone’s USB cable attached to your computer, right click any item in the Device Manager and select “Scan for hardware change”. ARC (for computer) software Installation

• Make sure your subwoofer and ARC microphone are not con- nected to the computer when installing the ARC software.

• If you are having trouble installing the software, go to AnthemAV.com/ARC and download the installation file to make sure you are using the newest version.

• If you are still having trouble installing the software or the soft- ware gets stuck repeatedly on the first measurement it may be best to try another computer.24 Warranty and Registration Your subwoofer is provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive Limited 3-Year Warranty coverage. To obtain the Limited 3-Year Warranty coverage you need to register your product with MartinLogan. For your convenience MartinLogan offers online warranty registration at www.martinlogan.com. Please retain your original sales receipt from an authorized MartinLogan dealer or distributor for proof of warranty terms and proof of purchase. MartinLogan may not honor warranty service claims unless we have a completed warranty registration on file! Service Should you be using your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1. The appointed MartinLogan distributor for any given country is

responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2. Should a MartinLogan product require servicing in a country

other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servic- ing policies, but all cost of repairs (parts, labor, transportation) must be born by the owner of the MartinLogan product.

3. If, after owning your subwoofer for six months, you relocate

Dynamo 600X* 27–200 Hz ± 3 dB. Anechoic in LFE mode. 10” (25.4cm) high-excursion, inverted sur- round, polypropylene cone in a stamped steel basket with extended throw driver assembly. Ported. 120 watts (240 watts peak) Located on subwoofer backplate Min–Max Local, App On, Auto App available for iOS and Android -40 to 12dB 35–120Hz Bypass, Third, Fourth 0–180° (1° Increments) Normal, Inverted Music, Night, Movie ±10dB On, Off On, Off, Pause (Frequency) Left and Right/LFE N/A Left and Right via banana jacks N/A Micro USB (for ARC™/firmware update) SWT-X Wireless Receiver (sold separately) RCA: 8300 Ohms

Speaker Level: 2000 Ohms (red to black) Anthem Room Correction (ARC™) ready Typical: 30W, Max: 150W, Idle: 4W, Standby: 0.5W Rubber

35.5 lbs. each (16.1 kg)

Dynamo 800X* 24–200 Hz ± 3 dB. Anechoic in LFE mode. 10” (25.4cm) high-excursion, inverted sur- round, polypropylene cone in a stamped steel basket with extended throw driver assembly; sealed non-resonant cabinet design. 300 watts (600 watts peak) Located on subwoofer backplate Min–Max Local, App On, Trigger, Auto App available for iOS and Android -40 to 12dB 35–120Hz Bypass, Third, Fourth 0–180° (1° Increments) Normal, Inverted Music, Night, Movie ±10dB On, Off On, Off, Pause (Frequency) Left, Right, and LFE N/A Left and Right via banana jacks 3.5mm (5–24V DC) Micro USB (for ARC™/firmware update) SWT-X Wireless Receiver (sold separately) RCA: 8300 Ohms

Speaker Level: 2000 Ohms (red to black) Anthem Room Correction (ARC™) ready Typical: 70W, Max: 360W, Idle: 10W, Standby: 0.5W Rubber, ETC™ (Energy Transfer Coupler) spikes 30 lbs. each (13.6 kg)

Dynamo 1100X* 22–200 Hz ± 3 dB. Anechoic in LFE mode. 12” (30.5cm) high-excursion, inverted sur- round, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non-resonant cabinet design. 650 watts (1300 watts peak) Located on subwoofer backplate Min–Max Local, App On, Trigger, Auto App available for iOS and Android -40 to 12dB 35–120Hz Bypass, Third, Fourth 0–180° (1° Increments) Normal, Inverted Music, Night, Movie ±10dB On, Off On, Off, Pause (Frequency) Left, Right, and LFE LFE Left and Right via banana jacks 3.5mm (5–24V DC) Micro USB (for ARC™/firmware update) SWT-X Wireless Receiver (sold separately) RCA: 8300 Ohms XLR: 28000 Ohms (pin 2 to 3) Speaker Level: 2000 Ohms (red to black) Anthem Room Correction (ARC™) ready Typical: 100W, Max: 600W, Idle: 15W, Standby: 0.5W Rubber, ETC™ (Energy Transfer Coupler) spikes 46 lbs. each (20.9 kg)

17.2 x 15 x 16.2 inches (43.6 x 38 x 41.1 cm)

17.1 x 15 x 15.6 inches (43.5 x 38 x 39.6 cm)

Dynamo 1600X* 20–200 Hz ± 3 dB. Anechoic in LFE mode. 15” (38.1cm) high-excursion, inverted sur- round, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non-resonant cabinet design. 900 watts (1,800 watts peak) Located on subwoofer backplate Min–Max Local, App On, Trigger, Auto App available for iOS and Android -40 to 12dB 35–120Hz Bypass, Third, Fourth 0–180° (1° Increments) Normal, Inverted Music, Night, Movie ±10dB On, Off On, Off, Pause (Frequency) Left, Right, and LFE LFE Left and Right via banana jacks 3.5mm (5–24V DC) Micro USB (for ARC™/firmware update) SWT-X Wireless Receiver (sold separately) RCA: 8300 Ohms XLR: 28000 Ohms (pin 2 to 3) Speaker Level: 2000 Ohms (red to black) Anthem Room Correction (ARC™) ready Typical: 125W, Max: 800W, Idle: 15W, Standby: 0.5W Rubber, ETC™ (Energy Transfer Coupler) spikes 57 lbs. each (25.9 kg)

• Specifications are subject to change without notice.Dy n a m o 600X
