USER MANUAL BTA630XL BREVILLE

Touch 9 Operating your Breville ‘Lift & Look’

Touch 15 Care, cleaning & storage 17 One Year Limited Warranty 18 French4 BREvILLE RECOMMENdS SAfETy fIRST We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the fol- lowing precautions: IMPORTANT SAfEGUARdS REAd ALL INSTRUCTIONS

• Carefully read all instructions before operating for the first time and save for future reference.

• Remove and safely discard any packaging materials and promotional labels before using the toaster for the first time.

• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.

• To protect against electrical shock, do not immerse the power cord, power plug or motor base in water or any other liquid.

• Do not place the toaster near the edge of a bench or table during operation. Ensure the surface is level, clean and free of water.

• Always operate the toaster on a stable, heat resistant surface. Do not use on a cloth-covered surface, near curtains or other flammable materials.

• A fire may occur of the toaster is covered or touching flammable materials, including curtains, draperies, walls and the like, when in operation.

• Do not allow hot surfaces of the toaster to come in contact with countertops or tables.

• Do not place the toaster on or near a hot gas or electric burner, or where it could touch any other source of heat.

• Do not allow the power cord to hang over the edge of a table or counter, touch hot surfaces or become knotted. Unwind the power cord fully before use.

• Do not use the toaster on a sink drain board.

• Do not move toaster while in operation.

• Ensure that bread to be toasted is the correct size for the toaster and does not protrude above the bread slice opening. Ensure the bread is not too thick or long that it will jam or wedge the bread carriage.

• Do not place toast directly on top of toasting slots to warm toast as this may prevent correct air circulation and damage the appliance.

• Do not touch hot surfaces. Toaster surfaces are hot during and after operation. To prevent burns or personal injury, always use protective hot pads or insulated oven mitts, or use handles or knobs where available.

• Metal utensils such as knifes should not be inserted into the toaster to remove jammed toast, bagels or any other items from the toaster. This can damage the heating elements as well as lead to electrocution.

• Do not attempt to dislodge food when the toaster is plugged in.

• Oversized foods, metal foil packages, or utensils must not be inserted into the toaster as they may cause a fire or risk of electric shock.

• Do not use the toaster without the slide out crumb tray in place. Do not allow crumbs to build up in the crumb tray. Failure to clean the crumb tray regularly may result in a fire hazard.

• To turn the toaster off, remove the power plug from the power outlet.5 PAGE hEAdER..... BREvILLE RECOMMENdS SAfETy fIRST

• Always remove the power plug from the power outlet if the toaster is not in use, before attempting to move, before cleaning, and when storing.

• Unplug from wall out when not in use and before cleaning. Allow to cool before putting on or taking off parts.

• Do not use harsh abrasive, caustic cleaners or oven cleaners when cleaning the toaster.

• Do not clean with metal scouring pads. Pieces can break off and touch electrical parts, creating a shock hazard.

• Strictly follow the care and cleaning instructions described in this book.

• This appliance is for household use only. Do not use the appliance for anything other than its intended purpose as described in this book. Do not use outdoors. Do not use in moving vehicles or boats.

• The use of attachments not sold or recommended by Breville may cause fire, electric shock or injury.

• Do not leave the toaster unattended when in use.

• This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

• Regularly inspect the power cord, power plug and actual appliance for any damage. Do not operate if damaged in any way or after the appliance malfunctions. Immediately cease use of the appliance and visit www.Breville. com or call Breville Customer Service at 1-866-BREVILLE for examination, repair or adjustment.

• For any maintenance other than cleaning, visit www.Breville.com or call Breville Customer Service at 1-866-BREVILLE.

• This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be grounded using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

• If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.

• If the power outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter.

• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.6 BREvILLE ASSIST™ PLUG Your Breville appliance comes with a unique Assist™ Plug, conveniently designed with a finger hole in the power plug for easy and safe removal from the wall outlet. For safety reasons it is recommended you plug your Breville appliance directly into its own electrical outlet on a dedicated circuit separate from other appliances. If the electric circuit is overloaded with other appliances, your appliance may not function properly. Use in conjunction with a power strip or extension cord is not recommended. ShORT CORd INSTRUCTIONS Your Breville appliance is fitted with a short power supply cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Do not allow children to use or be near this appliance without close adult supervision. Longer detachable power supply cords or extension cords are not recommended but may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug. WARNING Never operate the toaster on its side. Never add any food substance to the bread, bagel or any other item prior to toasting (such as butter, jelly or marmalade). This may cause a fire as well as lead to electrocution. This toaster is for toasting bread, bagels and toaster pastries only. Placing other food items in the toaster can cause a fire as well as lead to electrocution. BREvILLE RECOMMENdS SAfETy fIRST fOR hOUSEhOLd USE ONLy SAvE ThESE INSTRUCTIONSKNOW your Breville ‘Lift & Look’

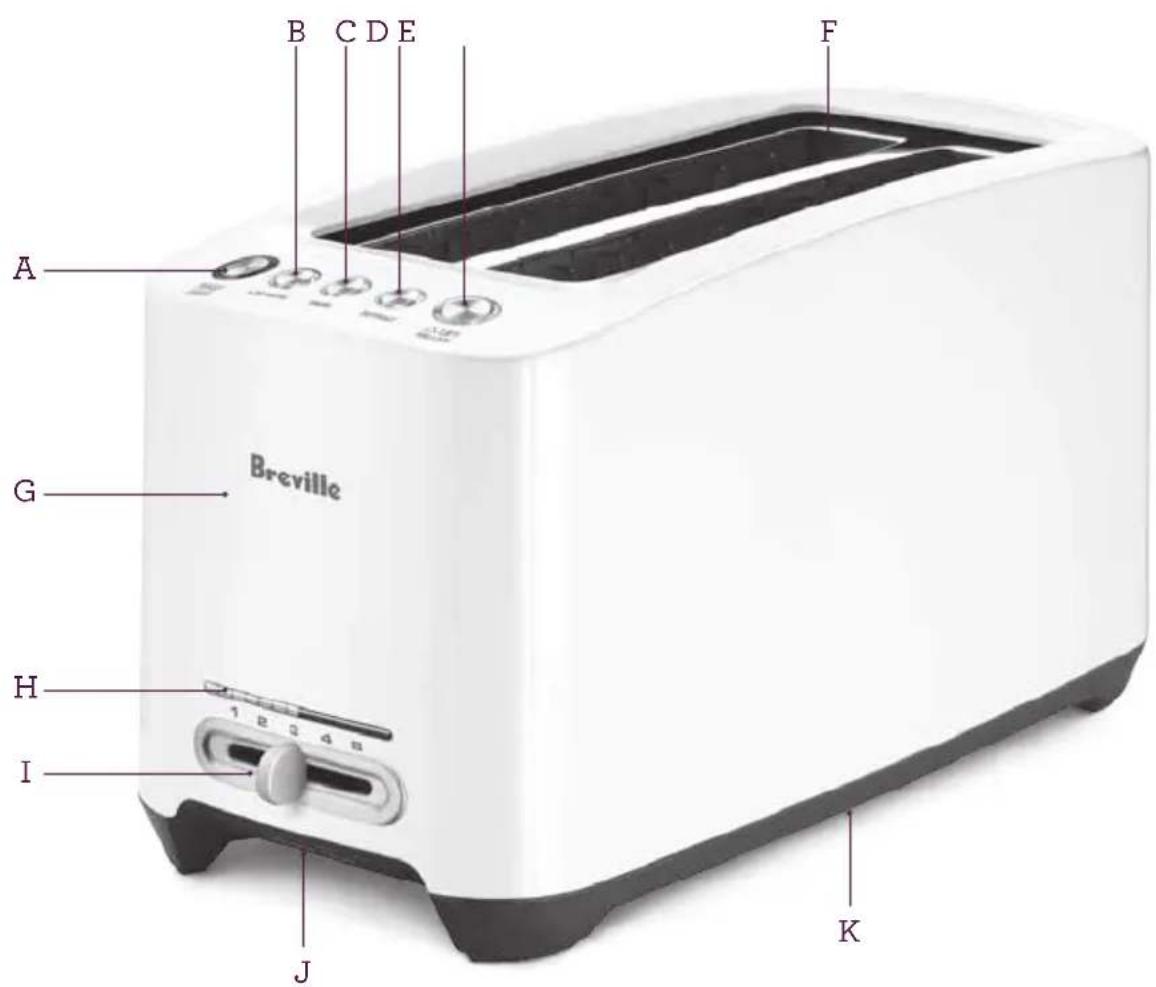

Touch8 PAGE hEAdER..... KNOW yOUR BREvILLE ‘LIfT & LOOK’™ TOUCh A. TOAST/CANCEL button with motorized raising and lowering, and toast ready sound alert

button F. Long Toasting Slots extra wide with self centering carriage G. Cool-touch body H. LED toasting progress indicator

I. Variable browning control

J. Slide out crumb tray K. Concealed cord storage

your Breville ‘Lift & Look’

Touch10 PAGE hEAdER.....OPERATING yOUR BREvILLE ‘LIfT & LOOK’™ TOUCh Before first use, remove any packaging material or promotional labels attached to your toaster.

1. Insert the power plug into a 110/120V

power outlet. The TOAST/CANCEL button surround will illuminate in white. The LED toasting progress indicator will illuminate in red from left to right, then align to the selected browning setting (indicated by the position of the browning control slide). The toaster will revert to stand-by mode after 30 seconds if a button is not pressed or the browning control slide is not adjusted. NOTE When using the toaster for the first time, we suggest toasting on the maximum setting without bread. The toaster may emit a thin smoke or distinct odor on initial use. This is normal and not detrimental to the performance of the toaster.

2. Place 1 slice of bread, 1 bagel or half an

English muffin only, into each of the toasting slots. Ensure items for toasting are not too large or too thick to fit in the toasting slots.

3. Select the desired browning setting by

adjusting the browning control slide on the front of the toaster. The browning settings range from ‘1’ (lightest) to ‘5’ (darkest). The LED toasting progress indicator will illuminate in red and align to the selected browning setting (as indicated by the position of the browning control slide). NOTE When toasting bread for the first time, it is suggested to toast on browning setting ‘3’. Various types of bread and personal preference may require a different browning setting. For example, raisin toast and white light-textured breads may require a lighter setting, while heavier textured rye breads may require a darker setting.

4. To start the toasting process, press the

TOAST/CANCEL button on top of the toaster. The TOAST/CANCEL button surround will illuminate in red and the carriage will automatically lower into the toasting slots which starts the toasting cycle. As the carriage automatically locks into position, the 'LIFT & LOOK'™ button surround will illuminate in white and the LED toasting progress indicator (above the selected browning setting) will flash and start to gradually count down (towards the left) indicating the toasting progress.

5. The 'LIFT & LOOK'™ button can be

pressed up until 10 seconds before the end of the toasting cycle to view the browning of the bread. When selected, the 'LIFT & LOOK'™ button surround will flash and the LED toasting progress indicator will remain steady (indicating that the selected browning setting has not been interrupted by the carriage rising). The toasting recommences immediately as the carriage lowers and locks into position, and as indicated by the 'LIFT & LOOK'™ button surround illuminating and the LED toasting progress indicator flashing.11 PAGE hEAdER.....OPERATING yOUR BREvILLE ‘LIfT & LOOK’™ TOUCh

6. Approximately 10 seconds before the

end of the selected browning setting, the 'LIFT & LOOK'™ button will cease illumination. As the toasting stops and the carriage rises, the TOAST/CANCEL button surround will flash and the LED toasting progress indicator will cease flashing. The LED toasting progress indicator will re-illuminate to the previously selected browning setting.

7. Once the toasting cycle has completed

and the carriage has risen and locked into the raised position, the toast ready alert will sound. Remove the toast. The TOAST/CANCEL button surround will re-illuminate in white for up to 30 seconds, ready for the next toasting cycle. The toaster will revert to stand-by mode after 30 seconds. NOTE The toaster will revert to stand-by mode after 30 seconds if a button is not pressed or the browing control slide is not adjusted. The TOAST/CANCEL button surround and LED toasting progress indicator will cease illumination. NOTE The toaster will re-activate from stand-by mode and the TOAST/CANCEL button surround and LED toasting progress indicator will illuminate when: A. Any of the buttons are pressed. B. The browning control slide is moved. WARNING Do not leave the toaster unattended when in use as toast may jam. In the unlikely event that bread, bagels or toaster pastries become jammed in the toasting slots, all the buttons and the LED toasting progress indicator will flash and the elements will turn off. Remove the power plug from the power outlet and allow the toaster to cool completely before carefully easing the bread out of the slots. Take care not to damage the heating elements.

The TOAST/CANCEL button surround will illuminate in white for up to 30 seconds when the appliance is turned on. The toaster will revert to stand-by mode after 30 seconds if a button is not pressed or the browning control slide is not adjusted.

• Press the TOAST/CANCEL button once to lower the carriage and start the toasting process. The TOAST/CANCEL button surround will then illuminate in red.

• Press the TOAST/CANCEL button during operation to cancel the toasting process or any other function. The TOAST/CANCEL button illumination will change from red to white and stay illuminated for up to 30 seconds. NOTE Toasting can be stopped at any time by pressing the TOAST/CANCEL button located on the top of the toaster. This will cancel the operation and the carriage will move to the raised position.12 PAGE HEADER.....

OPERATING YOUR BREVILLE ‘LIFT & LOOK’™ TOUCH

NOTE The toaster features a 'LIFT & LOOK'™ button. This automatically raises the carriage without cancelling or resetting the selected browning setting. Use the 'LIFT & LOOK'™ button to view browning progress during the toasting and, if necessary, cancel the process when the desired toast color is achieved.

'A BIT MORE'™ BUTTON

This feature can be selected after or during the toasting cycle. To use this feature during the toasting cycle:

1. The 'A BIT MORE'™ button surround

will illuminate in white when selected. The toasting time will automatically increase but will not illuminate more of the LED toasting progress indicator. The 'A BIT MORE'™ function can be cancelled by pressing the 'A BIT MORE'™ button again and the original toasting cycle will continue. To use this feature after the toasting cycle has completed:

1. The 'A BIT MORE'™ button surround

will illuminate in white when selected. The carriage will automatically lower and begin the additional toasting time. The LED toasting progress indicator will automatically align with the lowest browning setting then flash and count down for the additional browning time.

2. The TOAST/CANCEL button surround

will also illuminate in red and the 'LIFT & LOOK'™ button surround will illuminate in white allowing you to check on the toasting progress and, if necessary, cancel the cycle by pressing the TOAST/CANCEL button when the desired toast color is achieved.

3. Approximately 10 seconds before

the end of the additional browning, the 'LIFT & LOOK'™ button will cease illumination. As the toasting stops and the carriage rises, the TOAST/CANCEL button surround will flash, the LED toasting progress indicator will cease flashing and the 'A BIT MORE'™ button surround will cease illumination. The LED toasting progress indicator will re-illuminate to the previously selected browning setting.

4. Once the toasting cycle has finished and

the carriage has risen and locked into the raised position, the toast ready alert will sound. Remove the toast. The TOAST/CANCEL button surround will re-illuminate in white for up to 30 seconds, ready for the next toasting cycle. NOTE The 'A BIT MORE button'™ can be used with the TOAST, BAGEL and DEFROST functions.13 PAGE HEADER.....

OPERATING YOUR BREVILLE ‘LIFT & LOOK’™ TOUCH

BAGEL BUTTON This feature activates additional heat to the middle heating elements to perfectly toast the insides of your cut bagel without burning the outside. To toast bagels:

1. Place the cut bagel into the toasting

slots with the inside of the bagel facing inwards as per the bagel markings above the middle heating elements of the toaster.

2. Select the desired browning setting by

adjusting the browning control slide on the front of the toaster. The browning settings range from ‘1’ (lightest) to ‘5’ (darkest).

3. Press the TOAST/CANCEL button

and the surround will illuminate in red then press the BAGEL button and the surround will illuminate in white. The bagels will automatically lower into the toasting slots. The middle and side heating elements will automatically adjust.

4. The 'LIFT & LOOK'™ button surround

will also illuminate in white allowing the toasting progress to be checked and, if necessary, cancel the cycle by pressing the TOAST/CANCEL button when the desired toast color is achieved.

5. Approximately 10 seconds before the

end of the selected browning setting, the 'LIFT & LOOK'™ button will cease illumination. As the toasting stops and the carriage rises, the TOAST/CANCEL button surround will flash and the LED toasting progress indicator will cease flashing. The LED toasting progress indicator will re-illuminate to the previously selected browning setting.

6. Once the toasting cycle has finished

and the carriage has risen and locked into the raised position, the toast ready alert will sound. Remove the bagels. The TOAST/CANCEL button surround will re-illuminate in white for up to 30 seconds, ready for the next toasting cycle. The BAGEL button surround will remain illuminated and should be pressed once to cancel if a subsequent toasting function is required. The BAGEL button surround will cease to illuminate after 30 seconds or when the power plug is removed from the power outlet. DEFROST BUTTON This feature activates additional toasting time required to toast frozen bread. To toast frozen bread:

1. Place the bread into the toasting slots.

2. Select the desired browning setting

by adjusting the browning control slide on the front of the toaster. The browning settings range from ‘1’ (lightest) to ‘5’ (darkest).

3. Press the TOAST/CANCEL button and

the surround will illuminate in red then press the DEFROST button and the surround will illuminate in white. The bread will automatically lower into the toasting slots. The toasting time will automatically increase.

4. The 'LIFT & LOOK'™ button surround

will illuminate in white allowing you to check on the toasting progress and, if necessary, cancel the cycle by pressing TOAST/CANCEL button when the desired toast color is achieved.14 PAGE HEADER.....

OPERATING YOUR BREVILLE ‘LIFT & LOOK’™ TOUCH

5. Approximately 10 seconds before the

end of the selected browning setting, the 'LIFT & LOOK'™ button will cease illumination. As the toasting stops and the carriage rises, the TOAST/CANCEL button surround will flash and the LED toasting progress indicator will cease flashing. The LED toasting progress indicator will re-illuminate to the previously selected browning setting.

6. Once the toasting cycle has finished

and the carriage has risen and locked into the raised position, the toast ready alert will sound. Remove the toast. The TOAST/CANCEL button surround will re-illuminate in white for up to 30 seconds, ready for the next toasting cycle. The DEFROST button surround will remain illuminated and should be pressed once to cancel if a subsequent toasting function is required. The DEFROST button surround will cease to illuminate after 30 seconds or when the power plug is removed from the power outlet.

'LIFT & LOOK'™ BUTTON

This feature automatically raises and lowers the carriage so you can check the toasting progress without interrupting and/or cancelling the toasting cycle. To select this feature:

1. The 'LIFT & LOOK'™ button surround

will illuminate in white during the toasting cycle and when using the 'A BIT MORE'™, BAGEL and DEFROST features. You can press the 'LIFT & LOOK'™ button during the toasting cycle to view the toasting progress. If selected, the 'LIFT & LOOK'™ button surround will flash. The LED toasting progress indicator will cease to flash indicating that the selected toasting cycle time has not been interrupted. When the 'LIFT & LOOK'™ cycle has finished, the toasting cycle will re-commence, indicated by the resumed flashing of LED toasting progress indicator.

2. Approximately 10 seconds before the

end of the selected browning setting, the 'LIFT & LOOK'™ button will cease illumination and cannot be activated during this time.CARE, CLEANING & STORAGE of your Breville ‘Lift & Look’

CARE, CLEANING & STORAGE

1. Remove the power plug from the power

outlet and allow the toaster to cool completely before cleaning.

2. To clean any crumbs from the toaster,

remove the crumb tray, located under the control panel at the front of the toaster, by pulling it outwards. Empty and replace the crumb tray before using the toaster again. Replace the crumb tray by sliding it inwards until it locks into position.

3. To remove any additional crumbs, turn

the toaster upside down over a trash bin and shake crumbs free.

4. Wipe the outside of the toaster with a

slightly dampened soft cloth then polish with a soft dry cloth to dry completely. NOTE Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts creating an electric shock hazard. STORAGE Remove the power plug from the power outlet and allow the toaster to cool completely before storing. Follow the directions for cleaning and store in an upright position on a flat surface on a bench top or in an accessible cupboard. Do not store anything on top of the toaster. WARNING Do not use the toaster without the slide-out crumb tray in position. Do not allow crumbs to build up in the crumb tray. Failure to clean the crumb tray regularly may result in a fire hazard.17

ONE YEAR LIMITED WARRANTY

Subject to the conditions below, HWI Breville

warrants for two year from the date of purchase that this Breville

appliance is free of defects in material and workmanship. This warranty does not cover damages to the appliance or to any of its parts that are caused by abuse, misuse, neglect, wear and tear, including damages caused by using the appliance in a manner not contemplated by the instruction manual, including use on current or voltage other than that marked on the product, or by failing to follow safety, operating, care or cleaning instructions or alteration or repair not authorized by HWI Breville

. Where applicable, this warranty covers the repair and/or replacement of a defective product at HWI Breville

’s option. This warranty provides specified rights. Consumers may also have other rights which vary from state to state, or province to province. TERM OF WARRANTY: The warranty extends for two year from the date of original purchase by a consumer, and does not apply to purchases by retailers or distributors, or to purchases for commercial use. If a replacement product is sent, it will carry the remaining warranty of the original product. Please contact our Customer Service Center at www.Breville.com or call the toll free number below for instructions on the repair and/or replacement of the appliance if a covered defect occurs within the two year warranty period. CONDITIONS: In order to be eligible for this warranty, the consumer must purchase the Breville

appliance from an “Authorized Retailer” and must provide proof that the product was purchased within two year prior to making any claim under the warranty. Registering the product with HWI Breville

, while appreciated, is not required, and is not a substitute for proof of purchase. DISCLAIMER: This warranty covers the repair and/or replacement of products. HWI Breville

expressly disclaims all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you. Fitness and merchantability: any warranty of merchantability or fitness with respect to this product is also limited to the two year limited warranty period. The warranties set forth herein are exclusive and not other warranties, express or implied, are made by HWI Breville
