USER MANUAL BTA830XL BREVILLE

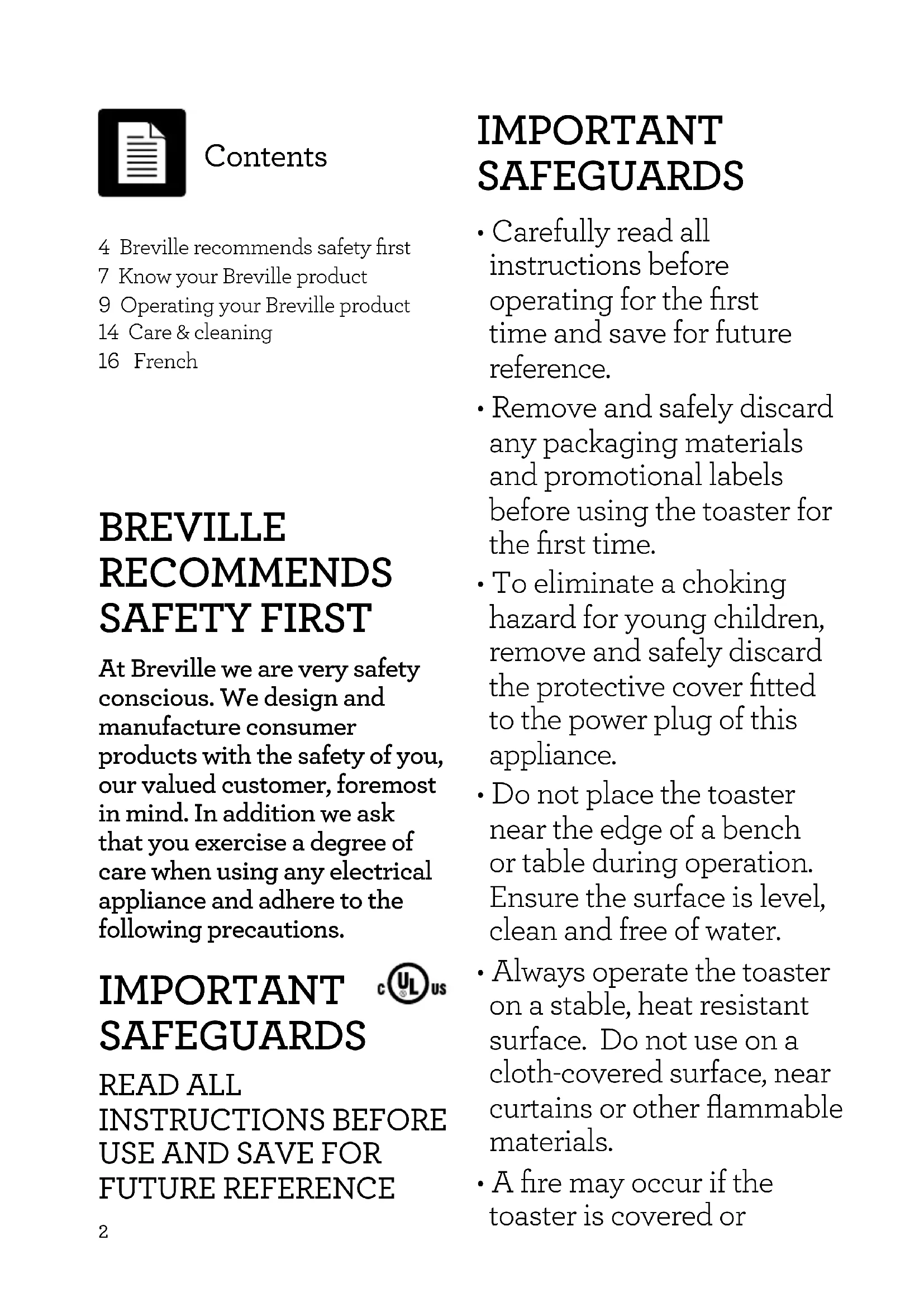

Instruction Book - BTA830XL2 BREVILLE RECOMMENDS SAFETY FIRST At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE

• Carefully read all instructions before operating for the first time and save for future reference.

• Remove and safely discard any packaging materials and promotional labels before using the toaster for the first time.

• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.

• Do not place the toaster near the edge of a bench or table during operation. Ensure the surface is level, clean and free of water.

• Always operate the toaster on a stable, heat resistant surface. Do not use on a cloth-covered surface, near curtains or other flammable materials.

• A fire may occur if the toaster is covered or 4 Breville recommends safety first 7 Know your Breville product 9 Operating your Breville product 14 Care & cleaning 16 French Contents3 touching flammable materials, including curtains, draperies, walls and the like, when in operation.

• Do not allow hot surfaces of the toaster to come in contact with countertops or tables.

• Do not place the toaster on or near a hot gas or electric burner, or where it could touch any other source of heat.

• Do not use the toaster on a sink drain board.

• Do not move toaster while in operation.

• Avoid contact with moving parts.

• Ensure that bread to be toasted is the correct size for the toaster and does not protrude above the toasting slots. Ensure the bread is not too thick or long that it will jam or wedge the bread carriage.

• Do not place toast directly on top of toasting slots to warm toast as this may prevent correct air circulation and damage the appliance.

• Do not touch hot surfaces. Toaster surfaces are hot during and after operation. To prevent burns or personal injury, always use protective hot pads or insulated oven mitts, or use handles or knobs where available.

• Metal utensils such as a knife, should not be inserted into the toaster to remove jammed toast, bagels or any other items from the toaster. This can damage the heating elements as well as lead to electrocution.

• Do not attempt to dislodge food when the toaster is plugged in.

• Oversized foods, metal foil packages, or utensils must not be inserted into the toaster as they may cause a fire or risk of electric shock.

• Do not use the toaster without the slide out crumb tray in place. Do not allow4 crumbs to build up in the crumb tray. Failure to clean the crumb tray regularly may result in a fire hazard.

• To turn the toaster off, remove the power plug from the power outlet.

• Always remove the power plug from the power outlet if the toaster is not in use, before attempting to move, before cleaning, and when storing. Allow to cool before putting on or taking off parts.

• Do not use harsh abrasive, caustic cleaners or oven cleaners when cleaning the toaster.

• Do not clean with metal scouring pads. Pieces can break off and touch electrical parts, creating a shock hazard.

• Strictly follow the care and cleaning instructions described in this book.

• The use of attachments not sold or recommended by Breville may cause fire, electric shock or injury. IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Fully unwind cord before use.

• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.

• Do not let the cord hang over the edge of a bench or table, touch hot surfaces, or become knotted.

• Do not leave the appliance unattended when in use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person5 responsible for their safety.

• Children should be supervised to ensure they do not play with the appliance.

• This appliance is recommended for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

• It is recommended to regularly inspect the appliance. Do not use the appliance if the power cord, power plug, or appliance becomes damaged in anyway. Immediately cease use and call Breville Consumer Service for examination, repair or adjustment.

• This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be grounded using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

• If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.

• If the power outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong power outlet.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter.

• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.6

BREVILLE ASSIST™ PLUG

Your Breville appliance comes with a unique Assist™ Plug, conveniently designed with a finger hole in the power plug for easy and safe removal from the wall outlet. For safety reasons it is recommended you plug your Breville appliance directly into its own electrical outlet on a dedicated circuit separate from other appliances. If the electric circuit is overloaded with other appliances, your appliance may not function properly. Use in conjunction with a power strip or extension cord is not recommended.

SHORT CORD INSTRUCTIONS

Your Breville appliance is fitted with a short power supply cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Do not allow children to use or be near this appliance without close adult supervision. Longer detachable power supply cords or extension cords are not recommended but may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug. WARNING Never operate the toaster on its side. Never add any food substance to the bread, bagel or any other item prior to toasting (such as butter, jelly or marmalade). This may cause a fire as well as lead to electrocution. This toaster is for toasting bread, bagels, English muffins and toaster pastries only. Placing other food items in the toaster can cause a fire as well as lead to electrocution.

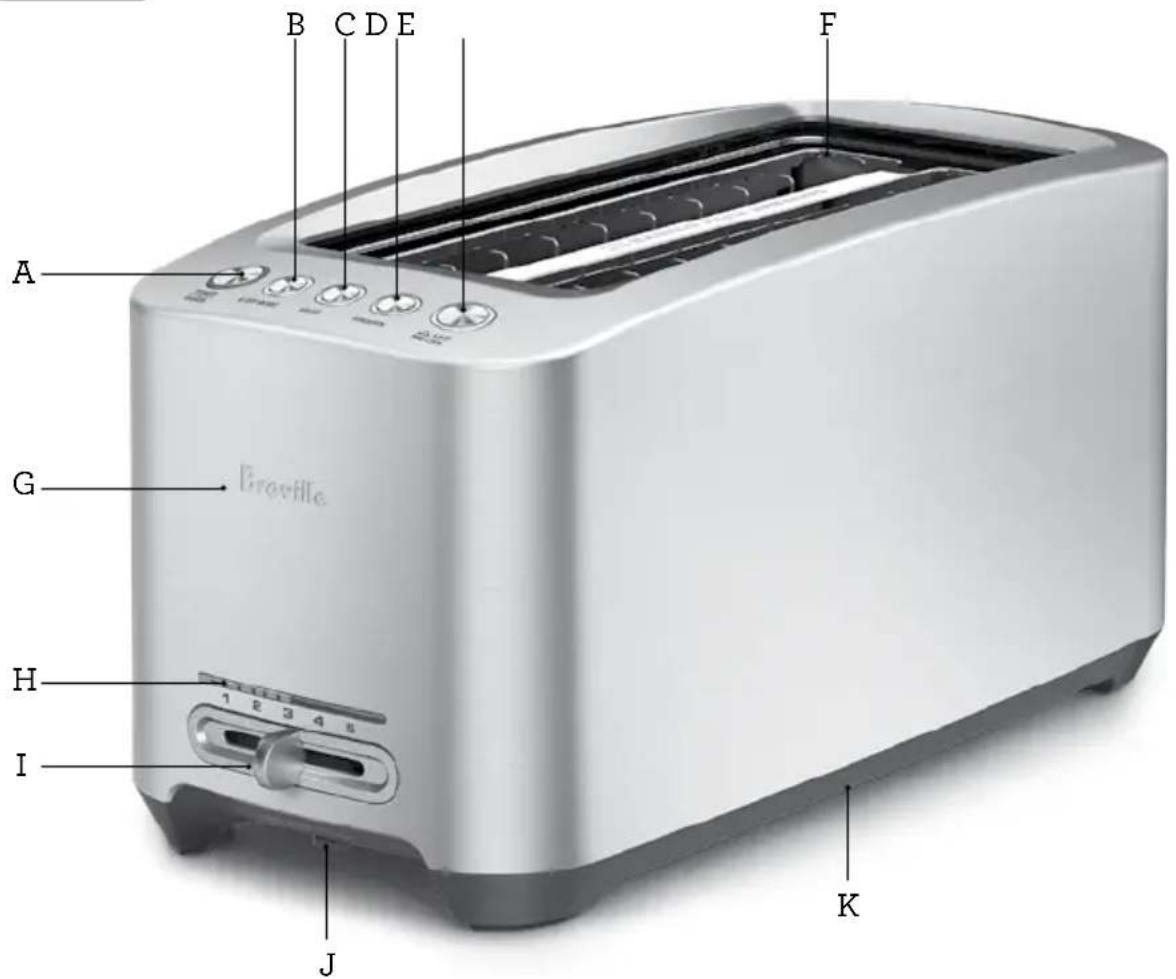

Components A. TOAST|CANCEL button With motorized raising and lowering, and toast ready alert. B. A BIT MORE™ button If your toast comes up too light, one press adds a little extra toasting time. C. BAGEL button Activates additional heat to the middle heating elements to perfectly toast the insides of your cut bagel without burning the outside. D. DEFROST button Activates additional toasting time required to toast frozen bread. E. Motorized LIFT & LOOK™ button Automatically raises and lowers the carriage so you can check the toasting progress without interrupting the toasting cycle. Also use this button to adjust the volume of the toast ready alert. F. Long toasting slots G. Diecast cool-touch body H. LED toasting progress indicator

Before first use, remove any packaging material or promotional labels attached to your toaster.

1. Insert the power plug into a 110/120V

power outlet. The TOAST|CANCEL button surround will illuminate white. The LED toasting progress indicator will illuminate from left to right, then align to the selected browning setting (indicated by the position of the browning control slide). The toaster will revert to stand-by mode after 30 seconds if a button is not pressed or the browning control slide is not adjusted. NOTE When using the toaster for the first time, we suggest toasting on the maximum setting without bread. The toaster may emit a thin smoke or distinct odor on initial use. This is normal and not detrimental to the performance of the toaster.

2. Place bread, bagels, English muffins etc into

each of the toasting slots. Ensure items for toasting are not too large or too thick to fit in the toasting slots.

3. There are 12 browning settings ranging

from ‘1’ (lightest) to ‘5’ (darkest). Select the desired browning setting by adjusting the browning control slide on the front of the toaster. The LED toasting progress indicator will illuminate and align to the selected browning setting (as indicated by the position of the browning control slide). NOTE When toasting bread for the first time, it is suggested to toast on browning setting '4' (9 LED's illuminated). Various types of bread and personal preference may require a different browning setting. For example, raisin toast and white light-textured breads may require a lighter setting, while heavier textured rye breads may require a darker setting.

4. To start the toasting process, press the

TOAST|CANCEL button which will illuminate red. The carriage will automatically lower into the toasting slots which starts the toasting cycle. As the carriage automatically locks into position, the LIFT & LOOK™ button surround will illuminate white (refer to LIFT & LOOK™ button, page 13). The LED toasting progress indicator (above the selected browning setting) will flash and start to gradually count down. NOTE Toasting can be stopped at any time by pressing the TOAST|CANCEL button. This will cancel the operation and the carriage will move to the raised position.

5. Once the toasting cycle has completed and

the carriage has risen and locked into the raised position, the toast ready alert will sound. Remove the toast. The LED toasting progress indicator will re-illuminate to the previously selected browning setting. The TOAST|CANCEL button surround will illuminate for up to 30 seconds before entering stand-by mode. NOTE To re-activate the toaster from stand-by mode, press any button or move the browning control slide. The TOAST|CANCEL button and LED toasting progress indicator will re-illuminate. WARNING Do not leave the toaster unattended when in use as toast may jam. In the unlikely event that bread, bagels, English muffins or toaster pastries become jammed in the toasting slots, all the buttons and the LED toasting progress indicator will flash and the elements will turn off. Remove the power plug from the power outlet and allow the toaster to cool completely before carefully easing the bread out of the slots. Take care not to damage the heating elements. Do not use metal utensils.9

The TOAST|CANCEL button surround will illuminate white for up to 30 seconds when the appliance is turned on. The toaster will enter stand-by mode after 30 seconds if a button is not pressed or the browning control slide is not adjusted.

• Press the TOAST|CANCEL button once to lower the carriage and start the toasting process. The TOAST|CANCEL button surround will then illuminate red.

• Press the TOAST|CANCEL button during operation to cancel the toasting process or any other function. The TOAST|CANCEL button illumination will change from red to white and stay illuminated for up to 30 seconds before entering stand-by mode.

If your toast comes up too light, one press of this button adds a little extra toasting time (approximately 30 seconds). This feature can be selected during or after the toasting cycle and can be used with the BAGEL and DEFROST functions.

TO USE THIS FEATURE DURING THE

TOASTING CYCLE: Press the A BIT MORE™ button. The button surround will illuminate white when selected. The toasting time will automatically increase but will not illuminate more of the LED toasting progress indicator. The A BIT MORE™ function can be cancelled by pressing the A BIT MORE™ button again and the original toasting cycle will continue.

TO USE THIS FEATURE AFTER THE

TOASTING CYCLE HAS COMPLETED: Press the A BIT MORE™ button. The button surround will illuminate white when selected. The carriage will automatically lower and begin the additional toasting time. The LED toasting progress indicator will automatically align with the lowest browning setting then flash and count down for the additional browning time. NOTE The A BIT MORE™ button can be used with the TOAST, CRUMPET/FRUIT BREAD button and FROZEN functions. BAGEL BUTTON This feature activates additional heat to the middle heating elements to perfectly toast the insides of your cut bagel without burning the outside. TO TOAST BAGELS:

6. Place the cut bagel into the toasting slots

with the inside of the bagel facing inwards as per the bagel markings above the middle heating elements of the toaster.

7. Select the desired browning setting by

adjusting the browning control slide on the front of the toaster. There are 12 browning settings ranging from '1' (lightest) to '5' (darkest).

8. To select the BAGEL setting, press the

BAGEL button and the button surround will illuminate white. To start the toasting process, press the TOAST|CANCEL button which will illuminate red. The bagels will automatically lower into the toasting slots. The middle and side heating elements will automatically adjust. NOTE It is normal for the outside heating elements to appear off or on a lower power during the bagel setting. This ensures the inside of your cut bagel toasts without burning the outside. After the cycle has finished, press the BAGEL button to deselect the setting. DEFROST BUTTON This feature activates additional toasting time required to toast frozen bread.10 TO TOAST FROZEN BREAD:

9. Place the bread into the toasting slots.

10. Select the desired browning setting

by adjusting the browning control slide on the front of the toaster. There are 12 browning settings ranging from '1' (lightest) to '5' (darkest).

11. To select the DEFROST setting, press the

DEFROST button and the button surround will illuminate white. To start the toasting process, press the TOAST|CANCEL button which will illuminate red. The bread will automatically lower into the toasting slots. The toasting time will automatically increase.

12. After the cycle has finished, press

the DEFROST button to deselect the setting.

This feature automatically raises and lowers the carriage so you can check the toasting progress without interrupting and/or cancelling the toasting cycle. TO SELECT THIS FEATURE:

13. The LIFT & LOOK™ button surround will

illuminate white during the toasting cycle and when using the A BIT MORE™, BAGEL and DEFROST features. You can press the LIFT & LOOK™ button during the toasting cycle to view the toasting progress. If selected, the LIFT & LOOK™ button surround will flash. The LED toasting progress indicator will cease to flash indicating that the selected toasting cycle time has not been interrupted. When the LIFT & LOOK™ cycle has finished, the toasting cycle will re-commence, indicated by the resumed flashing of the LED toasting progress indicator. NOTE Toasting can be stopped at any time, even during the LIFT & LOOK™ cycle, by pressing the TOAST|CANCEL button. This will cancel the operation and the carriage will move to the raised position.

2. Approximately 10 seconds before the end

of the selected browning setting, the LIFT & LOOK™ button will cease illumination and cannot be activated during this time.

A toast ready alert will sound when the toasting cycle has finished and the carriage has risen and locked into the raised position. The default volume setting for the toast ready alert is 'High' but can be adjusted to 'Low' or 'Mute'.

ADJUSTING THE VOLUME OF THE

TOAST READY ALERT Press and hold down the LIFT & LOOK™ button for 2 seconds until the A BIT MORE™, BAGEL & DEFROST buttons illuminate white. While these buttons are illuminated, adjust the volume as follows: Mute: Press the DEFROST button. The button surround light will flash three times. LOW: Press the BAGEL button. The toaster will beep three times with low volume. HIGH: Press the A BIT MORE™ button. The toaster will beep three times with high volume.Care & Cleaning WARNING Do not use the toaster without the crumb tray in position. Do not allow crumbs to build up in the crumb tray. Failure to clean the crumb tray regularly may result in a fire hazard.

1. Remove the power plug from the power

outlet and allow the toaster to cool completely before cleaning.

2. To clean any crumbs from the toaster,

remove the crumb tray, located under the browning control slide at the front of the toaster, by pulling it outwards. Empty and replace the crumb tray before using the toaster again. Replace the crumb tray by sliding it inwards until it locks into position.

3. To remove any additional crumbs, turn the

toaster upside down over a trash bin and shake crumbs free.

4. Wipe the outside of the toaster with a

slightly dampened soft cloth then polish with a soft dry cloth to dry completely. NOTE Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts creating an electric shock hazard. STORAGE Remove the power plug from the power outlet and allow the toaster to cool completely before storing. Follow the directions for cleaning and store in an upright position on a flat surface on a bench top or in an accessible cupboard. Do not store anything on top of the toaster.12the Smart Toast
