USER MANUAL IZS 34600 TEKA

Safety warnings: Warning. If the ceramic glass bre- aks or cracks, imme- diately unplug the stovetop to avoid electric shocks. This appliance is not designed to work with an external timer (not built into the appliance) or a separate remote control system. Do not steam clean this device. W a r n i n g . T h e device and its acces- sible parts may heat up during operation. Avoid touching the heating elements. Children younger than 8 years old must stay away from the hob unless they are permanently supervised. This device may solely be used by children 8 years old or older, people with impaired physical, sensory or mental abilities, or those who lack experience and knowledge, ONLY when supervised or if they have been given adequate instruction on the use of the device and understand the dangers its use involves. User clea- ning and maintenan- ce may not be done by unsupervised children. Children must not play with the device. Warning. It is dangerous to cook with fat or oil without being present, as these may catch re. NEVER try to extinguish a re with water! In this event disconnect the device and cover the flames with a lid, a plate or a blanket. Do not store any object on the cooking areas of the induction hob. Prevent possible re hazards. The induction generator complies with current EU legislation We however recommend that anyone fitted with a device such as a pacemaker should refer to their physician, or if in doubt abstain from using the induction areas. Metal object such as knives, forks, spoons and lids may not be placed on the surface of the hob as they may overheat. After use always disconnect the hot plate, do not simply remove the pot or pan. Otherwise a malfunction may occur if inadver- tently another pot or pan is placed on it within the detection period. Prevent pos- sible accidents! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

only stovetop pro- tectors designed by appliance manufac- turer or indicated by the manufacturer in the instructions for use as adequate or stovetop protectors incorporated into the device. The use of inadequate protec- tors can cause acci- dents. It is necessary to allow the appliance disconnection after i n s t a l l a t i o n . Disconnection devi- ces must be incorpo- rated to the fixed electrical installa- tion, according to the installation regu- lations. Installation Installation with cutlery drawer If you wish to install furniture or a cutlery drawer under the hob, a sepa- ration board must be tted between the two. Accidental contact with the hot surface of the device’s housing is thus prevented.EN

Electrical connection

The electrical connection must be properly grounded, following current legislation, otherwise the induction hob may malfunction. Unusually high power surges can damage the control system (like with any electrical appliance). It is advised to refrain from using the induction hob during the pyrolytic cleaning function in the case of pyrolytic ovens, due to the high temperature that this type of device attains. Only the TEKA o󰀩cial techni- cal service can handle or repair the appliance, including replacement of the power cable. Before disconnecting the hob form the mains, we recommend switching o󰀨 the cuto󰀨 switch and waiting for approximately 25 seconds before disconnecting from the mains. This time is required to allow for the complete discharge of the electronic circuitry and thus preclude the possibility of electric shock from the cable terminals. Keep the Guarantee Certificate or the technical data sheet together with the instructions manual throughout the product’s service life. These contain important technical information. Use and Maintenance User instructions of the Touch Control HANDLING ELEMENTS

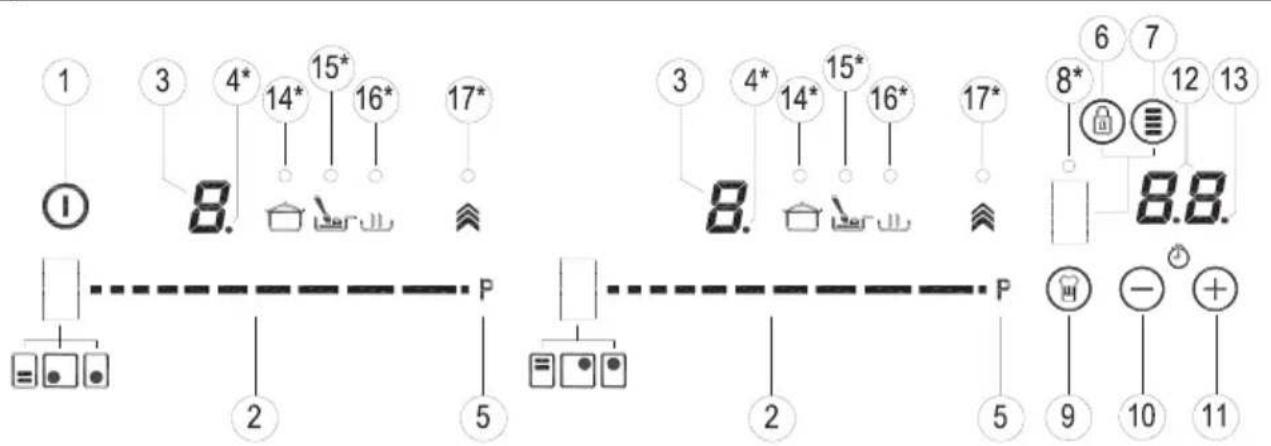

In order to select a plate on these models, directly touch the cursor slider (2). Fig.1EN

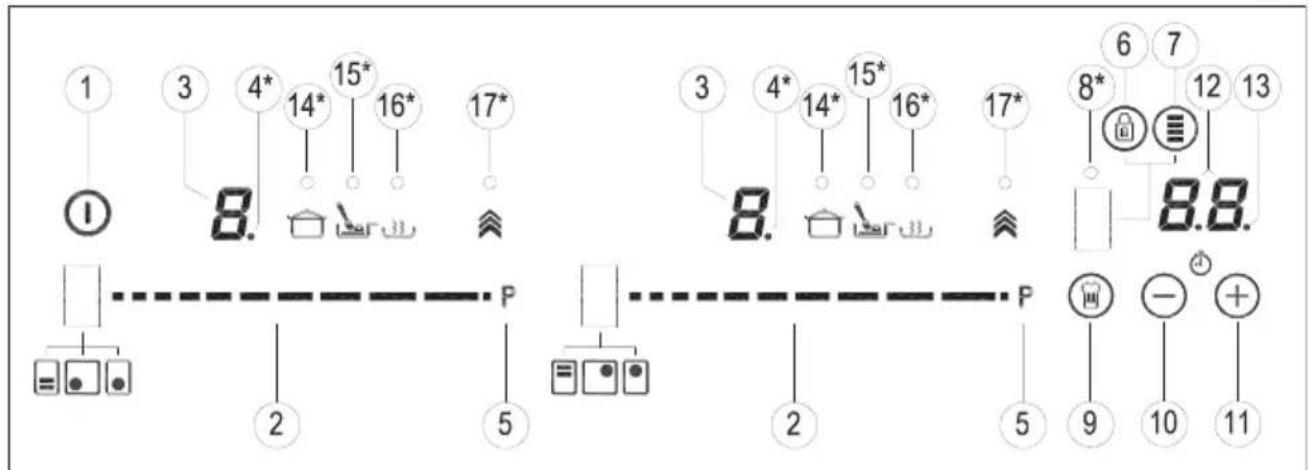

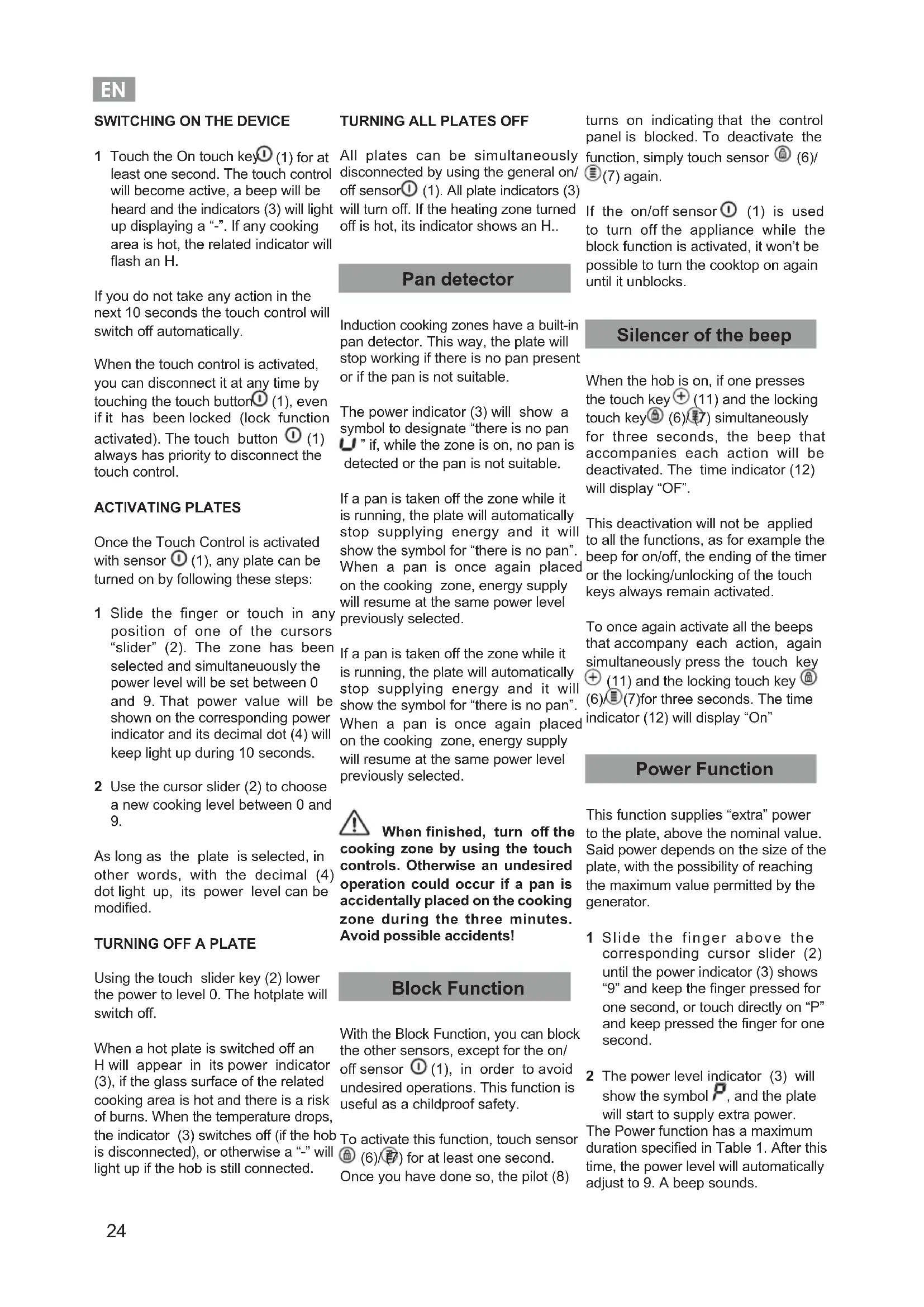

1 Touch the On touch key (1) for at least one second. The touch control will become active, a beep will be heard and the indicators (3) will light up displaying a “-”. If any cooking area is hot, the related indicator will ash an H. If you do not take any action in the next 10 seconds the touch control will switch o󰀨 automatically. When the touch control is activated, you can disconnect it at any time by touching the touch button (1), even if it has been locked (lock function activated). The touch button (1) always has priority to disconnect the touch control. ACTIVATING PLATES Once the Touch Control is activated with sensor (1), any plate can be turned on by following these steps: 1 Slide the finger or touch in any position of one of the cursors “slider” (2). The zone has been selected and simultaneuously the power level will be set between 0 and 9. That power value will be shown on the corresponding power indicator and its decimal dot (4) will keep light up during 10 seconds. 2 Use the cursor slider (2) to choose a new cooking level between 0 and

As long as the plate is selected, in other words, with the decimal (4) dot light up, its power level can be modied.

Using the touch slider key (2) lower the power to level 0. The hotplate will switch o󰀨. When a hot plate is switched o󰀨 an H will appear in its power indicator (3), if the glass surface of the related cooking area is hot and there is a risk of burns. When the temperature drops, the indicator (3) switches o󰀨 (if the hob is disconnected), or otherwise a “-” will light up if the hob is still connected.

TURNING ALL PLATES OFF

All plates can be simultaneously disconnected by using the general on/ o󰀨 sensor (1). All plate indicators (3) will turn o󰀨. If the heating zone turned o󰀨 is hot, its indicator shows an H.. Pan detector Induction cooking zones have a built-in pan detector. This way, the plate will stop working if there is no pan present or if the pan is not suitable. The power indicator (3) will show a symbol to designate “there is no pan ” if, while the zone is on, no pan is detected or the pan is not suitable. If a pan is taken o󰀨 the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for “there is no pan”. When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected. If a pan is taken o󰀨 the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for “there is no pan”. When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected. When nished, turn o󰀨 the cooking zone by using the touch controls. Otherwise an undesired operation could occur if a pan is accidentally placed on the cooking zone during the three minutes. Avoid possible accidents! Block Function With the Block Function, you can block the other sensors, except for the on/ o󰀨 sensor (1), in order to avoid undesired operations. This function is useful as a childproof safety. To activate this function, touch sensor (6)/ (7) for at least one second. Once you have done so, the pilot (8) turns on indicating that the control panel is blocked. To deactivate the function, simply touch sensor (6)/ (7) again. If the on/off sensor (1) is used to turn off the appliance while the block function is activated, it won’t be possible to turn the cooktop on again until it unblocks. Silencer of the beep When the hob is on, if one presses the touch key (11) and the locking touch key (6)/ (7) simultaneously for three seconds, the beep that accompanies each action will be deactivated. The time indicator (12) will display “OF”. This deactivation will not be applied to all the functions, as for example the beep for on/o󰀨, the ending of the timer or the locking/unlocking of the touch keys always remain activated. To once again activate all the beeps that accompany each action, again simultaneously press the touch key (11) and the locking touch key (6)/ (7)for three seconds. The time indicator (12) will display “On” Power Function This function supplies “extra” power to the plate, above the nominal value. Said power depends on the size of the plate, with the possibility of reaching the maximum value permitted by the generator. 1 Slide the finger above the corresponding cursor slider (2) until the power indicator (3) shows “9” and keep the nger pressed for one second, or touch directly on “P” and keep pressed the nger for one second. 2 The power level indicator (3) will show the symbol , and the plate will start to supply extra power. The Power function has a maximum duration specied in Table 1. After this time, the power level will automatically adjust to 9. A beep sounds.EN

On activating the Power function in one hotplate, it is possible that the performance of some of the others may be a󰀨ected, reducing its power to a lower level, in which case this will be displayed on its indicator (3). Deactivation of Power Function, before its working time passes, can be done either by means of touching cursor “slider” modifying its power level or repeating step 3. Timer Function (countdown clock) This function facilitates cooking given that you don’t have to be present: You can set a timer for a plate, and it will turn o󰀨 once the desired time is up. For these models, you can simultaneously program each plate for durations ranging from 1 to 90 minutes. Setting a timer on a plate. Once the power level is set on the desired zone, and while the decimal dot of the zone keeps on, the zone will be able to be timed. To that end: 1 Touch sensor (10) or (11). Timer Indicator (12) will show “00” and corresponding zone indicator (3) will show the symbol blinking alternately with its current power level. 2 Immediately afterwards set a cooking time between 1 and 99 minutes, using the sensors (10)

(11). With the rst one the value will start at 60, whereas with the second it will start at 01. By keeping sensors (10) ó (11) pressed, the value will be restored to 00. When there is less than one minute left, the clock will begin to count down in seconds. 3 . When the timer indicator (12) stops ashing, it will start to count down the time automatically. The indicator (3) relating to the timed hotplate will alternately display the selected power level and the symbol

Once the selected cooking time has elapsed, the heating zone being timed is turned o󰀨 and the clock emits a series of beeps for several seconds. To turn o󰀨 the audible signal, touch any sensor. The timer indicator (12) will display a ashing 00 beside of the decimal dot (4) of the selected zone. If the heating zone turned o󰀨 is hot, its power indicator (3) will display alternately the H symbol and a “-“. If you wish to time another hotplate at the same time, repeat steps 1 to 3. If one or more zones are already timed, the timer indicator (12) will show by default the shortest remaining time to nish, showing a “t” on the related zone. Rest of timed zones will show on their corresponding indicator zones the decimal dot blinking. When cursor ”slider” of another timed zone is pressed, the timer will show the remaining time of that zone for a few seconds and its indicator will show its power level and the “t” alternately. Changing the programmed time. For modifying programmed time, cursor “slider” (2) of timed zone has to be pressed. Then it will be possible to read and modify the time. Through sensors (10) and (11), you can modify the programmed time. Disconnecting the clock If you wish to stop the clock before the programmed time is up, this can be done at any time by simply adjusting its value to ‘--’. 1 Select the desired plate. 2 Adjust the value of the clock to “00” by using the sensor (10). The clock is cancelled. This can also be done more quickly by pushing the “sensors (10) and (11) at the same time. Power Management function The models are equipped with a power limiting function (Power Management). This function allows the total power generated by the hob to be set to di󰀨erent values selected by the user. To do this, for the rst minute after having connected the hob to the power supply, it is possible to access the power limiting menu. 1 Press the (11) touch key for three seconds. The letter PL will appear on the timer indicator (12) 2 Press the locking touch key (6)/ (7). The di󰀨erent power values to which the hob can be limited will appear and these can be changed using the (11) and (10) sensors. 3 Once the value has been selected, once again press the locking touch key (6)/ (7). The hob will be limited to the chosen power value. If you want to change the value again, you must unplug the hob and plug it in again after a few seconds. Thus you will again be able to enter the power limiting menu. Every time the power level of a hotplate is changed, the power limiter will calculate the total power the hob is generating. If you have reached the total power limit, the touch control will not allow you to increase the power level of that hotplate. The hob will beep and the power indicator (3) will blink at the level that cannot be exceeded. If you wish to exceed that value, you must lower the power of the other hotplates. Sometimes it will not be enough to lower another by a single level as this depends on the power of each hotplate and the level it is set at. It is possible that to raise the level of a large hotplate that of several smaller ones must be turned down. If you use the quick switch-on at maximum power function and the said value is above the value set by the limit, the hotplate will be set to the maximum possible level. The hob will beep and the said power value will blink twice on the indicator (3). Special functions: CHEF (depending on the model) The Touch Control has special features that help the user to cook through theEN

CHEF sensor (9). These functions are available depending on the model. To activate a special feature on a zone: 1 First it should be selected; and then, the decimal point (4) will be active on the power indicator (3). 2 Now click on the CHEF sensor (9). The sequentially successive presses will go over all the CHEF functions available in each zone one by one. These functions will show the activation with the corresponding leds (14), (15), (16) and (17). If you want to cancel a special active function at any time, you should touch the “slider” cursor sensor (2)in the position ''0''.

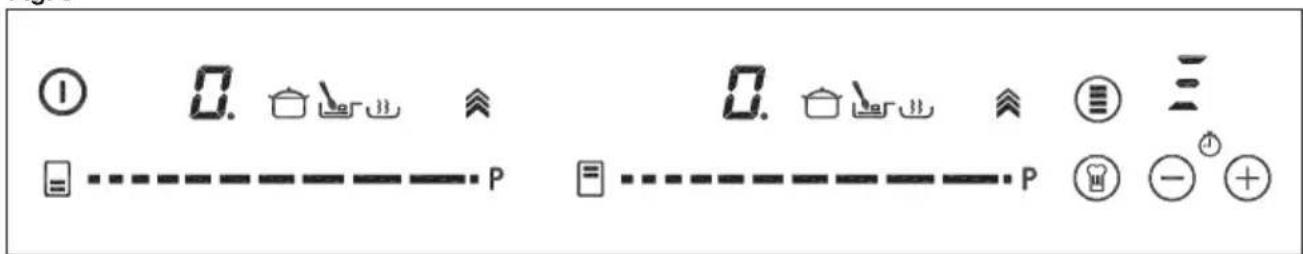

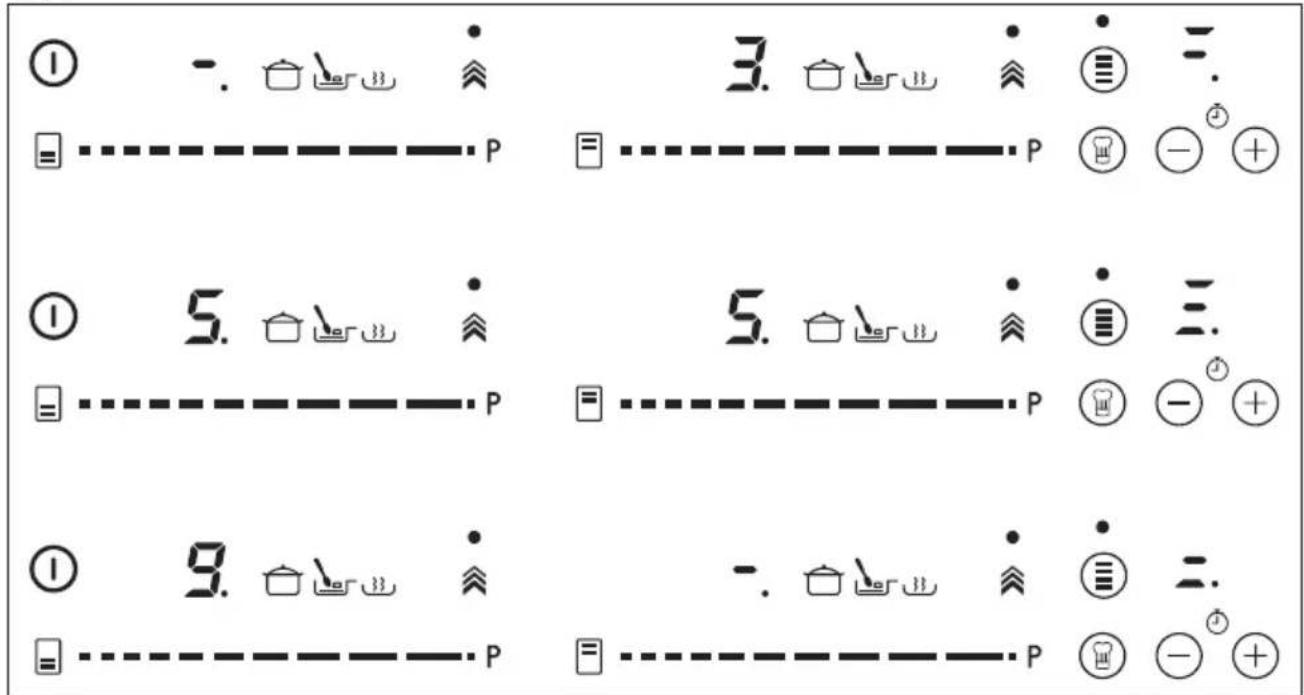

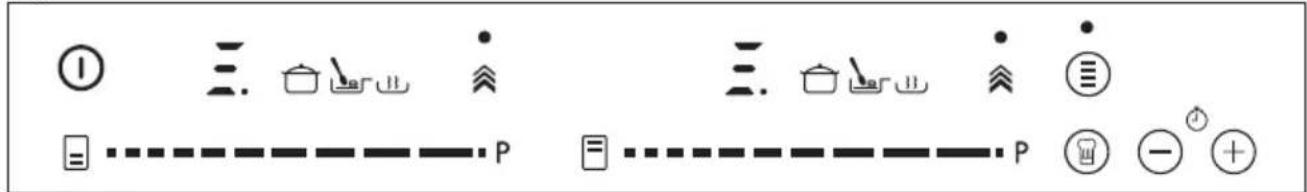

This function automatically sets an appropriate power level to keep the cooked food hot. To activate it, select the plate, and press on the CHEF sensor (9) until the led (16) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3). You can override the function at any time by turning off the plate, by changing the power level or by choosing a di󰀨erent special function. MELTING FUNCTION This function maintains a low temperature in the cooking zone. Ideal for defrosting food or for slowly melting other food types as chocolate, butter, etc. To activate it, select the plate, and press on the CHEF sensor (9) until the led (15) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3). You can override the function at any time by turning off the plate, by changing the power level or by choosing a di󰀨erent special function. SIMMERING FUNCTION This function allows you to keep simmered. After the food is boiled, enable the plate by selecting it, and press the CHEF sensor (9) until the led (14) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3). You can override the function at any time by turning off the plate, by changing the power level or by choosing a di󰀨erent special function.

SLIDE COOKING FUNCTION

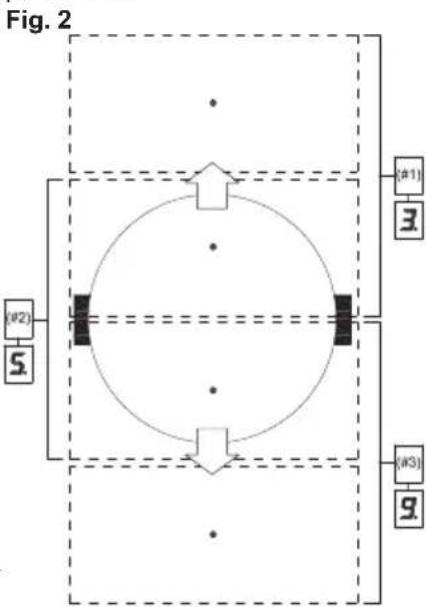

(depending on the model) This function allows to divide the exible zone into three areas (see fig.2) and activates a predefined power conguration. It will allow slide the vessel from one area to another, to cook with the power assigned to each zone. To activate it, you must rst activate the "Flex Zone" function (see section "Flex Zone function"). After, press on the CHEF sensor (9) , until the leds (17) located on the icon lights up. When doing so, the power indicators (3) will show three segments (see g. 3) indicating that you can now place the vessel. Once the vessel is placed, the power level will appear automatically in the power indicators (3): for zone #1, the power level is 3, for zone #2 the power level is 5 and for zone #3 the power level is 9 (see g.2 and 4). To deactivate this function, you must touch the "slider" cursor (2) in the position “0”. Fig. 2 Flex Zone function (depending on the model) Through this function, it is possible to enable the cooking zones work together, and to select a power level and to activate the timer function for both zones. To activate this function, press the sensor (7). By doing so, the decimal points (4) of the linked plates will light up and the value “0” will be shown on their power indicators (3). The clock timer indicator (12) will show three segments indicating the activated zones. You will have a few seconds to perform the next operation; otherwise, the function will be disabled automatically.(see g 5). After the “Flex Zone” is selected, you can assign the power by touching Fig. 5EN

any of the “sliders” cursors (2) of one of the linked zone. The power level and its variations are displayed simultaneously on the power indicators (3) of both zones. The led (7) located on the icon will light up. To deactivate this function, you must touch the ''slider''cursor sensor(2) in the position ''0''. Also, when the function is disabled, the levels of powers and functions assigned to the related zones are cleared. Safety switch o󰀨 function If due to an error one or several heating zones do not switch o󰀨, the appliance will be automatically discon- nected after a set amount of time (see table 1). Table 1 Selected power level MAXIMUN OPERATING TIME (in hours)

10 minutes, readjusts to level 9 When the “safety switch o󰀨” function has been triggered, a 0is displayed if the glass surface temperature is not dangerous for the user or an H if there is a burn risk. Keep the control panel of the heating areas clean and dry at all times. In the event of operating pro- blems or incidents not mentioned in this manual, disconnect the appliance and contact the TEKA technical service. Suggestions and recommendations

• Use pots or pans with thick, comple- tely at bottoms.

• Do not slide pots and pans over the glass because they could scratch it.

• Although the glass can take knocks from large pots and pans without sharp edges, try not to knock it.

• To avoid damaging the ceramic glass surface, do not drag pots and pans over the glass and keep the undersides of them clean and in good condition.

• Recommended diameters of the pot bottom (see ‘’Technical Data Sheet’’ supplied with the product). Try not to spill sugar or pro- Fig. 3 Fig. 4EN

ducts containing sugar on the glass as while the surface is hot these could damage it. Cleaning and maintenance To keep the appliance in good condition, clean it using suitable products and implements once it has cooled down. This will make the job easier and avoid the build-up of dirt. Never use harsh cleaning products or tools that could scratch the surface, or steam-operated equipment. Light dirt not stuck to the surface can be cleaned using a damp cloth and a gentle detergent or warm soapy water. However, for deeper stains or grease use a special cleaner for ceramic hot plates and follow the instructions on the bottle. Dirt that is rmly stuck due to being burned repeatedly can be removed using a scraper with a blade. Slight tinges of colour are caused by pots and pans with dry grease residue underneath or due to grease between the glass and the pot during cooking. These can be removed using a nickel scourer with water or a special cleaner for ceramic hot plates. Plastic objects, sugar or food containing a lot of sugar that have melted onto the surface must be removed immediately using a scraper. Metallic sheens are caused by dragging metal pots and pans over the glass. These can be removed by cleaning thoroughly using a special cleaner for ceramic glass hot plates, although you may need to repeat the cleaning process several times.

A pot or pan may become stuck to the glass due to a product having melted between them. Do not try to lift the pot while the heating zone is cold! This could break the glass. Do not step on the glass or lean on it as it could break and cau- se injury. Do not use the glass as a surface for placing objects. TEKA INDUSTRIAL S.A. Reserves the right to make changes to its manuals that it deems necessary or useful, without a󰀨ecting the product’s essential features. Environmental considerations The symbol on the product or its packaging means that this product cannot be treated like ordinary household waste. This product must be taken to a recycling collection point for electrical and electronic appliances. By ensuring that this product is disposed of correctly, you will avoid harming the environment and public health, which could happen if this product is not handled properly. For more detailed information about recycling this product, please contact your local authority, household waste service or the store where you pur- chased the product. The packaging materials used are environmentally friendly and can be recycled completely. Plastic compo- nents are marked >PE<, >LD<, EPS<, etc. Dispose of packaging materials, like household waste, in your local container. Fulfillment with Energy Efficiency of the appliance: -Appliance has been tested according to standard EN 60350- 2 and the obtained value, in Wh/ Kg, is available in the appliance’s rating plate. Following advices will help you to save energy anytime you cook:

• Use the correct lid for each pot whenever is possible. Cooking without lid uses more energy.

• Use pans with flat bases and appropriate base diameters in order to match size of the cooking zone. Pan manufacturers usually provide top diameter of the pot that is always larger than base diameter.

• When water is used for cooking, use little quantities in order to preserve vitamins and minerals of vegetables and set the minimum power level that allows maintaining the cooking. High power level is unnecessary and a waste of energy.

• Use small pots with small quantities of food. If something does not work Before calling the technical service, perform the verications described below. The appliance does not work: Ensure that the power cable is plugged in. The induction zones do not produce heat: The container is not appropriate (it does not have a ferromagnetic bottom or is too small). Check that the bottom of the container attracts a magnet, or use a larger container. A humming is heard when starting to cook in the induction zones: With containers which are not very thick or not of one piece, the humming results from the transmission of energy directly to the bottom of the container. The humming is not a defect, but if you wish to avoid it anyway, reduce the power level slightly or use a container with a thicker bottom, and/ or of one piece. The touch control does not light up or, despite lighting, does not respond: No heating zone has been selected. Be sure to select a heating zone befo- re operating it. There is humidity on the sensors, and/or your fingers are wet. Keep the touch control surface and/ or your fingers clean and dry. The locking function is activated. Unlock the controls. The sound of a fan is heard while cooking, which continues even after cooking has ended: The induction zones have a fan to keep the electronics cool. This only operates when the electronic circuits get hot. It stops again when the circuits cool whether the hob is turned on or not. The symbol will appear on the power indicator of a hotplate: The induction system does not nd a pot or pan on a hotplate or it is of an unsuited type.EN

The hotplate will switch o󰀨 and the message C81 or C82 will appear on the indicators: Excessive temperature in the electro- nics or on the glass. Wait for a while for the electronics to cool down or remove the pot or pan so that the glass can cool. The appliance switches o󰀨 and the message C90 appears on the power indicators (3): The touch control detects on/o󰀨 (1) sensor is covered and doesn’t allow switching on the cooktop. Remove the possible objects or liquids keeping the touch control surface, clean and dry until the message disappears.DE
