USER MANUAL EX 60.1 3G AI AL DR CI LPG TEKA

EX 60.1 3G AI AL DR CI - EX 60.1 3G 1P AI AL CI EX 60.1 4G AI AL CI - EX 60.1 4G AI AL DR CI EX 70.1 5G AI AL DR CI - EX/90.1 5G AI AL DR CI BUT E1 EX 90.1 6G AI AL DR CI

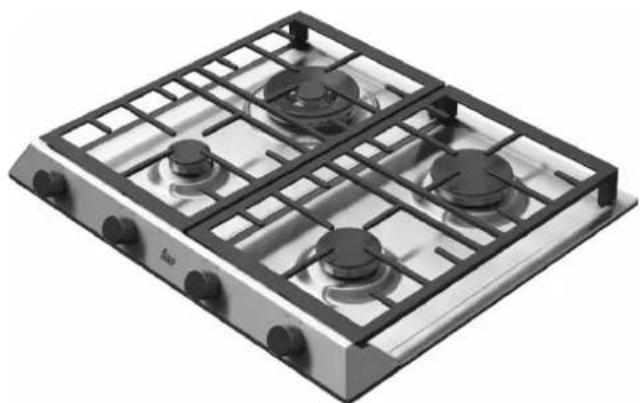

3D rendering of a four-tier gas stove with four fans and control knobs (no text or symbols visible)

Ieka

Two technical line drawings of a gas stove or boiler, showing cross-sectional and side views (no text or symbols)

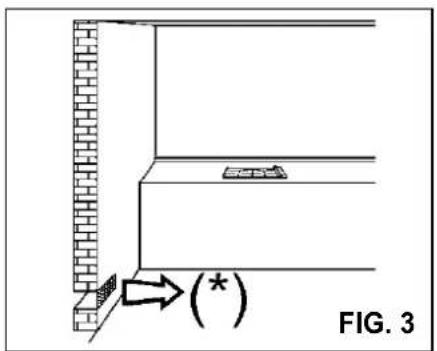

FIG. 3

FIG. 4 (*)

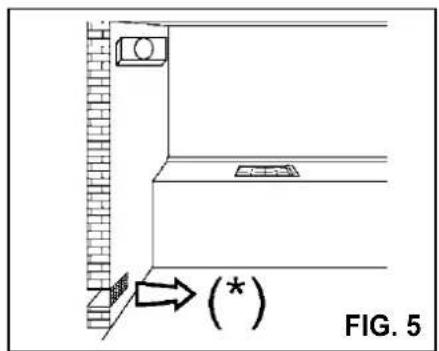

FIG. 5 (*)

(*) ENTRADA DE AIRE: VER EL CAPÍTULO DE INSTALACIÓN (APARTADOS 7 Y 8)

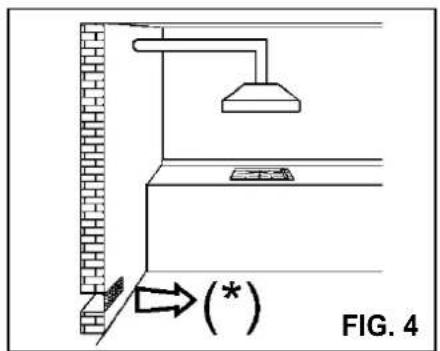

(*) AIR INLET: SEE INSTALLATION CHAPTER (PARAGRAPHS 7 AND 8)
(*) ENTREE D'AIR: VOIR CHAPITRE INSTALLATION (PARAGRAPHES 7 ET 8)
(*) ΕΙΣΟΔΟΣ ΑΕΡΑ: ΒΛΕΠΕ ΚΕΦΑΛΑΙΟ ΤΟΠΟΘΕΤΗΣΗΣ (ΠΑΡΑΓΡΑΦΟΙ 7 ΚΑΙ 8)
(*) ENTRADA DE AR DE 100 cm2 DE SECÇÃO MÍNIMA (PARÁGRAFOS 7 E 8)

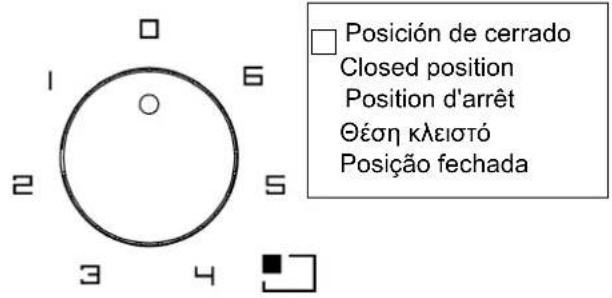

FIG. A

Six illustrated symbols representing cooking or heating setups with crossed and unshaded signs, likely indicating no heating or water filtration.

FIG. B

ES

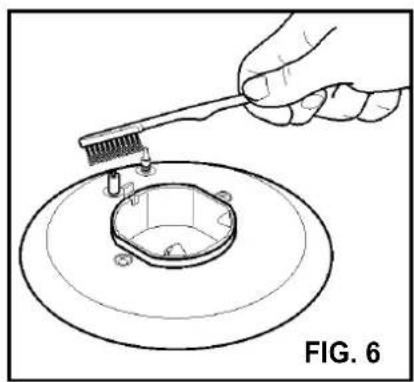

LIMPIEZA - CLEANING - NETTOYAGE ΚΑΘΑΡΙΣΜΟΣ - LIMPEZA

Hand using a tool to adjust a circular component with a base, labeled 'FIG. 6' (no text or symbols on the diagram itself)

FIG. 6/A T C AC TC

B A ✓ B A X FIG. 6/B

INSTALACIÓN - INSTALLATION - INSTALLATION ΕΓΚΑΤΑΣΤΑΣΗ - INSTALAÇÃO

A B C D E F

3F - 3F + 1P - 4F (60) 553 473 63.5 63.5 173.5 min. Min. 70 mm

2F - 3F - 5F (70) 553 473 63.5 63.5 173.5 min. Min. 70 mm

3F - 5F - 6F (90) 833 475 63.5 63.5 173.5 min. Min. 70 mm

MEDIDAS QUE ES PRECISO RESPETAR (en mm) COMPLY WITH THE DIMENSIONS (in mm) DIMENSIONS A RESPECTER (en mm) MEΓΕΘΗ ΠΟΥ ΠΡΕΠΕΙ ΝΑ ΤΗΡΗΘΟΥΝ (σε mm) MEDIDAS A RESPEITAR (en mm)

FIG. 7

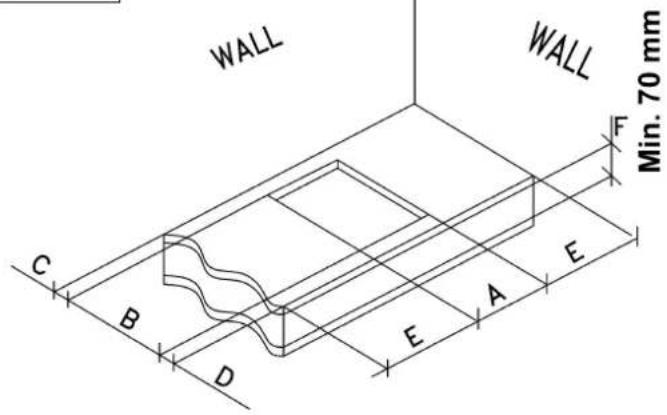

WALL WALL C B D E A E F Min. 70 mm

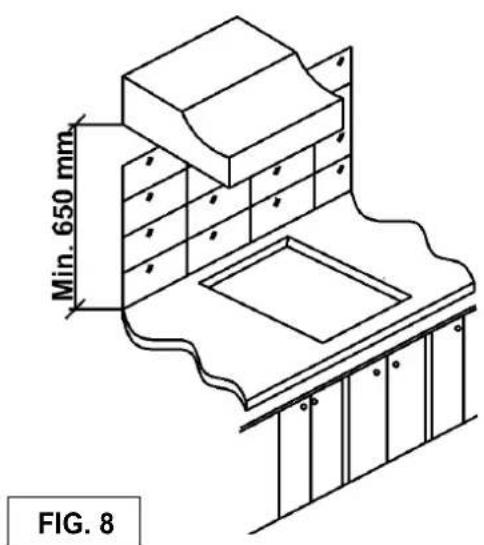

Min. 650 mm FIG. 8

INSTALACIÓN - INSTALLATION - INSTALLATION ΕΓΚΑΤΑΣΤΑΣΗ - INSTALAÇÃO

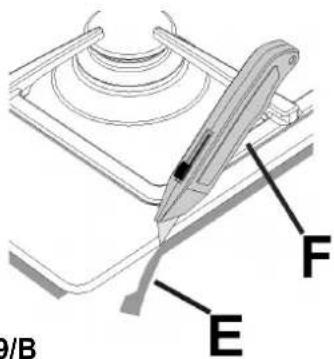

Experimental setup with a transparent tube and labeled component E, no readable text or symbols present

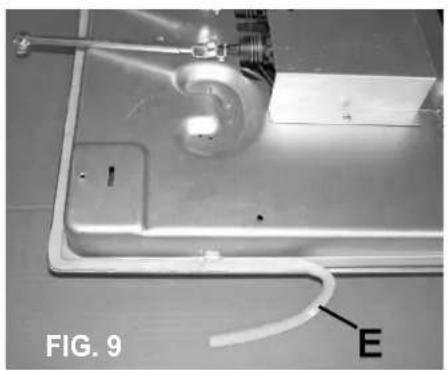

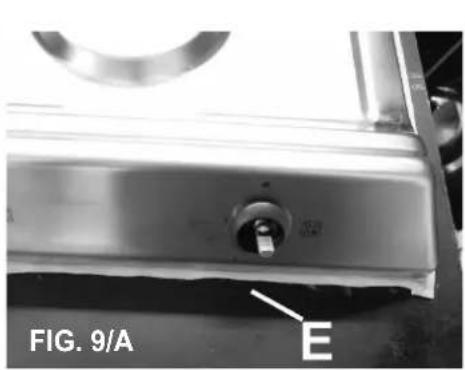

FIG. 9/A E

FIG. 9/B

3/B E F

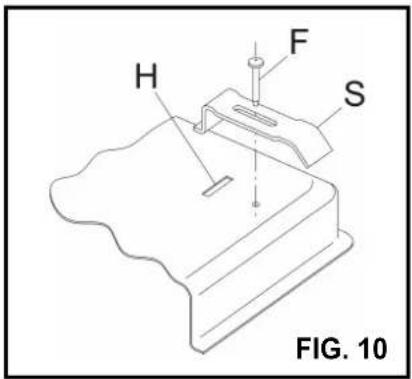

H F S FIG. 10

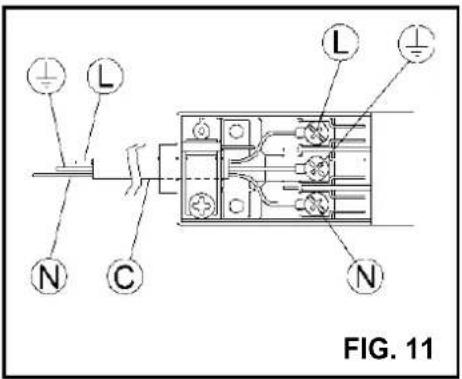

L N C L N FIG. 11

REGULACIONES - INSTALLATION - REGLAGES P'YOMIŞH - REGULAÇÕES

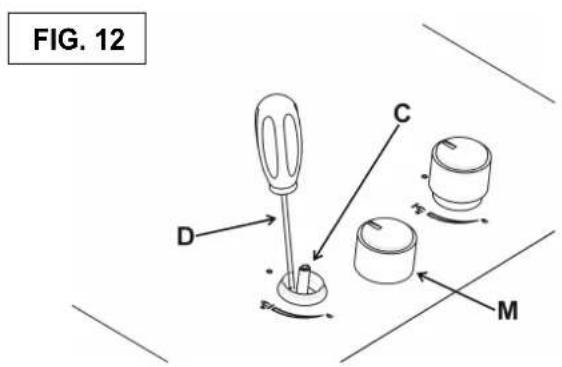

FIG. 12 D C M

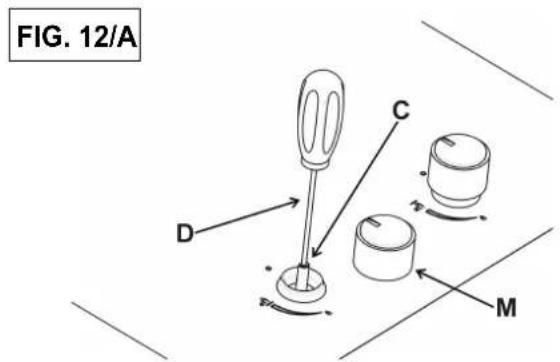

FIG. 12/A D C M

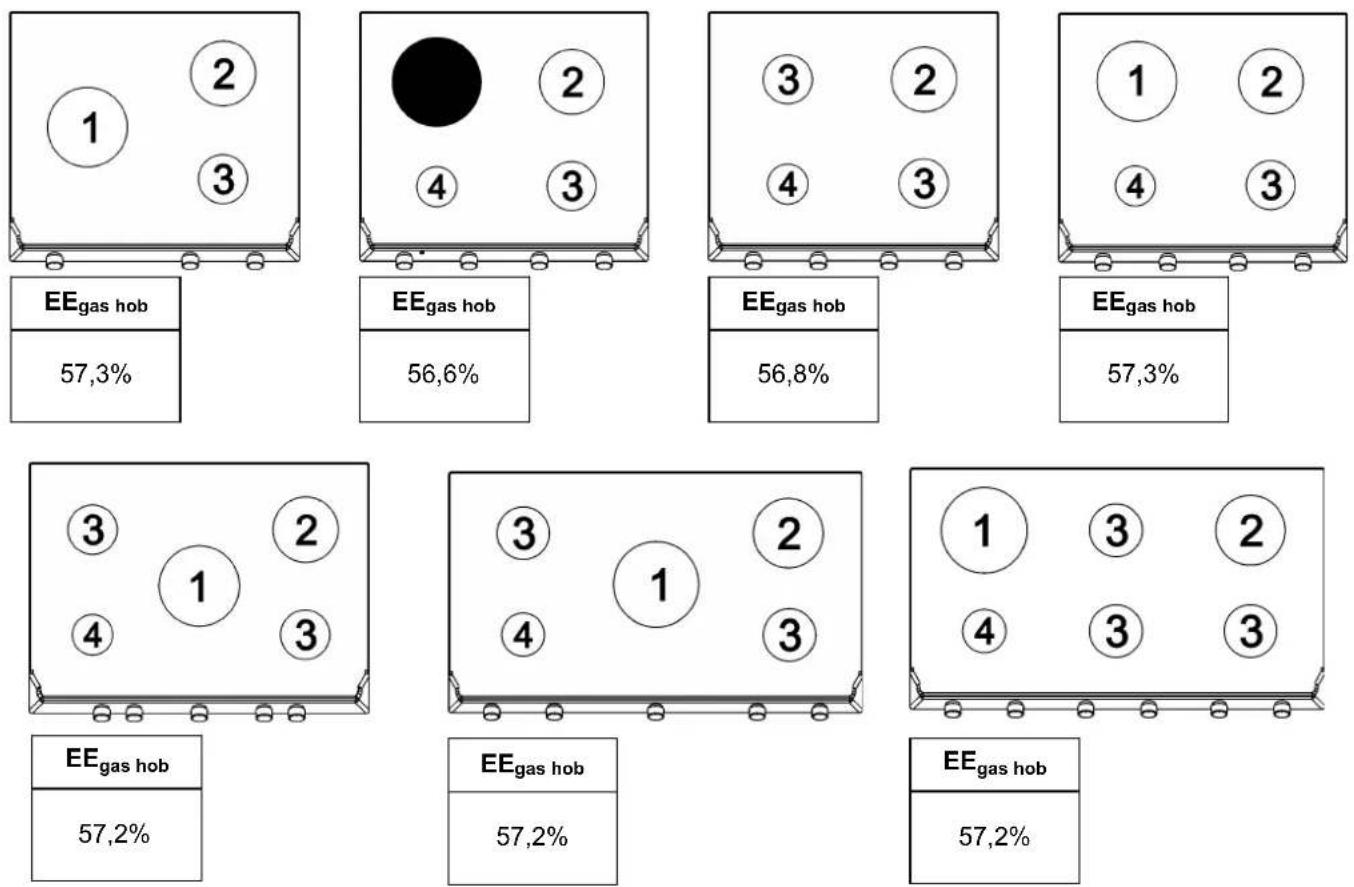

TRANSFORMACIONES - CONVERSION TRANSFORMATIONS - METATPOΠΕΣ TRANSFORMAÇÕES

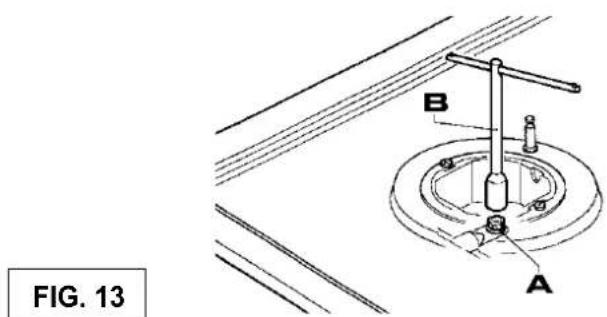

FIG. 13 A B

Diagram of a curved pipe or duct with a base and labeled point B, no text or symbols present

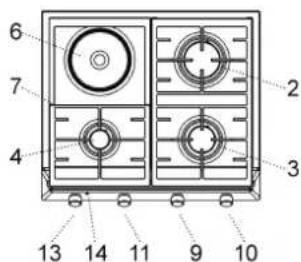

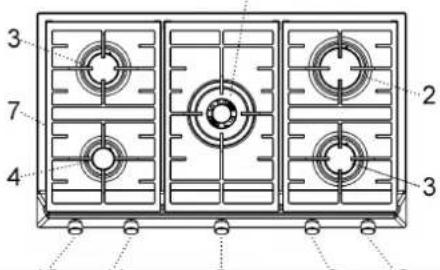

DESCRIPCIÓN PLACAS DE COCCIÓN DESCRIPTION OF HOBS DESCRIPTION DES TABLES DE CUISSON ΠΕΡΙΓΡΑΦΗ ΕΣΤΙΩΝ ΜΑΓΕΙΡΕΜΑΤΟΣ DESCRIÇÃO DO APARELHO

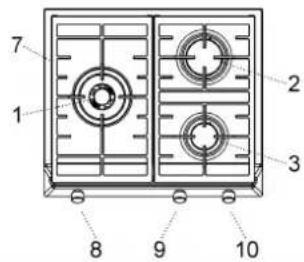

EX 60.1 3G AI AL DR CI

1 2 3 7 8 9 10

EX 60.1 3G 1P AI AL CI

6 7 4 2 3 13 14 11 9 10

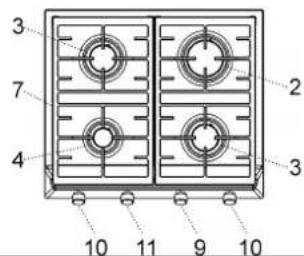

EX 60.1 4G AI AL CI

3 7 4 2 3 10 11 9 10

EX 60.1 4G AI AL DR CI

1 2 3 4 7 8 11 9 10

EX 70.1 5G AI AL DR CI

1 2 3 4 7 8 9 10 10 11 8 9 10

EX 90.1 6G AI AL DR CI

1 2 3 4 7 8 11 10 9 10 3

EX 90.1 5G AI AL DR CI

3 2 7 4 3

$$ F R E Q U E N C I A = 5 0 / 6 0 \mathrm{Hz} $$

4 FUEGOS (60)

$$ \text { CATEGORÍA } = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

$$ G 3 0 - B U T A N O = 2 8 - 3 0 \text { mbar } $$

$$ G 3 1 - \text { P R O P A N O } = 3 7 \mathrm{mbar} $$

$$ G 2 0 - N A T U R A L = 2 0 \mathrm{mbar} $$

$$ \Sigma \text { Qn Gas Natural } = 7. 3 \mathrm{kW} $$

$$ \Sigma \text { Qn GPL } = 5 3 1 \mathrm{gr/h} (\mathrm{G30}) $$

$$ \Sigma \text { Qn GPL } = 5 2 1 \text { gr / h (G31) } $$

$$ \text { TENSIÓN } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ F R E Q U E N C I A = 5 0 / 6 0 \mathrm{Hz} $$

3 FUEGOS (60)

$$ G 2 0 - N A T U R A L = 2 0 m b a r $$

$$ \Sigma \text { Qn Gas Natural } = 5. 5 5 \mathrm{kW} $$

$$ \Sigma \text { Qn GPL } = 4 0 3 \text { gr / h (G30) } $$

$$ \Sigma \text { Qn GPL } = 3 9 6 \text { gr / h (G31) } $$

$$ \text { TENSIÓN } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ \text { FREQUENCIA } = 5 0 / 6 0 \mathrm{Hz} $$

$$ \text { Pot. Nom. El. riscaldante } 1 5 0 0 W $$

$$ G 2 0 - N A T U R A L = 2 0 m b a r $$

$$ \Sigma \text { Qn Gas Natural } = 9. 5 5 \mathrm{kW} $$

$$ \Sigma \text { Qn GPL } = 6 7 6 \mathrm{gr/h} (\mathrm{G30}) $$

$$ \Sigma \text { Qn GPL } = 6 6 4 \mathrm{gr/h} (\mathrm{G31}) $$

$$ \text { TENSIÓN } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ F R E Q U E N C I A = 5 0 / 6 0 \mathrm{Hz} $$

5 FUEGOS (70) (BUR central)

$$ \text { CATEGORÍA } = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

$$ G 3 0 - B U T A N O = 2 8 - 3 0 \text { mbar } $$

$$ G 3 1 - \text { P R O P A N O } = 3 7 \mathrm{mbar} $$

$$ G 2 0 - N A T U R A L = 2 0 \text { mbar } $$

$$ \Sigma \text { Qn Gas Natural } = 1 1. 3 \mathrm{kW} $$

$$ \Sigma \text { Qn GPL } = 8 2 2 \mathrm{gr/h} (\mathrm{G30}) $$

$$ \Sigma \text { Qn GPL } = 8 0 7 \mathrm{gr/h} (\mathrm{G31}) $$

$$ \text { TENSIÓN } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ F R E Q U E N C I A = 5 0 / 6 0 \mathrm{Hz} $$

$$ G 2 0 - N A T U R A L = 2 0 m b a r $$

$$ \Sigma \text { Qn Gas Naturale } = 1 3. 0 5 \mathrm{kW} $$

$$ \Sigma \mathrm{QnGPL} = 9 4 9 \mathrm{gr/h} (\mathrm{G30}) $$

$$ \Sigma \text { Qn GPL } = 9 3 2 \text { gr / h (G31) } $$

$$ \text { TENSIÓN } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ F R E Q U E N C I A = 5 0 / 6 0 \mathrm{Hz} $$

5 FUEGOS (90) (BUR central)

$$ \text { CATEGORÍA } = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

$$ G 3 0 - B U T A N O = 2 8 - 3 0 \text { mbar } $$

$$ G 3 1 - \text { P R O P A N O } = 3 7 \mathrm{mbar} $$

$$ G 2 0 - N A T U R A L = 2 0 \mathrm{mbar} $$

$$ \Sigma \text { Qn Gas Natural } = 1 1. 3 \mathrm{kW} $$

$$ \Sigma \text { Qn GPL } = 8 2 2 \mathrm{gr/h} (\mathrm{G30}) $$

$$ \Sigma \text { Qn GPL } = 8 0 7 \mathrm{gr/h} (\mathrm{G31}) $$

$$ \text { TENSIÓN } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ F R E Q U E N C I A = 5 0 / 6 0 \mathrm{Hz} $$

ES

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

WARNING: If the surface is cracked, switch of the appliance to avoid the possibility of electric shock.

WARNING: do not use a steam cleaning unit of: stoves, hobs and ovens.

WARNING: the hob is not designed to work with an external timer, or with a remote control system.

WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

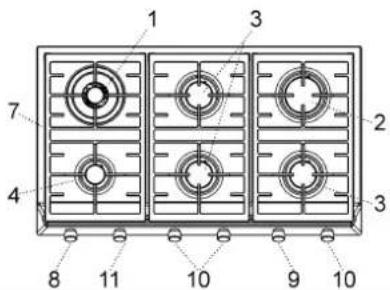

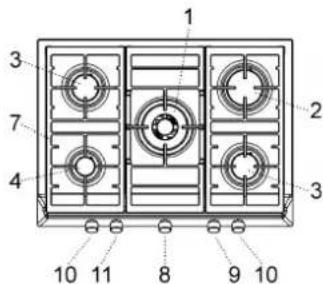

DESCRIPTION OF THE COOKTOP

1 Double crown burner of 4000 W
2 Rapid gas burner of 2800 W
3 Semirapid gas burner of 1750 W
4 Auxiliary gas burner of 1000 W
6 Electric heating element ∅ 14,5 cm of 1500 W
7 Pan support
8 Burner n° 1 control knob
9 Burner n° 2 control knob
10 Burner n° 3 control knob
11 Burner n° 4 control knob
13 Electric heating element control knob n° 6
14 Electric ignition button (Residual heat indicator)

Attention: this appliance has been manufactured for domestic use only and it employment by private person.

1) BURNERS

A diagram is screen-printed above each knob on the front panel. This diagram indicates to which burner the knob in question corresponds. After having opened the gas mains or gas bottle tap, light the burners as described below:

- Automatic electrical ignition

Push and turn the knob corresponding to the required burner in an anticlockwise direction until it reaches the full on position (large flame fig.1), then depress the knob.

- Lighting burners equipped with flame failure device

The knobs of burners equipped with flame failure device must be turned in an anticlockwise direction until they reach the full on position (large flame fig. 1) and come to a stop. Now depress the knob in question and repeat the previously indicated operations.

Keep the knob depressed for about 10 seconds once the burner has ignited.

In the event of the Burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for a least 1 minute.

HOW TO USE THE BURNERS

Bear in mind the following indications in order to achieve maximum efficiency with the least possible gas consumption:

• use adequate pans for each burner (consult the following table and fig. 2).
• When the pan comes to the boil, set the knob to the reduced rate position (small flame fig. 1).
• Always place a lid on the pans.
• Use only pan with a flat bottom and in thick metal.

WARNINGS:

• burners with flame failure device may only be ignited when the relative knob has been set to the Full on position (large flame fig. 1).
• Matches can be used to ignite the burners in a blackout.
• Never leave the appliance unattended when the burners are being used. Make sure there are no children in the near vicinity.

Particularly make sure that the pan handles are correctly positioned and keep a check on foods requiring oil and grease to cook since these products can easily catch fire.

• Never use aerosols near the appliance when it is operating.
• Containers wider than the unit are not recommended.

Burners	Power ratings (W)	Pan ∅ in cm
Double crown 4000		24 ÷ 26
Rapid 2800		20 ÷ 22
Semirapid 1750		16 ÷ 18
Auxiliary 1000		10 ÷ 14

WARNINGS AND ADVICE FOR THE USER:

• use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).
• Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved by opening a window or by increasing the power of the mechanical exhausting system if installed.
• Do not attempt to change the technical characteristics of the product because it can be dangerous.
• If you should not to use this appliance any more (or replace an old model), before disposing of it, make it inoperative in conformity with current law on the protection of health and the prevention of environmental pollution by making its dangerous parts harmless, especially for children who might play on an abandoned appliance.

This cook top was designed to be used exclusively as a cooking appliance: any other use (such as heating rooms) is to be considered improper and dangerous.

USE

• Do not touch the appliance with wet or damp hands or feet.
• Do not use the appliance barefoot.
• The manufacturer will not be liable for any damage resulting from improper, incorrect or unreasonable use.
• During, and immediately after operation, some parts of the cook top are very hot: avoid touching them.
• After using the cook top, make sure that the knob is in the closed position and close the main tap of the gas supply or gas cylinder.
• If the gas taps are not operating correctly, call the Customer Care Department.
• The appliance must not be operated with an external timer or a separate remote-control system.

2) SWITCHING ON THE ELECTRIC PLATES

The hobs may be equipped with two types of electric plates: normal and rapid plates indicated by a red mark. The normal plates and the rapid plates are controlled by a 7 - position switch (see fig. A). Switch on the plates by turning the knob to the required position.

A diagram is screen-printed on the front panel. This diagram indicates to which electric plate the knob in question corresponds (see fig. A). A red warning light will come on to indicate that the plate has been ignited.

3) HOW TO USE THE ELECTRIC PLATES

A purely indicative plate regulation chart is given below.

TABLE

NORMAL AND RAPID PLATE	HEAT INTENSITY	POSSIBLE COOKING PROCESSES
0 Off
1 Weak		To dissolve butter, chocolate, etc...To heat small amounts of liquid.
2	Low	To heat larger amounts of liquid. To prepare cremes and suces requiring long slow cooking times.
3 Slow		To thaw frozen foods and prepare stews, heat to boiling point or simmer.
4 Medium		To heat foods to boiling point.To brown delicate meats and fish.
5 Strong		For escalopes and steaks.To simmer large amounts of food.
6 High		To bring large amounts of liquid to the boil.For frying.

Warning:

during operation the work surfaces of the cooking area become very hot: keep children away!

Never cook food directly on the electric plates but always in a pot or container.

In order to cook with the heating element efficiently using the least amount of energy, use: thick, flat-bottomed pots of a width suited to that of the heating element (see picture B).

Cook with the lid on to also save energy. Turn down the heating element when it reaches boiling point.

USE CLEANING

WARNINGS:

when the plate is switched on for the first time, or if it has remained unused for a long period, it should be dried for 30 minutes on switch position n°1. This will eliminate any moisture that may have been absorbed by the insulating material. To correctly use the appliance, remember:

• to place a pan on the plate before switching it on.
• To always use pans with flat and very thick bottoms (see fig. B).
• To never use pans that are smaller than the plate diameters.
• To dry the bottom of the pan before placing it on the plate.
• Never leave the appliance unattended when the plates are being used. Particularly make sure that the pan handles are safely positioned and keep a check on foods requiring oil and grease to cook, since these products can easily catch fire.
• The plates will remain hot for a period of time after use. Never touch them with the hands or other objects in order to prevent burns.
• Immediately disconnect the appliance from the electricity main if cracks are noted on the surfaces of the plates.
• If the built-in hot plate has a lid, any spilt food should be immediately removed from this before it is opened.
• If the appliance has a glass lid, this could shatter when the hot plate becomes hot. Always switch off all the burners before closing the lid.
• The appliance must not be operated with an external timer or a separate remote-control system.

CORRECT USE OF THE ELECTRIC PLATES

When using the electric plates, you must:

• absolutely not operate them empty (without a container);
• try not to pour liquids on the plates when they are hot;
• cook with a cover whenever possible to save electricity;
• an indicator light near the knob shows when the electric plates are turned on.

IMPORTANT:

always disconnect the appliance from the gas and electricity mains before carrying out any cleaning operation.

4) HOT PLATE

Periodically wash the cooktop, pan support, the enamelled burner caps "A", "B" and "C" and the burner heads "T" (see fig. 6/A - 6/B) with lukewarm soapy water. They should also be cleaned plugs "AC" and flame detection "TC" (see fig. 6/A). Clean them gently with a small nylon brush as shown (see fig. 6) and allow to dry fully. Do not wash in the dishwasher.

Following this, all parts should be thoroughly rinsed and dried. Never wash them while they are still warm and never use abrasive powders.

Do not allow vinegar, coffee, milk, salted water, lemon or tomato juice from remaining in contact with the enamelled surfaces for long periods of time.

WARNINGS:

comply with the following instructions, before remounting the parts:

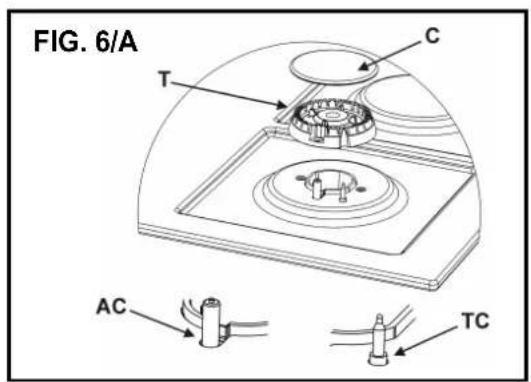

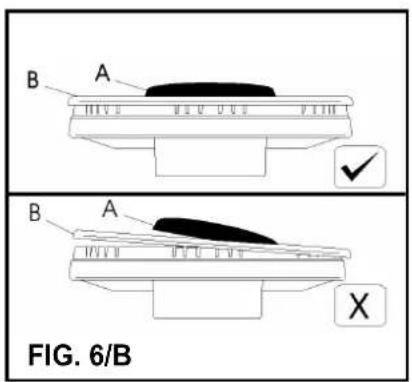

• check that burner head slots "T" (fig. 6/A) have not become clogged by foreign bodies.
• Check that enamelled burner cap "A", "B" and "C" (fig. 6/A - 6/B) have correctly positioned on the burner head. It must be steady.
• Do not force the taps if they are difficult open or close. Contact the technical assistance service for repairs.
• To keep in good condition the electric irons should be treated with appropriate cleaning products and prevent rust.
• Don't use steam jets for the equipment cleaning.

Note:

continuous use could cause the burners to change colour due to the high temperature.

INSTALLATION

TECHNICAL INFORMATION FOR THE INSTALLER

Installation, adjustments of controls and maintenance must only be carried out by a qualified engineer.

The appliance must be correctly installed in conformity with current law and the manufacturer's instructions.

Incorrect installation may cause damage to persons, animals or property for which the Manufacturer shall not be considered responsible. During the life of the system, the automatic safety or regulating devices on the appliance may only be modified by the manufacturer or by his duly authorized dealer.

5) INSTALLING THE HOT PLATE

Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. In case of doubt, do not use the appliance and contact qualified personnel.

Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children's reach since they could become potential sources of danger.

The measurements of the opening made in the top of the modular cabinet and into which the cooktop will be installed are indicated in either fig. 7. Always comply with the measurements given for the hole into which the appliance will be recessed (see fig.7 and minimum distance for fig. 8)

The prospective walls (left or right) that exceed the working table in height must be at a minimum distance from the cutting as mentioned both in the columns “E” of the scheme.

The appliance belongs to class 3 and is therefore subject to all the provisions established by the provisions governing such appliances.

6) FIXING THE HOT PLATE

The cooktop has a special putty which prevents liquid from infiltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this putty:

• take off all the movable parts of the hob.
• Detach the putty from their backing, checking that the transparent protection still adheres to the putty itself.
• Overturn the cooktop and correctly position putty "E" (fig. 9) under the edge of the cooktop itself, so that the outer side of the putty perfectly matches the outer perimetral edge of the cooktop. The ends of the strips must fit together without overlapping.
• Evenly and securely fix the putty to the cooktop, pressing into place with the fingers and remove the strip of protective paper from the putty and set the plate into the hole made in the cabinet.
• Carefully trim the edge excess putty with a tool (fig. 9/A - 9/B).
• Fix the hob with the proper brackets "S" and fit the prominent part into the porthole "H" on the bottom; turn the screw "F" until the bracket "S" stick on the top (fig. 10).
• In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70 mm from the top (see fig. 7).

IMPORTANT:

a perfect installation, adjustment or transformation of the cook top to use other gases requires a QUALIFIED INSTALLER: a failure to follow this rule will void the warranty.

Keep the Warranty Certificate or the sheet of technical data with the Instructions Handbook during the appliance life. It contains important technical data.

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

The installer should note that the appliance that side walls should be no higher than the hot plate itself. Furthermore, the rear wall, the surfaces surrounding and adjacent to the appliance must be able to withstand a temperature of 90 °C.

The adhesive used to stick the plastic laminate to the cabinet must be able to withstand a temperature of not less than 150 °C otherwise the laminate could come unstuck.

The appliance must be installed in compliance with BS 6172 1990, BS 5440 part. 2 1989 and BS 6891 1988.

This appliance is not connected to a device able to dispose of the combustion fumes. It must therefore be connected in compliance with the above mentioned installation standards. Particular care should be paid to the following provisions governing ventilation and aeration.

7) ROOM VENTILATION

To ensure correct operation of the appliance, it is important to ensure that the room where the hot plate is installed has sufficient ventilation, as set out in BS 5440 part 2. 1989. See table below.

Type of appliance	Volume of room cubic metres	Min. size of vent sq. cm.	Openable window or alternative method of venting to the outside
Domestic ovens hotplates or any combinations	5	100	yes
	5 to 10	50	yes
	11 to 20	nil	yes
	20 and above	nil	yes

Natural air flow must enter directly through permanent openings in the walls of the room in question. These must open towards the outside and possess a minimum section of 100 cm^2 see fig. 3). It must be impossible to obstruct these openings. Indirect ventilation with air drawn from adjacent rooms is permitted in strict compliance with the provisions in force.

CAUTION: if the burners of the cooking top are without safety thermocouple, the ventilation outlet must have a minimum 200 cm ^4 section.

8) LOCATION AND AERATION

Gas cooking appliances must always dispose of their combustion fumes through hoods. These must be connected to flues, chimneys or straight outside (see fig. 4). If it is not possible to install a hood, an electric fan can be installed on a window or on a wall facing outside (see fig. 5). This must be activated at the same time as the appliance, so long as the specifications in the provisions in force are strictly complied with.

9) GAS CONNECTION

Before connecting the appliance, check that the values on the data label affixed to the underside of the hot plate correspond to those of the gas mains in the home.

A label on this manual and on the product indicates the type of gas and pressure adjustment.

WARNING:

a gas hot plate can only be connected by a CORGI Registered engineer.

Installations should be carried out in accordance with BS 6891 1988 and must comply with the Gas Safety Regulations.

All hot plate installations must include an isolation tap.

GAS PRESSURE TEST

Some hot plates models have a test point fitted under the control panel, to conduct a gas pressure test proceed as follows:

- turn off the gas supply.

- Remove screw in the pressure test point, place test gauge connecting tube on test point.

- Fit a burner ring and cap onto burner assembly, replace control knob onto corresponding control tap for the burner.

- Turn on gas and ascertain working pressure.

After test, turn off control tap, turn off gas supply, disconnect test gauge connecting tube.

Replace the test point screw, turn gas back on and test for soundness. Reassemble the hotplate.

IMPORTANT:

the appliance complies with the provisions of the following CE Directives:

2009/142 regarding gas safety.

INSTALLATION

10) ELECTRICAL CONNECTION

IMPORTANT: the appliance must be installed following the manufacturer's instructions.

The manufacturer will not be liable for injury to persons or animals or property damage caused by an incorrect installation.

The electrical connections of the appliance must be carried out in compliance with the provisions and standards in force.

Before connecting the appliance, check that:

• the voltage matches the value shown on the specification plate and the section of the wires of the electrical system can support the load, which is also indicated on the specification plate.
• The electrical capacity of the mains supply and current sockets suit the maximum power rating of the appliance (consult the data label applied to the underside of the cooktop).
• The socket or system has an efficient earth connection in compliance with the provisions and standards in force. The manufacturer declines all responsibility for failing to comply with these provisions.

When the appliance is connected to the electricity main by a socket:

- apply to the input cable "C", if unprovided (see fig. 11) a normalized plug adequate to the load indicated in the identification label. Connect the cables according to the scheme of fig. 11, making sure to respect the undermentioned responses:

Letter L (live) = brown wire;

Letter N (neutral) = blue wire;

Earth symbol +green - yellow wire.

• The power supply cable must be positioned so that no part of it is able to reach an temperature of 90 °C.
• Never use reductions, adapters of shunts for connection since these could create false contacts and lead to dangerous overheating.
• The outlet must be accessible after the built-in.

When the appliance is connected straight to the electricity main:

• install an omnipolar circuit-breaker between the appliance and the electricity main. This circuit-breaker should be sized according to the load rating of the appliance and possess a minimum 3 mm gap between its contacts.
• Remember that the earth wire must not be interrupted by the circuit-breaker.
• The electrical connection may also be protected by a high sensitivity differential circuit- breaker.

You are strongly advised to fix the relative yellow-green earth wire to an efficient earthing system.

Before performing any service on the electrical part of the appliance, it must absolutely be disconnected from the electrical network.

WARNINGS:

all our products are conform with the European Norms and relative amendments.

The product is therefore conform with the requirements of the European Directivesin force relating to:

• compatibility electromagnetic (EMC);
• electrical security (LVD);
• restriction of use of certain hazardous substances (RoHS);
• EcoDesign (ERP).

If the installation requires modifications to the home's electrical system or if the socket is incompatible with the appliance's plug, have changes or replacements performed by professionally-qualified person. In particular, this person must also make sure that the section of the wires of the socket is suitable for the power absorbed by the appliance.

ADJUSTMENTS AND CONVERSIONS

Always disconnect the appliance from the electricity main before making any adjustments.

All seals must be replaced by the technician at the end of any adjustments or regulations.

Our burners do not require primary air adjustment.

11) TAPS

"Reduced rate" adjustment

- Switch on the burner and turn the relative knob to the "Reduced rate" position (small flame fig. 1).

- Remove knob "M" (fig. 12 and 12/A) of the tap, which is simply pressed on to its rod. The bypass for minimal rate regulation can be: beside the tap (fig. 12) or inside the shaft. In any case, to access to regulation, it can be done trough the insertion of a small screwdriver "D" beside the tap (fig. 12) or in the hole "C" inside the shaft of the tap (fig 12/A). Turn the throttle screw to the right or left until the burner flame has been adequately regulated to the "Reduced rate" position.

The flame should not be too low: the lowest small flame should be continuous and steady. Re-assemble the several components.

It is understood that only burners operating with G20 gas should be subjected to the above mentioned adjustments. The screw must be fully locked when the burners operate with G30 or G31 gas (turn clockwise).

12) REPLACING THE INJECTORS

The burners can be adapted to different types of gas by installing injectors suited to the type of gas required. To do this, first remove the burner tops using a wrench "B". Now unscrew injector "A" (see fig. 13) and fit a injector corresponding to the type of gas required. It is advisable to tighten the injector in place.

After the injectors have been replaced, the burners must be regulated as explained in paragraphs 11. The technician must reset any seals on the regulating or pre-regulating devices and affix the label corresponding to the new gas regulation on the appliance instead of the already existing one. This label is supplied in the packet containing the spare injectors.

The envelope with the injectors and the labels can be included in the kit, or at disposal to the authorized Customer Care Department.

For the sake of convenience, the nominal rate chart also lists the heat inputs of the burners, the diameter of the injectors and the working pressures of the various types of gas.

TAPS LUBRIFICATION

Should a tap being blocked, do not force and ask for Technical Assistance.

CONVERSIONS

DISPOSITION OF THE BURNERS

TABLE

BURNERS		GAS	NORMAL PRESSURE mbar	NORMAL RATE		INJECTOR DIAMETER Max.100 mm	NOMINAL HEAT INPUTA (W)
No.	DESCRIPTION			gr/h	l/h Min.				EEgas burner*
1	DOUBLE CROWN	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 37 20	291 286	381	100 100 150 H3	1800 1800 1800	4000 4000 4000	58,7%
2	RAPID	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 37 20	204 200	267	83 83 117 S	800 800 800	2800 2800 2800	56,3%
3	SEMIRAPID	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 37 20	127 125	167	65 65 98 Z	550 550 550	1750 1750 1750	57,0%
4	AUXILIARY	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 37 20	73 71	95	50 50 72 X	450 450 450	1000 1000 1000	N.A.

*In accordance with Regulation No. 66/2014 EU measures for the implementation of Directive2009/125/EC, the performance (EEgas burner) was calculated according to EN 30-2-1 last review with the G20.

SERVICING

CABLE TYPES AND SECTIONS

TYPE OF HOT PLATE	TYPE OF CABLE	SINGLE - PHASE POWER SUPPLY
Gas hot plate	H05 RR - F	Section 3 x 0,75 mm^2
Mixed hot plate with 1 electric element	H05 RR - F	Section 3 x 1 mm^2

ATTENTION!!!

If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fig. 14) and comply with the recommendations given in paragraph 10.

WARNING: MAINTENANCE MUST ONLY BE PERFORMED BY AUTHORISED PERSONS.

In case of failure or cut in the cable, please move away from the cable and do not touch it. Moreover the device must be unplugged and not switched on. Call the nearest authorized service center to fix the problem.

POWER RATINGS OF THE ELECTRICAL COMPONENTS

DENOMINATIONS ∅ (cm)		POWER(W)	ECelectric cooking*(Wh/kg)
Electric heating element 14,5 1500 201,6

*ECelectric cooking: Energy consumption per kg calculated according to Regulation (EU) 66/2014 and standard EN 60350-2 in the final revision.

TECHNICAL DATA ON THE DATA LABEL

3 BURNERS (60)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 8.55 kW

Σ Qn GPL = 622 gr/h (G30)

Σ Qn GPL = 611 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

4 BURNERS (60)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 7.3 kW

Σ Qn GPL = 531 gr/h (G30)

Σ Qn GPL = 521 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

3 BURNERS (60)

(+1 electric element ∅ 14,5)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 5.55 kW

Σ Qn GPL = 403 gr/h (G30)

Σ Qn GPL = 396 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

Tot. pow. el. heating 1500W

4 BURNERS (60)

(BUR left)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 9.55 kW

Σ Qn GPL = 676 gr/h (G30)

Σ Qn GPL = 664 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

6 BURNERS (90)

(BUR left)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 13.05 kW

Σ Qn GPL = 949 gr/h (G30)

Σ Qn GPL = 932 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

5 BURNERS (70)

(BUR central)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 11.3 kW

Σ Qn GPL = 822 gr/h (G30)

Σ Qn GPL = 807 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

5 BURNERS (90)

(BUR central)

$$ \mathrm{CAT.} = \mathrm{II} _ {2 \mathrm{H} 3 +} $$

G 30 - BUTANE = 28 - 30 mbar

G 31 - PROPANE = 37 mbar

G 20 - NATURAL = 20 mbar

Σ Qn Gas Natural = 11.3 kW

Σ Qn GPL = 822 gr/h (G30)

Σ Qn GPL = 807 gr/h (G31)

TENSION = 220 - 240 V\~

FREQUENCY = 50/60 Hz

GB

TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION

Cet appareil doit être installé con formement aux reglementations en viguer et utilisé seulement dans un endroit bien aeré.Consulter les notices avant d'installer et d'utiliser cet appareil.Pour autre type de gaz, il faut operer comme decrit dans la notice d'emploi.Cet appareil est reglé pour fonctionner à:	Este aparato debe ser montado conforme a los reglamentos vigentes y utilizado solamente en un ambiente adecuadamente aireado.Antes de installar o utilizar el aparato, consultar los manuales de instrucción. Este aparato está regulado para funcionar a:	Este produto deve ser instalado em conformidade com as normas de segurança em vigor e usado somente em um ambiente dotado de adequada ventilação. Antes de proceder a instalação e uso do aparelho, consultar os respectivos manuais de instruções.Para outro tipo de gás proceder como indicado nas instruções de instalação e uso. Este aparelho está ajustado para operar em:
H συσκευή αυτή μπορεί να εγκατασταθεί και να λειτουργεί μόνο σε χώρους διαρκώς αεριζόμενους σύμφωνα με τον κανονισμό.Συμβουλευτείτε το εγχειρίδιο οδηγιών πριν την εγκατάσταση της συσκευής αυτής.GRH συσκευή αυτή έχει ρυθμιστεί για να λειτουργεί σε:	This appliance must be installed in compliance with the current provisions in force and only used in rooms equipped with adequate ventilation. Consult the instruction manual before proceeding with installation or use of the appliance.For another type of gas, operate as described in the directions for the installation and use.GBThis household appliance is adjusted to work at:
G20 -"p" 20 mbar 2H COD. 0030685 - 10/15

TECHNICAL ASSISTANCE AND SPARE PARTS

Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances.

Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.

For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs or adjustments are required, specifying the type of fault and the model of the appliance in your possession.

Please also note that genuine spare parts are only available from our After Sales Service Centers and authorized retail outlets.

The above data are printed on the data label put on the inferior part of the appliance and on the packing label.

The above informations give to the technical assistant the possibility to get fit spare parts and a heaven-sent intervention. We suggest to fill the table below.

MARK:

MODEL:

SERIES:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

ROBINETS LUBRIFICATION

FREQUENCE = 50/60 Hz

4 FEUXS (60)

CATEGORÍA. = II _2H3+

FREQUENCE = 50/60 Hz

3 FEUXS (60)

(+1 foyer ∅ 14,5)

CATEGORÍA. = II _2H3+

FREQUENCE = 50/60 Hz

5 FEUXS (70)

(BUR centrale)

CATEGORÍA. = II _2H3+

FREQUENCE = 50/60 Hz

6 FEUXS (90)

(BUR gauche)

CATEGORÍA = II _2H3+

FREQUENCE = 50/60 Hz

5 FEUXS (90)

(BUR centrale)

CATEGORÍA. = II _2H3+

FREQUENCE = 50/60 Hz

DONNEES TECHNIQUES DE LA RÉGULATION GAZ DE L'APPAREIL

Cet appareil doit être installé con formement aux reglementations en viguer et utilisé seulement dans un endroit bien aeré.Consulter les notices avant d'installer et d'utiliser cet appareil.Pour autre type de gaz, il faut operer comme decrit dans la notice d'emploi.Cet appareil est reglé pour fonctionner à:	Este aparato debe ser montado conforme a los reglamentos vigentes y utilizado solamente en un ambiente adecuadamente aireado.Antes de installar o utilizar el aparato, consultar los manuales de instrucción.Este aparato está regulado para funcionará:	Este produto deve ser instalado em conformidade com as normas de segurança em vigor e usado somente em um ambiente dotado de adequada ventilação. Antes de proceder a instalação e uso do aparelho, consultar os respectivos manuais de instruções.Para outro tipo de gás proceder como indicado nas instruções de instalação e uso.Este aparelho está ajustado para operar em:
Η συσκευή αυτή μπορεί να εγκατασταθεί και να λειτουργεί μόνο σε χώρους διαρκώς αεριζόμενους σύμφωνα με τον κανονισμό.Συμβουλευτείτε το εγχειρίδιο οδηγιών πριν την εγκατάσταση της συσκευής αυτής.GRH συσκευή αυτή έχει ρυθμιστεί για να λειτουργεί σε:	This appliance must be installed in compliance with the current provisions in force and only used in rooms equipped with adequate ventilation. Consult the instruction manual before proceeding with installation or use of the appliance.For another type of gas, operate as described in the directions for the installation and use.GBThis household appliance is adjusted to work at:
G20 - "p" 20 mbar 2H

ASSISTANCE TECHNIQUE ET PIECES DE RECHANGE

FREQUENCE = 50/60 Hz

FREQUENCE = 50/60 Hz

Σ Qn Gas Natural = 8.55 kW

Σ Qn GPL = 622 gr/h (G30)

Σ Qn GPL = 611 gr/h (G31)

Tot. pow. el. heating 1500W

4 QUEIMADORES (60)

(BUR esquerda)

CATEGORÍA = II _2H3+

Σ Qn Gas Natural = 9.55 kW

Σ Qn GPL = 676 gr/h (G30)

Σ Qn GPL = 664 gr/h (G31)

Σ Qn Gas Natural = 11.3 kW

Σ Qn GPL = 822 gr/h (G30)

Σ Qn GPL = 807 gr/h (G31)

Σ Qn Gas Natural = 11.3 kW

Σ Qn GPL = 822 gr/h (G30)

Σ Qn GPL = 807 gr/h (G31)
