USER MANUAL RMB96729VX AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

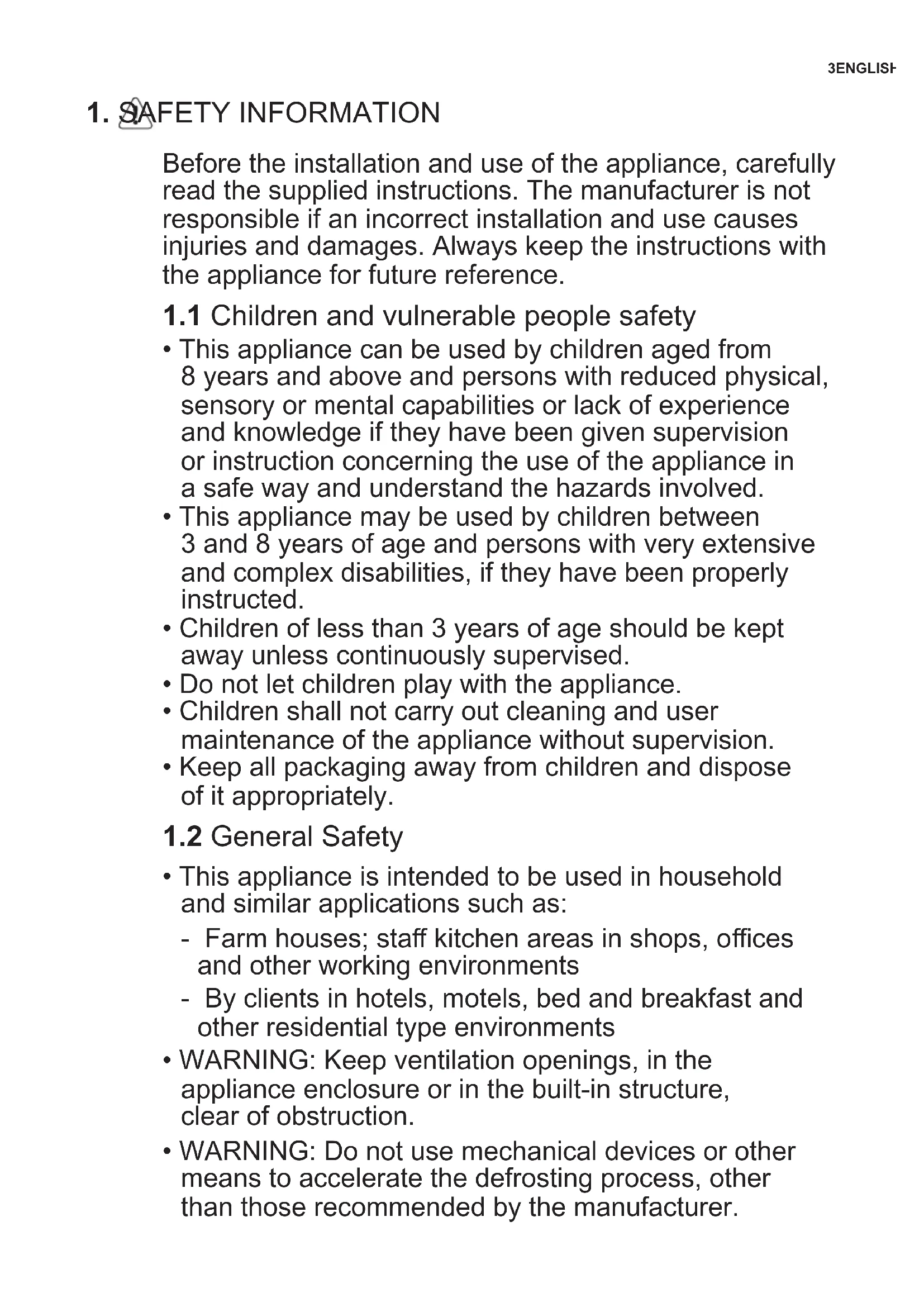

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed.
  Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
  Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

1.2 General Safety

• This appliance is intended to be used in household and similar applications such as:

• Farm houses; staff kitchen areas in shops, offices and other working environments

• By clients in hotels, motels, bed and breakfast and other residential type environments

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the appliance is equipped with an ice maker or a water dispenser, fill them with potable water only.

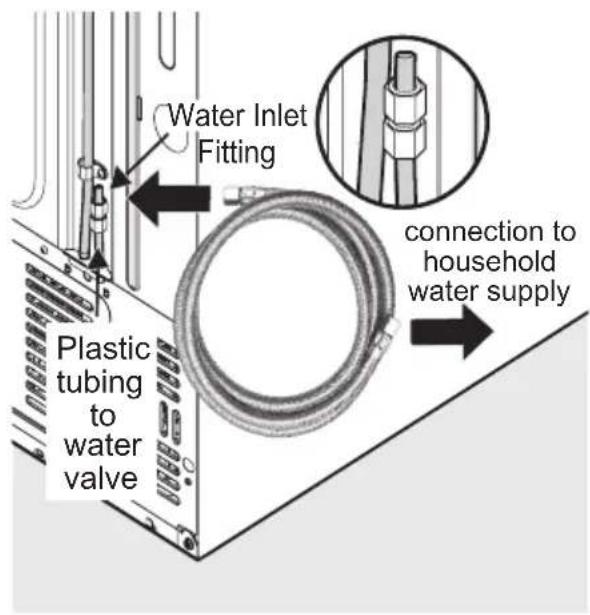

• If the appliance requires a water connection, connect it to potable water supply only.
• The inlet water pressure (minimum and maximum) must be between 1 bar (0,1 MPa) and 10 bar (1 MPa)
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48 h: flush the water system connected to a water supply if water has not been drawn for 5 days.

-Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• The rear of the appliance must stand against the wall.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not use multi-plug adapters and extension cables.

The appliance must be earthed
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor).
- Contact the Service or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electrical shock or fire.

The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.

• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

2.4 Internal lighting

WARNING!

Risk of electric shock.

• The type of lamp used for this appliance is for household appliances only. Do not use it for house lighting.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

2.6 Disposal

WARNING!

Risk of injury or suffocation. Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

3. ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and

electronic appliances. Do not dispose appliancesmarked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

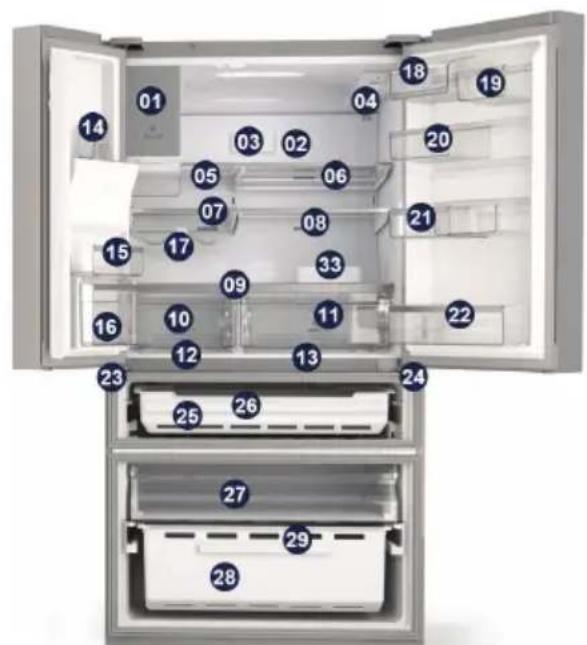

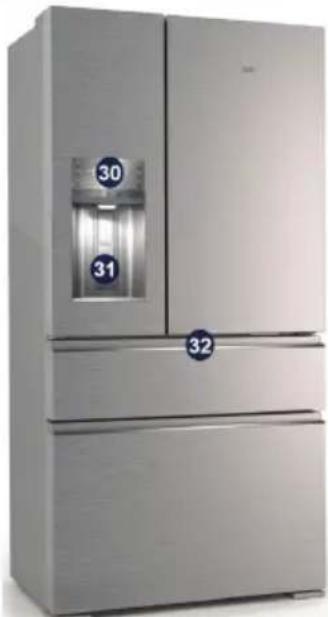

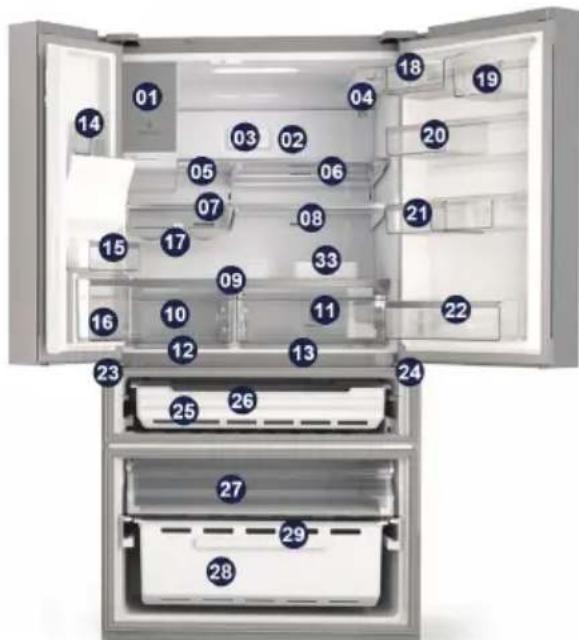

4. DESCRIPTION OF THE APPLIANCE

Fridge

Middle variable temperature drawer

Freezer

Note: Due to constant improvement of our products, your refrigerator may be slightly different from the above illustration, but its functions and using methods remain the same.

1 Ice Maker
2 Multifow
3 Air Filter
4 Water Filter
5 Flip Up Shelf
6 Slide Under Shelf
7 Left Glass Shelf
8 Right Glass Shelf
9 Crisper Cover Shelf
10 Left Crisper
11 Right Crisper
12 Left Snack Zone
13 Right Snack Zone
14 Left Superior Fixed Bin
15 Left Bottom Fixed Bin
16 Tilt Bin
17 Wine Rack
18 Dairy Bin Flex 2/3
19 Door Bin Flex 1/3
20 Door Bin Flex 2/3
21 Sliding door bin flex
22 Bottle Bin
23 Left Middle Hinge
24 Right Middle Hinge
25 MultiSwitch/MultiChill drawer
26 MultiSwitch/MultiChill divider
27 Upper Freezer Drawer
28 Basket Freezer
29 Freezer Divide
30 User Interface
31 Padle
32 User Interface FlexiSpace
33 Egg Tray

Note: To get the best energy efficiency of this product, please place all shelves, drawers and baskets on their original position as the illustration above.

This appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.

5. INSTALLING YOUR NEW APPLIANCE

This section explains the installation of the new appliance before using it for the first time. We recommend reading the following tips.

WARNING!

For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 250kg . When moving, be sure to pull out and push back the unit in straight.

Class	Symbol Ambient Temperature rage (°C)
Extend	SN +10 to +32
Temperate
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43

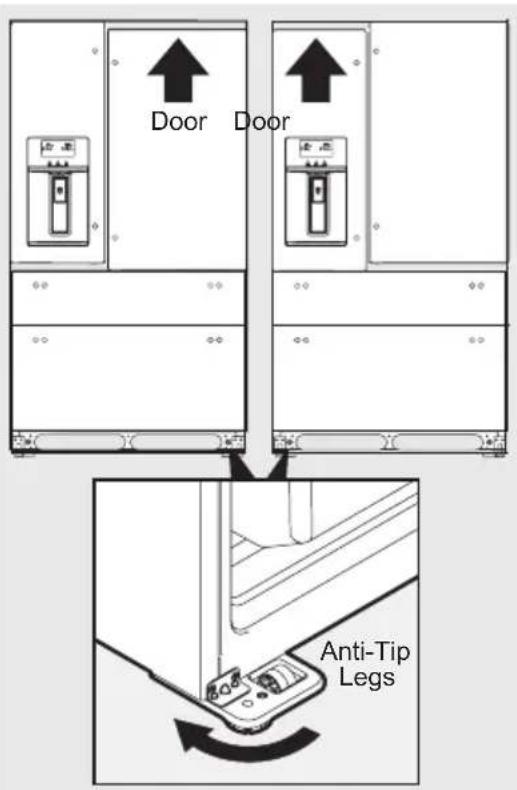

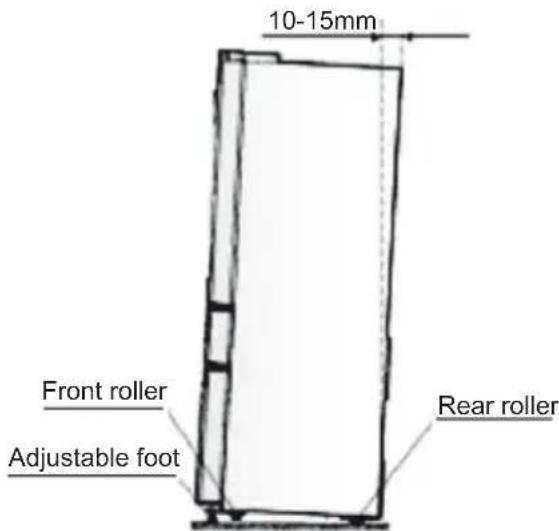

Leveling of appliance

For proper leveling and avoid vibration, this appliance is provided with adjustable feet in front. Please adjust the level by following below instructions:

1. Roll the refrigerator into place.

2. Turn the adjustable feet (with your fingers or a suitable spanner) until they touch the floor.

3. Tilt back the top backwards for about 10 - 15mm by turning the feet 1-2 turn further. This will allow the doors to selfclose and seal properly.

4. Whenever you want to move the appliance, remember to turn the feet back up so that the appliance can roll freely. Reinstall the appliance when relocating.

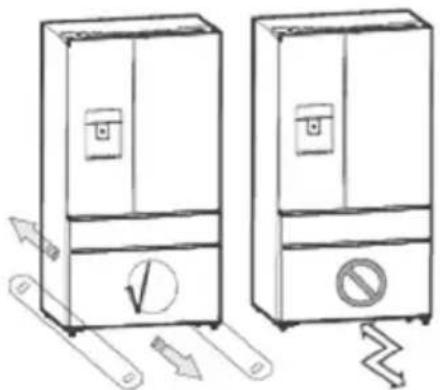

WARNING!

The rollers, which are not castors, should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

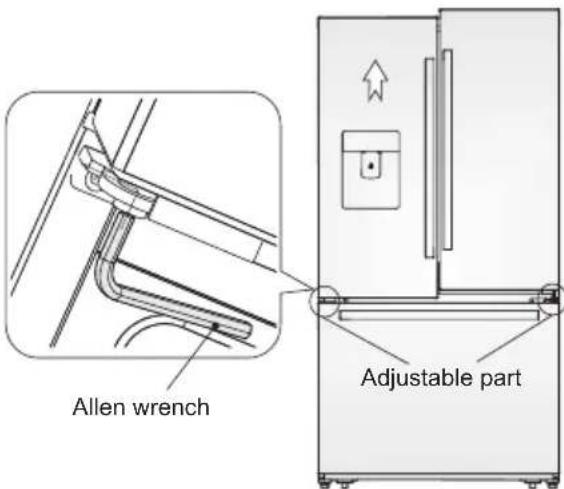

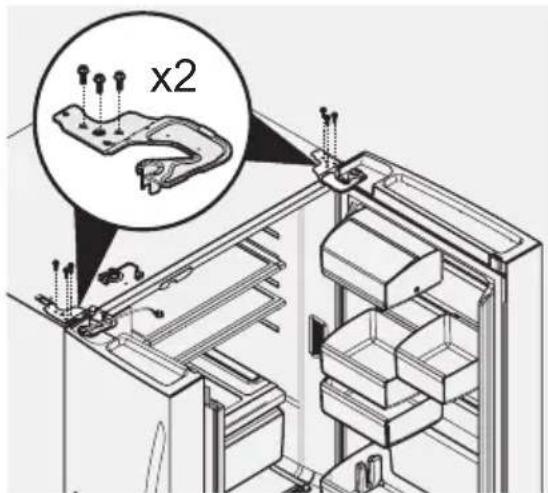

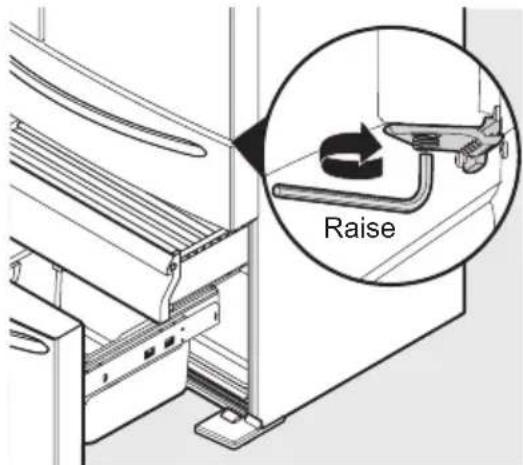

Adjusting the doors

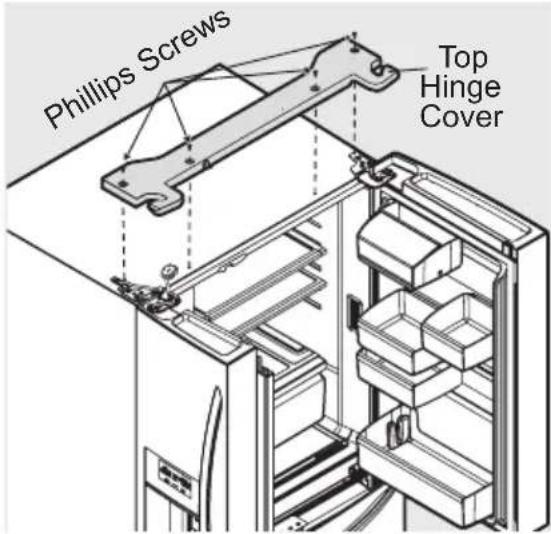

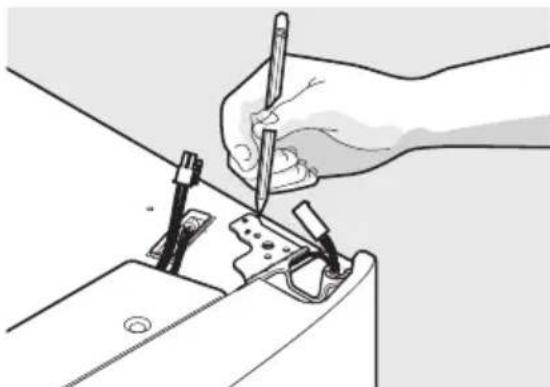

• Both left and right doors are equipped with adjustable axes, which are located in the lower hinges.
• Before adjusting its doors, please ensure that the refrigerator is level. Please review the previous section on "Leveling appliance". If you find the top of the doors are uneven, insert the Allen wrench into the hinge axis, and turn it clockwise to rise the door or anticlockwise to lower the door, and insert an E Ring into the gap.

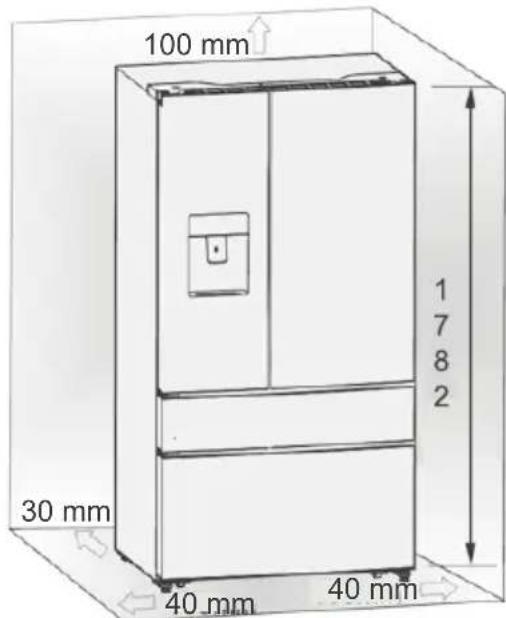

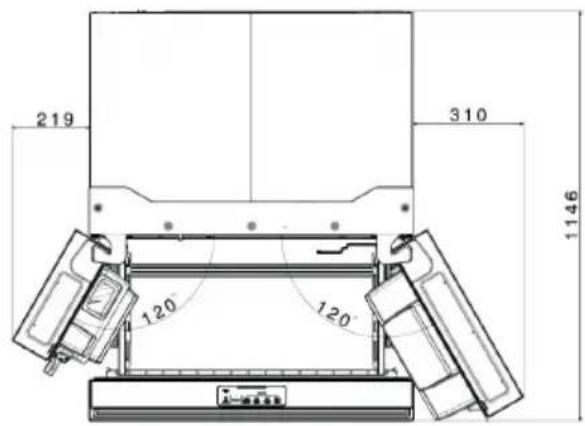

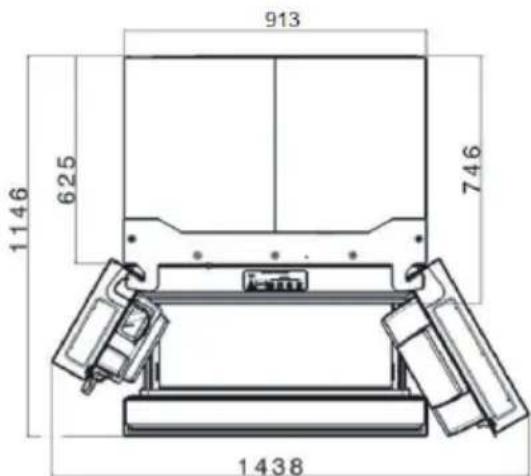

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain proper ventilation around the appliance for heat dissipation. For this reason, sufficient space should be provided around the refrigerator and the area should be clear of any obstruction that affects the air circulation.

Suggestion: to ensure a proper functioning of the appliance keep the distances shown on the graphic above.

6. DISPLAY CONTROLS

All functions and controls of the unit are accessible from a control panel conveniently located on the door of the refrigerator. While setting of middle drawer are done with dedicated controls place inside the drawer. A keypad of touch buttons and a digital display allow easy configuration of features and settings in a simple and intuitive manner.

Important! Touch buttons require only a short press on a button to operate. The operation occurs when releasing your finger from the button, not while the button is pressed. There is no need for applying pressure on the keypad.

Please refer to those related sections of this Manual for detailed instructions.

CAUTION!

When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

1 FrostMatic

Activates a faster rate for freezing food in the freezer. Use this feature when loading several items into the freezer at one time. Automatically deactivates after 12 hours.

2 Cold Drink Timer

Quickly chills a drink inside the freezer compartment. To enable, touch the Cold Drink Timer Key. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/- buttons. A tone will sound when the time has been input. Range is from 20-45 minutes in 5 minute intervals. Drinks will freeze if temperature setting is too low or timer setting is too long.

WARNING

When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long.

3 Ice Maker

Press and hold for 3 seconds to turn on/ off ice maker. When indicator is lit, ice maker is on. When indicator is not lit, ice maker is in the OFF state and will stop making ice. While off, ice dispensing can continue as long as there is ice in the bucket. When ice maker is off and ice is dispensing, indicator will blink.

4 Lock

The lock button can be used to lock the display preventing it from being used in certain situations. Press and hold for 3seconds to enable/disable. While in the locked state, non changes can be made to settings on the display. Dispensing ice and water will be disabled. The indicator will flash and an auditable warning tone is played.

5 Door Open

Illuminates whenever the doors are open. If a door is left open for 5 minutes or more, an alarm will sound and the display will be illuminated until the doors are shut. Pressing any button will mute the alarm temporarily. Check to make sure no food is blocking the doorway.

6 Replace Water Filter

Display illuminates every 6 months or when filter needs replacing. Replace filter and then press and hold 'Reset Water Filter' for 3 seconds to deactivate warning on display. See "Replacing the Filter" section for more information.

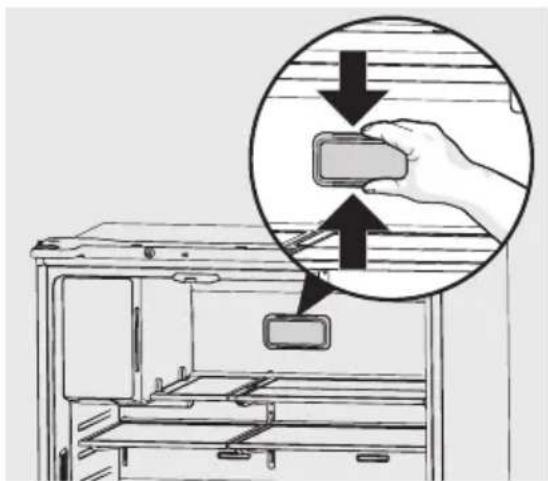

7 Replace Air Filter

Display illuminates every 6 months or when filter needs replacing. Replace filter and then press and hold 'Reset Air Filter' for 3 seconds to deactivate warning on display. See "Replacing the Filter" section for more information.

8 Water

Press the "water" key to dispense water. An indicator light will be illuminated above the active feature.

9 Cube

Press the "cube" key to dispense cubed ice. An indicator light will be illuminated above the active feature.

10 Crush

Press the "crush" key to dispense crushed ice. An indicator light will be illuminated above the active feature.

11 Cool Matic

Quick chill is a faster rate for chilling food in the refrigerator compartment. Use this feature when loading several items into the refrigerator at one time. Deactivates after 6 hours.

12 Reset Air Filter

After replacing filter, press and hold for 3 seconds to reset.

13 Reset Water Filter

After replacing filter, press and hold for 3 seconds to reset.

14 Wi-Fi Connectivity

Press and hold for 3 second to enable / disable wireless connection.

When LED is lit the product is connected.

When LED is flashing the product is connecting or during setup.

When LED is off, Wi-Fi is off.

1. WI-FI CONNECTIVITY SETUP

This chapter describes how to connect the smart refrigerator to the Wi-Fi network and to link it to your mobile device.

By this functionality you can receive notifications, control and monitor your refrigerator from your mobile device.

Frequency 2.412 - 2.472 GHz

Protocol IEEE 802.11b/g/n

To connect the appliance to enjoy the full range of features and services you need:

• Wireless 2.4GHz network at home with internet connection enabled.
• Mobile device connected to wireless home network.

1.1 Installing the application "My AEG Kitchen"

When connecting the refrigerator to the application, stand near it with your mobile device (Android or iOS). Make sure that your mobile device is connected to the same wireless network you want to add your refrigerator to.

1. Go to the relevant App Store on your device
2. Download and install the App "My AEG Kitchen"
3. Start the application. Select the country and language and login with Your email and password. If you do not have an account, create a new one following the instructions in "My AEG Kitchen".

1.2 Configuring the refrigerator's wireless connection

1. Press the appliances button (h) the menu and then the Add Appliance icon on the screen.
2. Then choose "Fridge" in the list of appliances and tap "NEXT".

3. Follow the app's guidance to onboard your refrigerator. The app will ask you to start the refrigerators WiFi which your do on the appliance.

4. Press and hold the Wi-Fi icon on your refrigerator for 3 seconds until you hear a beep - this will start the Wi-Fi system.

1. After around 45 seconds the refrigerator will display AP on the user interface and will be ready to move on to the next stage in the app.

1. Continue to follow the App guidance to connect your refrigerator to your Wi-Fi. For Android devices, select your appliance's Wi-Fi network from the drop down list.

For iOS devices go to " SETTINGS" and select your appliance's Wi-Fi network, (it is the one that begins AJ-) then return to the App

1. When the refrigerator has connected, the Wi-Fi icon will stop flashing and will stay solid and the screen will display your desired temperatures again. Continue to follow the app guidance to complete the registration and name your refrigerator.

Congratulations! Your refrigerator is now connected to the My AEG Kitchen App. To control or monitor your fridge from the app, just open it up and select your changes. Alarms and notifications will come through automatically.

1.3 Disabling / Resetting the refrigerator wireless connection

1. You can temporarily disable the Wi-Fi connection by pressing and holding for 3 seconds the Wi-Fi button. The Wi-Fi icon will switch off and you will hear a beep. Once the Wi-Fi connection is disabled, to automatically re-establish the connection you will have to press and hold for the 3 seconds the button again.

1. You can reset the Wi-Fi configuration by pressing and holding for 10 seconds the Wi-Fi button and the Reset Water Filter button together. Once the configuration is reset, the refrigerator will beep and return to your desired temperatures. To then re-establish the connection, you will have to repeat all the steps at section 1.2 "Configuring the refrigerator wireless connection". Alternatively this can be done through the App.

NOTE

Control features and alarms may vary by model.

Alarms

High temperature, "HI" indicator

An increase in the temperature in the Fridge or Freezer compartment (for example due to earlier power failure) is indicated by:

• Flashing the HI on the correspondent compartment display
• Sound alar, every 10 seconds until the alert is acknowledgment

To reset the alarm press any button or opening the door.

• The buzzer switches off
  The display shows the highest temperature reached for 10 seconds. Then show again the set temperature.

After 60 minutes, if the high temperature condition is not improved at all, please contact an Authorised Service Center.

Water Filter

When illuminated, the water filter needs to be replaced. Change the water filter every 6 months or when 450 litres of water has been dispensed. To reset, press and hold button for 3 seconds. Tone will sound once it has been reset.

Air Filter

When illuminated, air filter needs to be replaced. Change the air filter every 6 months. To reset, press and hold button for 3 seconds. Tone will sounds once it has been reset.

Door

If a door has been left open for five minutes or more, an alarm will sound and the door open indicator will illuminate on the display. The alarm can be turned off by closing the door or pressing any key. Control panel will return to normal operations after the door is closed.

Error Tone

An alarm will sound if the user tries to make a selection that is not available.

Mode Fahrenheit / Celsius degree

Press and hold for 5 seconds + and - from the refrigerator side.

After that, we will have a 'Tone Confirm' and display will change the temperature unit showing the other option directly on the numeric display. The temperature value will also change.

Demonstration mode

Pressing and holding + (freezer) and - (refrigerator) for 10 seconds will activate Demonstration mode.

• On detection of 10-sec-holding,
• Illuminate Icon "Demo"
  -Play tone Confirm
• Pressing and holding + (freezer) and - (refrigerator) for 10 seconds again will deactivate Demo mode
• Illuminate Icon "Demo"
  -Play tone Cancel

WARNING!

Do not use the MultiSwitch.
Drawer to store fresh produce as these Items may freeze and ase damage to the fruits and leafy vegetables stored in the drawer.

Using Your MultiSwitch Drawing Controls

1 The drawer automatically defaults to a locked state to prevent any unwanted use. To change the drawe's settings, it first needs to be unlocked. To unlock, press and hold the UNLOCK icon for 3 seconds. It will automatically lock after 10 seconds whilst any interaction.

WARNING!

Do not store glass bottles in the MultiSwitch Printer when the Temperature setting is in Freezer, Meat/seafood, or Cold drink modes. The glass may break and shatter, causing physical harm and injury.

Freezer:

2 To change the drawer temperature when in the freezer temp setting, use the control panel display on the front door. Changing the temp on the display wil change both the drawer temp setting And the freezer compartment.

Refrigerator:

3 Choosing Meat and Fish will set drawer temperature to -2^ . A tone will sound to confirm choice. Use this setting for short term storage. Any meat to be kept longer than two days should be frozen.
4 Choosing Cold Drinks will set drawer temperature to 0^ . A tone will sound to confirm choice.
5 Choosing Deli/Snacks will set drawer temperature to 3^ . A tone will sound to confirm choice.
6 ChoosingCellar will set drawer temperature to 7^ . A tone will sound to confirm choice.

WARNING!

Do not use the MultiSwitch.
Drawer to store fresh produce as these Items may freeze ahd
ause damage to the fruits and leafy vegetables stored in the
drawer.

Using Your MultiSwitch Drawing Controls

1 The drawer automatically defaults to a locked state to prevent any unwanted use. To change the drawe's settings, it first needs to be unlocked. To unlock, press and hold the UNLOCK icon for 3 seconds. It will automatically lock after 10 seconds whilst any interaction.

WARNING!

Do not store glass bottles in the MultiSwitch Printer when the Temperature setting is in Freezer, Meat/seafood, or Cold drink modes. The glass may break and shatter, causing physical harm and injury.

Refrigerator:

2 Choosing Meat and Fish will set drawer temperature to -2^ . A tone will sound to confirm choice. Use this setting for short term storage. Any meat to be kept longer than two days should be frozen.
3 Choosing Cold Drinks will set drawer temperature to 0^ . A tone will sound to confirm choice.
4 Choosing Deli/Snacks will set drawer temperature to 3^ . A tone will sound to confirm choice.
5 ChoosingCellar will set drawer temperature to 7^ . A tone will sound to confirm choice.

7. USING THE DISPENSER

7.1 Using the ice maker after installation

Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor.

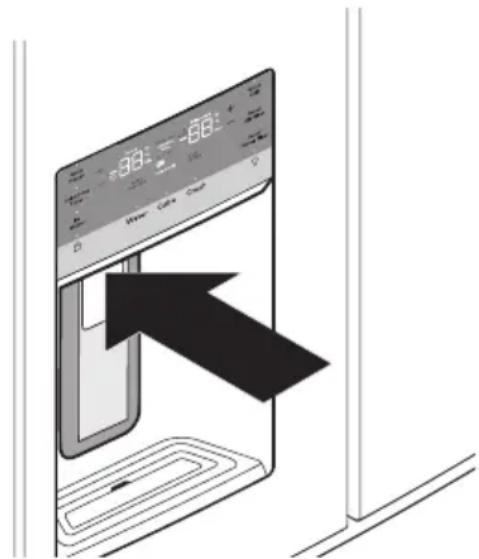

7.2 Priming the water supply system

1. Begin filling the system by pressing and holding a drinking glass against the dispenser.

2. Keep the glass in this position until water comes out of the dispenser. It may take about 112 minutes.

3. Continue dispensing water for about four minutes to flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary).

Dispenser

NOTE

The water dispenser has a built-in device that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.

NOTE

After the initial 750ml water will remain room temperature until the tank has refilled and been given enough time to chill the next 750ml of water. May take up to 8 hours to chill.

7.3 Ice maker operation & care

After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. Dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.

7.4 Ice Maker and Storage Bin Capacity

This ice maker should produce 1 Kilogram of ice per 24 hours. The ice bin will hold about 1,6 Kilogram of ice.

7.5 Turning the fresh food ice maker on and off

IMPORTANT

The ice maker is turned on at the factory so it can work as soon as the refrigerator is installed. If it is not possible to connect a water supply, set the ice maker's On/Off feature to Off; otherwise, the ice maker's fill valve may make a loud chattering noise when it attempts to operate without water.

Ice production is controlled by the ice maker's On/Off feature on the control panel. Pressing the On/Off feature turns the ice maker on & off.

NOTE

The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

IMPORTANT

Turning off the ice maker simply disables ice making. Existing ice can still be dispensed, and water can be dispensed.

IMPORTANT

On occasion, unusually small ice cubes may be noticed in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If happening frequently, it may be an indication of low water pressure or the water filter needs to be replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it's been six months or longer since last changing the water filter, replace it with a new one. Poor quality household water may require the filter to be changed more frequently.

CAUTION

If the water supply to the refrigerator is softened, be sure the softener is properly maintained. Chemicals from a

water softener can damage the ice maker.

7.6 Ice maker/dispenser tips

• If refrigerator is not connected to a water supply or the water supply is turned off, turn off the ice maker as described in the previous section.
  The following sounds are normal when the ice maker is operating:

• Motor running

• Ice dropping into ice bin
• Water valve opening or closing

• Running water

• If a large quantity of ice is needed at one time, it is best to get cubes directly from the ice bin.

• Ice cubes stored too long may develop an odd flavor. Empty the ice bin as explained below.
• When dispensing cubed ice, it is normal to have a small quantity of little pieces along with the whole cubes.
• To avoid splashing, dispense ice into the container before adding liquids.
  It is normal for ice to fill to the top of the ice bin.

7.7 Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn off the ice maker.
2. Remove the ice bin by pulling straight out.
3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Do not place in dishwasher. Rinse with clear water.
4. Allow the ice bin to dry completely before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored, jamming the dispenser mechanism.

• Ice dispenser is used infrequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

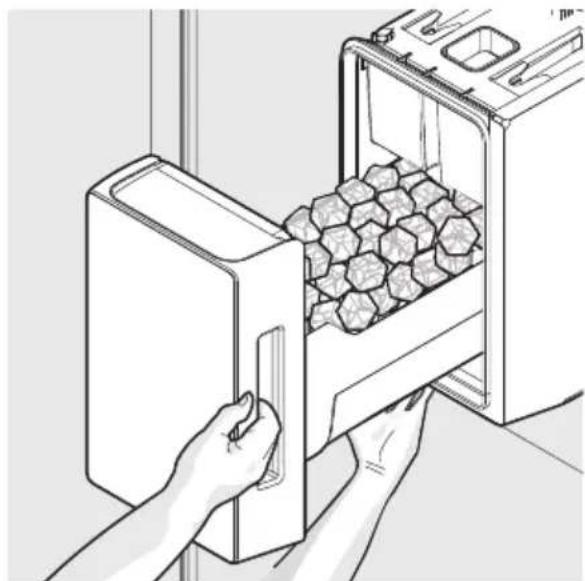

Removing Ice Bin

Remove the ice bin and shake to loosen the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism. To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

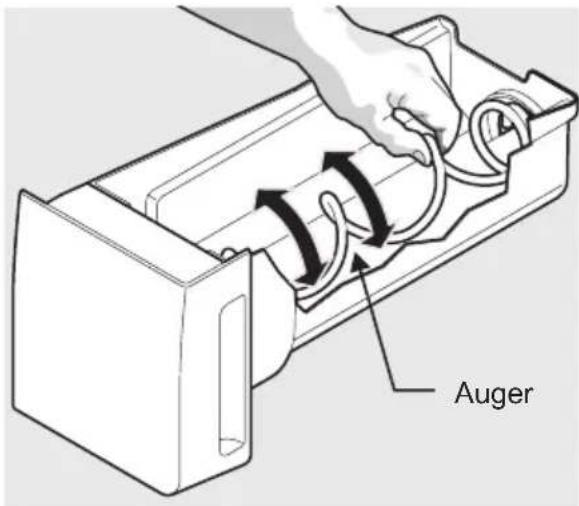

IMPORTANT

When removing or replacing the ice bin, avoid rotating the auger in the ice bin. If the auger is accidentally rotated, realign the auger by turning it in 45 degree turns (see below) until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will not dispense ice. The fresh food door also may not close properly causing warm air to leak into the fresh food compartment.

Adjusting Ice Bin Auger

8. STORAGE FEATURES

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.

NOTE

Features may vary according to model.

Shelf positions can easily be adjusted in the fresh food compartments as needed. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

8.1 Change the Position of a Shelf

1. Remove all food from shelf.
2. Lift the front edge up and pull the shelf out.
3. Replace by inserting the mounting bracket hooks into the desired support slots.
4. Lower the shelf and lock into position.

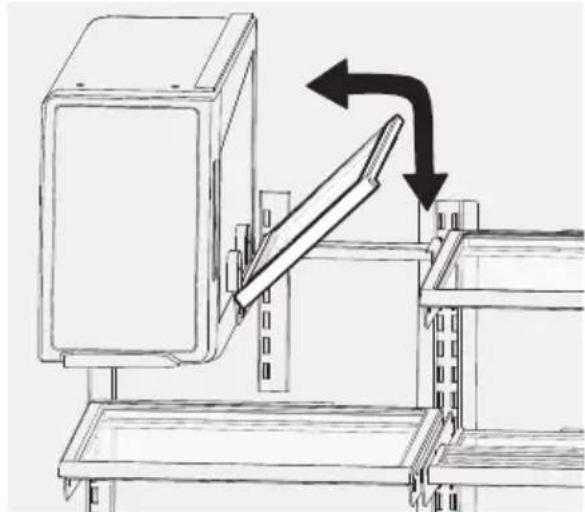

To adjust flip shelf:

1. Remove food from shelf.
2. Lift the right side edge of shelf upwards and push to the left towards ice maker.

Flip Shelf

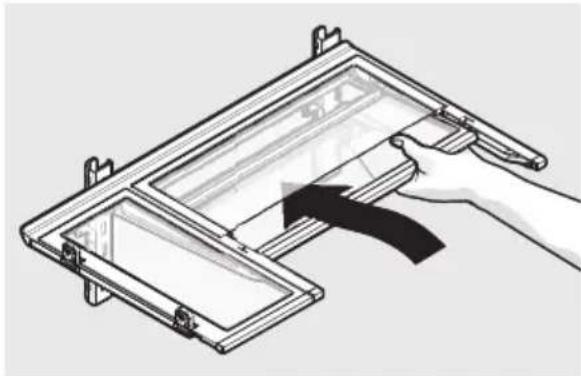

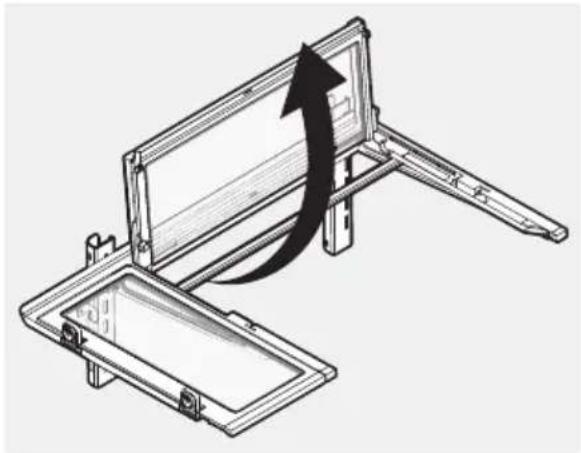

To adjust slide-under/flipsheelf:

1. Push front half shelf backward towards rear of cabinet until the rear half shelf drops down, then gently continue pushing front half shelf back and under the rear half shelf.

FlexiShelf

1. With front half fully below back half, lift front of shelf to flip it upwards toward the back of the cabinet.

FlexiShelf

8.2 Drawers

The refrigerator includes a variety of storage drawers.

Auto Ultra Fresh Crispers (with automatic humidity control)

Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crispers have an auto humidity control (with replaceable membrane) on the side of each risper under the humidity control cover. Order a replacement membrane at www.aeg.com.

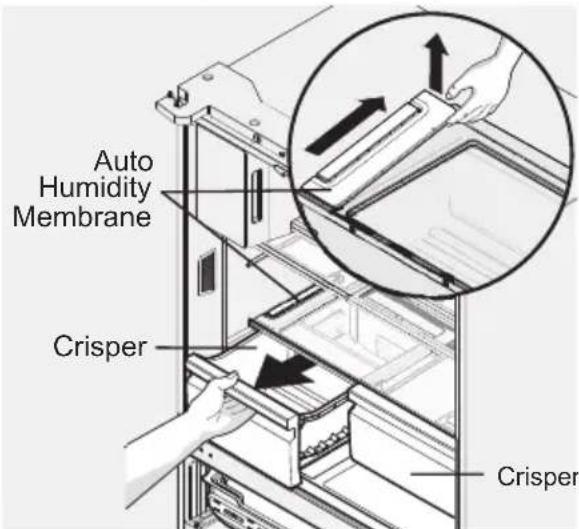

To remove the auto humidity control membrane:

1. Reach to back of humidity control cover.
   2.Pull up on cover.
   3.Pull cover towards back of cabinet and remove.

2. Wash the humidity membrane with water and soap

3. Replace cover by reversing the steps above. Repeat for both crispers.

Removing Auto Humidity Control Membrane

NOTE

Producer does not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. Replacement membranes can be found on www.aeg.com

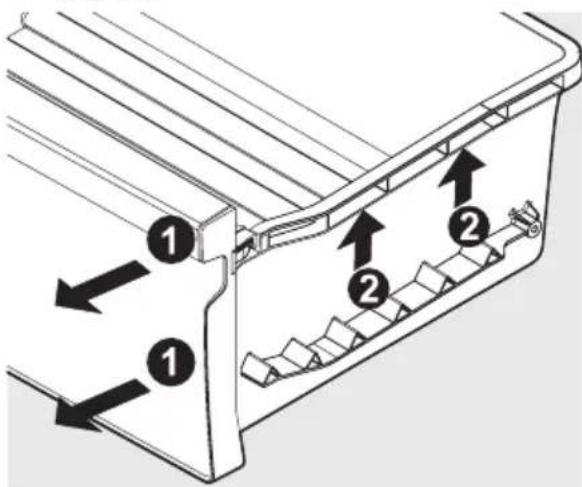

To remove the Ultra Fresh drawer for cleaning:

1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the drawer.

Removing Ultra Fresh Printer

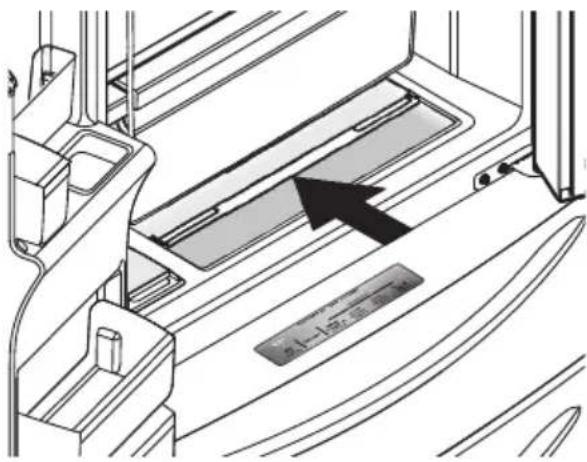

Snack Zone - Recessed Snack Drawers

These drawers are ideal for storage of deli meats and cheeses.

To open: slide back the cover to allow access to the drawers.

Opening Snack Zone Recessed Snack Drawers

To move door bin along a rail:

1. Tilt bin up so the back of the bin is off the door but the hook is still engaged.
2. Slide bin along rail to desired position.
3. Lower bin back into place.

To move door bin from rail to rail:

1. Lift bin up disengaging the hook.
2. Move bin to desired rail location.
3. Push bin hook into rail engaging the hook.

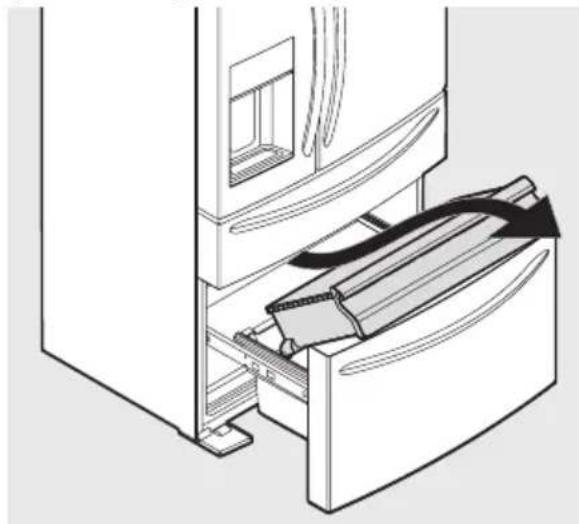

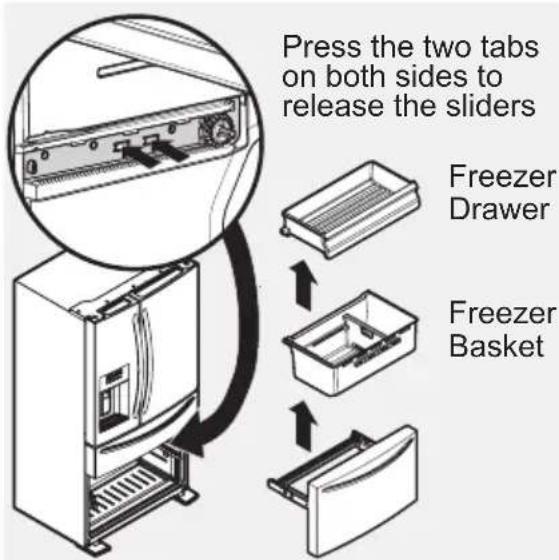

8.3 Freezer Features (varies by model)

FreezerDrawer

To remove upper freezer drawer:

1. Open freezer compartment completely.
2. Lift up and out to remove upper freezer drawer.

Reverse the steps to reinstall drawer.

IMPORTANT

There are wheels on the bottom of the drawer. Make sure all wheels are aligned on their respective tracks for proper function. If drawer is not aligned properly, it will cause problems with the door operation.

NOTE

If basket is not resting on stabilizer bar retainer clips, the drawer will not close properly.

To remove freezer basket:

1. Open freezer compartment completely.
2. Lift the basket up and remove.

Reverse the steps to reinstall drawer.

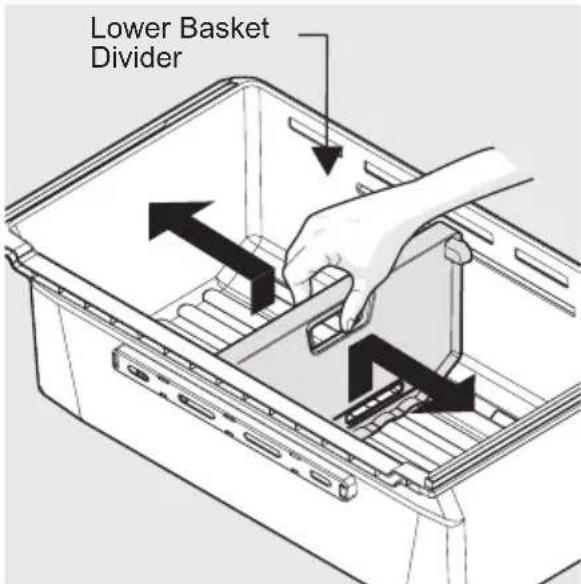

8.3 Dividers

Grab hand hold on lower divider and pull up slightly to slide to next position.

(The divider cannot be removed.)

Plastic Lower Basket Divider

9. CONNECTING THE WATER SUPPLY

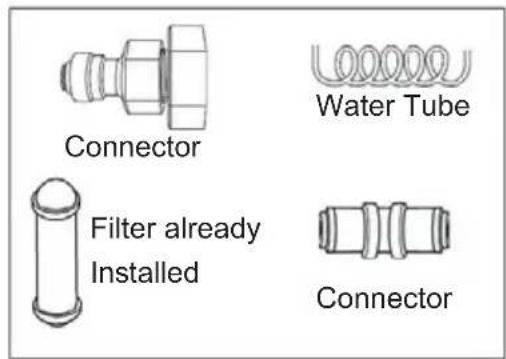

Water supply kit

Check the parts below for installing water supply.

WARNING

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

1. When installing the water tubes, ensure they are not close to any hot surface.
2. The water filter only "filters" water; it does not eliminate any bacteria or microbes.

3. If the water pressure is not high enough to run the icemaker, call the local plumber to get an additional water pressure pump.

4. The filter life depends on the amount of use. We recommend you replace the filter at least once every 6 months, (look at "changing the filter").

5. Use sealing tape to every connection of pipes/tubes to ensure there is no water leak.
6. The water tube should be connected to the cold water line.

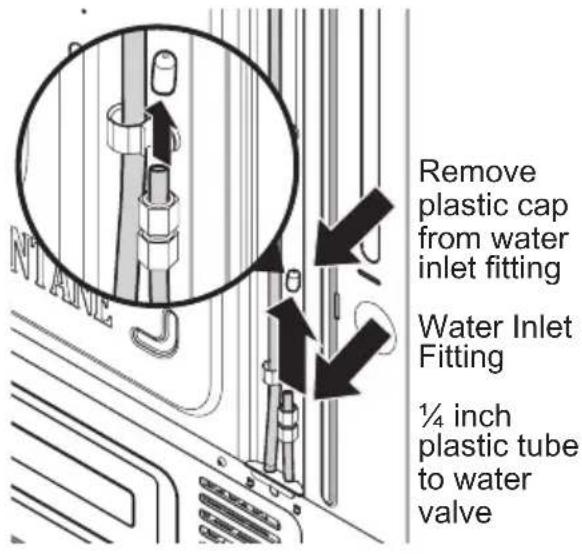

Installation Procedure

Join Connector to the tap water line.

1. Remove plastic cap from water valve inlet and discard cap.

1. After installation of refrigerator and water line system, select "WATER" on your control panel and press it for 1-2 minutes to supply water into the water tank and dispenser water.

10. CHANGING THE FILTER

10.1 Air Filter (select models)

The air filter is located in the top center of the fresh food compartment.

10.2 Replacing the Air Filter (TasteGuard)

To ensure optimal filtering of refrigerator odors, change the air filter every six months (Replace Air Filter on the Display indicates replacing the filter after six months).

1. Remove the air filter cover by squeezing the top and bottom of the cover together and removing from liner.
2. Remove the old filter and discard it.
3. Unpack the new filter and slide it into the housing. The open face must (carbon media) of the filter should be installed facing the air port (hole) in the multiflow.
4. Replace the air filter cover by squeezing the sides and snapping it back into place.
5. Press and hold the "Reset Air Filter" button on the Display for three

seconds. When the indicator turns off, the status has been reset.

10.3 Ordering Replacement Air Filters

Use original spare parts only. Please contact an Authorised Service Centre

10.4 Water Filter

The refrigerator is equipped with a water filtering system. The water filtering system filters all dispensed drinking water, as well

as the water used to produce ice. The water filter is located at the top right side of the fresh food compartment.

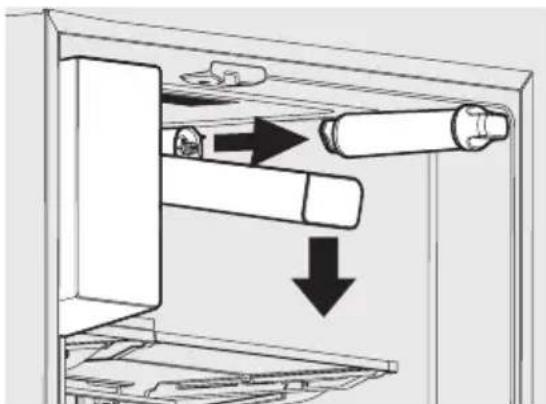

10.5 Replacing the Water Filter

Change the water filter every six months to ensure the highest possible water quality. Replace Water Filter on the display indicates when to replace the filter after a standard amount of water (473 liters) has flowed through the system.

If the refrigerator has not been used for a period of time (during moving for example), change the filter before reinstalling the refrigerator.

To Remove: Pull cover forwards and cover will drop down and allow access to filter.

To Reinstall: Push cover up towards liner and then push towards rear of cabinet. Filter cover will snap back into place.

10.6 Ordering Replacement Water Filters

Use original spare parts only. Please contact an Authorised Service Centre

To replace the water filter:

It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.

1. Turn off the ice maker by pressing and holding the Ice Maker button on the display until no longer illuminated.

2. Push down on front edge of filter cover. Cover will tilt down and expose water filter.

3. Remove the old filter by rotating it counter-clockwise (to the left) 90 degrees to release it.

4. Slide the old filter cartridge straight out of the housing and discard it.
5. Unpackage the new filter cartridge. Slide it into the filter housing as far as it will go with the grip end horizontal.
6. Push lightly inward on the filter while rotating it clockwise (to the right). The filter will then pull itself inward as it is rotated. Rotate the filter 90 degrees until it stops and the grip end is vertical. A very light click may be heard as the filter locks into place.
7. Press a drinking glass against the water dispenser while checking for any leaks at the filter housing. Any spurs and sputters that occur as the system purges air out of the dispenser system are normal.
8. Continue dispensing water for 3-4 minutes. It may be necessary to empty and refill the container several times.
9. Turn on the ice maker by pressing and holding the Ice Maker button on the display until it is illuminated.
10. Press and hold the Reset Water Filter button on the display for three seconds. When indicator is no longer illuminated, the water filter status has been reset.
11. Replace filter cover by pushing up and snapping into place.

11. INSTALLATION

WARNING!

Refer to Safety chapters.

Tools Necessary:

This User Manual provides general installation and operating instructions for this model. We recommend using a service or kitchen contracting professional to install the refrigerator. Use the refrigerator only as instructed in this User Manual. Before starting the refrigerator, follow these important first steps.

11.1 Location

• Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or other heat sources.
• The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.
• Consider water supply availability for models equipped with an automatic ice maker.

CAUTION

Do Not install the refrigerator where the temperature will drop below 10^ or rise above 43^ . The compressor will not be able to maintain proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of the refrigerator. Sufficient air circulation is essential for the proper operation of the refrigerator.

11.2 Installation

Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top 40 mm

Back 30 mm

NOTE

If the refrigerator is placed with the door hinge side against a wall, allow additional space so the door can be opened wider.

11.3 Door opening

The refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.

11.4 Cabinet Leveling & Refrigerator Door Alignment (if necessary)

Guidelines for final positioning of refrigerator:

• All four corners of the cabinet must rest firmly on the floor.
• The front should be slightly elevated to ensure that doors close and seal properly.
• Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1. Slightly open freezer drawer.
2. Lower anti-tip legs until they are both touching the floor. Once on the floor, use a pair of pliers to adjust.

To raise unit: turn leg clockwise.
To lower unit: turn leg counterclockwise.

1. Ensure both doors are bind-free with their seals touching the cabinet on all four sides and that cabinet is stable.

To make final door height adjustments:

1. Open freezer drawer to make lower hinge visible.
2. Insert 6mm Allen wrench into the shaft of the lower hinge.
3. Adjust the height by turning clockwise or counterclockwise. Turning clockwise will lower the door. Turning counterclockwise will raise the door. Default setting is to the lowest height.

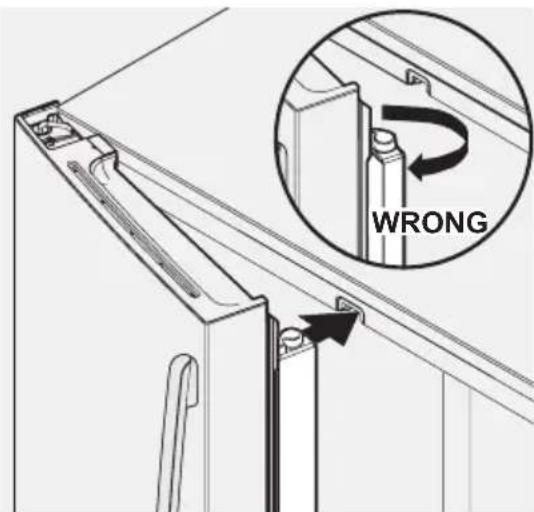

11.5 Flipper Mullion

Adjust Flipper Mullan for proper connection with the mullion guide by ensuring the flipper mullan is folded and perpendicular to the fresh food door. If the mullan guide is not in the correct position, it could prevent the door from closing completely.

12. DOOR REMOVAL INSTRUCTIONS

12.1 Getting through narrow spaces

If refrigerator will not fit through an entrance area, doors can be removed. Check first by measuring the entrance.

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from the wall outlet.
2. Remove any food from the door shelves and close the doors.

To remove the refrigerator doors:

1. Open doors to 90^ .
2. Remove all five Phillips screws from top hinge cover and lift up.

1. Trace lightly around the door's top hinges with a pencil. This makes reinstatement easier.
2. Lift off the top hinge cover.

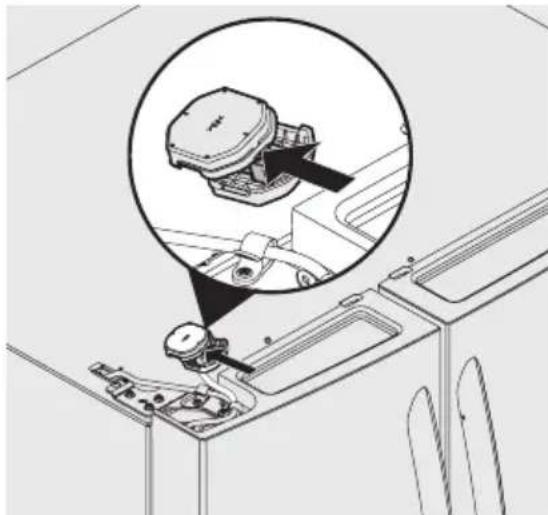

1. Disconnect electrical harness running from door to hinge cover.

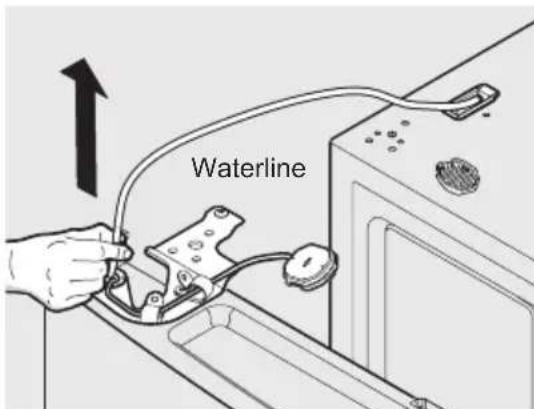

1. Pull up on water line gently to remove from door.

NOTE

Use care while pulling the water tube from the door to be sure that tube does not kink.

NOTE

Approximately four feet of water tube will be pulled from the refrigerator door.

1. Remove three 8mm bolts from both top hinges.

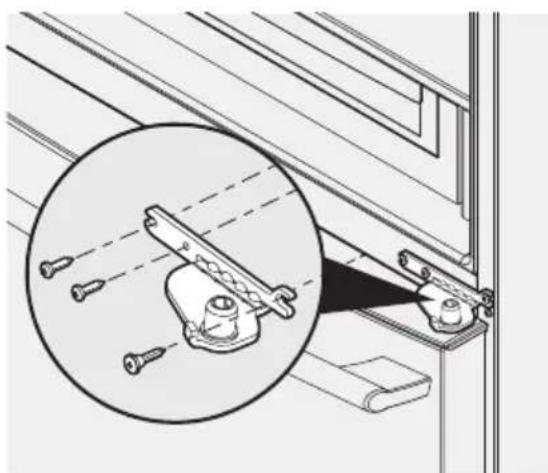

1. To gain access to lower hinge, drawer will need to be extended. Unscrew the three lower hinge screws and slide the hinge inwards Lift up on door and remove from bottom hinge.

Lower Hinge Removal

CAUTION

Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.

1. To reinstall doors, reverse procedure.

IMPORTANT

Make sure water line tubing goes through hole at top of dispenser pocket. There is also a metal wrap on the tubing to prevent damage from the hinge rubbing against it. This needs to be fixed back around the tube in the proper location upon reinstallation (just as long as the tube is protected from the hinge).

NOTE

When reinserting the water tube and replacing the top hinge cover, use care to be sure the tube does not kink.

Once both doors are in place, ensure they are aligned with each other and level (Please see the Installation section for more details), and replace the top hinge cover.

12.2 To remove the MultiSwitch/MultiChill drawer

1. Fully open drawer.
2. Remove basket from drawer.
3. Unclip harness at front of drawer and move harness out of the way of drawer slides.
4. Press liner clips and slide rail past clips on both sides to fully remove drawer from cabinet.
5. Reverse the steps to reinstall the drawer.

12.3 Removing Freezer Drawing

CAUTION

Drawer is heavy. Use caution when lifting.

1. Open drawer and fully extend.
2. Remove the freezer drawer.
3. Remove the freezer basket.
4. Inside the cabinet, press the two tabs on both sides to release the sliders.
5. Remove the drawer with brackets and sliders.

12.4 Re-installing Freezer. Drawer

1. Place drawer with brackets and sliders inside the cabinet and click into place.
2. Replace the basket.

NOTE

For additional instructions, see Storage Features section.

13. HELPFUL HINTS AND TIPS

Energy saving tips

We recommend that you follow the tips below to save energy.

Try to avoid keeping the door open for long periods in order to conserve energy.
- Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc).
- Don't set the temperature colder than necessary.
- Don't store warm food or evaporating liquid in the appliance.
- Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.
- View 1 under the "Description of the appliance" section shows the correct arrangement for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.

• Do cover or wrap the food, particularly if it has a strong flavor.

• Place food properly so that air can circulate freely around it.

Hints for refrigeration

• Meat (All Types) Wrap in polythene food wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.
  Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.
• Fruit and vegetables: They should be stored in the special Crisper drawer.
  Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
  Prepare food in small portions to enable it to be rapidly and completely

frozen and to make it possible to subsequently thaw only the quantity required.

• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin.
• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer

• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould on the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

14. CLEANING AND CARE

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

CAUTION!

The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

To maintain good appearance of your appliance, you should clean it regularly.

• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wipe dry with a soft cloth.

CAUTION!

• Don't use sharp objects as they are likely to scratch the surface.
• Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

• You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts.

• Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the supply of food stocks are low and proceed as follows:

• Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.

• When defrosting is completed, clean your freezer as described above.

CAUTION!

Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

CAUTION!

Only after the door seals are completely dry should the appliance be powered on.

WARNING!

The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance.

15. BEFORE CALLING

Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is not making any ice.	· Ice maker is turned off.	· Turn on ice maker. For the fresh food ice maker, press ice maker on-off button once.
	· Refrigerator is not connected to water line or water valve is not open.	· Connect the unit to the household water supply and ensure the water valve is open.
	· The water supply line is kinked.	· Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
	· The water filter is not seated properly.	· Remove and re-install the water filter. Be sure to seat it fully into the locked position.
	· The water filter may be clogged with foreign material.	· If water dispenses slowly or not at all, or if the filter is six months old or older, it should be replaced.
Ice maker is not making enough ice.	· Ice maker is producing less ice than expected.	· The ice maker will produce approximately 1 kg of ice (fresh food ice maker) every 24 hours depending on usage conditions.
	· The water filter may be clogged with foreign material.	· If water dispenses slower than normal, or if the filter is six months old or older, it should be replaced.
	· The water supply line is kinked.	· Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.
	· Water pressure is extremely low. Cut-off and cut-on pressures are too low (well systems only).	· Have someone turn up the cut-off and cut-on pressure on the water pump system (well systems only).
	· Reverse osmosis system is in regenerative phase.	· It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.
Ice cubes are freezing together.	· Ice cubes are not being used frequently enough or interruption of power for prolonged time.	· Remove ice container and discard ice. The ice maker will produce fresh supply. Ice should be used at least twice weekly to keep the cubes separated.
	· Ice cubes are hollow (shells of ice with water inside). The hollow cubes break open in the bin and leak their water onto existing ice, which causes it to freeze together.	· This generally occurs when the ice maker does not get enough water. This is usually the result of a clogged water filter or restricted water supply. Replace the water filter and if the condition still occurs, check to see if the water valve is not turned on all the way or if there is a kinked water supply line.
Dispenser (Ice & Water)
Dispenser will not dispense ice.	· There is no ice in the bin to be dispensed.	· See the "Ice maker is not making any ice" section.
	· The refrigerator doors are not completely closed.	· Be sure the refrigerator doors are completely closed.
	· Dispenser paddle has been pressed too long and the dispenser motor has overheated.	· The motor overload protector will reset in about three minutes and then ice can be dispensed.
Ice dispenser is jammed.	· Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.	· Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate.
	· Ice cubes are jammed between ice maker and back of ice container.	· Remove ice cubes that are jamming the dispenser.
Dispenser will not dispense water.	· Water filter not seated properly.	· Remove and reinstall the water filter. For Puresource Ultra II, be sure to rotate it to the right until it stops and the grip end is vertical.
	· Water filter is clogged.	· Replace filter cartridge. Be sure to rotate it to the right until it stops and the grip end is vertical.
	· Household water line valve is not open.	· Open household water line valve. See CONCERN column AUTOMATIC ICE MAKER.
Water not cold enough.	· As warmer tap water goes through the filter and enters the water supply system, the chilled water is pushed through to the dispenser. Once the chilled water is used up, it will take several hours to bring the freshly replaced water to a cooler temperature.	· Add ice to cup or container before dispensing water. Note: Only first 750 ml are chilled.
Water has an odd taste and/or odor.	· Water has not been dispensed for an extended period of time.	· Draw and discard 10-12 glasses of water to freshen the supply.
	· Unit not properly connected to cold water line.	· Connect unit to cold water line that supplies water to the kitchen faucet.
Opening/Closing Of Doors/Drawers
Door(s) will not close.	·Door was closed too hard, causing other door to open slightly.	·Close both doors gently.
	·Refrigerator is not level. It rocks on the floor when moved slightly.	·Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.
	·Refrigerator is touching a wall or cabinet.	·Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.
	·Check gasket and cabinet interface for any obstructions.	·Clean the refrigerator door gaskets and interface with warm, soapy water to remove any grease, dirt and grime from the surface. Wipe clean with a dry cloth. Inspect the gasket to make sure it is thoroughly clean.
Drawers are difficult to move.	·Food is touching shelf on top of drawer.	·Remove top layer of items in drawer.
	·Track that drawers slide on is dirty.	·Ensure drawer is properly installed on track.
		·Clean drawer, rollers, and track. See Care & Cleaning.
Running of Refrigerator
Compressor does not run.	·Refrigerator is in defrost cycle.	·This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.
	·Plug at electrical outlet is disconnected.	·Ensure plug is tightly pushed into outlet.
	·House fuse blown or tripped circuit breaker.	·Check/replace fuse with a 15 amp time- delay fuse. Reset circuit breaker.
	·Power outage.	·Check house lights. Call local electric company.
Refrigerator seems to run too much or too long.	·The variable speed compressor is designed to run 100% of the time except during the defrost cycle. At times it will run faster, such as after a defrost cycle.	·It is normal for the compressor to run continuously except during defrost mode.
Digital Temperature Setting Display
Digital temperature displays an error.	Electronic control system has detected a performance problem.	Contact Electrolux Customer Care for assistance.
Water/Moisture/Frost Inside Refrigerator
Moisture collects on inside of refrigerator walls.	Weather is hot and humid.	The rate of frost buildup and internal sweating increases.
	Flipper mullion	Adjust flipper mullion. (See "To adjust the flipper mullion" in the Installation section.)
Water collects on bottom side of drawer cover.	Vegetables contain and give off moisture.	It is not unusual to have moisture on the bottom side of the cover.
		Both crispers contain an automatic humidity control, which should adjust automatically to the varying levels of moisture inside the drawer without creating additional condensation or drying out the air inside the risper drawer, works with various types of produce. If excess moisture is noticed, check to verify humidity membrane is not damaged and replace as necessary.
Water collects in bottom of drawer.	Washed vegetables and fruit drain while in the drawer.	Dry items before putting them in the drawer. Water collecting in bottom of drawer is normal.
Water/Moisture/Frost Outside Refrigerator
Moisture collects on outside of refrigerator or between doors.	Weather is humid. This is normal in humid weather. When humidity is lower, the moisture should disappear.
Food/Drinks in Fresh Food Compartment/Multi Switch drawer
Food is freezing.	Temperature setting is too low.	Move the setting to a higher degree.
	Temperature sensor is covered by food (right side of fresh food area).	Allow space for air flow to the sensor.
	Food is covering the air ports.	Allow space between the air ports and the food.
Cold Drink Timer
Drinks are freezing.	Temperature setting is too low.	Move temperature setting higher.
	Cold drink timer is set too long.	Reduce time of cold drink timer accordingly.

16. DISPOSAL OF THE APPLIANCE

The refrigerator is built from reusable materials. It must be disposed of in compliance with current local waste disposal regulations. The appliance contains a small quantity of refrigerant (R600a) in the refrigerant circuit. For your safety please refer to the section of "the refrigerant and risk of fire" in this Instruction Manual before scrapping the

appliance. Please cut off the power cord to make the refrigerator unusable and remove the door seal and lock. Please be cautious of the cooling system and do not damage it by puncturing the refrigerant container and/or bending the tubing, and/or scratching of the surface coating.

Correct Disposal of this product

This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product.

17. TECHNICAL DATA

Dimension

Height 1782 mm

Width 913 mm

Depth 746 mm

Rising Time 14 h

Voltage 220-240 V

Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

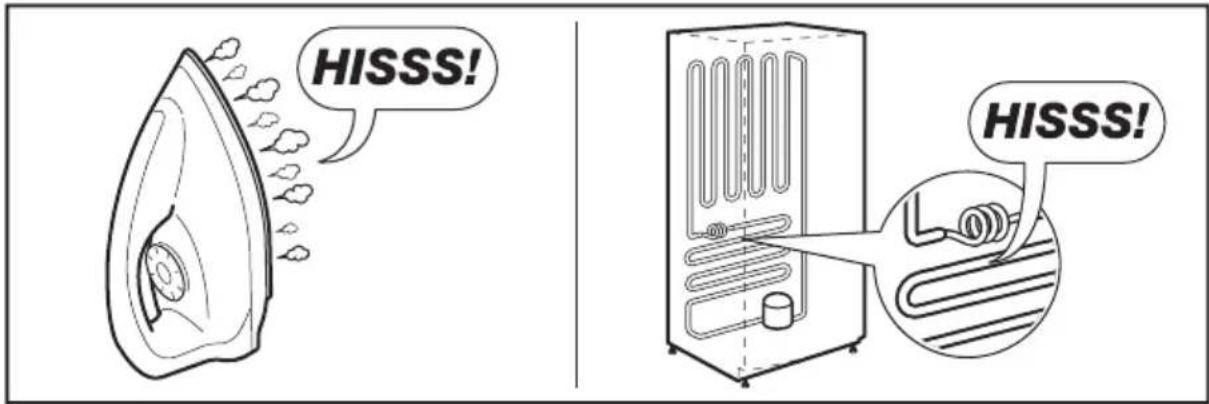

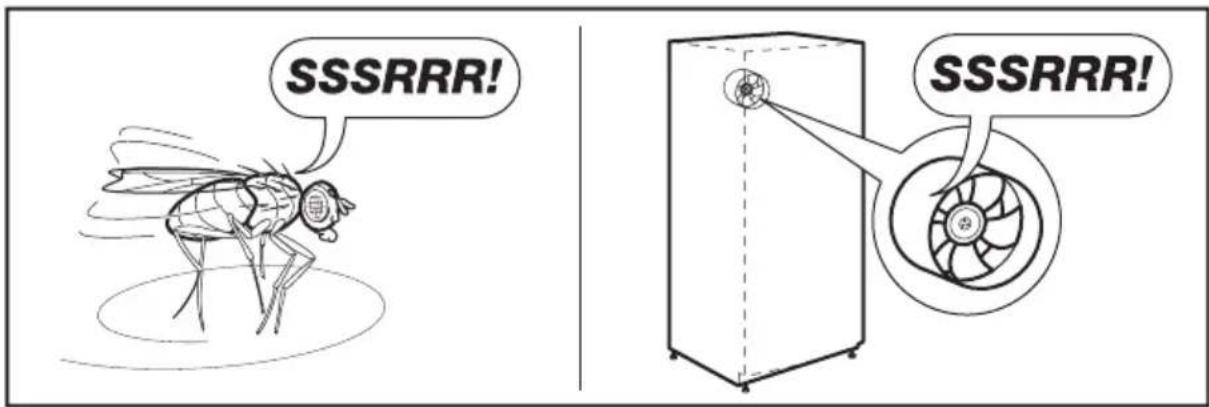

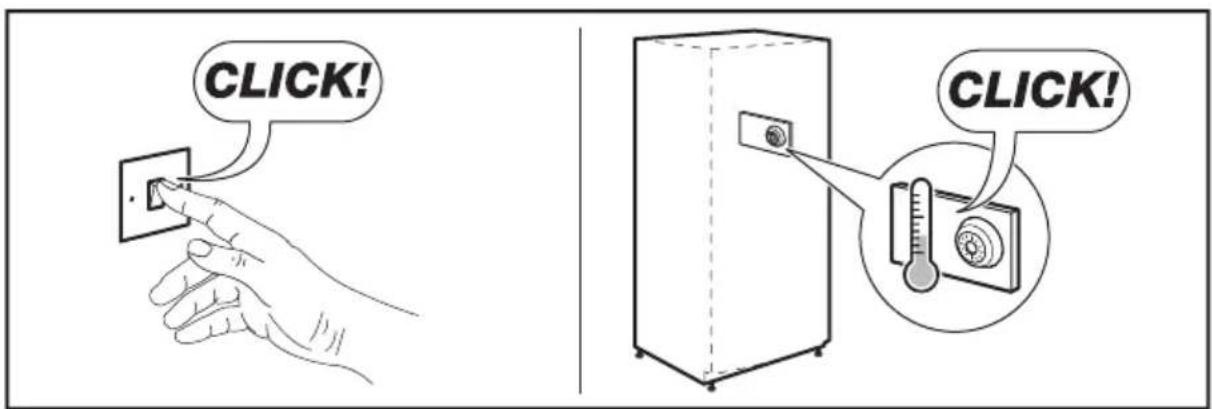

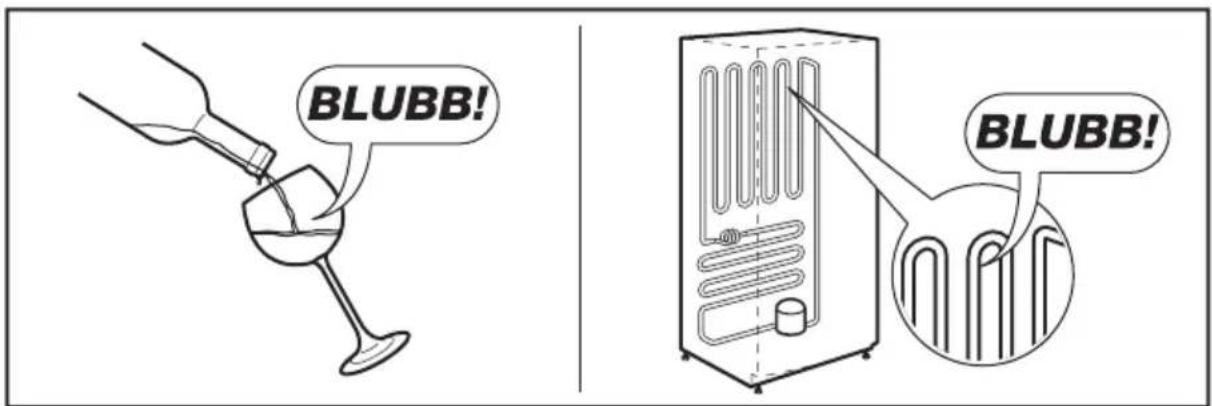

18. NOISES

There are some sounds during normal running (compressor, refrigerant circulation).

INDHOLD

1. SIKKERHEDSOPLYSNINGER 39
2. ANVISNINGER VEDR. SIKKERHED 41
3. MILJØHENSYN 42
4. BESKRIVELSE AF APPARATET 43
5. INSTALLATION AF DIT NYE APPARAT 44
6. DISPLAYSTYRINGER 45
7. BRUG AF DISPENSEREN 50
8. OPBEVARINGSFUNKTIONER 53
9. TILSLUTNING AF VANDFORSYNING 56
10. UDSKIFTNING AF FILTER 57
11. INSTALLATION 59
    12.VEJLEDNINGER TIL LAGEFJERNELSE 61
    13.NYTTIGE OPLYSNINGER OG RAD 63
12. RENGORGING OG PLEJE 64
    15.INDEN DU RINGER 65
13. BORTSKAFFALSE AF PRODUKTET 70
14. TEKNISKE DATA 70
    18.LyDE 71

FOR PERFEKTE RESULTATER

5. INSTALLATION AF DIT NYE APPARAT

1.1 Installation of applikationen "My AEG Kitchen"

1.1 Installere append "My AEG Kitchen"

Snack Zone - Innfelt Snack Skuffer

Disse skuffene er ideelle for lagring av delikatesser og oster.

11.5 Flipper Mullion

7.1 Anvanda ismaskinen after installation

4. BESCHRIJVING VAN HET APPARAAT

Koelkast

16. AFVALVERWERKING VAN HET APPARAAT

Thermostat requires adjustment

Correct temperature

OK-

Cassetto latticini Flex 2/3

19

Cassetto sportello Flex 1/3

20

Cassetto sportello Flex 2/3

21

11.5 Flipper Mullion
