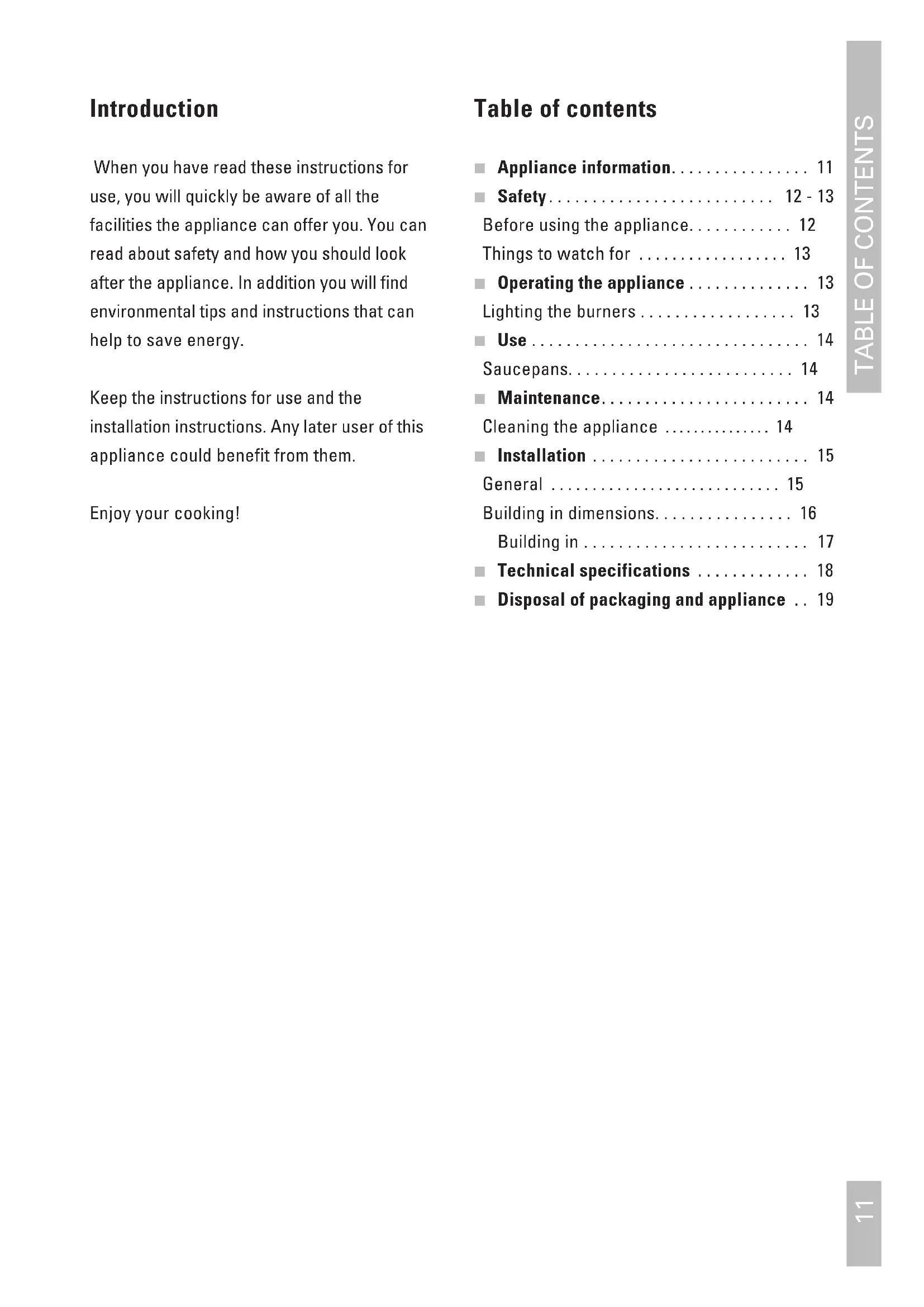

• Introduction When you have read these instructions for use, you will quickly be aware of all the facilities the appliance can offer you. You can read about safety and how you should look after the appliance. In addition you will find environmental tips and instructions that can help to save energy. Keep the instructions for use and the installation instructions. Any later user of this appliance could benefit from them. Enjoy your cooking! Table of contents N Appliance information p. 11
• N Safety p. 12
• - 13 Before using the appliance p. 12
• Things to watch for p. 13
• N Operating the appliance p. 13
• Lighting the burners p. 13
• N Use p. 14
• Saucepans p. 14
• N Maintenance p. 14
• Cleaning the appliance p. 14
• N Installation p. 15
• General p. 15
• Building in dimensions p. 16
• Building in p. 17
• N Technical specifications p. 18
• N Disposal of packaging and appliance 700003299000_HL_HG6111K.indd 11 2-12-2009 9:16:1112 Before using the appliance N The fitting of the appliance should only be carried out by a registered Corgi gas fitter. N Only use the appliance if it has been built in correctly. Damage to an incorrectly installed appliance is excluded from the guarantee. N During repair the appliance needs to be disconnected from the power supply (electricity and gas). Remove the plug from the wall socket or turn the switch in the metre cupboard to zero (for gas hobs with a spark switch). Turn off the gas tap in the feeder pipe. N This cooking appliance is designed for household use. It should only be used for preparing meals. N When boiling and frying the hob gets hot. Please pay close attention to small children. N Grease and oil are flammable when over- heated. Stay near the appliance when preparing dishes. N Do not use the appliance to heat the kitchen. This will produce a damp atmosphere. N When a gas cooking appliance is being used heat and moisture is produced in the area where the appliance is situated. Make sure that the area is sufficiently ventilated; open natural ventilation openings. When the hob is used for longer periods extra ventilation may be needed, such as an open window. N The burners should not be used without pans. Never place aluminium or plastic trays directly onto a burner. N Be careful with the cables of electrical equipment, such as a mixer. These should not be allowed to touch hot burners. N The underside of the built-in hob becomes hot. Take care that you do not place any flammable or plastic objects in any drawer under the appliance. N Before installing the appliance, check that the gas sort and gas pressure of the gas source are in accordance with what is specified on the model data plate. SAFETY 700003299000_HL_HG6111K.indd 12 2-12-2009 9:16:1113 Things to watch for Clean immediately N Any spillage should be removed immediately, particularly red cabbage, apple sauce and rhubarb. These can leave permanent spots on the enamel or on stainless steel. Burning in of the enamel N The burners cause the saucepan supports to get extremely hot. Over time the enamel on the support points can burn in. This cannot be prevented and is not covered by the guarantee. Burner caps N Check regularly to ensure that the caps of the burners are properly in position on the burner depressions; improper positioning can make it difficult to light the burners, give rise to an irregular gas flame, or damage the burner caps. Lighting the burners While keeping the knob of the burner held in, turn the knob to the left and light the burner with a match. The gas flame can now be smoothly adjusted from high to low. Electrical spark switch N Press the desired control knob and turn it to the left to the maximum setting. Keep the control knob depressed until the burner ignites. Thermocouple protection N This appliance is fitted with a thermocouple. This is a thermoelectric protection system. It ensures that the gas tap is closed if the flame goes out. SAFETY/OPERATING Burner casing Spark plug Burner ring Burner cap Injecter 700003299000_HL_HG6111K.indd 13 2-12-2009 9:16:1114 USE/MAINTENANCE Saucepans The recommended saucepan diameters are: rapid burner minimum 24 cm. semi-rapid burner minimum 20 cm. simmer burner minimum 12 cm. wok burner minimum 24 - 26 cm. Wrong: A great deal of heat is lost along the sides of the saucepan. Right: The heat is evenly distributed over the base of the saucepan. Tip: Cooking with a lid on the pan saves up to 50% on energy. Clean saucepans absorb heat more efficiently. Cleaning the appliance N Clean the appliance daily with water and a detergent or all purpose cleaner. Avoid using too much water to prevent it entering the burner or ventilation openings. N Remove stubborn stains on enamel with a non-abrasive cream or a soft sponge. Never use scouring powders, aggressive cleaning agents, green scours. N Remove stubborn stains on stainless steel with a special stainless-steel cleaning agent. Always polish in the direction of the surface structure of the stainless steel. In this way, you will prevent shiny patches occurring. If stains cannot be removed, clean the hob with the proprietary HG oven & grill cleaner. Always treat the whole drip-tray, to prevent “colour differences”. Always treat with a stainless-steel polish / care product afterwards. N Scourers contain abrasives that cause scratches on stainless steel. The stainless steel has a surface structure. Scouring or polishing will cause (shiny) patches on the surface. This damage is excluded from the guarantee. Please note: Do not drop hot burner caps in cold water. Because of the strong cooling they might get damaged. 700003299000_HL_HG6111K.indd 14 2-12-2009 9:16:1115 General The fitting of the appliance should only be carried out by a registered Corgi gas fitter. Please note: This appliance is not connected to a flue duct. Take care to ensure that there is sufficient ventilation. Electrical connection 230 V - 50 Hz. This appliance complies the regulations concerning electromagnetic compatibility in directive 89/336/EEC. N The electrical connection must comply with national and local regulations. N Wall socket and plug must be accessible at all times. N If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable. Gasconnection RC 1/2ý (ISO 7/1-RC 1/2) N The gas connection must comply with national and local regulations. Amongst other things these regulations instruct that: – only approved materials are to be used; – only a completely metal hose may be used behind a built-in oven and beneath the hob. Please note: The type of gas and the country for which the appliance has been designed are indicated on the data badge. N We recommend that the hob be connected by means of a fixed pipe. Connection using a specially designed safety hose is also permitted. In all cases the connection tap for the appliance must be positioned such that it is easily accessible, in an adjacent kitchen cupboard, for example. Please note: A metal safety hose must not get kinks in it or get trapped and must not come into contact with moving parts of the kitchen furniture. N Before using the appliance for the first time check the connections using water and washing-up liquid to ensure that there are no gas leaks. N Do not install a hob next to a high cupboard or wall made of flammable material. (If there is no alternative, ensure that there is a minimal distance of 150 mm between the outer edge of the hob and the wall in question. Also ensure that there is a minimum distance of 650 mm between the hob and any overhead extractor fan which may be installed.) INSTALLATION 700003299000_HL_HG6111K.indd 15 2-12-2009 9:16:1116 INSTALLATION Building in dimensions Saw the opening in the worktop. This should be done very accurately (see ill.). Also saw out any partitions that may be present. Ensure that there is sufficient space allowed at the sides and at the back. Ensure that there is a clear space with a height of at least 15 mm below the hob. Please note: The distance between the hob and the rear wall must be at least 40 mm. p. 19

1. Make a hole in the side of the kitchen

cabinet to enable the gas pipe to be passed through.

2. Stick the strips of sealant to the underside

of the hob (see above).

3. Place the appliance in the cut-out.

4. Secure the hob by tightening screw (A) to

secure clamp (B or C) (see below). INSTALLATION Situation II securing the front strip of sealant securing the rear strip of sealant Situation I

5. Make the gas connection. Check the gas

connections with a soap/water mixture (see “Gas Connection”).

6. Put the plug in the socket

(see “Electrical Connection”).

7. Test to check the appliance is operational.

The building in of the hob in combination with a built-in oven is described in the installation guide for the oven. Attention! N The underside of this built-in hob becomes hot. Take care that you do not place any flammable or plastic objects in any drawer under the appliance. Type of hob HG6111K Electric: AC 230 V-50Hz-0,6 VA N Spark switch N Gas:

Dimensions appliance: 620x510x48 lxwxh (mm) N Dimensions recess: 560x480 wxd (mm) N Disposal of packaging and appliances In the manufacturing of this appliance durable materials were used. Make sure to dispose of this equipment responsibly at the end of its lifecycle. Ask the authorities for more information regarding this. The appliance packaging is recyclable. The following may have been used: sCARDBOARD sPOLYTHENEFILM0% s#&#FREEPOLYSTYRENE03HARDFOAM Dispose of these materials in a responsible manner and in accordance with government regulations. As a reminder of the need to dispose of household appliances separately, the product is marked with the symbol of a crossed-out wheeled dustbin. This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. This appliance complies the regulations concerning electromagnetic compatibility in directive 89/336/ EEC. 700003299000_HL_HG6111K.indd 19 2-12-2009 9:16:1220 Description de l’appareil 1 – bouton de commande pour brûleur semi-rapide 1 2 – bouton de commande pour brûleur semi-rapide 2 3 – bouton de commande pour brûleur rapide 3 4 – bouton de commande pour brûleur auxiliair 4 5 – bouton de commande pour brûleur wok 5 6 – bouton de commande pour brûleur rapide 6 7 – plaque d’égouttement 8 – supports pour casseroles Symboles des boutons: 0 fermé grande flamme petite flamme
