Product Type	Food Processor / Blender
Brand	Klarstein
Model	10027052
Power Supply	220-240 V, 50/60 Hz
Power	1800 W
Jug Capacity	Approx. 1.5 L (Max mark)
Functions	Blend, chop, 3 speeds (Low, Middle, High), Pulse function, 7 automatic programs (Sauces, Grind, etc.)
Control Panel	On/Off, Speed, Function, Pulse buttons; LED display
Materials	Jug in glass or plastic (not specified), plastic base, stainless steel blades
Cleaning	Unplug before cleaning; do not use volatile sprays; clean external surfaces with a damp cloth
Safety	Overload protection; do not open or repair yourself; keep out of reach of children; do not use continuously for more than 5 minutes
Included Accessories	Jug, lid, drive shaft
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual

Frequently Asked Questions - 10027052 Klarstein

How to use the Klarstein 10027052 blender?

Place the blender on a flat, dry surface. Fill the jug through the lid opening, starting with soft and liquid foods, then firmer ones. Do not exceed the Max mark. Close the lid, plug in the appliance, select a speed (Low, Middle, High) or a program using the Speed and Function buttons, then press On/Off to start. Use the Pulse function for short bursts.

What safety precautions should be observed?

Do not expose the appliance to rain or moisture. Do not place metal objects in the blender while operating. Do not open or repair the appliance yourself. Always unplug before cleaning. Keep out of reach of children. Do not use continuously for more than 5 minutes. Ensure the mains voltage matches 220-240 V.

How to clean the blender?

Unplug the appliance before any cleaning. Clean external surfaces with a damp cloth and mild detergent. Do not use volatile sprays or abrasive products. The blades and jug can be washed with soapy water. Ensure the blades have completely stopped before removing the lid.

What if the blender does not start?

Check that the appliance is properly plugged in and the power outlet works. Ensure the jug is correctly positioned on the base and the lid is closed. If no speed is blinking, you may be in program mode: press Function to select a program. If the problem persists, contact a qualified service.

What is the power of the Klarstein 10027052 blender?

The blender has a power of 1800 W and operates on a power supply of 220-240 V, 50/60 Hz.

How many speeds does the blender have?

The blender has 3 speeds: Low, Middle, and High. You can also use the Pulse function for bursts and 7 automatic programs (Sauces, Grind, etc.) accessible via the Function button.

Can I blend hot foods?

It is not recommended to blend very hot liquids, as pressure could cause the lid to pop off. Allow food to cool to room temperature before blending. Do not exceed the Max mark and add a little liquid if foods are too firm.

How to use the Pulse function?

The Pulse function allows the blender to operate in short intervals. Use it to dislodge stuck food or for coarse chopping. Hold the Pulse button for the desired duration; the blender stops as soon as you release.

Are the blades removable?

The blades are fixed in the jug and are not designed to be removed by the user. To clean, fill the jug with soapy water and run the blender for a few seconds. Never put your fingers in the jug while the appliance is plugged in.

Where can I find the full manual for the Klarstein 10027052?

The full manual is available for free download in PDF format on notice-facile.com. You can also request a translation in another language by providing your email address.

USER MANUAL 10027052 Klarstein

Row of white icons representing kitchen appliances including blender, kettle, refrigerator, air conditioner, fan, washing machine, and microwave (no text or symbols)

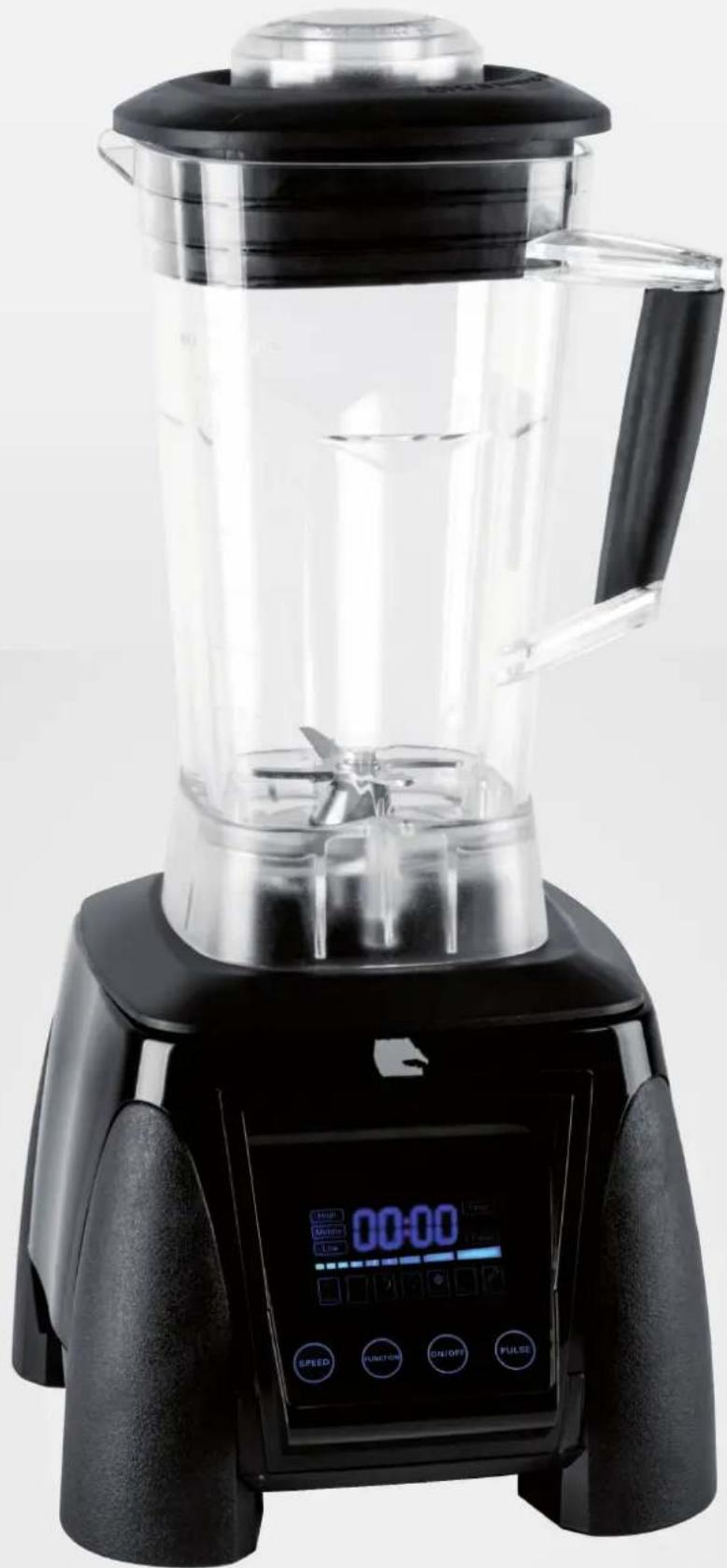

Black and white photo of a modern kitchen blender with digital display and control buttons (no visible text or symbols on the device itself)

Standmixer

10027050, 10027051

10027052, 10027053

KLARSTEIN

Warnung

Gerät

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

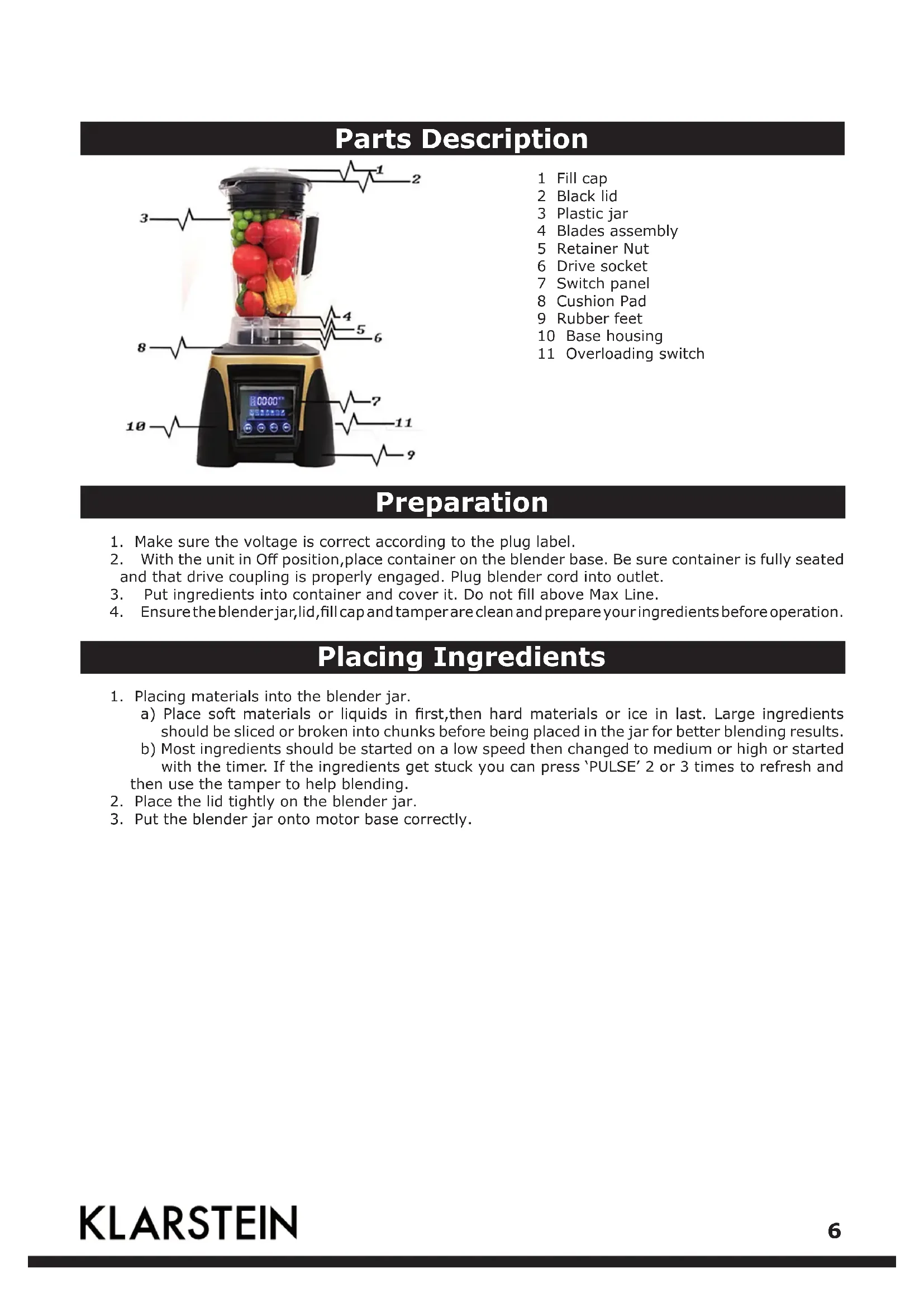

1. Make sure the voltage is correct according to the plug label.
2. With the unit in Off position, place container on the blender base. Be sure container is fully seated and that drive coupling is properly engaged. Plug blender cord into outlet.
3. Put ingredients into container and cover it. Do not fill above Max Line.
4. Ensure the blender jar, lid, fill cap and tamper are clean and prepare your ingredients before operation.

Placing Ingredients

1. Placing materials into the blender jar.

a) Place soft materials or liquids in first, then hard materials or ice in last. Large ingredients should be sliced or broken into chunks before being placed in the jar for better blending results. b) Most ingredients should be started on a low speed then changed to medium or high or started with the timer. If the ingredients get stuck you can press 'PULSE' 2 or 3 times to refresh and then use the tamper to help blending.

1. Place the lid tightly on the blender jar.

2. Put the blender jar onto motor base correctly.

Starting

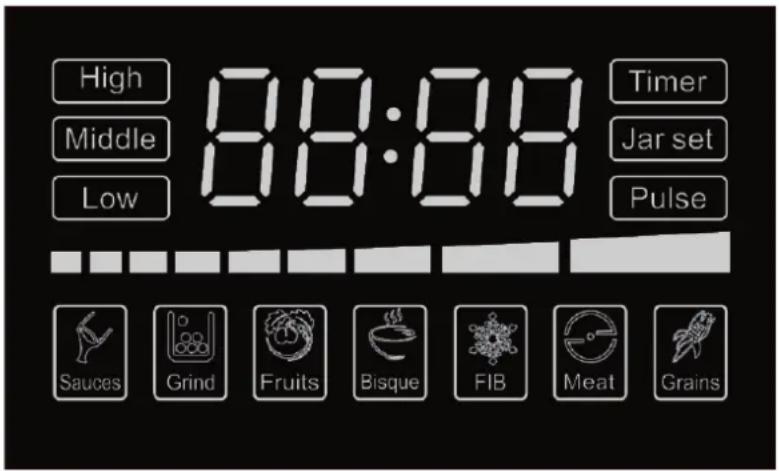

Touch panel Version:

High Middle Low 8:30:8:8 Timer Jar set Pulse Sauces Grind Fruits Bisque FIB Meat Grains

1. This blender is equipped with an electronic glass touch keypad. The keypad has a main power On/Off button, and High Middle and Low, 7 function setting timer and Pulse buttons.
2. Press the On/Off button, to turn on the blender. The whole glass pad will illuminate. For continuous operation, press either Low or Middle or High button, When finished blending, Press stop. For momentary operation, pree the pulse button; motor will run on High speed until the button is released. Also you can press setting, choose the best function for your food blend. Each function will have difference speed and time.
3. To turn the unit off, press On/Off button. Blue LED light will go off.
4. This blender is equipped with a pulse option. Hold paddle switch in down position to engage pulse function. Unit will run on high speed until the paddle switch is released.
5. All Motor to come to a complete stop before removing container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.
6. Always hold container with one hand when starting and while blending. Never operate without jar lid.
7. Wash and dry container after each use.

Under the state of high speed by 5 minutes, it must be stopped 1 minute. When using the mixing rod, take off the fill cap first and then insert into the cap lid.

Cautions

No metal articles, such as knives, forks, spoons...etc. in the container. To prevent the danger of the cutting blade, don't clean by hand.

1. Ensure that the container is securely placed on the motorized base before using the blender.
2. Hold the container before starting as the motor is powerful, also ensure that the clutch is in place.
3. Do not place your fingers inside the jug at anytime, whether on or off the base, due to the sharpness of the blade.
4. Remove the jug from the base before pouring blended produce.
5. Be sure not to touch the switch when the machine has started.

Safeguards

1. Unplug from wall when blender is not in use.
2. The cover can only be opened when the blade has completely stopped rotating.
3. When cleaning, ensure that you unplug the appliance, the jug can be washed separately.
4. Do not submerge the motorized blender base in water or place in the dishwasher.
5. When in use, keep children away to prevent accidents.

Cleaning And Maintenance

1. Always unplug the blender from the power source before cleaning.
2. Clean the machine and relative parts after use.
3. The outer case can be wiped with a damp cloth.
4. Clean the jar every time after use. Do not use abrasives or stiff brushes to clean the blender base or blender jug as this will make them dull or scratch them.
5. There will be some sediment attached to the blades after use. This will affect the blades so please ensure they are cleaned for optimum performance.
6. Make sure the machine is clean and dry before you store it away.
7. Please unplug the machine when not in use for long periods of time and keep the machine away from dust, insects and moisture.
8. DO NOT CLEAN THE BLENDER JUG AND LID IN A DISHWASHER.

Trouble Shooting

Problem Possible cause Solution
Blender fails to run No	power connection Plug in correct power outlet
	Motor overheat protector was tripped	Allow motor to cool down with power off in cool spot
Increased vibration and noise	The machine is not on a level surface	Place the machine on a level surface
	The blender jug has not been placed on the base completely	Make sure the blender jug is placed securely
	Container is too full Decrease the ingredients
Leaking from lid Water	or liquid is too high Decrease the water or liquid
	The lid is not fitted properly Place	the lid tightly on the blender jug

If the problem is still not resolved, please contact your local Distributor for maintenance.

Hints On Disposal

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaratino Of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
