USER MANUAL 10013270 Klarstein

m = 311 ;

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 10

Product Description 10

Control Panel 11

Use and Operation 12

Troubleshooting 13

Hints on Disposal 13

TECHNICAL DATA

Item number 10013269, 10013270
Power supply 220-240 V ~ 50/60 Hz
Power consumption 35 W
Air flow 108 m	3/h
Wavelength UV light 254 nm

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

Pull out the plug when not using the machine for a long time.
- Please take off the packing polybag of filter before using the machine.
- Do not use the air purifier in kitchen.
- Do not put sundries in airflow inlet and airflow outlet.
- Do not look directly to the UV light.
- Place the machine in above 1.5 meters distance from electrical appliance, such as television and computer.
- Do not place the machine beside curtain.
- Do not place the machine to where the children can touch.
- The machine can be only used in the indoor dry place, do not use it under the moist environment, like the bathroom or outdoors.
- Unplug the plug when clean or change the filter.
- Do not pour water on the machine, nor soak the machine in water.
- When using the machine with gas appliance, please allow the indoor air to circulate. Because this machine have no function of eliminating the carbon monoxide.
- Do not place the machine in a heating objects, such as stoves, heaters etc.
- If the machine is broken, it must be repaired by the manufacturer or its service provider or similarly qualified persons.
- The machine must be regularly checked, regularly clear the grime and replace the filter elements, so that the purifying effect won't be affected.

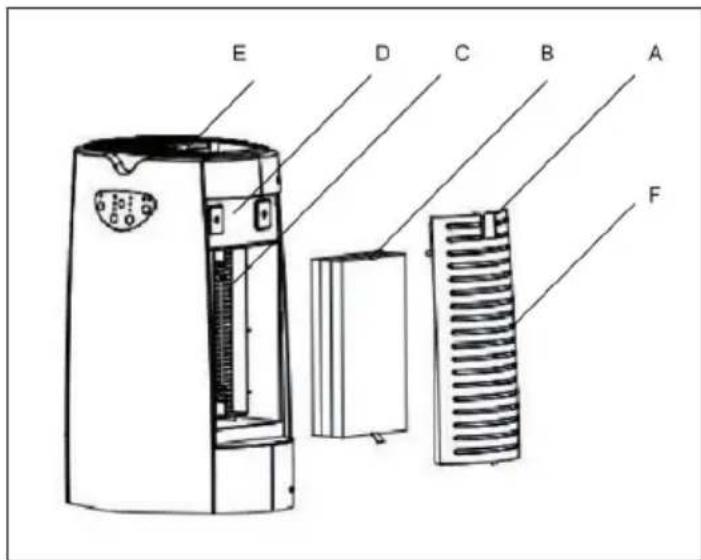

PRODUCT DESCRIPTION

A Handle to open the filter
B 3 in 1 filter pads (HEPA filter, Activated carbon filter, PCO filter)
C UV Lamp (254 nm)
D Magnetism pads
E Air outlet and lonizer
F Air inlet grill and filter cover

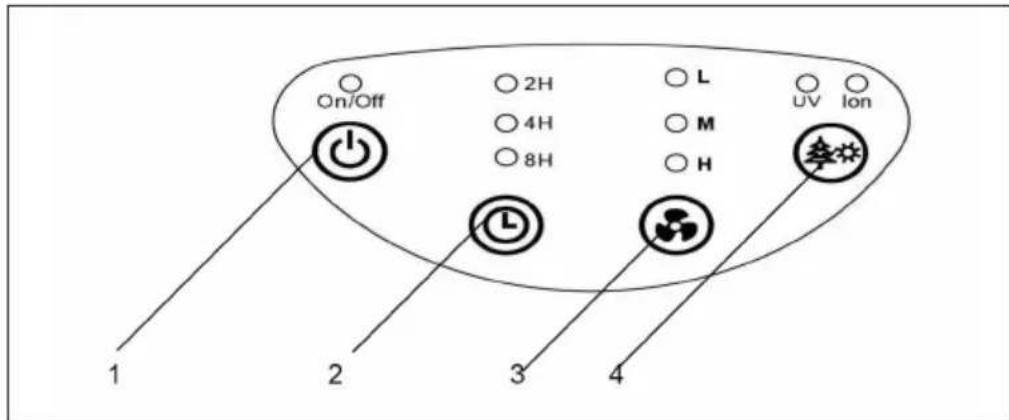

CONTROL PANEL

1 On/Off button

2 Timer button ·By pressing this button, the purifier can be timed to operate for intervals of 2 hours, 4 hours and 8 hours, stopping automatically when the selected operating time has elapsed. ·Press this button (Timer) to select the required operating time. A warning light automatically indicates the remaining operating time. ·To select the continuous operating mode, press the button repeatedly until there are no more amber indicator lights lit up.

3 Speed button ·Low speed ·Mid speed ·High speed To change this speed, press on the SPEED/On button again. The red warning light indicates the selected speed. Note: We suggest to use high speed in 30 minutes for first time usage.

4 Ionizer and UV button ·1st press: lonizer and UV lamp on. ·2nd press: lonizer off and UV lamp on. ·3rd press: lonizer off and UV lamp off ·The default setting is lonizer on and UV lamp is off. The purifier will be come back to default setting after the above 3 press Important note: When the unit is not in use, switch it off and unplug it.

USE AND OPERATION

Remove the plastic protective wrapping for 3-in-1 filter pads (HEPA, active carbon and PCO filters). After removing any plastic bags, reinstall the filters in accordance with the instructions:

123
Open the filter cover. Carefully insert the filter. Reinstall the filter cover. Place the unit in a suitable place and connect it to the mains.

Following the same method you can also replace the dirty filters.

Note: Do not try to wash the 3 in 1 filter, it is not a reusable product. Filter located in the cover can be cleaned with the vacuum cleaner and - if necessary - rinsed with cold water.

To keep your unit operating at strong efficiency, the set of filter pads should be replaced regularly. As usual, the filter can last from 6 months to 12 months under normal conditions of use.

Replacement level Accepted level Better level

TROUBLESHOOTING

Problem Possible cause and suggested solution
Insufficient air flow.	Check that the filters are clean.
	Check for any obstructions in the air inlet and outlet.
Unit will not start. Check the power supply and electric fuses.
Excessive noise.	Check for any foreign objects in contact with the fan.
	The filter may be clogged and ready for replacement.
	The foam sealing gaskets have been installed incorrectly.
	Uneven positioning.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
