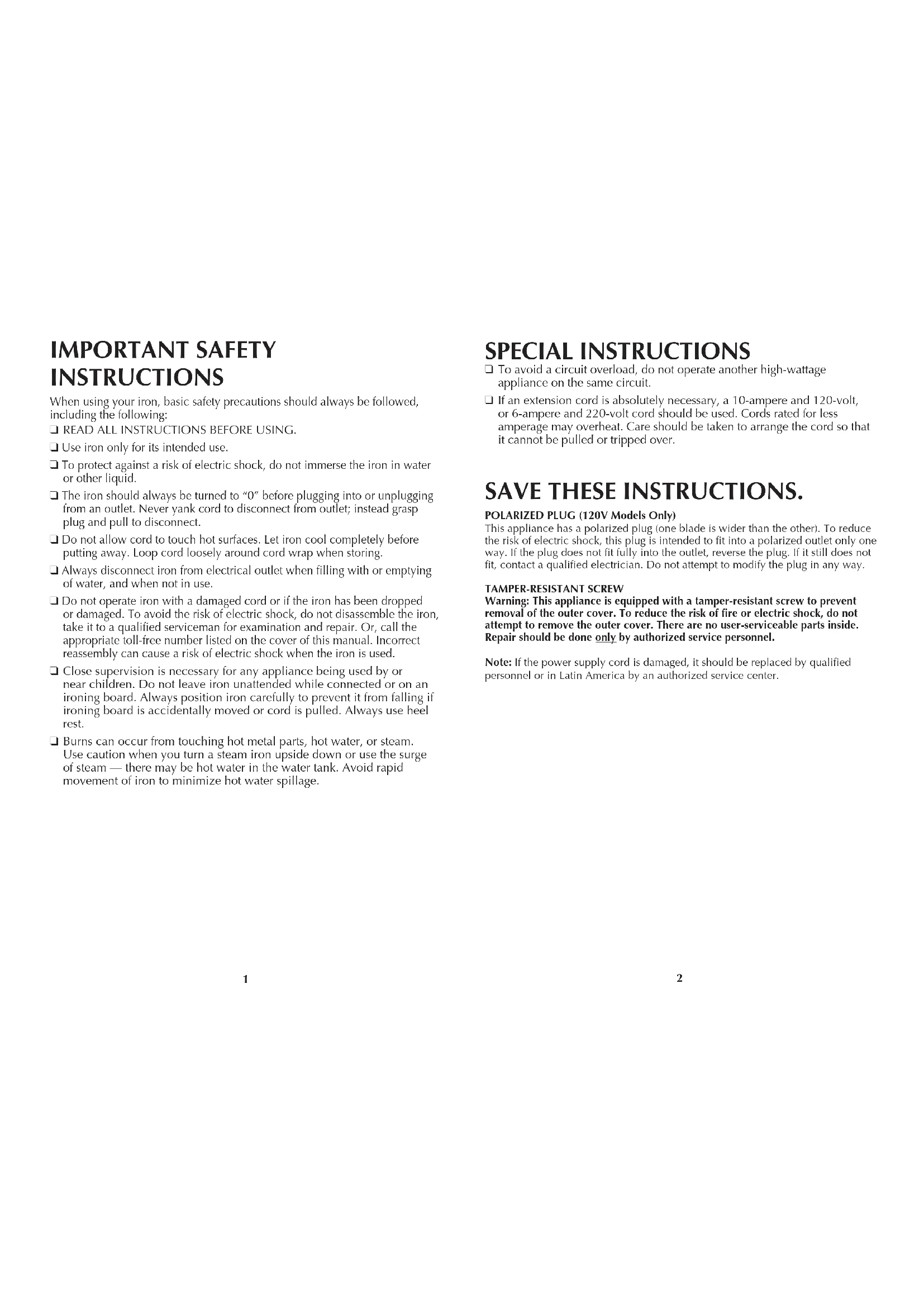

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

☐ READ ALL INSTRUCTIONS BEFORE USING.
□ Use iron only for its intended use.
☐ To protect against a risk of electric shock, do not immerse the iron in water or other liquid.
☐ The iron should always be turned to "0" before plugging into or unplugging from an outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
☐ Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around cord wrap when storing.
□ Always disconnect iron from electrical outlet when filling with or emptying of water, and when not in use.
☐ Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Or, call the appropriate toll-free number listed on the cover of this manual. Incorrect reassembly can cause a risk of electric shock when the iron is used.
☐ Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board. Always position iron carefully to prevent it from falling if ironing board is accidentally moved or cord is pulled. Always use heel rest.
Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use the surge of steam — there may be hot water in the water tank. Avoid rapid movement of iron to minimize hot water spillage.

SPECIAL INSTRUCTIONS

☐ To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
☐ If an extension cord is absolutely necessary, a 10-ampere and 120-volt, or 6-ampere and 220-volt cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

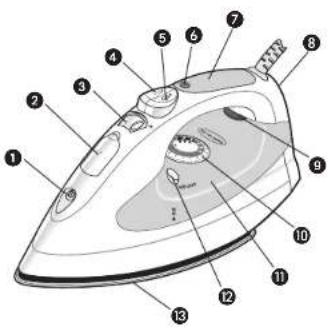

Labeled diagram of an iron iron with numbered parts for identification

1. Spray nozzle
2. Water-fill cover
3. Dry/steam selector
4. Spray button
5. Steam button
6. Power On/Auto Off indicator light
7. Comfort Grip™ handle
8. Heel rest
9. Temperature-ready light
10. Fabric-select dial
11. Water tank
12. AUTO CLEAN® button
13. Soleplate

Symbols θ Dry Steam/Surge of Steam Spray

How to Use

This appliance is for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron.

Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.

FILLING THE WATER TANK:

1. Open the water-fill cover (A).

1. Tilt the iron and using a clean measuring cup, pour water into opening until it reaches the MAX level mark on the side of the water tank (B). Do not overfill.
2. Close the water-fill cover.

1. Plug in the iron. The Power On indicator light comes on (C).
2. Follow the instructions for STEAM IRONING or DRY IRONING.

STEAM IRONING

1. Move the dry/steam selector to the desired steam level (D).

1. Read garment's label to help you determine fabric type. Turn the fabric-select dial to appropriate setting (between 4 and 6) for your fabric (E). The temperature ready light glows until it reaches the appropriate temperature. It then cycles on and off during ironing.

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.

1. For optimum performance, let the iron stand for 90 seconds before beginning to iron.
2. When finished ironing, turn the fabric-select dial to lowest heat setting, move the selector to and unplug the iron.

Note: If you need to add water while ironing, unplug the iron and follow above steps.

Important: Always stand the iron on its heel rest when powered on but not in use.

DRY IRONING

1. Make sure dry/steam selector is set to You may want to empty the water (see "EMPTYING THE WATER TANK").

2. Turn the fabric-select dial to the appropriate setting for your fabric. (Read garment's label to help you determine fabric type.) The temperature ready light glows until it reaches the appropriate temperature. It then cycles on and off during ironing.

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.

1. For optimum performance, let the iron stand for 90 seconds before beginning to iron.

2. When finished ironing, turn the fabric-select dial to lowest heat setting, move the selector to and unplug the iron.

Note: If you need to add water while ironing, unplug the iron and follow above steps.

Important: Always stand the iron on its heel rest when powered on but not in use.

3-WAY AUTOMATIC SHUTOFF

The automatic shutoff feature in your iron works as follows:

- Once the iron reaches appropriate temperature, it will turn off after 30 seconds of inactivity if left on its soleplate or tipped over on its side. If left vertically on its heel rest, it will shut off after 8 minutes (F).

- As soon as you pick up the iron, it will start heating again. Wait for iron to reheat completely before resuming operation.

SURGE OF STEAM

Horizontal

1. With the water tank filled to the MAX mark, set fabric-select dial to the appropriate temperature setting (between 4 and 6) and let iron stand on its heel rest about 90 seconds.

2. For best performance, use surge of steam at 5-second intervals.

Vertical

1. Be sure the water tank is filled to the MAX mark. Hang the garment to be steamed on a clothes hanger. (Curtains or drapes can be steamed once they are hung.) Set the fabric-select dial to the appropriate temperature setting (between 4 and 6) and let iron stand on its heel rest about 90 seconds.

1. Hold the iron close to, but not touching, the fabric.

2. Pull the fabric tight in your free hand and pump the 📋 button as you move the iron over the fabric (G).

SPRAY

Use to dampen tough wrinkles at any setting.

1. Check that the water tank is filled with water.

2. Press the button.

Note: If spray is weak, pump the button a few times.

ANTI-DRIP SYSTEM

The anti-drip system prevents water spotting at low temperatures.

EMPTYING THE WATER TANK (OPTIONAL)

1. Turn the fabric-select dial to Min. Unplug the iron and let it cool.

2. Open the water-fill cover.

3. Empty the water by holding the iron over a sink with the tip pointing down and to one side. Water will empty out of water-fill opening (H).

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water. Add mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.

2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEAN® SYSTEM

To keep the steam vents free of any buildup, about once a month follow these instructions.

1. Fill the water tank well below the MAX line. Plug in the iron.

2. Turn the fabric-select dial to 6 and stand the iron on its heel rest. Allow it to heat until the temperature-ready light goes out and comes on again.

3. Turn fabric-select dial to Min, unplug the iron and hold over a sink with the soleplate facing down.

1. Press and hold the AUTO CLEAN ^® button. Be careful, as hot water and steam will come out of the steam vents (J). Continue to hold the AUTO CLEAN ^® button until all the water has emptied. If necessary, rock iron side-to-side and front-to-back.

2. When finished, release the button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.

2. Check that the selector is set to

3. Store vertically on its heel rest to prevent water leaking from the soleplate.

Labeled diagram of an iron iron with numbered parts for identification

Simbolos θ Seco Vapor/impacto de vapor Rocío

Labeled diagram of an iron with numbered parts for identification

Symboles

Sec

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product

For how long?

• One year after the date of original purchase

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished

How do you get service?

- Save your receipt as proof of the date of sale.

- Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service

- If you need parts or accessories, please call 1-800-738-0245.
