USER MANUAL IAN 292637 CRIVIT

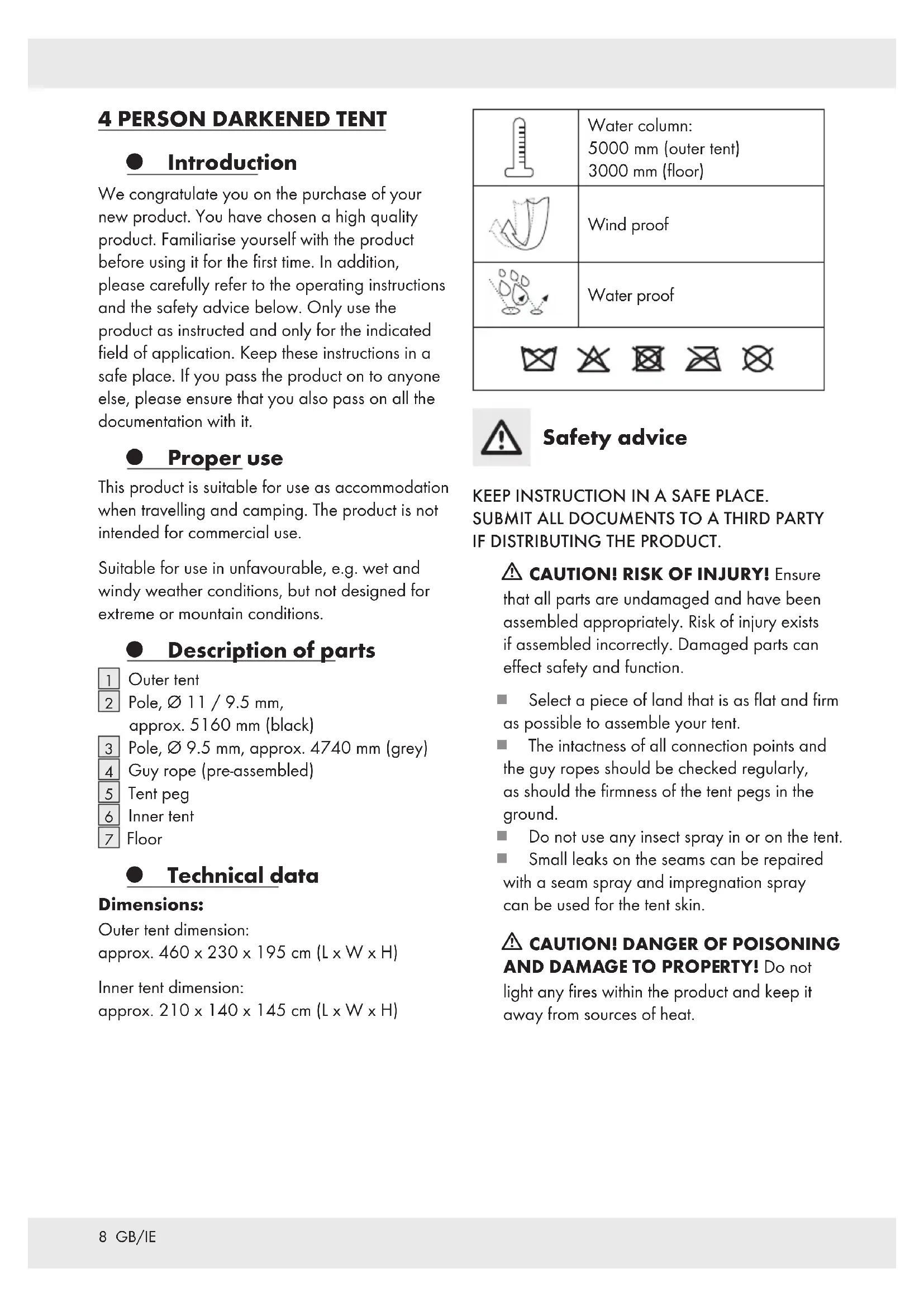

Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Proper use This product is suitable for use as accommodation when travelling and camping. The product is not intended for commercial use. Suitable for use in unfavourable, e.g. wet and windy weather conditions, but not designed for extreme or mountain conditions. Description of parts

Pole, Ø 11 / 9.5 mm, approx. 5160 mm (black)

Pole, Ø 9.5 mm, approx. 4740 mm (grey)

Guy rope (pre-assembled)

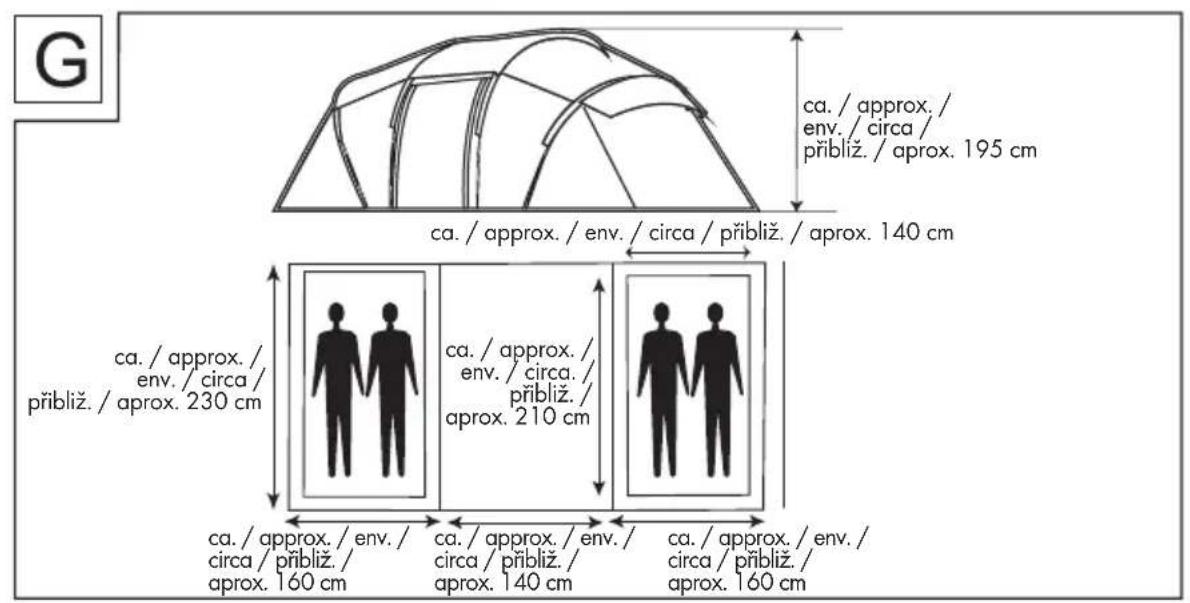

Floor Technical data Dimensions: Outer tent dimension: approx. 460 x 230 x 195 cm (L x W x H) Inner tent dimension: approx. 210 x 140 x 145 cm (L x W x H) Water column: 5000 mm (outer tent) 3000 mm (floor) Wind proof Water proof Safety advice KEEP INSTRUCTION IN A SAFE PLACE. SUBMIT ALL DOCUMENTS TO A THIRD PARTY IF DISTRIBUTING THE PRODUCT. m CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can effect safety and function. Select a piece of land that is as flat and firm as possible to assemble your tent. The intactness of all connection points and the guy ropes should be checked regularly, as should the firmness of the tent pegs in the ground. Do not use any insect spray in or on the tent. Small leaks on the seams can be repaired with a seam spray and impregnation spray can be used for the tent skin. m CAUTION! DANGER OF POISONING AND DAMAGE TO PROPERTY! Do not light any fires within the product and keep it away from sources of heat.9 GB/IE You should also familiarize yourself with the local fire protection regulations (e.g. camping site, tent pitch). Warning! Danger of suffocation! If the inside of the tent is not adequately ventilated, there is a risk of suffocation. Make sure that the vents on the side of the inner tent are not covered at any time. Do not leave children unattended in the tent. The logo on the inner tent

indicates it is an access slot for USB cables (for LED lighting or phone charging). WARNING! Do not use high voltage appliances or hot appliances in the tent, as this may cause fire or electric shock. Fire precautions Camp safely. Follow these commonsense rules: Do not place hot appliances near the walls, roof or curtains. Always observe the safety instructions for these appliances. Never allow children to play near hot appliances. Keep exits clear. Do not block the exit with objects. Make sure you know the fire precaution arrangements on the site. Tent assembly Inside the carrying bag there is a label with a QR code. If the QR code is scanned you will receive details about how to pitch the product. Please ensure that the product is only assembled by people with the appropriate skills. Note: The polyester material of the tent consists of water-repellent material. It is possible that during the first rainfall the tent will not be completely watertight. However, the threads of the tent will contract when exposed to water so that after a short time the tent will become watertight. Erect the product in accordance with the illustrations A to F. Illustration A:

flat on the ground. The tunnels for the poles

must be facing upwards.

2. Fix one side of outer tent

in the ground with the tent pegs

, then take hold of the other end of the tent and pull it apart in such a way that the outer tent is flat.

through the tunnel guide on the top of outer tent

that it extends evenly on both sides of the tunnel guide. Illustration B:

up and fix the poles to the metal pins of the floor fastenings.

6. Fix the tent to the ground with the tent

tensioning the floor fastenings with the tent pegs.

7. Now secure the outer tent with guy rope

(pre-assembled) and the tent pegs. Illustration D:

8. Open the entrance, unroll it and attach it with

into the toggles of the outer tent

that are designated for that purpose.

10. Use the hooks at the corners of inner tent

to connect with the outer tent

11. Repeat steps 9 and 10 to set another inner

on the other side of outer tent

12. Use the hooks at the corners of the floor

to connect with the outer tent

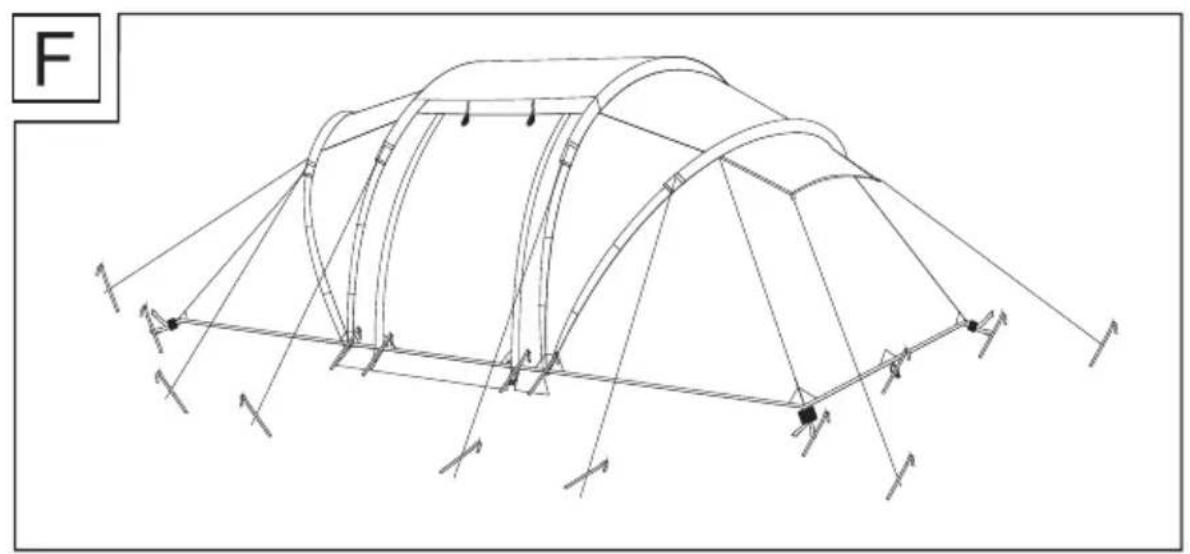

.10 GB/IE Illustration F:

13. Stretch the tent until taut and pull all of the

corners and guy ropes

until they are tight. Do not over-tighten the guy ropes

. If the strength of the wind increases the attachment point and seam of the tent might tear. Taking down the tent Clean the tent both inside and outside before you take the tent down. The tent must be dismantled in the reverse order to the manner in which it has been erected. Packing the tent together

CAUTION! Please ensure that the tent is completely dry before you pack it together. Otherwise this may result in stains and damage to the fabric. m CAUTION! The tent pegs

and other individual parts must be packed separately in the bags provided. Otherwise the tent pegs

might damage the tent. Always fold the tent together in such a way that the floor of the tent is facing outwards. Collect all of the parts together carefully before you pack the tent. You should count the parts in order to ensure that none of them have been mislaid or lost. After the tent has been rolled up, pack it carefully into the carrying bag. Cleaning and care
