USER MANUAL P601IMCWHT PROLINE

Hotline Darty France

Posioning the Cooker 7
Levelling the Cooker 8
Fing the An-It Chains and Hooks 8
Electrical Connecon 9

OPERATION 10

Using the Hob 10
Using the Oven 12

CLEANING AND MAINTENANCE 15

SPECIFICATIONS 16

DISPOSAL 17

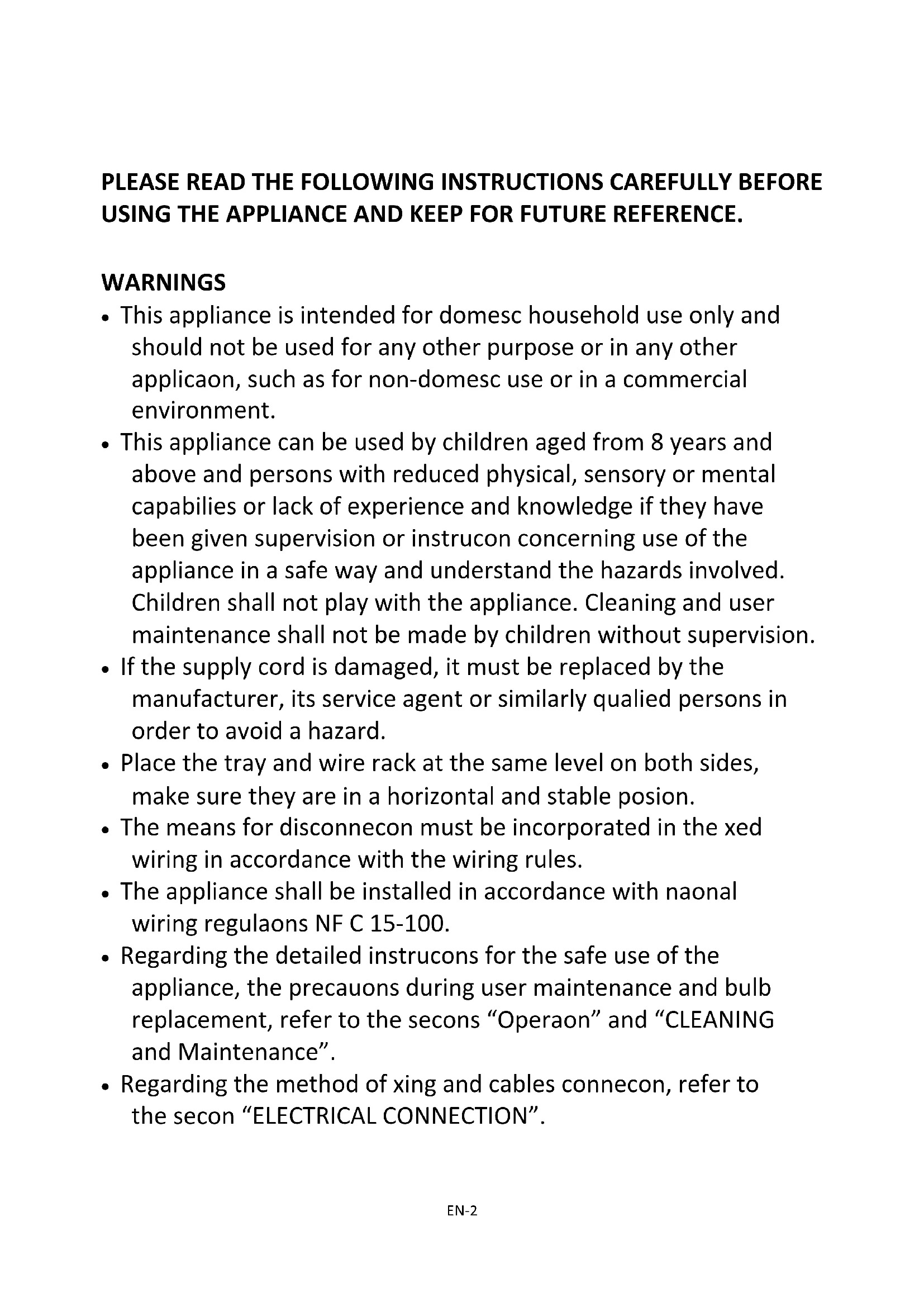

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNING

• This appliance is intended for domesc household use only and should not be used for any other purpose or in any other applicaon, such as for non-domesc use or in a commercial environment.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Place the tray and wire rack at the same level on both sides, make sure they are in a horizontal and stable position.
• The means for disconnecn must be incorporated in the xed wiring in accordance with the wiring rules.
• The appliance shall be installed in accordance with naonal wiring regulaons NF C 15-100.
• Regarding the detailed instrucons for the safe use of the appliance, the precautions during user maintenance and bulb replacement, refer to the seconds "Operaon" and "CLEANING and Maintenance".

• Regarding the method of xing and cables connecn, refer to the secon "ELECTRICAL CONNECTION".

• WARNING: If the surface is cracked, switch o the appliance to avoid the possibility of electric shock.

• During use the appliance becomes hot. Care should be taken to avoid touching heang elements inside the oven.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heang elements. Children less than 8 years of age shall be kept away unless connuously supervised.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface which may result in shaering of the glass.
• A steam cleaner is not to be used.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not to stare at the hob elements.
• Aer use, switch o the hob element by its control and do not rely on the pan detector.
• WARNING: Ensure that the appliance is switched o before replacing the lamp to avoid the possibility of electric shock.
• The appliance is not intended to be operated by means of an external mer or separate remote-control system.
• WARNING: Unaended cooking on a hob with fat or oil can be dangerous and may result in re. NEVER try to exinguish a re with water, but switch o the appliance and then cover ame e.g. with a lid or a re blanket.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised connuously.
• WARNING: Danger of re: do not store items on the cooking surface.

• The appliance must not be installed behind a decorative door in order to avoid overheang.

• WARNING: Accessible parts may become hot during use. Young children should be kept away.

• The temperature of accessible surfaces may be high when the appliance is operang.
• The door should preferably be closed in all cooking modes.
• Do not hang any cloth or garment to the handle of the oven.
• Do not line the oven's cavity with aluminum foil for easier cleaning: The oven may overheat and the enamel coang of the cavity may be damaged.
• WARNING: In order to prevent pping of the appliance, this stabilising means must be installed. Refer to the instrucons for installaon.

Cation, possibility of lng
Anp restraints
- The lamp inside the product is used for lighng of the product. This lamp is not suitable for household room illuminaon.
- Regarding the instructions for the method of the correct installation of the shelves, refer to the section "Using the oven".

IMPORTANT SAFETY INSTRUCTIONS

• The appliance should only be used for its intended purpose as described in the instrucon manual. The manufacturer declines all responsibility for damage resulting from improper and irresponsible use.
• The appliance must be properly installed and grounded by a qualified technician. We will not be responsible for any damage that might be caused by failure to comply with these instrucons.
• Do not wear loose or hanging garments when using the appliance. They could ignite if they touch a hot heang element and this may lead to the risk of burning yourself.
• Never touch the appliance when your hands or feet are wet.
• Do not operate the appliance barefooted.
• Do not store ammable materials on or near the appliance. This may cause a re hazard.
• Maintenance and repair work must be made only by authorized service technicians.
  It is dangerous to alter or modify the specicaons of the appliance in any way.
• Do not try to li or move the appliance by pulling the door handle.
  While the oven door is open, do not let children climb on the door or sit on it.
  Always use oven gloves (not supplied) to remove and replace food in the appliance.
• Make sure the control knobs are always in o posion when the appliance is not in use. Disconnect the appliance from the power supply before cleaning.
• Do not cover the openings and slots used for yenlaon and heat dispersion.
• Stand back when opening the cooker door to allow any build up of steam or heat to disperse.
• Place pans centrally over the cooking zone making sure handles are kept away from the edge of the hob and cannot become heated by other pans.
  Take care to avoid heat/steam burns when operang the controls.
  Make sure the shelves are in the correct posion before switching on the cooker.
• Keep the appliance clean as a build up of grease or fat from cooking can cause a re.
• Do not leave the appliance unaended when in use.
• Never use the appliance as a room heater.

OVERVIEW

1. Inducon cooking zones
2. Control panel
3. Oven door handle
4. Oven door
5. Storage drawer
6. Levelling feet

Oven accessories

:1 Rack for roasng and grilling food

Tray: for cooking large quanes of food such as moist cakes, pastries, frozen food etc. or for collocng fat/spillage and meat juices

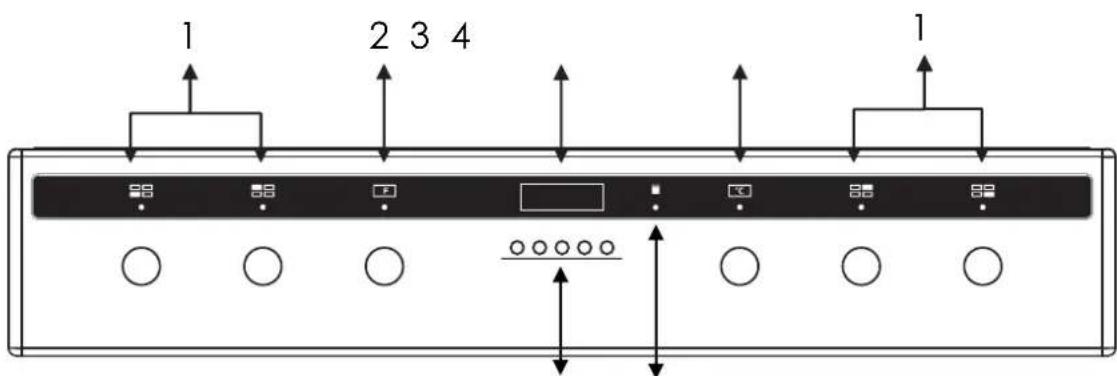

Control panel

1. Control knobs for inducon cooking zones
2. Funcon selector
3. Display
4. Temperature control knob
5. Buons

1. Oven operang light

INSTALLATION

The following instrucons should be read by a qualified technician to ensure that the appliance is installed, regulated and technically serviced correctly in compliance with current regulaons.

Important: Disconnect the cooker from the electricity when making any adjustment, maintenance operaon, etc.

Posioning the Cooker

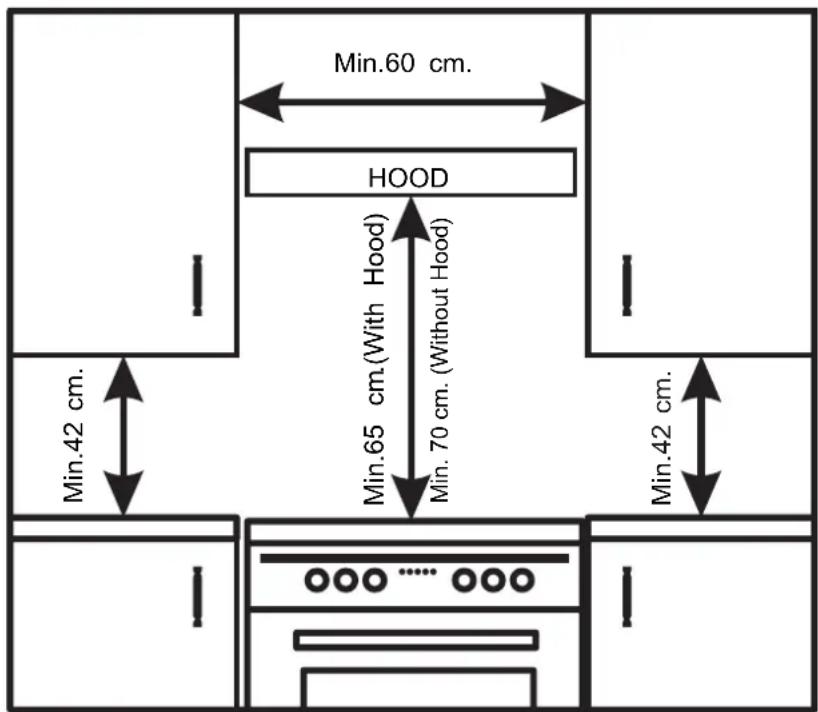

The appliance can be installed next to furniture units which are no taller than the top of the cooker hob. For proper installaon of the cooker, the following precautions must be taken:

Hoods must be installed according to the requirements in the installaon manual for the hoods themselves and in any case at a minimum distance of 650mm from the hob.
Place the wall cabinets adjacent to the hood at a minimum height of 420mm from the hob.
Should the cooker be installed beneath a wall cabinet, the laer should be situated at least 700mm away from the hob.
Do not install the cooker near ammable materials (e.g. curtains).
The cabinetry surrounding the cooker must be made of heat-resistant material and must be able to withstand temperatures of 50^ above room temperature.

Levelling the Cooker

Your cooker is supplied with 4 feet for levelling the appliance. If necessary, these feet can be screwed into the housings in the corners of the cooker base.

Fing the An-It Chains and Hooks

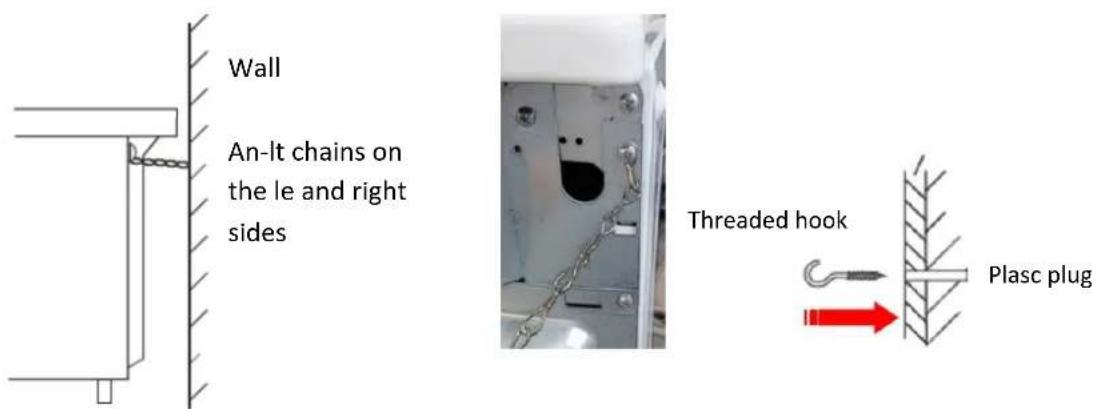

To prevent the cooker from pping forwards in the event of children standing on the oven door or users pung extreme weight on the door when in open posion, two supplied chains MUST BE xed to the back of the cooker which should at all mes be secured to the threaded hooks which are securely xed to the wall.

1. Aer you have located where the cooker is to be posioned, mark on the wall the place where the two threaded hooks have to be ed.
2. Drill two 8mm diameter holes in the wall and insert the supplied plasc plugs into the wall.
   IMPORTANT! Before drilling the holes, check that you will not damage any pipes or electrical wires.
3. Secure the threaded hooks into the plasc plugs.
4. Move the cooker to the wall and secure the chains to the back of the cooker.

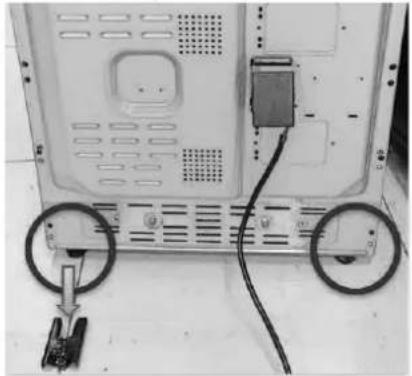

Fing the An-It bracket on the Ground

1. Drill a hole into the cabinet boom.

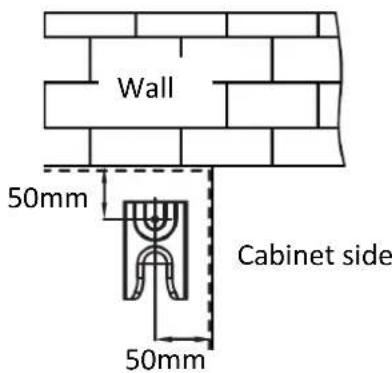

2. The distance between the hole and wall or cabinet side must be no less than 50mm .

1. Hammer the expansion plug into the hole, then x the an-It bracket to the cabinet boom by ghtening the screw.

1. Slide the cooker into place, ensuring that the le or right foot is securely slipped into the an-It bracket.

Electrical Connecon

IMPORTANT! Electrical connecns must only be performed by a qualified and authorised electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

The brown wire must be connected to the terminal marked L.

The green and yellow wire must be connected to the terminal marked E or the earth symbol

OPERATION

When you operate the cooker for the rst me, an odour may be emied, this will

cease aer a period of use. This odour is due to temporary nish on oven liners and elements and also any moisture absorbed by the insulaon.

Ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive to the odour avoid any fumes.

Using the Hob

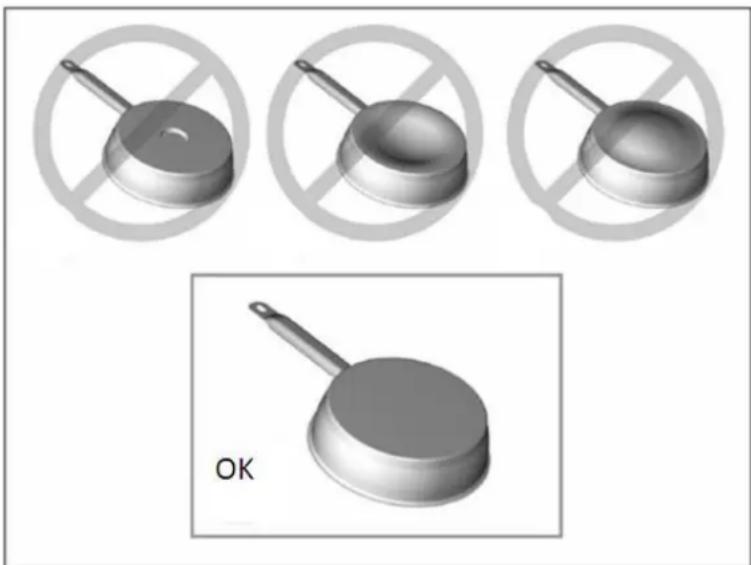

PAN REQUIREMENT

Compatible materials: steel, enamelled steel, cast iron, ferromagnac stainless-steel, aluminium with ferromagnec boom.

Non compatible materials: aluminium and stainless-steel without ferromagnec boom, copper, brass, glass, ceramic, porcelain.

Pan manufacturers specify if their products are compatible with inducon appliances. To check if pans are compatible:

• Put a life water in a pan placed on an inducon cooking zone set at the maximum power level. This water must heat in a few seconds.
• A magnet scks on the boom of the pan.

Certain pans can make noise when they are placed on an inducon cooking zone. This noise does not mean any failure on the appliance and does not inuence the cooking operacon.

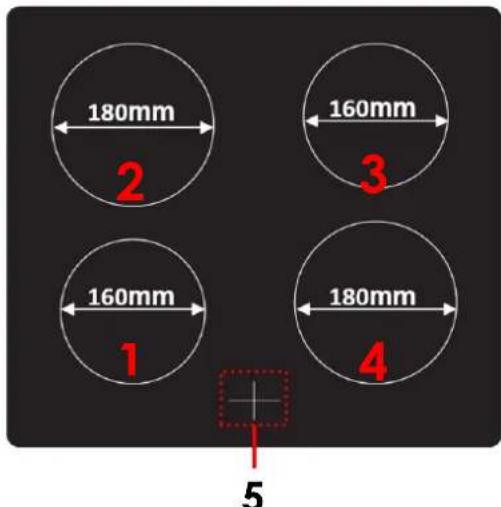

COOKING SURFACE LAYOUT

1. Inducon cooking zone 1500 W

2. Inducon cooking zone 2000 W

3. Inducon cooking zone 1500 W

4. Inducon cooking zone 2000 W

5. Power level display from 0-9

The cooking zone, up to a limit, automatically adapts to the diameter of the pan.

To obtain the best ciency of your hob, please place the pan in the centre of the cooking zone.

CONTROL KNOBS

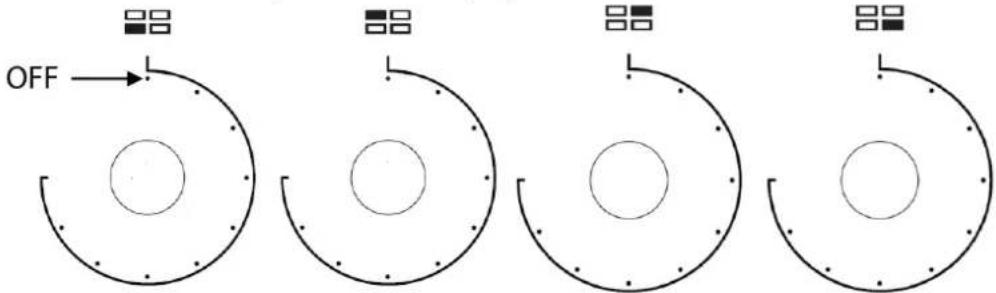

Each knob controls a specic inducon cooking zone. When you are not using the appliance, always ensure that all controls are in the OFF posion and the display will show the number 0.

OPERATING INSTRUCTIONS

1. Turn the control knob to the desired power level for the selected hotplate.

2. The display will show the number from 1-9 to indicate the corresponding power level.

3. You can turn the control to 9 for fast cooking. To cook more slowly or simmer, turn the control to a lower seng according to the pan and the amount of liquid.

4. When you nish cooking, turn the control knob back to the OFF posion.

The display will show the number 0.

The cooking zone(s) will remain hot for some me. DO NOT touch unl they have

completely cooled down.

DETECTION OF SMALL NON-MAGNETIC ITEMS

When a unsuitable size or non-magnec pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been le on the cooking zone, the symbol will ash and the cooking zone will automatcally enter the standby state aer about 1 minute.

AUTO SHUT DOWN

The feature occurs whenever you forget to switch o a cooking zone.

The default shutdown mes are shown in the table below:

Power level	The cooking zones will shut down automatically aer
1~3	8 hours
4~6	4 hours
7~9	2 hours

ERROR CODES

These error codes are for guidance only and all faults should be diagnosed and repaired by a qualified technician.

Display	Possible causes	Possible soluon
F3 – F8	Temperature sensor failure	Contact the store where you have purchased the appliance.
F9 – FE	Temperature sensor of the IGBT failure	Contact the store where you have purchased the appliance.
E1 / E2	Abnormal supply voltage	Inspect whether power supply is normal and then turn the hob on.
E3 / E4	Abnormal temperature	Inspect the cookware.
E5 / E6	Bad inducon hob heat radiaon	Restart aer the inducon hob cools down.

Using the Oven

Before operang the oven, use a slightly damp cloth to carefully wipe the inner cavity wall. Clean the racks and tray and in warm soapy water before using. Rinse thoroughly.

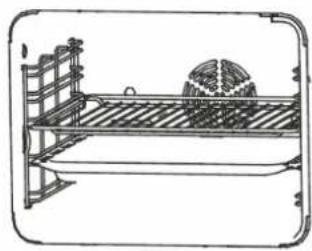

Slide the rack/tray between the guide bars of the shelf support rails in the oven, and push it to the end.

In case the rack and tray are inserted together, lay the rack over the tray.

SETTING THE CLOCK

To enable use of the oven you must rst set the clock in 24 hour format. If the clock is not set, the oven will not operate.

1. Aer plugging in the appliance, and the leer 'A' will ash on the display.

2. Press and × at the same me.

3. The dot between the hour and minute digits will ash.

4. Repeatedly press to set the correct me.

You can also press and hold for fast seng.

1. Press and × at the same me to conrm.

The display will show the manual operacn symbol

• Aer about 3 seconds the dot will stop ashing, it indicates the me seng is conrrmed.

COOKING

1. Turn the funcon selector to select the desired funcon.

Oven funcon		Applicaon
	Oven lamp	To illuminate the oven interior
	Defrost	To thaw frozen food
	Dual grill with fan	This funcon is suitable for cooking large quanes of food.
	Dual grill
ECO	This funcon ensures energy savings during cooking.
Radiator grill	This funcon is suitable for cooking small quanes of food.
Convenon with fan	This funcon is suitable for cooking large pieces of meat.
Convenonal	This funcon is suitable for single tradional cooking.
Boom heat	This funcon is suitable for casseroles,curries and any slow cooking.

1. Turn the temperature control knob to select the desired temperature.

The oven operang light will illuminate.
- Before placing food in the oven you may need to preheat the oven for 10 minutes.

1. When the selected temperature is reached, the operang light will go out.
2. To switch o the oven, turn the funcon selector and temperature control knob to the OFF posion.

SETTING THE OVEN PROGRAMMER/TIMER

Seng the Cooking Duraon

Select the cooking duraon to switch the oven on for a specific period of me. At the end of this me the oven will automatically switch o. The maximum programmable cooking duraon is 9 hours.

For example, if a dish needs 2 hours to cook, you can set the oven to turn o 2 hours later. This allows you to be sure that your food will be cooked for a set length of me.

1. Turn the funcon selector to select the required cooking funcon.
2. Turn the temperature control knob to set the required temperature.
3. Press

The display will show 000

1. Repeatedly press or press & hold unl the display shows 2-00.

2. The display will show the leer 'A'.

3. Aer about 3 seconds the display will return to the clock me, indicang the seng is conrrmed.

Aer the seng is conrrmed, you can press to check the remaining cooking time

1. When the set me has elapsed, the buzzer will sound and the oven will automatically switch o.

TheleerA'willash.
The buzzer can be silenced by pressing or

To cancel the seng, press and at the same me. The leer 'A' will disappear from the display.

Seng the Start and End of Cooking Time

This funcon incorporates both cooking duraon and end me selecon; it is meant to be used when you wish to delay the start me of your cooking. The mer will calculate the appropriate start me based on the selected cooking duraon and end me.

1. Turn the funcon selector to select the required cooking mode.
2. Turn the temperature control knob to set the required temperature.
3. Press

The display will show 000.

1. Repeatedly press or press & hold - / + to set the required length of cooking me.

2. The display will show the leer 'A'.

3. Press

4. The display will show the sum of the current me plus the set cooking me.

5. Repeatedly press or press & hold - / + to set the end of cooking me.

6. Aer about 3 seconds the display will return to the clock me, indicang the seng is conrrmed.

Aer the seng is conrrmed, you can press to check the remaining cooking me and press cooking end me.

X to check the

1. The oven will switch on automatically at the end of cooking me minus the cooking duraon.

End of Cooking me

Cooking Duraon

Start of Cooking Time

1. When the set end of cooking me is reached, the oven will switch o and the buzzer will sound.

Theleer'Awillash.

The buzzer can be silenced by pressing or

To cancel the seng, press and at the same me. The leer 'A' will disappear from the display.

Seng the Timer

The countdown mer can be set up to 23 hours and 59 minutes.

1. Press

The display will show 000 and the symbol will ash.

1. Repeatedly press or press & hold unl the desired me is displayed.

2. Aer about 3 seconds the display will return to the clock me, indicang the seng is conrmed.

The symbol will stop ashing.

Aer the seng is conrrmed, you can press to check the remaining me.

1. When the set me is reached, the buzzer will sound and the symbol will ash.

The buzzer can be silenced by pressing or

To cancel the seng, press and then repeatedly press / unl the display shows. When the display return to the clock me, press and the symbol will disappear from the display.

Seng the Buzzer

The buzzer can be set to 3 dierent levels. When the buzzer is sounding, repeatedly press to change the seng.

Storage drawer below the oven

Below the oven a storage drawer can be used to obtain cooking pans and cooker accessories.

Cauon: Do not store inammable materials inside this drawer.

CLEANING AND MAINTENANCE

Switch o and disconnect the appliance from the power supply and allow it to cool completely before cleaning.

Clean the outside of the appliance with a slightly damp cloth. Dry it thoroughly. Never use abrasive or chemical cleaning agents.

Remove rack and tray. Wash them in warm soapy water. Rinse and dry them thoroughly before use.

Aer each use, wipe the inside of the oven using a household detergent. Wipe clean with a slightly damp cloth and dry thoroughly.

Removing the oven door for easy cleaning

1. Open the door completely.

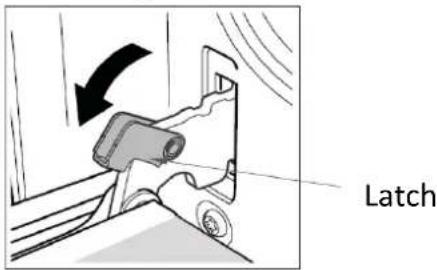

2. There are swivel latches on the le and right door hinges. Li the latches as shown.
3. Close the door gently unll it meets the open latches.

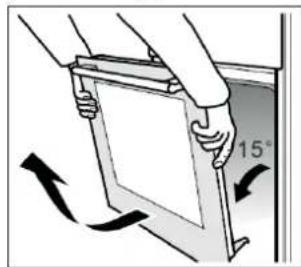

4. Support the door by holding both sides. Connue to close the door further then li to

disengage the hinge from the boom.

1. Pull the door outwards you to remove the hinges from their slots.
2. To replace the door, repeat the above steps in reverse order, making sure the hinges slots

engages over the edge of the door frame.

Replacing the oven light bulb

WARNING: Ensure that the appliance is disconnected from the power supply before replacing the lamp to avoid the possibility of electric shock.

The bulb is located inside the oven on the back wall.

1. Rotate the lamp cover to remove.
2. Unscrew and replace the bulb with a new one suitable for high temperatures (300^) with the following specicaons: 0V2369 25W.
3. Twist the lamp cover back on.

SPECIFICATIONS

Below is the sheet of domesc hob according to EU regulaon No. 66/2014.

Model idencoan	P601IMCIXT P601IMCWHT
Type of hob	Electric hob
Number of cooking zones and/or areas	4
Heang technology (inducon cooking zones and cooking areas, radiant cooking zones, solid plates)	Inducon cooking zones and cooking areas
For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm	Le rear: 18 cm Le front: 16 cm Right rear: 16 cm Right front: 18 cm
Energy consumpon per cooking zone or area calculated per kg (EClectric cooking)	Le rear: 191.6Wh/kg Le front: 198.4Wh/kg Right rear: 178.6Wh/kg Right front: 168Wh/kg
Energy consumpon for the hob calculated per kg (EClectric hob)	184.1Wh/kg

Energy eciency performance limits for domesc hobs

Timetable (entry into force 20 Feb., 2014)	Electric hob (EC electric hob in Wh/kg)	184.1Wh/kg, it is valid unl 19 Feb., 2019
From 1 year aer the entry into force (from 20 Feb., 2015)	EC electric hob<210
From 3 years aer the entry into force (from 20 Feb., 2017)	EC electric hob <200
From 5 years aer the entry into force (from 20 Feb., 2019)	EC electric hob <195

Below is the sheet of domesc oven according to EU regulaon No. 66/2014.

Model idencoan	P601IMCIXT P601IMCWHT
Type of oven	Electric oven
Mass of the appliance (M)	5 2.5kg
Number of cavies	1
Heat source per cavity (electricity or gas)	Electricity
Volume per cavity (V)	70L
Energy consumpon (electricity) required to heat a standardized load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric nal energy) (EC electric cavity)	0.72kWh/cycle posion
Energy consumpon required to heat a standardized load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy) (EClectric cavity)	0.78kWh/cycle
Energy Eciency Index per cavity (EEI cavity)	at posion 85.

Ecodesign requirements according to EU regulaon No. 66/2014
Item	Measured Value	Stage 1	Stage 2	Stage 3
\( EEL_{cavity} \)	85.7	1 year aer enter into force <146	2 years aer entry into force <121	5 years aer entry into force <96

Freestanding cooker specicaons:

Rang / Supply Voltage and frequency	220V-240V~ 50 60Hz Hz -
Oven power	3000W
Hob power	7000W: Le rear and right front: 2000W Le front and right rear: 1500W
Oven lamp power	25W
Top heang element (W)	950W
Grill heang element (w)	2000W
Boom heang element (W)	1100W
r (w)	33W
Cleaning (Enamel/catalyc/Pyrolyc)	Enamel
Net Weight kg	5 2.5kg
Outside dimensions (W*D*H)	6 x 00 600 x 850
Energy Class (leer for the scker) *	A
Usable volume (litres)	70L
Size : (Small/Medium/Large)	Large
Made in	PRC

• Energy class: A+++....D (A++++=economical D=less economical)

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulaons.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collecon point for recycling. Some collecon points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instrucons, which may occur as a result of product improvement and development.

Inhoudsopgave

WAARSCHUWINGEN 2
BELANGRIJKE VEILIGHEIDSINSTRUCTIES 6
BESCHRIJVING VAN DE ONDERDELEN 7
INSTALLATIE 8

WAARSCHUWING: DIT APPARAAT MOET GEAARD ZIJN.
