USER MANUAL 1966 4954511131BB60 Girard-Perregaux

INDICATEUR JOUR NUIT

INDICATEUR DES PHASES DE LUNE 27

BI-RETRO 29

CALENDRIER COMPLET 32

CALENDRIER ANNUEL ET ÉQUATION DU TEMPS 35

CALENDRIER PERPÉTUEL 38

INDICATEUR JOUR NUIT

Introduction

WATER-RESISTANCE PRECAUTIONS 50

USERGUIDE 52

SETTINGS 52

CROWN 52

WINDING 53

PRACTICAL FUNCTIONS 55

HOUR AND MINUTE 55

DATE 59

POWER RESERVE INDICATOR 61

SECOND TIME ZONE 62

TACHOMETRIC SCALE 64

CHRONOGRAPH 65

English

ASTRONOMIC FUNCTIONS 66

DAY/NIGHT INDICATOR

MOON PHASES INDICATOR 67

BI-RETRO 69

FULLCALENDAR 72

ANNUALCALENDAR AND EQUATION OF TIME 75

PERPETUALCALENDAR 78

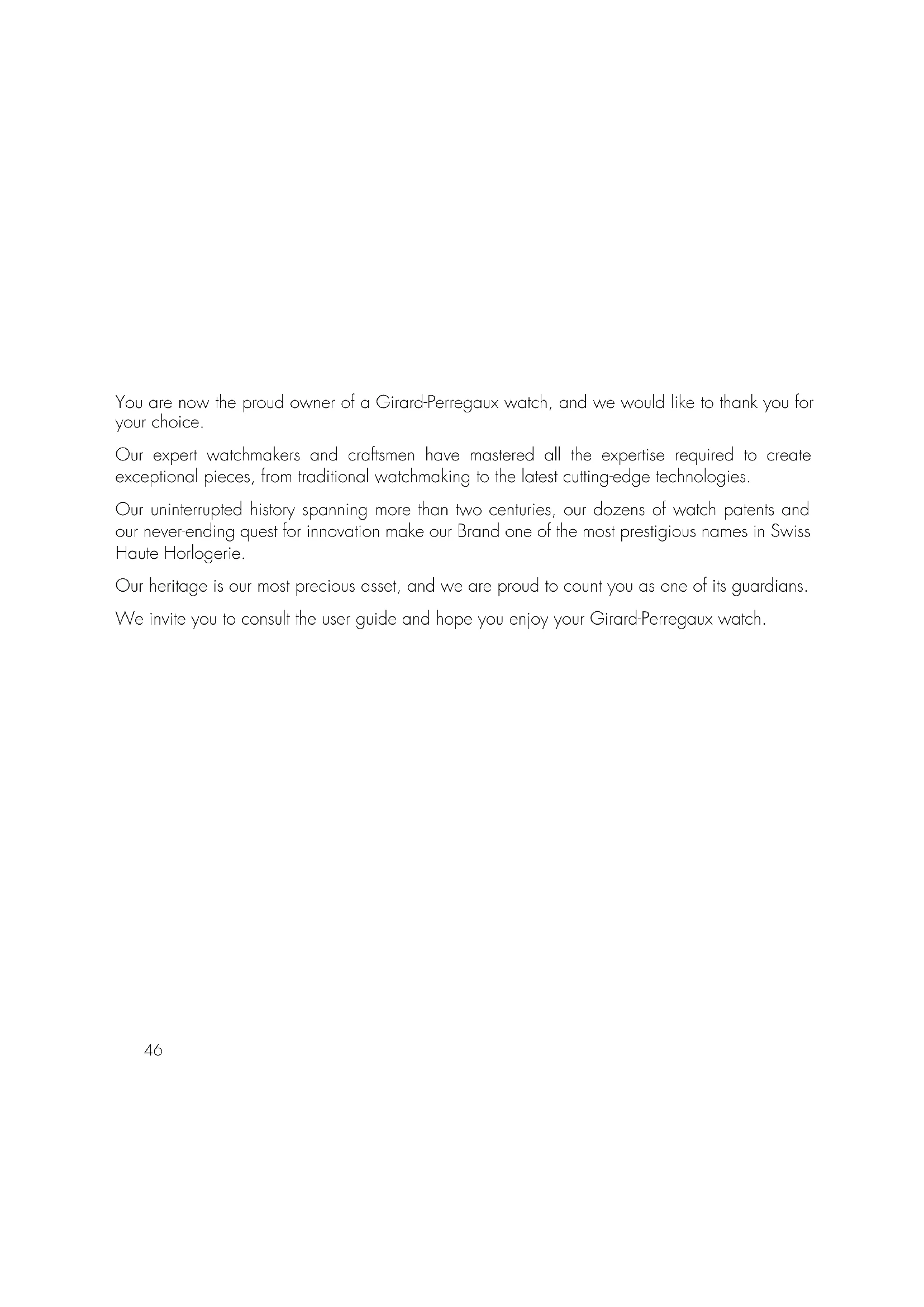

You are now the proud owner of a Girard-Perregaux watch, and we would like to thank you for your choice.

Our expert watchmakers and craftsmen have mastered all the expertise required to create exceptional pieces, from traditional watchmaking to the latest cutting-edge technologies.

Our uninterrupted history spanning more than two centuries, our dozens of watch patents and our never-ending quest for innovation make our Brand one of the most prestigious names in Swiss Haute Horlogerie.

Our heritage is our most precious asset, and we are proud to count you as one of its guardians.

We invite you to consult the user guide and hope you enjoy your Girard-Perregaux watch.

INTERNATIONAL WARRANTY

The international warranty below is applicable to all Girard-Perregaux watches sold by Girard-Perregaux brand authorized dealers and submitted for repair or inspection under warranty in all countries.

Only Girard-Perregaux authorized Repair Centers are authorized to provide the service set out by the international warranty, in accordance with Girard-Perregaux's instructions. Any service, repairs or other operations on your watch not performed by a Girard-Perregaux authorized Repair Center shall render the international warranty void.

We guarantee your watch against any lack of conformity and against any defect due to the materials used for a period of two years from the purchase date. If during this period your timepiece were to exhibit one of these defects, we are committed to repairing it free of charge. Once the warranty period has expired, repairs will be invoiced for parts and labor.

To be entitled to this warranty, you must submit a copy of the warranty certificate, properly completed, dated, stamped and signed by an authorized dealer or distributor. You are therefore advised to keep the Girard-Perregaux international warranty certificate safe, as it is the only document validating the warranty.

If need be, we recommend giving the watch to be inspected or repaired to one of our exclusive distributors or authorized dealers, who will send it to our nearest authorized Repair Center. You can also send your watch directly to one of our authorized Repair Centers.

If posting your watch, we recommend packaging it very carefully and sending by secure mail, to prevent any incident in transit.

Girard-Perregaux can under no circumstances guarantee the authenticity of Girard-Perregaux products acquired outside its official distribution and authorized dealer network.

This warranty entitles you to specific aforementioned rights, which may be supplemented by other rights varying between countries.

The warranty does not cover:

Leather, rubber and fabric straps;
The consequences of wear and normal aging of the watch (in particular scratches, scoring, etc.);
Damage caused deliberately, or resulting from incorrect handling, negligence or an accident;
Damage resulting from abnormal use or misuse (in particular impacts or crushing);
Watches with the identification number or any other identification mark deliberately removed or altered;
Loss and theft;
Damage caused by natural events such as fire, natural catastrophes and acts of war;
Any defect resulting from the addition of one or more accessories not issued from the manufacture Girard-Perregaux will automatically lead to the end of the warranty.

PRECAUTIONS FOR USE AND CARE

Your watch has been manufactured with the greatest care, and will provide years of service if you take the following precautions:

1. Precautions for use and care

• Never activate the crown or push buttons of your watch in water. If your watch has a screw-down crown, make sure that it never comes into contact with water when its crown is unscrewed;
  Avoid thermal shocks and exposing your watch to extreme temperatures, below 0^ or above 60^ (sauna, baths, etc.);
  Never use corrosive or chemical products to clean your watch;
• Avoid contact with certain chemical substances (petrol, thinners, perfumes, cleaning products, glues, paints, etc.), to prevent any damage to your watch and its leather strap;
• Avoid exposing your watch to a powerful magnetic field (magnets, loudspeaker, etc.);
  Avoid violent impacts;
  Avoid leaving your watch immobile for long periods of time. Only regular wear prevents the oils contained in the movement from congealing;
  Never attempt to open the case of your watch yourself;
• Rinse your watch with fresh water after bathing in the sea; avoid bathing with a leather strap to prevent accelerated wear.

2. Maintenance service

Therefore, to ensure that your watch continues, after years of use, to provide the accuracy you can rightly expect, Girard-Perregaux recommends entrusting your watch to one of its authorized Repair Centers every 2 to 3 years for the necessary inspections.

WATER-RESISTANCE PRECAUTIONS

Your watch has undergone numerous water-resistance tests in our workshops, depending on the required protection level, to ensure you can enjoy the following activities:

ACTIVITIES / DEGREE OF WATER-RESISTANCE	3 atm - 3 bar 30 m - 100 ft	5 atm - 5 bar 50 m - 165 ft	10 atm - 10 bar 100 m - 330 ft	50 atm - 50 bar 500 m - 1650 ft
Rain, splashing	yes	yes	yes	yes
Shower, bath, surface water sports	no	yes	yes	yes
Swimming, snorkeling	no	no	yes	yes
Scuba diving	no	no	no	yes

1. Water-resistance precautions

Your watch has been rigorously checked and will retain its water-resistance if you take the following precautions:

• Ensure that the crown and the push buttons on your watch are in their initial position - position 0 - to prevent any damage to the mechanism. To do this, press the crown against the case.
  If your watch is equipped with a screw-down crown, ensure that it is locked after any adjustment and before use in an aquatic environment. To do this, screw the crown in a clockwise direction, whilst keeping it pressed against the case of your watch.
• Never activate the crown or push buttons of your watch under water, if the watch is in contact with water or when it is wet.

2. Water-resistance test

The water-resistance of your watch is ensured by a sophisticated system of seals. These are subject to the damaging effects of a range of external factors (perspiration, changes in temperature, ultraviolet rays, salt or chlorinated water, dust, etc.). For this reason, and to ensure the seals can carry out their role perfectly, Girard-Perregaux recommends entrusting your watch to one of its authorized Girard-Perregaux Repair Centers every 2 to 3 years for the necessary water-resistance inspections.

USERGUIDE

SETTINGS

CROWN

Introduction

The crown is a component allowing the adjustment of different functions, such as setting the time, manual winding and on certain models, setting the day or the date.

Simple crown

Setting

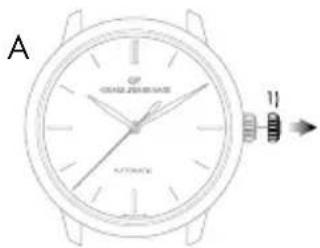

A. Pull out the crown to go on to different settings.
B. To assure its water-resistance, it is important that the crown is pushed back into position O) once you have finished using it. To do this, press the crown against the case as illustrated below.

Screw-down crown

The screw-down crown ensures perfect water-resistance to the depth for which the model was designed.

Setting

A. Unscrew the crown to go on to different settings. To do this, turn the crown counterclockwise.
B. To assure its water-resistance, it is important that the crown is pushed back into position 0) once you have finished using it. To do this, screw the crown in clockwise while pressing it against the case, as illustrated on the right.

WINDING

Introduction

Winding allows the movement to store up the energy necessary for your watch to function well.

Mechanical movements manufactured and produced at the manufacture Girard-Perregaux can be manual or automatic depending on the model of your watch.

Manual winding mechanical movement

This type of movement means that to function normally, your watch needs to be regularly wound. Depending on the model and the power reserve of your watch, it can go between 30 to 60 hours between two windings.

Setting

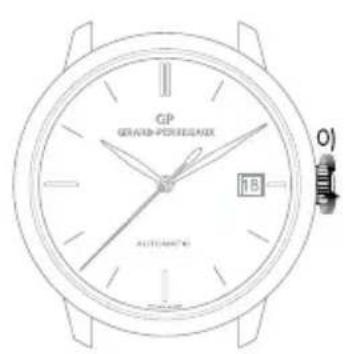

To wind your watch, turn the crown clockwise when it is in position O) or O') when it is a screw-down crown. As soon as it starts to resist, it means the mechanism is sufficiently wound.

Warning: Do not force if the resistance increases, the movement mechanism could be damaged.

Automatic mechanical movement

This term means that your watch automatically stores up energy as you wear it on your wrist. Indeed, your daily movement allows the oscillating mass to carry out rotating movements which, thanks to a clockwork system, reproduce an energy to the movement and allows it to automatically wind itself. Daily wear is enough to assure the power reserve necessary for your watch to function well without it being necessary to wind it.

If your watch has not been worn for several consecutive days, it has to be manually wound. To do this, please refer to the paragraph above 'Manual winding mechanical movement'.

English

PRACTICAL FUNCTIONS

HOUR AND MINUTE

Introduction

Setting the time of your watch is completed via the crown. This could be in two or three positions, depending on the model of your watch.

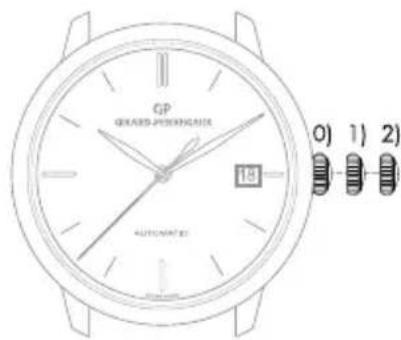

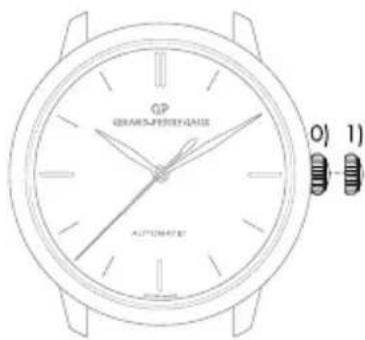

2 position crown

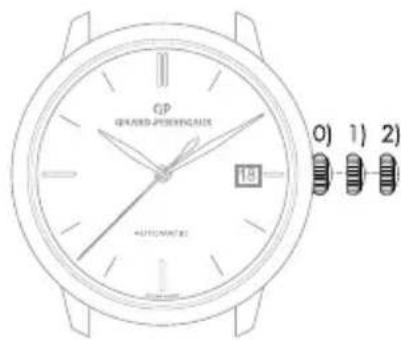

3 position crown

0) Movement manual winding position (crown not pulled out).
1) Time setting position (crown pulled out).
0) Movement manual winding position (crown not pulled out).
1) Date setting position (crown half pulled out).
2) Time setting position (crown fully pulled out).

If your watch has a date indicator, make sure that the hands are in the date change position, i.e. at midnight rather than midday. Use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

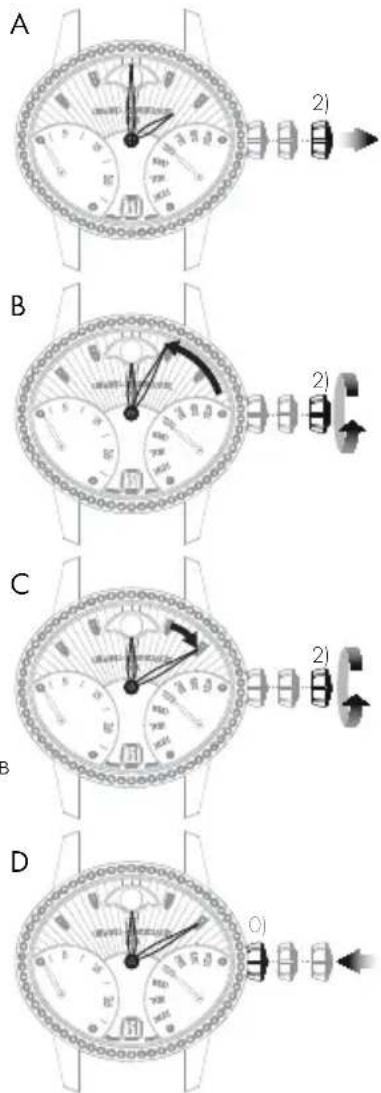

Setting

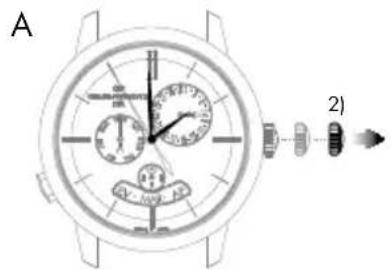

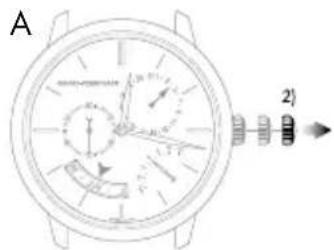

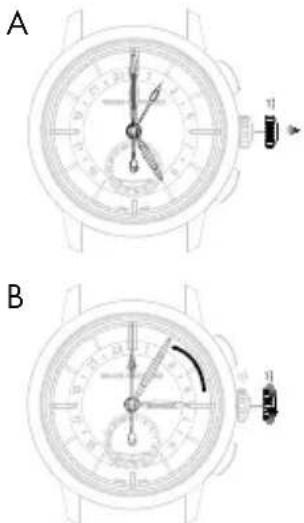

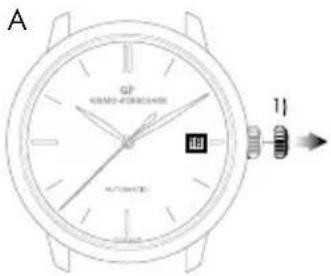

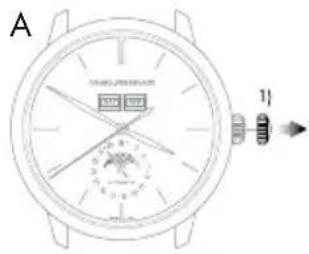

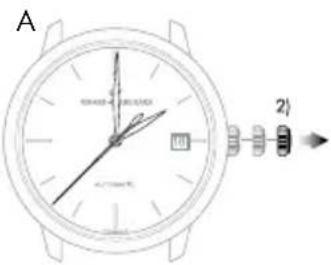

A. Pull your crown out to the time setting position. On watches with a seconds indicator, the seconds hand will stop.

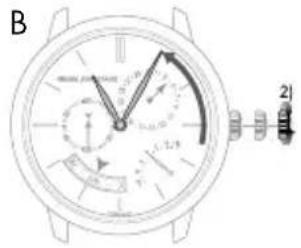

B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.

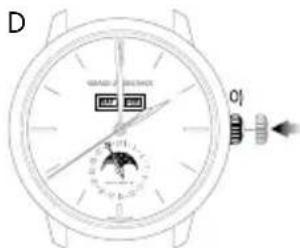

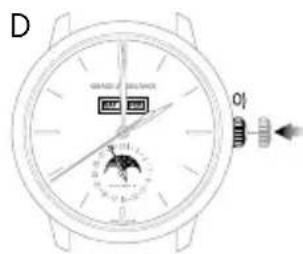

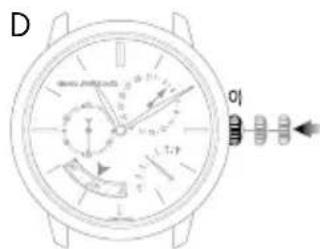

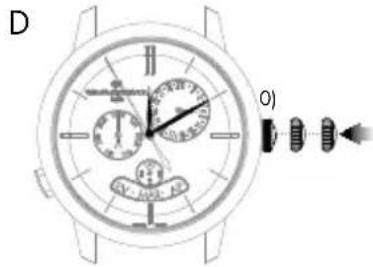

D. At the desired time, push the crown back against the case, in position O). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

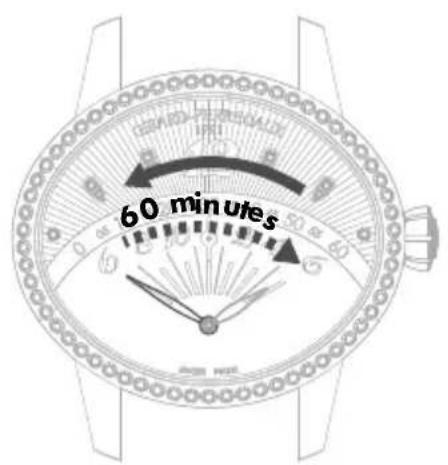

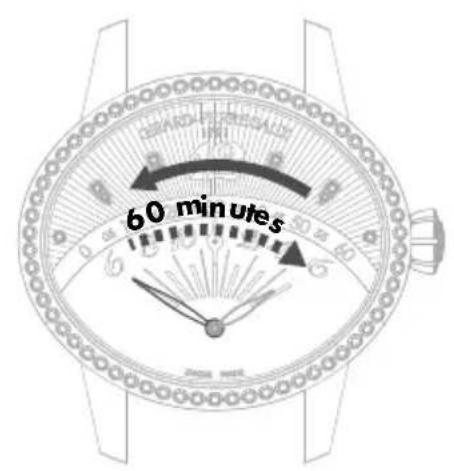

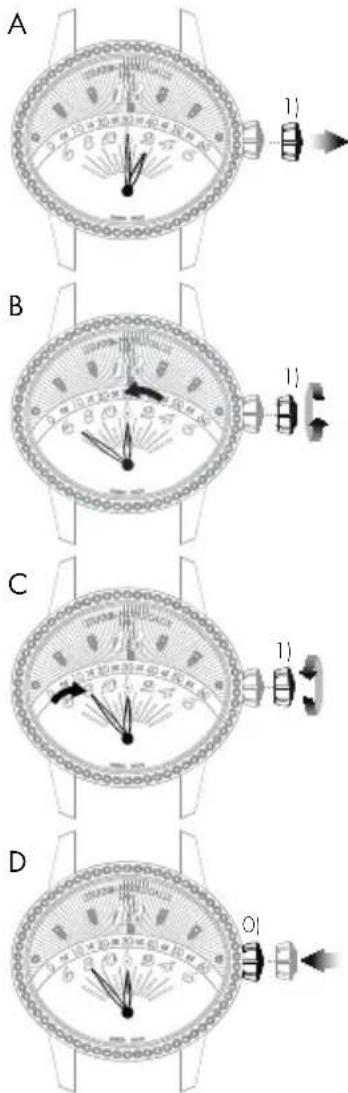

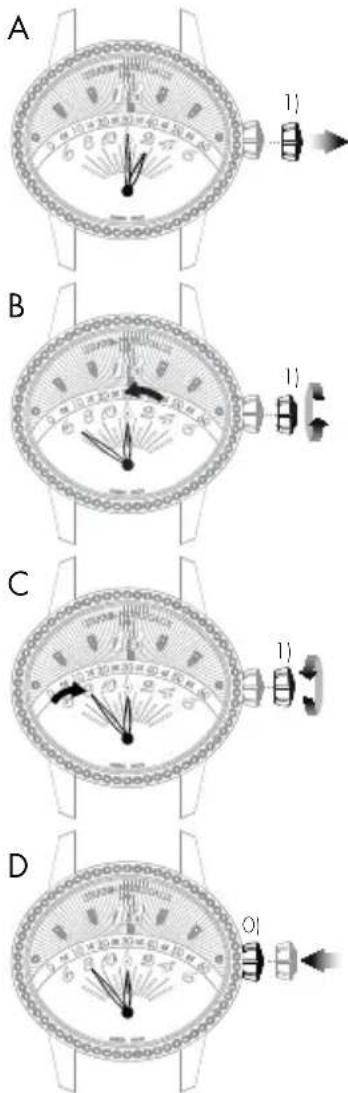

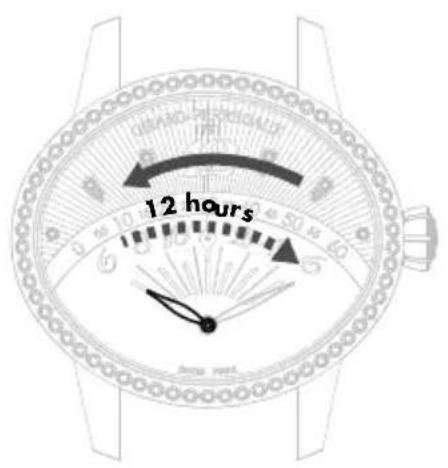

Retrograde display

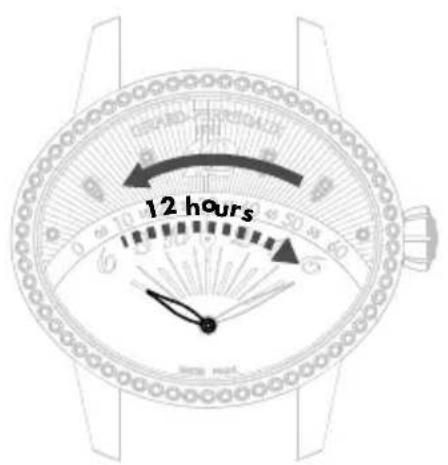

The retrograde hour and minute hands move from 6 to 6 o'clock (left to right) and from 0 to 60 minutes (left to right) respectively, before returning immediately to their starting point and beginning their journey once more.

Hour hand Minute hand

Setting

A. Pull your crown out to the time setting position.

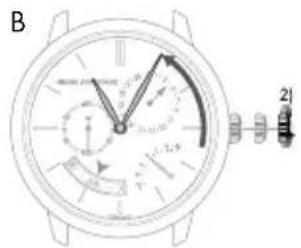

B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

English

DATE

Introduction

The date indication shows the number of the day in the month.

This function enables rapid date setting for your watch without altering the time. The indication of the date is synchronized with the hour and minute hands. In any case, you need to correct the date display for any month not lasting 31 days, for a single date.

Warning: Do not perform this operation between 8 PM and 8 AM as the date change mechanism is engaged, and the mechanism could become damaged.

Setting

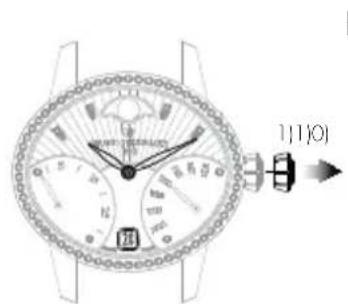

Window display date

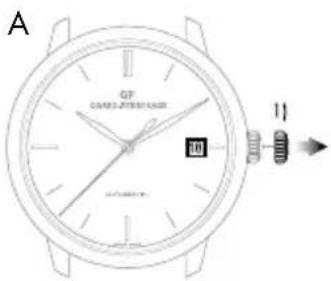

A. Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown clockwise until the desired date appears in the window. According to the model, the crown may be turned in the opposite direction.

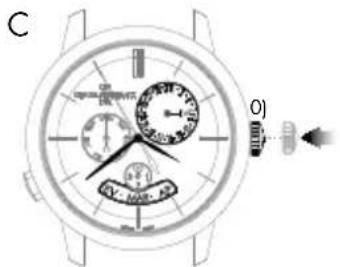

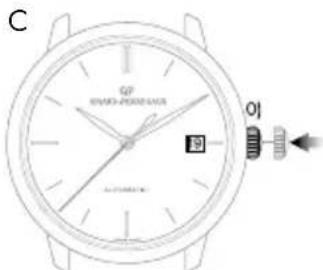

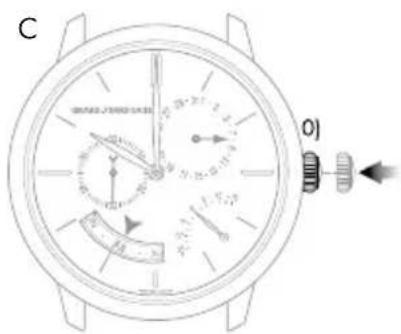

C. At the desired date, push the crown back against the case, in position 0).

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Hand display date

If your watch has a hand display date, you can correct it via the corrector, found on the case of your watch.

Press on the corrector, with the help of the little tool delivered with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

English

POWER RESERVE INDICATOR

Introduction

This indicator allows you to know the status of your watch power in real time, or how long your watch can work for before it will need to be wound again.

Reading

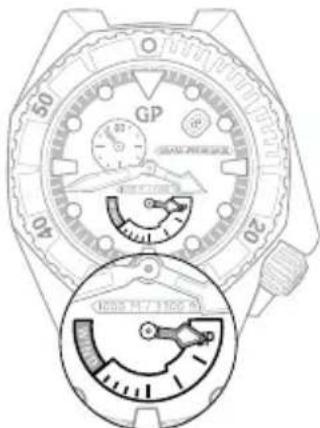

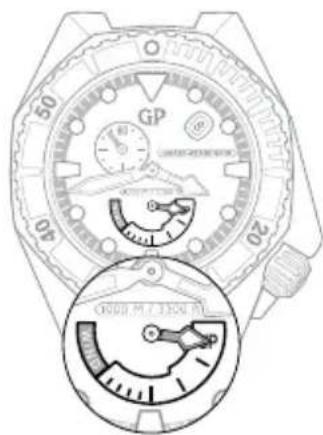

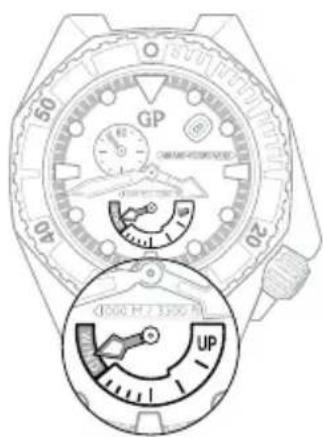

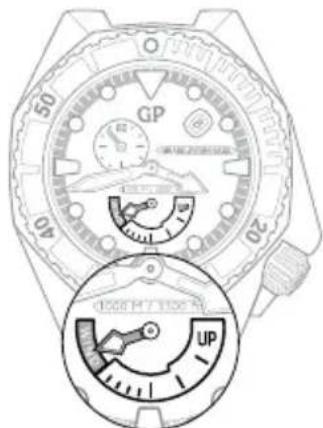

The power reserve status of your watch is indicated by a little hand moving along a graded arc.

Setting

The power reserve indicator is synchronized with the movement, so it does not need to be set.

Stop soon Full

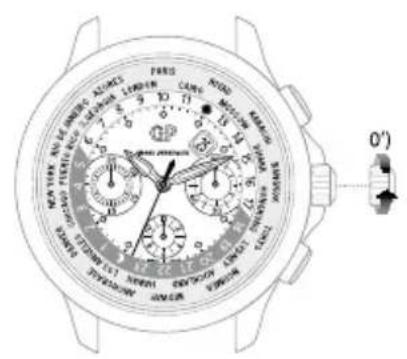

SECOND TIME ZONE

Introduction

This function, which is highly valued by travellers, is used to display two time zones simultaneously: The reference time or ‘home time’, and the local time.

Reading

The reference time («home time») is displayed on the central 24-hour graduated disc. As usual, the local time is read on the external graduated scale.

Setting

Reference time («home time») hours and minutes

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

Warning: The date hand only follows the local hour hand (set using the push Buttons at 2 o'clock and 4 o'clock).

A. Pull the crown of your watch out to the time setting position, in position 1). The seconds hand will stop.

B. Turn the crown clockwise so as to indicate the selected time minus 5 minutes. This setting simultaneously moves the reference (‘home time’) hour and minute hands and the local hour hand.

English

C. Slowly move the minute hand forward in a clockwise direction, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position O); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Date change by hand

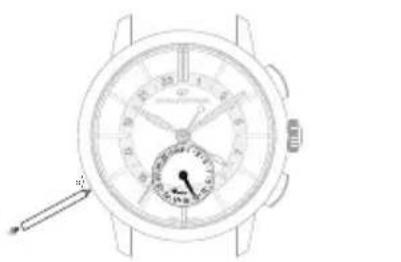

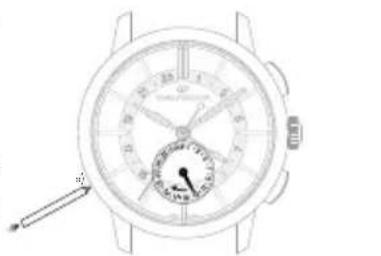

Press on the corrector a) located at 8 o'clock using the small tool supplied with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

Warning: Between 11PM and midnight, a date correction using corrector a) will only enable the date to be moved forward by one day. However, this action will not damage your mechanism.

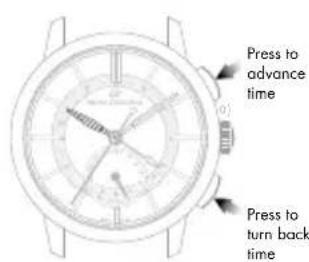

Second time zone (local time)

The push Buttons located at 2 o'clock and 4 o'clock can be used to move the second time zone hour hand forwards or backwards (local time). Press once to move the time forwards or backwards one hour.

C

D

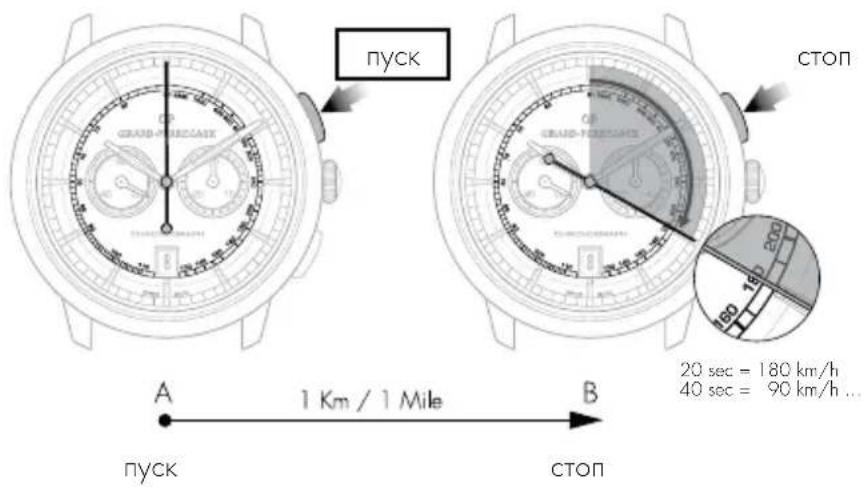

TACHOMETRIC SCALE

Introduction

This function measures an average speed over a given distance.

Reading

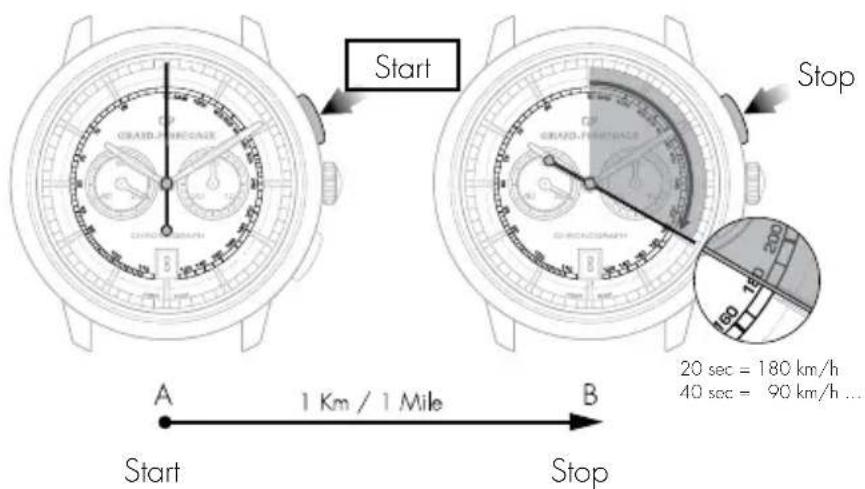

Let us take a road with 2 markers A and B set one kilometer (or mile) apart. Start your chronograph as your car passes marker A, then stop it as it passes marker B. Then read the average speed in kilometers/hour or miles/hour on the tachometer scale at the tip of the chronograph center seconds hand.

CHRONOGRAPH

Introduction

The chronograph seconds are displayed by a large center hand. The minute, and possibly the hour, are generally displayed by 1 or 2 small counters.

The seconds hand and the counters are interconnected.

On certain models, minute timing may also be indicated by a center hand pointing to the dial's graduated rim.

A

Setting

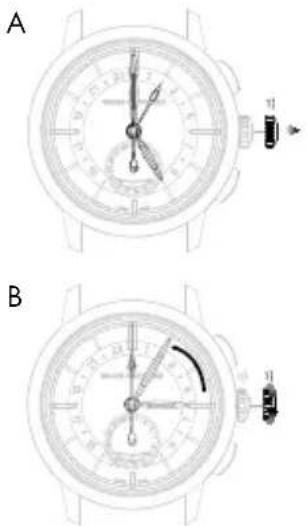

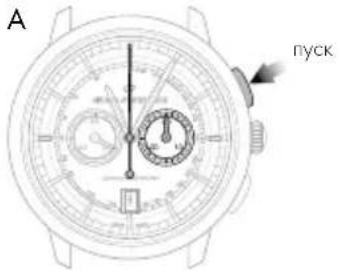

A. Press your watch's push button at 2 o'clock: The center seconds hand will start.

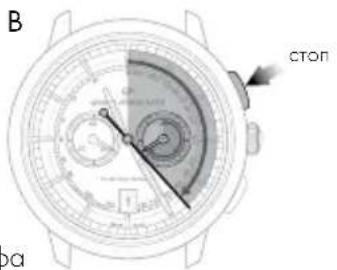

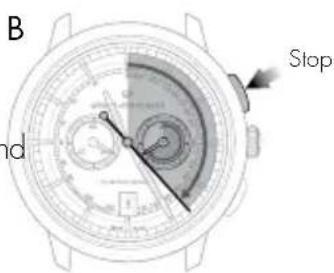

B. Press the same push button at 2 o'clock again: the center seconds hand will stop.

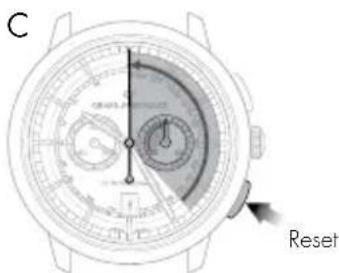

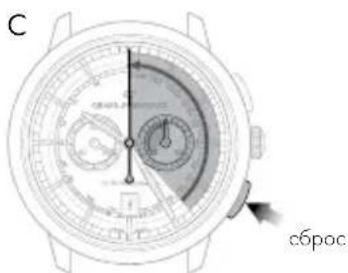

C. Press your watch's push-button at 4 o'clock: The center seconds and the counter hands will return to zero.

B

Warning: While the second hand is working, never reset to zero to prevent damage to the mechanism. Always check the second hand has stopped before resetting to zero.

C

ASTRONOMIC FUNCTIONS

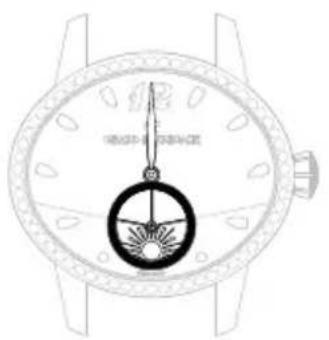

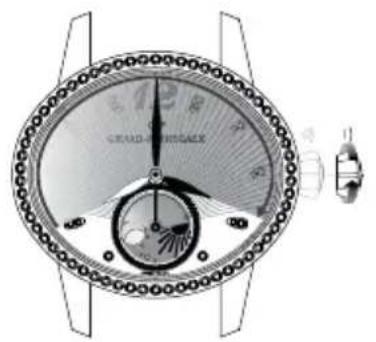

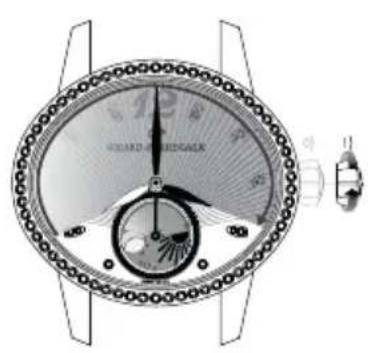

DAY/NIGHT INDICATOR

Introduction

The day/night indicator uses a system of discs representing the sun and moon to indicate whether it is day or night. The special window depicts the night sky, in which the shape of the moon and sun changes as the day advances.

Reading

When setting the time, take into account the day/night indication, as this is synchronised with the hour and minute indications. For example, at midnight, the moon should appear at 6 o'clock, while at midday the sun should appear at 6 o'clock.

Midday Midnight

MOON PHASES INDICATOR

Introduction

Moon phases indication allows the reproduction of the moon cycle (new moon, first quarter, full morn, final quarter) by means of a disc or a window. The moon phases indicator offers a representation of the sky in which the form of the moon is shown at its different stages throughout the lunar month.

Reading

A disc, with two moons placed in a starry sky, turns in a window.

At the start of each moon phase, one of the two moons appears in the left-hand section of the window; it initially appears as a slim crescent, emerging from behind the rounded edge, then gradually grows over the course of the days.

In the middle of the lunar month, the moon appears in the middle of the window in its full form. It then starts to gradually disappear behind the second rounded cover on the right.

New moon First quarter Last quarter Full moon

Setting

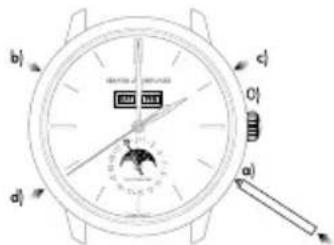

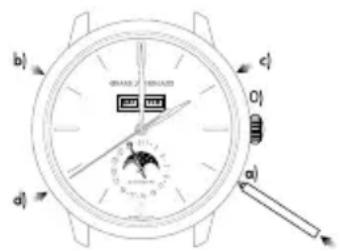

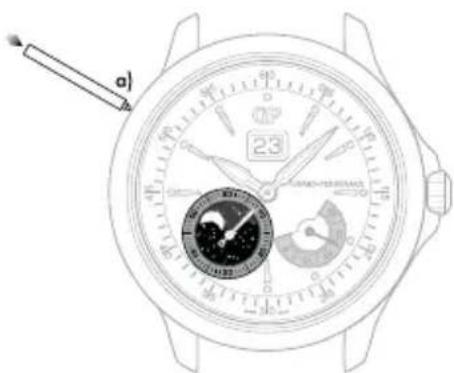

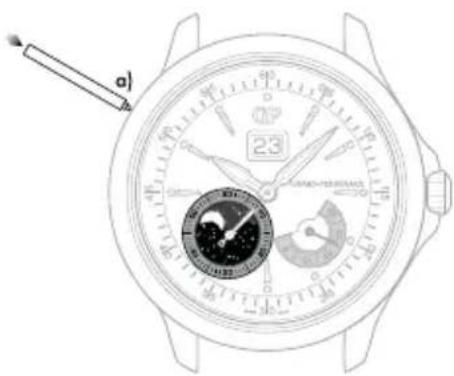

Press on the corrector a), using the little tool received with your watch, until the desired moon phase is displayed. One press on the corrector corresponds to one day forward.

Warning: Do not correct the moon phases indicator when the mechanism changing the date is engaged, between 3 PM and 3 AM, as this could damage the mechanism. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

*Corrector with variable position according to the model

English

BI-RETRO

Introduction

The retrograde seconds and day of the week hands move from 0 to 30 (up to down) and from MON to SUN (down to up) respectively before returning immediately to their starting point and beginning their once more.

Setting

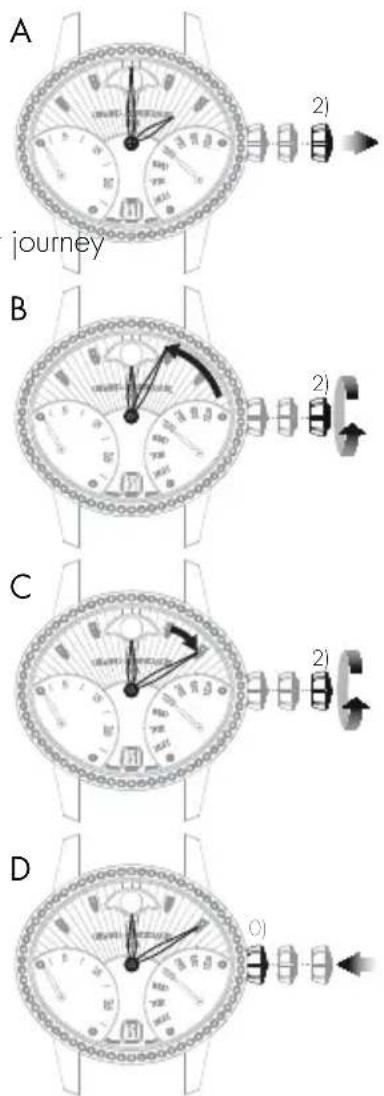

Hour and minute

A. Pull out the crown of your watch into the hour setting position, in position 2).

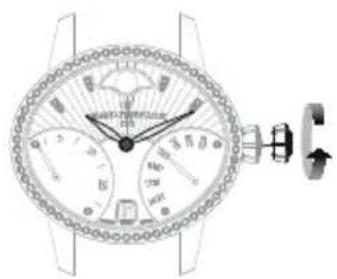

B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

Date

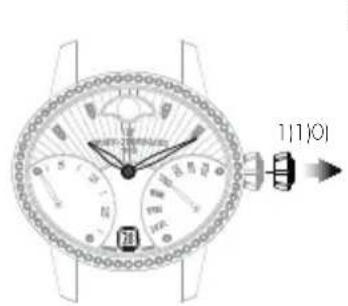

A. Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown clockwise until the desired date appears in the window.

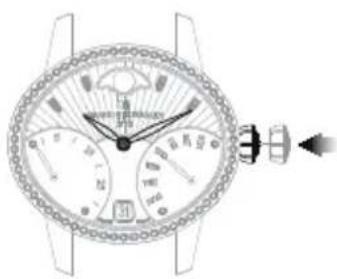

C. At the desired date, push the crown back against the case, in position O).

Warning: After making any setting, always return the crown to its original position against the case, position O), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

A
B

C

Day of the week

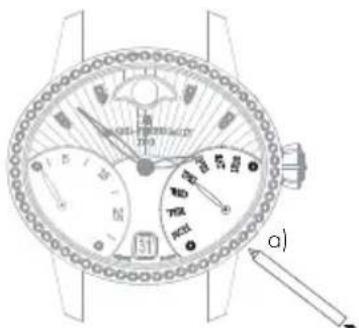

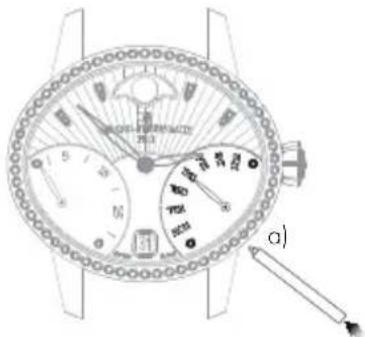

The day can be corrected by pressing on the corrector a), positioned at 4.30, using a small tool delivered with your watch. One press on the corrector corresponds to one day forward.

Warning: Do not change the day of the week between 19:00 and 1:00, when the date-change mechanism is being activated, as this could damage the movement.

Moon phases

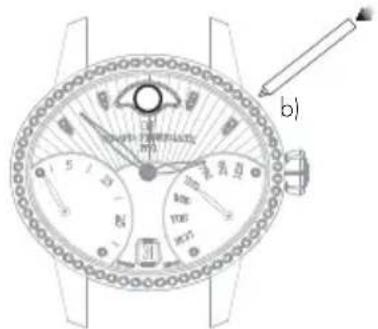

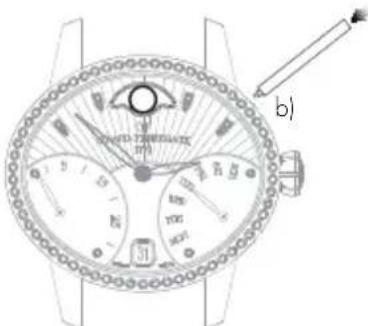

Press corrector b), positioned at 14.30, using the small tool supplied with your watch, until the desired moon phase is displayed. One press on the corrector corresponds to one day forward.

Warning: Do not correct the moon phase indicator between 7:00 PM and 1:00 AM, when the date-change mechanism is being activated, as this could damage the movement. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

FULLCALENDAR

Introduction

As well as showing the hours and the minutes, the watchmaking complication "Full calendar" also clearly displays the date, the day of the week, the month and indicates moon phases.

Warning: Do not correct the calendar or the moon phases indicator when the mechanism changing the date is engaged, between 3 PM and 8 PM, as this could damage the mechanism. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

Setting

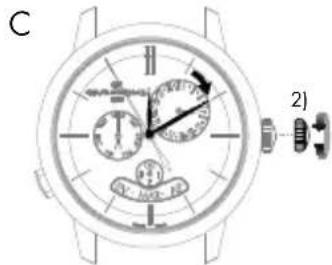

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

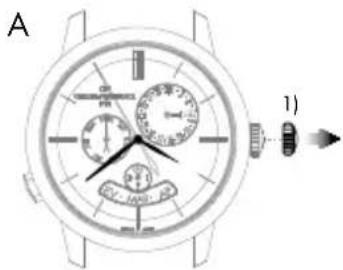

A. Pull your crown out to the time setting position, in position 1). The seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.

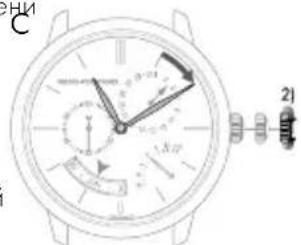

C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

Date change by hand

Press on the corrector a) located at 4 o'clock using the small tool supplied with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

Warning: Going from the 31^st to the 1^st leads to a change in the month indicated (continuing to the next month).

Day of the week

Press on the corrector b) (located at 10 o'clock) using a small tool delivered with your watch, until the desired day of the week appears in the window.

Month

Press on the corrector c) (located at 2 o'clock) using a small tool delivered with your watch, until the desired month appears in the window.

Warning: Do not perform this operation if the date or calendar display is between the 30^th and the 2^nd , as the month change mechanism is engaged, as you risk damaging the mechanism.

Moon phases

Press on the corrector d) (located at 8 o'clock) using a small tool delivered with your watch, until the desired moon phase appears. One press on the corrector corresponds to one day forward.

ANNUALCALENDAR AND EQUATION OF TIME

Introduction

Unlike a conventional calendar mechanism, your annual calendar only requires date correction for February in non-leap years, i.e. 3 corrections in total in a 4-year cycle.

Setting

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

A. Pull out the crown of your watch into the hour setting position, in position 2). The seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

Date and month

Warning: Before making any correction, ensure that the time display is between 9:30 AM and 8:30 PM. Outside this range, any rotation of the stem in position 1) will have no effect. Use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

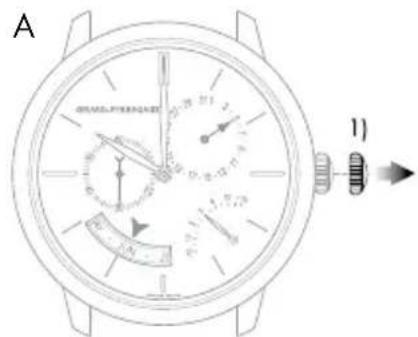

A. Turn the crown of your watch into the date setting position, position 1).
B. Turn the crown until the day hand a) indicates the desired date. The crown can be turned in both directions. The month disc b) is synchronized with the date hand, so it does not need to be changed.

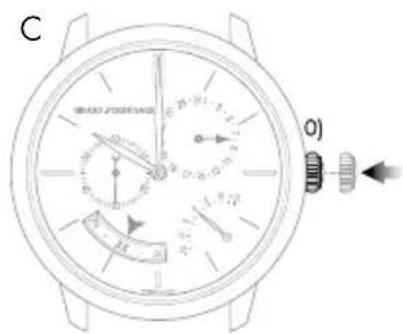

C. At the desired date, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Warning: For months with 30 days, the date takes approximately 4 hours 30 minutes to jump to the first day of the next month, passing through the 3^st . For February, the date takes approximately 7 hours 30 minutes to jump to the March 1^st , passing through the 30^th and 31^st .

Equation of time

Introduction

The Earth's orbit around the sun is not perfectly circular. As with most of the celestial bodies in our solar system, its trajectory is elliptical. In addition, the Earth's axis is tilted in relation to the orbit's plane. A consequence of this irregular trajectory is that the length of the solar day – the interval between the times at which the sun twice passes the meridian at a given location – varies according to the season. The 24-hour day used for civil time is calculated using the average duration of the solar day.

Reading

The equation of time function indicates the difference between the mean time and the solar time. This difference is indicated by a little hand which moves along a graduated arc. It can extend to between approximately +14 and -16 minutes for certain dates at the start of February and November respectively.

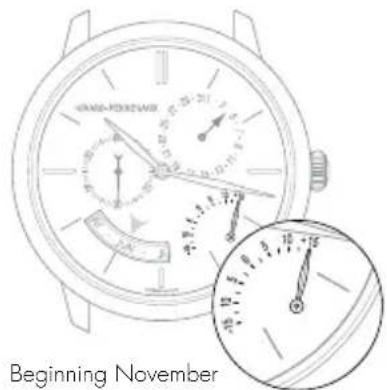

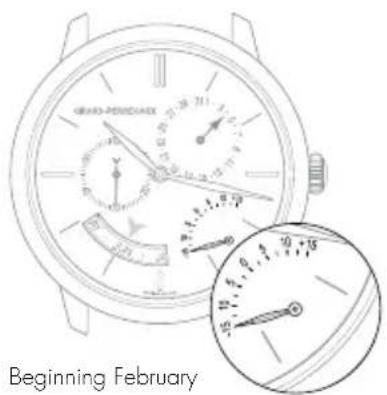

Setting

The equation of time indicator is synchronized with the calendar readings, and therefore does not require adjustment.

PERPETUALCALENDAR

Introduction

The perpetual calendar indicates the date, day and month, taking into account the different lengths of the months in the Gregorian calendar, including leap years. Its "mechanical memory" therefore counts 1461 days, or four years.

Please note that this type of mechanism cannot take non-standard common years into account (years which are not leap years as they can be divided by 100 but not by 400, such as 2100).

Setting

Before making any correction, ensure that the time display is between 1:00 PM and 8:30 PM. Outside this range, any rotation of the stem in position 1) will have no effect. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

Adjustment outside the hours of 1:00 PM and 8:30 PM will not cause any mechanism.

English

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

A. Pull out the crown of your watch into the hour setting position, in position 2). The seconds hand will stop.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Date and month

A. Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown until the day hand a) indicates the desired date. The crown can be turned in both directions. The month disc b) is synchronized with the date hand, so it does not need to be changed.
C. At the desired date, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Warning: For months with 30 days, the date takes approximately 4 hours 30 minutes to jump to the first day of the next month, passing through the 31^st . For the month of February, the date takes approximately 7 hours 30 minutes to jump to the first of March in a leap year, passing through the 30^th and 31^st , and approximately 12 hours in a common year, passing through the 29^th , 30^th and 31^st .

Day of the week

The day of the week is corrected by pressing the push-button at 8 o'clock. One press on the push-button corresponds to one day forward.

Please note that the push-button can be activated at any time of day without any risk of damage.

Leap year indicator

The leap year indicator is synchronised with the month disc, which is in turn synchronised with the date hand. It does not need to be set.

DEUTSCH

INHALT

INTERNATIONALE GARANTIE 87

MexaHn3M c aBTOMaTHueCKHM 3aBOJOM

A B T O M A T U N C E C K N 3 aB O D O3 H a u a e T, Y T O Y a c b I H A K a n P N B A J O T 3 h e p r i n o a B T O M A T U N C E C K N p n H O W E H N I X H A 3 a n j c t b e. X e c t b, c o b e p s a e m b l e p y k o n, n o 3 b o n j a o T p o t o p y o c y u c e c t b j a r t b B O 3 B p a t h O - n o c t y n a t e J b h b e d n k e h n , p n n 3 t o m 3 h e p r i n a n e p e d a e t c m x a h n 3 m y q e p e 3 c n c t e My k o n c, B pe 3 y j b t a t e yero n np o n c x o d i n T a B T O M A T U N C E C K N 3 aB O D. Y T O b l o b e c n e u t b q a c m d o c t a t o u h b 3 a n a c x o d a 6e3 H e o b x o d i n M O C T N D O N O N H I N T E h b H O R O 3 a B O D, I X D O C T A T O U H H O C H C T B K A X d b I d e h.

EcnBbHe Hocnnu Yacb B TeueHne dnteHoro BpeMeHn, Hx Heo6xoJmo 3aBecTn BpyHyIO. Ira 3toro O3HaKOMbTeCb C nHphiOpMaunne npedbyuero pa3dena «MexAHmC puyhblm 3abODom

ФУHKUИN I3MEPEHЯ BPEMEHIN

YACbIMNHHTbl

BVeJeHne

YCTAHOBKa BpeMeHn Ha BaInx Yacax OcyIeCTBnIeTc npn NOMOuN 3aBOHOr rOIOBKn, B 3aBNCIMOCTH OT MOJIEN YACOB, rOIOBA KMOKeT 6bITb DByX- nII TpExNo3nUOHHOH.

BByXNo3NIOHNOHHaTOLOBKa

0) POnOKeHHe pyHOro nO3aBOJa yAcOBOrO MexAHn3Ma (3aBOHa rOIOBKa He BbTtHyTa).

1) Noloxene nna yctahOBKn BpeMeHN (roNobKa BbTTaHaTa).

TpexnoHnOHnTOnOBka

0) POnIOXeHHe pyHHOro nOa3aBOda yacOBOro MexAHn3Ma (3aBOHaR rONOBKa He BbTtHyTa).
1) NIOJOXeHHe IyCTaHOBKn DaTbI (rOJOBKa BbITaHyTa HAnoJIobHy).
2) NIOXHeHne IyCTaHOBKn BpeMeHN (rOJOBKa NOnHOCTbIO BbITaHyTa).

EcnBaaHacb HMeIOT INDnKATOp DaTb, y6eIITecb, yTO NOXeHne cTpEnOK COOTBeTcByET N3MeHEnIO DaTb B NoNHOy, a He B NoJDeHb. YTo6bHaCTpOHTb Ha npabINbHyIO NOOBHy CYtOK, CNeIITE 3a CMeHOn DaTb B OKoIKe: OHa IponCXoIIT OKOIO NOYHOuN.

Hactpoika

A. BbyTaNHTe rONOBky yacOB b noJOnKeHne dIy ycTaHOBKn BpeMeHN. B yacax c HnDKaUne CEkyH, CEkyHNaH CTpenKa OCTAOHBITcR.
B. BpaaaiTe roNobky no yacoboi cTpenke do tex nop, noka cTpenka He OKAKETCA B NOJoxeHH 3a 5 MInHyD o Tpe6yemoro Yaca.
C. MeDneHNO BpaaIte MHyTHyIO CTpeNky B HApPabNeHN No YacOBOn CTpeJIke N OCTAHOBITE ee TOHNO HA BBbopaHHO MNHYTe.
D. Iocne yCTAHOBKn Bb6paHHoro Yaca npXMMte rONOBky K Kopnycy, BepHyB ee B nONOXHHe 0; Yacbl TOTuAC BO3O6HOBRT CBOI XoJ.

BHHMaHHe! KaXdbi pa3 nocne hactpoiKn Bcerda Bo3Bpaaate rnoBky B nepBOHaHbHoe noLoxehne, npKxab ee K Kopnyc B noLoxehne 0, yTo6bl coXpaHnTB BOOCToKoCTb Baunx qacob nN36exatb nobpeJeHnMEXAHn3Ma. IyraTOrO O3HakombTecb c pa3dienom 3aboHnKaKopoHka).

PetporpaHbIyka3aTeIb

PetporpaHnagacOBa cTeKKa Dnraetc CneBa HnnpBO OT OHOI OTMeTKN 6 HACOB] Do npOHTKn 60 MNHT,3aTeM KxDgA MHOBHeHO BO3BpaaeTcB CBOIO NcxOHyTOky, C KOtOpO B03oHOBnEe T CBOXo.

Yacobar cTePikKa MHyTHaR cTePknA

Hactpoika

A. BbyTHeTe rONOBky aocob B nONoXeHne IyCTaHOBKn BpeMeHH.
B.CnOMOJIbIO 3aBOJHOI rONOBKN yCTAHOBITE CTpeIKN TAKIM O6pa3OM, YTO6bl OHNIPOKA3bIBAJIH Ha 5 MInHT MeHbIe TOHORO BpeMeHN.
C. MeiHnHO BpaaTe MInHyTHyIO CTpeKv B HApBaJIeHNn NO YacOBOn CTpeKe N OCTAHOBITE ee TOHO HA Bb6paHHo MNHYte.
D. Посné установки Вьбранно уаса пижмITE толobky К корпсу, Бер hyBeeВ поожене 0).Часы ТOTчac BO3O6HOBRT CBOI xOD.

BHHMaHHe! KaXdbi pa3 nocne hactpoKn Bcerda BO3Bpaaante rONOBky nepeBOHaunbHoe nooXeHne, npxab ee K Kopnycy B nooXeHne 0, yTo6bl coXPaHHTb BOOCTOuKOcTB Baunx Hacob N 36exatb NOBpExdHm MEXAH3Ma. IyraTOrO O3HakOMbTEcB c pa3deNoM 3aBoDHaKopoHka>.

Pycckn

DATA

BVeJeHne

HnkaaIg DaTb I03BOJraeY3HaTb NoprKObbl Hmep DnB Mecae.

YCTAHOBKa DaTbI NO3BOJRAET 6bICTPO CMeHHTb DAty B Yacax, He N3MeHra NOKa3aHn BpeMeHN. Hndkaun DaTbCINXPOHn3NPOBaHa C YACOBn MmHyTHoN CTpeKNAM. Tem He MeHee, B Yacax C INHdkATOpOM DaTb Heo6xOJIMO KoppeKTHPOBaT NOKa3AHn DaTb B KOHc MeCauE, B KOTopbIX MeHee 31 dHr.

BnmaHne! 4To6bI n36exaTb nobpejdeHn MexaHn3Ma, He yctanabnBaTe DaTy B npomexyKe ot 20.00 do 08.00, nockoIbky B 3TO Bpem MexaHn3M CMeHb DaTb npxOJNT B deJCTBne.

Hactpoika

HnKaun DaTbI BOKoKke

A. BbIaHInTe rONOBky yacob B nOIOXeHne dny yCTAHOBKn DaTb (nOIOXeHne 1).
B. BpaaIte rONOBky no yacoboi cTpeKe Do Tex nop, noka B OKoUke He NOBnCTc HxHAR data (B 3ABNCIMOCTH OT MOeHN HAnpabNeHne BpaueHnra TOnOBKn MoKet 6bITb pa3HbIM).
C. Iocne yctAHOBKn HxHOn DaTbI npXMMTe rONOBky K Kopnycy, BepHyB ee B noJoxeHne 0).

BHHMaHHe! KaXdbi pa3 nocne Hactpoyn BO3Bpaaante RoNOBky B nepBOHaunbHoe noLoXeHne, npKab ee K Kopny CB noLoXeHne 0, TTo6bl coxpaHnTB BOOCToIKoCTb Baux xacob n36exkaT nobpeXeHnMexAHn3Ma. IyraTOrO O3HAKOMbTEcB c pa3dienom «3abOnHra roNOBka>.

CtpenohnHnHnKaunDaTbI

B yacax co ctpenoyho nHnkauee daTbe ee hactpoika ocuyecTBnaetc npi nomoyn Koppektopa Ha obpaTHOH CTOPHO KOpnyca yacob.

HaKImaIte Ha KhoNky-KoppeKTOp npn NOMOUI npnIOKeHHoro K qacam HnCTpyMeHTa Do Tex nop, noka CTpeNka KaJIeHdApA He 6yDet YKa3bIBaTb HyXHyO dAty. Ondo Haxatne Ha KhoNky-KoppeKTOp COOTBETCTByet nepexOdy Bneped Ha OOnH LyHHb IeHb.

INHINKATOP 3ANACA XOДA

BVeJeHne

3TOT INHINKATOP NO3BOJRAET B IIO6OIMOMeHT BpeMeHN OnpedeJIITb COCTOAHnE 3aBOJa MExAHn3Ma BaIINX YACOB NIN Bpem, OCTAOUeecr DO CNEyUoero 3aBOJa.

CHTbIBAHHe NOKa3AHN

3anac xoda yacob yka3bBaetc nOMOu MaNEhko CTpeKN, DnKyuueNc no KpyroBOn uKane C deHnMn.

HactpoKa

INnkaa 3anaca XoJa CnHxpoHn3npObaHa C MExaHn3MOM, NOToMg OHa He Tpe6yET HAcTPOKn.

KOHeU 3BOOa nonHb3BOO

BTOPOUYACOBOINORC

BBeJeHne

Функия Имeel Oco6oe 3haeHne IЯ pyTeWecTBHHKOB, TAK KAK OHa NO3BOJnEe OINHOBpeMeHNO OTO6paXaTb IBa YacOBbIX NORCA; 3TANOHHOE (ДOMaUHee)И MeCTHoe Bpem.

CHTbIBaHHe noka3AHN

3TanoHoe (DOMaHHee) Bpemr yka3bIbaetc H a ceHTpanbHom cnepe6nate c 24-acaoboi shkanoi. YTo kacaetc MeCTHO RpeMeHN, To OHO yka3bIbaETc H a TpaHIOHHo 12-acaoboi shkane, KOTOPa HAHeCeha No BHeHEmy Kpaio cnep6nata.

Hactpoika

3TALOHHbIe qacbI n MInHyTbI («DOMaUHee BpeMra»)

Ipepe npoBeHnem HactpoKu y6eHntecb, 70 noLoXeHne cTpeNOK COOTBETCTBYET N3MeHeHIO DaTb B NOHOb, a He B NoJDeHb. 706bI y6eHtbcB npaBnBHom BblOpe BpemeHn CYtOK, ONpeDenTe NOHOb, BpaaJr cTpeKN Ioka He npOn3oJdT CMeHa DaTb.

BHHMaHHe! Ctpenka yka3aTeNa DaTb CnEpyet TOnbKO 3a CtpenKo MeCTHO BpeMeHN (HacptpoKa ocUeCTBnErc npn NOMOu KNONOK, paCNoJoxeHHbIX y OTMeTOK 2 Yaca) n 4 Yaca).

A. BbyTHeTe rOIOBky yAcOB B nIoXeHne dIyUCTaHOBKn BpeMeHN (noJoxHne 1).CekHyDHa cTpeNk aOCTaHOBNTcR.

B. Bpaaute roNoBky no yacoboy cTpeKe do tex nop, noka cTpeNka He OKaXETcB NOLOXeHn 3a 5 MInyT do Tpe6yEmoT Oaca. Pn BbIOnHeHH NactpoKn CTpeKN 3aTAnOHnHO («Domaushero») n MeCTHOrO BpeMeHH NepemeuaOTcR oNDOBpeMeHHO.

C. Tenepb MeIeHNO BpaaTe 3abOHyIO rONOBky No yacobOu CTpeKe, UTO6bl TOUHO YCTAHOBtB MHyTHyIO CTpeKy Ha BB6paHHo MNHyTe.
D. Посné установки Вьбран Horо Уа с пижмite Гловку К корпсу, Бер hyB ee B noLoxKeHne 0; уасы Totac Bo3o6HOBaT CBOI xOД.

BHHMaHHe! Nocne BbInOnHeHHaIO6bIX HAcTpoek BCERda BO3BpaauaTe 3ABoNDHyO roNoBky B nCxOJHOe IonoXeHne (0) nIIOTHo npixnmaite ee K KopnyCy yacOB, TTO6bl oEcxNeHTb BOHOENpOHuaemocTh n He DOnyCTnTB NOBpeKdHm MExAHN3Ma. Boone noDpo6Ho CMOTpnte B pa3dene «3abODHa rONoBka>.

CtpenoyHnHnKaunDaTbI

HaKImaIte Ha KhoNky-KoppeKTOp (a), pacnoNoKeHHyO y OTMeTKn «8 acOB>, nCNoIb3yra CneuJIbHbI INCTpyMeHT, npnaRaIOUnncR K YacAM, Noka CTpeNka KaHeIapr He yKaXeT Ha TeKyuU O datY. OdHO Haxatne Ha KhoNky-KoppeKTOp COOTBETCTByET nepExoIy CTpeKN dAtb HA OOnH DeH BnepeI.

BHHMaHHe! B HInTePbane Mexy 23.00 n 00.00 HactpoKa DaTbI npn NOMOuN KhoKn-KoppeKTopa (a) MoXeT BblOnHrTbCra TOnbKO Ha OOnn DeHb BnepeJ, OHaKo, 3To DeiCTBHe HIKoMm 6pa3om He BpeNT YacOBOMy MexAHn3My.

BtopoYacobOIOra(MecTHoe Bpem)

KhoNk, pacnoNoxkeHHbIe y OTMeTOK 2 qaca> n 4 qaca>, no3BOJnOT nepeBoOntBnepei nn H3ad YACOBYIO CTpeIKy BTOPO r acOBoro NOca (MeCTHOBpemeH). Ondo Haxatne Ha KhoNky COOTBeTCTByET nepexOdy Ha oINH aCBepei nn HA3ad.

C

D

TAXIMETPNUECKA JUKAJIA

BVeJeHne

AnHHa yHKnna No3BONraT n3MePHTcpeHIO CKOpOCTb Ha OTe3Ke Nt, paBHOM OOhomy KINOMeTpY.

CHTbIBaHHe NOKa3AHN

PaccmOTpIM OTpe3OK NyTH, HA KOtOpOM IBA DApOxHbIX CTOn6Nka, A N B, paCnoJoxHeB b OndHom KInomETpe npyOr ot npya. B MOMENT, KOrda BaW abTomo6nbl npoe3Xaet cTo6nK A, 3anyCTnte xpoHorpaΦ n octahOBHTe erO B MOMENT npoe3Da cTo6Nka B. Ha taxImetprueckoi wKane, paCnoJoxHeHb Bokpyr OKoHeuHOCTn CEkyHdHON CTpeKN XPOHorpaΦa, Bby yBuINTe cpeHIO CKOpOCTb B KM/ucnnn B MnIax/Yac.

XPOHOPTPAΦ

BVeJeHne

HnDkaunn n3mepeHHbIX cekyH,OCyueCTBnreTc npn NOMOuN CEHTpaNBHO CekyHnOH CTpeJIKN XPOHOrpa. HnDKaUN MnHyT N, B HeKOTOpBX CnyHax, YacOB O6buHNO OcyueCTBnreTc npn NOMOuN ODHORo INN DByX MAhIX ChETNUKOB.

Nyck, OCTaHOBka N O6HyIeHne NOKa3AHN CHTUKNOB HENOCpeDCTBEHNHO CBra3AHbC NyCKOM, OCTaHOBko N O6HyIeHnEM NOKa3AHN CEHTpaJIbHOI CeKYHNOI CTpeJIKN XPOHorpaΦa.

B HeKOTOpbIX MoeJnx OTCHET MmHyT MoXe TAKXe OcyuEcTBnYbCpN NOMOu paCnoIoxeHHo B CHTpe CTpeKN, Yka3bBaIOUe H a KAny Ha BHeUHeM o6oKe UΦep6nata.

HactpoKa

A. Haxmte Ha KhoNky, HaxoJyIOcB NonoXeHn «2 yaca': cekyHnHa CTpeKa xpoHorpaΦ npixOoNT B DvIXeHne.
B. Eue pa3 Haxmte Ha ty Xe KhoNky: cekyHnHa Ctpenka xpoHorpaΦa octaHabnBaETcra.
C. HaxMnte Ha KNONky, HaxOaIyIOcB NonoXeHN «4 yaca»: cekynHnA CTpeNkA n CTpeNkN ChETuNKOB XPOHOpaΦa BO3BpaaiOTcK HynEBoi OTMeTKe.

BnHmAHne! HkoIgda He 6hynyIte nokazHnaXpoHOrpafo, ecnn cekyHdHa CTpeIka HaxoIITcB DvIXeHIn, NCKOJIbky 3TO MOxET npINBeCTN K NOBpeXJdeHIO mexAHn3Ma. Bcerda CneIte 3a Tem, YTObI nepeD o6HyIeHNEM nOKa3AHn CEkyHdHa CTpeKka 6bla octahOBHeHa.

ACTPOHOMNueCKNE YHKUIN YKA3ATEJIb BPEMEHN CYTOK (DEHb/HOUb)

BVeJeHne

IINHnKaun BpeMeH cyTOK nCnoB3yeTcNCKOBb yka3aTeNb c n3o6paXeHNem CoHHua N Lyhbl. Ha fOHe He6a B OKoUke yka3aTeJI B COOTBETCTBUN CO BpeMeHem cyTOK nOraBnIOTcN dNcKn JyHb nn CoHHua.

CHTbIBaHHe NOKa3AHN

BoBpeM yCTAHOBKn TOHOro BpeMeHN, yHTbBAJTe yKa3aHnJeHb/HOHy, TAK KAK OHN CINXPOHn3IPOBAHc Yka3aHnEM YacOB mHyT. HanpImeP, ToHO B NOHOb JyHa DOnxHa NOBJIbCBy OTMeTKN 06:00, BTO BpeM kak CoHHue DoJnxHO OKa3aTbCBy 3ToJ Xe OTMeTKN ToHOb B NoJIdeHb.

NonnHbNnHOb

INIKATOPΦA3blIYHbI

BVeJeHne

HnHKatop f3bI NyhI NO3BOJAE T BOCpON3BcCTN 3TOrO CNYTHKa 3emn (HOBOyHne, nepBaYetBepTb, NIOHONYHne, NOcNEdHra YETBePb) npn NOMoU CNCTeMb C OTO6paXeHNEM NOKa3AHn HaDnCKe Hn B OKoWKe. B cneuaNBHom OKoWKe BOCpON3BeHe parmEHT He6a, Ha KOTOpOM LyHHb INCKnpHIMaeT pa3nnHyO oPMy no Mepe TeueHn LyHHoro Mecra.

CHTbIBaHHe NOKa3aHn

BOKoUke BpauaetcnaCK, yKpaueHHbI nByMa n3O6paXeHnMn NHybHa 3Be3nHOM He6e.
B hauane kaxdoro lyHHoro ouno n3 DByx n306paxeHn OTKpbBaetc B3rny B Jebon yactno OKoSKa; B cAmom hauane oHO cKpbBaetc 3a Okpytno 3acNOHkON IMeET BND TOHKOrO cepna, a 3aTeM pactet no Mepe DnHexHn BpemHn.
B cepenHe lyHHoro zHKna nonHocTbO oKpbItoe n3o6paxEne JyHb HaxOnITcB C cepenHe OKoSHA. 3aTeM OHO HauHaeT NOCTeNEHNO yMeHbWATbcR, CKpbBaRcB 3a pacNoJoxEHnC npaba BTOPOkpyrno 3acONHko.

HOBONYHNE NEPBAAHTBnOncnHnAHTBpTbNONHOYHNE

Hactpoika

Haxmaite Ha Khonky-KoppeKTop (a) npinaraembIM K yacam HnCTpyMeHTOM Do Tex nop, noka B Okouke He noBntc Hxhna 43a JyHb. OndHO Haxatne Ha Khonky-KoppeKTop COOTBeTCTByet nepexOdy CTpeKNI DaTb HA OINH DeH Bneped.

BHHMaHHe! 4To6bI n36exaTb NOBpeXeHnMexAHn3Ma, He yCTaHABnBaIte fo3y IyHb B npomexkyTe ot 15.00 do 03.00. 4To6bI HAcTpOnb Hacb Ha npabInbHyIO NOOBHy cyTok, CneDnte 3a CMeHOJ DaTbI INHr HeDenB OKoWke: OHa npOxCODIT OKONO NONYOHU.

*pacnoonxeHneKoppeKTopaMOxET N3MeHbTcB 63BNCMnOCTN OT MOnEN

BI-RETRO

BVeJeHne

PetporpaHaa cekyHnHaa cTePka DnHaaretc OOTMeTKN «O MNHT» DO OTMeTKN 30 MInHyT (CBepx y Bn3), a petporpaHaa cTePka, yKa3bBaIOuaa deHb HeDenn,-OT PH (MON) K BC (SUN) (Chn3y BBepx), NOKA KAXDAra MRHOBeHHo He BO3BpauaetcBA CBOIO NxCODHyTOUky, C KOtOpoi BO3OBnIeT CBOI XoJ.

Hactpoika

Yacbi MHHyTbi

A. BbyTnHte rnoBky yacOB B noNoXeHne dny yCTaHOBKn BpeMeHN (nonoxehne 2).
B.Cnmo3aBOHOI rOIOBNYCTAOHOBITE cTpeKIN TAKIM O6pa3OM,TO6bO HN NOKA3bAHN Ha 5 MNHyT MeHbE ToHOro BpemeHn.
C. MeiHnHO BpaaIte MNHyTHyO CTpeKv B HnPaBHeHH No YacOBoN CTpeJIke N OCTaHOBInTe ee TOHNO Ha Bb6paHHo MNHyTe.
D. Iocne yctaHOBKn Bb6paHHoro Yaca npKMMTe rONOBky K Kopnycy, BepHyB ee B nOIOXeHne 0).Yacbl TOTHAC BO3O6HOBRT CBOI XoJ.

BHHMaHHe! KaXbI pa3 nocne HactpoKn Bcerda Bo3Bpaaate roOBky B nepBOHaHbHoe noLoXeHne, npxab ee K KopnyCy B noLoXeHne 0, rTO6bl COXPaHHT bOdoCToKoCTb Baunx yacob N36exatb NObpexdHn MEXAHN3Ma. IIT ATOrO O3NaKOMbTEcB c pa3dEJom 3aBoHNa KOpOHKa.

Data

A. BbIaHInTe rOIOBky yacOB B NOIOXeHne dIy yCTaHOBKn DaTbI (NOIOXeHne I).
B. Bpaaute e no yacobon ctpenke, noka b okowke he noarntc Tekya data.
C.Пocne yctahOBKn Heo6xoIIMOn DA tB npxMnTe roJOBky K Kopnycy, BepHyB ee B noJoxeHne 0).

BnmaHne! KaKbI pa3 nocHe hactpoKn Bcerda Bo3Bpaaate roNobky B nepBOHaHbHOe noJoxeHne, npixab ee K KopnycB noJoxeHne O, yTo6bl coXpaHHT bOdoCToIKoCTb BaWnx YacOB n 36exatb nobpexdeHm MExAHn3Ma. Ira 3TOrO O3HaKOMbTecb c pa3dEnom 3aBoHra rOIOBAK).

A

B

C

HnHeeenn

YCTAHOBKa DnH HeJeIi BbIOnHReTc HaxaTeM Ha paCnoJoxeHHyO y OTMeTKN «04:30» KhoNky-KoppeKTop (a) c NOMoUIO IHCTpymeHTa, npunaraoUeroC K BaUM Yacam. ONoHO Haxatne Ha KhoNky-KoppeKTop COOTBETCTByET nepexOy CTpenKdAteH Ho OIN DeHb BnepeI.

BHHMaHHe! 3anpeaetc BbnoJnHrtyCtAHOBky Hn Heeenn B npomexyToK BpeMeHc 19:00 do 01:00, TAK KAK B ETO BpeMpaobTaet MexAHN3M CMeHbI NOKa3AHn DaTb, INMOXHO NOBpeNTb YacOBoMexAHN3M.

Φa3aJyHbI

Haximai Te KhoNky-KoppeKTop b) B noJoxeHH 14 yacob 30 MInHyT npinaraembIM K hacam HnCTpyMeHTOM do tex nop, noka B OKoUke He noBntc Tekuza a3a JyHb.. Odno Haxatne Ha KHonky-KoppeKTop COOTBeTCTByET nepexOdy CTpeJIKN DaTb Ha ODIN DeHb Bnepei.

BHHMaHHe! 3anpeaaetc BbINONHbKoppeKtnpOBky fa3bl Nyhbl B npomexytoK BpeMeHN c 19:00 do 01:00, TAK KAK B 3TO BpeMpa6oTaET MexAHm3M CMeHb NOKa3AHn DaTb, IN MOXHO NOBpeNtB YacOBm MexAHm3M. UTo6bHaCTponb YacBa Hn PabunbHyIO NOOBHy CYTOK, CneDITE 3a CMeHOJ DaTb IN DnH HeEeN B OKouke: OHa npOxCoJNT OKONO NOyHOn.

ПОЛный KАLEНДAPь

BVeJeHne

Cnoxha yacobaa yHKnna, H3bBAemar KaneHapem, no3bonaet oecneuht b nKo CHTbBaemyIO INdkauNIO He TOnbKO YACOB MNHyT, HO N DaTBI, DnH HeDEnI, Mecua n Oa3bl Nyhbl.

BHHMaHHe! 4To6b n36ExaTb NOBpeXdeHn MexAHn3Ma, He KoppeKtpyIte Noka3aHn KaneHapra B npomexytke ot 15.00 do 08.00, nockoIbky B aTO Bpem MexAHn3M CMeHb IaTb I a3bl Nybl npHXoNTB DeiCTBne. 4To6b HAcTpoNTb Hacb Ha npabNtHyIO NoOBnHy CYTOK, CJeDInTe 3a CMeHOJ DaTb I dHr HeJeIN B OKoUKe: OHa npOxCxOHT OkOIO nOlyHouH.

HactpoKa

YacbIMMHHyTbi

Ipeep npoBeHnem HAcToKn y6eHntecb, 70 noNoxHe nCtpeKo COOTBcTByET N3MeHEnIO DaTb B NoNHOy, a He B NoNDeH. 706bHaCTpOHTb Ha npabNbHy IO NOBHy CYTOK, CneHNTe 3a CMeHOJ DaTb I DnH HeDenn B OKoUke: OHa npoCXODIT OKOLO NOyHOuN.

A. BbIaHInTe rOIOBky yAcOB B NOIOXeHne IyCTaHOBKn BpeMeBn (noIOxHeHne 1).CekyHdHa CTpeKa OCTaHOBHTcR.
B. BpaaTe rnoBky no yacobOn cTpeKe Do tex np, noka cTpeKa He OKaKetcB NnOKeHIn 3a 5 MInHyT Do Tpe6yEmoro Yaca.
C. MeIeHNO BpaaTe MNHyTHyIO CTpeKv B HAppaBneHn No yacobOcTpeKe n OCTaHOBHTe ee TOHNo Ha Bb6paHHo MNHyTe.
D. Iocne yctahOBKn Bbi6paHHoro haca npnxMITE rONOBky K KopnyCy, BepHyBee B noJoxHe 0; Yacb totuac BO3o6HOBJ CBOI XOJ.

BHHMaHHe! KaJbI pa3 nocne HactpoKn BO3BpaaAnTe rONOBky B nepBOHaHbHoe noLoXeHne, npKab ee K KopnyC y NoLoXeHne 0,HTo6b coxpanHb BOOCTOkoCTb Baunx Yacob N36ExaTb NOpeXeHnMexAHn3Ma. Ira 3TOrO O3HaKombTec c pa3JeNoM 3aBoHnKopoHka

CtpenoyHnHnKaaNa DaTbI

Haxmaite Ha KhoKy-KoppeKtop (a) B noJoxehn 4 yaca> npnilaraembIM K qacam nHCTpyMeHTOM do Tex nop, noka cTpeNk DaTb He yKaxet HxHoe 3HaueHne. Odno haxatne Ha KhoKy-KoppeKtop COOTBETCTByet nepexOdy cTpeNk DaTb HA OdnI DeHb BnepeI.

BnmaHne! NepexoI OT 3NaueHnRA 三 1 K 3NaueHnIO 工 O3Nauaet cMeHy MecaHa Ha HndkaTope Mecaa (npexoK cnEduOeMy Mecau).

IeHb HeJeenn

HaximaiTe Ha KhoNky-KoppeKTop (b) B noLoXeHHn 10 yacob" npnilaraemblm K yacam HcTpyMeHTom do tex nop, noka B OKoUke He NoBNTcH yxHbI DeHb HeDeH.

Mecra

Haxmante Ha KhoNky-KoppeKtop (c) B noLoXeHn 2 haca> npJnaeMbIM K hacam nHCTpyMeHtOM do Tex nop, NOKa B OKoUke He NoBHTcR HxKnB MeCra.

BnmaHne! To6bI n36exaTb NobpeXeHn MexAHn3Ma, He HactpanBaIte NOKa3aHn Meca, ecn INOKa3AHn DaTb IIN KANEHpAra HaxoJrTa Mexy 3HaueHnMn «30» n «2», NOckOJIbky B aTo BpeM MEXAHN3M CMeHbI MeCzua npNXoDNT B DeCTBVE.

Φa3aJyHbI

Hakma Te Ha KhoKy-KoppeTOp (d) B noLoXeHN « 8 yacOB» npnaraembM K qacam HcTpymeHTOM Do Tex nop, noka B oKOwke He noBtca HyxHna f3a3a lyhbl. OndHO Haxatne Ha KhoKy-KoppeTOp COOTBETCTByet nepexOdy Bneped HA OIN NynHbI DeHb.

IODOBOI KAJEHDApN IYHKUyPABHEHnBPEMEHn

BVeJeHne

B OTNIHNE OTE KNAACCNUeCKORo MEXAHIN3Ma KANEHApRA, RODOBON KANEHApb Tpe6yET HAcTPOIKI DaTb TOJIbKO B KOHcE ΦEBpAra NHeBnCOKOCHO rOa, T. e., BCero Tpr pa3a B TeueHne 4-NetHERo BNcoKOCHO uNKna.

Hactpoika

YacbIMMHHyTbi

Ipeed npoBeHnem HactpOieny6eHntecb, 4TO noJIOXHeNE CTpeNOK COOTBcTByET N3MeHnIO DaTb B NOHOb, a He B NoJeHb. 4To6bl y6eHtbcB npaBnBHom BboOpE BpeMeHH cyToK, ONpeDenTe NOHOb, BpaaJra CTrpenKn Ooka He npOn3oJET CMeHa DaTb.

A. BbIyHInTe rONOBky yAcob B nONoXeHne Iyra YcTaHOBKn BpeMeHN (noNoXeHne 2).CekyHdHa cTpeNk a OCTaHOBnTCr.

B. BpaaTe rnoBky no yacobOn cTpeKe Do tex np, noka cTpeKa He OKaKETcB NIOJKeHn 3a 5 MInHyT Do Tpe6yEmoro Yaca.

C. MeIeHNO BpaaIte MNHyTHyO CTpeNky B HApPabJIeHn No YacOBoB CTpeKe N OCTaHOBInTe ee TOH NO BbIbpaHHo MNHyTe.

D. Iocne yctahOBKn Bb6paHHoro haca npKMTe rONOBky K KopnyCy, BepHyB ee B noJoxHe 0; Yacb totuac BO3o6HOBrt CBOI xOJ.

BHHMaHHe! KaXbI pa3 nocne HactpoiKn BO3BpaaAnTe rONOBky nepBOHaayabHoe nooKeHne, npKAB ee K KopnyCy B nooKeHne 0, yTo6bl coxpanTb BOOCTOnKOcTB Baunx hacOB uN36eKaTb NOBpeJdHnMexAHn3Ma. IyAToTO O3NaKOMbTEcB c pa3JeNoM «3aBoDnHk KOpOHka>.

Data Meca

BHHMaHHe! Npei npoBeHnem HactpOieny ybeInTecb, yTo yacOBa CTpeJIka HaxOnITcB nPOMexytke MExNy OTMeKoN 9 uacob 30 MNHTN OTMeKoN 20 uacob 30 MNHT. BHe Yka3aHnOro noNoxehn BpaSeHne WtOKA B NoNoXeHn I He bSyTe NMeTb HnKaKOrO 3ΦeKta. TTo6bl HAcTPOntb YacBi Ha npabInbHyIO NoNoBHy cyTok, cIeINTE 3a CmEOH dATB B OKoUKe; OHa npocxCoNT Okono NOnyHOuN.

A. BbTnHte rONOBKY aocob b nooxehne nry ctaHOBKn dAtb (nonoxehne 1).
B. BpaaTe roOBky Do tex nop, noka cTpeKka KaneHapra (a) He yKaXeT HxKHyIO DaTy. TOnOBky MoXHO Bpaatb B dByx HanpabNeHnax. Ncck MecaeB (b) CnHxpoHn3nPoBaH CO cTpeNoHbIM HndNKATOpOM DAtb, NOtomy OH He Tpe6yET HAcToKn.
C. Nocne yctaHOBN Heo6xOIMMO DaTb npXMMTe rONOBky K Kopnycy, BepHyB ee B nonoxehne 0),

BnmaHne! KaXbI pa3 nocne HactpoKn BO3Bpaaate roNobky B nepBOHaanbHOe noOxHe, npixab ee K KopnyCy B noOxHe 0, TOb6I coXpAHnTB BOIOCToIKoCTb Baunx hacOB n 36ExaTb NOpeXdHn MEXAHn3Ma. Ira 3TOrO O3HaKOMbTEcB C pa3JeIOM 3aBOHaR rOIOBa).

BnmaHne! B meaax, hacntbbaiox 30 dnei, nepexoI daTb K nepbomy nucny cneyioero mecaqa npocxoIIT B teueHne np6n3ntelbHO 4 acob 30 mHyT, mHyra nCNO 31].B febpane nepexoI daTb K nepbomy mapTa npocxoIIT B teueHne np6n3ntelbHO 7 acoB 30 mHyT, mHyra nCna 30]n 31].
