USER MANUAL EVCK037 Everglades

We aim to provide you with a high quality product manufactured in our modern factory with great care and in compliance with total quality control principles.

Therefore, we suggest you read the user manual carefully before using the product and, keep it safe for future reference.

Warning : All our appliances are only for domestic use, not for commercial use.

Note:

This user manual covers more than one model. Some of the features specified in the Manual may not be available in your appliance.

• Mark the products as option.

"Conforms with the WEEE Regulations."

CONTENS

ImportantWarnings.4

Introduction Of The Appliance...6

ImportantWarnings.7

Electrical Connection Scheme...8

Chain Connection Scheme...8

Installation Of Your Oven 9

Technical Features Of Your Oven...9

If The Appliance Does Not Operate.10

Description Of The Oven And Control Panels.10

Control Panels 11

Using Hot Plates.11

Using Oven Section 12

Cooking Time Table 13

Using And Description Of Hob Section For Vitroceramic.13

Maintenance And Cleaning 15

Cleaning And Maintenance Of The Oven's Front Door Glass.15

Installation Of The Oven Door 16

Changing The Oven Lamp 17

Accessories 18

Using The Grill Deflector Sheet 19

Catalytic Walls 20

Chicken Roasting 20

Environmentally-Friendly Disposal and

Package Information 21

IMPORTANT WARNINGS

1. WARNING: To avoid electrocution, ensure that the electrical circuit of the product is open before replacing the lamp.
   2.WARNING:Before touching the connection terminals, all supply circuit should be disconnected.
2. WARNING: While operating the grill, the reachable sections can be hot. Keep the children away.
3. WARNING: Any inadvertent cooking made with fats and oils can be dangerous and cause fire.
   5.WARNING: Risk of fire; do not store the food materials on the cooking surface.
   6.WARNING: If the surface is cracked, unplug the device to prevent any risk of electric shock.
4. WARNING: During usage the reachable sections can be hot. Keep the small children away.
   8.WARNING:The appliance and its reachable sections become hot during usage.
5. The setting conditions of this appliance is indicated on the label. (Or data tag)
6. This appliance is not connected to a combustion product discharge system. This appliance shall be connected and installed as per the applicable installation legislation. Consider the requirements related with ventilation.
7. The reachable sections can become hot when the grill is used. Keep the small children away.
8. WARNING: The appliance is intended for cooking only. It must not be used for other purposes like room heating.
   13.There are additional protective equipment to pre

vent inadvertent touching to the oven doors. This equipment should be installed if there are children.
14. "These instructions are applicable for countries of which symbols are indicated on the appliance. If the country symbol is not available on the appliance, in order to adapt the appliance to the conditions of such country, the technical instructions should be read."
15. Do not use steam cleaners to clean the appliance.
16.Before opening the oven door clean the remnants on it. Before closing the oven door, let it cool.
17. NEVER try to extinguish a fire with water, first disconnect the mains supply and then using, for example a lid or blanket, cover the fire.
18. Do not use hard and abrasive cleaning agents or hard metal scrapers to clean the oven door glass as they may scratch and shatter the surface.
19. After placing a dish, ensure that the door is firmly closed.
20. Unless continuous supervision is provided, the children of age 8 or below should be kept away.
21. Pay attention for not to touch the heating elements.
22. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

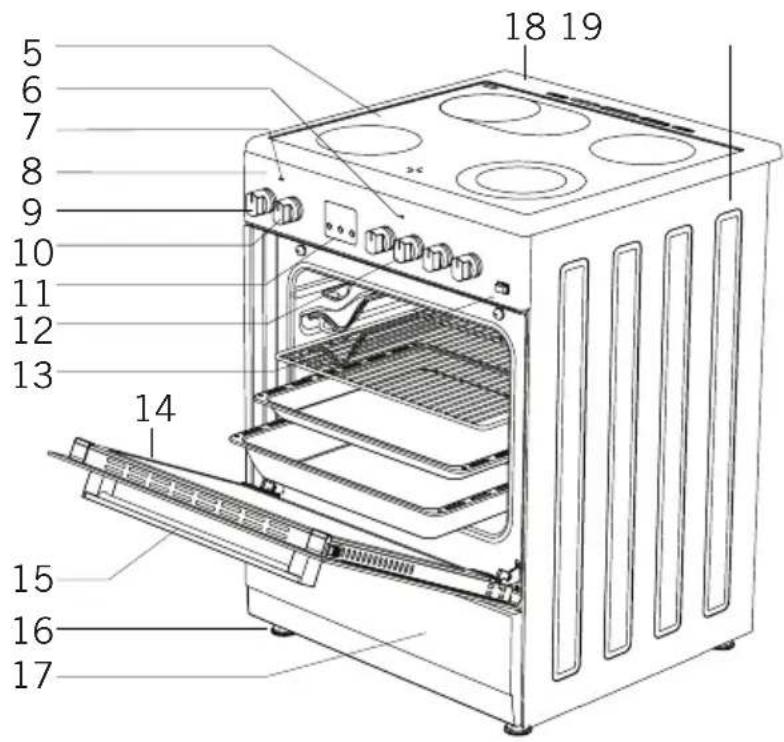

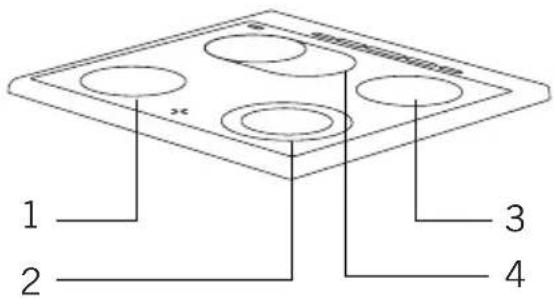

INTRODUCTION OF THE APPLIANCE

Figure 17.1 and 17.2 are optional for ovens with dimensions 50 × 60 and 60 × 60 . ()
Figure 17.1 is not available for oven with dimension 50 × 55 and 17.2 is optional. ()

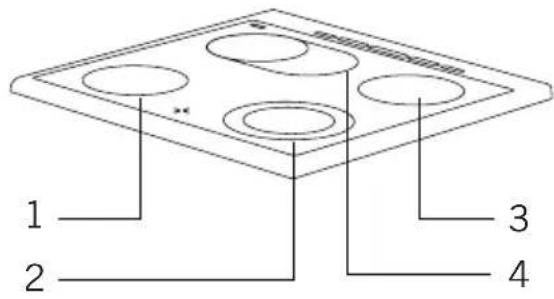

1. Heating Place 0140mm
2. Heating Place 0120/180mm
3. Heating Place 0140mm
4. Heating Place Ovaldual 0140 / 250mm
5. Glass Top Plate
6. Cooker Section Led Lamp
7. Oven Section Led Lamp

8. Control Panel

9. Thermostat Knob

10. Command Knob For Oven
11. Digital Timer (Optional)
12. Regulators For Vitroceramic Hobs
13. Glass Oven Door Oven Traycavity
14. Glass Oven Door Oven Traycavity

15. Handle

16. Plastic Leg

17. Lower Cabinet Door

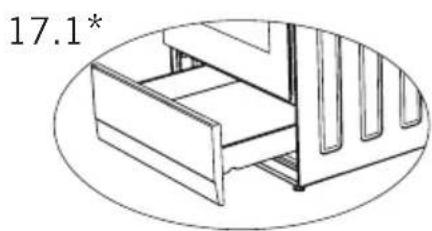

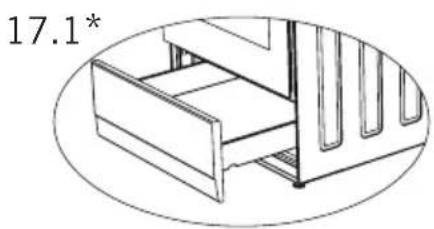

    17.1. Drawer

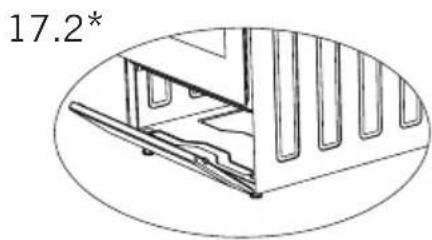

    17.2.Flap Door
18. Metal Top Plate
19. Side Panel

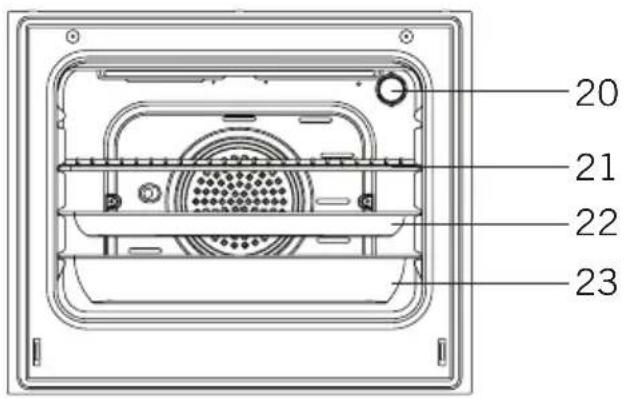

20. Lamp
21. Grill
    22.Standard Tray
22. Deep Tray*

IMPORTANT WARNINGS

Electrical Connection and Security

1. Your oven requires 40 Amp fuse for mono phase or 3x16 Amp fuse for 3 phase supply according to electrical power for cooker section has 4 ceramic heater and oven section has electric models. Installation by a qualified electrician is mandatory.
2. Your oven is adjusted in compliance with 220-240V / 380-415V AC, 50/60Hz. electric supply. If the mains are different from this specified value, contact your authorized service.
3. Electrical connection of the oven should only be made to connections/ sockets with an earth system installed in compliance with local regulations. If there are no connections/ sockets with an earth system in place where the oven will be installed, immediately contact a qualified electrician to install. The manufacturer is not responsible for damages that will arise because of the appliance not be connected to an earth system.
4. If yoursupply cable gets damaged, it should be replaced by an authorized service agent or qualified electrician in order to avoid danger or electric shock.
5. Electrical cable should not touch the hot parts of the appliance.
6. The oven should be using a well ventilation place and should be install on flat ground.
7. Operate your oven in dry atmosphere.
8. When placing your oven to its location, ensure that it is at the counter level. Bring it to the counter level by adjusting the feet if necessary.

ELECTRICAL CONNECTION SCHEME

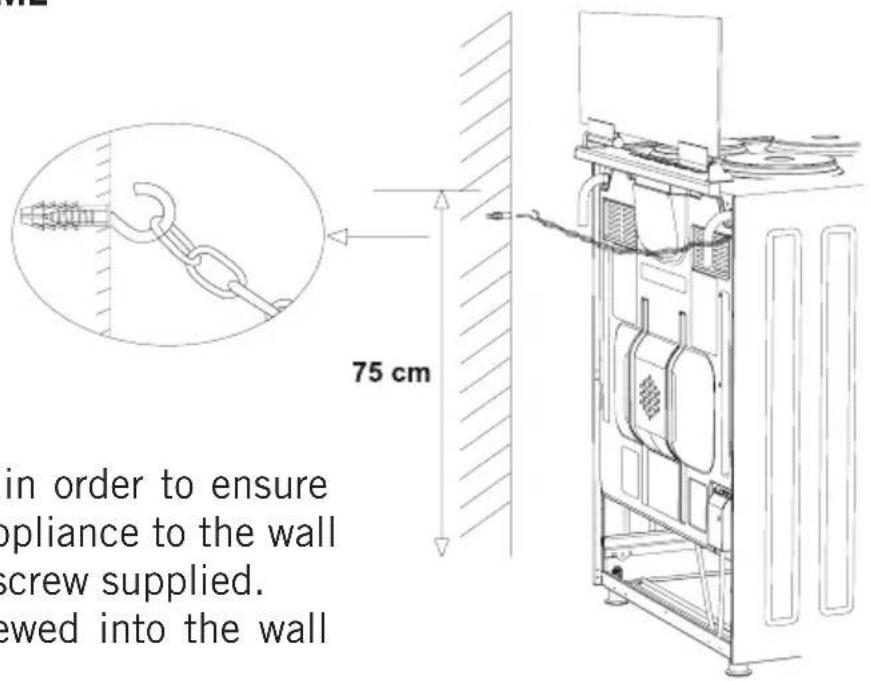

CHAIN CONNECTION SCHEME

Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall using the chain and hooked screw supplied. Ensure that the hook is screwed into the wall securely.

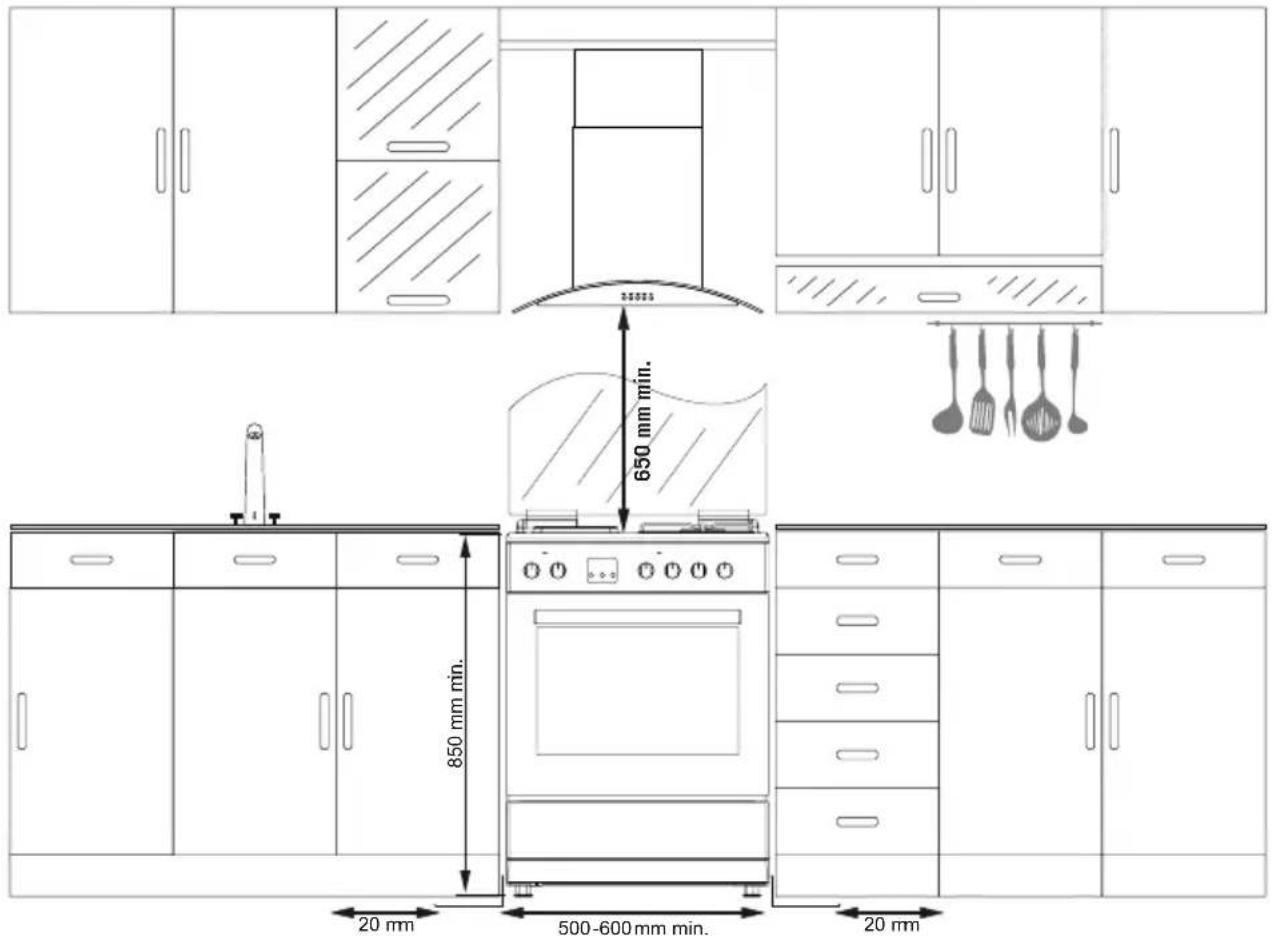

INSTALLATION OF YOUR OVEN

TECHNICAL FEATURES OF YOUR OVEN
SPECIFICATIONS 50x55 50x60	60x60
Outer width 500mm 500mm	600mm
Outer depth 560mm 630mm	630mm
Outer height 855mm 855mm	855mm
Lamp power 15W 15W 15W
Thermostat 50-280°C 50-280°C	0°C 50-280°C
Bottom heating element 1000W 1000W 1200W
Top heating element	800W 800W	1000W
Turbo heating element	-----	1800W 2200W
Grill heating element 1500W	1500W 2000W
Supply voltage	220-240/380-415V,50/60 Hz	220-240/380-415V,50/60 Hz	220-240/380-415V,50/60 Hz
Ceramic heater ø140	1200W 1200W	1200W
Ceramic heater ø180	1700W/1800W	1700W/1800W	1700W/1800W

IF THE APPLIANCE DOES NOT OPERATE

1. Please check the plug of power supply cord has a well connection with wall socket or not.
2. Please check the electric network.
3. Please check the fuse.
4. Please check power supply cord for any damage problems.
5. If you can not solve the problem, get in contact with manufacturer supplier service agent or similar qualified persons.

DESCRIPTION OF THE OVEN AND CONTROL PANELS

←	Turnspit Fan
=	Top + Bottom heating element		Turbo heating + Fan
	Lamp		Bottom + Top heating elements + Fan
	Bottom heating element + Fan		Grill heating element+Fan
	Grill heating element		Grill burner / Grill heating element
	Grill heating element+Lamp	Top heating element
	Electrical timer		Oven burner / Bottom heating element

Thermostat Knob; In order to operate the oven, thermostat must be adjusted to desire temperature. Your thermostat has a feature of adjustment to 50 - 260 degree.

Mechanic Timer Knob*; In order to operate the oven, timer switch should be adjusted to desired time.

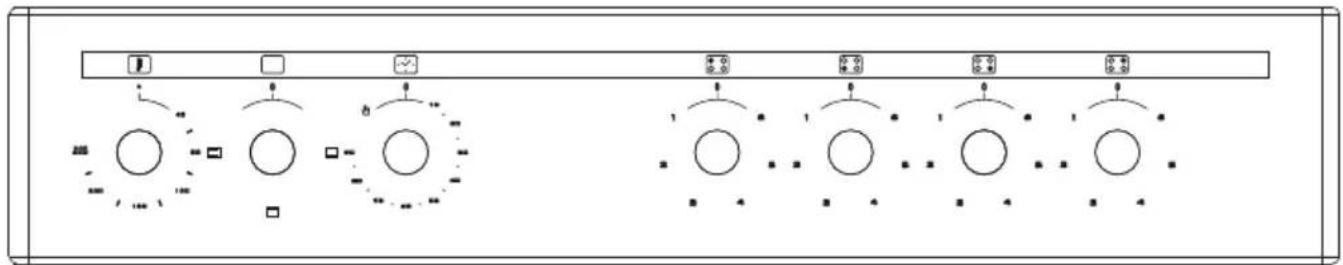

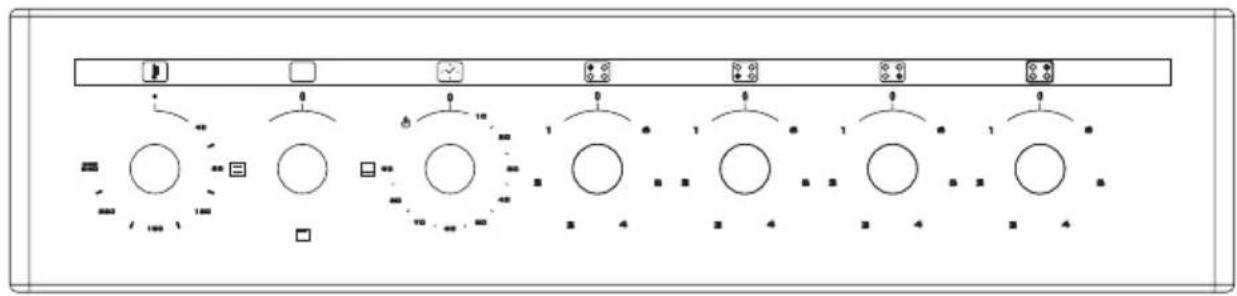

CONTROL PANELS

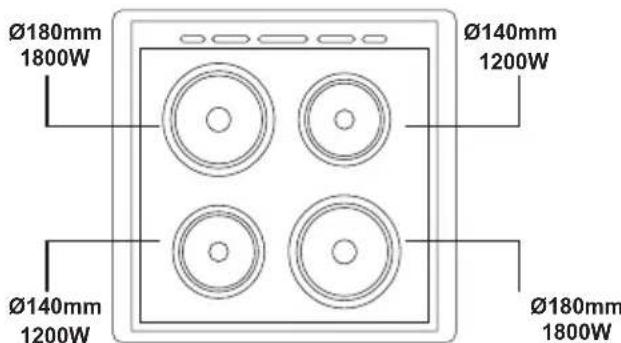

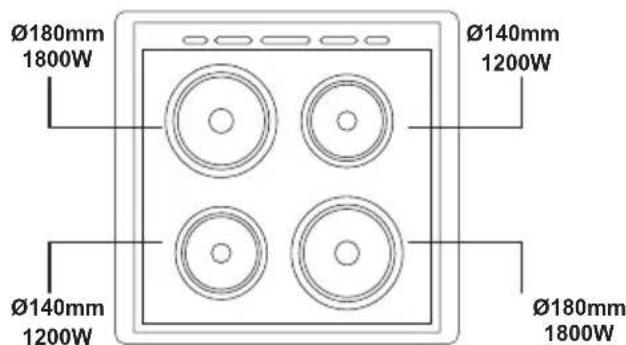

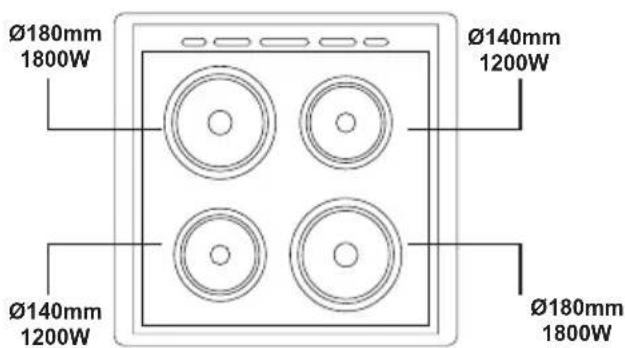

USING HOT PLATES

1. Electric hotplates have standard of 6 temperature levels (as described herein above).

2. In order to operate the hotplates, turn its relative knob that is fixed on the control panel.
   3.Hotplates have six temperature levels as stated in the table. Please operate hotplates at '6' numbered-position for five minutes when you use for the first time while nothing is on the hotplate. This operation provides removing the protection material from the hotplate surface. At this operation an odor and smoke spread out from the hotplate. This is normal; not a manufacturing defect.

3. Please use long-handled pot which is well placed on the hotplate and suitable for the hotplate surface.

USING OVEN SECTION

Using oven heating elements

1. When your oven is operated first time, an odor will be spread out which will be sourced from using the heating elements. In order to get rid of this, operate it at 250^ for 45-60 minutes while it is empty.
2. Oven control knob should be positioned to desired value; otherwise oven does not operate.
3. Kinds of meals, cooking times and thermostat positions are given in

cooking table. The values given in the cooking table are characteristic values and were obtained as a result of the tests performed in our laboratory. You can find different flavors suitable for your taste depending on your cooking and using habits.
4. You can make chicken revolving in your oven by means of the accessories.
5. Cooking times: The results may change according to the area voltage and material having different quality, amount and temperatures.
6. During the time when cooking is being performed in the oven, the lid of the oven should not be opened frequently. Otherwise circulation of the heat may be imbalanced and the results may change.
7. Using cake forms while cooking cake gives better result.
8. 5-10 min. preliminary heating should be done prior cooking.

True False False False

COOKING TIME TABLE

Foods Cooking	Function Temperature (℃)		Rack Position	Cooking Duration (min.)
Cake (Tray/Mold) Statik / Statik+Fan 170-180	2 35-45
Small Cakes Statik / Turbo+Fan 170-180 2 25-30
Patty Statik / Statik+Fan 180-200 2 35-45
Pastry Statik 180-190 2 25-30
Cookie Statik 170-180 3 20-25
Apple Pie Statik / Turbo+Fan 180-190 2 50-70
Sponge Cake Statik	200/150*	2 20-25
Pizza	Statik+Fan	180-200 3 20-30
Lasagna	Statik 180-200 2 25-40
Meringue	Statik	100	2	60
Chicken	Statik+Fan / Turbo+Fan	180-190 2 45-50
Grilled Chicken**	Grill	200-220 4 25-30
Grilled Fish**	Grill+Fan	200-220 4 25-30
Sirloin Steak**	Grill+Fan	Max. 4 15-20
Grilled Meat Balls**	Grill	Max. 4 20-25

*Without pre-heating. Half of the cooking should be 200^ and then second half should be 150^ .

**During the half of cooking, meal should be turned around.

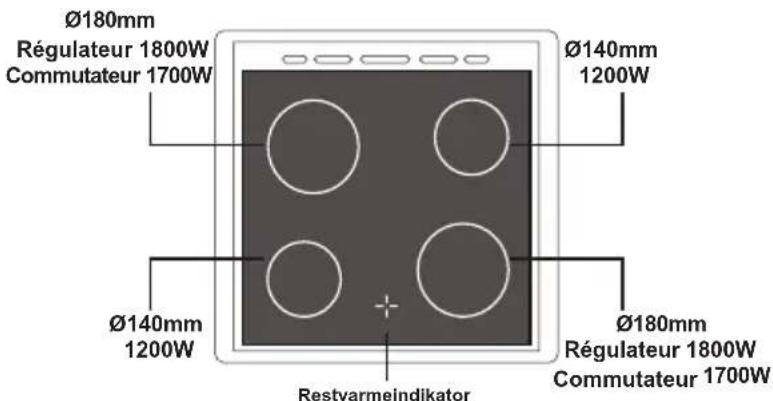

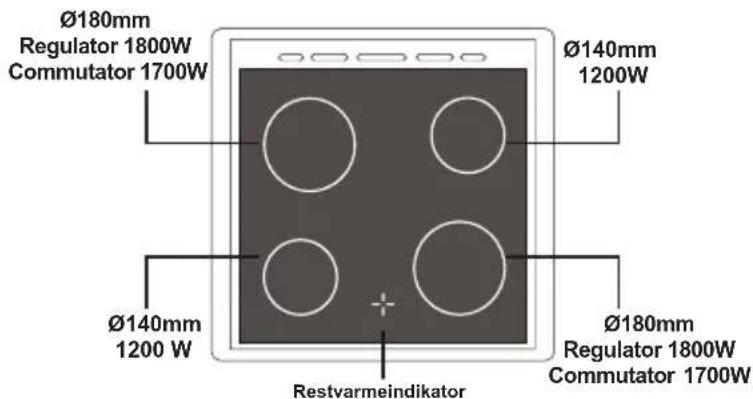

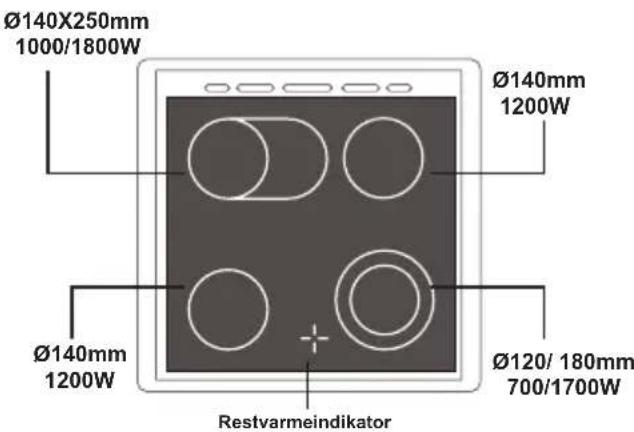

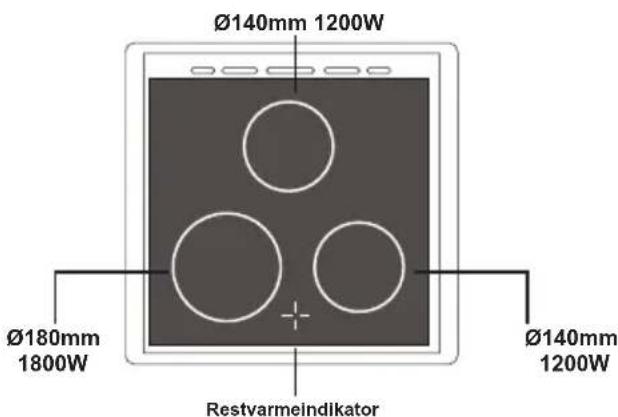

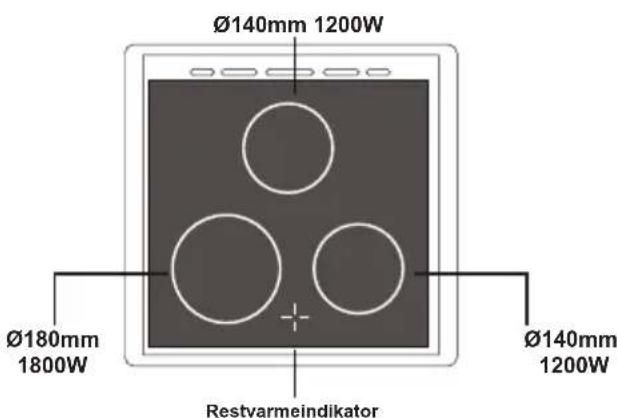

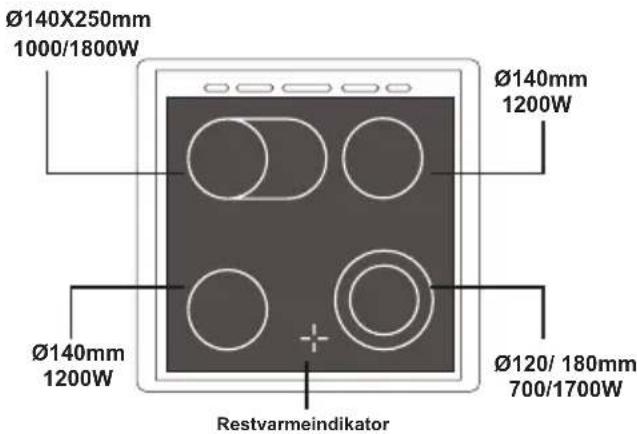

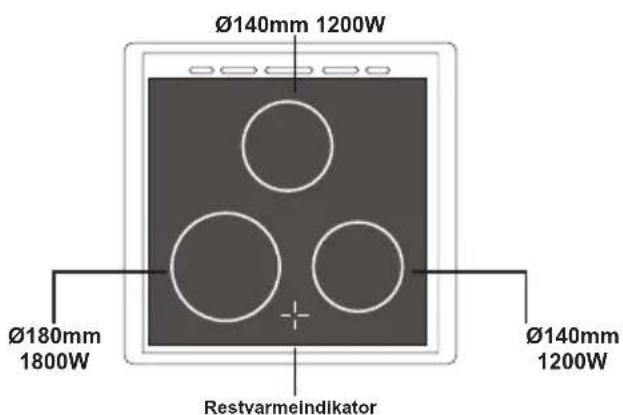

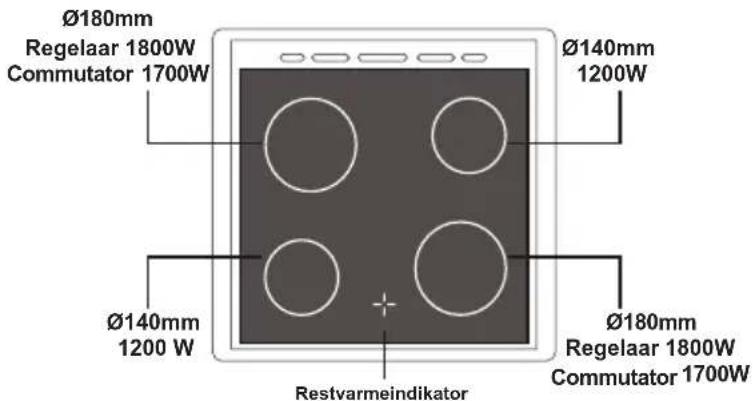

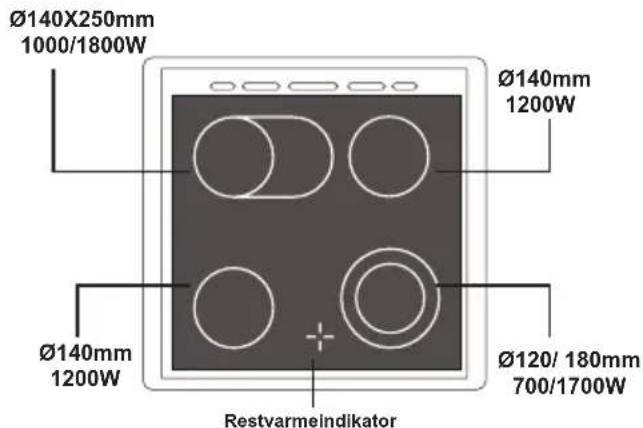

USING AND DESCRIPTION OF HOB SECTION FOR VITROCERAMIC

	LEVEL 1	LEVEL 2	LEVEL 3	LEVEL 4	LEVEL 5	LEVEL 6	LEVEL 7	LEVEL 8	LEVEL 9	MAX.
Ø140mm Commutator	130 W	206 W	350 W	500 W	850 W	1200 W	---	---	---	---
Ø180mm Commutator	180 W	470 W	790 W	850 W	1230 W	1700 W	---	---	---	---
Ø180mm Regulator	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	---
Ø140/250mm	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1800 W
Ø120/180mm Dual Hilight	700 W	700 W	700 W	700 W	700 W	700 W	700 W	700 W	700 W	1700 W

1. You operate the hob with the ring switches on the control panel of oven. This switch regulates the energy in order to reach desired temperature set by you.

2. In order to have a good cooking result from the hob, the pans bottom should be as thick and flat as possible.

3. Bottom of pans and cooking zones should be the same size. If possible, always place lids on the pans. Always place cookware on the cooking zone before it is switched on. Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

4. Turn the knob to clockwise for starting to operate. Temperature set up by the knob position on the line gradually increasing up to max. (Single zone)

5.For dual cooking zone the first ring operating like single zone; second ring starts to operate after extra turning by some more force to clockwise on the "max" region end of the ring sign. When you turn to counter clockwise, the first ring will operate as maximum range and the second ring's power will reduce up to you desire temperature.

MAINTENANCE and CLEANING

1. Disconnect the plug supplying electricity for the oven from the socket.
2. While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements.
3. Never clean the interior part, panel, lid, trays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife. Do not use abrasive, scratching agents and detergents.
4. After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth.
5. Clean the glass surfaces with special glass cleaning agents.
6. Do not clean your oven with steam cleaners.
7. Before opening the upper lid of the oven, clean spilled liquid off the lid. Also, before closing the lid, ensure that the cooker table is cooled enough.
8. Never use inflammable agents like acid, thinner and gasoline when cleaning your oven.
9. Do not wash any part of your oven in dishwasher.
10. In order to clean the front glass lid of the oven; remove the fixing screws fixing the handle by means of a screwdriver and remove the oven door. Than clean and rinse it thoroughly. After drying, place the oven glass properly and re-install the handle.

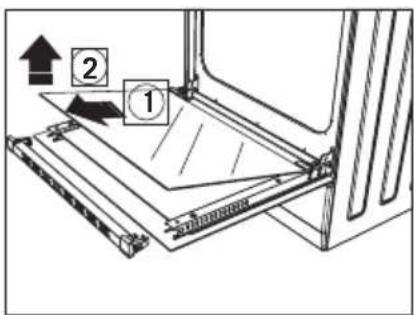

CLEANING AND MAINTENANCE OF THE OVEN'S FRONT DOOR GLASS

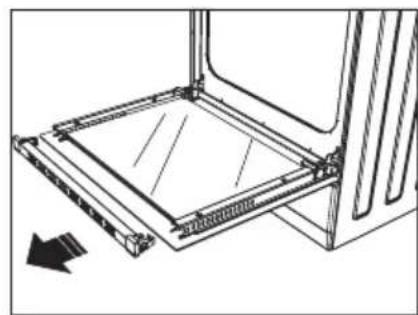

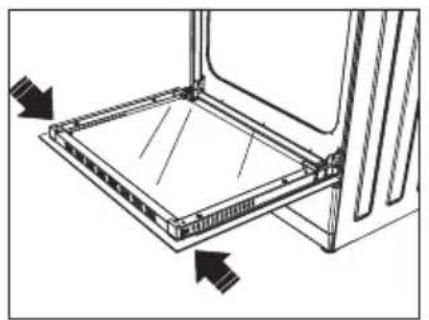

Remove the profile by pressing the plastic latches on both left and right sides as shown in Figure 1 and pulling the profile towards yourself as shown in Figure 2. Then remove the inner-glass as shown in Figure 3. If required, middle glass can be removed in the same way. After cleaning and maintenance are done, remount the glasses and the profile in reverse order.

Make sure the profile is properly seated in its place.

Figure 1 Figure 2 Figure 3

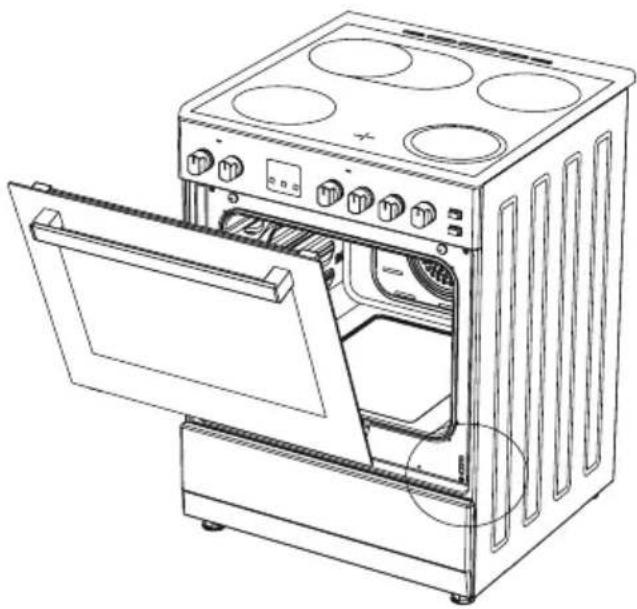

INSTALLATION OF THE OVEN DOOR

Figure 4

Figure 5

Figure 4.1 Figure 4.2 Figure 5.1 Figure 5.2

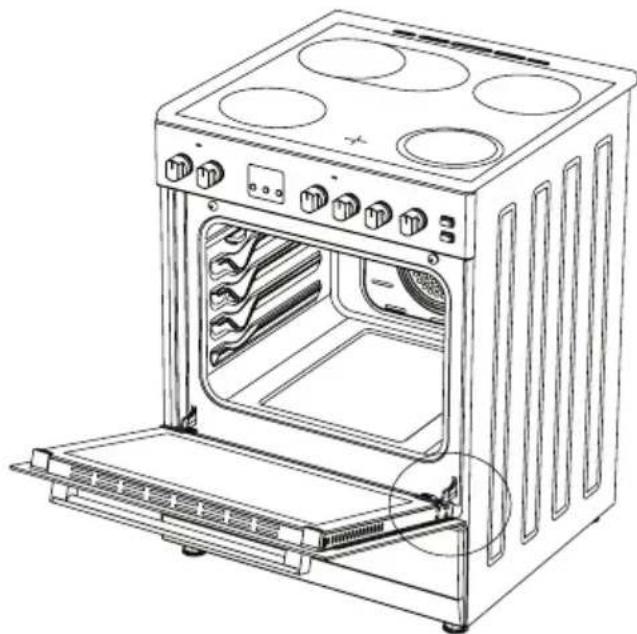

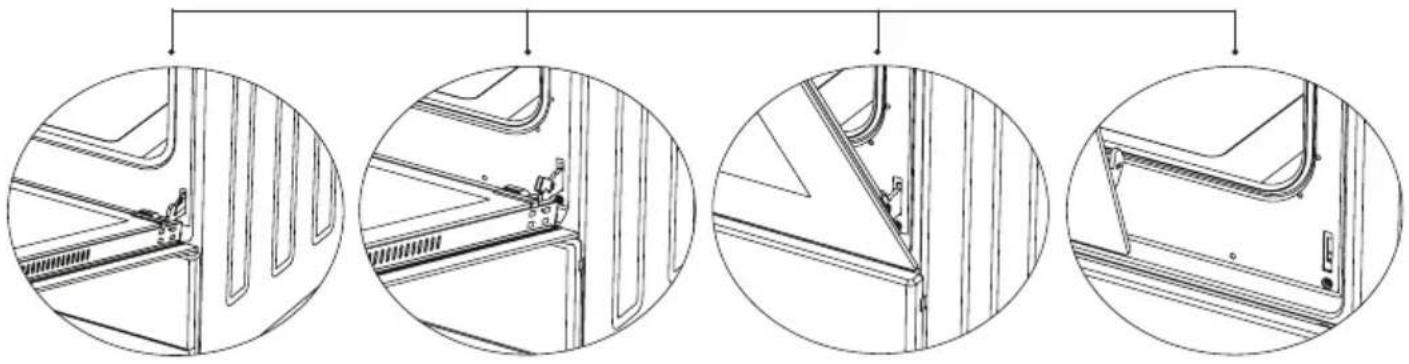

Completely open the oven door by pulling it to yourself. Afterwards, perform the unlocking process by pulling the hinge lock upwards with the help of a screw driver as shown in

Figure 4.1.

Bring the hinge lock to the widest angle as shown in Figure 4.2. Bring both hinges connecting the oven door to the oven to the same position.

Afterwards, close the oven door as to lean on the hinge lock as shown in Figure 5.1.

To remove the oven door, pull it upwards by holding it with both hands when close to the closed position as shown in Figure 5.2.

In order to replace the oven door, perform the abovementioned steps in reverse.

CHANGING THE OVEN LAMP

In order to avoid the possibility of an electric shock, ensure that the circuit of the appliance is open before changing the lamp. (The open-circuit is an electrical circuit that does not conduct current.)

1. First of all, cut the electrical connection of the appliance and ensure that the appliance is cooled down.

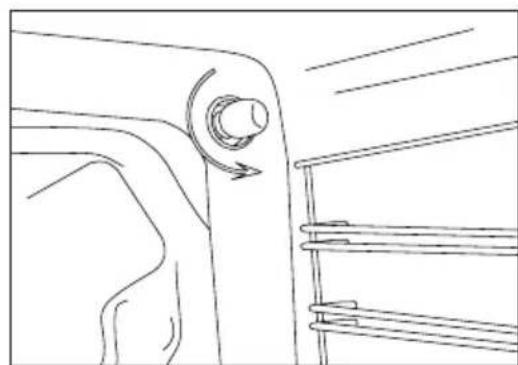

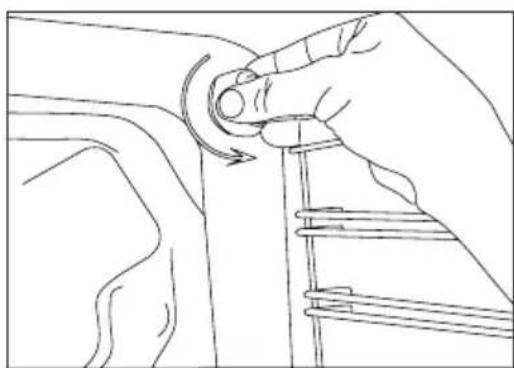

2. Remove the glass protection by turning as shown in the figure. If you have difficulty in turning it, the use of plastic gloves will help you.
3. Afterwards, remove the lamp by turning and install the new lamp with the same specifications. The specifications of the lamp should be as follows:

-230 V AC,
-15 W,
-Type E14

1. Place the glass protection and complete the replacing process by plugging in the electric cable of the appliance. Now, you can use your oven.

Figure 6 Figure 7

ACCESORIES

Deep Tray*

Used for pastries, deep fried foods and stew recipes. In case of frying directly on the grill for cakes, frozen foods and meat dishes, it can be used of oil pick-up tray.

Tray

Used for pastries (cookies, biscuits etc.) and frozen foods.

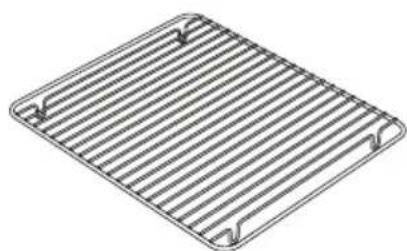

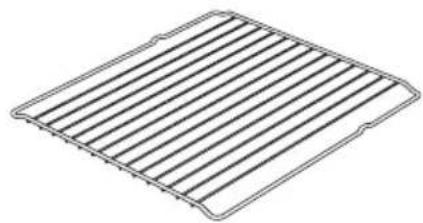

Wire Grill

Used for frying and/or placing the foods to be baked, fried and frozen foods on the desired rack.

Telescopic Rail*

With the help of telescopic rails, the trays and/or wire racks can be easily placed and removed.

In Tray Wire Grill*

Foods that can stick while cooking such as beef are placed on in tray grill. Thus, the contact and sticking of the food is prevented.

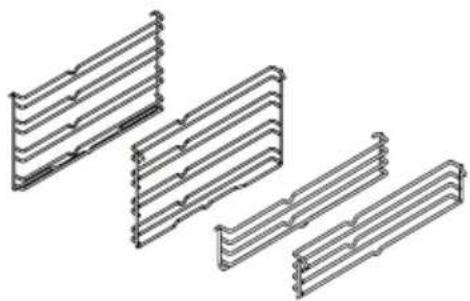

Lower and Upper Wire Racks*

While cooking, you can place the deep tray and tray on the lower and upper wire racks.

USING THE GRILL DEFLECTOR SHEET (option)*

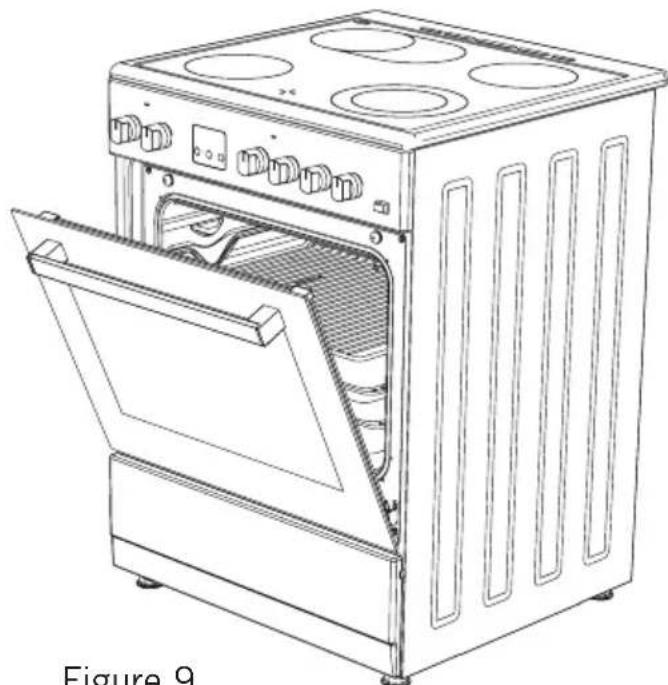

Figure 9

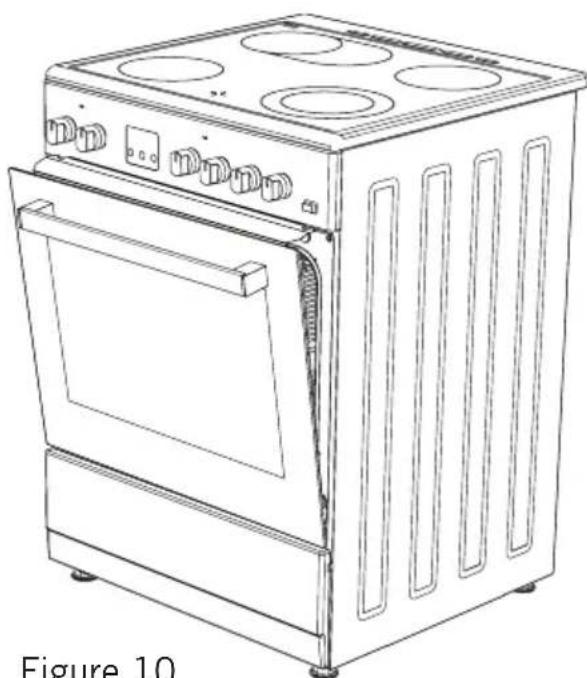

Figure 10

1. A safety panel is designed to protect control panel and the buttons when the oven is in Grill mode (Figure 8)
2. Please use this safety panel in order to avoid the heat to damage control panel and the buttons when the oven is Grill mode.

WARNING: Accessible parts may be hot when the grill in use. Young children should be kept away.

1. Place the safety panel under control panel by opening the oven front cover glass (Figure 9)
2. And then secure the safety panel in between oven and front coverbygentlyclosingthecover. (Figure 10)
3. It is important for cooking to keep the cover open in specified distance when cooking in grill mode.
4. Safety panel will provide an ideal cooking circumstance while protecting control panel and buttons.

If the cooker has the "CLOSED GRILL FUNCTIONED" option with thermostat, you can keep the oven door closed during operation; in this case the grill deflector sheet will be unnecessary.

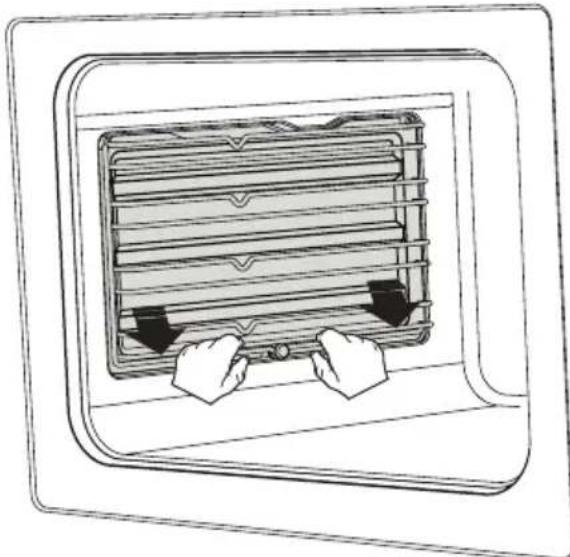

CATALYTIC WALLS*

Catalytic walls are located on the left and the right side of cavity under the guides. Catalytic walls banish the bad smell and obtain the best performance from the cooker. Catalytic walls also absorb oil residue and clean your oven while it's operating.

Figure 11

Removing the catalytic walls

In order to remove the catalytic walls; the guides must be pulled out. As soon as the guides are pulled out, the catalytic walls will be released automatically. The catalytic walls must be changed after 2-3 years.

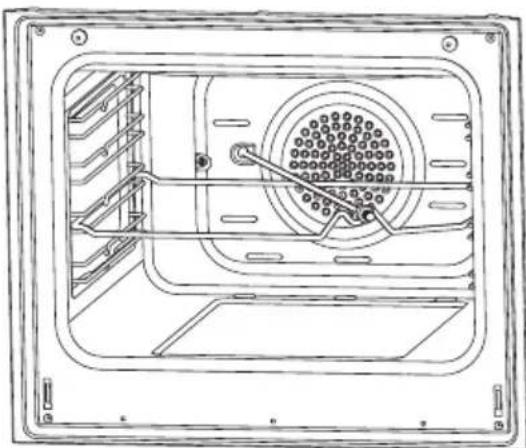

CHICKEN ROASTING*

Figure 12

Place the spit on the frame. Slide turn spit frame into the oven at the desired level. Locate a dripping pan through the bottom in order to collect the fast. Add some water in dripping pan for easy cleaning. Do not forget to remove plastic part from spit. After grilling, screw the plastik handle to the skewer and take out the food from oven.

"ALWAYS GRILL WITH THE OVEN DOOR CLOSED"

ENVIRONMENTALLY-FRIENDLY DISPOSAL

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Cher Utilisateur,

	NIVEAU 1	NIVEAU 2	NIVEAU 3	NIVEAU 4	NIVEAU 5	NIVEAU 6	NIVEAU 7	NIVEAU 8	NIVEAU 9	MAX.
Ø140mm Commutateur	130 W	206 W	350 W	500 W	850 W	1200 W	---	---	---	---
Ø180mm Commutateur	180 W	470 W	790 W	850 W	1230 W	1700 W	---	---	---	---
Ø180mm Régulateur	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	---
Ø140/250mm	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1800 W
Ø120/180mm Double	700 W	700 W	700 W	700 W	700 W	700 W	700 W	700 W	700 W	1700 W

Droit

Faux

Faux

Faux

INTRODUCTIE VAN HET APPARAAT

MET BEHULP KOOKPLATEN

	NIVEAU 1	NIVEAU 2 N	VEAU 3 NIV	EAU 4 NIV	AU 5 NIVEAU	6
Ø80	200W25	0W450W---	--- ---
Ø145	250W75	0W1000W---	--- ---
Ø180	500W75	0W1500W---	--- ---
Ø145 Snel	500W10	00W1500W---	--- ---
Ø180 Snel	850W11	50W2000W---	--- ---
Ø145	95W 15	5W 250W	400W 750W	1000W
Ø180	115W 1	75W 250W	600W 850W	1500W
Ø145 Snel	135W 1	65W 250W	500W 750W	1500W
Ø180 Snel	175W 2	20W 300W	850W 1150W	2000W
Ø220mm	220W 3	50W 560W	910W 1460W	2000W

	NIVEAU 1	NIVEAU 2	NIVEAU 3	NIVEAU 4	NIVEAU 5	NIVEAU 6	NIVEAU 7	NIVEAU 8	NIVEAU 9	MAX.
Ø140mm Commutator	130 W	206 W	350 W	500 W	850 W	1200 W	---	---	---	---
Ø180mm Commutator	180 W	470 W	790 W	850 W	1230 W	1700 W	---	---	---	---
Ø180 Regelaar	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	1800 W	---
Ø140/250mm	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1800 W
Ø120/180mm Dubbel	700 W	700 W	700 W	700 W	700 W	700 W	700 W	700 W	700 W	1700 W

Rechts

Vals

Vals Vals

NL

VERPAKKINGSINFORMATIE
