USER MANUAL IAN 114166 MIOMARE

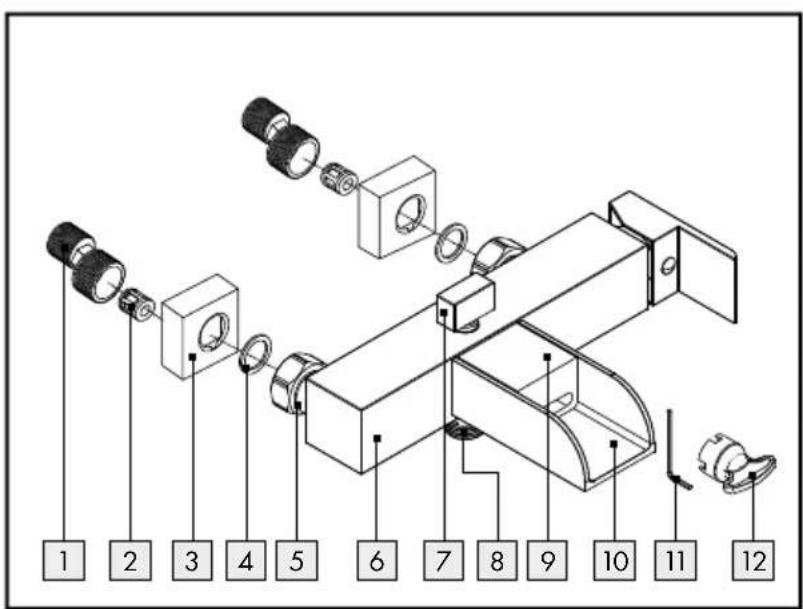

2 Joints (raccords S)

2 Seals (S-connectors)

LED installation wrench

Cartridge cover ring*

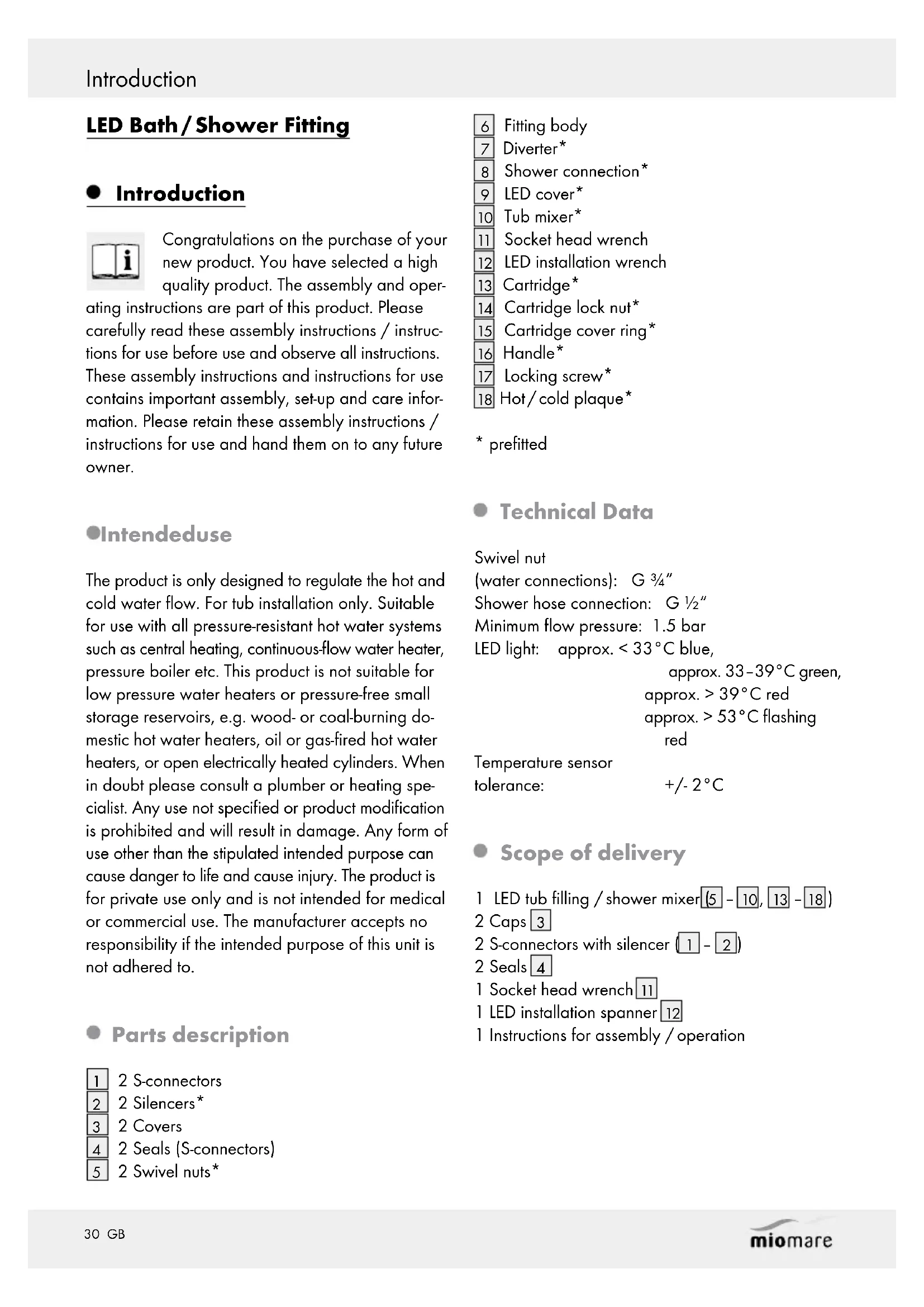

• prefitted Technical Data Swivel nut (water connections): G ¾“ Shower hose connection: G ½“ Minimum flow pressure: 1.5 bar LED light: approx. < 33°C blue, approx. 33–39°C green, approx. > 39°C red approx. > 53°C flashing red Temperature sensor tolerance: +/- 2°C Scope of delivery 1 LED tub filling / shower mixer (

2 S-connectors with silencer (

1 Socket head wrench

1 LED installation spanner

FOR INFANTS AND CHILDREN! Never leave children unattended with the pack- aging material. Danger of suffocation. Keep this product well away from children. This product is not a toy. BEWARE OF ELECTRIC SHOCK! Leaking or water discharge can lead to life-threatening danger due to electric shock. Carefully check that all connec- tions are watertight. Also ensure that all wires of electric appliances are correct and have been securely installed. CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that washers and gaskets are wear parts and therefore will need to be replaced from time to time. Dam- aged parts could impact safety and function. CAUTION! DAMAGE TO THE ARTICLE! Please have all installations performed by skilled individuals. Be sure all seals are correctly seated. SCALDING RISK! When adjusting the hot water temperature be sure the water tempera- ture is not too high. CAUTION! Be careful not to revere the hot / cold water plaque

. The correct placement is: left = red (hot), right = blue (cold). Please note all seals are wear items and will therefore need to be replaced over time. Any leakage or sudden escape of water can cause considerable damage to buildings and property. All connections must therefore be checked carefully to ensure that they are tight. Familiarise yourself prior to installation with all local conditions, e.g. water connections and shut-off device. The product is only suitable for use in rooms with a temperature above 0 °C. Installation Note: Familiarise yourself with the product prior to assembly. Carefully read the following assembly instructions and safety advice. In the event of incor- rect installation, all warranty claims – particularly in relation to subsequent damage – are excluded. CAUTION! Before you start installation turn off the water supply at the mains. Otherwise injuries and / or property damage may occur. Connecting the fitting Note: this step requires an SW 30 mm open-end spanner and sealing tape. Note: cover any parts which will be screwed with a damp cloth or plastic clamps. This will prevent scratches. Follow these steps: Wrap sealing tape around the roughened threaded part (½“ thread) of the S-connectors

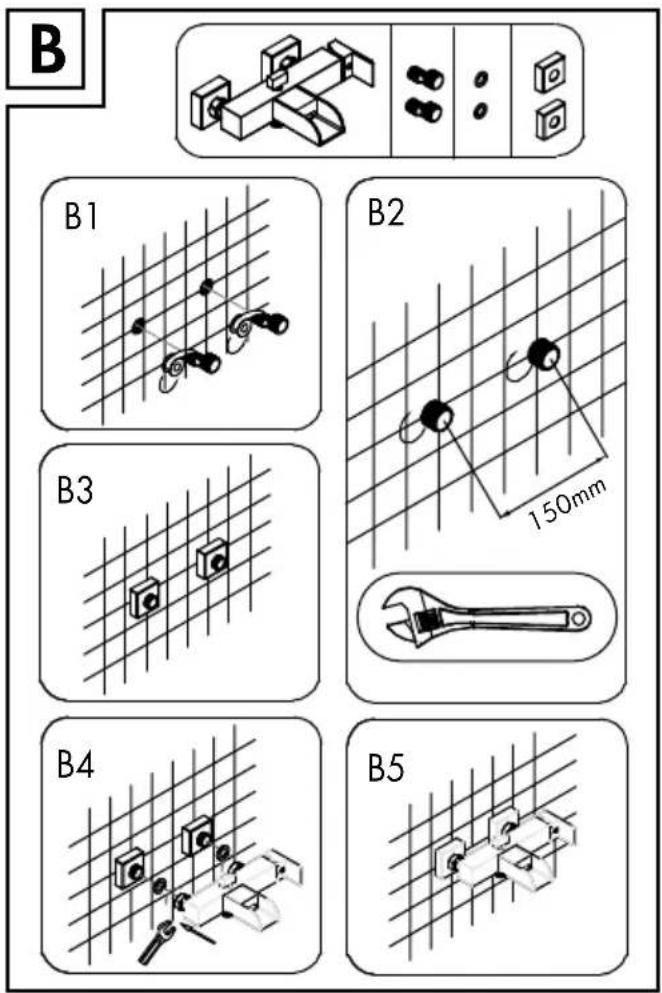

(see Fig. B1). Note: sealing tape not included. Screw the S-connectors

with the sealed threaded parts into the wall connectors. Horizontally align the screwed in S-connectors

with the spacing guide for the fitting (see Fig. B2). Screw the caps

hand tight onto the S-con- nectors

into the swivel nuts

and screw the fitting body

onto the S-connectors

(see Fig. B4-B5). Connecting accessories (shower hose and shower head) Note: Shower hose and shower head are not included in delivery. Note: cover each of the parts which are to be screw connected with a damp cloth or plastic clips. This will prevent scratches.32 GB Installation / Operation / Maintenance and Cleaning Connect a standard shower hose to the shower connector

Connect a standard shower head to the shower hose. Note: Also refer to the assembly instructions for the accessories. Operation Start-up After the initial commissioning, carefully check all connections for leaks. Check the operation of the fitting. To do so, swing the handle

into all permissible posi- tions. Note: the fitting features an LED light. The LED is lit through an integrated turbine (without batteries). The LED colour changes automatically based on the water temperature through an integrated temperature sensor:

• up to approx. 33°C blue,

• from approx. 33-39°C green,

• over approx. 39°C red,

• over approx. 53°C flashing red Open the main water supply. Lift the handle

and swing it to the right or left in order to regulate the speed or tempera- ture of the water. Hot water: Swing the handle

to the left. Cold water: Swing the handle

to the right. Tub filler / shower diverter Manually switch between the tub filler

to shower function by lifting and lowering the diverter

Shower function: Lift diverter

Note: switching manually means: when turning the water off with the shower function activated, the shower function will remain on. When starting the water again, the shower function will remain active until it is switched to tub filler. Maintenance and Cleaning Maintaining and cleaning the tap Please note that sanitary taps require special care and attention. Therefore, please follow the instructions: When cleaning, never use petrol, solvents, aggressive cleansers or hard cleaning brushes etc. These could damage the surface of the product. Dry your fitting with a cloth after every use to prevent any lime deposits. Clean the product with a damp, soft cloth and a mild cleaning agent if required. Non-observance of the above care advice can be expected to result in damage to the surfaces of the product. This will inevitably invalidate the guarantee. Replacing the LED insert If the LED lamps fail to light, the LED insert may be replaced. LED life: approx. 10,000 operating hours. A new LED insert (ET-WCRL-LED) can be obtained from the specified service address. To do so, follow these steps: Unscrew the tub mixer

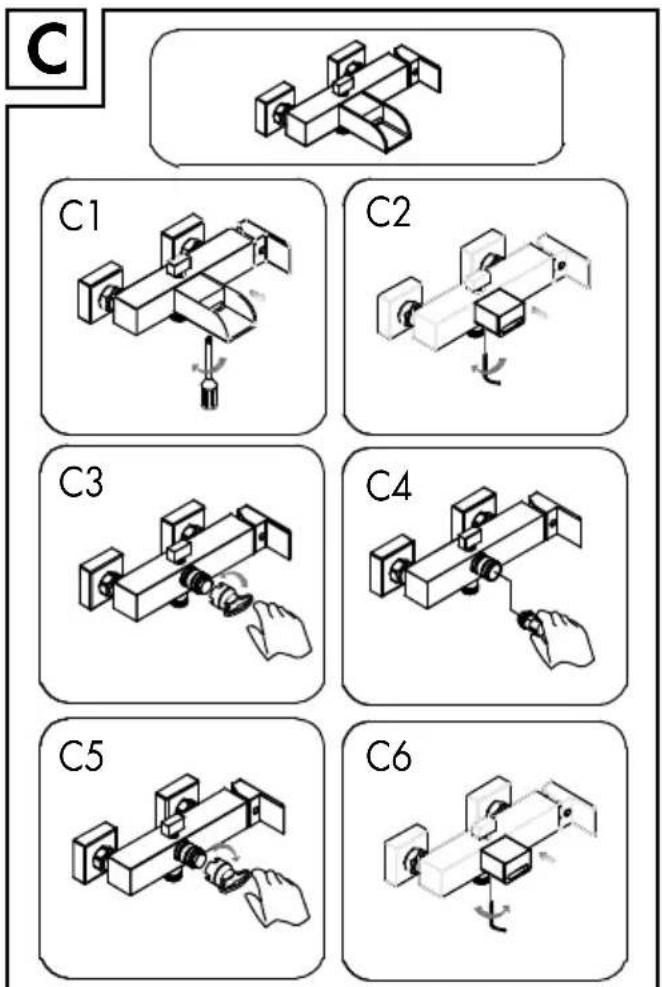

from the fitting body

(see Fig. C1), which requires a cross-tip screwdriver.33 GB Maintenance and Cleaning Unscrew the LED cover

from the fitting body

using the socket head wrench

(see Fig. C2). Remove the plastic LED insert (see Fig. C3–C4) using the LED installation wrench

Install the new LED insert, the LED cover

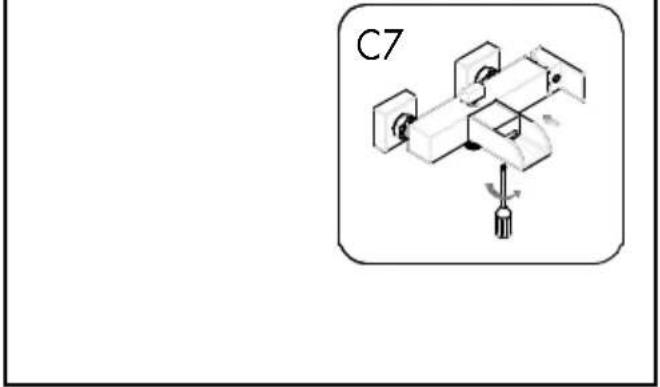

similar to disassembly (see Fig. C5–C7). Replacing the screen If the screen inside the LED cover is severely clogged it must be cleaned or replaced. To do so, follow these steps: Unscrew the tub mixer

from the fitting body

(see Fig. C1), which requires a cross-tip screwdriver. Unscrew the LED cover

from the fitting body

using the socket head wrench

(see Fig. C2). Push the screen out of the LED cover

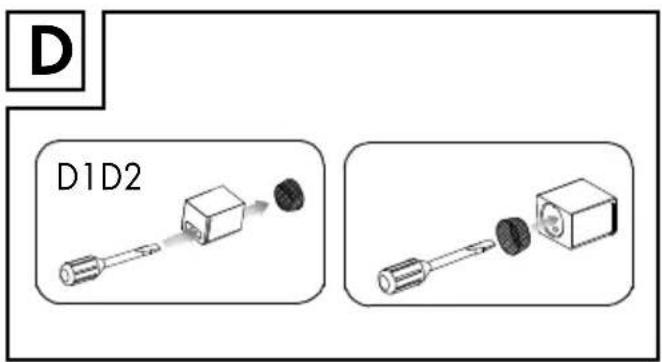

from the outside, using a flat object (see Fig. D1). CAUTION RISK OF INJURY! The outer edge of the screen fabric may be pointy. Remove any limescale deposits or foreign bodies. Replace the screen if severely clogged or dam- aged. A new screen (ET-WCRL-WBS) can be obtained from the specified service address. Press the cleaned / new screen into the LED cover

from the inside (see Fig. D2). Note: be sure the screen is properly seated in the LED cover

Install the LED cover

similar to disassembly (see Fig. C6–C7). Replacing the cartridge A cartridge

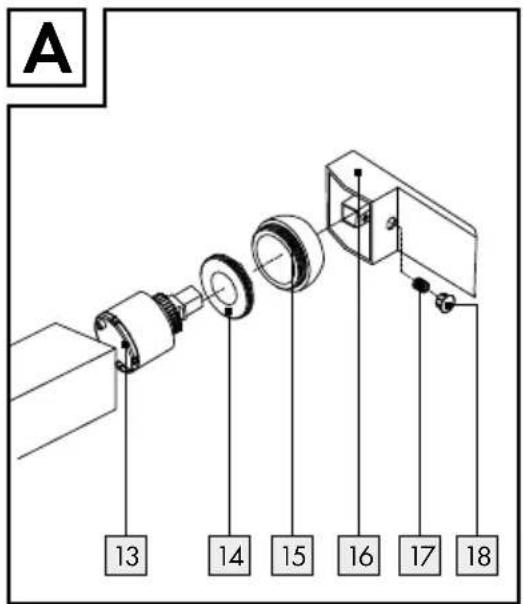

is a wear part that needs replacing according to the hardness and / or degree of con- tamination of the water. This becomes evident when the handle

becomes difficult to move. A new cartridges

can be obtained from the listed service office. Note: this step requires an open-end spanner SW 27 mm or fitting pliers. Proceed as follows to replace the cartridge

Shut off the main water supply. Allow any remaining water in the pipework to drain. Remove the hot / cold plaque

by inserting a flat object between the edge of the hot / cold plaque

and the outside of the handle

Note: use light pressure to carefully push the hot / cold plaque

outward so as not to scratch the surface. Loosen the locking screw

with the socket head wrench

by turning it counter-clockwise. CAUTION! Do not completely unscrew the locking screw

. Only loosen this as far as is necessary to remove the handle

Unscrew the cartridge covering ring

, do not use pliers or a spanner. Otherwise the product could be damaged. Loosen the cartridge locknut

below with fitting pliers or an open-end spanner SW 27 mm and remove the entire cartridge

from the fitting body

(model 35 M LED) into the fitting body

in the same manner. Note: be sure the seal under the cartridge

is correctly seated. Make sure that the guides are in the corresponding holes. Reassemble all the above parts. Tighten the cartridge lock nut

using fitting pliers or an open-end spanner SW 27 mm while simultane- ously securing the fitting from twisting. This will achieve tightness and ensure the handle is not difficult to move. CAUTION! Be careful not to revere the hot/ cold water plaque

. The correct placement is: left = red (hot water), right = blue (cold).34 GB Disposal / Information / Warranty and Service Disposal The packaging is made of environmen- tally friendly materials, which may be disposed of through your local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. Information Potability of tap water Please consult your local authorities on the potability of water in your town / municipality. The following general recommendations apply to the potability of tap water: Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Otherwise health con- cerns can arise. Fresh water can be readily dis- tinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe. Do not use stagnant water from chromium-plated pipework to prepare food, for drinking, or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction. Do not use water from lead pipework for preparing food baby food and / or to prepare foods during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children. Warranty and Service The warranty period is three years and begins on the day of purchase. Please keep your receipt as proof of purchase. However, if defects do occur during the warranty period, after first contacting service the defective fitting may be returned freight forward to the service address specified. You will then receive a new or repaired fitting free of charge. After the warranty period has expired you may also send the defective fitting to the address specified for repair. Repairs made after the expiration of the warranty period are subject to payment. Note: Eisl Sanitär GmbH will replace defective fittings or supply the respective replacement parts free of charge within the warranty period. Eisl Sanitär GmbH is unable to refund the purchase price for defective fittings. This warranty does not limit your legal rights. The warranty period will not be extended by repairs made under warranty. This applies also to replaced and exchanged parts. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact the service address set up for you before filing a warranty claim for the fitting with the manufacturer: GB: Eisl Sanitär GmbH Mattseer Landesstraße 8 A-5101 Bergheim Tel.: 00800-87934629* Tel.: +43-662-879346-29 Fax: 00800-87934650* Fax: +43-662-879346-50 E-Mail: service@eisl.at

• Free of charge number IAN 11416635 GB Warranty and Service Please have the receipt and item number, e.g. IAN 12345 ready as your proof of purchase when making an enquiry. Product description: LED Bath / Shower Fitting Eisl Sanitär no.
