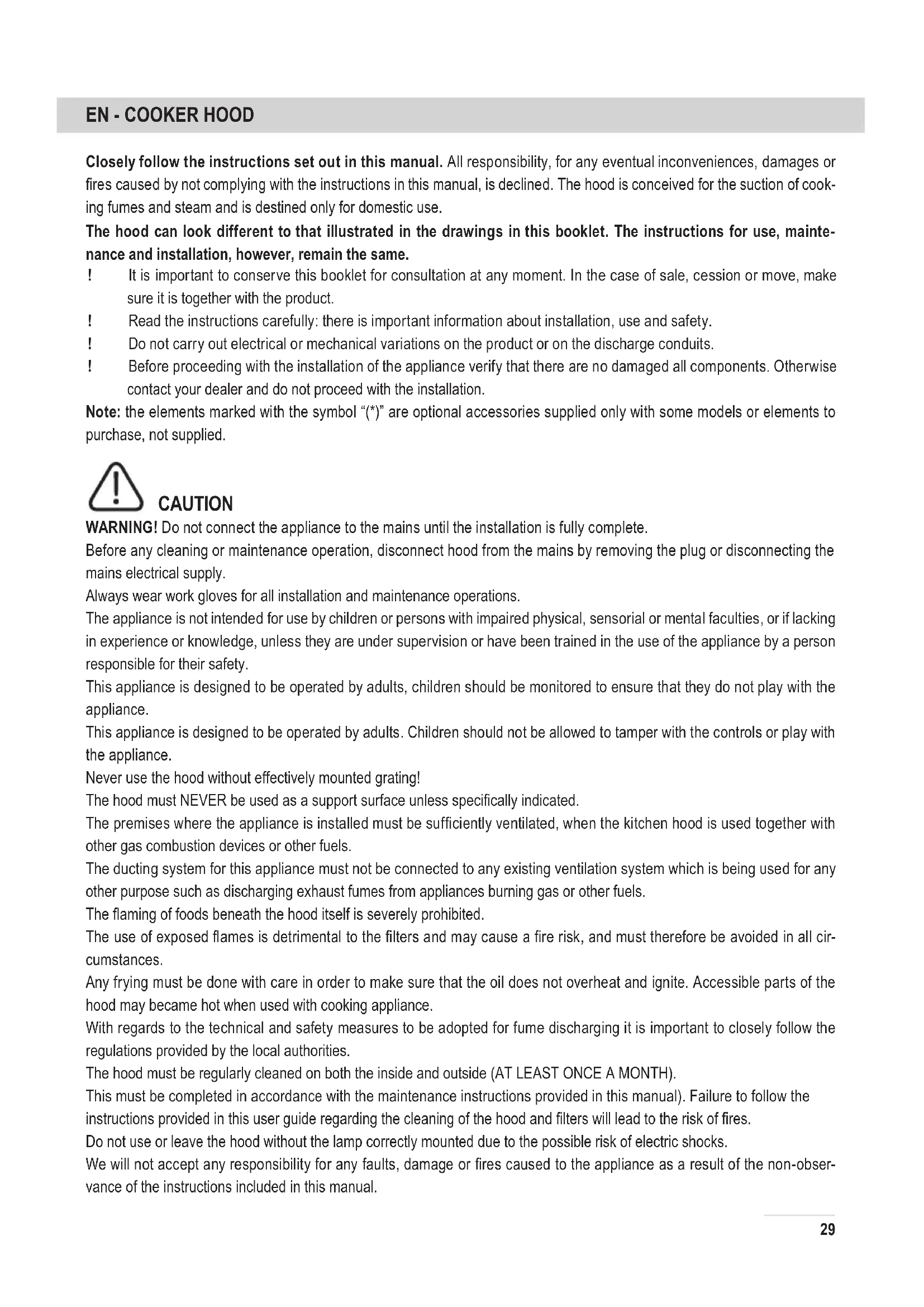

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or res caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cook- ing fumes and steam and is destined only for domestic use. The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, mainte- nance and installation, however, remain the same. ! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. ! Read the instructions carefully: there is important information about installation, use and safety. ! Do not carry out electrical or mechanical variations on the product or on the discharge conduits. ! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation. Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied. CAUTION WARNING! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specically indicated. The premises where the appliance is installed must be sufciently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The aming of foods beneath the hood itself is severely prohibited. The use of exposed ames is detrimental to the lters and may cause a re risk, and must therefore be avoided in all cir- cumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. Accessible parts of the hood may became hot when used with cooking appliance. With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and lters will lead to the risk of res. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or res caused to the appliance as a result of the non-obser- vance of the instructions included in this manual.30 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. T h e s y m b o l on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electri- cal and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For further detailed information regarding the process, collection and recycling of this product, please contact the appropri- ate department of your local authorities or the local department for household waste or the shop where you purchased this product. Appliance designed, tested and manufactured according to:

• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is nished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal lter(s) when necessary to maintain a good odour reduction efciency. Clean the grease lter(s) when necessary to maintain a good grease lter ef- ciency. Use the maximum diameter of the ducting system indicated in this manual to optimize efciency and minimize noise. Additional Installation Specications: Use only the xing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identied in the Installation Guide. In case of doubt, consult an authorised service assistance centre or similar qualied person. WARNING! Failure to install the screws or xing device in accordance with these instructions may result in electrical haz- ards. USE The hood is designed to be used either for exhausting or lter version. DUCTING VERSION In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring. In the horizontal runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room to the outside. Attention! If the hood is supplied with active charcoal lter, then it must be removed. Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection ange). Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise. Any responsibility in the matter is therefore declined. ! Use a duct of the minimum indispensible length.31 ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct cross-section. ! Use a duct as smooth as possible inside. ! The duct must be made of certied material. FILTER VERSION One active charcoal lter is needed for this and can be obtained from your usual retailer. The lter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid. INSTALLATION The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. ELECTRICAL CONNECTION The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not tted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions. Warning! Before re-connecting the hood circuit to the mains supply and checking the efcient function, always check that the mains cable is correctly assembled. The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service. MOUNTING Very heavy product; hood handling and installation must be carried out by at least two persons. Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.

• Remove the charcoal (*) lter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the ltering version.

• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a at surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.

• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).

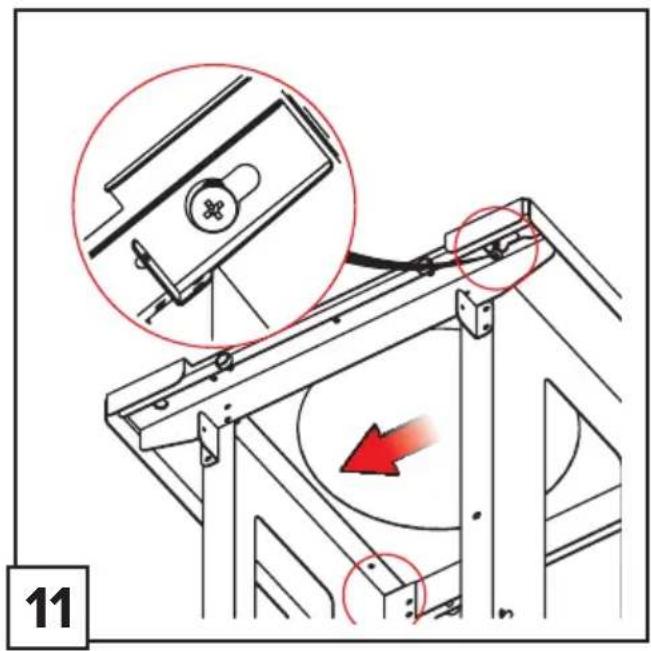

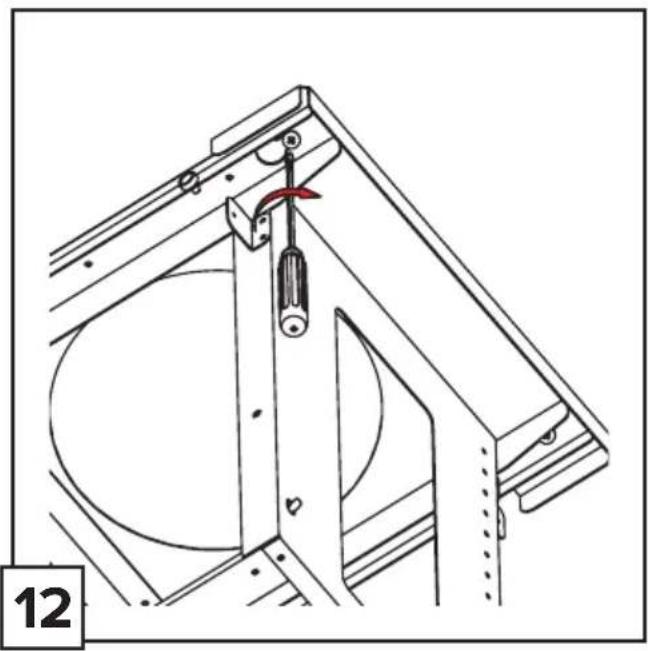

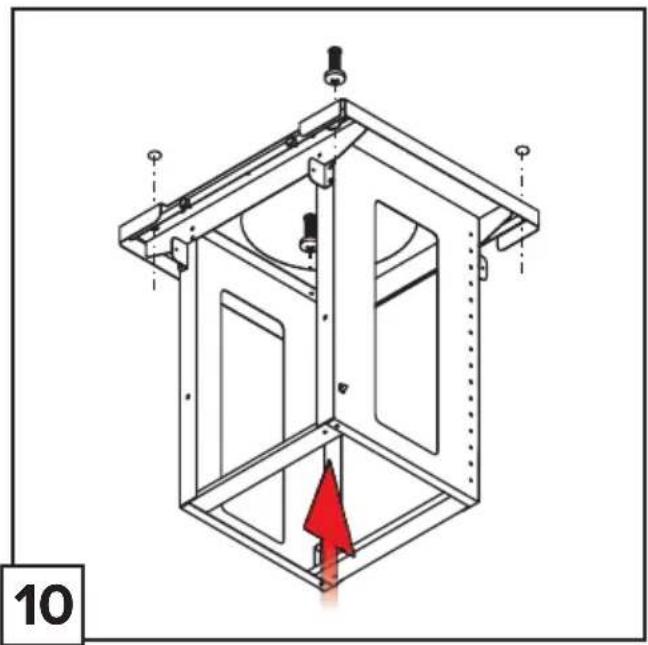

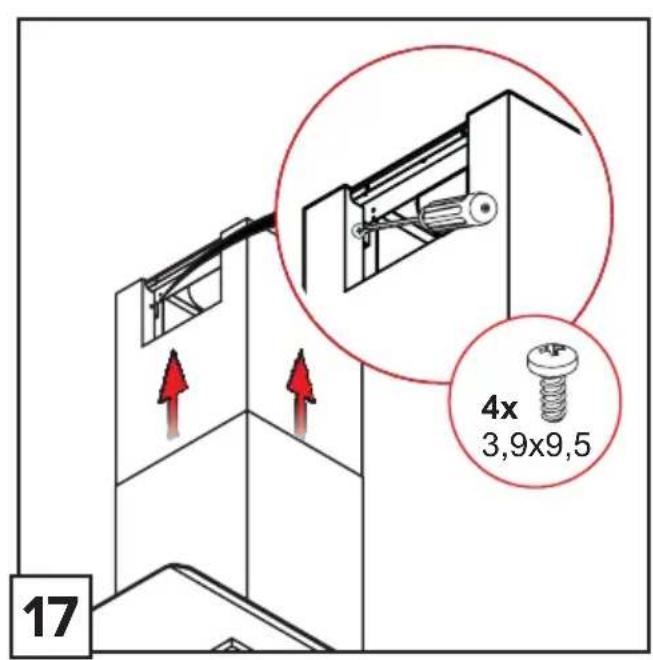

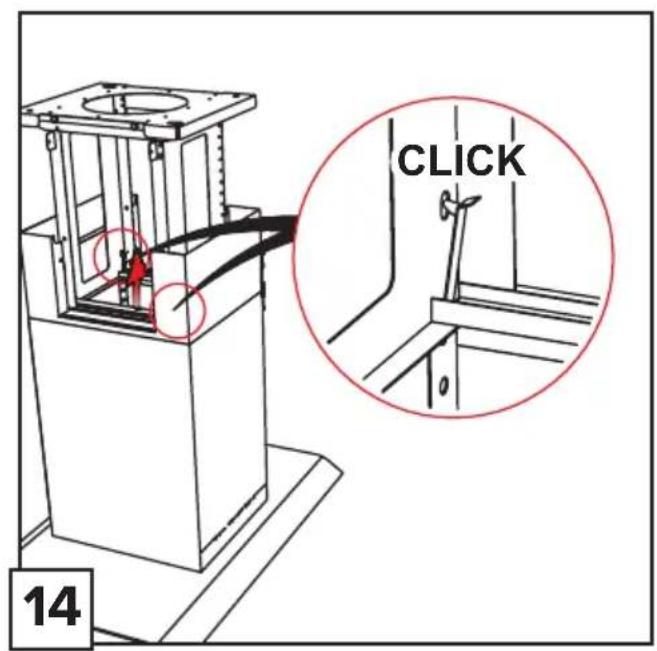

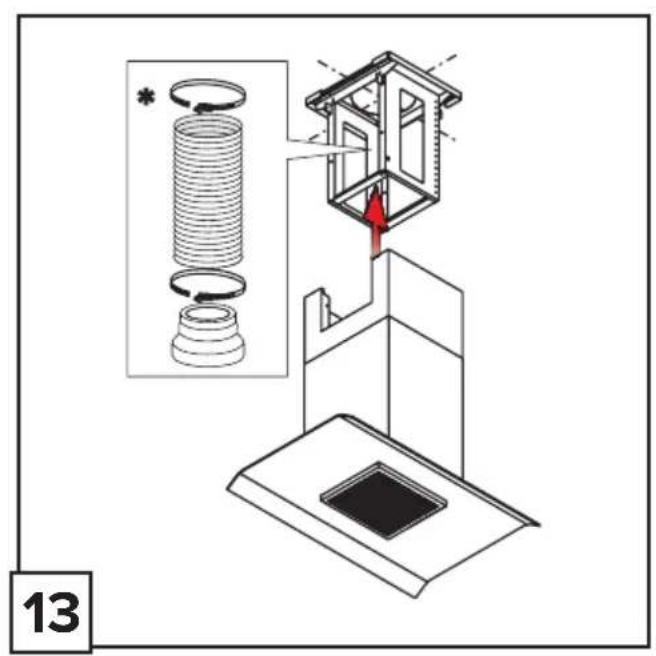

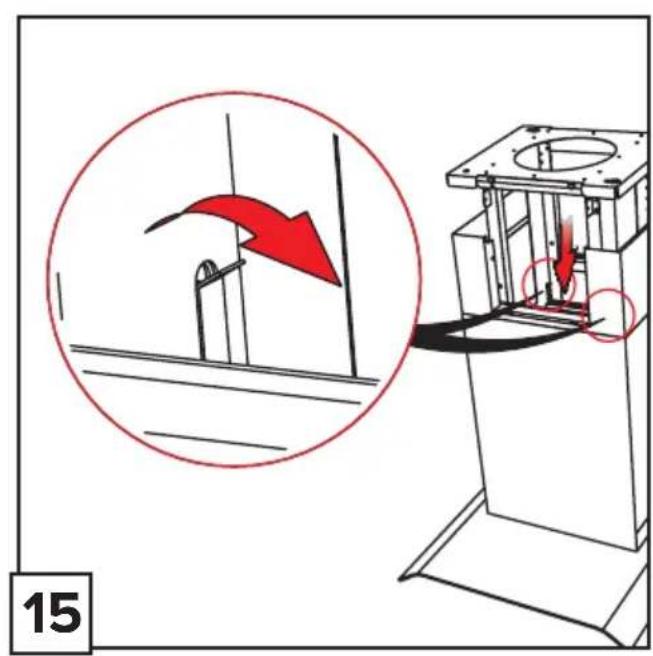

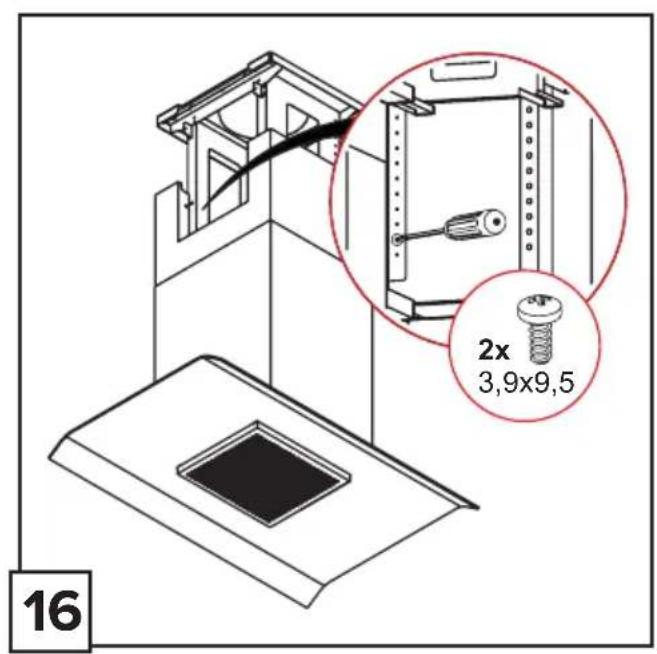

• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube). Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualied technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.32 OPERATION Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. To select the functions of the hood just lightly touch and hold control. T1. Standby mode (the control panel off all functions disabled) / ON (control panel switched on) Note: After about a minute of inactivity (suction and lights), the hood will automatically switch to standby. T2. ON/OFF lights Press again to turn off the lights. T3. ON/OFF Automatic operation “AdaptTech” The hood automatically sets the suction speed (power) to increase if the environmental conditions detected by the hood sensor require it. If there are no variations in the environmental conditions, after 10 minutes (if the hood is already in suction speed (power) 1), the hood turns off. Note: for a correct use of this function, rst perform the “Setting of the parameters for Automatic Operation” (see corresponding paragraph). Note: During automatic operation, if the user acts on the other functions that adjust the speed, auto ventilation func- tion is switched off. T4. Manual selection of the suction speed (power): L1: suction speed (power) 1 L2: suction speed (power) 2 L3: suction speed (power) 3 Press again to turn off the hood (OFF). Note: manual selection excludes any other suction related set function. T5. ON/OFF Intensive suction speed (power) „POWER BOOST” (timed) Note: After 5 minutes of operation the hood returns to its previous state. T6. ON/OFF operation mode “Refresh” Every 50 minutes of inactivity, the suction speed (power 1 is turned on for 10 minutes. T7. ON/OFF Delayed switch off of the suction speed (power) (approx. 30 minutes Note: this function is available for the speeds that can be selected with button T4. T8. Indicator and reset lter saturation The button lights on automatically with steady light when it is necessary to perform the grease lter maintenance. The button lights on automatically with ashing light when it is necessary to perform the charcoal lter maintenance. After performing the maintenance, with the hood off and the button active, press the button for more than 3 seconds to perform the reset of the lter saturation indicator; repeat the operation if necessary (for ex., when both lters are saturated). Activation of the charcoal lter saturation indicator The saturation indicator of the charcoal lter is normally disabled. To activate it, proceed in the following manner: With the display on (ON) and the suction off (OFF), press simultaneously the buttons T7 and T8 for more than 3 seconds; the button T8 lights on with steady light for approx. 5 seconds, to indicate the activation. To disable it, repeat the operation; the button T8 will ash for approx. 5 seconds to indicate the disabling.33 Setting of Automatic Operation parameters For correct use of the automatic operation, perform “Hood Calibration”. Hood Calibration With the display on (ON) and the suction off (OFF), press button T3 for 5 seconds. The suction speed (power) 1 starts functioning and button T3 ashes to indicate that hood calibration is initiated and it will last for approx. 5 minutes. Note: to interrupt the calibration, press T3 for 5 seconds; the calibration will be invalidated and should therefore be repeated. MAINTENANCE ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switch- ing off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. CLEANING The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat lters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the lters may

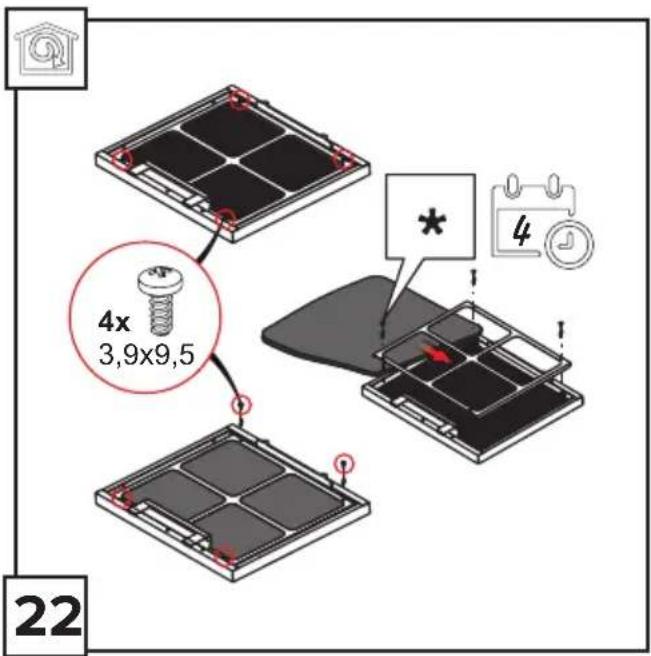

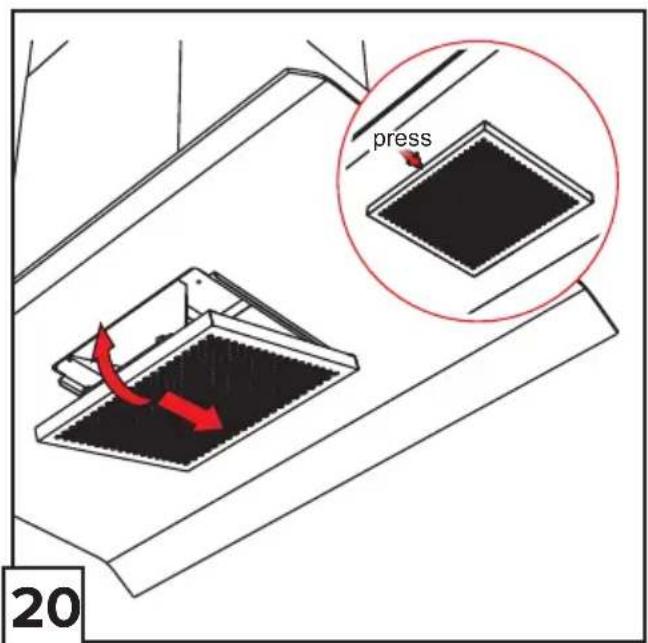

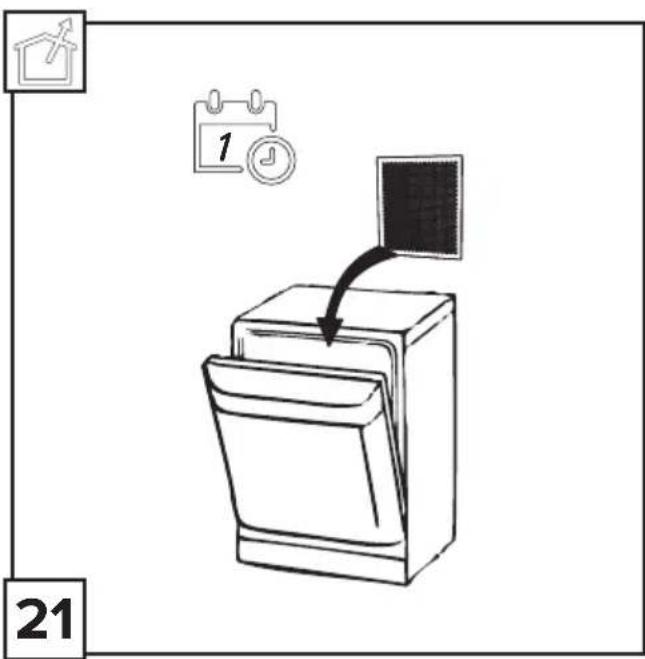

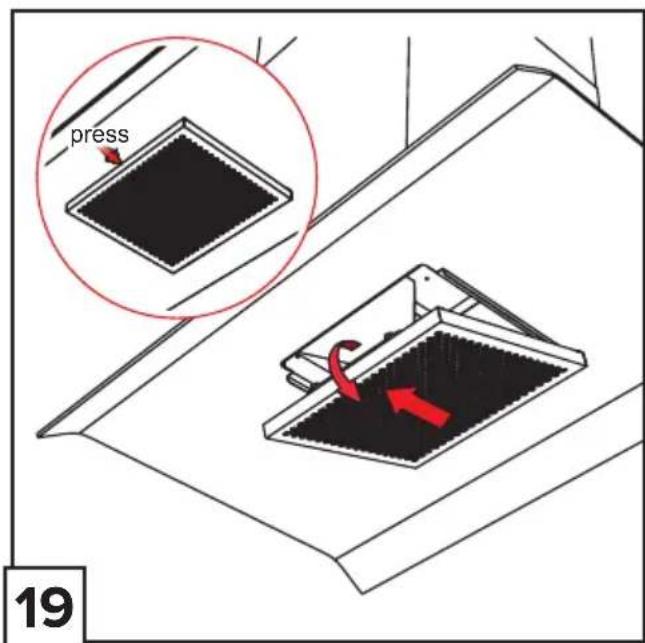

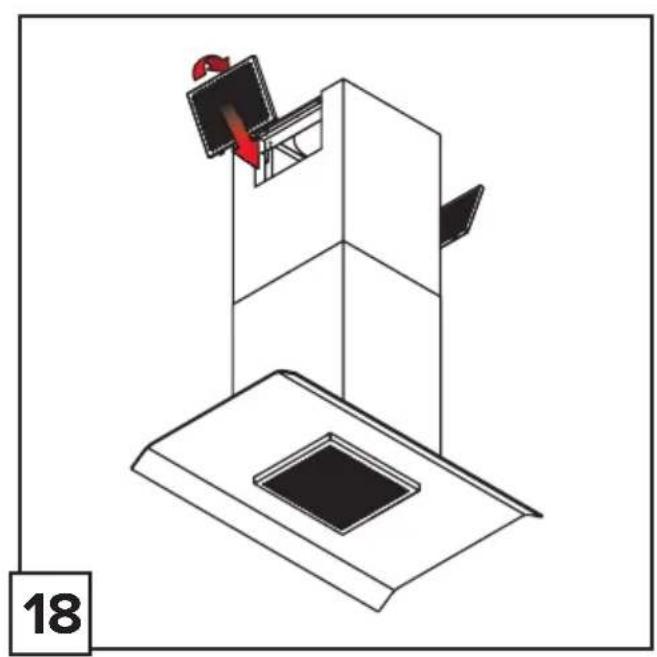

cause re risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any re damage linked to inappropriate maintenance or failure to observe the above safety recommendations. GREASE FILTER Traps cooking grease particles. The grease lter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease lter may discolour slightly, but this does not affect its ltering capacity. To remove the grease lter, press it and pull it down. CHARCOAL FILTER (lter version only) It absorbs unpleasant odours caused by cooking. The saturation of the charcoal lter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease lter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal lter may NOT be washed or regenerated. REPLACING LAMPS The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy. For replacement, contact the technical service.ES - CAMPANA EXTRACTORA
