Product Type	Car Radio
Brand	Sony
Model	DSXA210UI
Dimensions (W x H x D)	178 mm x 50 mm x 119 mm
Weight	0.7 kg
Power Supply	12 V DC (negative ground)
Rated Current	10 A
Max Output Power	55 W x 4 (at 4 Ω)
Radio Bands	FM, AM, LW
RDS System	Yes
USB Audio Formats	MP3, WMA, FLAC
AUX Input	Stereo mini-jack
Equalizer	10 preset bands + customizable
Extra Bass	Yes (3 levels)
Detachable Front Panel	Yes
Warning Alarm	Yes
AUTO OFF Function	Yes (30 min)
Steering Wheel Remote Compatibility	Yes (wired)
Display	Adjustable backlight
Maintenance	Clean connectors with cotton swab
Security	Detachable face, alarm, AUTO OFF
Spare Parts	Fuse, release keys
Repairability	Firmware update via USB
General Information	Manufactured in Thailand, EU importer Sony Europe B.V.

Frequently Asked Questions - DSXA210UI SONY

How to disable demo mode?

To disable demo mode, press MENU, turn the dial to select GENERAL, then SET DEMO. Choose SET DEMO-OFF and confirm.

How to set the clock?

Press MENU, select GENERAL then SET CLOCK-ADJ. Turn the dial to adjust the hour and minutes, then press MENU to confirm.

How to connect an iPod/iPhone?

Use the USB connection cable for iPod (not supplied). Plug the iPod/iPhone into the car radio's USB port, then select the USB source. The display shows IPD once recognized.

How to store radio stations?

Tune to the desired station, then press and hold a numeric button (1 to 6) until MEM appears. To recall a stored station, press the corresponding button.

What to do if the display does not light up?

Check that the unit is powered on. If the display remains off, press and hold OFF until it appears. If the problem persists, clean the front panel connectors with a cotton swab.

How to reset the unit?

Press and hold DSPL and Back/MODE simultaneously for more than 2 seconds. Caution: this clears stored data (stations, clock).

How to clean the connectors?

Remove the front panel, then gently clean the connectors with a cotton swab. Do not touch the connectors with your fingers or a metal object.

What audio formats are supported via USB?

The car radio supports MP3 (.mp3), WMA (.wma), and FLAC (.flac) files. Bit rates and sampling rates are specified in the manual.

Can I use a steering wheel remote control?

Yes, if your vehicle is equipped with a wired steering wheel remote. In the GENERAL menu, set STR CONTROL to PRESET or CUSTOM to program functions.

How to update the firmware?

Download the update program to a USB device. Plug it into the car radio, go to GENERAL > FIRMWARE > FW UPDATE, and choose YES. Do not turn off the ignition during the update.

USER MANUAL DSXA210UI SONY

FM/MW/LW Digital Media Player

LIMPOBOI PECNBEP

Operating Instructions

GB

Bedienungsanleitung

DE

Mode d'emploi

FR

To cancel the demonstration (DEMO) display, see page 11.

For the connection/installation, see page 19.

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use.

For details, see "Connection/Installation" (page 19).

Made in Thailand

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/

This equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity.

The software loaded on this equipment is verified to comply with the essential requirements of the Directive 2014/53/EU.

Software version: 1

The software version can be checked in the firmware setup item of the general setup menu.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

This product has been manufactured by or on behalf of Sony Corporation.

EU Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

This symbol on the product, the battery, or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries, this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

In case of products that, for safety, performance, or data integrity reasons, require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service, or the shop where you purchased the product or battery.

The following frequency 65 - 74 MHz range is not allocated to sound broadcasting in the European Common Allocations table and cannot be used in Europe.

The following frequency range, 65 - 74 MHz, is not allocated to sound broadcasting in the European Common Allocations table and cannot be used in Europe.

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 11). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Table of Contents

Guide to Parts and Controls 4

Getting Started

Detaching the Front Panel 5

Resetting the Unit 6

Setting the Clock 6

Checking the Battery Voltage. 6

Connecting a USB Device 6

Connecting Other Portable Audio Device 7

Listening to the Radio

Listening to the Radio. 7

Using Radio Data System (RDS) 8

Playback

Playing a USB Device. 9

Searching and Playing Tracks. 10

Settings

Canceling the DEMO Mode. 11

Basic Setting Operation 11

General Setup (GENERAL) 11

Sound Setup (SOUND). 12

Display Setup (DISPLAY) 13

Additional Information

Updating the Firmware 13

Precautions 13

Maintenance 14

Specifications. 14

Troubleshooting 16

Messages 18

Connection/Installation

Cautions 19

Parts List for Installation 19

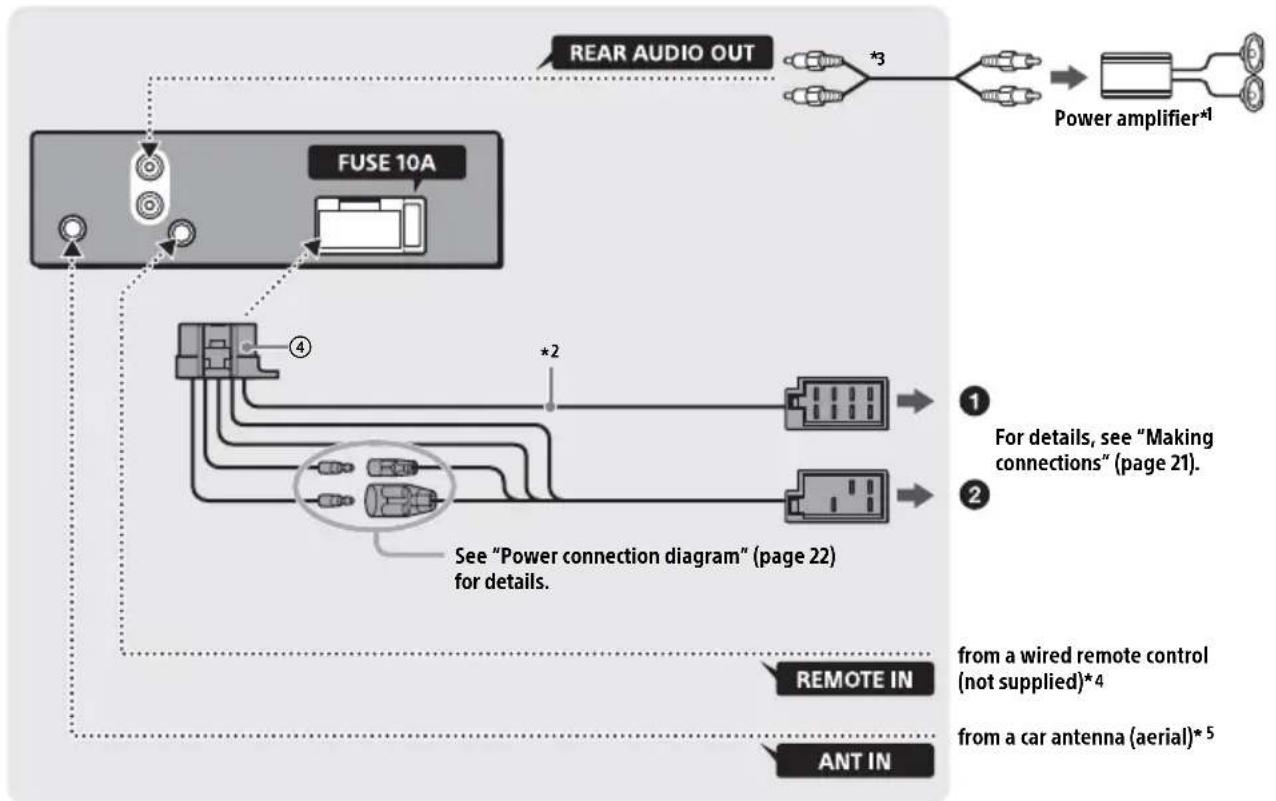

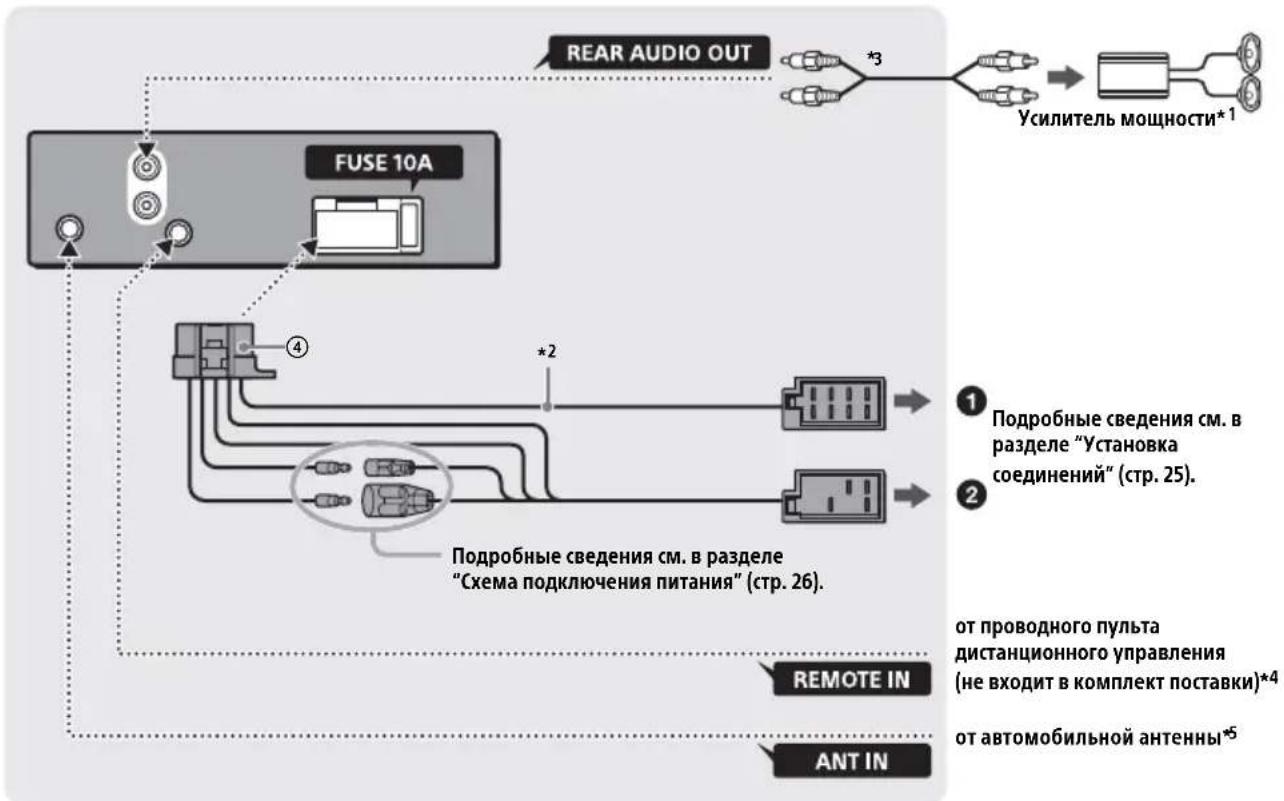

Connection 20

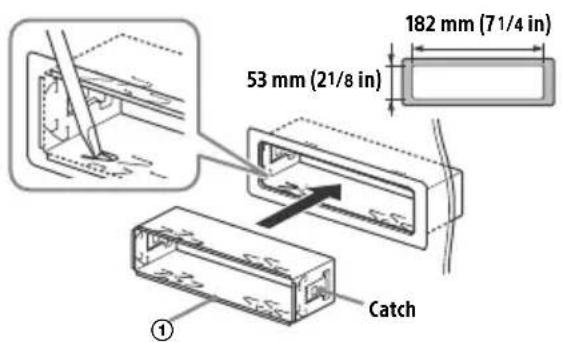

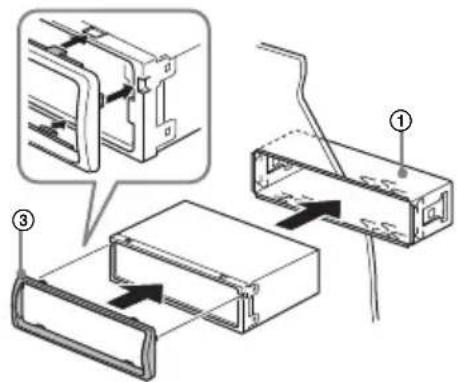

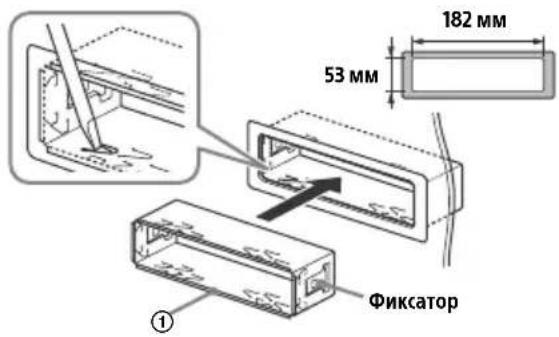

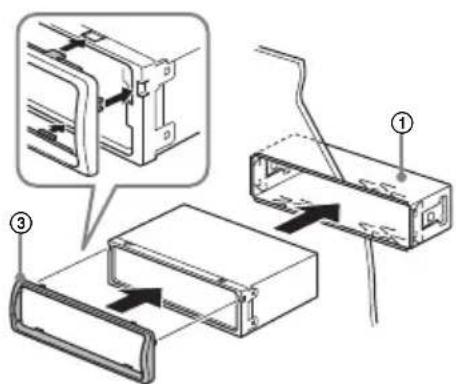

Installation 22

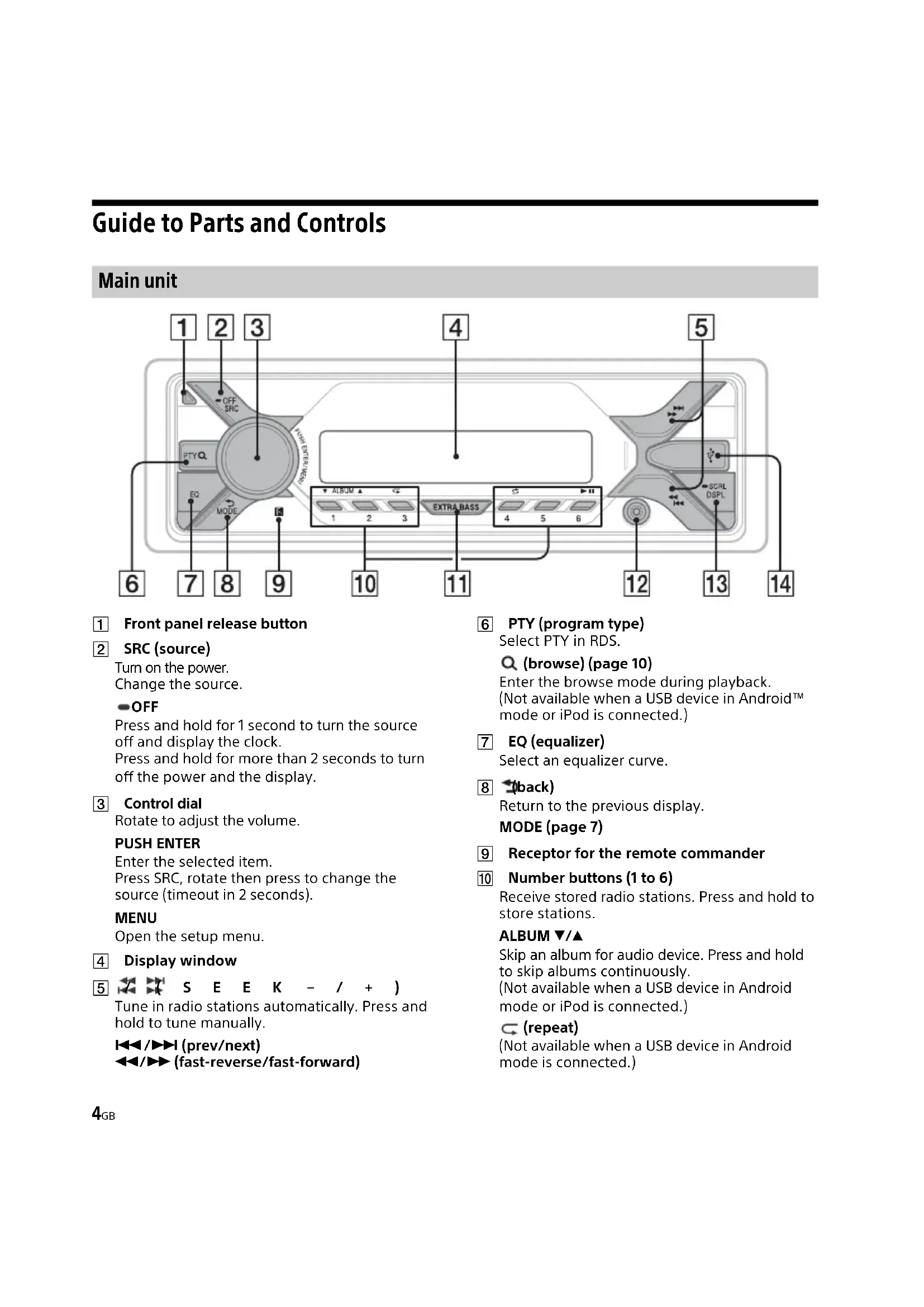

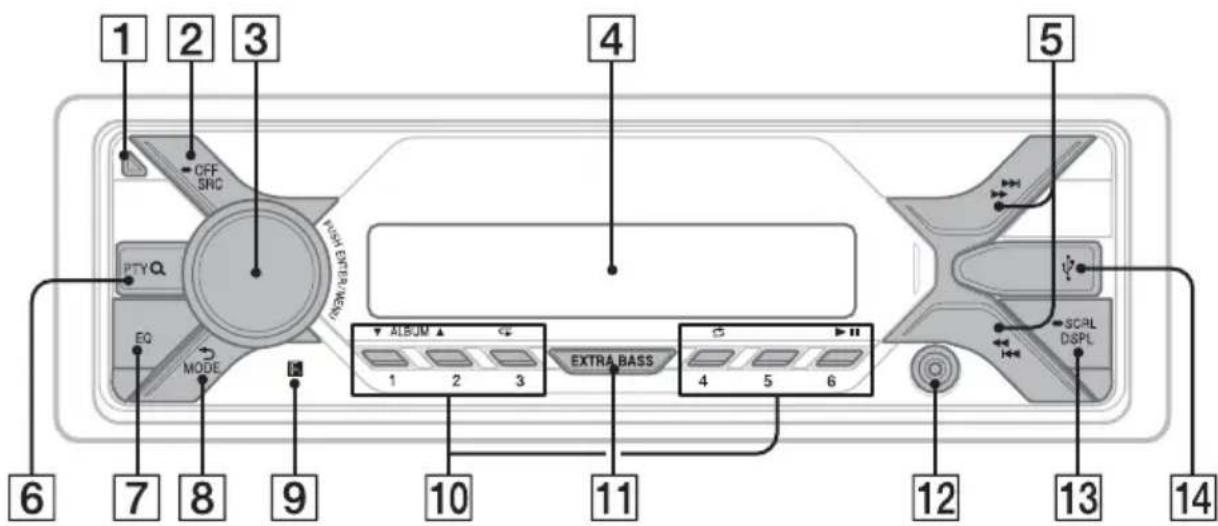

Guide to Parts and Controls

Main unit

1 Front panel release button 2 SRC (source)

Turn on the power.

Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

3 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

Press SRC, rotate then press to change the source (timeout in 2 seconds).

MENU

Open the setup menu.

4 Display window 5 S E E K - / + )

Tune in radio stations automatically. Press and hold to tune manually.

I/（prev/next)

( fast-reverse/fast-forward)

6 PTY (program type)

Select PTY in RDS.

Q (browse) (page 10)

Enter the browse mode during playback.

Not available when a USB device in Android mode or iPod is connected.

EQ (equalizer)

Select an equalizer curve.

back

Return to the previous display.

MODE (page 7)

Receptor for the remote commander 10 Number buttons (1 to 6)

Receive stored radio stations. Press and hold to store stations.

ALBUM▼/▲

Skip an album for audio device. Press and hold to skip albums continuously.

Not available when a USB device in Android mode or iPod is connected.

repeat

Not available when a USB device in Android mode is connected.

shuffle

Not available when a USB device in Android mode is connected.

II (play/pause)

11 EXTRA BASS

Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].

12 AUX input jack

13 DSPL (display)

Press to change display items.

SCRL (scroll)

Press and hold to scroll a display item.

14 USB port

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

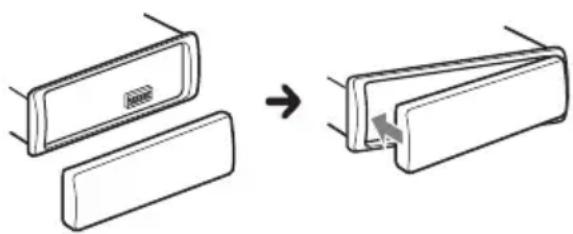

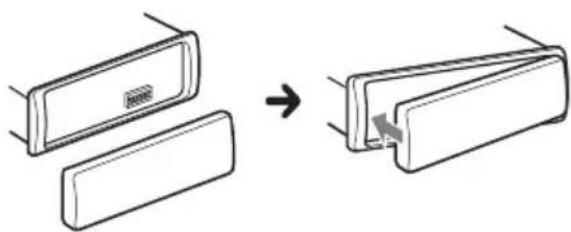

Attaching the front panel

Resetting the Unit

Before operating the unit for the first time, or after replacing the car battery or changing connections, you must reset the unit.

1 Press DSPL and (back)/MODE for more than 2 seconds.

Note

Resetting the unit will erase the clock setting and some stored contents.

Setting the area/region

After resetting the unit, the area/region setting display appears.

1 Press ENTER while [SET AREA] is displayed.

The area/region currently set appears.

2 Rotate the control dial to select [EUROPE] or [RUSSIA], then press it. 3 Rotate the control dial to select [YES] or [NO], then press it.

If the setting area/region is changed, the unit is reset, then the clock is displayed.

This setting can be configured in the general setup menu (page 11).

Setting the Clock

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET CLOCK-ADJ], then press it.

The hour indication flashes.

3 Rotate the control dial to set the hour and minute.

To move the digital indication, press the down/down or up/up (SEEK-/+).

4 After setting the minute, press MENU.

The setup is complete and the clock starts.

To display the clock

Press DSPL.

Checking the Battery Voltage

You can check the current battery voltage. (Not available while the source is off and the clock is displayed.)

1 Press DSPL repeatedly until the battery voltage display appears.

Connecting a USB Device

1 Turn down the volume on the unit. 2 Connect the USB device to the unit.

To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).

Connecting Other Portable Audio Device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied).

• Be sure to use a straight type plug.

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] → [SET AUX VOL] (page 13).

Listening to the Radio

Listening to the Radio

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Press MENU, rotate the control dial to select [GENERAL], then press it. 3 Rotate the control dial to select [SET BTM], then press it. The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Perform tuning.

To tune manually

Press and hold ⏭ / ⏮ (SEEK-/+ to locate the approximate frequency, then press ⏭ / ⏮ (SEEK-/+ ) repeatedly to fine adjust to the desired frequency.

To tune automatically

Press ⏪ / ⏩ (SEEK-/+).

Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Setting alternative frequencies (AF) and traffic announcement (TA)

AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET AF/ TA], then press it. 3 Rotate the control dial to select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press it.

To store RDS stations with the AF and TA setting

You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.

To receive emergency announcements

With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

To adjust the volume level during a traffic announcement

Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

To stay with one regional program (REGIONAL)

When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program's reception area, set [SET REG-OFF] in [GENERAL] during FM reception (page 12). This function does not work in the UK and some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons. During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received.

Selecting program types (PTY)

1 Press PTY during FM reception. 2 Rotate the control dial until the desired program type appears, then press it. The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Setting clock time (CT)

The CT data from the RDS transmission sets the clock.

1 Set [SET CT] in [GENERAL] to [SET CT-ON] (page 12).

Playback

Playing a USB Device

In these Operating Instructions, "iPod" is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.

For details on the compatibility of your iPod, see "About iPod" (page 14) or visit the support site on the back cover.

AOA (Android Open Accessory) 2.0, MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices* compliant with the USB standard can be used. Depending on the USB device, the Android mode or MSC/MTP mode can be selected on the unit.

Some digital media players or Android smartphones may require setting to MTP mode.

• e.g., a USB flash drive, digital media player, Android smartphone

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Smartphones with Android OS 4.1 or higher installed support Android Open Accessory 2.0 (AOA 2.0).

However, some smartphones may not fully support AOA 2.0 even if Android OS 4.1 or higher is installed. For details on the compatibility of your Android smartphone, visit the support site on the back cover.

• Playback of the following files is not supported.

MP3/WMA/FLAC:

copyright-protected files DRM (Digital Rights Management) files

Multi-channel audio files

MP3/WMA:

• lossless compression files

Before making a connection, select the USB mode (Android mode or MSC/MTP mode) depending on the USB device (page 12).

1 Connect a USB device to the USB port (page 6).

Playback starts.

If a device is already connected, to start playback, press SRC to select [USB] ([IPD]

appears in the display when the iPod is recognized).

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Caution for iPhone

When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as a sudden loud sound may result when the call ends.

Searching and Playing Tracks

Repeat play and shuffle play

Not available when a USB device in Android mode is connected.

1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (QuickBrowZerTM)

Not available when a USB device in Android mode or iPod is connected.

1 During USB playback, press (Browse) to display the list of search categories. When the track list appears, press (back) repeatedly to display the desired search category. During USB playback, press (Browse) for more than 2 seconds to directly return to the beginning of the category list. 2 Rotate the control dial to select the desired search category, then press it to confirm. 3 Repeat step 2 to search the desired track. Playback starts.

To exit the Quick-BrowZer mode

Press (browse).

Searching by skipping items (Jump mode)

Not available when a USB device in Android mode or iPod is connected.

1 Press (browse). 2 Press (SEEK +). 3 Rotate the control dial to select the item.

The list is jumped in steps of 10% of the total number of items.

4 Press ENTER to return to the QuickBrowZer mode.

The selected item appears.

5 Rotate the control dial to select the desired item, then press it.

Playback starts.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET DEMO], then press it. 3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete. 4 Press (back) twice. The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY).

1 Press MENU. 2 Rotate the control dial to select the setup category, then press it. The items that can be set differ depending on the source and settings. 3 Rotate the control dial to select the options, then press it.

To return to the previous display

Press (back).

General Setup (GENERAL)

AREA

Specifies the area/region to use this unit: [EUROPE], [RUSSIA]. If the area/region currently set is changed, this unit is reset, then the clock is displayed. (Available only while the source is off and the clock is displayed.)

DEMO (demonstration)

Activates the demonstration: [ON], [OFF].

CLOCK-ADJ (clock adjust) (page 6)

CAUT ALM (caution alarm)

Activates the caution alarm: [ON], [OFF] (page 5). (Available only while the source is off and the clock is displayed.)

BEEP

Activates the beep sound: [ON], [OFF].

AUTO OFF

Shuts off automatically after a certain time when the unit is turned off: [ON] (30 minutes), [OFF].

STEERING

• Registers/rewires the setting of the steering wheel remote control. (Available when connected with the connection cable (not supplied).) (Available only while the source is off and the clock is displayed.) STR CONTROL (steering control) Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use. CUSTOM Input mode for the steering wheel remote control PRESET Input mode for the wired remote control excluding the steering wheel remote control (automatically selected when [RESET CUSTOM] is performed.)

EDIT CUSTOM

Registers the functions (SOURCE, ATT, VOL +/-, SEEK +/-) to the steering wheel remote control:

Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it. 2 While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed. 3 To register other functions, repeat steps 1 and 2.

(Available only when [STR CONTROL] is set to [CUSTOM].)

RESET CUSTOM

Resets the setting of the steering wheel remote control: [YES], [NO].

(Available only when [STR CONTROL] is set to [CUSTOM].)

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting. If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

USB MODE

Changes the USB mode: [ANDROID], [MSC/MTP]. (Available only when the USB source is selected.)

CT (clock time)

Activates the CT function: [ON], [OFF].

AF/TA (alternative frequencies/traffic announcement)

Selects the alternative frequencies (AF) and traffic announcement (TA) setting: [AF-ON], [TA-ON], [AF/TA-ON], [AF/TA-OFF].

(Available when any source is selected.)

REGIONAL

Restricts reception to a specific region: [ON], [OFF]. (Available only when FM is received.)

BTM (best tuning memory) (page 7)

(Available only when the tuner is selected.)

FIRMWARE

(Available only while the source is off and the clock is displayed.)

Checks/updates the firmware version. For details, visit the support site on the back cover. FW VERSION (firmware version)

Displays current firmware version.

FW UPDATE (firmware update)

Enters firmware update process: [YES], [NO]

Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Sound Setup (SOUND)

This setup menu is available when any source is selected.

EQ10 PRESET

Selects an equalizer curve from 10 equalizer curves or off:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

The equalizer curve setting can be memorized for each source.

• [KARAOKE] reduces the vocal sound but cannot be fully removed during playback. Also, using a microphone is not supported.

EQ10 CUSTOM

Sets [CUSTOM] of EQ10.

Setting the equalizer curve:

[BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz, [BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

The volume level is adjustable in 1 dB steps, from -6 dB to +6 dB.

BALANCE

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjusts the relative level: [FRONT-15] - [CENTER] - [REAR-15].

AUX VOL (AUX volume)

Adjusts the volume level for each connected auxiliary device: [+18 dB] - [0 dB] - [-8 dB]

This setting negates the need to adjust the volume level between sources.

(Available only when the AUX is selected.)

Display Setup (DISPLAY)

DIMMER

Changes the display brightness: [ON], [OFF], [CLK] (clock).

To set this function to be active only during a fixed period, select [CLK], then set the start and end times.

• To set the brightness when the dimmer function is activated: Set [DIMMER] to [ON], then adjust [BRIGHTNESS].
• To set the brightness when the dimmer function is deactivated: Set [DIMMER] to [OFF], then adjust [BRIGHTNESS].

The brightness setting is stored and applied when the dimmer function is activated or deactivated.

BRIGHTNESS

Adjusts the display brightness. The brightness level is adjustable: [1] - [10].

SND SYNC (sound synchronization)

Activates the synchronization of the illumination with the sound: [ON], [OFF].

AUTO SCR (auto scroll)

Scrolls long items automatically: [ON], [OFF]. (Not available when the AUX or tuner is selected.)

Additional Information

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Notes

• Using a USB device (not supplied) is required for updating the firmware. Store the updater in the USB device, and connect the device to the USB port, then perform the update operation.
• Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Precautions

Cool off the unit beforehand if your car has been parked in direct sunlight. Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight. Power antenna (aerial) extends automatically.

To maintain high sound quality

Do not splash liquid onto the unit.

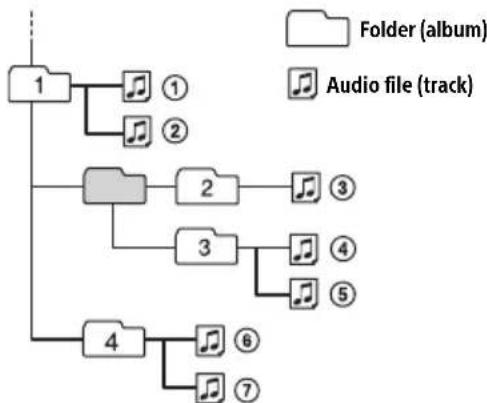

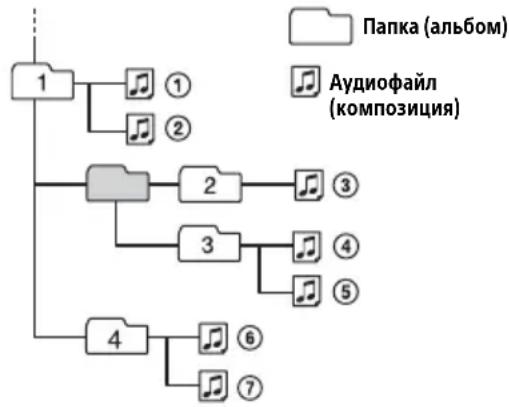

Playback order of audio files

About iPod

• You can connect to the following iPod models. Update your iPod devices to the latest software before use.

Compatible iPhone/iPod models

Compatible Model USB
iPhone 7 √
iPhone 7 Plus √
iPhone SE √
iPhone 6s √
iPhone 6s Plus √
iPhone 6 √
iPhone 6 Plus √
iPhone 5s √
iPhone 5c √
iPhone 5 √
iPhone 4s √
iPod touch (6th generation) √
iPod touch (5th generation) √
iPod nano (7th generation)	√

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

Tuner section

FM

Tuning range:

When [AREA] is set to [EUROPE]:

87.5 MHz - 108.0 MHz

When [AREA] is set to [RUSSIA]:

FM1/FM2: 87.5 MHz - 108.0 MHz (at 50 kHz step)

FM3: 65 MHz - 74 MHz (at 30 kHz step)

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency:

When [AREA] is set to [EUROPE]:

FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz

When [AREA] is set to [RUSSIA]:

FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz

FM OIRT: -1,815.6 kHz to -943.7 kHz and +996.6 kHz to +1,776.6 kHz

Usable sensitivity: 7 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Frequency response: 20 Hz - 15,000 Hz

MW/LW

Tuning range:

MW: 531 kHz - 1,602 kHz

LW: 153 kHz - 279 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Sensitivity: MW: 26 μV, LW: 50 μV

USB Player section

Interface: USB (Full-speed)

Maximum current: 1 A

Maximum number of recognizable folders and files:

Folders (albums): 256

Files (tracks) per folder: 256

Compatible Android Open Accessory protocol (AOA): 2.0

Corresponding codec:

MP3 (.mp3)

Bit rate: 8 kbps - 320 kbps (Supports VBR

(Variable Bit Rate))

Sampling rate: 16 kHz - 48 kHz

WMA (.wma)

Bit rate: 32 kbps - 192 kbps (Supports VBR

(Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 Ω - 8 Ω

Maximum power output: 55 W × 4 (at 4 Ω)

General

Outputs:

Audio outputs terminal (REAR)

Power antenna (aerial)/Power amplifier control terminal (REM OUT)

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178 mm × 50 mm × 119 mm

(7 1/8 in × 2 in × 4 3/4 in) (w/h/d)

Mounting dimensions:

Approx. 182 mm × 53 mm × 102 mm

(7 1/4 in × 2 1/8 in × 4 1/8 in) (w/h/d)

Mass: Approx. 0.7 kg (1 lb 9 oz)

Package contents:

Main unit (1)

Parts for installation and connections (1 set)

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary.

Apple, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Android is a trademark of Google LLC.

libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit.

Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 19).

If the problem is not solved, visit the support site on the back cover.

General

No sound or the sound is very low.

The position of the fader control [FADER] is not set for a 2-speaker system. The volume of the unit and/or connected device is very low.

• Increase the volume of the unit and connected device.

No beep sound.

An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

The power supply lead or battery has been disconnected or not connected properly.

Stored stations and correct time are erased.

The fuse has blown.

Makes a noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts.

• Set [DEMO-OFF] (page 11).

The display disappears from/does not appear in the display window.

The dimmer is set to [DIM-ON] (page 13). The display disappears if you press and hold OFF. Press OFF on the unit until the display appears. The connectors are dirty (page 14).

The display/illumination flashes.

The power supply is not sufficient.

• Check that the car battery supplies enough power to the unit. (The power requirement is 12 V DC.)

The operation buttons do not function.

Press DSPL and (back)/MODE for more than 2 seconds to reset the unit.

The contents stored in memory are erased.

For your safety, do not reset the unit while you are driving.

Radio reception

Stations cannot be received. The sound is hampered by noise

The connection is not correct. Check the connection of the car antenna (aerial). If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

The broadcast signal is too weak.

65 MHz to 74 MHz in FM3 cannot be tuned in.

→ [AREA] is set to [EUROPE]. Set [AREA] to [RUSSIA] (page 11).

RDS

RDS services cannot be received (when [AREA] is set to [RUSSIA]).

FM3 is selected. Select FM1 or FM2. → RDS services are unavailable in the current region.

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. Deactivate TA (page 8).

No traffic announcements.

Activate TA (page 8). The station does not broadcast any traffic announcements despite being TP. -Tune in another station.

PTY displays [- - - - - - -]

The current station is not an RDS station. RDS data has not been received. The station does not specify the program type.

Program service name flashes.

There is no alternative frequency for the current station.

• Press / (SEEK -/+ ) while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data.

USB device playback

You cannot play items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

A USB device takes longer to play.

The USB device contains files with a complicated tree structure.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate. → DRM (Digital Rights Management) files may not be playable in some cases.

Audio file cannot be played.

USB device formatted with file systems other than FAT16 or FAT32 are unsupported. This unit supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.

Operations for skipping an album, skipping items (Jump mode), and searching a track by name (Quick-BrowZer) cannot be performed.

These operations cannot be performed when a USB device in Android mode or iPod is connected.

Set [USB MODE] to [MSC/MTP] (page 12). - Remove the iPod.

The USB mode of the device is not set to the appropriate mode.

Make sure that the USB mode of the device is set to MSC/MTP mode.

The sound cannot be output during playback in Android mode.

While the unit is in Android mode, the sound outputs only from the Android smartphone.

• Check the status of the audio playback application on the Android smartphone.
• Playback may not perform properly depending on the Android smartphone.

Messages

The following messages may appear or flash during operation.

HUB NO SUPRT: USB hubs are not supported.

INVALID

The selected operation could be invalid. [USB MODE] cannot be changed during iPod playback.

IPD STOP: iPod playback has finished. Operate your iPod/iPhone to start playback.

NO AF: No alternative frequencies. Press [14 / 2] (SEEK-/+）while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears).

NO TP: No traffic programs. The unit will continue searching for available TP stations.

NOT SUPPORT -ANDROID MODE

A USB device not supporting AOA (Android Open Accessory) 2.0 is connected to the unit while [USB MODE] is set to [ANDROID].

Set [USB MODE] to [MSC/MTP] (page 12).

OVERLOAD: The USB device is overloaded. Disconnect the USB device, then press SRC to select another source. The USB device has a fault, or an unsupported device is connected.

READ: Now reading information. Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization.

USB ERROR: The USB device cannot be played. Connect the USB device again.

USB NO DEV: A USB device is not connected or recognized. Make sure the USB device or USB cable is securely connected.

USB NO MUSIC: There is no playable file.

Connect a USB device containing playable files (page 15).

USB NO SUPRT: The USB device is not supported. For details on the compatibility of your USB device, visit the support site on the back cover.

For steering wheel remote control operation:

ERROR: An error occurred during the function registration. Register again from the function where the error occurred (page 12).

TIMEOUT: The function registration failed due to a timeout. Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 12).

For firmware update operation:

FILE ERROR: The updater is not stored in the USB device. Store the updater in the USB device, then try again (page 13).

UPDATE ERROR PRESS ENTER: Firmware update is not completed properly.

Press ENTER to clear the message, then try again. During the update, do not turn the ignition to the OFF position, nor remove the USB device (page 13). Insert the USB device storing the updater, and then press ENTER.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply lead (④) to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45°.

Parts List for Installation

①

②

(3)

(4)

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see "Removing the protection collar and the bracket" (page 22).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

Connection

1 Not supplied 2 Speaker impedance: 4Ω - 8Ω × 4 *3 RCA pin cord (not supplied)

4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 22). 5 Depending on the type of car, use an adaptor (not supplied) if the antenna connector does not fit.

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead ④ may damage the antenna (aerial).

To the car's speaker connector

1	Rear speaker (right)	⊕	Purple
2		⊗	Purple/black striped
3	Front speaker (right)	⊕	Gray
4		⊗	Gray/black striped
5	Front speaker (left)	⊕	White
6			White/black striped
7	Rear speaker (left)	⊕	Green
8			Green/black striped

To the car's power connector

12	continuous power supply	Yellow
13	power antenna (aerial) / power amplifier control (REM OUT)	Blue/white striped
15	switched power supply Red
16	ground (earth) Black

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord.

Notes

• Preparation of the rear speaker cords is required.
• Use a subwoofer with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

Before connecting the speakers, turn the unit off. - Use speakers with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage.

Power connection diagram

Make sure your car's auxiliary power connector, and match the connections of cords correctly depending on the car.

Auxiliary power connector

Common connection

12	continuous power supply	Yellow
15	switched power supply Red

When the positions of the red and yellow leads are inverted

12 s	switched power supply	Yellow
15	continuous power supply	Red

When the car without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions or problems connecting your unit that are not covered in this manual, consult the car dealer.

Using the wired remote control

1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 11).

Installation

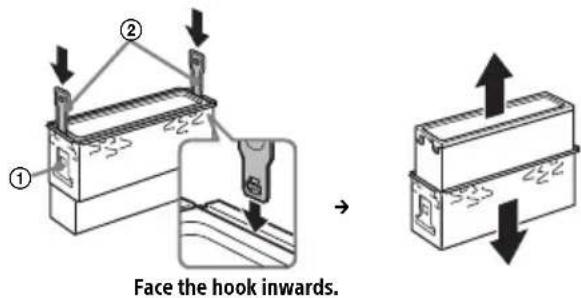

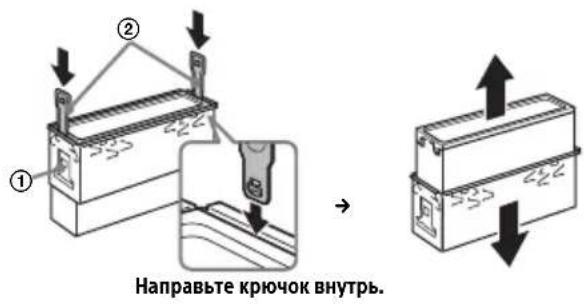

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③ then pull it out.

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

Mounting the unit in the dashboard

Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2 mm (3/32 in).

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out. Make sure the 4 catches on the protection collar ③ are properly engaged in the slots of the unit.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 5).

Resetting the unit

For details, see "Resetting the Unit" (page 6).

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In that case, consult your nearest Sony dealer.

Sampling rate: 16 kHz - 48 kHz

WMA (.wma)

Bitrate: 32 Kbps - 192 Kbps (supports VBR (variable bitrate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Connection/Installation

Attention 23

Playback starts.

Reading starts.

Reading starts.

Settings

Disabling DEMO mode

DEMO (demonstration)

Allows activating the demonstration: [ON], [OFF].

AOA (Android Open Accessory) protocol

compatible:2.0

Main device (1)

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Connection/Installation

Warning

Interface: USB (Full speed)

Folders (albums): 256

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Manufacturer: Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan

For safety, be sure to install this unit in the dashboard of the car, since the rear part of the unit becomes hot during use. For details, see "Installation/Connections" (page 23).

The indications for the operation of other functions are found on the lower part of the body.

The date of manufacture is indicated on the product and also on the packaging in the following format: MM.YYYY, where MM is the month and YYYY is the year of manufacture.

This unit is a car audio system that allows you to listen to audio, including music applications and services.

Storage conditions: Products are stored in their packaging in dark, dry, clean, well-ventilated rooms, protected from places where acids and alkalis are stored. Storage temperature: from -20 to +60°C. Relative storage humidity: 80%. Operating temperature: from 0 to 40°C. Operating relative humidity: 40-60%. Shelf life is not established.

Disposal of used electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems)

Precaution: If the ignition is not in the ACC position, make sure that the AUTO OFF function is set (page 12). After turning on the unit, its power will be automatically turned off after a set time, which prevents battery discharge. If the AUTO OFF function is not set, when turning off the ignition, press and hold the OFF button until the display goes off.

Disclaimer regarding services provided by third parties

Services provided by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear responsibility for situations of this kind.

Table of contents

Reference guide for parts and controls 4

Operating hours

Front panel 5

Device overload 6

Setting the clock 6

Checking battery voltage 6

Connecting USB devices 7

Connecting other portable audio devices 7

Listening to the radio

Listening to the radio 8

Radio Data System (RDS) 8

Playback

USB device playback 10

Searching for track playback 17

Parameters

Canceling DEMO mode 12

Basic settings and parameter setup 12

Setting general parameters (GENERAL) 12

Sound settings (SOUND) 14

Display settings (DISPLAY) 14

Additional information

Firmware update 15

Safety precautions 15

Device care 16

Technical specifications 16

Troubleshooting 19

Messages 21

Installation/Connection

Warning! 23

List of installation parts 23

Connection 24

Installation 26

Reference manual for parts and controls

Main unit

1 Signal button, front panel 2 SRC (source)

Power on.

Changing the source.

OFF

Press and hold for 1 second to turn off the source and display the clock.

Press and hold for more than 2 seconds to turn off the power and display.

3 Volume control knob

Turn to adjust the volume level.

PUSH ENTER

Open the selected menu item.

To select another source first, press the SRC button, turn the volume control knob, then press it (waiting time -2 seconds).

MENU

Tuning menu.

4 Display window

5 S E E K - / + )

Automatic tuning to a radio station. Press and hold for manual tuning.

1/>I (previous/next) <4/> (fast rewind/ fast forward)

6 PTY (program types) Selects the PTY (program type) in RDS. Q (browse) (p. 11) Switches to browse mode during playback. (Not available if the iPod/iPhone is connected via USB.) EQ (equalizer) Selects the equalizer. 8 Back) Returns to the previous screen. MODE (p.8) 9 Remote control signal receiver

10 Number buttons (1-6)

Receives radio stations stored in memory. Press and hold to store stations.

ALBUM▼/▲

Skips albums on the audio device. Press and hold for continuous album skip.

(Not available if the connected device is an iPod/iPhone via USB.)

(repeat)

(Not available if the connected device is an iPod/iPhone via USB.)

(random play)

(Not available if the connected device is an iPod/iPhone via USB.)

II (Playback/Pause)

11 EXTRA BASS

Enhances the bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].

12 AUX input jack

13 DSPL (display)

Press to change the display indication.

SCRL (scroll)

Press and hold for scroll indication.

14 USB port

Getting started

Removing the front panel

To prevent theft, you can remove the front panel from the unit.

1 Press and hold the OFF button ① until the unit turns off. Press the front panel release button ②, then pull the panel toward you and remove it.

Caution alarm

If the front panel is not removed from the unit within a few seconds after turning the ignition switch to OFF, a caution alarm will sound for a few seconds. The alarm will sound only if the built-in amplifier is used.

Installing the front panel

Resetting the device

Before first use of the device, after replacing the car battery, or after reconnecting the cable, it is necessary to reset the device.

1 Press and hold the DSPL (BACK)/MODE button for more than 2 seconds.

Note

Resetting the device will delete the clock settings and some saved content elements.

Setting the country/region

After resetting the device, the country/region setting menu will open.

1 When [SET AREA] is displayed, press the ENTER button. The country or region will be displayed. 2 Turn the rotary knob to select [EUROPE] or [RUSSIA], then press the rotary knob. 3 Turn the rotary knob to select [YES] or [NO], then press the rotary knob.

If you change the region or country, the device will reset, and after that the clock will be displayed on the display.

This parameter can be set in the common parameters menu (page 12).

Setting the clock

1 Press the MENU button, turn the rotary knob to select [GENERAL], then press the rotary knob. 2 Turn the rotary knob to select [SET CLOCK-ADJ], then press the rotary knob. The hour indicator will start blinking. 3 Turn the rotary knob to set the hour value. To select the setting digit, use the />I (SEEK-+) buttons. 4 After setting the minutes, press the MENU button.

The setting is complete, and the clock will start counting time.

To display the clock Press the DSPL button.

You can check the current battery level in the battery. (Not available when the power is on and the clock is displayed.)

1 Press the DSPL button until the battery level is displayed.

Connecting USB devices

1 Turn down the volume on the device. 2 Connect the USB device to the device.

To connect an iPhone or iPod, use the USB cable for iPod (not included).

Connecting another portable audio device

1 Turn off the portable audio device. 2 Turn down the volume on the device. 3 Connect the portable audio device to the AUX input jack (mini stereo) on the device using a connecting cable (not included).

• Be sure to use the plug of the correct type.

4 Press the SRC button and select [AUX].

Adjusting the volume level of the connected device with other sources

Start playback on the portable audio device at a moderate volume and set a suitable listening volume on the device.

Press the MENU button, then select [SOUND]

-> [SET AUX VOL] (p. 14).

Listening to the radio

Radio reception

Automatic storage (BTM)

1 Press the MODE button to select the band (FM1, FM2, FM3, MW or LW). 2 Press the MENU button, turn the rotary control to select [GENERAL], then press the rotary control. 3 Turn the rotary control to select [SET BTM], then press the rotary control.

Radio stations are stored in memory in order of frequency and assigned to the number buttons.

Tuning

1 Press the MODE button to select the band (FM1, FM2, FM3, MW or LW). 2 Perform tuning.

Manual tuning Press and hold the /▶/ (SEEK-/+) buttons to set the approximate frequency, then use short presses of the /▶/ (SEEK-/+) buttons to fine-tune the exact frequency.

For automatic tuning, use the (SEEK-/+) buttons. The search stops when the device finds a radio station.

Manual storage

1 While receiving the radio station you want to store, press and hold the number button (1-6) until the [MEM] indication appears.

Receiving stored radio stations

1 Select the band, then press the number button (1-6).

Radio Data System (RDS)

Setting alternative frequencies (AF) and traffic announcements (TA)

The AF function continuously retunes to radio stations with strong signals in the network, and the TA function provides reception of traffic program (TP) announcements about the current traffic situation, if reception is possible.

1 Press the MENU button, turn the dial to select [GENERAL], then press the dial. 2 Turn the dial to select [SET AF/TA], then press the dial. 3 Turn the dial to select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press the dial.

CT data received from the signal source is used to set the device's clock.

1 Set [SET CT-ON] in the [GENERAL] menu to enable [SET CT] (p. 13).

Playback

USB device playback

In this manual, the term "iPod" is used generically to refer to the iPod and iPhone functions, unless otherwise stated in the text or in the figures.

For information on compatible iPod devices, see the section "About iPod devices" (p. 15) and the support website listed on the last page of the cover.

USB devices* of type AOA (Android Open Accessory) 2.0, MSC (mass storage class) and MTP (Media Transfer Protocol) that are compatible with the USB standard can be used. Depending on the type of USB device used, you can select Android or MSC/MTP mode on the device.

Some digital audio players and smartphones with Android OS may require MTP mode.

• For example, USB flash drives, digital audio players, and Android smartphones.

Notes

- For details on USB device compatibility, visit the support website listed on the back cover. - Smartphones with Android 4.1 or later support Android Open Accessory 2.0 (AOA 2.0). However, some smartphones may not fully support AOA 2.0 even if they have Android 4.1 or later installed. For detailed information on the compatibility of your Android smartphone, visit the support website listed on the back cover.

Playback of the following files is not supported.

MP3/WMA/FLAC:

• Files protected by copyright;
• Fail-safe DRM (digital rights management); multi-channel audio files. MP3/WMA:
• files, compressed without data loss

Before connecting, select the USB mode (Android mode or MSC/MTP mode) depending on the type of USB device used (p.13).

1 Connect the USB device to the USB port (p.7).

Playback starts.

To start playback if the device is already connected, press the SRC button and select [USB] (after the iPod device is recognized, [IPD] will be displayed on the screen).

2 Adjust the volume on this device.

To stop playback

Press and hold the OFF button for 1 second.

CLOCK-ADJ (clock setting) (p. 6)

CAUT ALM (caution alarm)

Turning on the caution alarm: [ON], [OFF] (p.5).

(Available only when the ignition is off and the clock is displayed.)

BEEP

Activating the beep sound: [ON], [OFF].

AUTO OFF

Automatic shutdown after a specified time if the device is turned off: [ON] (30 minutes), [OFF].

STEERING

Register/change settings of the remote control on the steering wheel. (Available when the connecting cable is connected (not included in the supply).) (Available only when the ignition is off, when the clock is displayed.)

STR CONTROL (steering wheel remote control)

Select the operation mode of the connected remote control. To avoid malfunctions, before using, select the appropriate input mode for the connected remote control.

CUSTOM

Operation mode of the steering wheel remote control.

PRESET

Operation mode of the remote control except for the steering wheel remote control (selected automatically when [RESET CUSTOM] is performed).

EDIT CUSTOM

Register functions (SOURCE, ATT, VOL +/-, SEEK + / - ) of the steering wheel remote control:

1 Turn the rotary knob to select the function to assign to the steering wheel remote control, then press the rotary knob. 2 While the message [REGISTER] is displayed, press and hold the button on the steering wheel remote control to which the function is to be assigned. When registration is complete, [REGISTERED] is displayed. 3 To register other functions, repeat steps 1 and 2.

(Available only if the [STR CONTROL] parameter is set to [CUSTOM].) RESET CUSTOM

Change the settings of the steering wheel remote control: [YES], [NO].

(Available only if the [STR CONTROL] parameter is set to [CUSTOM].)

Note

While changing settings, access to button control on this device is available only when the vehicle is stopped. For safety, stop the vehicle before changing these settings.

• If an error occurs during registration, previously registered information is retained. Repeat the registration procedure, starting from the function where the error occurred. This function may not be available on some vehicles. For detailed information on compatibility with your vehicle, visit the website listed on the back cover.

USB MODE

Change USB mode: [ANDROID], [MSC/MTP].

(Available only when USB source is selected.)

CT (Time in hours)

Precautions

• If the vehicle has been parked in a sunny place, do not turn on the device until it has cooled down. Do not leave portable audio devices or other portable devices inside the vehicle, as high temperatures resulting from direct sunlight may cause damage.
• When the device is operating, the antenna with electric drive automatically extends.

To maintain high sound quality

Do not spill liquids on the device.

Playback of audio files

iPod connection

The following iPod models can be connected. Before using the iPod device, install the latest software version on it.

Compatible iPhone and iPod models

Сов mintимая м odeл USB
iPhone 7✓
iPhone 7 Plus✓
iPhone SE✓
iPhone 6s✓
iPhone 6s Plus✓
iPhone 6✓
iPhone 6 Plus✓
iPhone 5s✓
iPhone 5c✓
iPhone 5✓
iPhone 4s✓
iPod touch (6- ro nokolenia)✓
iPod touch (5- ro nokolenia)✓
iPod nano (7- ro nokolenia)✓

• The use of the "Made for Apple" badge means that the accessory has been designed specifically for use with the Apple products indicated in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless network performance.

If you have any questions or problems regarding this device that are not described in this manual, contact your nearest Sony dealer.

Device care

Cleaning the contacts

The device may not operate reliably due to dirty contacts used for connecting the cradle to the device. To avoid this, disconnect the cradle (page 5) and wipe the contacts with a cotton swab. Do not apply excessive force. Otherwise, the contacts may be damaged.

Notes

For safety, before cleaning the connectors, turn off the power and unplug the AC adapter. Never touch the contacts with your fingers or metal objects.

Specifications

Tuner

FM

Tuning range: For parameter [AREA] set to [EUROPE]: 87.5 MHz - 108.0 MHz. For parameter [AREA] set to [RUSSIA]: FM1/FM2: 87.5 MHz - 108.0 MHz (with 50 kHz steps), FM3: 65 MHz - 74 MHz (with 30 kHz steps).

Antenna terminal:

External antenna connector

Resonant frequency:

For parameter [AREA] the value [EUROPE] is set:

Selectivity: 75 dB at 400 K

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Frequency range: 20 Hz - 15000 Hz

MW/LW

Tuning range:

MW: 531 kHz - 1602 kHz

LW: 153 kHz - 279 kHz

Antenna jack:

External antenna connector

Sensitivity: MW: 26 µV, LW: 50 µV

USB playback

Compatible codec: MP3 (.mp3)

Data transfer rate: 8 Kbps-320 Kbps (VBR (variable bit rate) support)

Sampling frequency: 16 kHz - 48 kHz, for (.wma)

Data transfer rate: 32 Kbps-192 Kbps (VBR (variable bit rate) support)

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac) Resolution: 16 bit, 24 bit

Sampling frequency: 44.1 kHz, 48 kHz

Power amplifier

Output: Speaker outputs

Speaker impedance: 4Ω-8Ω

Maximum output power: 55W x 4 (at 4 Ω)

General information

Outputs: Audio output terminals (REAR)

Subwoofer antenna/control terminal

Amplifier (REM OUT)

Inputs:

External control panel terminal

Input connector

AUX input jack (mini-stereo) USB port

Power supply requirements:

Car battery 12V

Direct current (with negative ground)

Rated current: 10A

Dimensions:

Approx. 178 mm × 50 mm × 119 mm (W/H/D)

Mounting dimensions:

Approx. 182 mm × 53 mm × 102 mm (W/H/D)

Weight: approx. 0.7 kg

Package contents:

Main unit (1)

Installation kit (1 set)

Some items listed may not be included. Contact your dealer for detailed information.

Design and specifications are subject to change without prior notice.

Transport in original packaging. During transport, do not drop, protect from falls, impacts, and excessive vibration.

Disposal must be carried out in accordance with current legal requirements. Dispose of the used product in accordance with current legal requirements.

If the malfunction cannot be eliminated following this instruction, contact an authorized SONY service center for repair and maintenance.

Copyright

Windows Media is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

This publication is protected by copyright and intellectual property laws. Use and distribution of the technology, except as included in this product, without a license from Microsoft or an authorized Microsoft subsidiary is prohibited.

Do not hear the audio signal.

→ Connect the audio input device, and the built-in speaker is disabled.

Data has been deleted from memory.

→ Turn off and reconnect the power cord, because the battery has been removed.

The programmed radio stations and time setting have been deleted. The fuse has blown.

Hear the beep when switching the key position.

→ The wires are incorrectly connected to the power connector of the auxiliary equipment of the vehicle.

The device enters demonstration mode.

If, with the demonstration mode [DEMO-ON] enabled, no operations are performed for 5 minutes, the demonstration starts. - Set the value [DEMO-OFF] (p. 12).

The indicator is not displayed in the display window.

→ For the dimmer, the value [DIM-ON] is set (p. 14). → The display turns off if you press and hold the OFF button.

Press the OFF button on the device and hold it pressed until the display turns on. → The contacts are loaded (p. 16).

The display backlight flashes.

Insufficient power supply. - Make sure that the device receives sufficient power from the car battery. (Power supply requirement: 12 V DC.)

The control buttons do not work.

→ Press and hold the DSPL button and

(Back)/MODE for more than 2 seconds to restart the device.

The correct password will be deleted. For safety reasons, do not restart while driving.

Reception is interrupted.

Radio reception cannot be established. The sound is accompanied by interference.

→ Incorrect connection.

• Check the connection of the car antenna.
• Check the automatic antenna, verify the antenna control wire connection with the electric drive.

Unable to perform preliminary tuning.

→ The signal is too weak.

In the FM3 band, it is not possible to tune to 74 MHz.

→ For [AREA], [EUROPE] is selected. - Set the value [RUSSIA] for [AREA] (page 12).

RDS

Unable to receive RDS service (when the [AREA] parameter is set to [RUSSIA]).

→ The FM3 band is selected. Select FM or FM2. → RDS service is not available in this region.

After a few seconds of listening, the SEEK function activates.

→ The station does not transmit TP data or transmits too weak a signal. Turn off TA (page 8).

Traffic announcements are not transmitted.

→ Turn on TA (page 8). → The station does not transmit traffic announcements, although it belongs to the TP type. - Tune to another station.

When the NTY function is activated, the indicator [--- - - - - - - ] is displayed.

→ The current station does not transmit RDS data. → RDS data is not received. → The station does not indicate the program TIN.

The program name is displayed.

For the selected station, the alternative frequency is not used. Press the /■/ (SEEK -/+) button until the name of the program service appears. The [PI SEEK] indicator will appear, and the device will start searching for another frequency with the same PI (program identification) data.

Playback from USB device

It is impossible to play data using a USB hub.

On this device, it is impossible to recognize USB devices connected via a USB hub.

The USB device requires more time for playback.

The USB device contains files with a complex hierarchical structure.

Sound interruptions.

Sound may be interrupted at high data transfer speeds. In some cases, playback of DRM (Digital Rights Management) files is impossible.

Cannot play audio files.

USB devices formatted with file systems other than FAT16 or FAT32 are not supported. This device supports FAT16 and FAT32 file systems, but some USB devices may not support all these FAT file system formats. For detailed information, refer to the instruction manual of the specific USB device or contact the manufacturer.

Cannot perform operations such as skipping albums, skipping tracks (track search), or searching for compositions by name (Quick-BrowZer).

These operations are unavailable if an iPod or a USB device is connected in Android mode. For the [USB MODE] parameter, set the value to MSC/MTP. Disconnect the iPod. The USB mode on the device is set incorrectly. Make sure that the USB mode on the device is set to MSC/MTP.

In Android mode, sound from the device is not played.

When the device is in Android mode, sound is played only from a smartphone with Android OS.

• Restart the application for playing audio on the smartphone with Android OS. Depending on the smartphone with Android OS, playback problems may occur.

Content

During operation of the device, the following messages may be displayed or heard.

HUB NO SUPRT: USB hub is not supported.

INVALID

→ The selected operation may not be supported. → During playback of the iPod device, it is not possible to switch from [USB MODE] to another mode.

IPOD STOP: Playback from the iPod device has ended. → On the iPod or iPhone, enable the playback function.

NO AF: No alternative frequencies available. → Press the I/1/1 (SEEK-/+ ) buttons while the program service name is displayed. The device starts searching for another frequency with the same PI (Program Identification) data (appears as [PI SEEK]).

NO TP: No traffic information available. → The device continues searching for stations that broadcast TP programs.

NOT SUPPORT - ANDROID MODE

→ A USB device that does not support the AOA (Android Open Accessory) protocol 2.0 is connected when the [USB MODE] parameter is set to [ANDROID]. — For the [USB MODE] parameter, set the value to [MSC/MTP] (page 13).

OVERLOAD: The USB device is overloaded. → Disconnect the USB device, then press the SRC button to select another source. → The USB device is damaged or an unsupported device is connected.

READ: Reading.

→ Wait for reading to complete. Playback will start automatically. This may take some time depending on the structure of the data.

USB ERROR: Unable to play the USB device.

→ Reconnect the USB device.

USB NO DEV: USB device is not connected or not recognized.

Make sure that the USB device or USB cable is securely connected.

USB NO MUSIC: No playable files found.

Connect a USB device with playable files (p. 17).

USB NO SUPRT: USB device is not supported.

For detailed information on USB device compatibility, visit the support website listed on the back cover.

Notes on using the remote control

ERROR: An error occurred during registration. Perform the registration again, starting from the function where the error occurred (p. 13).

TIMEOUT: The registration process was not completed within the time limit. Complete the registration while [REGISTER] is flashing (about 6 seconds) (p. 13).

Notes on updating the firmware

FILE ERROR: The update file is not saved on the USB device.

Save the update file to the USB device and try again (p. 15).

UPDATE ERROR PRESS ENTER:

The firmware update did not complete successfully.

Press ENTER to close the message, then try again. During the update, do not turn the power switch to OFF and do not remove the USB device (p. 15). Insert the USB device with the update file and press ENTER.

If the problem cannot be resolved by the suggested actions, contact your local Sony dealer.

Installation/Connection

Warning!

• Connect all ground wires to a common ground point. Do not allow ground wires to be pinched under screws or between moving parts (e.g., between the steering column). To avoid a short circuit, disconnect the battery before making connections.
• First connect the power lead ④ to the unit and the speakers, then to the terminals of the external power source. For safety, insulate all free unconnected wires with electrical tape.

Precautions

Carefully choose the installation location so that the unit does not interfere with driving. Do not install the unit where it will be subject to dust, dirt, excessive vibration, or high temperatures, for example in places exposed to direct sunlight or near heater vents. For secure and safe installation, use only the supplied mounting parts.

Note on the power lead (yellow)

When connecting this unit together with other stereo components, the nominal fuse value in the car's power circuit must exceed the total fuse value indicated on the fuses of all components.

Adjusting the installation angle

Adjust the installation angle so that it is less than 45°

List of installation parts

①

②

③

(4)

The bracket ① and the protective cap ③ are not included in the standard delivery. They are attached to the device at the time of delivery. Before installing the device, use the disassembly keys ② to disconnect the bracket ① from the device. For details, see the section "Disconnecting the protective cap and bracket" (p. 26). Keep the disassembly keys ② for future use, as they will also be needed when removing the device from the car.

Connection

1 Not included in the delivery. 2 Total speaker impedance: 4Ω-8Ω×4 *3 Cable with RCA connectors (not included in the delivery).

*4 Depending on the car model, it may be necessary to use an adapter for the wired remote control (not included in the delivery). For details on using the wired remote control, see the section "Using the wired remote control" (p. 26). *5 Depending on the car model, use an adapter (not included in the delivery) if the antenna connector does not fit.

Installation Connection

If a powered antenna with a built-in amplifier is used, connecting this device with the supplied 4-pin cable may damage the antenna.

To the car speaker

If the red and white cables are swapped

Red Red White White

Disconnecting the protective cap and bracket

Before installing the device, disconnect the protective cap ③ and the bracket ① from the device.

1 Grasp both edges of the protective cap ③ and pull it out.

2 Insert both disassembly keys ② into the slots, pull the bracket ① down, and then pull the device up to disconnect it.

Installing the device in the dashboard

Make sure that the clips on both sides of the bracket ① are bent inward by 2 mm.

1 Install the bracket ① into the control panel, then bend the tabs outward to ensure a secure fit.

2 Attach the device to the bracket ①, then insert the protective grommet ③.

Note

• If the clips are not bent or are bent outward, the device will not be installed properly and may fall out.
• Make sure that the 4 clips on the protective grommet ③ are properly inserted into the holes in the device.

Removal and installation of the front panel

For details, see the section "Removing the front panel" (page 5).

Reloading the device

For details, see the section "Reloading the device" (page 6).

Replacing the fuse

When replacing the fuse, be sure to use only those that match the current rating indicated on the original fuse. If the fuse blows, check the power supply and wiring.

Replace the fuse. If the fuse blows again after replacement, this may indicate a malfunction in the device. In this case, contact your nearest Sony dealer.

C

Bulgarian

Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EC Declaration of Conformity can be found at the following internet address:

http://www.compliance.sony.de/

Croatian

Sony Corporation hereby declares that this equipment is in compliance with Directive 2014/53/EU.

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

Estonian

If you have any questions or for the latest support information on this product, please visit the web site below:

Support site

Register your product online now at:
