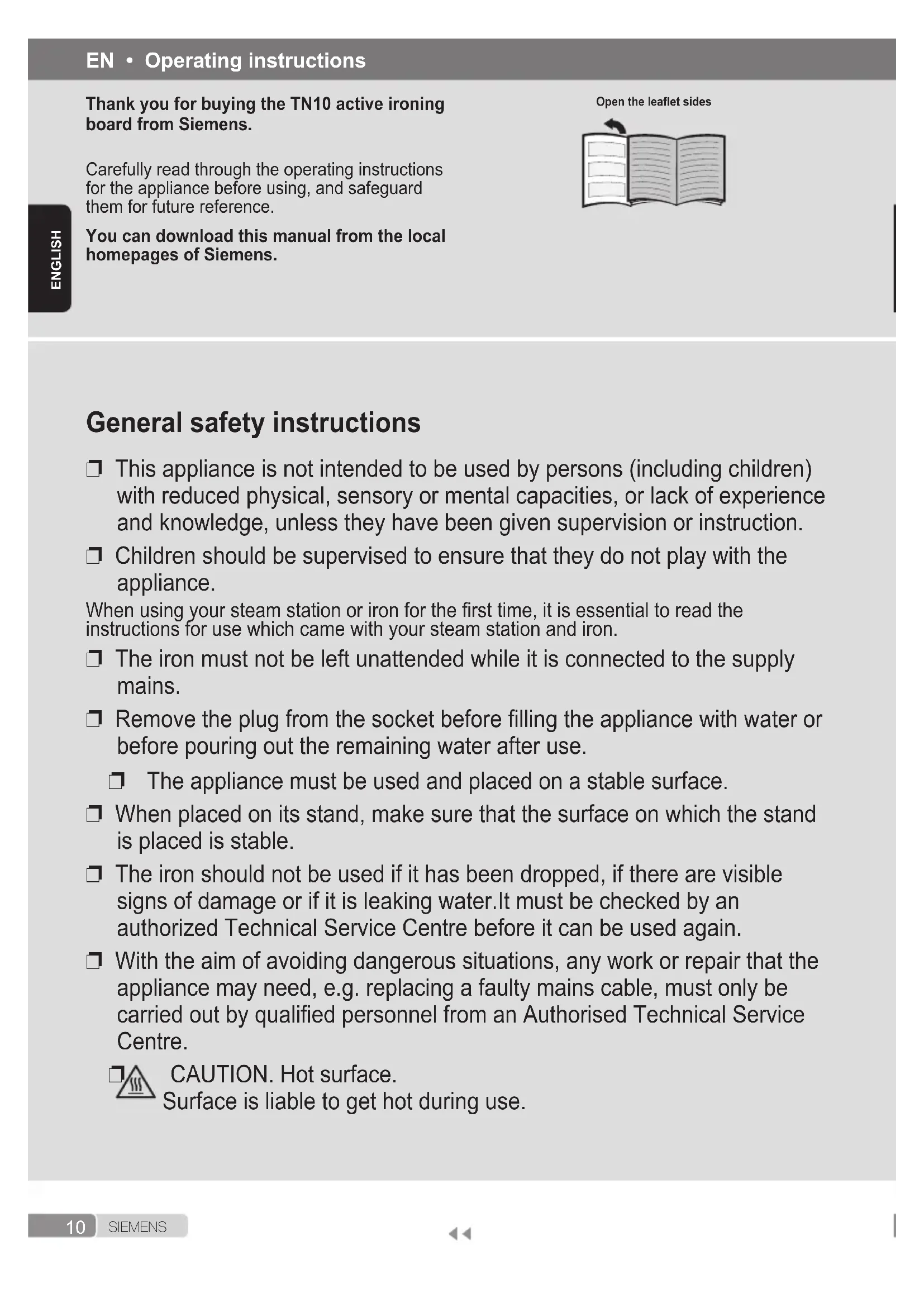

Thank you for buying the TN10 active ironing board from Siemens.

Carefully read through the operating instructions for the appliance before using, and safeguard them for future reference.

You can download this manual from the local homepages of Siemens.

Open the leaflet sides

General safety instructions

This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Children should be supervised to ensure that they do not play with the appliance.

When using your steam station or iron for the first time, it is essential to read the instructions for use which came with your steam station and iron.

The iron must not be left unattended while it is connected to the supply mains.
- Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.

The appliance must be used and placed on a stable surface.

• When placed on its stand, make sure that the surface on which the stand is placed is stable.
  The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
• With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.

CAUTION. Hot surface.

Surface is liable to get hot during use.

Important notices

• This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.
• Only use the active ironing board for the purpose for which it is intended and not as a rest support, stool, etc.
• Packaging materials (plastic bags, polystyrene, etc.,) are a potential source of danger and must be kept out of reach of children.
• Check the condition of the appliance when it is unpacked. If in doubt, do not use the appliance and consult a qualified technician.
• Do not move the ironing board while is in use, nor adjust the height level, The steam station or the iron might otherwise fall off or the active ironing board might close down.
• This appliance is to be connected to the mains supply and used in accordance with the information stated on its specifications plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A or more and has a socket with a earth connection.
• Do not touch the appliance with wet or damp hands.
• Unplug the appliance from the mains supply after each use, before cleaning or if a fault is suspected.
• Do not let the mains cord hang down.
  Always loop the active ironing board's cord loosely. Avoid kinking the cord

• The electrical plug must not be removed from the socket by pulling the cable.

• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)

• Do not allow any moisture to access electrical components.
• Do not block with any object the air outlet underneath the iron rest.
• The active ironing board must always be used in a dry environment and must not be used outdoors. It must always be set up in a safe location on a level surface. The height adjustment setting of the active ironing board must always be in the locked position.
• Only dry or damp cloth should be ironed. Never wet ones.
• When the appliance is to be disposed of, it should be rendered unusable (e.g. by cutting off the cord and plug).

Advice on disposal

Our goods come in optimized packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

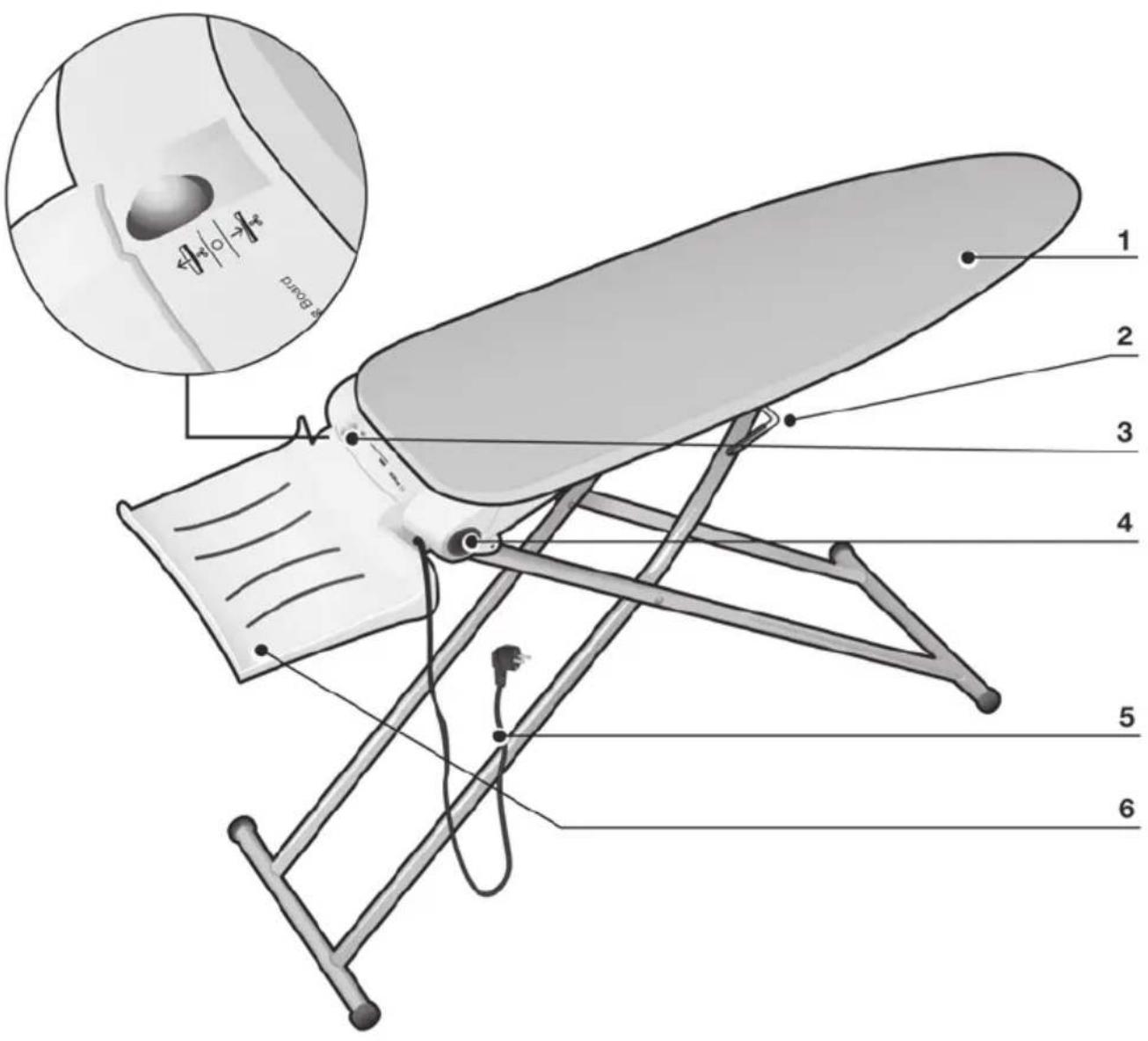

Description

1. Special ironing board cover.
2. Height adjustment level
3. Blow control
4. Socket.
5. Cord
6. Universal iron rest for steam station/iron.

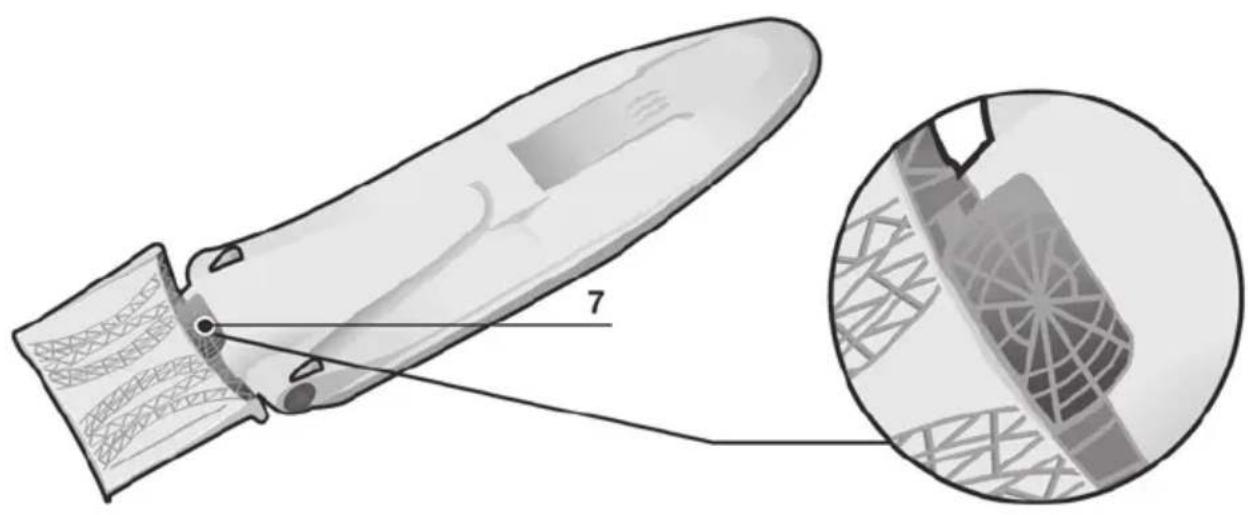

7. Air outlet underneath iron rest

Technical data

Power supply 230 - 240V 50Hz

Weight 8.5kg

Blower 21 W

Active ironing board dimensions

When folded up (LxWxD) 165x46x15 cm

Height adjustment range 75-100 cm

Steam station information

Max.size, (LxW) 37x22 cm

Max. weight 7.5 kg

Max. power 3250 W

Please use only steam stations and irons which are suitable for use with this equipment.

1. Preparation

See the leaflet sides

1. Stand the active ironing board on a firm, level surface.

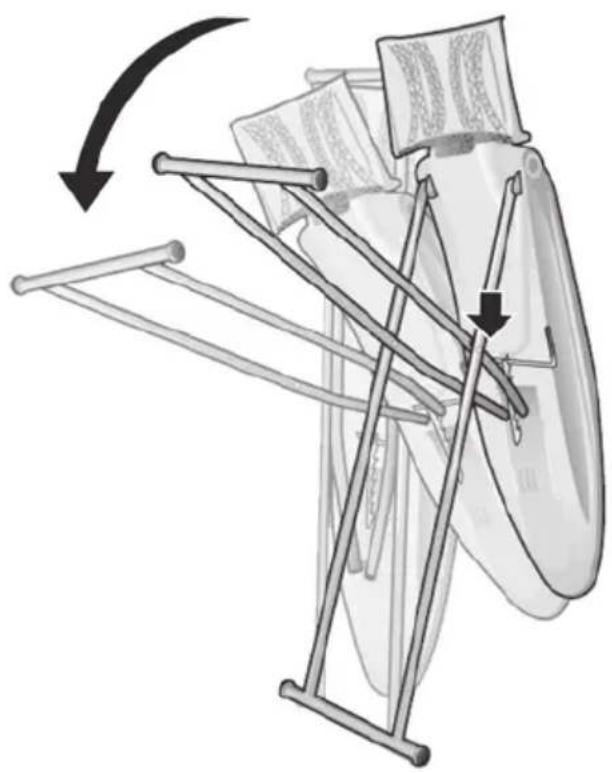

2. Unwind the cord and carefully move the frame forwards. The active ironing board folds out and can be set to the required position. The active ironing board can then be tipped forward to stand on the floor.
3. The active ironing board has 6 height adjustable positions (max. height is approx. 100cm ) so that you can stand or sit to iron. To adjust the height, take hold of the ironing board with both hands. Lift the ironing board up slightly and pull the lever with one hand (the ironing board has to be slightly raised for safety reasons, i.e. to prevent the lever from being activated accidentally). Only when you hear the ironing board lock into place is it secure.

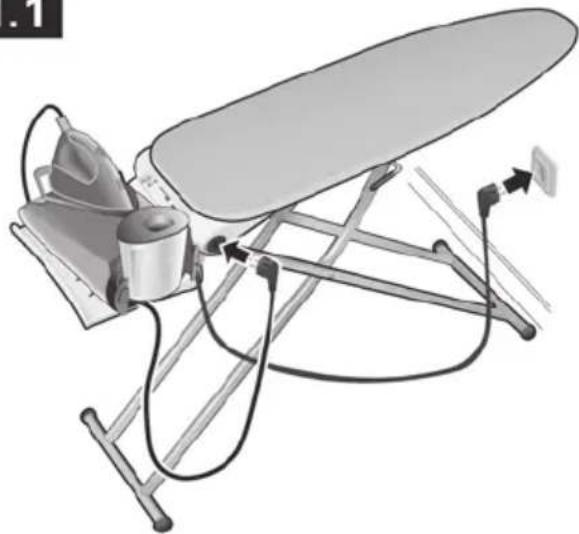

Steam station can be placed now on the rest (Figure 1.1).

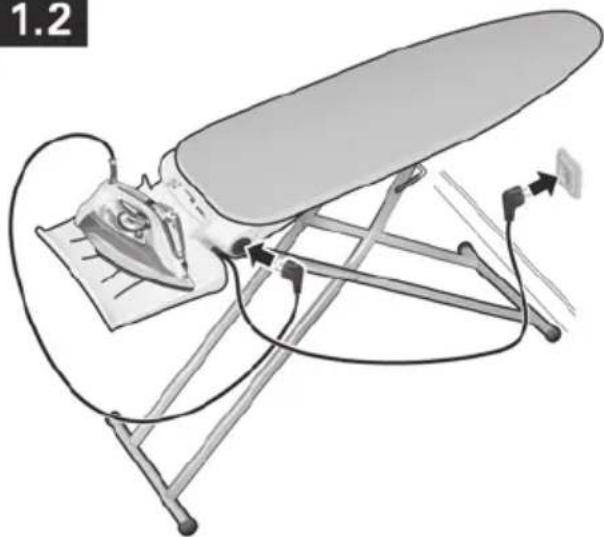

If you are going to use a steam iron instead, ensure that it is placed over the rubber strips in the ironing rest (Figure 1.2).

To ensure trouble-free ironing, the steam station must be correctly positioned on the iron rest in a horizontal position.
- Plug the mains plug of the active ironing board into a wall socket.
- Then plug the steam station/iron mains plug into the socket, thus providing a power supply to the steam station/iron. The active ironing board is ready for use.

Always check the washing/ironing instructions which are to be found on the labels of your garments and linens, as well as the advice and regulations in the instructions for use which came with your steam station and iron.

2. Functions

See the leaflet sides

Suction function

Holds the fabric firmly on the board to prevent creasing.

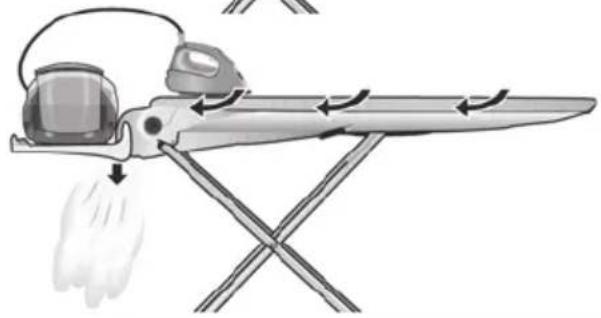

2.1 Steam extraction

• Enables the steam to penetrate the fibres better, thus saving time and improving ironing results.
• Keeps the Active Ironing Table dry and helps to dry fabrics even whilst they're being ironed.
• Enables laundry items to cool off faster by the throughput of air, thereby preserving the fabric quality.

Should be switched on continuously when ironing with steam, in order to remove excess steam from the Active Ironing Table and from inside the housing and prevent possible water drops when storing the board.

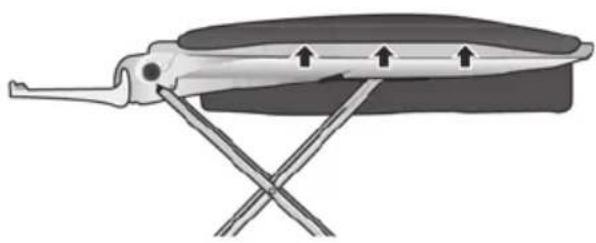

2.2 Blower function

It provides crease-free ironing results with delicate fabrics and items of clothing resting on a cushion of air.

• Protects delicate items.
• Enables laundry items to cool off faster by the throughput of air, thereby preserving the fabric quality.

For dry ironing without steam, the blower functions can remain switched off.

Cleaning

The active ironing board can only be cleaned when the plug is disconnected from the mains and when the steam station/iron has cooled down. Clean using a soft, damp cloth to wipe down the appliance. Do not use detergents of any kind.

A replacement for the ironing board cover can be purchased from After-sales or specialist outlets.

3. Storage

See the leaflet sides

3.1 When you have finished, proceed as follows

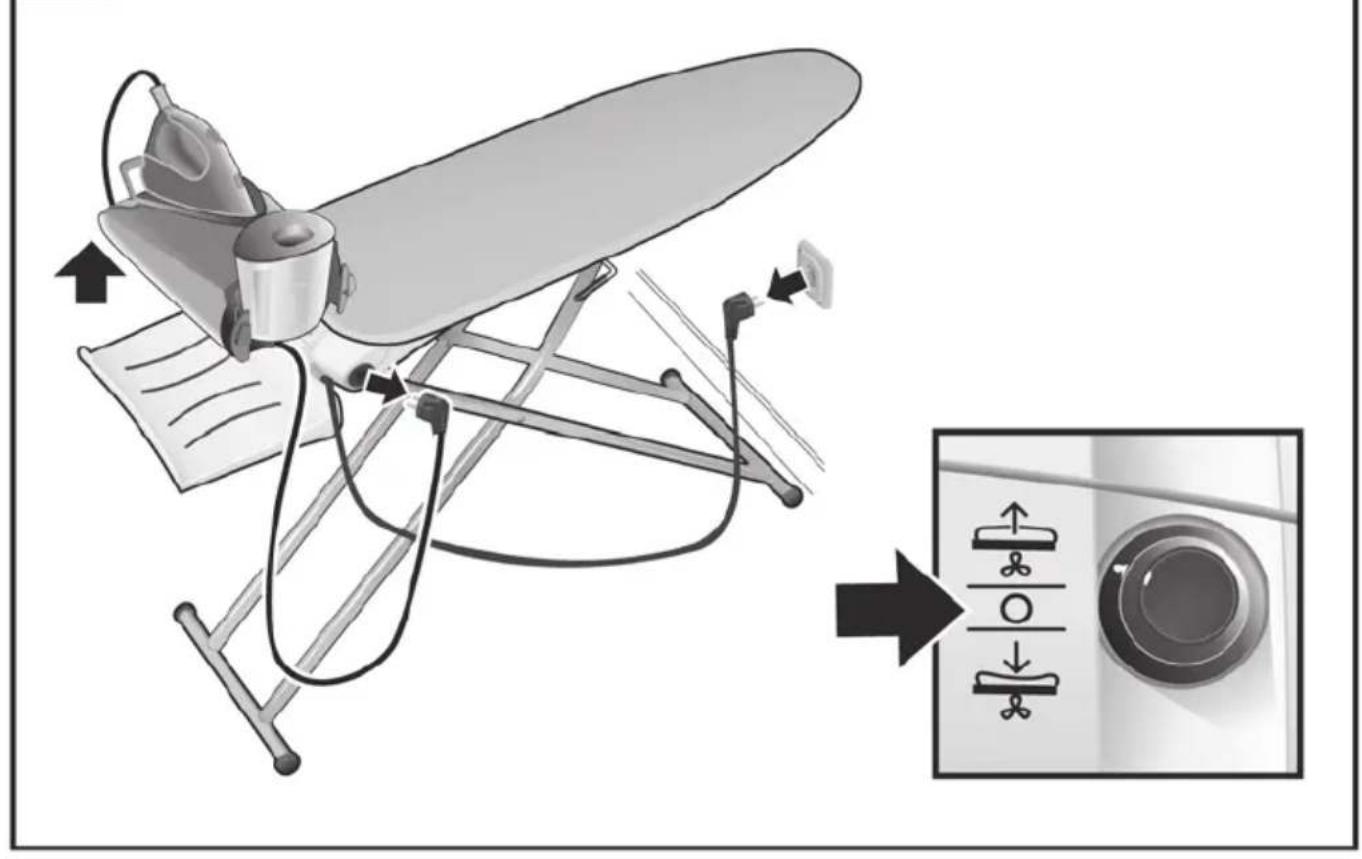

1. Before removing the steam station/iron, ensure that you have read the instructions for use which came with your steam station and iron.
2. Switch off the active ironing board ("O" setting). Disconnect the cord for the active ironing board from the mains. Take the steam station / iron plug out of the socket.
3. Remove the steam station / iron from the rest.

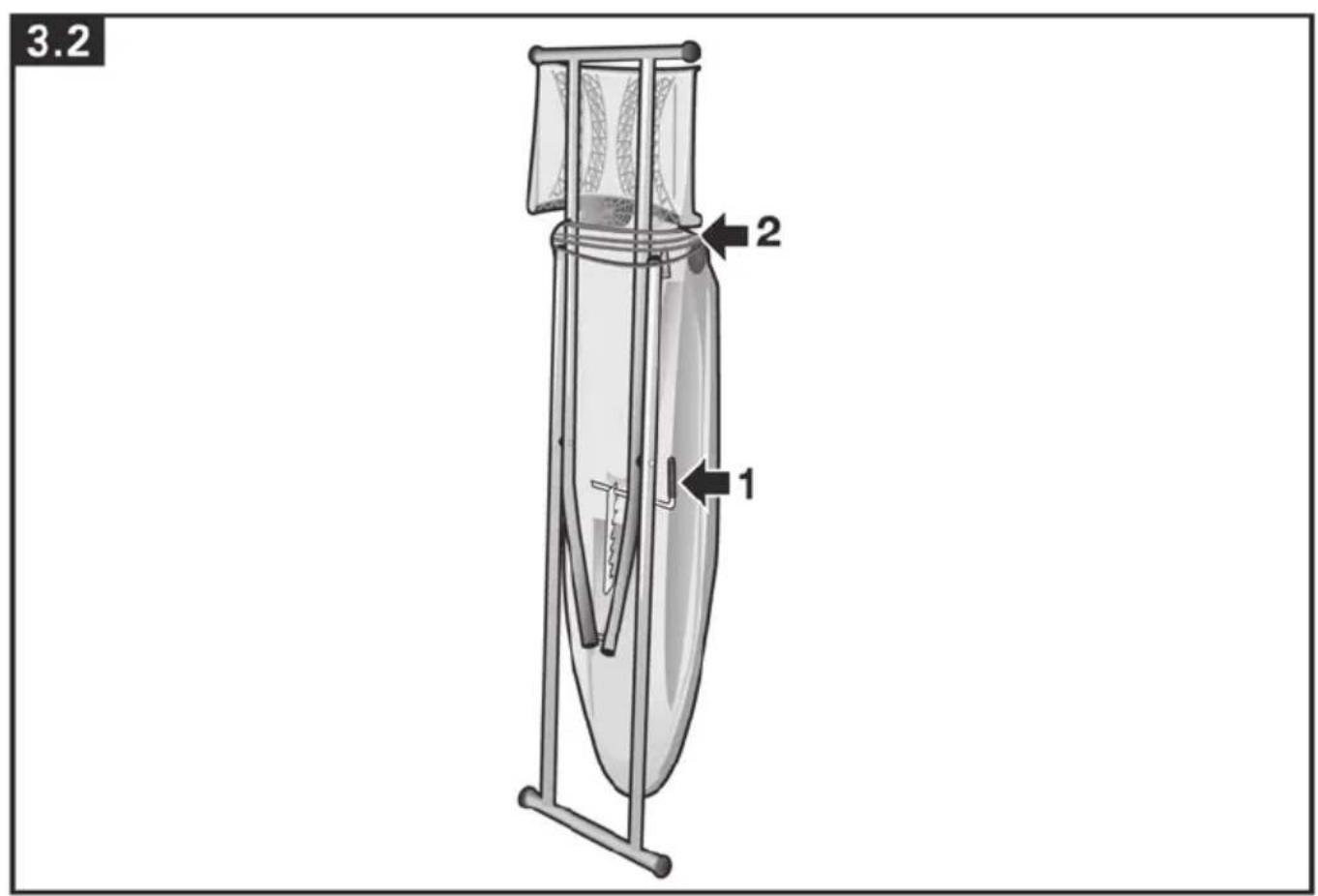

3.2 To store the active ironing board away

1. Take hold of the active ironing board with both hands, lift it up slightly and fold together using the lever.
2. Wind the cord up loosely in loops, making sure that it is not squashed or kinked.

The active ironing board can be stored away folded up (with the universal iron rest at the top).

Place the active ironing board in a safe position so that it will not fall over.

The transport lock should be engaged to secure the frame whilst the board is folded up.

Accesories

A replacement for the active ironing board can be purchased from After-sales.
Ironing board cover.

Model Accessory code

TN10100 572178

TN10200 573850

Repliee (L x I x P) 165x46x15 cm

m = 311 ;
