Stratus No.2 - Steam cleaner Steamery - Free user manual and instructions

Product type	Professional steam steamer
Brand	Steamery
Model	Stratus No.2
Color	Matte black
Power supply	220-240V, 50/60Hz
Power	1500-1850W (2 levels)
Water tank capacity	3200 ml
Steam output	30 g/min (level 1), 42 g/min (level 2)
Heating time	45 seconds
Continuous steam runtime	90 minutes
Auto shut-off	Yes (in case of excessive temperature due to lack of water)
Weight	6.1 kg
Included accessories	Head and hose, water tank, 3-part rod, hook, fabric brush, heat protection glove, garment clip
Warranty	2-year limited (excluding normal wear and tear and maintenance defects)
Origin	PRC (China)
Maintenance	Descaling recommended every 20 refills (with descaling liquid or white vinegar)
Safety	Do not direct steam at people, animals, or plants; use on a flat surface; keep hose vertical at 1-2 m above
Draining	Empty the tank after each use
Importer	Steamery AB
Controls	3-position button: Off, 1500W, 1850W

Frequently Asked Questions - Stratus No.2 Steamery

How to assemble the Stratus No.2 steamer?

Assemble the three-part rod, attach it to the center of the steamer. Attach the hook and hanger at the top of the rod, then attach the head to the hose and hang it on the hook. Firmly connect the hose to the steam outlet.

How to use the steam steamer?

Place the steamer on a flat surface, fill the water tank (500 to 3200 ml), turn it on (power button), select the power level (right = low, left = high), wait 40 seconds, then start steaming.

What water to use in the tank?

Use only tap water. Never pour other liquids. Empty the tank after each use to avoid leaks.

Can the steamer be used on all fabrics?

Yes, but for delicate fabrics like silk or wool, attach the included fabric brush. Use the heat protection glove to avoid burns.

How to clean and descale the appliance?

Descale every 20 refills: remove the tank and hose, empty the water, pour 50 ml of descaling liquid (or white vinegar) + 100-200 ml of hot water into the opening under the tank. Tilt the appliance to let residues flow out, repeat until water is clear.

What to do if the steamer drips?

Do not tilt it once filled with water. Ensure the hose is kept vertical, ideally 1 to 2 meters above the appliance, to avoid water accumulation.

What are the important safety instructions?

Never direct steam at people, animals, or plants. Do not touch the hot head. Use the appliance on a flat surface, away from moisture. Unplug after use. Do not leave unattended.

Why is no steam coming out?

Check that the tank is properly filled and locked in, the appliance is turned on and has heated up (40 seconds). If the problem persists, there may be a limescale blockage: descale the appliance.

How to store the steamer?

Always empty the water tank. Place it on a surface protected from moisture. Store the hose and accessories in a dry place. Use the hook to hang the head.

What does the Steamery warranty cover?

The 2-year limited warranty covers defects in materials and workmanship. It does not cover normal wear and tear, lack of maintenance, or accidental damage. Contact Steamery for repair or replacement.

USER MANUAL Stratus No.2 Steamery

Stratus No.2 Professional Steamer

Manual

English P01

Svenska P04

Dansk P07

Norsk P10

Suomalainen P13

Deutsch P16

Nederlands P19

Polski P22

François P25

Espanol P28

Italiano P31

Portugués P34

Eληνικά P37

Pycckn P40

日本語 P43

中文 P46

P49

P52

Stratus No.2 Professional Steamer

English Manual

Welcome To Steamery

Let's make it even easier for you to take care of the clothes you work with.

Stratus No.2 is developed by Scandinavian fashion professionals, engineers and industrial designers with the aim to create the perfect professional steamer.

With minimalistic design the Stratus No.2 fits into a fashionable environment.

Stratus No.2 Professional Steamer - our best steamer yet.

To learn more about Steamery, our products and garment care - visit www.steamerystockholm.com or drop us a line at [e-mail]

/ Steamery

Stratus No.2

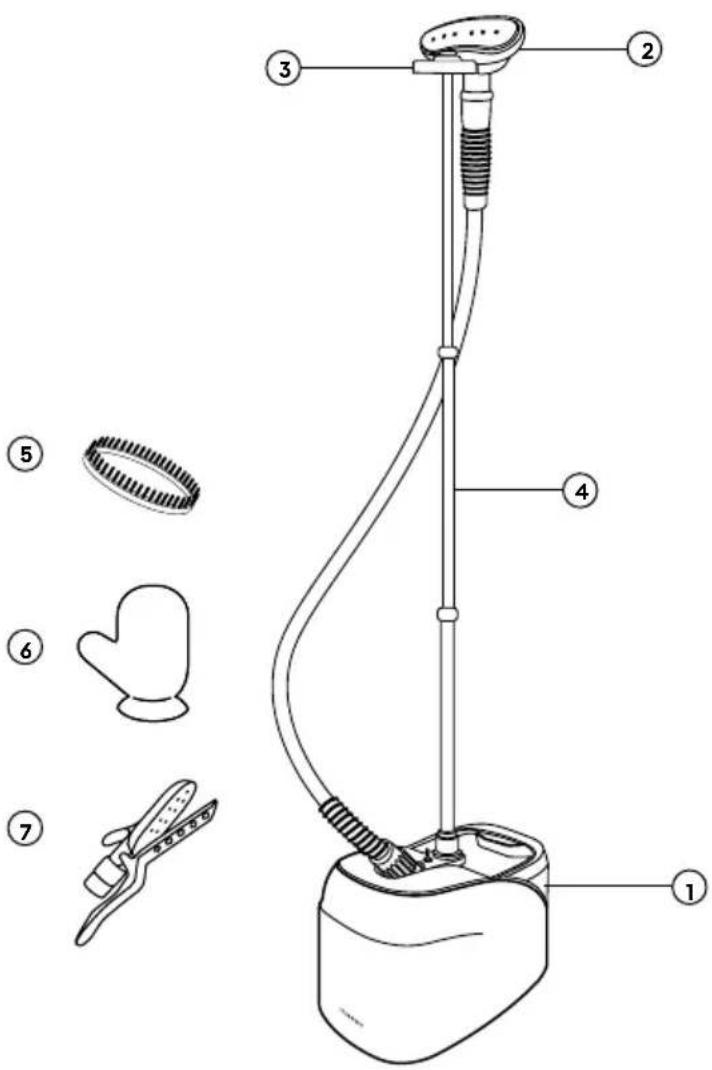

Box Content

1. Steamer and water tank
2. Steam head and hose
3. Hook (for hanging the steam head when not in use)
4. Rod set (in three parts)
5. Fabric brush
6. Heat protection glove
7. Crease clamp

Assemble Your Steamer

1. Assemble the rod set. The thinnest rod part is the top part.
2. Attach the assembled rod to the center of the steamer.
3. Release the top screw and attach the hook at the top of the rod.
4. Attach the steam head to the hose.
5. Place the steam head on the hook.
6. Firmly attach the hose to the steam outlet on the top of the steamer in front of the rod.

Start Using Your Steamer

Using Your Steamer

1. Place the steamer on a flat surface where you plan to use it. Take out the water tank and unscrew the cap.
2. Fill the tank with 500 - 3200ml of water and put the tank back into the steamer. Please note that the steamer might leak water if you tilt it, once there is water in the tank (do not start the steamer on an empty tank).
3. Start the Stratus No.2 Professional Steamer by switching the on/off lever (notice the green light indicator). Turn the switch to the right to turn on steam power 1 (low) and left for steam power 2 (high). Wait 40 seconds for the steamer to heat up.
4. Start steaming.
5. Turn off the Stratus No.2 Professional Steamer by switching the on/off switch to the middle (the green light indicator goes off).
6. Do not leave your steamer filled with water. In rare cases it may leak. Steamery does not take any responsibility for any wet damaged floors or interior.

Steam Your Garments

Steaming your clothes is easy and you will find your own way. Here are some of our recommendations.

1. Hang your garment on a separate hanger.
2. Push the steam head firmly against the fabric while steaming.
3. You may stretch the fabric while letting the hot steam pass through it.
4. For sensitive fabric such as silk or wool, we recommend you attach the fabric brush on to the steam head (included in the package).
5. To keep the fabric straight you may want to grab the fabric hem while steaming. Use the heat glove to avoid burning yourself (included in the package).
6. For more information and tips and tricks, visit www.steamerystockholm.com

Emptying and Cleaning Your Steamer

When water is converted into steam, residues of calcium and magnesium gather in the boiler inside your steamer. When the steamer has been used for a while, these residues form a coating, which may reduce the efficiency and eventually damage your steamer.

Therefore, it is important to descale your steamer once in a while. We recommend that you descale it every 20 water tanks.

D esing liquid is an acid that dissolves magnesium and calcium. By pouring descending liquid (or any other similar acid as ex white distilled vinegar) and hot water inside the boiler you will clean your steamer from these residues.

Descale your steamer by following the steps below:

1. Remove the tank and the hose.
2. Empty the steamer from water through the steam outlet.
3. Pour 50ml of descending liquid and 100-200ml of hot water in the opening under the tank.
4. Tilt the steamer back and forth. When tilting the steamer, you will see brown pieces of magnesium and calcium in the water.
5. Pour out the water through the steam outlet or tilt the steamer to the side.
6. Follow this procedure a couple of times until the water is clear and no more brown pieces can be seen in the water.

Safety Recommendation

1. When the steamer is in use the front of the steam head becomes very hot. Therefore, avoid touching the steam head when the steamer is in use.
2. Do under no circumstances point the steam towards people, animals or plants etc.
3. The steam hose shall be held vertically and preferably 1,2 meter over the steamer to avoid water assembling in the hose.
4. Use the steamer on flat floors. Otherwise the steamer may risk leaking water.
5. Do not fill the water tank with any other liquid than water.
6. Do not use the steamer if the cable is broken.
7. Remove the steamer from the electricity when not in use.
8. Children should not use or maintain the steamer.
9. The steamer should not be used as a toy.
10. Never place the steamer directly on a carpet.
11. Always keep Stratus No.2 Professional Steamer on a wet-protected surface when using and storing it. Alternatively empty your steamer when it is not in use. In rare cases the steamer may leak, keep watch over your steamer. Steamery does not take responsibility for water damaged floors and interior.

Specification

Origin: P.R.C.

Certificates: CE/RoHS

Model: Stratus No.2 Professional Steamer

Importer: Steamery AB

Colour: Mtte Black

Power voltage and Frequency: 220-240V, 50/60Hz

Power: 1500-1850W(30 g steam/min, 42 g steam/min)

Water Tank Capacity: 3200 ml

Auto Power Off: Supported (when the temperature is too high due to shortage of water)

Control:Button with 3 levels (Off,1500 W,1850 W)

Weight:6.1 kg

Start-up time: 45 seconds

Steaming operation: 90 minutes of continuous steaming

Steamery Two-Year Limited Warranty Summary

Steamery warrants the included hardware product and accessories against defects in materials and workmanship for two years from the date of original retail purchase.

Steamery does not warrant against normal wear and tear, lack of maintenance, nor damage caused by accident or abuse. To obtain service, please call or mail Steamery. Call charges and international shipping charges may apply depending on location. If you submit a valid claim under this warranty, Steamery will repair, replace, or refund your Steamer at its own discretion.

Warranty benefits are in addition to rights provided under local consumer laws. You may be required to furnish proof of purchase details when making a claim under this warranty.

Stratus No.2 Professional Steamer

Svensk Bruksanvisning

Importor: Steamery AB

Farg: Mattsvart

Stratus No.2 Professional Steamer

Danskvejledning

Velkommen til Steamery

Model: Stratus No.2 Professional Steamer

Importer: Steamery AB

Farve: Mat sort

Importor: Steamery AB

Farge: Matt svart

Stratus No.2 Professional Steamer

Stratus No.2 Professional Steamer – unser bisher bester Steamer.

Certifications: CE/RoHS

Benvenuti in Steamery

Stratus No.2 Professional Steamer

Manual em portugues

CepTuΦnKaTb: CE/RoHS

Modenb: npofoecnoHaBHy oTnapBaTeJIb Stratus N2

Mnoptep: Steamery AB

UBeT: MaTOBbI YeHbI

HapxkeHne uactota nTuHa: 220-240 B, 50/60 T

Mouhoctb:1500-1850 B(30 r npap/MnH, 42 r npap/MnH)

BmecnteIbHOCTb EMKoCTN DIA BOyI: 3200 M

AToMaTuYeCKoe BbIKIIOueHHe: NOdepKINBaETcR (Ha nepepeB n3-3a HeoctaTOUHO KOJIuYeCTBa BOIbI)

UnpaBHeHne: 3-no3nIOHHbI nepeKIOuOaTeJIb (BbIK., 1500 n 1850 Bt)

Bec: 6.1 K

AnTeBHOCTb 3anycka:45c

AnTeIbHocTb OTnapBaHHa: 90 MIn. HeIpepbIBHOrO OTnapBaHHa

OrpaHnueHHa rapaHTna Steamery Ha da roda

Steamery daet rapaHTnHa o6opdyoBaHne n akceccyapbB KOMnIeKeTe. RapaHTnpaCnpocTpaHareTcHn DeΦeKtB MaTePnaIOB n HeHaJNeXaUee KaYeCTBO N3rOToBJIeHnN IDeiCTByeT DbRa TOna C MOMeHTa COBepWeHn NOKyKN.

IapaHTnKOMnAHn Steamery He oxBaTBiBaet HopMaJIbHbN I3HOC 6OpyDoBaHn, OTCyTCTBnE 06CnykBaHn, NOBpeXdHnB Pe3yIbTaTe HeWtATho CNTyaQIn NII HEnpaBnBHO NKcNlYatau. YTO6bl NOLyUHTb cepBnCHbIe yClyrN, N03BOHnTe NII HAINuTE B KOMnAHnIO Steamery. B 3aBNCmOCTn OT BaUero MeCTOHaxOXJDeHn MOKeT B3MnATbcra IIaTa 3a TelefoHHb 3BOHOK MekDyHaPOdHyO DocTabKy. EcIn Bbl NOaTe npneMMeMyo peKlaMaqHIO, COIaCHO yCNOBnM 3ToI rapaHTn, KOMnAHn Steamery nO Co6CTBeHHOMy yCMOTpeHIO BbINOJIHIT pEmOHT NII 3aMeHy NII BO3MeCTIT Bam CTOnMOCTb OTnapNBateJIa.

IapaHTnHoe 06cLyKbAHne npedocTabIeTcB DOnONHeHne K npaBaM, npedyCMOTpeHHbIM MeTHbIM 3aKoHaMn O 3aUnte npab Notpe6nteJe. PnpNoDAue npTeH3nn No daHHo IpaHTN OT BAC MOKeT NpTeOCTabJIeHne DOKa3aTeJIbCTB NOKyPkN.

Stratus No.2 Stratus No.2

子

KunT3:3n#eBt#nOJ (Off,1,500W,1,850W)

本报：6.1kg

吉通吉：45杰

S.TM.90

Steamery 2 年 制 建 署

(pan by npn nn nyn) npnn npnn npnn

nnn nnnnnnnnnnnnn 2 nn nn nn nn nn nn nn

nynnnn (n) 1 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnn npn nn 40 nnn (nn) 2 npn

nnnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

（nnn）

nnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

mnnn nnnn nn nnnn

mnnn

Oo

nnonnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

T

127077 077077 77 77 77 77 77

(1)

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.（nno n）

www.steamery.co.il: 1000000000000000000000000000000000000000000

Dywnyn npnnnnp

N NNNN NNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

ywnynnnnnynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

(Safety Instructions) nnnn

nnnnn nn nnnn,nnnnnnnnnn (n) nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

..

1

yynnnnnynnnny

10000000000000000000000000000000000000

mnnnynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.
.
...ybnn
.
..
..
...

11

#

P.R.C.mipn

CE/RoHS :mmyn

yynpynyn2n

D"yD777777

y

V/50Hz 220:nnnnn

（nPT/DTN 42，nPT/DTN 30）DN1500/DN11850：pON

3200:

(1)

(DN 1850/DN 1500/ n) n3 n

6.1:7pn

45:nnnnn

nynnnn nnnn nn nnnn nnnn

"nnnnnnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnn

mnpn

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

.

nwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

111111111111111

Steamery 2022
