Pilo No.1 - Lint remover Steamery - Free user manual and instructions

Product type	Lint remover (fabric shaver)
Brand	Steamery
Model	Pilo No.1
Dimensions (approx.)	15 x 7 x 5 cm
Weight (approx.)	200 g
Power supply	DC 5V 1A, 5W (USB charger included)
Battery life	50 minutes of continuous operation
Charging time	5 hours
Charge indicator	Red light while charging, green when fully charged
Auto stop	Yes, when removing the aluminum blade cover or if the motor is blocked
Main functions	Shaving pills and lint from fabrics, smoothing textile surfaces
Operating levels	On/Off (two levels)
Box contents	Pilo No.1 fabric shaver, USB charger, cleaning tool, storage bin, protective cap
Care and cleaning	Remove the collection bin and blade guard, use the included brush to remove lint around the blades and the rotation axis
Safety	Unplug after charging and before cleaning; do not use on worn clothing; test on an inconspicuous area; avoid buttons, zippers, fragile parts
Spare parts and repairability	Contact Steamery ([e-mail]); one-year warranty against manufacturing defects
General information	Origin: China; Importer: Steamery AB; One-year warranty

Frequently Asked Questions - Pilo No.1 Steamery

How to use the Pilo No.1?

After charging the device, turn it on by pressing the on/off button. Gently brush the fabric with the shaver to remove lint and pills. Do not press too hard to avoid damaging the fabric. Always test on a small inconspicuous area before proceeding to the entire garment.

How long does it take to charge the Pilo No.1?

Charging time is approximately 5 hours. The button indicator turns red during charging and green when the battery is fully charged.

What is the battery life of the Pilo No.1?

The battery life is approximately 50 minutes of continuous operation on fabric.

How to clean the Pilo No.1?

Turn off the device, remove the collection bin and blade guard. Use the small brush provided to remove lint around the razor blades and the rotation axis. Make sure no thread or hair wraps around the axis.

What fabrics can be treated with the Pilo No.1?

The Pilo No.1 is suitable for most fabrics, including wool, cotton, polyester, etc. For very fine or delicate fabrics, use light pressure and test first on a hidden area.

What to do if the Pilo No.1 stops suddenly?

The device automatically shuts off in case of excessive pressure or motor blockage to prevent overheating. Wait a few seconds and turn it back on. If the problem persists, check that nothing is blocking the blades.

Can I use the Pilo No.1 on a garment I am wearing?

No, it is not recommended to use the shaver on a garment you are wearing. Always lay the garment flat on a surface before use.

Does the Pilo No.1 come with a charger?

Yes, a USB charger is included in the box. You can also use any standard USB charger (5V 1A).

How to know if the battery is low?

When the on/off button flashes red, it's time to recharge the device.

What is the warranty for the Pilo No.1?

Steamery offers a one-year warranty against manufacturing defects from the date of purchase. It does not cover normal wear, accidents, or misuse. For any claims, contact [e-mail].

USER MANUAL Pilo No.1 Steamery

Pilo No.1 Fabric Shaver

Manual

STEAMERY

English 01

Svenska 05

Dansk 09

Norsk 13

Suomalainen 17

Deutsch 21

Nederlands 25

Français 29

Italiano 33

Español 37

Ελληνικά 41

Português 45

Русский 49

Polski 53

日本語 57

中文 61

한국어 65

הַרְׁבָר 69

Pilo No.1 Fabric Shaver

English

Welcome To Steamery

Let's make it even easier for you to take care of your clothes.

With sharp strong razor blades and a powerful engine, Pilo No.1 Fabric Shaver is the perfect tool to repair and smooth out a damaged fabric surface.

To learn more about Steamery, our products and how to take care of your clothes, please visit our website steamerystockholm.com or email us at [e-mail]

/Steamery

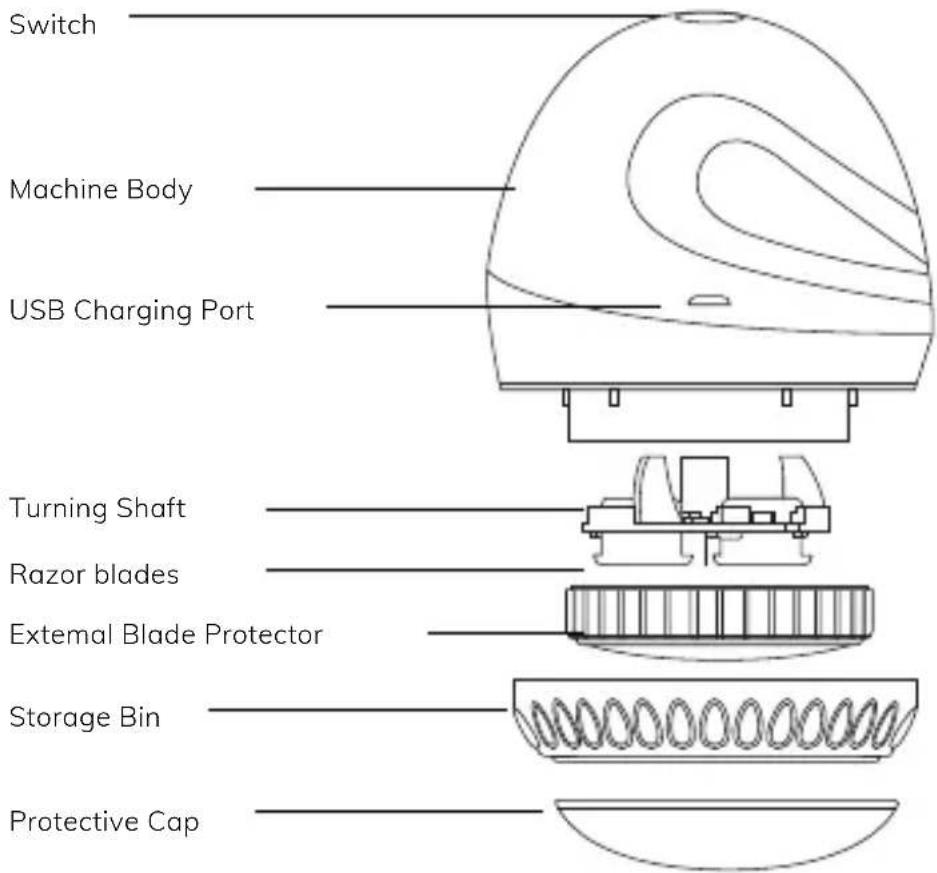

Pilo No.1 Fabric Shaver

Box Content

1. Pilo No.1 fabric shaver
2. USB cord
3. Cleaning tool

How to Use Pilo No.1 Fabric Shaver

• Use the usb cable to charge the Pilo No.1 fabric shaver. The button light will turn red to indicate that it is charging.
• When the battery is fully charged the button light will turn green. Unplug the device when the charging is completed. It normally takes 5 hours to recharge the battery.

- Turn on the machine by pressing the on/off button.

- To use it, gently swipe the fabric with the trimmer to remove fuzz and pilling. If you push the Pilo No.1 Fabric Shaver hard against the fabric, you risk damaging it. Therefore, remember to always try the Pilo No.1 Fabric Shaver on a small, less notable spot before going over the whole piece. Please note that Steamery does not take responsibility for this kind of damage.

- Please note: to eliminate the risk of damaging the fabric, always place the garment on a flat surface before you start using the Pilo No.1.

- When the on/off button starts to flash in red, the device needs charging.

- Turn off the machine by pressing the on/off button.

- It is important to remove the fuzz from the machine. To do so, turn off the machine and then remove both the storage bin and the blade protector, then use the little brush for easy cleaning. Remember to remove the fuzz around the razor blades as well. Pay extra attention that no hairs or threads are around the spinning asix.

- In case the machine is subjected to excessive pressure or if the motor gets blocked, the machine will automatically shut off, in order to protect the motor from overheating and breaking. You will be able to turn the machine back on after 2 seconds, when its components have cooled down.

Three views of a white plastic speaker or speaker device showing internal components and a small circular component (no text or symbols visible)

Safety Advice

1. Always unplug the device from the power outlet after charging and before you clean it.

2. Do not use the Pilo No.1 fabric shaver on the garment you are wearing.

3. To prevent fabric damage:

4. Remember to always test the Pilo No.1 fabric shaver on a small and less notable spot before using it on the whole garment.

5. Special attention should be carried out when going over fragile and sensitive parts such the area around buttons, zippers, sewing parts and loose threads etc.
6. Trim fine fabrics gently!
7. Do not charge Pilo No.1 Fabric Shaver if the power cord is damaged.
8. The Pilo No.1 Fabric Shaver should not be used as a toy.
9. Children should not use, clean and maintain Pilo No.1 Fabric Shaver.

Specification

Origin: China

Certificates: CE/RoHS

Importer: Steamery AB

Power Voltage and Frequency: DC 5V 1A, 5W

Auto Power Off: Supported when removing the stainless steel razor cover

Control: Two levels (Off, On)

Battery charging time: 5 hours

Operation: 50 minutes of continuous fabric removing

Steamery One-Year Limited Warranty Summary

Steamery warrants the included hardware product and accessories against defects in materials and workmanship for one year from the date of original retail purchase. Steamery does not warrant against normal wear and tear, lack of maintenance, nor damage caused by accident or abuse. To obtain service, please call or email Steamery. Call charges and international shipping charges may apply depending on location. If you submit a valid claim under this warranty, Steamery will repair, replace, or refund your Pilo No.1 No.1 Lint Shaver at its own discretion. Warranty benefits are in addition to rights provided under local consumer laws. You may be required to furnish proof of purchase details when making a claim under this warranty.

© 2022 Steamery. Designed by Steamery in Stockholm. Printed in China.

Pilo No.1 Noppborttagare

Svenska

Close-up of a white plastic or plastic container with internal cavities and mounting holes (no text or symbols visible)

Close-up of a white plastic bowl with a black arrow pointing to a circular feature (no text or symbols visible)

Säkerhetsföreskrift

© 2022 Steamery. Designed by Steamery in Stockholm. Printed in China.

Pilo Fabric Shaver

Dansk

Velkommen til Steamery

Close-up of a white ceramic bowl with a black arrow pointing to a circular hole (no text or symbols visible)

Close-up of a white plastic or plastic container with internal cavities and mounting holes (no text or symbols visible)

Close-up of a white plastic bowl with a black arrow pointing to a circular feature (no text or symbols visible)

Certificates: CE/RoHS

Benvenuti in Steamery

Close-up of a white electronic device with a perforated lid and ventilation grille (no visible text or symbols)

Close-up of a white plastic or ceramic component with internal cavities and mounting holes (no text or symbols visible)

Close-up of a white plastic mechanical component with a black arrow pointing to a circular feature (no text or symbols visible)

Three views of a white plastic or ceramic device showing internal components and a small circular feature with an arrow (no text or symbols visible)

Pure technical line drawing of a dome-shaped mechanical component with internal curved and rectangular features (no text or symbols)

Pure diagram of a coiled spring or coil without any text, numbers, or symbols

Three views of a white plastic appliance with internal components and a small inset showing a circular detail (no text or symbols visible)

Συμβουλές ασφαλείας

Three views of a white plastic or electronic device showing internal components and a small metallic component (no text or symbols visible)

Three views of a white plastic or ceramic device with internal components and a small inset showing a circular feature (no text or symbols visible)

Exploded view diagram of a smart air purifier with internal components (no text or labels)

如何使用Pilo No.1毛球修剪器

Close-up of a white industrial fire extinguisher with a perforated lid and ventilation grille (no text or symbols visible)

Close-up of a white plastic or ceramic object with internal geometric cutouts (no visible text or symbols)

Close-up of a white ceramic bowl with a small circular object on top and an arrow pointing to it (no text or symbols visible)

安全建议

Exploded view diagram of a smart air purifier with internal components (no text or labels)

Pilo 보풀제거기 사용법

Three views of a white plastic appliance showing internal components and a perforated lid (no text or symbols visible)

תְרָה בְּרָה

1

2 ..□□

3 :T2

- No.1 Pilo Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor Motor MOTOR
