USER MANUAL S6 EZVIZ

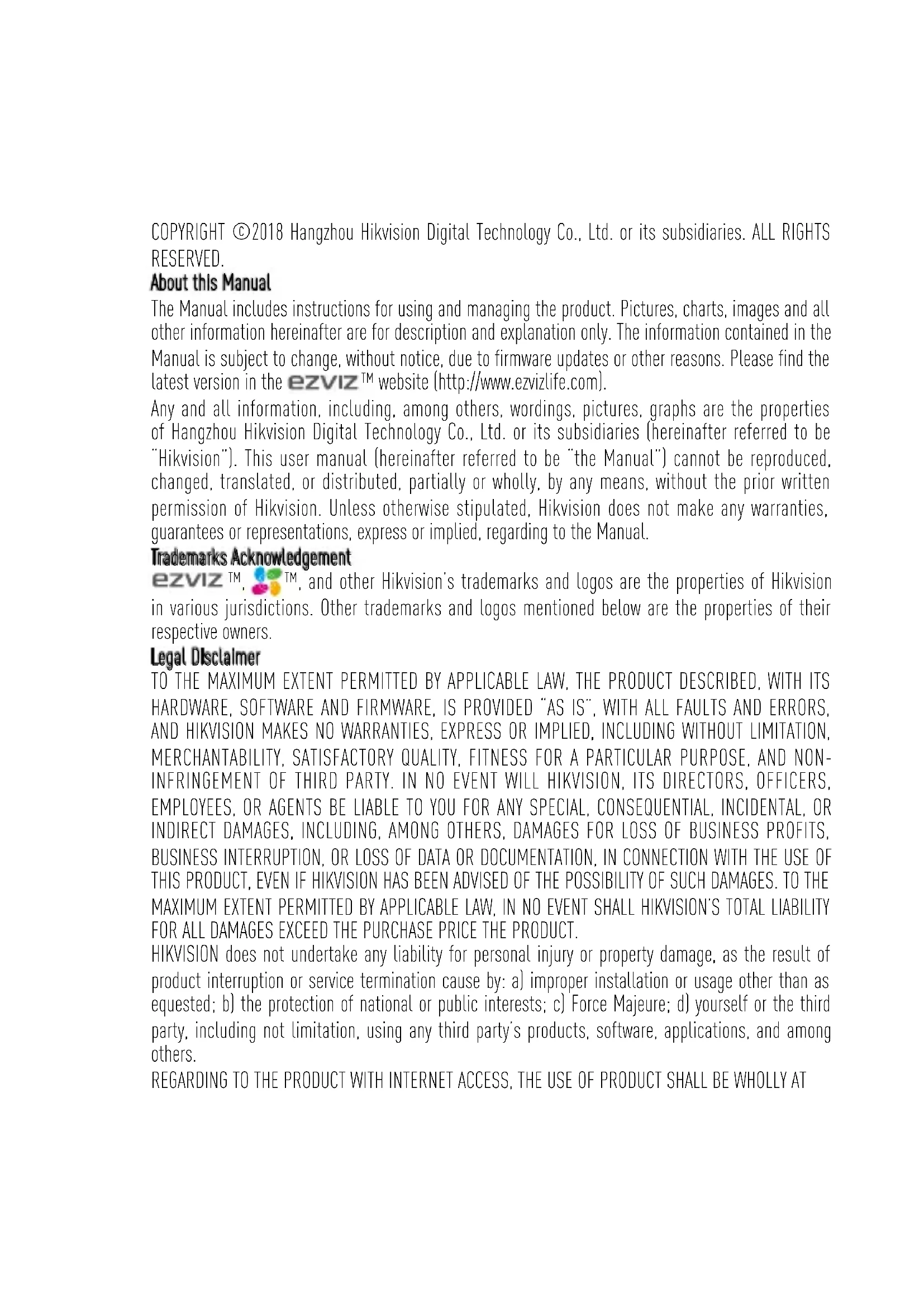

COPYRIGHT ©2018 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ezvizT website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

ezviz™, ™™, and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as equested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT

YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMICAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

EAC

TapaANTnHbI cPOK-1 roD

Cpok cnjx6bl-3 roda

Pon3B6Dntelb:XaHxKoy XKBNXHN DnKNTan TexHOJIOxN(Ktai)

IImnopTepe-nocTaBnK B PocCnn:3AO "XIKBnKHH"

IImnopTepe-nocTaBnK B PecnybniKe Benapycb:OOO "ToproBbI Dom "ABAHT-TEXHO"

CanT:www.ezviz.ru

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www. recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-SP306] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:

http://www.ezvizlife.com/declaration-of-conformity

Safety Instruction

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

SAVE THIS MANUAL FOR FUTURE REFERENCE

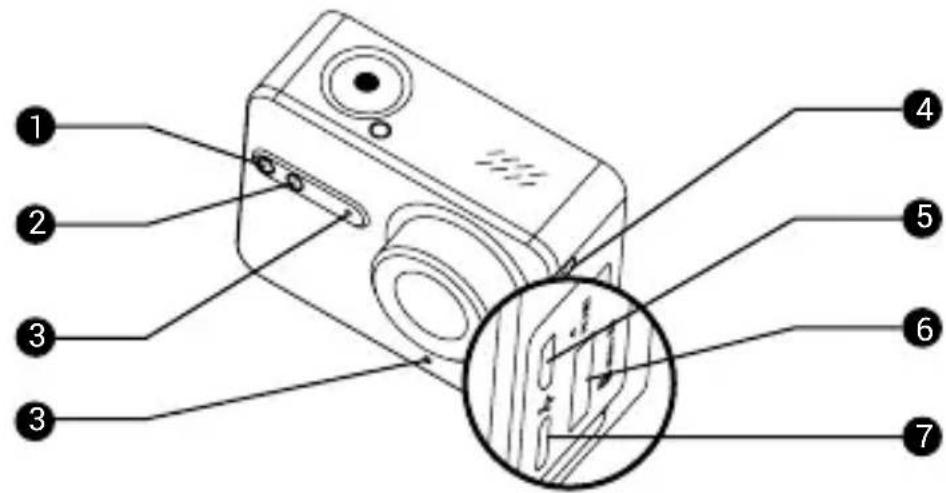

Basics

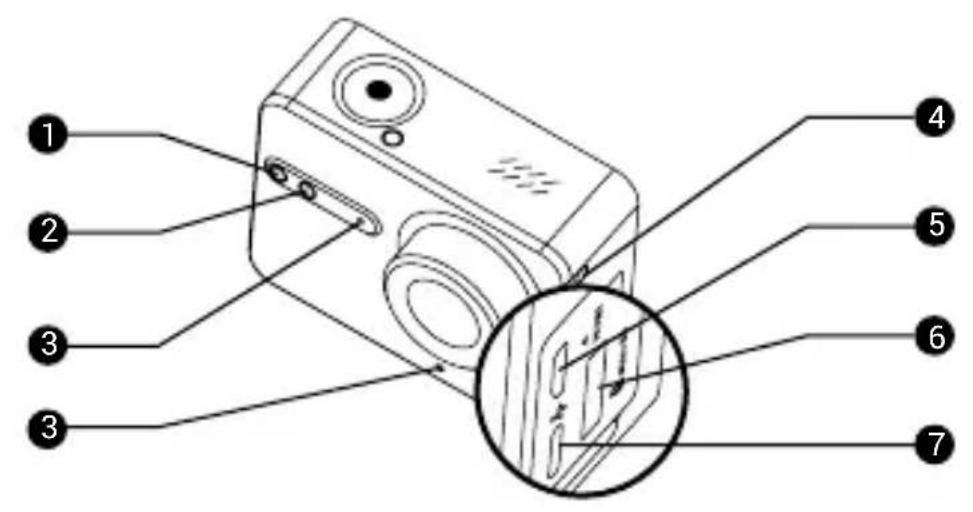

1 Recording Status LED Indicator Steady on: Standby Flashing: Recording
2 Wi-Fi Status LED Indicator Unlit: Wi-Fi is off Flashing:Wi-Fi is on
3 MIC Microphone
4 LED Indicator for Charging
5 micro-HDMI Interface Connect with HDMI cable.
6 microSD Card Slot Insert a microSD card for storage. The microSD card is not included in the box. Please purchase separately (see page 6 for the recommended microSD card models).
7 Type-C Interface Connect with data cable or power adapter.

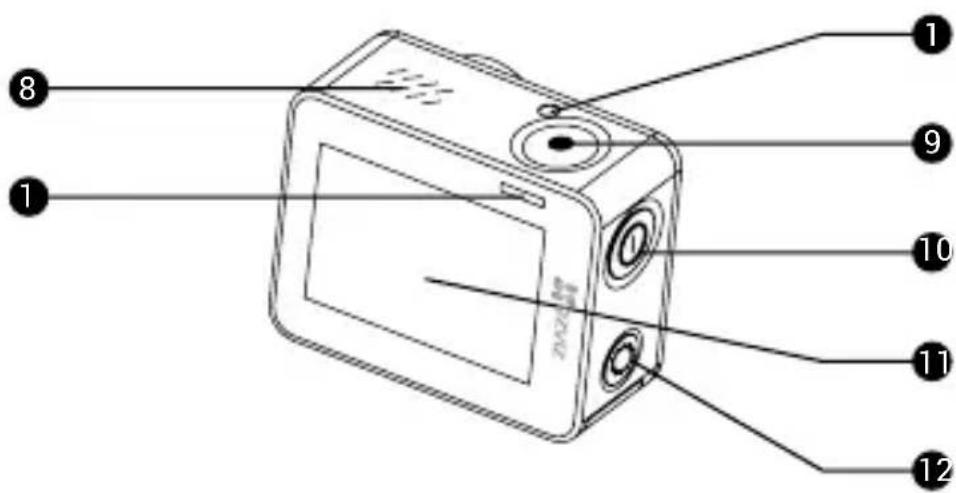

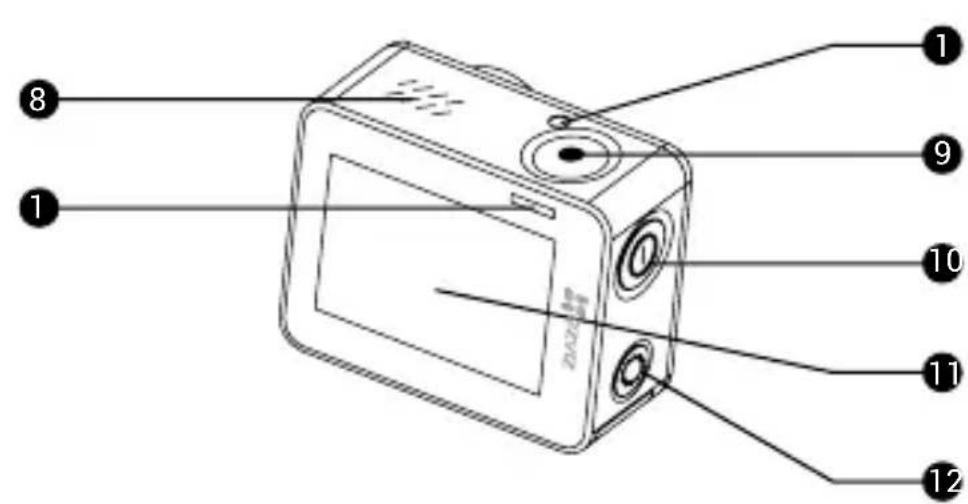

8 Loudspeaker
9 Shutter Start/stop recording
10 Power Button Hold it to power on/off
11 LCD Screen LCD touch screen
12 Wi-Fi Button Hold long to enable Wi-Fi.

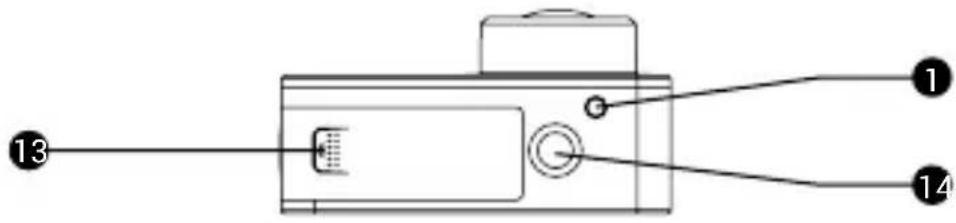

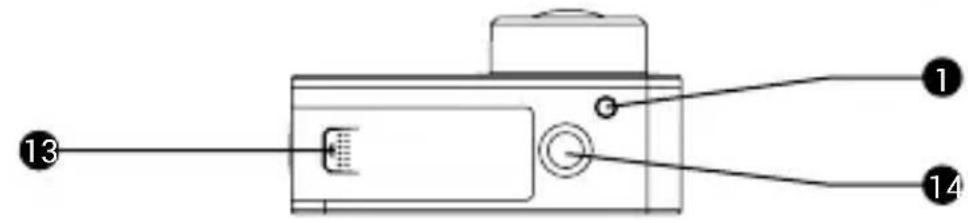

13 Battery Cover Open it to access the battery.
14 Standard Bracket Interface Interface for various brackets. (1/4 inch)

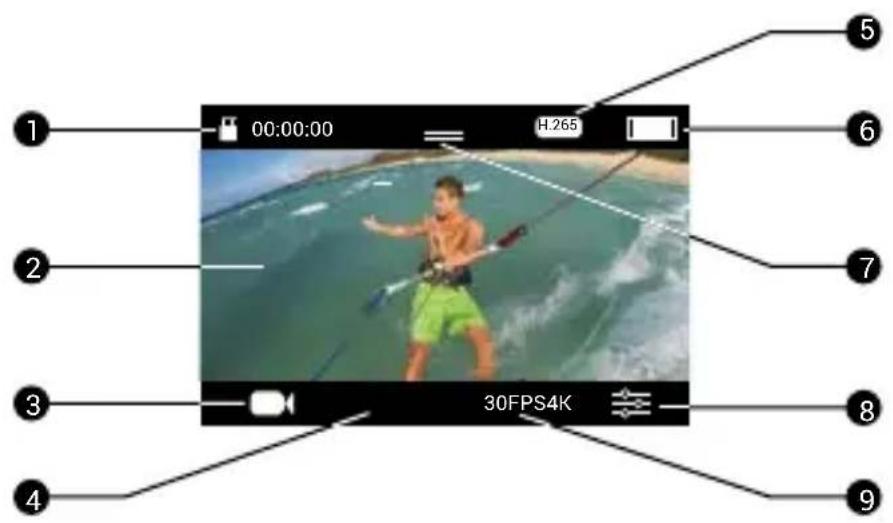

Display Introduction

1 micro SD Card Status 6 Battery Power
2 Live View 7 Slide downwards to set parameters
3 Tap to select camera mode 8 Tap to set more parameters
4 Tap to set resolution 9 Tap to set frame rate
5 H.265 Status

Use Gestures on Your Camera

Tap the Screen

Open/close display information.

Swipe to the Left

Choose the camera mode.

Swipe to the Right

View photos or videos, etc.

Swipe Downwards

Enable Lock Screen or other settings.

Swipe Downwards in the Setting Page

Return to Live View.

Operation

Step 1

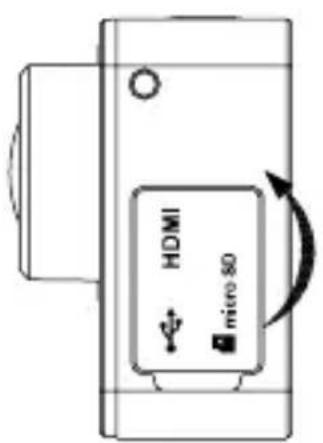

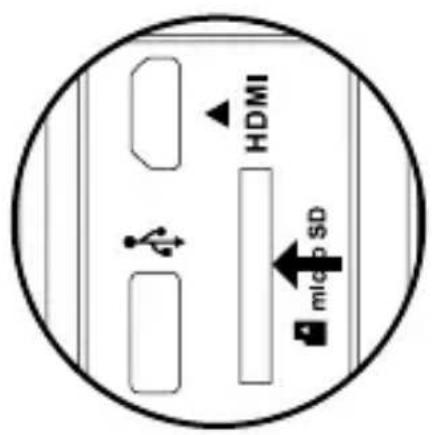

Insert the microSD card.

The camera supports video and picture storage in the local memory card.

MicroSD Card Capacity: > 4GB

MicroSD Card Level Requirement: Class 10 or above.

MicroSD Card Recommendation:

SANDISK EXTREME® 32GB microSDHC™

SANDISK EXTREME® 64GB microSDHC™

LEXAR® 32GB microSDHC™

LEXAR® 64GB microSDHC™

Step 2

Charger

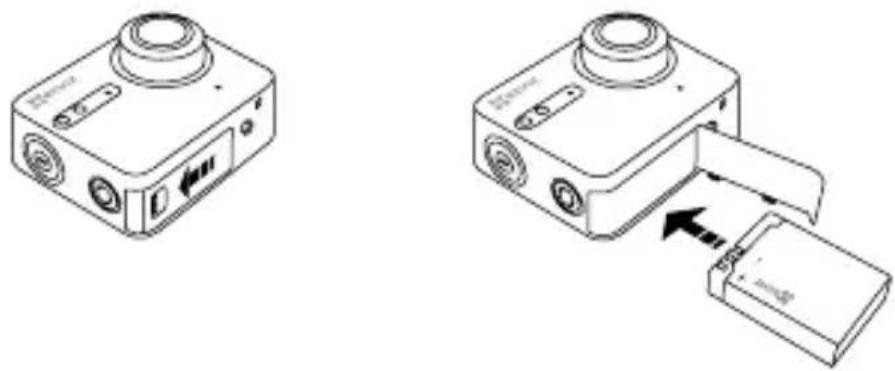

1 Install the Battery Hold the arrow and push the battery cover according to the arrow direction. Insert the battery with EZVIZ logo facing upwards and close the cover.

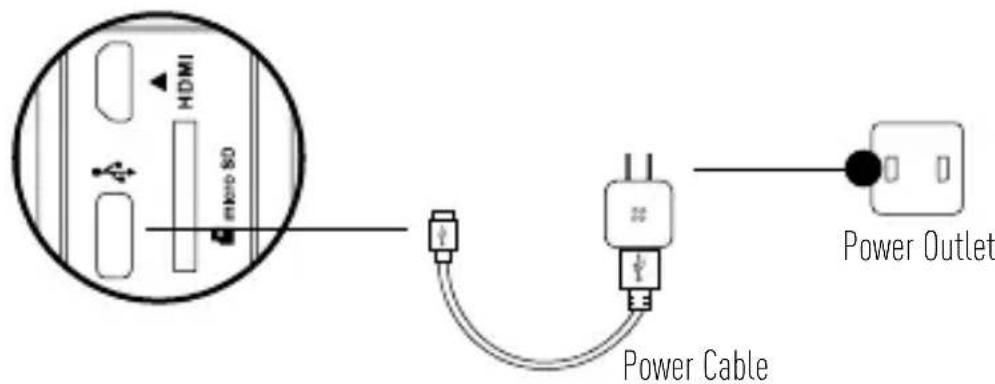

2 Connect to Outlet Use the power cable to connect your camera and the power outlet.

For the first time use: you are recommended to fully charge the camera in the power-off status before you use the camera

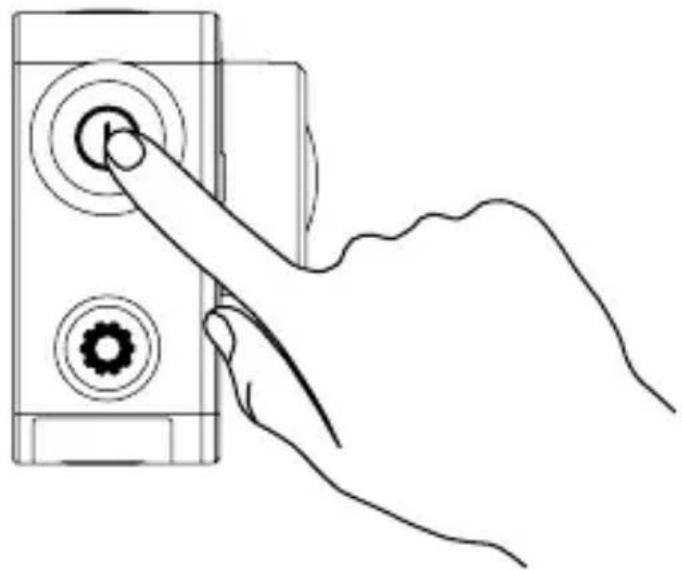

Power-on and Power-off

EN

Power on

Hold down the power button and release until the startup sound plays.

Power off

Hold down the power button and release until the power-off sound plays.

DO NOT power off the camera when the camera is recording or capturing photos.

Voice Control

Go to Setup -> Voice Control to control the camera via your voice.

Read the following commands to control your camera.

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

This function only works when you read the command in English.

For detailed information, please go to www.ezvizlife.com.

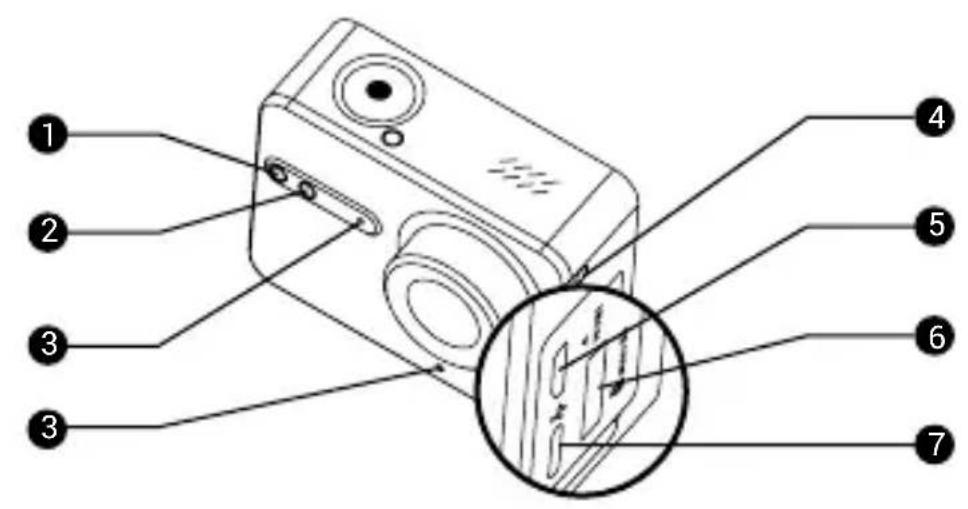

Elementos Basics

ES

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

Denne funksjonen fungerer kun när du leser kommandoene på engelsk.

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

···

Tato funkce funguje pouze pri cteni prikazv anglictine.

Podrobné informace nalezete na webu www.ezvizlife.com.

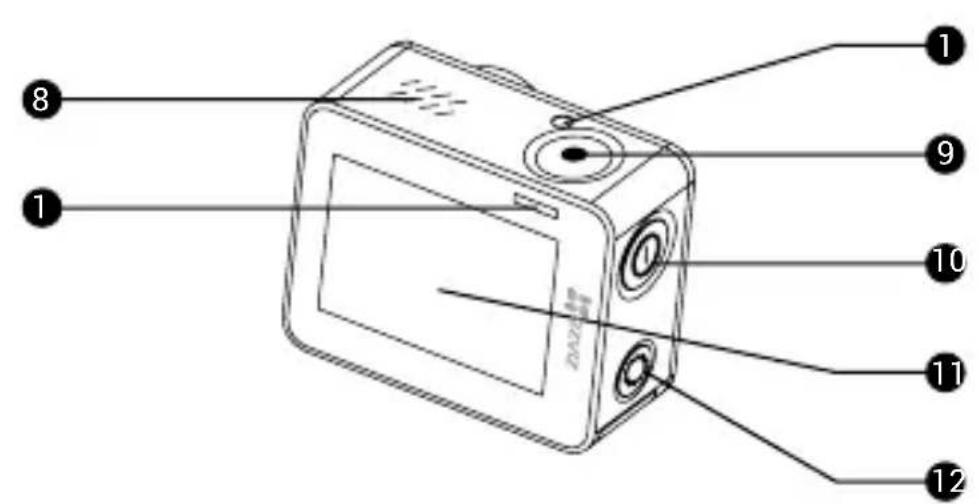

Ochobhble cBeDeHnA

1 CnД-нДиКaTOp COCTOAHNЯ ПОСТОHNO rOpNT: peЖIM OЖИДАнЯ 3aПиСи MnraeT: 3aПиСь
2 CnД-нДикатop coCTOЯня He rOpNT: cetb Wi-Fi OTKJIIOUeHa cetN Wi-Fi Muraet: cetb Wi-Fi BkIIOUeHa
3 MnkpoohMnkpofoH
4 CBeToIIOHbI INHdNkAtOp 3apn
5 IHTepoeic micro-HDMI Pooknue Te Ka6eIb HDMI.
6 THe3do dIy KapTbI microSD BcTaBbTe KapTu microSD Iy xpaHEnia DaHHbIX. KapTa microSD He BXoNT B KOMnJIeKt. PnpO6peTnte ee OTdEJIbHO (peKOMeHNIOBaHHbIe MoJeIi CM. Ha cTp. 105).
7 INTepeEic Type-C PoIKnIOUHTe Ka6eIb IpepaH daHHbIX nnCINIOBOI Ka6eIb.
8 乌HaMnK
9 KhoNka cnyska 3aTBopa Haayano/ocTaHOBka 3aNNCS
10 KhoNka nHTaHnHa HaxMnte IJy BkIIOueHn/ByIKIOueHn yCTpoiCTBa
11 KK-3KpaH CeHcOpHbI KK-3KpaH
12 KhoNka Wi-Fi YdepeKnBaIe Ira BkIIOueHna Wi-Fi.

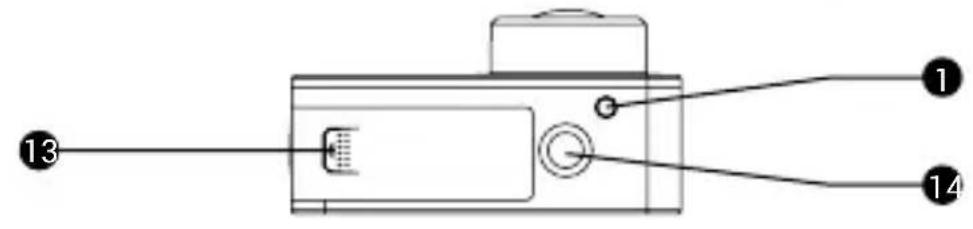

13 KpbIwka otceka 6aTapeN OTKpoNTe Ira DoCTyna K 6aTapee.
14 KpePJIeHne dIa MeCTo KpeJIeHnpa3JIuHbIX CTaHdApTHOrO KoHHTeHa KPOHSTeHOB. (1/4 IIOMa)

Описиме дисселя

1 Ctatac kaptb micro-SD 63apd 6atapei

2Pexn m oTo6paKeHna 7DbNKeHne Bn3 dJa yCTaHOBKn npapameTpOB

3HaKaTne IaBbIbOpa peKIma pa6oTbI KaMepbl

4 HaKaTne dIy yCTaHOBKn pa3peWeHn

5 CtaTyc H.265

8HaKaTne IyI yCTaHOBKn DOnOJIHnTeIbHbIX npaMeTpOB

9HaKaTneIyCTaHOBKn YaactOTbI KaApOB

Управleness XXecTamN

HaxatneHa3kpaH

OTkpbltne/3aKpbItne nHΦopMaun Ha ekpaHe.

ДвЖене Влево

BbI6op peKIma pa6Otbl kAmepbI.

Двжени впразов

Ppocmotp oToIpaHn Hnn BnDeo nT. d.

BnHexHe Bn3

BkIIOueHne 6IoKInpOBKn 3KpaHa nIi npYrnx HacTpoeK.

O3HaKoMbTeEcB CO CNeIyUOnM CnNcKOM rOLOCOBbIX KOMaHd,IJIynpabLeHnKaMepoi.

EZVIZ start recording

EZVIZ stop recording

EZVIZ take photo

EZVIZ start burst

··

Ta yHKnpa6oTaET Toblko npn npOn3HeceHn KOMaHdHa aHrnnckom 3bike.

RU

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of two (2) years from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling, tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
• Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports.
  Any software, even if packaged or sold with EZVIZ hardware.
• For any other damages free from defects in material or workmanship.
  Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions.
COPYRIGHT ©2018 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.

GARANTÍA LIMITADA

BESCHRANKTE GARANTIE
