CK 1704 - Alarm clock radio ADE - Free user manual and instructions
Find the device manual for free CK 1704 ADE in PDF.
| Brand | ADE |
| Model | CK 1704 |
| Product type | Radio alarm clock with DCF reception |
| Power supply | 2 LR03 (AAA) batteries 1.5 V |
| Dimensions (approx.) | 12 × 7 × 5 cm |
| Weight (approx.) | 200 g (with batteries) |
| Reception frequency | 77.5 kHz (long wave) |
| DCF77 signal range | About 2000 km |
| Temperature measurement range | 0 °C to 50 °C (32 °F to 122 °F) |
| Display | Time, minutes, seconds, indoor temperature |
| Main functions | Automatic DCF reception, manual setting, 12/24 h format change, temperature unit selection (°C/°F), automatic summer/winter time change, factory reset |
| Manual time setting | Yes, via SET button and ▲/▼ buttons |
| Manual reception activation | Yes, via WAVE button |
| Reception indicator | Radio wave symbols on the display |
| Summer time indicator | Display "DST" |
| Safety | Batteries dangerous if swallowed; do not short-circuit or throw into fire |
| Cleaning | Soft dry cloth or slightly damp cloth |
| Warranty | 2 years |
| Compliance | Directives 2014/53/EU and 2011/65/EU |
| Manufacturer / Distributor | GRENDS GmbH, Stahltwiete 23, 22761 Hamburg, Germany |
Frequently Asked Questions - CK 1704 ADE
User questions about CK 1704 ADE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Alarm clock radio in PDF format for free! Find your manual CK 1704 - ADE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CK 1704 by ADE.
USER MANUAL CK 1704 ADE
22761 Hamburg, Germany

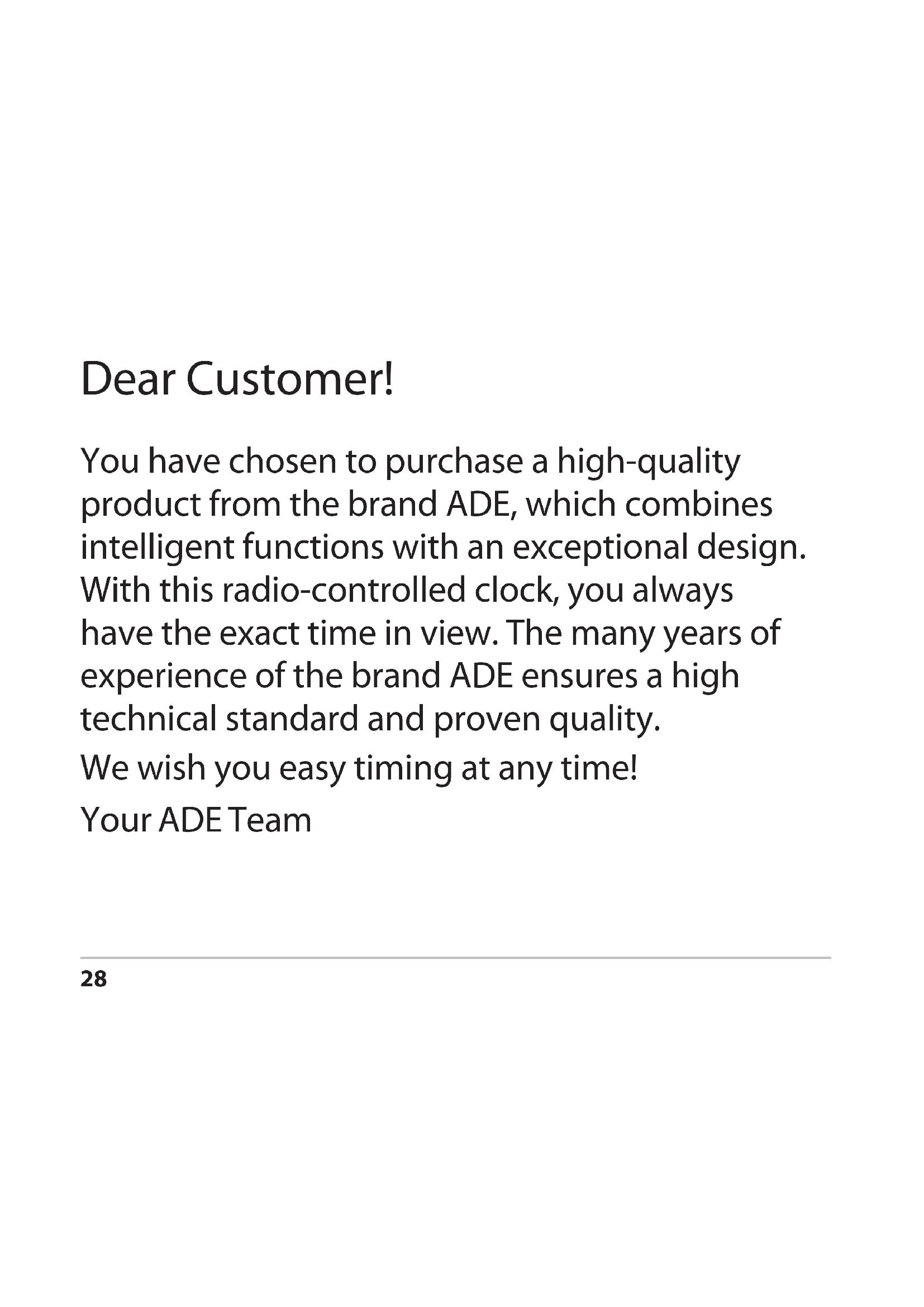

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design.
With this radio-controlled clock, you always have the exact time in view. The many years of experience of the brand ADE ensures a high technical standard and proven quality.
We wish you easy timing at any time!
Your ADE Team
Pull the protective film off the display.
General information
About this manual
This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later.
If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.
Explanation of symbols
This symbol, combined with the word DANGER, warns against serious injury.
This symbol, combined with the word WARNING, warns against moderate and mild injuries.
This symbol, combined with the word NOTE, warns against material damage.
This symbol signifies additional information and general advice.
Table of Contents
General information 29
Scope of delivery 32
Safety 33
Intended Use 36
Overview 37
Start-up 39
Receiving the time signal 40
About the time signal transmitter DCF77 45
Other functions 46
Cleaning 47
Fault/Remedy 48
Technical Data 48
Declaration of Conformity 49
Guarantee 50
Disposal 51
Scope of delivery
- DCF Radio-controlled clock
- 2 LR03 (AAA), 1.5 V batteries
- Operating Manual
Safety
- This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.
Children must not play with the item. - Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
- Batteries, when swallowed, can be life-threatening. You should therefore keep the item and batteries out of reach of children. If a battery is swallowed, medical assistance must be sought immediately.
DANGER for children
- Keep children away from packaging material. Risk of choking if swallowed.
RISK of fire/burning and/or explosion
-
Risk of explosion if batteries are improperly exchanged. Replace batteries only with the same or an equivalent battery type. Observe the "Technical Data".
-
Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.
-
Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, rinse the affected areas right away with plenty of clean water and consult a doctor immediately.
BEWARE of material damage
- Protect the clock from strong shocks and vibrations.
- Remove the batteries from the clock when they are exhausted or if you will not use the clock for an extended period of time. You will thus avoid damage that may result from the leakage of battery acid.
- When inserting and changing batteries, pay attention to the correct polarity (+/-) .
- Do not expose batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!
- Clean the battery and device contacts, as needed, before inserting the battery.
- Do not make any changes to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.
Intended Use
This DCF radio-controlled clock is used to display the time and the room temperature. The item is designed for private use and for use in dry areas.

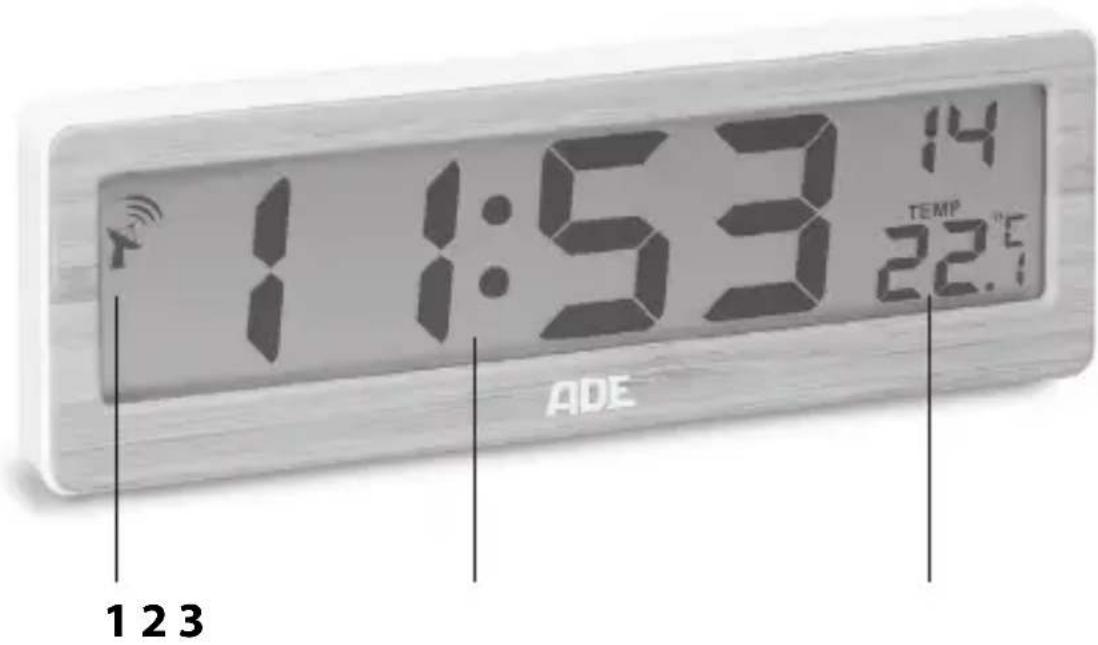

Overview
1 Symbol for radio reception for time signal transmitter DCF77
2 Time (hours, minutes, seconds)
3 Indoor temperature in ^ C or ^ F

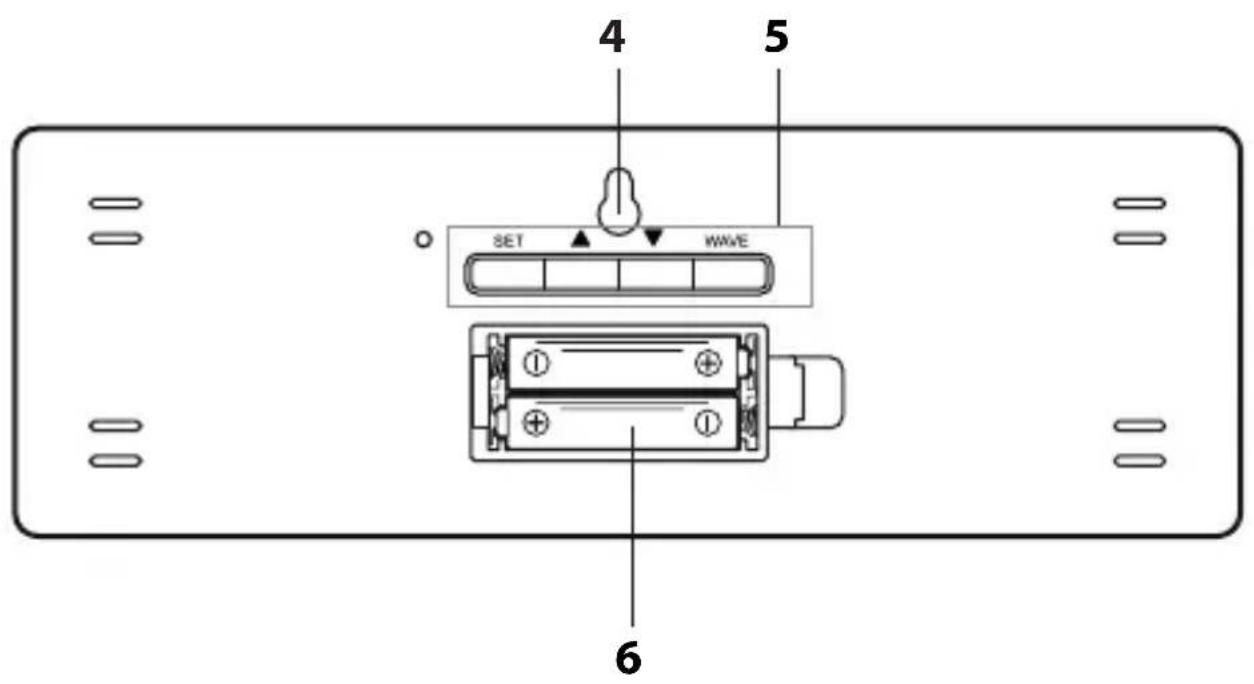

4 Hanging loop
5 SET, , WAVE control buttons
6 Battery compartment, 2x LR03 (AAA)
Start-up
For use, you will need two LR03 (AAA), 1.5V batteries.
- Push the locking tab in the direction of the battery compartment cover and remove it.
- Insert the batteries as shown on the bottom of the battery compartment. Pay attention to the correct polarity (+ / -) .
- Replace the battery compartment cover and press it down. The locking tab must audiably engage.
Once the batteries are inserted, the clock switches to the receiving mode, see next chapter.
Notes on changing the battery:
- Only use the battery type specified in the "Technical Data".
Always exchange all of the batteries at the same time. - Dispose of old batteries in an environmentally friendly manner, see "Disposal".
Receiving the time signal
When the batteries are inserted, all displays are shown for a brief moment.
The measured room temperature is displayed shortly afterwards.
The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception.
As soon as the time signal has been received in sufficient strength, the time is displayed. The radio-controlled clock automatically switches to receiving mode several times every night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected.
If a sufficiently strong signal has not been received, the radio-controlled clock will cancel the receiving process after a few minutes and the radio tower symbol goes out.
The receiving process is started again at a later point in time. In this case, the time proceeds as usual (beginning with the start time of "00:00").
Checklist when data is missing in the display
| 1. Check whether the location of the clock is suitable, see “Choosing a location”. |
| 2. Manually restart the receiving process, see “Starting signal reception manually”. |
| 3. Wait until the clock automatically switches back to receiving mode at a later time. |
| 4. Manually perform settings if reception is not possible at your location, see “Setting the time manually”. |
Setting the time manually
If there is more than approx. 10 seconds between two pushes of a button, the setting process automatically ends and you will have to repeat it.
- Press and hold the SET button until the hour flashes in the display.
- Use the or buttons to set the current hour.
- Press SET to save the setting. The minute will flash in the display.
- Use the or buttons to set the current minute.
- Finally, press SET.
Starting signal reception manually
If the radio signal symbol to the left is no longer displayed, the radio signals from the time signal transmitter are no longer being received. The time indicator nevertheless continues precisely.
-
Press the WAVE button 1x to start the radio reception. Pay attention to the following:
-
If the reception was not successful, the reception symbol fades out after a few minutes and the time on the display continues normally.
- Upon successful signal reception, the radio-controlled clock adjusts itself to the time of the time signal transmitter. If you have already carried out manual time and date settings, these will be automatically adjusted.
Choosing a location
NOTE on material damage
-
Protect the clock from dust, shocks, extreme temperatures, direct sunlight and moisture. Only place it in a dry, closed room.
-
Maintain a distance from TV sets, computers and monitors. Base stations of cordless telephones should also not be in the immediate vicinity of the radio-controlled clock.
Depending on the location, it may occur in rare individual cases that the clock receives signals from another time signal transmitter or even alternately from two time signal transmitters. This is not a fault in the device. In this case, change the location of the clock. - The weather, e.g. a heavy storm, can cause interference with the reception.
- Temporary shutoffs of the transmitter can sometimes happen, e.g. because of maintenance work.
Setting up/hanging the radio-controlled clock
The radio-controlled clock has a hanging loop at the back.
- Place the radio-controlled clock as close to a window as possible. Here, the reception will generally be best.
About the time signal transmitter DCF77
This radio-controlled clock receives its radio signals from the time signal transmitter DCF77. This broadcasts the precise and official time of the Federal Republic of Germany on the long-wave frequency of 77.5kHz . The transmitter is located in Mainflingen near Frankfurt am Main and, with its range of up to 2000km , supplies the majority of radio-controlled clocks in western Europe with the necessary radio signals.
As soon as the radio-controlled clock is supplied with power, it switches to receiving mode and searches for the signal from the transmitter DCF77. If the time signal is received in sufficient strength, the time is displayed.
The radio-controlled clock switches on several times a day and synchronises the time with the radio signal from the transmitter DCF77. In the event the signal is not received, e.g. during a strong storm, the clock continues to run precisely and then switches to receiving mode again at the next scheduled time.
Other functions
Change temperature unit
- Press the button to display the temperature in Celsius or Fahrenheit.
Changing the time display (12-/24-hour)
- Press the button to display the time in 12-hour (AM/PM) or 24-hour format.
Switching between summer and winter time
Switching between summer and winter time, or vice versa, takes place automatically with good time signal reception.
When daylight saving time is active, the display shows "DST" (Daylight Saving Time).
Resetting the radio-controlled clock to factory setting
Reset the radio-controlled clock to its factory setting if the display shows unusual or obviously incorrect values.
- Remove the batteries from the battery compartment and wait a while.
- Reinsert the batteries. Observe the correct polarity (+/-) .
- Proceed as described in the chapter "Receiving the time signal".
Cleaning
-If necessary, dust the item with a soft, dry cloth or wipe it with a slightly moistened cloth.
Fault/Remedy
DCF77 signal is not received.
- Check the location.
If necessary, start the radio reception manually. - Set the time manually.
Temperature indication appears too high.
- Check whether the clock is exposed to direct sunlight.
Display is illegible, function is unclear or values are obviously incorrect.
- Reset the clock to the original factory setting.
Technical Data
Model: DCF Radio-controlled clock CK 1704
Battery: 2x LR03 (AAA)/1.5 V
Rated current: < 40 mA
Reception frequency: 77,5 kHz
Measuring range: approx. 0^ - 50^ (32°F - 122°F)
Distributor GRENDS GmbH
(no service address): Stahltwiete 23
22761 Hamburg, Germany
Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.
Declaration of Conformity
GRENDS GmbH hereby declares that the CK 1704 radio-controlled clock complies with Directives 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following Internet address: www.ade-germany.de/doc
This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.
Hamburg, May 2023
GRENDS GmbH
Guarantee
The company GRENDS GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.
In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.
Disposal
Disposing of the packaging
Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.
Disposing of the product
Dispose of the product in accordance with the regulations that apply in your country.
Devices must not be disposed of in normal household waste
At the end of its life, the product must be disposed of in an appropriate way.
In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.
Recyclable and disposable batteries do not belong in household waste
All batteries must be handed in at a collection point in your community, suburb, or at the retailer.
Such batteries can thus be disposed of in an environmentally friendly way.
