Product type	4-Port USB-C Hub
Brand	IOGEAR
Model	GUH3C4C
Dimensions (approx.)	100 x 50 x 15 mm
Weight (approx.)	60 g
Power	USB-C bus or optional power adapter (up to 100 W PD)
Ports	1 x USB-C host (10 Gbit/s), 4 x USB-C device (3 x data 10 Gbit/s, 1 x data or PD passthrough 100 W)
Maximum data rate	10 Gbit/s per port
System compatibility	Windows 8/8.1/10/11, macOS 10.13+
Main features	USB-C port expansion, PD passthrough charging, simultaneous connection of 4 devices
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Avoid moisture and extreme temperatures. Disconnect during storms.
Spare parts and repairability	Not applicable (user non-repairable product).
Warranty	1-year limited warranty
Package contents	1 x GUH3C4C, 1 x Quick Start Guide, 1 x Warranty Card

Frequently Asked Questions - GUH3C4C IOGEAR

Which operating systems are compatible with the GUH3C4C?

The hub is compatible with Windows 8/8.1/10/11 and macOS 10.13 or later.

Can I charge a laptop through the PD passthrough port?

Yes, the marked port C supports up to 100 W Power Delivery if a USB-C power adapter is connected.

What is the maximum data rate per USB-C port?

Each USB-C port supports up to 10 Gbit/s, provided that the host and device support it.

Does the hub work with a smartphone or tablet?

Yes, it can connect smartphones, tablets, SSDs, etc., via the USB-C ports. Check your device's compatibility.

How to properly connect the GUH3C4C?

First connect your devices to ports 1 to 4 (port 4 can be used for PD). Then connect the host cable to your computer. Optionally, connect a power adapter to the PD port.

Are there any LED indicators on the hub?

The documentation does not mention any. The product likely does not have an LED indicator.

What if my computer does not recognize the hub?

Check that your computer's USB-C port supports 10 Gbit/s (USB 3.1 Gen 2). Try connecting the power adapter if available. Restart your computer.

Is the hub compatible with USB 3.0 or USB 2.0?

Yes, it is backward compatible with USB 3.0/2.0 devices, but speed will be limited to the lowest rate.

Can I use all ports simultaneously?

Yes, all four ports can be used simultaneously. Total throughput depends on the host's bandwidth.

What is the warranty period?

The product comes with a 1-year limited warranty. For more details, visit the IOGEAR website.

USER MANUAL GUH3C4C IOGEAR

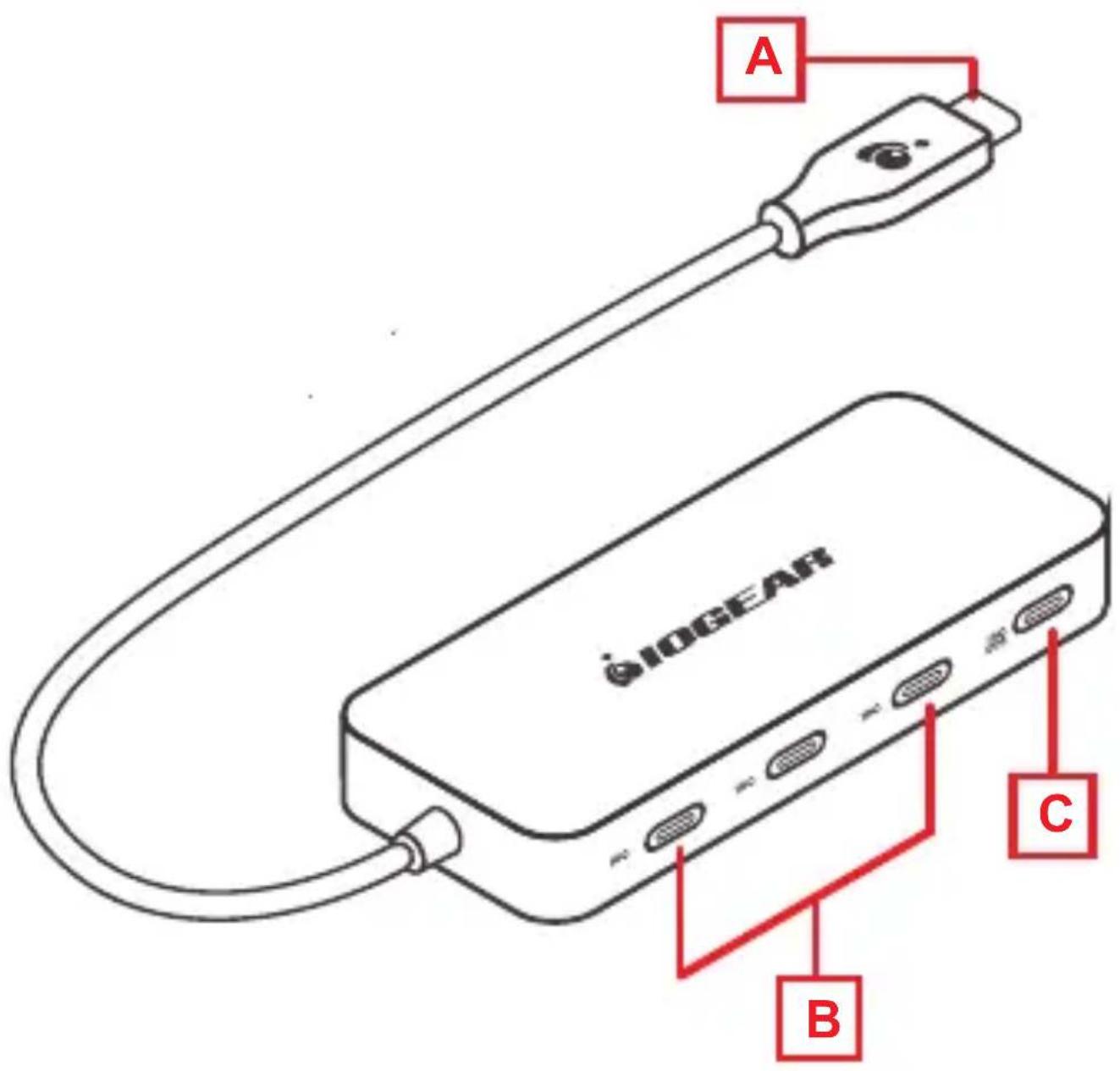

A. USB-C for Host connection (10 Gbps)
B. 3 x USB-C Ports for USB peripherals (Up to 10 Gbps)
C. 1 x USB-C Port for USB peripherals (Up to 10 Gbps) or up to 100W PD Passthrough

iOGEAR A B C

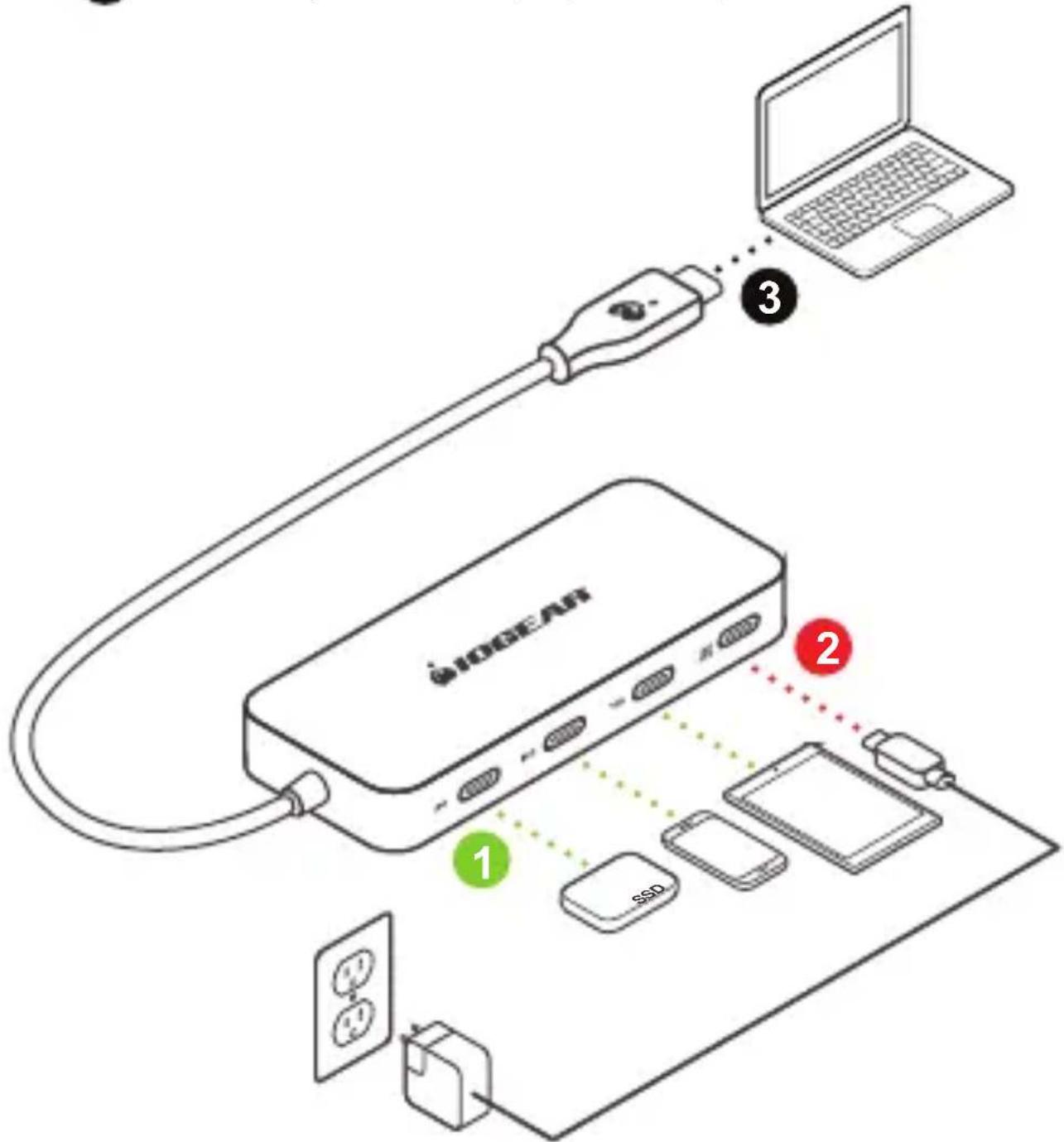

Hardware Installation

3

1 Connect up to 4 USB-C peripherals to USB-C ports 1-4.. Smartphone, tablet, SSD, or other devices.
2 Connect USB-C Power adapter to the USB-C port with Power Delivery Pass-Through for up to 100W PD. (Optional).
3 Connect your host laptop or computer.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty.

For the terms and conditions of this warranty, please go to

https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information

Product Model

Serial Number ____
