USER MANUAL HSMR 3313 CLATRONIC

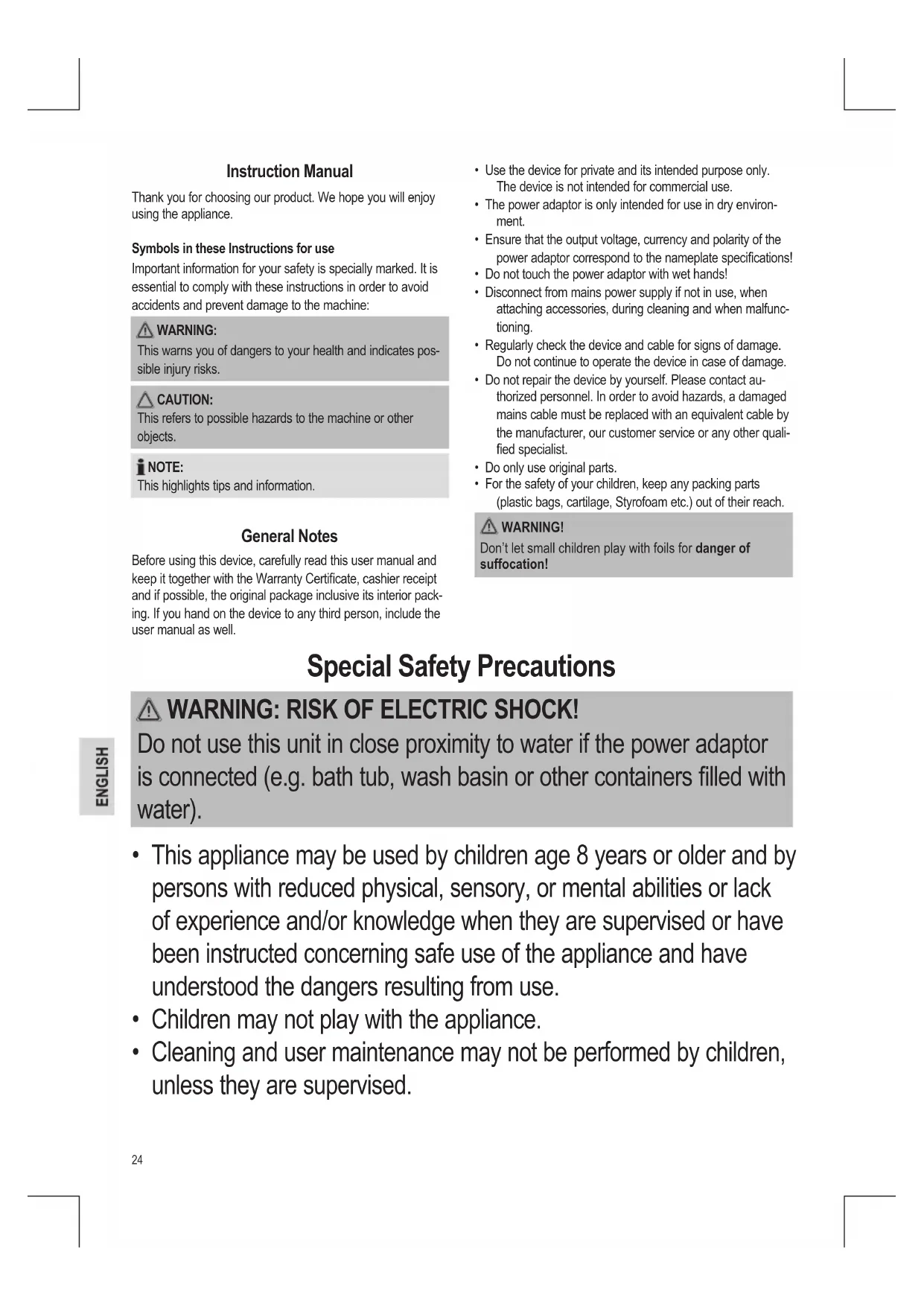

This warns you of dangers to your health and indicates pos- sible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. General Notes Before using this device, carefully read this user manual and keep it together with the Warranty Certicate, cashier receipt and if possible, the original package inclusive its interior pack- ing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.

• The power adaptor is only intended for use in dry environ- ment.

• Ensure that the output voltage, currency and polarity of the power adaptor correspond to the nameplate specications!

• Do not touch the power adaptor with wet hands!

• Disconnect from mains power supply if not in use, when attaching accessories, during cleaning and when malfunc- tioning.

• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage.

• Do not repair the device by yourself. Please contact au- thorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other quali- ed specialist.

• Do only use original parts.

• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach. WARNING! Don’t let small children play with foils for danger of suffocation! Special Safety Precautions

WARNING: RISK Of ELECTRIC SHOCK!

Do not use this unit in close proximity to water if the power adaptor is connected (e.g. bath tub, wash basin or other containers lled with water).

• This appliance may be used by children age 8 years or older and by persons with reduced physical, sensory, or mental abilities or lack of experience and/or knowledge when they are supervised or have been instructed concerning safe use of the appliance and have understood the dangers resulting from use.

• Children may not play with the appliance.

• Cleaning and user maintenance may not be performed by children, unless they are supervised.25

• This appliance is not intended for immersion in water for cleaning. Follow the instructions provided in the chapter on “Cleaning and Maintenance”.

• Do not operate the hair and beard clippers with wet hands.

• Only cut dry hair with this unit.

• Only use this unit to cut head hair and beard.

• Do not press the clipper head too rmly onto the skin. Danger of injury.

• Charge the unit in a cool and dry location.

• Only use the supplied power adapter. Overview of the Components 1 Attachment comb (clipper head concealed) 2 Button (fold out clipper head) 3 Select button for cutting length 1 = 5 mm, 2 = 9 mm, 3 = 13 mm, 4 = 16 mm (approx.; 3 mm without comp attachment) 4 Slide switch ON/OFF 5 Charge indicator 6 Charging station Accessories Hairdressing comb Scissors Cleaning brush Power adaptor (charger) Charging the Unit

• Connect the power adaptor connector with one of the following jacks.

• The socket directly at the bottom end of the unit.

• Alternatively place the unit in the charging station. The socket is at the rear.

• Plug the power adaptor into a wall outlet.

• The charge indicator turns on during charging. NOTE: The charge indicator does not indicate the state of charge of the rechargeable battery.

• Charge the unit before rst use for 14 hours.

• Later charges take 14 hours as well. NOTE: The unit cannot be operated with mains power. CAUTION: After 14 hours always disconnect from mains power supply. NOTE: LIfETIME RECHARGEABLE BATTERY You can extent the lifetime of the rechargeable battery by following these steps:

• Only charge after the battery is nearly exhausted.

• Do not charge for more than 14 hours.

• Charge the unit at temperatures between 0° and + 40°C. Clip and Cut Beard

• Select the cutting length with the attachment comb. Press and slide the button (3).

• Slide the switch (4) towards the clipper head: Start with the longest cutting stage and clip goatee, sideburns or full beard step by step to the desired length. Clip Hair

• Select the cutting length with the attachment comb. Press and slide the button (3).

• Slide the switch (4) towards the clipper head: Start with the longest cutting stage and clip your hair step by step to the desired length. Outlining and Shaving the Neck NOTE: The smallest setting of “3 mm” can be obtained by removing the comb attachment.

• Remove the attachment comb (1) and slide the switch (4) towards the clipper head.

• The clipper head allows precise outlining the shape of the beard, even in difcult to reach places as well as a clean shaving of the hair-line at the neck.26 Finish Operation Slide the switch (4) down. Cleaning and Maintenance Regular cleaning and maintenance ensures optimum results and long lifetime.

• Turn the unit off and disconnect from mains power supply, if necessary.

Do not submerge the unit in water. CAUTION:

• Do not use a wire brush or other abrasives.

• Do not use sharp or abrasive cleaning agents.

• Use the cleaning brush to remove remaining hair after use.

• Remove the attachment comb (1).

• Press the two buttons (2) at the rear of the unit to fold out the clipper head.

• Regularly apply 1 - 2 drops acid-free oil to the clipper head.

• Fold the clipper head back after cleaning until it locks in place.

• Clean the casing with a slightly damp cloth, if necessary.

• Replace the attachment comb. Noise emission The workplace-related emission value is less than 70 dB(A). Technical Data Model: .......................................................................HSM/R 3313 Power supply adaptor: ................. AC 100-240 V, 50/60 Hz, 3 W Output power adaptor: ....................................DC 4.5 V, 150 mA Protection class power adaptor: .................................................ΙI Rechargeable battery: ..........................................1.2 V, 800 mAh Run time:.............................................................max. 35 minutes Charging time battery: .....................................................14 hours Net weight: ....................................................................... 0.140 kg The right to make technical and design modications in the course of continuous product development remains reserved. This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations. Remove / Dispose of Rechargeable Batteries This unit is equipped with a rechargeable Ni-MH battery. Remove the battery before disposing of the unit. As a consumer you are legally bound to return exhausted bat- teries/rechargeable batteries.

Disconnect from mains power supply before removing the battery!

• Loosen the screws at the bottom with a small Phillips screwdriver; remove the bottom of the unit.

• Remove the rechargeable battery.
