USER MANUAL Arctic Frost 45 Outwell

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference.

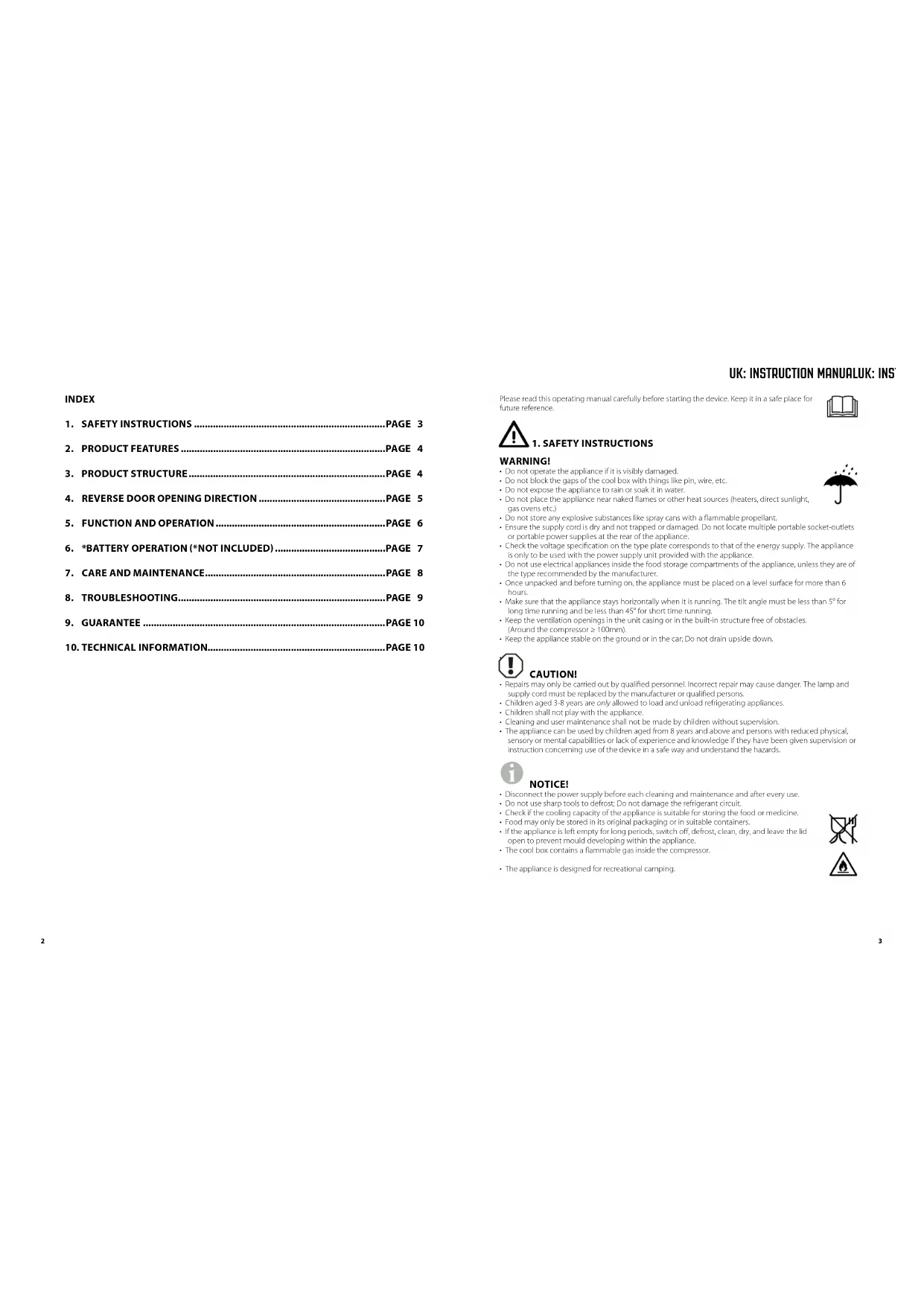

1. SAFETY INSTRUCTIONS

WARNING!

• Do no operate the appliance if it is visibly damaged.
• Do not block the gaps of the cool box with things like pin, wire, etc.
• Do no, expose the appliance to rain or seek it in water.
• Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)
• Do not store any explosive substances like spray cans with a flammable propellant.
• Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
• Check the voltage specification on the type plate corresponds to that of the energy supply. The appliance is only to be used with the power supply unit provided with the appliance.
• Do no. use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
• Make sure that the appliance stays horizontally when it is running. The tilt angle must be less than 5^ for long time running and be less than 45^ for short time running.
• Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles. (Around the compressor ≥ 100mm).
• Keep the appliance stable on the ground or in the car; Do not drain upside down.

CAUTION!

- Repairs may only be carried out by qualified personnel. Incorrect repair may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.

- Children aged 3-8 years are only allowed to load and unload refrigerating appliances.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards.

NOTICE!

• Disconnect the power supply before each cleaning and maintenance and after every use.
• Do not use sharp tools to defrost; Do not damage the refrigerant circuit.
• Check if the cooling capacity of the appliance is suitable for storing the food or medicine.
• Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the I'd open to prevent mould developing within the appliance.
  • The cool box contains a flammable gas inside the compressor.

• The appliance is designed for recreational camping.

UK: INSTRUCTION MANUALUK: INS

IF YOU WISH TO FINALLY DISPOSE OF THE DEVICE

1. Remove cables, lid, tie down brackets from body with compressor and dispose according to local regulations. Ask your local recycling centre for details about how to do this in accordance with the applicable disposal regulations.
2. Place the packaging material in the appropriate recycling waste bins wherever possible.

2. PRODUCT FEATURES

• High-efficiency DC compressor and conversion module.
• CFC free and great heat insulation.
- Lowest cooling to 20^ / 4^ (based on 25^ / 77^ room temperature).
- Intelligent battery protection system prevents your vehicle from running out of battery.
- LED display control panel for temperature setting, USB charging port: SW/A.
- Detachable lithium battery: 15600mAh/11.1V.
- Specific parts: interior drain plug, oversized wheels, telescopic handle, cupholders (in the lid), interior LED light, cutting board and bottle opener.

1. PRODUCT STRUCTURE

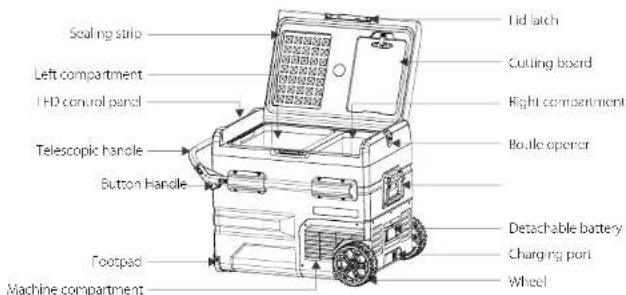

Sealing strip Left compartment HD control panel Telescopic handle Button Handle Footpad Machine compartment Lid latch Cutting board Right compartment Boutle operator Detachable battery Charging port Wheel

Note: There are buttons on both sides of the telescopic handle, press them at the same time to pull the rod. The cutting board can be moved by turning the knob on the top cover. Clean and dry the cutting board after every use.

4. REVERSE LID OPENING DIRECTION

The lid opening direction can be changed according to actual needs, please follow the instructions below:

LID DISASSEMBLY:

Line drawing of a toolbox with wheels and open lid (no text or symbols)

Open the lid at a 90° angle

Line drawing of a toolbox with open lid and wheels (no text or symbols)

Take off the lid from one side

Line drawing of a toolbox with wheels and a cabinet, no text or symbols present

Take off the lid from the other side

LID INSTALLATION:

Technical line drawing of a portable electronic device with wheels and control panel (no text or symbols)

Reverse the lid opening direction

Line drawing of a portable tool kit with open lid and wheels (no text or symbols)

Align the lid shaft with the hole on one side and insert it

Line drawing of a multi-wheeled electrical control box with wheels and open lid (no text or symbols)

Fix the lid on the other side, installaton finished

5. FUNCTIONS AND OPERATION

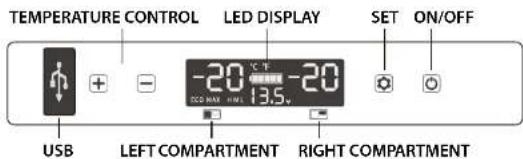

TEMPERATURE CONTROL LED DISPLAY SET ON/OFF USB LEFT COMPARTMENT RIGHT COMPARTMENT -20 °C F 13.5V DCO MAX HML

* Note: the right compartment is on the side where the compressor is.
• Power supply: Connect to DC 12V/24V or AC 100-240V (using dedicated adapter)
- Display Screen Initialization: When the cool box is switched on the buzzer will make a long beep, and the display will be on for two seconds then enter the standby mode.
• Power On/Off: Press ⏻ to switch ON, long press ⏻ for three seconds to switch OFF
- Temperature Setting: Under the running state, long press + and 1 at the same time for three seconds to switch ON/OFF the left compartment, long press - and 2 the same time for three seconds to switch ON/OFF the right compartment. Two compartments cannot be switched off at the same time. When both left and right compartments are set in running state, press + or 3 enter left compartment temperature setting, press + to increase temperature, press - to decrease temperature, and press 4 to switch between left or right compartment. The setting will be saved after stop operating for four seconds (Note: the temperature displayed is the current temperature of the compartments. It will take a while to reach the set temperature; Temperature setting range: -20\~20°C (-4\~68°F).
- Cooling Mode: Under the running state, press to switch to MAX (fast cooling) and FCO (-energy saving Mode), *Factory setting is MAX.
- Battery Protection Mode: under the running state, long press for three seconds until screen flashes, then press again to select protection mode H (High), M (Medium) and L (Low). (*Factory setting is H).

VOLTAGE REFERENCE:

MODE\INPUT	DC 12V		DC 24V
	CUT-OFF	CUT-IN	CUT-OFF	CUT-IN
L	8.5V	10.9V	21.3V	22.7V
M	10.1V	11.4V	22.3V	23.7V
H	11.1V	12.4V	24.5V	25.7V

^x the voltage is a theoretical value, there may be a deviation in different scenarios.
* It should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery.

UK: INSTRUCTION MANUALUK: INS

• Temperature Unit Setting: switch off the cool box, long press ⚙ for three seconds until E1 displays, then switch to E5 by pressing again. Under E5 mode, press ⚙ to select Celsius or Fahrenheit. (*Factory setting is °C)
• Reset: Switch off the cool box, long press for three seconds until E1 displays, under E1 mode, long press for the same time for three seconds to reset it.

RECOMMENDED TEMPERATURES FOR COMMON FOOD:

Drinks Fruits Vegetable Ready-to-			eat food	Wine Ice cream		Meat
5°C/41°	5~8°C/41~46°	3~10°C/37~50°	2°C/30°	10°C/50°	10°C/14°	18°C/50°

6. \*BATTERY OPERATION (\*NOT INCLUDED)

Battery ON/OFF: A long press on the power button will switch the battery ON/OFF. When the battery is OH, a short press on the power button will show how much battery power is left.

Technical diagram of a mechanical device with numbered components labeled ①, ②, ③, and ④.

Model: Arctic Frost Rechargeable Battery (590202) / TSAK-002 Capacity: 15600mAh/1.73Wh Rated Voltage: 11.1V
Charging Limited Voltage (DC): 12.6V Charging Limited Current (DC): 3A
① Power Indicator (Green: charging; Blue: discharging) ② Battery Indicator (show current battery)
③ Power Button ④ DC Charging Port

Warning: do not disassemble the battery!

• Battery charging (for reference only):

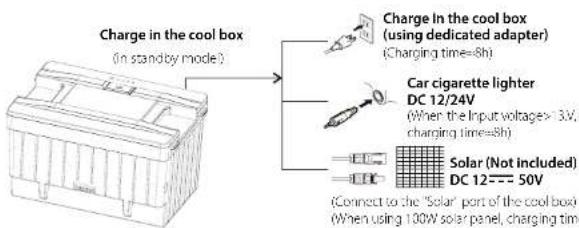

Charge in the cool box (in standby mode) Charge In the cool box (using dedicated adapter) (Charging time=8h) Car cigarette lighter DC 12/24V (When the Input voltage>3V, charging time=8h) Solar (Not included) DC 12---50V (Connect to the "Solar" port of the cool box) (When using 100W solar panel, charging time

©

UK: INSTRUCTION MANUAL

9. GUARANTEE

The statutory guarantee period applies.

If the product is defective, please contact the manufacturer (see the back of the instruction manual) or your retailer.

We strive to have spare parts available for up to 10 years.

For more information please see www.outwell.com

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date

• A reason for claim or description of the fault.

1. TECHNICAL INFORMATION


Outwell TVW35 Model Arctic Tech 35 580V/2.1W/35 Climate Category: 5T, N, SN Rated Voltage: 10W - 240V ~560Hz Rated Voltage: UL 120V/2V Rated Current for AC/DC (1): 1.24 - 0.3A Rated Current for UL: 3.0M/12V / 2.5M/24W Protective Classification of Exotic Stock Structure Pulsipant: R3/34(μg) Form Versient: CJ/K Inside volume: 38.81 Color: Vcc/2V Made in China Dow-Outdoors ApS Rt. Kwanay 9, DC 7523 Gye, Damarin, UC One Class Solid, Boid, RS-07X

Outwell TOWA45 Model Arctic Front 65 SW1597.1 WOK93 Cleratic Category T: ST, N, SM Rated Voltage AC/Adaptor, 100V -240V 28kHz Rated Voltage UL 12V/24V Rated Current for AC/Adaptor, 1.24 -0.5A Rated Current for UL 5.0V/12W / 2.5V/24W Protection Classification of Electric Shock Resistance Pulsipulant 813(μKg) Fremi-Ventant 1JHz Inside volume 48.3B Color Max CN Made in CHINA CA UK CA One Class Ambient Airflow, RCL CX

Qatwell TWN55 Model Arctic root 50 348202 / TWN55 Chronic Category T, S, N, SN Rated Voltage AC/Adapted TWN 34W ~50.60Hz Rated Voltage DC 120V/2W Rated Current for AC/Dropion: 1.24-0.5A Rated Current for DC: 3.04(179) / 3.54(24W) Protective Classification of Electric Shock Resonance Refrigerant: R344(40G) Train Viscient: CJ100 Inside volume: 37.71 Solar: Vorr 270 Made in CHINA Date Outdoors ApS FU: Kentucky 9, DC 7121 Gov. Denmark UC One Class Wind Rated, B5/272

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

Line drawing of a mechanical toolbox with wheels and open lid (no text or symbols)

Line drawing of a portable tool kit with open lid and wheels (no text or symbols)

Line drawing of a toolbox with wheels and a door, no text or symbols present

Technical line drawing of a portable electronic device with wheels and control panel (no text or symbols)

Vend lågets åbningsretning

Line drawing of a portable mobile device with wheels and a top panel (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled ①, ②, ③, and ④.

Outwell T/W35 Model: Arctic Front 35 290187 / TWW35 Himubukuri: T, ST, %, SN Nominal spending vakcstremn (laboror): 190V - 240V ~ 36.6GHz Nominal spending premolars: 127/24V Nominal stromsysteine for vakcstremn (laboror): 1.2A, 0.3A Nominal strommysis for premolars: 5.2A/12V / 7.5A/24V Bodyweight class finishing for elektrick and plasticity: R1342 (48 g) Dram material: C. Inhandings: 38.81 Exposure: Mass: 42V Made in CHINA Base Outdoors APS DC Norway 3, DC-7321 Great Denmark UIC One Class Guard Direct, 02-02-02

Outwell TOWA5 Model: Arctic Front 40-590199/ (TW45) Miminastegrel: T.57, N.56 Nominal spanning velocitystrom (adapted): 100V ~ 240V ~ 30-50Hz Nominal spanning perisheet: 1/2/24V Nominal strength for velocitystrom (adapted): 1.24, 0.5A Nominal stramenby for perisheet: 5.04(12V) / 7.3A(24V) Rexlcystalline and forcing for electric shock shock shield: Extramidial: B13A (40 μg) Extramidial: C.H. Indoxiaicy volumen: 48,2 l Solvent: Vole, 52V Made in China Case Outdoors ApS UK: Kenya 9, UK-723 Gye, Denmark, UK One Class Chief (Ubsl. 052 GB)

Outwell T1W355 Model: Arclidic Host 20-5M/2021 / TWX55 D/makakorof: T_57, N_5N Arclidic spending volkastrom (radaptor): 190V ~ 240V ~ 30-50Hz Arclidic spending lemmstrom: 120V/4V = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = Arclidic stenomotor for lemmstrom: 3.60V/2V? 2.5M/24V Backrest/leamtkant fastening for alldrinik & stredustandard: D sokmidolor: R1348-340 g/l Draminatal: C_H2 Inducting cylinder: 37,71 Respirer: Max 42V Made in CHINA Oase-Outdoors ApS RU: Kwanay 9, DC 7123 Gwa, Denmark, UC One class Whirl, Berlin, BZ 072

INDEX

1. CONSIGNES DE SÉCURITÉ....PAGE 32
2. CARACTÉRISTIQUES DU PRODUIT......PAGE 33
3. STRUCTURE DU PRODUIT ......PAGE 33
4. CHANGER LE SENS D'OUVERTURE DE LA PORTE......PAGE 34
5. FONCTION ET FONCTIONNEMENT ......PAGE 35
6. FONCTIONNEMENT SUR BATTERIE (NON INCLUS)......PAGE 36
7. ENTRETIEN ET MAINTENANCE......PAGE 37
8. DÉPANNAGE......PAGE 38
9. GARANTIE...... PAGE 39
10. INFORMATIONS TECHNIQUES ......PAGE 39

FR : MODE D'EMPLOI

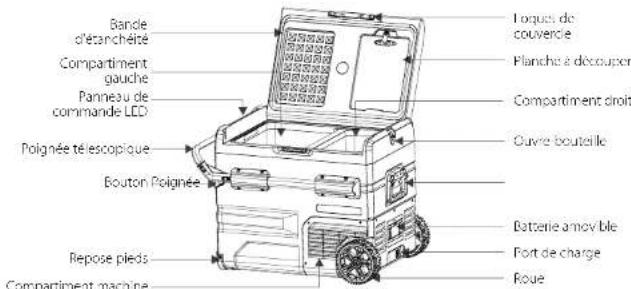

3. STRUCTURE DU PRODUIT
