USER MANUAL Sinus Inhaler VIH200 Vicks

This Steam Inhaler adds water vapor to the air, enabling the user to breathe better and sleep more comfortably. If you have any questions about the operation of this Steam Inhaler, call our toll-free Consumer Relations line at 1-800-VAPOR-1-2 or e-mail in US: VicksHumidifiers.com/contact-us or in Canada: ConsumerRelations@HelenofTroy.com.Comforting treatment in minutesAdjustable steam output IMPORTANT!

READ AND SAVE THESE INSTRUCTIONS

1. ALWAYS turn off and unplug this product

immediately after using. 2. DO NOT use while bathing.

3. DO NOT place or store product where it

can fall or be pulled into a tub or sink. The appliance should always be placed on a firm, flat, waterproof and heat resistant surface. Be sure the appliance is in a stable position and the power cord is out of the way to prevent the appliance from being tipped over.

4. DO NOT place in or drop into water or

5. DO NOT reach for a product that has fallen

into water. Unplug immediately. 1. The product should never be left unattended when plugged in.2. Close supervision is necessary when this product is used by, on, or near invalids. Keep out of reach of children.

3. Use this product only for its intended

use as described in this manual. DO NOT use attachments not recommended by the manufacturer.

4. NEVER operate this product if it has a

damaged cord or plug, if it is not working properly, if it has been dropped or damaged or dropped into water.5. Keep the cord away from heated surfaces.6. CAUTION: NEVER move the appliance while in use. It can spill hot water if tilted, shaken or tipped over causing injury or burns.

7. DO NOT use appliance while sleepy or drowsy.

8. DO NOT use in area where aerosol

products are being used or where oxygen is being administered.

9. NEVER block the air openings and vents of

the product or place it on a soft surface, such as a bed or couch, where the air openings and vents may be blocked. Keep the air openings free of lint, hair, and other materials.10. NEVER drop or insert any object into any opening or vent. Unplug this product before filling. Fill (reservoir) with water only unless otherwise specified by manufacturer. DO NOT overfill. DO NOT fill with mask installed. Only pour water directly into Water Reservoir.12. The appliance has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.13. CAUTION: To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet. DO NOT use an extension cord or a power strip.

14. The appliance should always be unplugged

and emptied when not in operation or while being cleaned. Shut off and unplug the appliance before moving. Plug and unplug appliance with dry hands. NEVER pull by the cord to unplug.15. CAUTION: DO NOT move, lift, shake, tilt or disassemble while in operation or if it still contains hot water.

16. DO NOT operate the appliance without

17. DO NOT lift the appliance by the Mask.

Lift only by the Base.18. Appliance requires regular cleaning. Refer to and follow cleaning instructions.

19. NEVER add any essential oils, medications

or inhalant liquids to the Water Reservoir, such as Vicks VapoSteam or Kaz Inhalant. DANGER To reduce the risk of electrocution: WARNING To reduce the risk of burns, electrocution, fire, or injury to persons:3

20. DO NOT touch skin with exposed Vicks VapoPads or place on furniture,fabrics, bedding or plastics.

21. DO NOT operate outdoors. This appliance

is intended for indoor use.

22. DO NOT attempt to repair or adjust any

electrical or mechanical functions on this appliance. Doing so will void your warranty.23. For residential use only.

SAVE THESE INSTRUCTIONS

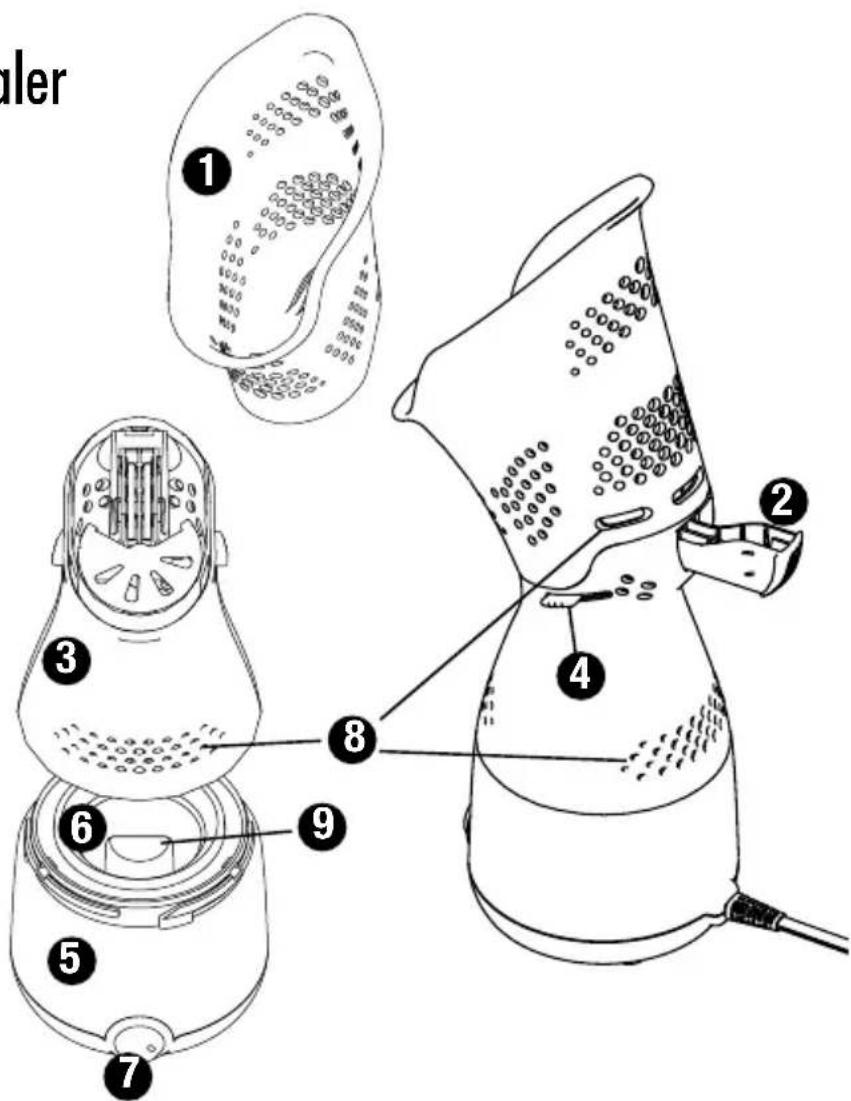

Vicks Sinus Inhaler 1. Mask2. VapoPad Tray3. Top Housing4. Steam Disk Controls 5. Base6. Water Reservoir7. Power Switch8. Vents9. Heating ElementThe Vicks Steam Inhaler provides a steady flow of warm, moist air directly to the nose and throat for temporary relief from nasal, sinus and chest congestion, coughs and parched throat.

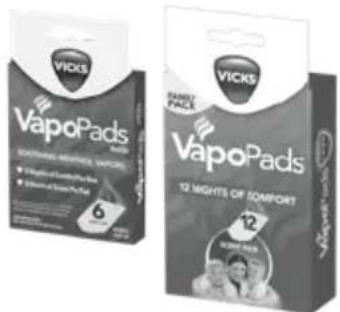

Accessories Vicks VapoPads Vicks VapoPads are designed to work with your Steam Inhaler to provide soothing vapors to complement your steam therapy efforts. The Steam Inhaler accepts up to two Vicks VapoPads. Enjoy up to 8 hours of soothing comfort per pad. (One Menthol VapoPad Sample Included) Menthol scent: VSP-19 Series Accessories available at retailers and at www.VicksHumidifiers.com.Step 2 Using Your Personal Steam Inhaler Step 4

1. Fully unravel cord. Failure to do so could cause

overheating and possible fire hazard. DO NOT use with extension cords or power strip. Place Inhaler on a flat, stable surface for use.

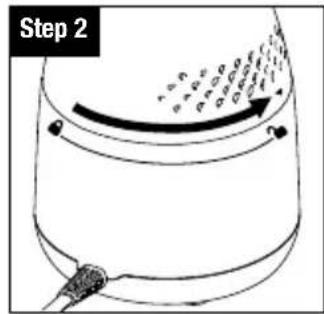

2. Unlock the Top Housing from the Base by twisting the

Top Housing counter clockwise. When fully unlocked, the arrow on the Top Housing will align with the unlock symbol on the Base. Lift the Top Housing straight up and set aside.

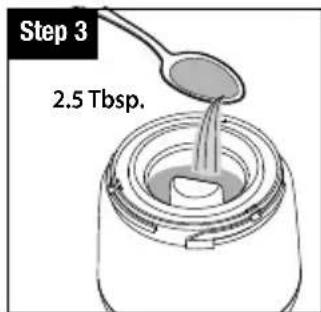

3. Fill Water Reservoir with up to 2.5 tablespoons (40 mL)

of cool tap water. DO NOT fill above Heating Element. Use with water only. DO NOT add any essential oils, medication or inhalant liquids such as Vicks VapoSteam or Kaz Inhalant, to the Water Reservoir. An unsafe condition may result if anything is added to the water.

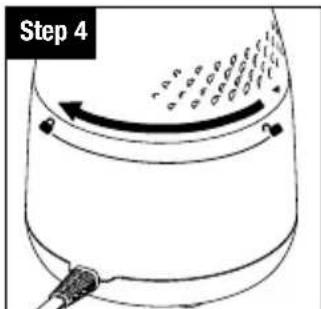

4. Place Top Housing on the Base and twist clockwise to

lock. When fully locked, you will feel a click and the arrow on the Top Housing will align with the lock symbol on Base.

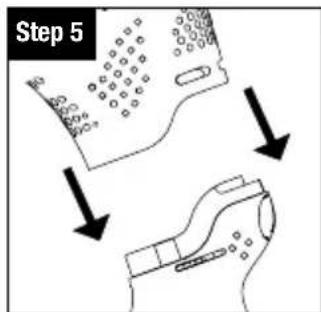

5. Place Mask on Top Housing and gently push down to

ensure Mask is secure. CAUTION: NEVER move, lift, shake or tilt the Inhaler while it is in use or while it contains hot water. DO NOT remove the Mask or Top Housing after turning ON the Inhaler. Steam is produced by boiling water; tilting or shaking unit can cause water to spill and possible burns. CAUTION: DO NOT block any vents.

6. Connect cord to electrical outlet. DO NOT use with

extension cord or power strip. Press the On/Off Switch to the ON position. The Indicator Light will illuminate.

7. The Steam Inhaler will take approximately 6 minutes

to begin making steam. Use caution, the Water Reservoir and water will become hot.

8. Place your face over the Mask. DO NOT rest your face

on the Mask. Breathe normally through your nose and mouth, inhaling steam into your nasal and throat passages. Continue treatment for five to fifteen minutes. Step 32.5 Tbsp. Step 8 Step 5

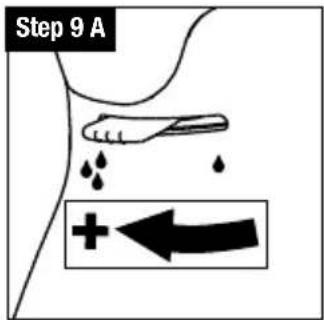

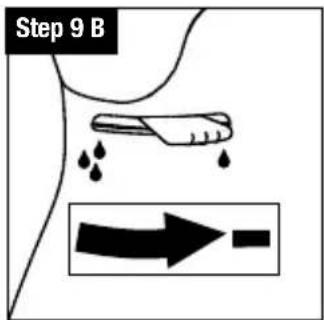

49. Adjusting steam intensity:

A. For More Steam: Move the Steam Disk Control clockwise for maximum steam. B. For Less Steam: Move the Steam Disk Control counterclockwise for minimum steam. If at any time the treatment becomes too intense, stop treatment immediately.

10. When treatment is complete, move Power Switch to the

OFF position. The Indicator Light will go out. Disconnect plug from electrical outlet. Allow the appliance to cool for at least 20 minutes before moving or refilling it (see Care and Cleaning section). DO NOT operate Steam Inhaler when empty. NOTE: Steam Inhaler will automatically shut-off when water runs out. If this happens, move Power Switch to OFF position and unplug unit. Step 9 A Step 9 B

Your Vicks Steam Inhaler can be used with Vicks VapoPads, to provide up to 8 hours of soothing vapors. One free sample of the menthol VapoPad is included with your device. To use your unit with scent pads, ensure that the unit is OFF and follow these instructions:

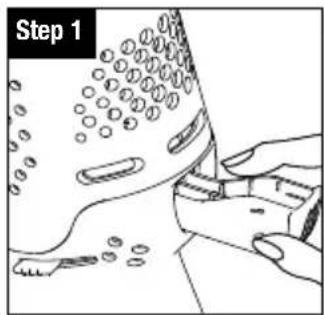

1. Gently slide out the VapoPad Tray from the back of the

Top Housing. Note: Only slide Tray out. DO NOT attempt to detach the Tray from the Top Housing.

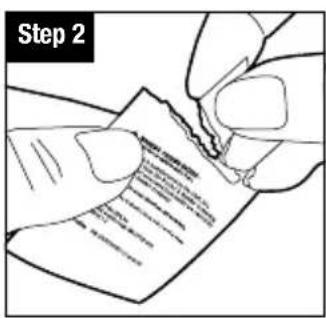

2. Open VapoPad sachet by tearing notch on pad bag.

DO NOT touch pad with hands. If pad is touched, DO NOT rub face or eyes as it may cause irritation.

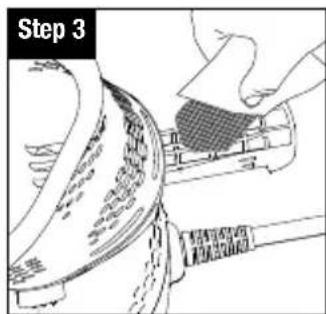

3. Insert Vicks VapoPad with angled end at the front of the

tray. Up to two scent pads can be inserted, one in each slot of the VapoPad Tray. Push VapoPad Tray in to close.

4. When the VapoPad is dried and no longer providing

scent, discard. NOTE: DO NOT operate Steam Inhaler if VapoPad Tray is missing or not secured. This Steam Inhaler (with or without Vicks VapoPads) is not recommended for use by children. Using Vicks VapoPads Step 2 Step 1 Step 3VapoPads Precautions:

• Not recommended for infants under 10 lbs (4.5 kg).

• For children between 10-22 lbs (4.5-10 kg ) do not use more than 2 pads in a 24 hour period. Scent Pad Ingredients: VSP-19 Series: Eucalyptus Oil, Menthol, Glycol, Cedar Leaf Oil & Others. Care and Cleaning CAUTION: ALWAYS disconnect the plug from the electrical outlet and let the Steam Inhaler cool down for at least 20 minutes before cleaning. After Each Use

1. Remove Mask and Top Housing and wipe dry with a clean cloth or paper towel.

2. If any water is left in the Water Reservoir, pour water out and wipe Reservoir and

Base with a dry, clean cloth or paper towel. NEVER immerse the Base in water or any other liquid.

3. Replace Top Housing and Mask; store in a cool, dry place.

1. Remove Mask and Top Housing.

2. Pour 2.5 tablespoons (40mL) of undiluted distilled white vinegar into the Water

Reservoir and let sit for 10 minutes.

3. Empty the distilled white vinegar and rinse out Water Reservoir with fresh, clean

tap water. Use caution to not let water get into the electrical areas.

4. Dry the Water Reservoir and Base with a clean cloth or paper towel.

5. Wash Mask with mild soap and warm water then carefully rinse off all soap

with fresh, clean tap water. Dry with a clean cloth or paper towel.

6. Replace Top Housing and Mask. Store in a cool, dry place.

7. To clean the VapoPad Tray, wet the tip of a cotton swab and wipe slots.

NOTE: The Top Housing is dishwasher safe. It may be cleaned in the Top Rack of the dishwasher or by hand as noted in the instructions. DO NOT place in the bottom rack of dishwasher. DO NOT attempt to dissamble the Top Housing. The Heating Cup should NEVER be put in the dishwasher. Using Vicks VapoPads (continued)

Care and Cleaning (continued) After Long Periods of Non-Use If you haven’t used your Steam Inhaler for two weeks or longer, follow the Weekly Maintenance Instructions before the next use. Condition of Sale As a condition of sale, the purchaser assumes responsibility for the proper care and use of this appliance in accordance with our printed instructions. The purchaser or user must judge for himself or herself when to use it and length of use. Specifications Electrical rating: 120V, 60 Hz. Consumer Relations For questions, technical support or to order replacement parts, contact Consumer Relations. Call us toll-free at: 1-800-VAPOR-1-2 (1-800-827-6712) Or contact us at: www.VicksHumidifiers.com/contact-us In Canada: ConsumerRelations@HelenofTroy.com Or visit our website at: www.VicksHumidifiers.com Please be sure to specify Model Number VIH200.A.

1 Year Limited Warranty Read all Instructions before attempting to use this product. This 1 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual. This warranty does not cover the filters, pre-filters, UV bulbs or other accessories (if included) except for material or workmanship defects. Call us toll-free at 1-800-VAPOR-1-2 (1-800-827-6712) or e-mail: www.VicksHumidifiers.com/contact-us In Canada: ConsumerRelations@HelenofTroy.com Please be sure to specify Model Number VIH200. NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE PRODUCT TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE BASE. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.
