USER MANUAL MD 11780 MEDION

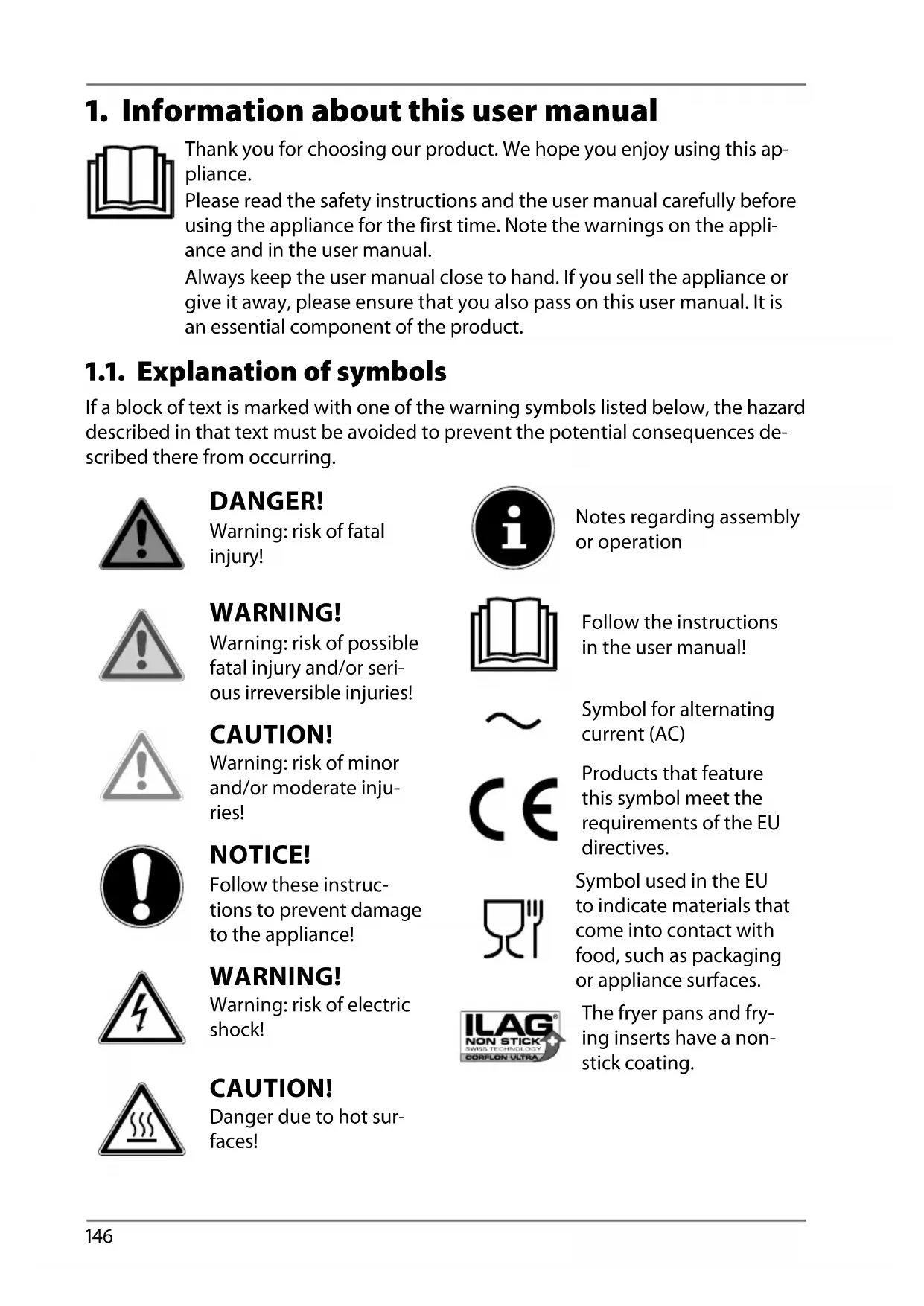

. Information about this user manual Thank you for choosing our product. We hope you enjoy using this ap- pliance. Please read the safety instructions and the user manual carefully before using the appliance for the first time. Note the warnings on the appli- ance and in the user manual. Always keep the user manual close to hand. If you sell the appliance or give it away, please ensure that you also pass on this user manual. It is an essential component of the product. .. Explanation of symbols If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences de- scribed there from occurring. DANGER!

Warning: risk of fatal

Warning: risk of possible

fatal injury and/or seri- ous irreversible injuries! CAUTION!

Warning: risk of minor

and/or moderate inju- ries! NOTICE! Follow these instruc- tions to prevent damage to the appliance! WARNING!

Warning: risk of electric

shock! CAUTION! Danger due to hot sur- faces! Notes regarding assembly or operation Follow the instructions in the user manual! Symbol for alternating current (AC) Products that feature this symbol meet the requirements of the EU directives. Symbol used in the EU to indicate materials that come into contact with food, such as packaging or appliance surfaces. The fryer pans and fry- ing inserts have a non- stick coating.147

. Proper use This appliance is suitable for baking, cooking and grilling food such as vegetables, chips and potato wedges (home made or oven-ready), as well as for the preparation of fish, meat and poultry. This appliance is designed for use in private households and similar household applications, such as – in shops, offices and other similar working environments – in agricultural holdings – by customers in hotels, motels and other accommodation facilities – in bed-and-breakfast establishments. The appliance is only intended for private use and not for indus- trial/commercial use. Please note that we shall not be liable in cases of improper use: Do not modify the appliance without our consent and do not use any accessories that we have not approved or supplied. Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.148 . Safety instructions

IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE! Keep the appliance and its accessories out of the reach of chil- dren. This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those with limited experience and/or knowledge, pro- vided that they are supervised or have been instructed in the safe use of the appliance and have understood the associated risks. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised. Children younger than 8 should be kept away from the appli- ance and the connection cable. WARNING! Risk of electric shock/short circuit! There is a risk of electric shock/short circuit from live parts. Only connect the appliance to a properly installed and easily accessible socket that is close to where you are using the ap- pliance. The local mains voltage must match the voltage stat- ed in the technical specifications for the appliance. The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary. Always hold the plug to pull it out, and never pull the cable. Do not allow the mains cable to come into contact with hot objects or surfaces (e.g. cooker hob). Check the appliance and the mains cable for damage before using the appliance for the first time and after each use.149

Do not use if the appliance or the mains cable is visibly dam- aged or if the appliance has been dropped. Contact our Service Centre without delay if the appliance has been damaged during transport. Do not, under any circumstances, make any unauthorised modifications to the appliance or try to open and/or repair a component yourself. Never open the housing or slide objects into the ventilation slots. If there is damage to the mains connection cable on this ap- pliance, it must be replaced by the manufacturer, its customer service department or another suitably qualified person. This is necessary to avoid hazards. Completely unwind the mains cable. Do not kink or crush the mains cable. Unplug the appliance from the socket if: – when you are cleaning or maintaining the appliance – when you are assembling or disassembling the appliance – the appliance is damp or wet – if you are no longer using the appliance – when the appliance is unattended – during thunderstorms. Do not immerse the appliance in water or other liquids, or hold it under running water or use it in damp environments, as this may result in an electric shock. Do not allow the appliance to come into contact with water or other liquids. Keep the appliance, the mains cable and the mains plug away from wash basins, sinks or similar. Do not place any objects filled with liquid (e.g. vases or drinks) on or near the appliance. Do not operate the appliance on wet surfaces. Never touch the appliance or the mains cable/mains plug with damp or wet hands.150 Use the appliance indoors only. Do not expose the appliance to extreme conditions. Avoid: – high humidity or wet conditions – extremely high or low temperatures – direct sunlight – naked flames. .. Initial operation and use WARNING! Risk of fire! Hot surfaces pose a risk of fire. To avoid hazards resulting from an unintentional reset of the safety temperature limiter, the appliance must not be sup- plied via an external contactor such as a timer or connected to an electrical circuit that is regularly switched on and off via a device. Place the appliance on a heat-resistant, dry and level surface. Do not place the appliance on surfaces that can become hot (e.g. on hotplates, naked flames). Ensure that the appliance does not come into contact with any other objects during use. Maintain a distance of at least 10cm from other objects. Above all, do not set up the appli- ance near easily flammable materials (curtains, drapes, paper etc.). Do not operate the appliance beneath wall cupboards or oth- er objects that could hinder the free upwards flow of steam. Do not cover the appliance. Do not place any objects on the appliance. Never leave the appliance unattended while it is in use. Never use the appliance near explosive and/or highly flamma- ble steam. Always place the hot fryer pan on a heat-resistant surface.151

Do not fill the fryer pan with fat or oil as you would with a conventional fryer. Add only the appropriate small amount of cooking oil to the food, depending on the recipe. Do not overfill the fryer pan. Ensure that the food does not touch the heating elements inside the appliance when the appliance is in use. Only fill the fryer pan up to the MAX mark- ing. Do not place foods wrapped in cling film, plastic wrap or oth- er flammable materials into the fryer pan. If the appliance starts to give off dark smoke, pull the mains plug out of the socket immediately. Wait until the appliance has stopped smoking before removing the fryer pan from the appliance. In case of fire, disconnect the appliance from the power supply first. Do not use water to extinguish the fire. Use a fire blanket or a suitable fire extinguisher to extinguish the flames. WARNING! Risk of injury! There is a risk of injury due to burning on hot surfaces. The touchable surfaces on the appliance and accesso- ries may become hot during operation. As the ventilation grille on the side of the appliance becomes hot during operation, do not touch the ventilation grille when the appliance is in use in order to prevent burns. During operation, touch the appliance only by the handle and control elements! Do not touch the frying chamber, the fryer pan or the heating elements. Do not move the appliance while it is in use. Do not move the appliance while it is hot, instead allow the appliance to cool down completely first.152 Risk of burns from steam escaping when you remove the fryer pan during or after food preparation. Do not position your head directly above the appliance and do not touch the steam. Place the fryer pan on a heat-resistant surface. The fryer pan becomes extremely hot when the appliance is in use. Do not touch. Use oven gloves. The heating elements remain hot for some time after the appliance is switched off. Make sure that no one touches the frying chamber. CAUTION! Risk of injury! There is a risk of scalding from rising steam. Hot steam rises when the water boils. Do not reach into the steam. CAUTION! Risk to health! Baking, cooking or grilling at excessive temperatures may produce substances harmful to health. Acrylamide, which forms in charred or burnt food residues, can cause cancer. Remove burnt residues from the food. Do not brown the food excessively when baking or grilling. NOTICE! Risk of damage! Chemical additives in furniture coatings may corrode the material of the appliance feet and cause residue on the furniture surface. Place the appliance on a heat-resistant surface if necessary.153

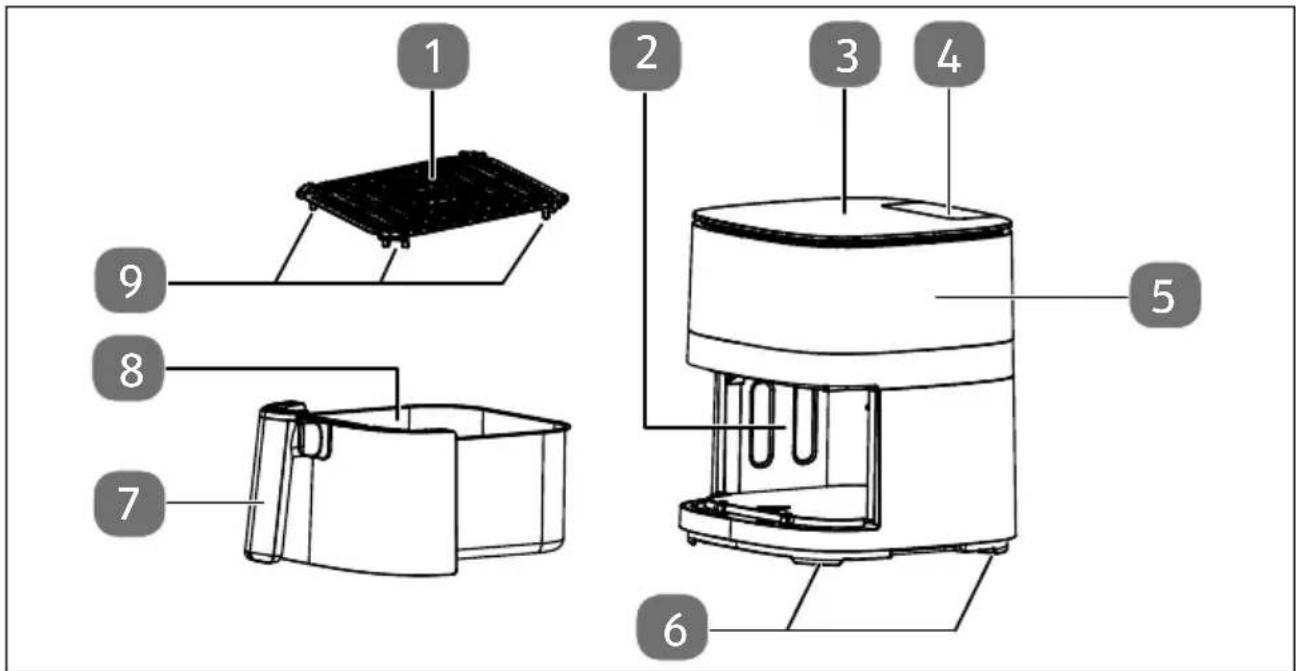

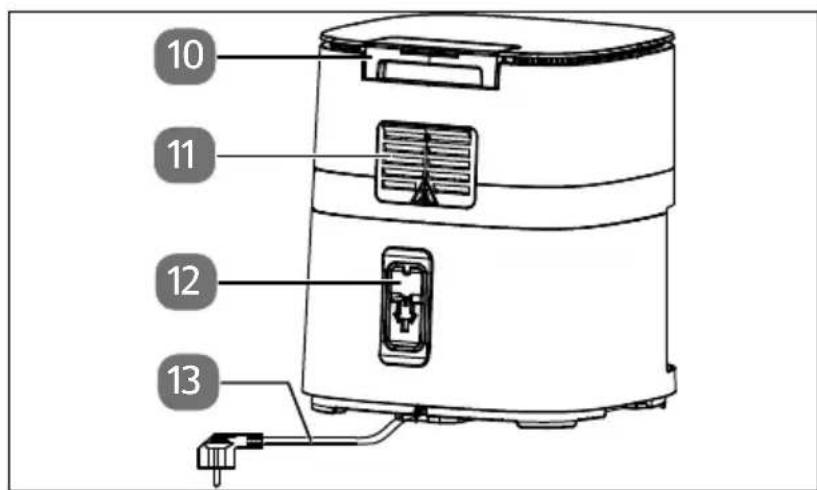

.. Cleaning Follow the additional instructions for cleaning and clean sur- faces that come into contact with food as described in the “9. Cleaning the air fryer” on page163 section. . Description of components

4. Water tank for steam spray function

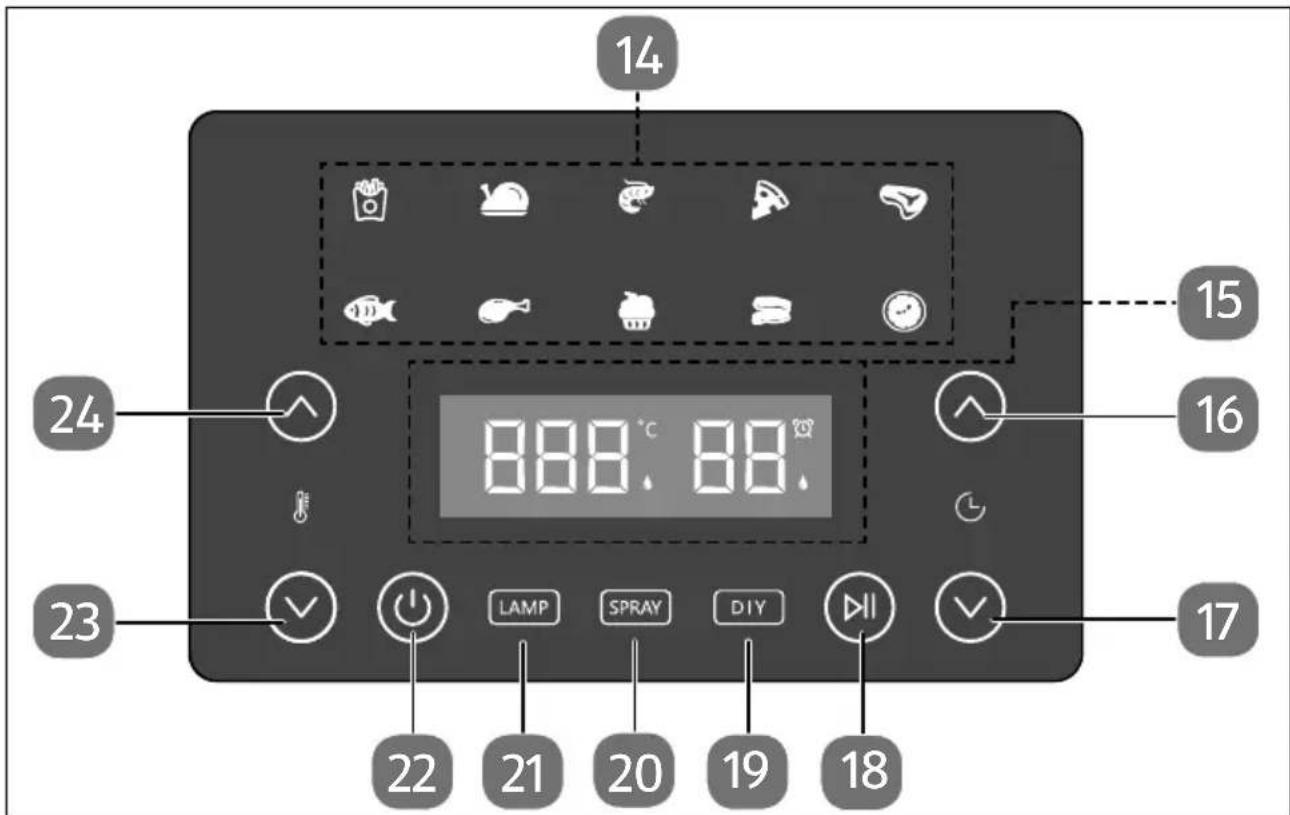

15. Display for temperature/cooking time

16. Extend cooking time

17. Decrease cooking time

18. Start/pause the heating process

19. Button for manual operation (on/off)

20. Button for steam spray function (on/off)155

21. Button for lighting the frying chamber (on/off)

. Package contents DANGER! Risk of injury! There is a risk of choking and suffocation due to swal- lowing or inhaling small parts or plastic wrap. Keep all packaging materials used (bag, pieces of polystyrene etc.) out of the reach of children. Do not let children play with the packaging material. Please check the package contents to ensure that all items are included and in perfect condition. If anything is missing or damaged, contact us within 14 days of purchase. The following items are supplied with your product:

• Short manual . Preparing the air fryer Remove all packaging, stickers and plastic wrap from the appliance. Place the appliance on a heat-resistant, dry and level surface. Use the fryer pan handle (7) to pull the fryer pan (8) out of the appliance. Remove the grille (1) from the fryer pan. Rinse the fryer pan and the grille with hot water. Dry both parts thoroughly. Replace the grille in the fryer pan. Make sure that the spacer feet of the grille (8) are pointing downwards. Wipe the housing (4) using a damp cloth. Remove the water tank (3) for the steam spray function and fill it with water up to the marking. Only connect the air fryer to a properly installed, earthed and fused socket. The local mains voltage must match the voltage stated in the technical specifications for the appliance. The air fryer emits an acoustic signal; all buttons and symbols light up briefly. The on/off button lights up red continuously.156 When using the appliance for the first time, odour or smoke may devel- op due to manufacturing residues. However, this is not dangerous and will quickly disappear. Allow the appliance to run at its highest tempera- ture setting for approx. 30 minutes before first use. . Information regarding preparation Distribute the food evenly in the fryer pan (8). Only fill the fryer pan up to the MAX marking. Fig. 4 Fig. 5 To achieve optimal cooking results, shake the fryer pan (8) (Fig. 4) or turn the food (Fig. 5) during the cooking time, especially when food is overlapping. Check the food regularly throughout the cooking time to avoid burning the food. At the end of the cooking time, remove the food immediately to avoid burning the food. When preparing fresh potatoes or fresh vegetables, use a small amount of cook- ing oil to make the food more crispy. Use a cooking temperature 10°C lower than specified for conventional fan oven dishes. When preparing ready meals, observe the manufacturer’s preparation instruc- tions.157

. Operating the air fryer WARNING! Risk of fire! Cooking oil and other liquids can catch fire as a result of the high temperatures of the hot air. Do not fill the fryer pan (8) with fat or oil as you would with a conventional fryer. Add only the ap- propriate small amount of cooking oil to the food, depending on the recipe. Do not overfill the fryer pan. Only fill the fryer pan up to the MAX marking. WARNING! Risk of injury! There is a risk of injury due to burning on hot surfaces. The touchable surfaces on the appliance and accesso- ries may become hot during operation. Use oven gloves. CAUTION! Risk of injury! With the steam spray function, there is a risk of scalding from rising steam when the appliance is opened Do not pull the fryer pan (8) out of the appliance while the steam spray function is spraying water. Do not reach into the steam. Do not look into the fryer pan from above when you pull it out of the appliance. Use the fryer pan handle (7) to pull the fryer pan (8) out of the appliance. Fill the fryer pan with the food. For more information on the recommended fill levels, see the tables in section “8.2. Setting an automatic programme” on page158 and “8.5. Recommended settings” on page161. Hold the fryer pan firmly by the fryer pan handle and push it from the front so that it is completely inside the appliance until it clicks into place.158 .. Preheating the air fryer To ensure that food is cooked to perfection, heat up the air fryer for at least 3 min- utes before cooking. Press the on/off button (22) to switch on the appliance. Use the (23) and (24) buttons to set the cooking temperature you require in 5°C increments. The display field (15) shows the temperature in °C. Use the (17) or (16) buttons to set the cooking time to 3 minutes. The cooking time is displayed in the display field (15). Start the heating process by pressing the button. An acoustic signal sounds. When the cooking time has elapsed, several acoustic signals sound on the appli- ance. .. Setting an automatic programme With the automatic programmes, you can cook certain foods at a preset tempera- ture and cooking time. The following programmes are available: For optimal cooking results, shake the fryer pan or turn the food several times during cooking as needed. Symbol Auto- matic pro- gramme Recom- mend-

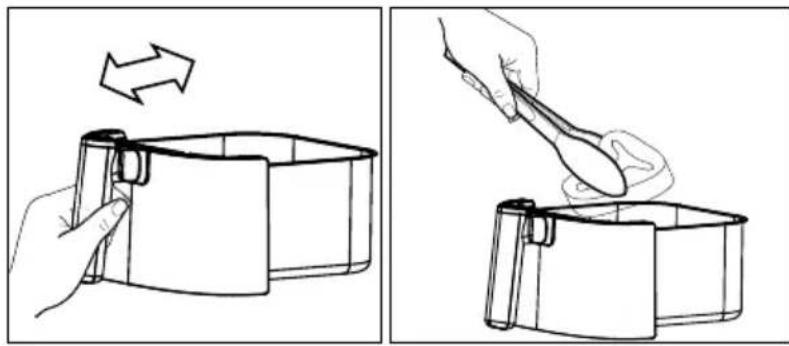

For optimal cooking results, shake the fryer pan or turn the food several times during cooking as needed. Symbol Auto- matic pro- gramme Recom- mend-

Steam spray function Note Steak (medi- um) 150 6 230 Every 2 minutes Preheat for 3 minutes Turn 1x Fish (e.g. salmon fillet, defrost- ed) 400 15 180 Every 5 minutes Preheat for 3 minutes Turn 1x Chicken thighs 800 20 200 Every 10 minutes Preheat for 3 minutes Turn 1x Small cakes 300 15 160 Not available Use baking tin Do not tilt/flip Bacon 150 4 180 Not available Preheat for 3 minutes Cookies 300 15 160 Not available Preheat for 3 minutes Do not tilt/flip Press the on/off button (22) to switch on the appliance. Press the corresponding automatic programme button (14) to set the automatic programme you require. The temperature and cooking time of the selected programme are displayed. Start the cooking process by pressing the button (18). The automatic programme symbol flashes during the cooking process. Halfway through the cooking time, acoustic signals sound and the programme symbols flash to remind you to redistribute the food (except for the , and automatic programme).160 After 5 minutes, if no buttons are pressed the appliance switches to standby mode. You can adjust the cooking time and cooking temperature at any time later (see “8.3. Individually setting cooking time and temperature”). To prevent heat losses, it is recommended that you do not start cooking until the fryer pan (8) is fully inserted. For a crispier taste experience, the steam spray function can be switched on as required in five programmes ( , , , and ) (“8.4. Us- ing the steam spray function” on page160). The function is switched off by default. Baking tins for baking in the air fryer are not supplied with the appli- ance. .. Individually setting cooking time and tempera- ture Press the on/off button (22) to switch on the air fryer. Press the button for manual operation (on/off) DIY (19). The default setting is a cooking time of 20 minutes and a temperature of 200°C. You can adapt an automatic programme or the default setting specified above to suit your recipe. Use the (23) and (24) buttons to set the cooking temperature you require in 5°C increments. The display field (15) shows the temperature in °C. Cooking temperatures of between 40°C and 230°C can be set. Use the (17) and (16) buttons to set the cooking time you require in min- ute increments. The cooking time is displayed in the display field (15). It is possible to set a maximum cooking time of 60 minutes. Start the cooking process by pressing the button (18). The button flashes and an acoustic signal sounds. The cooking process starts. .. Using the steam spray function The steam spray function ensures a crispier taste experience and can be switched on in five automatic programmes ( , , , and ) and with individual operation as required. If the steam spray function is available, the control element (19) is displayed.161

Press the button to switch the steam spray function on or off. When the air fryer is operated individually, water is sprayed into the frying chamber (2) once for a short time. When used during automatic programmes, water is sprayed into the cooking com- partment several times. The corresponding time programming can be found in the table in the section “8.2. Setting an automatic programme” on page158. When the water tank (4) is empty, an acoustic signal sounds on the ap- pliance as soon as is pressed. Remove the water tank and fill it with water up to the marking. .. Recommended settings The quantities or numbers of pieces in the table below represent the minimum and maximum quantity. Refer to the table for the corresponding settings for the respective food. The settings may vary by volume, by the food itself or by your own wish- es and taste. Also observe the preparation instructions from the respec- tive food manufacturers. For optimal cooking results, shake the fryer pan or turn the food several times during cooking as needed. Food Minimum weight (g) Dura- tion de- pend- ing on weight (min.) Temp. (°C) Note Maximum weight (g) Thin-cut frozen chips 300–700 12–16 200 Preheat for 3 minutes Shake 3–4x Thick-cut frozen chips 300–700 20–25 200 Preheat for 3 minutes Shake 3–4x Home-made potato wedges 300–800 18–25 180 Preheat for 3 minutes Add 1/2 tablespoon of oil Shake 3–4x Beef steak 100–500 8–12 180 Preheat for 3 minutes Turn 1x Pork chop 100–500 10–14 180 Preheat for 3 minutes Turn 1x162 For optimal cooking results, shake the fryer pan or turn the food several times during cooking as needed. Food Minimum weight (g) Dura- tion de- pend- ing on weight (min.) Temp. (°C) Note Maximum weight (g) Hamburgers 100–500 7–14 180 Preheat for 3 minutes Turn 1x Spring rolls 100–400 8–10 200 Preheat for 3 minutes Turn 1x Chicken nuggets 100–500 6–10 200 Preheat for 3 minutes Shake 1x Vegetables (e.g. peppers, mush- rooms, courgettes, potatoes) 100–400 8–10 160 Preheat for 3 minutes Add 1/2 tbsp cooking oil Cut into 2.5 cm sized pieces Cut pieces of potato into smaller pieces Shake 1x .. Interrupting a programme You can interrupt the cooking process to check the cooking progress or to redistrib- ute the food. Press the button to interrupt the cooking process. The button stops flashing and an acoustic signal sounds. Pull out the fryer pan (8) to check cooking progress or to redistribute the food. Place the fryer drawer fully back into the appliance. Press the button again to continue the cooking process. The time then continues automatically.163

.. Ending the programme At the end of the cooking time, the heating element switches off and acoustic sig- nals sound. The fan runs for another approx. one minute. If you want to cancel the cooking process completely, press the on/off button until the appliance switches off. Pull the mains plug (13) out of the mains socket. Use the fryer pan handle (7) to pull the fryer pan (8) out of the appliance. Place the fryer pan on a heat-resistant surface. Remove the food from the fryer pan. . Cleaning the air fryer WARNING! Risk of electric shock! There is a risk of electric shock due to live parts. Always disconnect the mains plug (13) before clean- ing. Never immerse the appliance in water or other liq- uids. If the appliance does fall into liquid, under no circumstances should you attempt to touch it. First, unplug from the mains socket. Do not operate the appliance again under any cir- cumstances. Have the appliance checked by the manufacturer, its customer services department or a similarly qualified person. WARNING! Risk of injury! Hot surfaces pose a risk of injury from burning. Allow the appliance to cool down for at least 30 min- utes before cleaning. Remove the fryer pan (8) to en- able the appliance to cool down more quickly. Place the fryer pan on a heat-resistant surface.164 NOTICE! Possibility of damage to the appliance! There is a risk of damage to the appliance if it is used improperly. Never use acidic, abrasive or granular, acetic-acid-, soda- or solvent-based cleaning agents. These may damage the appliance surfaces or the printing on it. Do not clean the air fryer in the dishwasher. Clean the fryer pan (8) and the grille (1) using a sponge and a small amount of mild soap solution. Rinse all the parts carefully with clean water and then dry them carefully. The fryer pan and grille are dishwasher safe. However, we recommend rinsing by hand as described above for more gentle cleaning. Clean the frying chamber (2) using warm water and a damp sponge. If the heating elements are dirty, use a washing-up brush. Carefully remove the food residue. Remove the water tank for the steam spray function (4) from the appliance. Empty any remaining water and then dry the water tank carefully. A soft, slightly damp cloth is suitable for cleaning the control panel (3) and outer surfaces of the appliance. . Prolonged non-use and transport If you are not going to use the appliance for an extended period of time, unplug the mains plug (12), clean the appliance and store the appliance in a dry, dust- free and frost-free environment that is not exposed to direct sunlight. To avoid damaging the product during transport, we recommend that you use the original packaging. . Troubleshooting The product left our warehouse in perfect condition. If you do, however, discover a problem, see if you can solve it by using the solutions offered in the following table. If you do not succeed, contact our customer service team.165

Problem Possible cause Troubleshooting The appliance is not working. The mains plug (13) is not plugged into a mains socket. Only connect the appli- ance to a properly installed power socket. Incomplete entry. Start the cooking process by pressing the button (see section “8. Operating the air fryer”). The food is not cooked. The fill level is too high. Only fill the fryer pan (9) up to the MAX marking. The cooking temperature is too low. Press the button (24) to increase the cooking tem- perature. The cooking time is too short. Press the button (16) to extend the cooking time. Acoustic signals sound when the steam spray func- tion is used. The water tank (4) is emp- ty. Remove the water tank (4) and fill it with water up to the marking. The food is not evenly cooked. The pieces of food are too close together. Many foods need to be shaken/turned several times during the cooking time. Fill the fryer pan (8) with small pieces of food. Smaller pieces cook more evenly. The fried foods are not crisp enough. The food is unsuitable for cooking in the air fryer. Use oven-ready or lightly oiled snacks for crispier results. The appliance cannot be closed. The fryer pan (8) is too full. Only fill the fryer pan (9) up to the MAX marking.166 Problem Possible cause Troubleshooting White smoke comes out of the appliance. The food is very fatty. During preparation, fat from these extremely greasy foods drips onto the base of the fryer pan (8). The fat causes a higher temperature than usual to develop in the fryer pan – this does not impair the appliance or the cooking result. The fryer pan (8) and the grille (1) still have fat res- idues from the previous cooking process. Fat residue is burning. Clean the fryer pan (8) and the grille (1) after each use. Fresh chips are not evenly fried. The chips have not been sufficiently soaked. Place the chips in cold wa- ter for around 30 minutes to remove the starch. Dry the chips using kitchen paper before adding to the fryer pan. The variety of potato is unsuitable. Fresh chips do not go crisp. The potatoes are too moist. The crispiness is depend- ent on the water and starch content of the vari- ety of potato used and the quantity of oil. Dry the potatoes carefully and cover them with about 1 tablespoon of cooking oil. Cut the potatoes into smaller pieces.

. Disposal PACKAGING Your appliance has been packaged to protect it from dam- age in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner. Observe the following labels on the labels on the packaging materials regarding waste separation with the abbreviations (a) and numbers (b): –: plastics/– : paper and cardboard/–: composite materials : paper and cardboard/–: composite materials (France only) The “Triman” symbol tells the consumer that the product can be recy- cled, is covered by an extended system of manufacturer’s responsibility and must be sorted by material type in France. APPLIANCE All old appliances marked with the symbol shown must not be disposed of in normal household waste. In accordance with Directive //EU, these appliances must be dis- posed of correctly at the end of their service life. This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and nega- tive effects on human health. Take old appliances to a collection point for electrical scrap or a recy- cling centre. Contact your local waste disposal company or your local authority for more information on this subject. . Spare parts Please visit our MEDIONserviceshop at https://www.medon.com/medonservceshop to order any spare parts you need. You will be able to find out all the details about your specific product while you’re there.168 . Technical specifi cations Supplier’s address: MEDION AG Am Zehnthof 77 45307 Essen GERMANY Model identifier: MD 11780 Power supply: 220–240V , 50-60 Hz Output: 1500 W Useful capacity of fryer pan: 5litres Water tank capacity: 80 ml Temperature control: 40–230°C Max. cooking time: 60 minutes Dimensions (W × H × D), incl. fryer pan handle Approx. 36.5 x 27 x 31.0 cm . EU declaration of conformity MEDION AG hereby declares that the product conforms to the following requirements of the European Union:

• Ecodesign Directive 2009/125/EC

. Service information Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at communty.medon.com.

• Alternatively, use our contact form at www.medon.com/contact.

• You can also contact our Service team via our hotline or by post. Opening times Hotline number UK Mon – Fri: . – . Sat – Sun: . – .

Service address MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom You can download this and many other sets of operating instruc- tions from our service portal at www.medonservce.com. We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal. You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.170 . Legal Notice Copyright © 2024 Date: 15. February 2024 All rights reserved. These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always con- tact our Customer Service team first.FR Prodo o in Cina
