Product Type	5-Port 2.5G PoE+ Ethernet Switch
Brand	Intellinet
Model	561921
Number of Ports	5 RJ45 Ethernet ports (ports 1-4 PoE+)
Port Speed	10/100/1000/2500 Mbps (auto-negotiation)
Backplane Bandwidth	25 Gbps
Total PoE Budget	55 W
PoE Power per Port	Up to 30 W (ports 1-4)
Power Supply	100-240 V AC, 50/60 Hz
Installation	Plug and play, desktop or wall mount
LED Indicators	PWR (power), Link/Act (speed), PoE (PoE power), PoE/Max (power consumption)
Recommended Cables	Cat5e/6/6a/8.x UTP/STP
Maximum Cable Distance	100 m
Compliance	CE (2014/30/EU and 2014/35/EU)
Recycling	Do not dispose of with household waste (WEEE)

Frequently Asked Questions - 561921 Intellinet

How do I connect the Intellinet 561921 switch?

Plug the included power cord into the switch's power input, then into a wall outlet (100-240 V AC). Turn on the switch (position |). Connect your network devices to the Ethernet ports using Cat5e or higher cables. No configuration is needed thanks to plug and play mode.

What should I do if the PoE LED flashes?

A flashing PoE LED indicates abnormal power supply. Check that the connected device is PoE-compatible and does not exceed the maximum power of 30 W per port. If the problem persists, disconnect the device and test another port.

What is the maximum PoE power per port?

Each PoE port (ports 1 to 4) can provide up to 30 watts. However, the total switch power is limited to 55 watts across all ports.

Can I mount the switch on the wall?

Yes, the switch supports wall mounting. Place two screws (not included) into the wall at the spacing indicated on the housing, then hang the unit on the screws and slide it until it is secure.

Which cables should I use for optimal performance?

To achieve 2.5 Gbps speed, use Cat5e, Cat6, Cat6a, or Cat8.x UTP/STP cables. Lower quality cables may limit the speed.

How can I tell if a device is connected at 2.5 Gbps?

Observe the Link/Act LED: if it is lit green, the connection is at 2500 Mbps. If it is orange, the connection is at 100 or 1000 Mbps.

Is the switch compatible with non-PoE devices?

Yes, the PoE ports are backward compatible. You can connect non-PoE devices (computers, printers, etc.) without any issue. They will not receive power over the Ethernet cable.

What does the PoE/Max LED lit mean?

The PoE/Max LED lit indicates that the system has reached a total power output of 55 watts, the maximum. No other PoE device can be powered until the consumption drops.

What should I do if the power (PWR) LED does not light up?

Check that the power cord is properly connected to the switch and to a working electrical outlet. Ensure the switch is in the | (on) position. If the LED remains off, try another outlet or contact support.

How to maintain the switch?

To clean the switch, unplug it and use a soft, dry cloth. Avoid liquids and abrasive products. Ensure adequate ventilation (25 mm space around the device) and keep it away from sources of electrical interference.

USER MANUAL 561921 Intellinet

5-Port 2.5G Ethernet PoE+ Switch Instructions

Model 561921(IPS-05-2.5G-55W)

Important: Read before use. • Importante: Leer antes de usar.

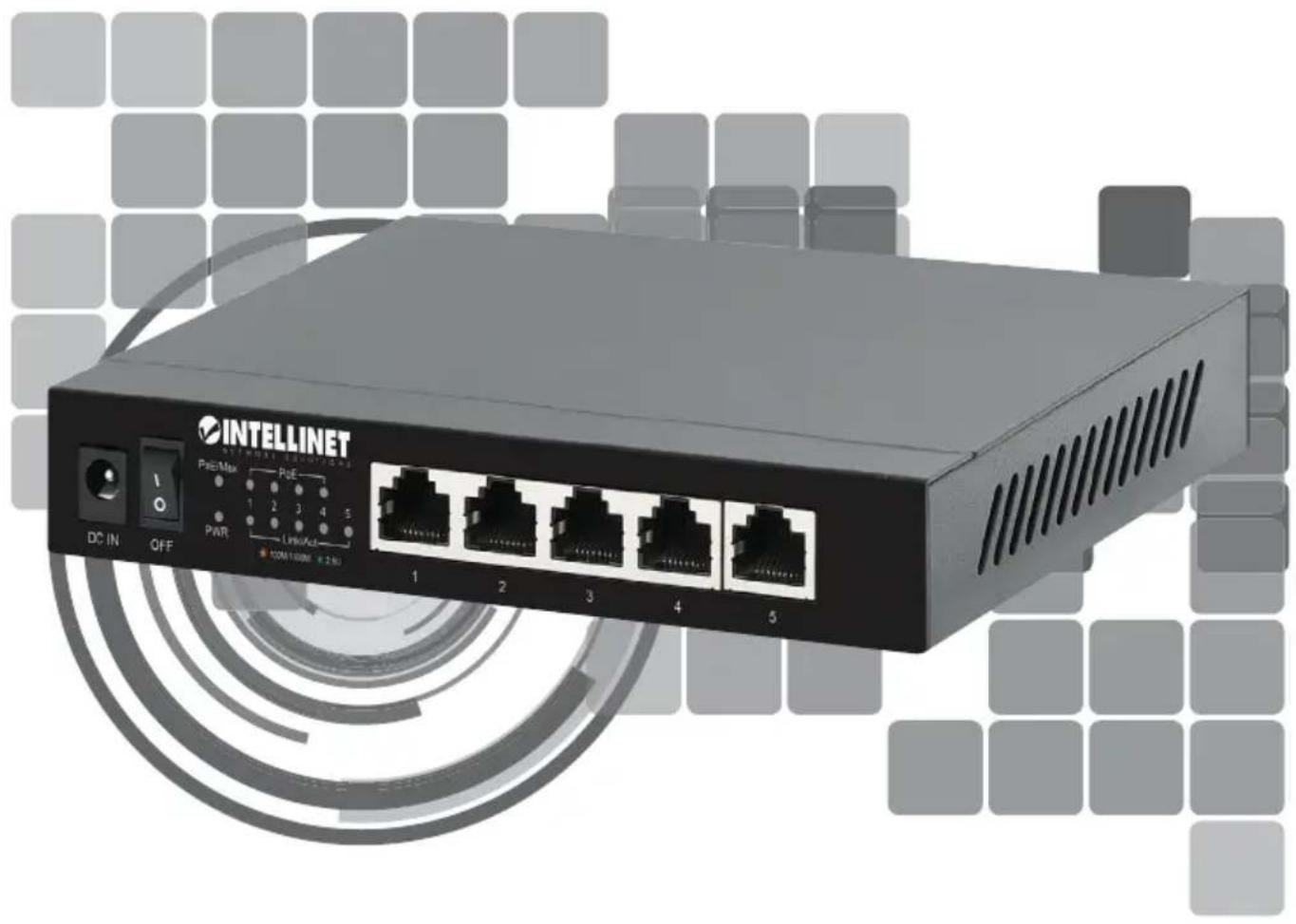

Exterior view of a INTELLINET network switch device with ports and control buttons (no readable text beyond branding)

INTELLINET®

NETWORK SOLUTIONS

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/561921

The Intellinet Network Solutions 5-Port 2.5G Ethernet PoE+ Switch offers an array of time-saving, cost-effective features while providing superior network throughput. No configuration is required and installation is plug and play. Thanks to its desktop design, superior performance and value, the switch is the perfect choice for your small office home or home network. With a backplane speed of 25 Gbps, plenty of performance is available for your computers, servers and other networking devices. Each of the ports automatically senses the link speed of the connected network device and adjusts to 10, 100, 1000 and 2500 Mbps for compatibility and maximum performance. Designed to give ample power to compatible devices that need them, this PoE+ switch offers up to 30 watts of power per port until its power budget of 55 watts is reached.

Features

• Provides up to four PoE network devices with power and data (ports 1 – 4)
• Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
  • PoE power budget of 55 watts
• Power output up to 30 watts on each PoE-capable port

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561921 or scan the QR code on the cover.

Placement

Desktop Installation

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch (and possibly other objects);
• with at least 25 mm (approx. 1") of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100 m (approx. 328') of network devices it's to be connected to.

Wall Mounting

First, install screws (not included) into the wall at appropriate distances.

Close-up of a ruler with two human figures on top, placed on a dark surface (no text or symbols visible)

Then, hang the unit on the screws and slide it into place so it is secure.

Two white downward arrows on a dark gray background, no text or symbols present.

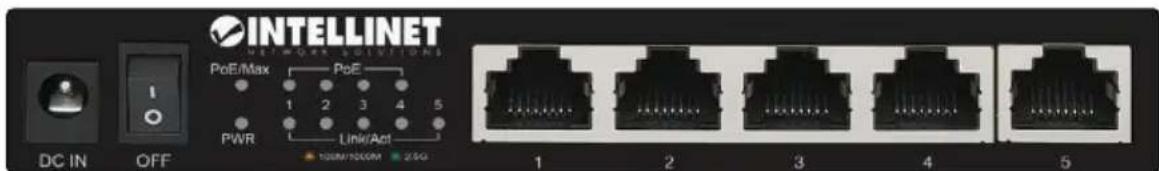

Front Panel

INTELLINET NETWORK SOLUTIONS PoE/Max PoE 1 2 3 4 5 PWR Link/Act DC IN OFF 100M/1000M 2.5G 1 2 3 4 5

LED COLOR STATUS STATUS DESCRIPTION
PWR Green	Off Power Off.
	On Power On.
Link/Act		Off No device is connected to the port.
	Orange On	A device is connected to the port at 100/1000 Mbps speeds.
	Green On	A device is connected to the port at 2500 Mbps speeds.
		Flashing Sending or receiving data.
PoE Green	Off	Port is not supplying power to a connected PoE device.
	On The connected device is receiving power.
	Flashing Abnormal power supply.
PoE/Max Green	Off	The system is using less than 50 W.
	On	The system has reached a total power output of 50 W. The PoE total is nearing its maximum level of 55 W.

Cat5e/6/6a/8.x UTP/STP cables provide optimal performance. If a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

Power

1 DC IN OFF 2

1 Use the included power cord to connect the device to an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.
2 Press | to turn the switch on; press O to turn it off.

Close-up of a ruler with two small figures on top, placed on a flat surface (no text or symbols visible)

Two white downward arrows on a dark background, no text or symbols present

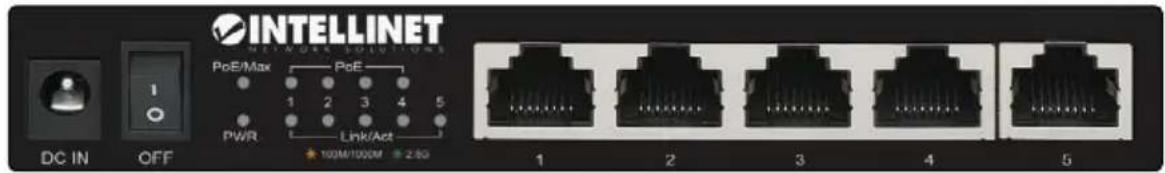

Frontblende

INTELLINET NETWORK SOLUTIONS PoE/Max PoE 1 2 3 4 5 PWR Link/Act DC IN OFF 100M/100M 2-5G 1 2 3 4 5

1 DC IN OFF 2

Close-up of a ruler with two small human figures on top (no visible text or markings)

Two white downward arrows on a dark background, no text or symbols present

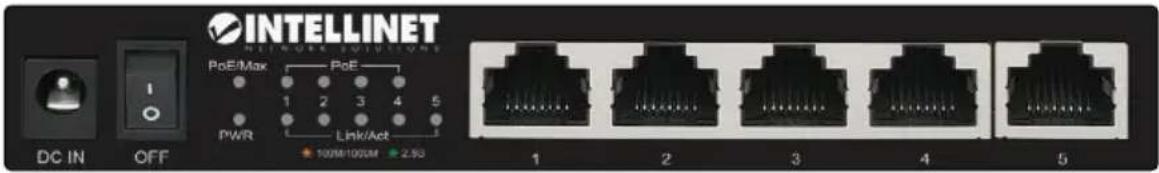

Panel frontal

INTELLINET NETWORK SOLUTIONS PoE/Max PoE 1 2 3 4 5 PWR Link/Act DC IN OFF 100M/1000M 2.93 1 2 3 4 5

1 DC IN OFF 2

Simple diagram showing two human figures aligned with a ruler on a gray background (no text or symbols)

Two white downward arrows on a dark background, no text or symbols present

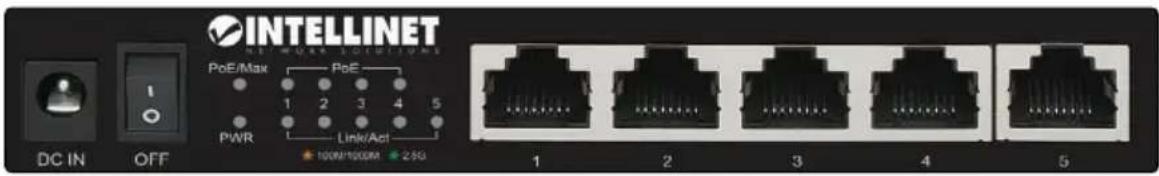

Panneau avant

INTELLINET NETWORKS SOLUTIONS PoE/Max PoE 1 2 3 4 5 PWR Link/Act DC IN OFF 100W/100G M - 2.9G 1 2 3 4 5

1 DC IN OFF 2

Close-up of a ruler with two small human figures on top, placed on a dark surface (no text or symbols visible)

Two white downward arrows on a dark background, no text or symbols present

Panel przedni

INTELLINET MINIUMER SOLUTIONS PoE/Max PoE 1 2 3 4 5 PWR Link/Aci DC IN OFF 100W/100G M 2.5G 1 2 3 4 5

1 DC IN OFF 2

Close-up of a metallic ruler with measurement markings (no visible text or symbols)

Two white downward arrows on a dark gray background, no text or symbols present.

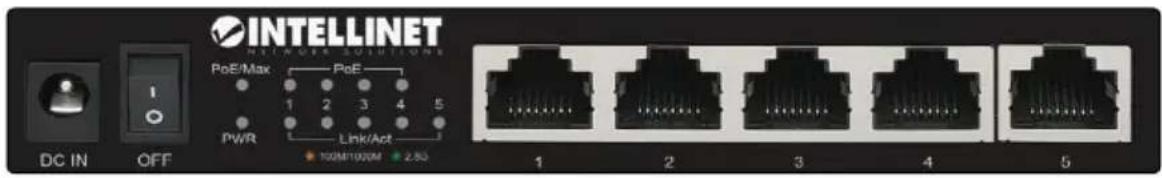

Pannello frontale

INTELLINET NETWORK SOLUTIONS PoE/Max PoE 1 2 3 4 5 PWR Link/Act DC IN OFF 100M/100M 2.5G 1 2 3 4 5

1 DC IN OFF 2
