USER MANUAL 562034 Intellinet

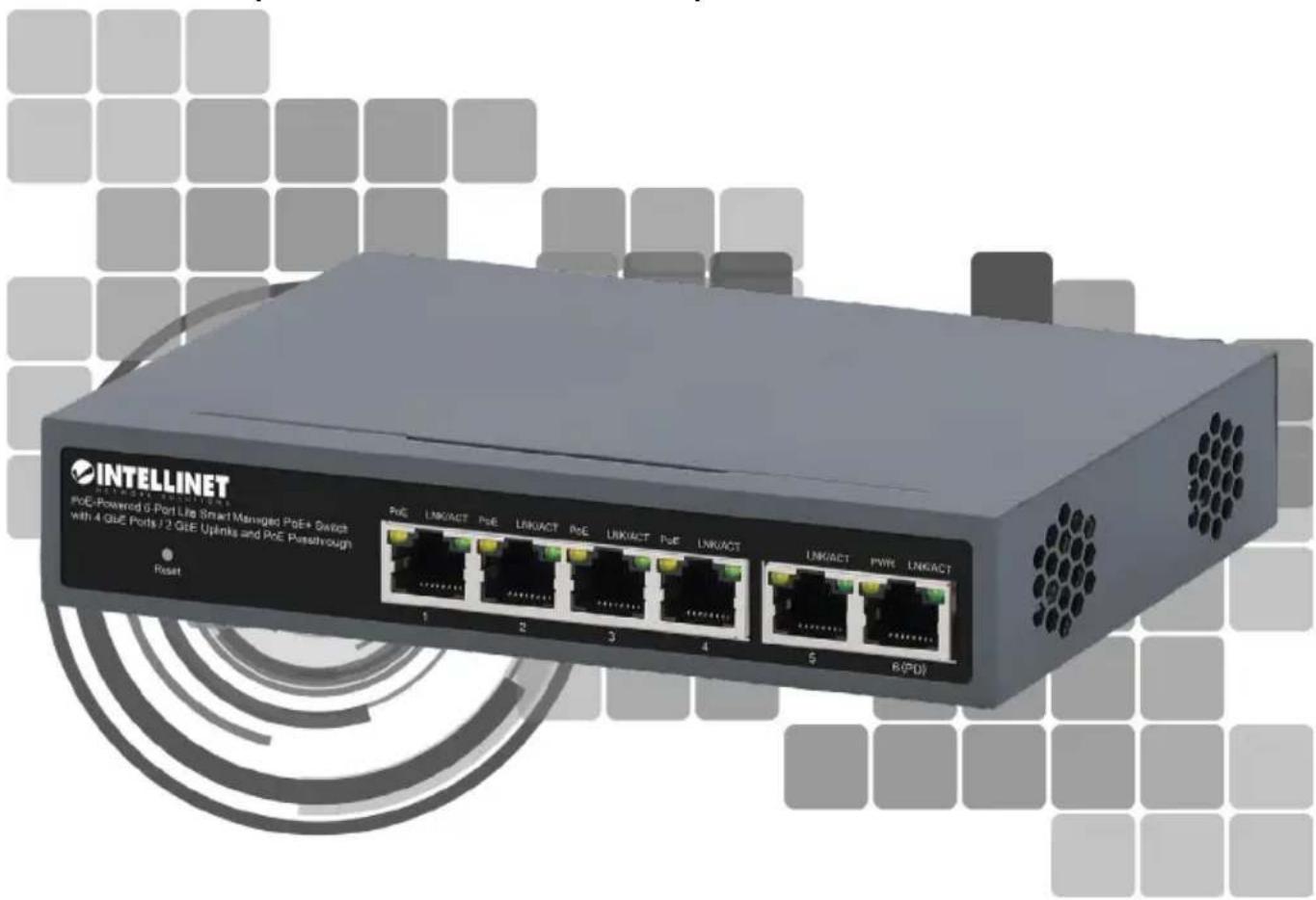

PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4

GbE Ports / 2 GbE Uplinks and PoE Passthrough Instructions

Model 562034 (IPS-6GM02-60W)

Important: Read before use. • Importante: Leer antes de usar.

INTELLINET PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough Reset PoE LINK/ACT PoE LINK/ACT PoE LINK/ACT PoE LINK/ACT Link/ACT PWR LINK/ACT 1 2 3 4 5 6(PD)

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/562034

For specifications, go to intellinet-network.com. Register your product at register.intellinet-network.com/r/562034 or scan the QR code on the cover.

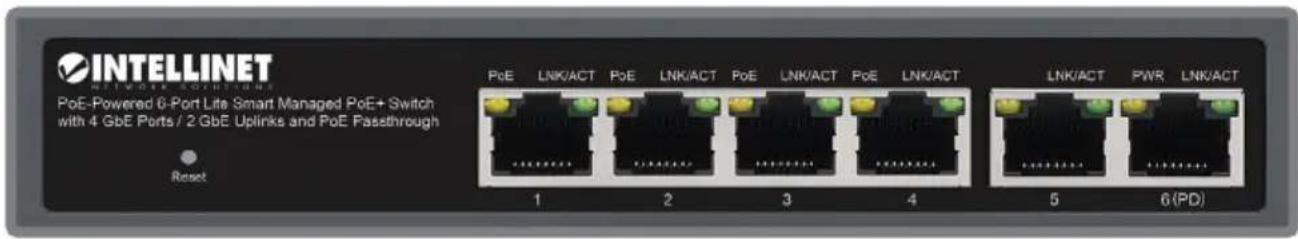

Front Panel

INTELLINET NETWORK SOLUTIONS PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough Reset PoE LNK/ACT PoE LNK/ACT PoE LNK/ACT PoE LNK/ACT 1 2 3 4 5 6 (PD)

This switch is equipped with six Gigabit ports; four are PoE-enabled and two are Gigabit uplink ports. Each of the four PSE ports (Ports 1-4) can provide up to 30 watts (with total capacity of up to 60W); non-PoE devices only receive data. The product is compliant with 802.3af and IEEE 802.3at standards and can be powered either by the included adapter or via PoE. Cat5e/6/6a UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

LED Color Status Status Description
PWR Orange		Off No power is supplied to the switch.
		On Power is supplied via the AC adapter or the PD port.
Link/Act	Green	Off No network link is established.
		On A network link has been established.
		Flashing	A network link has been established and data packets are being sent and received.
PoE Orange		Off Port is not supplying power to a connected PoE device.
		On Port is supplying power to a connected PoE device.
		Flashing Abnormal power supply

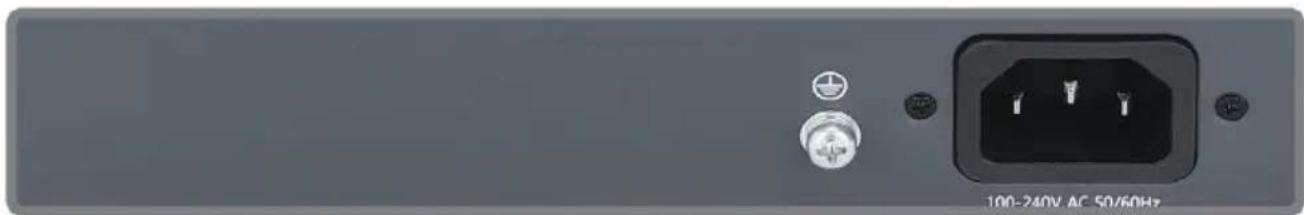

Rear Panel

Close-up of a black electronic device rear panel showing a power outlet, two connected ports, and a circular connector (no text or symbols visible)

Chassis Ground Column

Wire the grounding terminal to an earth grounding object to protect equipment from external electrical surges.

Power

Use the included power cord to connect the device to an AC outlet. Confirm that the PWR LED on the front panel is lit.

Placement & Setup

Desktop

Prior to use, it is recommended that the switch be placed/positioned: with a minimum of 25 mm (approx. 1") of clearance on the top and sides for adequate ventilation; away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.; within 100 m (approx. 328') of network devices it's to be connected to. Attach the rubber feet to the bottom of each corner of the switch to increase stability.

Wall Mounting

First, install screws (not included) into the wall at appropriate distances. Then, hang the unit on the screws and slide it into place so it is secure.

Simple diagram with circles and plus signs arranged in a rectangular layout (no text or symbols)

Setup

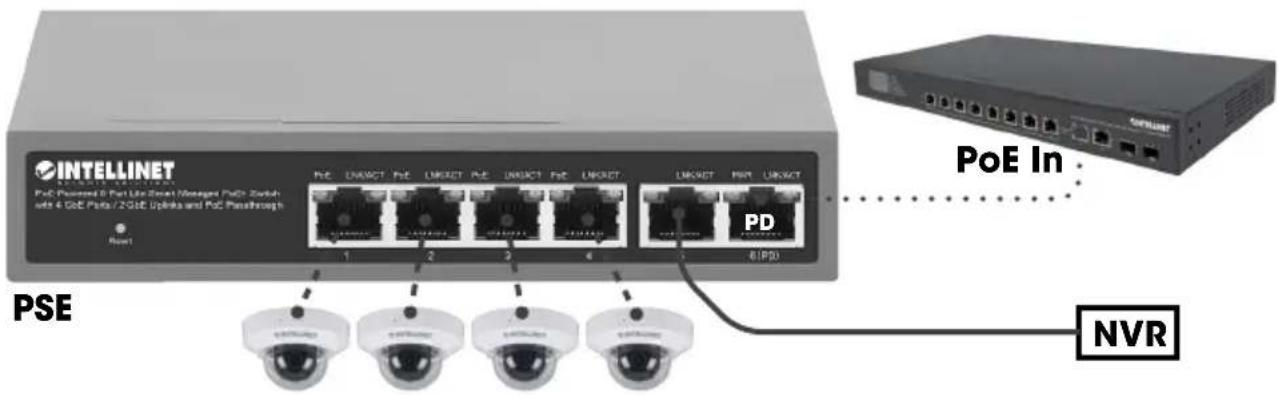

The switch can be powered via PoE (95W) or AC power:

• Connect Port 6 (PoE In / PD) to a PoE injector or PoE switch;
• Plug the included power cable into an AC outlet.

INTELLINET PoE Processed 6 Port Line-Select Manager PoE+ Switch with 4 PoE Puts/2 PoE Uptinks and PoE Pass-through PSE 1 2 3 4 5 6 8 (P20) PoE In : PD NVR

— = Ethernet Data
·s·s = PD (powered device) Power \& Data
- - - - = PSE (power sourcing equipment) Power & Data

Basic Web-Based Browser Management

1 Open your Web browser.
2 Enter http:// and the IP address of the switch in the Address field. The default management IP address is 192.168.2.1.
3 Press Enter to display the login screen. In the Username field, enter admin; in the Password field, enter the serial number on the bottom of the switch. Click OK.

Close-up of a black electronic device rear panel showing ports, connectors, and a central socket (no readable text or symbols)

Installation & Anschlüsse

Nutzungsumgebung

Simple diagram with four circles arranged in a V-shape, no text or symbols present

Anschlüsse

— = Nur Ethernet-Daten
·s·s = PD (Powered Device) Strom \& Daten
- - - - - - = PSE (Power Sourcing Equipment) Strom & Daten

Back panel of a device showing a power connector, switch, and socket (no text or symbols visible)

Simple diagram with four circles arranged around a rectangular frame, no text or symbols present.

Configuración

Back panel of a device showing a power connector and terminal socket (no text or symbols visible)

Simple diagram with four circles and a rectangular bar, no text or symbols present

Connexions

INTELLINET PoE Powered 6-Port Lite Smart Messaging PoE+ Switch with 4 GSE Ports / 2 GSE Updates and PoE PIesthrough PSE 1 2 3 4 PD 6 IPD PoE In : NVR

Close-up of a black electronic device rear panel showing a power connector, switch, and socket (no text or symbols visible)

Simple diagram with circles and plus signs arranged in a rectangular layout (no text or symbols)

Ustawiać

INTELLINET PoE Planned 6 Port Line Smart Manager PoE+ System with 4 GSE Ports: 2 GSE Sinks and PoE Pass-through PSE 1 2 3 4 6 IPD PD PoE In NVR

Back panel of a device showing an AC input port and two connected pins (no text or symbols visible)

Simple diagram with circles and plus signs arranged in a rectangular layout (no text or symbols)

Impostare

Disposal of Electric Equipment (applicable in the E.U. and other countries with separate collection systems)

ENGLISH: This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.
