Product Type	Unmanaged Network Switch
Model	Intellinet 561839
Number of Ports	5 RJ45 ports (4 PoE+ ports)
PoE Standard	IEEE 802.3at/af
Total PoE Budget	65 W (estimated)
Port Speed	10/100/1000 Mbps (Auto-Negotiation)
Auto MDI/MDI-X Function	Yes, on all ports
Supported Cables	Cat5e/6 UTP/STP (max 100 m)
Indicator LEDs	PWR, Link/ACT, Speed, PoE
Power Supply	48 V DC power adapter (included)
Power Consumption	Max 72 W (with PoE)
Dimensions (W x D x H)	Approximately 160 x 75 x 25 mm
Weight	Approximately 200 g
Housing Material	Metal
Ventilation	Passive (fanless)
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
Grounding	Chassis screw for ground cable
Maintenance	Clean with a soft, dry cloth; do not use chemical products
Recycling	Do not dispose of with household waste; take to a recycling center or return to the seller
Spare Parts	Power adapter available from the manufacturer
Safety	Use only in a dry indoor environment; disconnect before cleaning
Warranty	Refer to the manual for details

Frequently Asked Questions - 561839 Intellinet

How many PoE ports does the Intellinet 561839 switch have?

The switch has 4 PoE+ ports (ports 1 to 4) compatible with the IEEE 802.3at/af standard, allowing you to power devices such as IP cameras or access points.

What is the total power available for PoE devices?

The total PoE budget is approximately 65 W, which allows powering multiple devices depending on their individual consumption.

Can I use crossover or straight-through cables to connect devices?

Yes, all ports support the Auto MDI/MDI-X function, so you can use either straight-through or crossover UTP/STP cables.

How do I interpret the switch's indicator lights?

The green PWR LED indicates power. The yellow Link/ACT LED: solid on = link established; blinking = network activity. The green Speed LED: on = 1000 Mbps; off = 10/100 Mbps. The green PoE LED: on = the connected device is powered.

What type of cable is recommended for optimal performance?

It is recommended to use quality Cat5e or Cat6 cables, with a maximum length of 100 meters between the switch and the device.

Can the switch be wall-mounted?

The manual does not mention a wall mount. It is recommended to place it on a flat surface with 25 mm of clearance around it for ventilation.

How do I clean the switch?

Unplug the device, then clean it with a soft, dry cloth. Do not use chemical or abrasive products.

What to do in case of power surge?

Use the grounding screw located on the rear panel to connect the switch to a ground outlet, which protects the equipment against external surges.

Where to find the CE declaration of conformity?

The Declaration of Conformity is available on the manufacturer's website: intellinetnetwork.com.

How to recycle this product at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE Directive 2012/19/EU, take it to a municipal collection point or return it to your retailer.

USER MANUAL 561839 Intellinet

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/561839

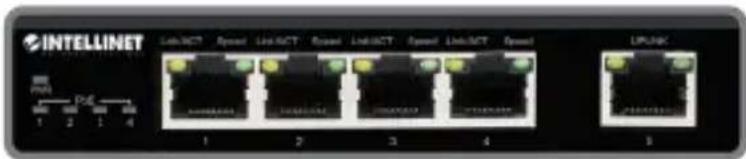

LEDs

The LED indicators make it easier to monitor the switch and its connections.

NOTE: Ports 1 – 4 can provide power to a connected powered device, and all powered devices should comply with IEEE 802.3at/af.

Ports

All RJ45 ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect

LED Color Status		Status Description
PWR Green		Off Power	Off
		On Power	On
Link/ ACT	Yellow	Off No link	established.
		On Valid port connection.
		Flashing Sending or receiving data.
Speed Green		On	A device is connected to the port at 1000 Mbps speeds.
		Off	A device is connected to the port at 10/100 Mbps speeds.
PoE Green		Off No PD is connected to the port.
		On	The connected device is receiving power.

the RJ45 ports to PCs, routers, hubs, other switches, etc. Cat5e/6 UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

Power

Use the included power cord and adapter to connect the device (on the rear panel) to an AC outlet. Confirm that the PWR LED on the front panel is lit.

Installation

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch
- with at least 25 mm (approx. 1") of clearance for ventilation;
- away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
- within 100 m (approx. 328') of network devices it's to be connected to.

Chassis Ground Column (Rear Panel)

Wire the grounding terminal to an earth grounding object to protect equipment from external electrical surges.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561839 or scan the QR code on the cover.

LED

LEDs

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/561839
