Product Type	Unmanaged PoE Network Switch
Brand	Intellinet
Model	561822
Dimensions (approx.)	200 x 120 x 30 mm
Weight (approx.)	0.5 kg
Power Supply	External 48 V DC power adapter
Number of Ports	4 RJ45 10/100/1000 PoE ports + 1 SFP 1000 port
PoE Standard	IEEE 802.3at/af (PoE+)
Auto-MDI/MDI-X	Yes on all RJ45 ports
LED Indicators	PWR (green), Link/ACT/SFP1 (yellow), PoE (green) per port
Grounding	Chassis screw on the back panel
Installation	Flat surface, rubber feet included, 25 mm spacing for ventilation
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % (non-condensing)
Maintenance and Cleaning	Unplug the device, clean with a dry, soft cloth. Do not use chemicals.
Safety	Do not expose to moisture or extreme temperatures. Follow the warnings in the manual.
Spare Parts and Repairability	No user-serviceable parts. Contact customer support if issues arise.
Certifications	CE, WEEE (symbols on device)
General Information	Compliant with directives 2014/30/EU and 2014/35/EU. Declaration available at intellinetnetwork.com.

Frequently Asked Questions - 561822 Intellinet

How to install the Intellinet 561822 switch?

Place the switch on a stable flat surface, leaving at least 25 mm of space around for ventilation. Attach the provided rubber feet to the bottom corners. Connect the power adapter to the back and turn it on. Connect your network devices to the RJ45 or SFP ports. The PWR LED should light up.

What devices can I connect to the PoE ports?

Ports 1 to 4 provide PoE power according to IEEE 802.3at/af standards. You can connect IP cameras, VoIP phones, Wi-Fi access points, etc., that are PoE compatible. Make sure your device supports PoE (Power over Ethernet).

How do I know if a PoE device is powered?

The corresponding PoE LED (green) lights up when the connected device is properly powered. If it remains off, check the cable and the device's compatibility with the switch's PoE standard.

What should I do if the PWR LED does not light up?

Make sure the power adapter is correctly connected to the switch and a working power outlet. Check that the power cord is not damaged. If the problem persists, contact technical support.

Can I use crossover or straight-through cables?

Yes, thanks to the Auto-MDI/MDI-X feature, all RJ45 ports automatically detect the cable type (straight or crossover). So you can use either UTP/STP Cat5e or Cat6 cables.

How do I ground the switch?

On the back of the switch there is a grounding screw. Use a grounding cable to connect this terminal to a suitable grounding point (e.g., a ground bar). This protects the equipment against external electrical surges.

What is the maximum cabling distance?

For RJ45 connections, the maximum distance is 100 meters between the switch and the network device. For the SFP link, the distance depends on the SFP module used (fiber or copper).

Does the switch get hot?

The switch uses passive cooling (no fan). It may become warm to the touch during normal operation, especially if several PoE ports are powering devices. Make sure it is placed in a ventilated area away from heat sources.

How do I clean the switch?

First unplug the power. Use a dry, soft cloth to wipe the surface. Never use chemicals, solvents, or abrasive cleaners, as they could damage the case.

Where can I find the declaration of conformity?

The CE declaration of conformity for model 561822 is available on intellinetnetwork.com. You can also scan the QR code on the packaging or register your product at register.intellinet-network.com/r/561822.

USER MANUAL 561822 Intellinet

5-Port Gigabit Ethernet PoE+ Switch with

SFP Port Instructions

Model 561822

Important: Read before use. • Importante: Leer antes de usar.

Exterior view of a Siemens network switch (no text or symbols on the device body)

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/561822

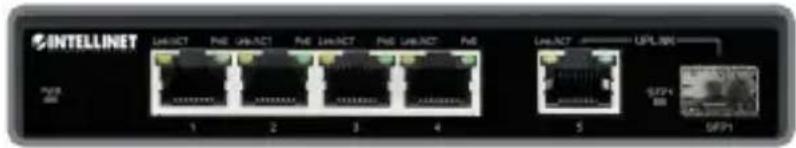

Connections & Indicators

LEDs

The LED indicators make it easier to monitor the switch and its connections. NOTE: Ports 1 – 4 can provide power to a connected powered device, and all powered devices should comply with IEEE 802.3at/af.

Ports

All RJ45 ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP

LED Color Status		Status Description
PWR Green		Off Power	Off
		On Power	On
Link/ACT/SFP1	Yellow	Off No link established.
		On Valid port connection.
		Flashing Sending or receiving data.
PoE Green		Off No PD is connected to the port.
		On	The connected device is receiving power.

cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc. Cat5e/6 UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

Power

Use the included power cord and adapter to connect the device (on the rear panel) to an AC outlet. Confirm that the PWR LED on the front panel is lit.

Installation

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch;
• with at least 25 mm (approx. 1") of clearance for ventilation;
  • away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
• within 100 m (approx. 328') of network devices it's to be connected to.

Attach the rubber feet to the bottom of each corner of the switch to increase stability.

Chassis Ground Column (Rear Panel)

Wire the grounding terminal to an earth grounding object to protect equipment from external electrical surges.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561822 or scan the QR code on the cover.

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and/or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/561822
