USER MANUAL DRF485300AP Dacor

User Manual Built-In Refrigerator DRF487*****, DRF485***** Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 1 2023-03-15() 2:50:16English2 Contents Contents Important Information 4 Before You Begin 4 Safety information 5 What you need to know about the safety instructions 5 Important safety symbols and precautions: 6 State of California Proposition 65 Warning 6 Important safety precautions 6 Severe warning signs for transportation and site 8 Critical installation warnings 9 Installation cautions 11 Critical usage warnings 11 Usage cautions 14 Cleaning cautions 15 Critical disposal warnings 16 What’s included 17 Inside Parts, Storage, and Shelving 17 Operations 19 Main panel 19 SmartThings 28 SMART GRID Function (Demand Response) (applicable models only) 32 Special features 36 Handling and care 43 Replacement 47 Care and Maintenance 49 Cleaning 49 Troubleshooting 50 General 50 Do you hear abnormal sounds from your refrigerator? 54 SmartThings 56 Smart Grid (applicable models only) 57 Warranty 58 United States - Warranty 58 CANADA – Warranty 62 Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 2 2023-03-15() 2:50:16English 3 Contents Open Source Announcement 68 Regulatory Notice 69 FCC Notice 69 IC Notice 70 Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 3 2023-03-15() 2:50:16English4 Important Information Important Information Before You Begin Installer

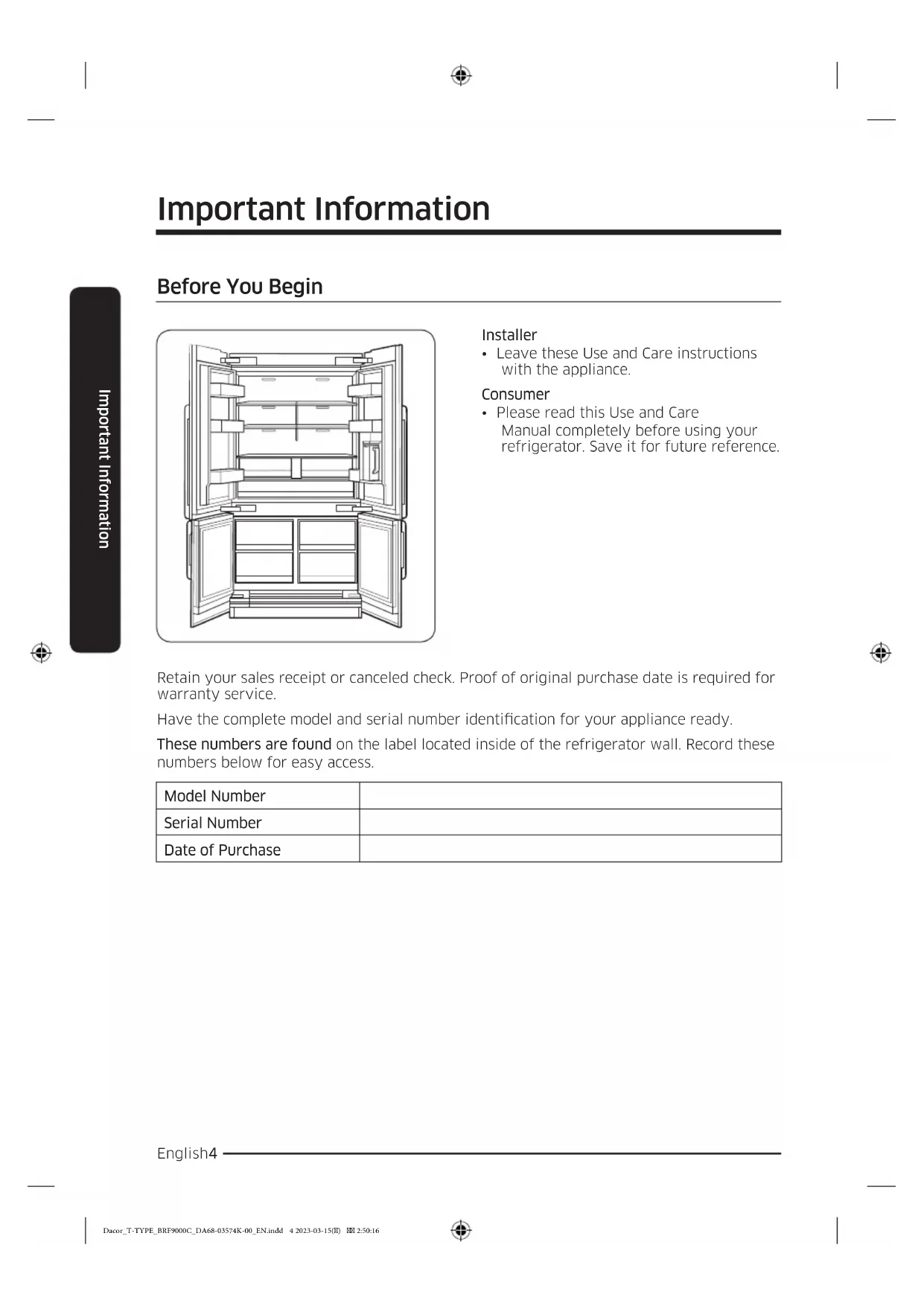

• Leave these Use and Care instructions with the appliance. Consumer

• Please read this Use and Care Manual completely before using your refrigerator. Save it for future reference. Retain your sales receipt or canceled check. Proof of original purchase date is required for warranty service. Have the complete model and serial number identication for your appliance ready. These numbers are found on the label located inside of the refrigerator wall. Record these numbers below for easy access. Model Number Serial Number Date of Purchase Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 4 2023-03-15() 2:50:16English 5 Safety information Safety information Before using your new Dacor Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently. What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.

• If you have any question, nd help and information online at www.Dacor.com.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked ames and move anything ammable away from the product and ventilate the room immediately. - Failing to do so may result in re or explosion.

• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 5 2023-03-15() 2:50:17Safety information English6 Safety information Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. NOTE Useful information that helps users understand or benet from the refrigerator. These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 Warning WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Important safety precautions WARNING; Risk of re / ammable materials WARNING

• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• In order to avoid the creation of a ammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.

• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 6 2023-03-15() 2:50:17English 7 Safety information

• If you use two products side by side, for safety reason, be sure to use certied products in explosive gas atmospheres.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. WARNING

• Fill with potable water only.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.

• Connect to potable water supply only. WARNING

• Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors. - Leave the shelves in place so that children may not easily climb inside. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 7 2023-03-15() 2:50:17Safety information English8 Safety information This appliance is intended to be used in household and similar applications such

• staff kitchen areas in shops, ofces and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications. Severe warning signs for transportation and site WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also ammable. - When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 8 2023-03-15() 2:50:17English 9 Safety information Critical installation warnings WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a re hazard.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock or re.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, re, and/or electric shock.

• Do not install this appliance near a heater or ammable material.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or re.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a re or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops). - Deteriorated insulation on electrical parts may cause an electric shock or re. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 9 2023-03-15() 2:50:17Safety information English10 Safety information

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Dacor service center. - Otherwise there is a risk of re.

• You need to remove all the protective plastic lm before you initially plug the product in.

• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips. - There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children’s reach.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. - Current leakage may result in an electric shock, re, explosion, or problems with the product.

• Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re.

• Only a qualied technician or service company should be allowed to change the fuse in the refrigerator. - Failing to do so may result in an electric shock or personal injury.

• To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 10 2023-03-15() 2:50:17English 11 Safety information Installation cautions CAUTION

• Allow sufcient space around the refrigerator and install it on a at surface. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.

• It is strongly recommended you have a qualied technician or service company install the refrigerator. - Failing to do so may result in an electric shock, re, explosion, problems with the product, or injury.

• Overloading one door may make the refrigerator fall, causing physical injury. Critical usage warnings WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Do not put a container lled with water on the refrigerator. - If spilled, there is a risk of re or electric shock.

• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator. - This refrigerator is for storing food only. - This may result in re or explosion.

• Children should be supervised to ensure that they do not play with the appliance. - Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Do not insert your hands into the area under the appliance. - Any sharp edges may cause personal injury. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 11 2023-03-15() 2:50:18Safety information English12 Safety information

• Do not store pharmaceutical products, scientic materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.

• If you smell smoke, pull out the power plug immediately, and then contact a Dacor service center.

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Dacor service center. - Otherwise there is a risk of re.

• Do not let children step on a drawer. - The drawer may break and cause them to slip.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.

• Do not allow babies or children to go into a drawer. - It can cause death from suffocation by entrapment or personal injury.

• Do not overll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, re, or problems with the product.

• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker bucket. - It may cause a personal injury or material damage.

• Do not use or place any substances sensitive to temperature such as ammable sprays, ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, re, problems with the product, or injury. Do not put a container lled with water on the appliance. - If spilled, there is a risk of re or electric shock.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 12 2023-03-15() 2:50:18English 13 Safety information

• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work. - The glass shelf could fall and cause personal injury.

• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or re.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall over or out.

• This product is intended only for the storage of food in a domestic environment.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself. - Unauthorized modications can cause safety problems. To reverse an unauthorized modication, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest Dacor service center. - Failing to do so may result in an electric shock, re, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Dacor service center.

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Dacor service center. - Failing to do so may result in an electric or re hazards.

• Plug the power plug into the wall socket rmly.

• Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 13 2023-03-15() 2:50:18Safety information English14 Safety information Usage cautions CAUTION

• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or zzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury.

• Use only the ice maker provided with the refrigerator.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Please observe maximum storage times and expiration dates of frozen goods.

• Do not put glass containers or bottles or carbonated beverages into the freezer. - The container may freeze and break, and this may result in injury.

• Service Warranty and Modication. - Any changes or modications performed by a 3rd party on this nished appliance are not covered under Dacor warranty service, nor is Dacor responsible for safety issues that result from 3rd party modications.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes before plugging it back in.

• If large amounts of water enter the refrigerator, pull out the power plug and contact a Dacor service center.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• If the refrigerator is ooded, shut off the power to the refrigerator and contact your nearest Dacor service center. - There is a risk of electric shock or re.

• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difcult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry. - Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 14 2023-03-15() 2:50:18English 15 Safety information Cleaning cautions CAUTION

• Do not spray water directly on the inside or outside of the refrigerator. - There is a risk of re or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Dacor service center. - Failing to do so may result in an electric shock or re.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of re or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator. - They may damage the surface of the appliance and may cause a re.

• Never put ngers or any objects into the dispenser outlet. - This can cause a personal injury or material damage.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or re.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets. - These can scratch or damage the material.

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 15 2023-03-15() 2:50:18Safety information English16 Safety information Critical disposal warnings WARNING

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• This product contains R-600a, a ammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.

• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. - If trapped inside, the child could be injured or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 16 2023-03-15() 2:50:18English 17 What’s included What’s included Inside Parts, Storage, and Shelving The actual appearance of your refrigerator may differ, depending on the model and the country.

01 Power switch 02 Glass shelves 03 Door bins 04 Camera * 05 Water dispenser 06 Metal/ceramic shelf 07 Main panel * 08 FreshZone 09 Freezer 10 FreshZone+ 11 Water lter (cover) 12 Serial Number (on the FreshZone+ wall) 13 AutoFill Pitcher * 14 Auto dual ice maker *

• Applicable models only Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 17 2023-03-15() 2:50:18What’s included English18 What’s included Switch box The power switch is located at the top right corner of the refrigerator.

• Use a at head screwdriver to open the switch cover.

• The black switch is the power switch. Push the switch to turn the refrigerator on. If the refrigerator is on, you can push the switch to turn the refrigerator off.

• When you change the temperature on the main panel, the panel displays the actual temperature inside the refrigerator until the temperature matches the temperature you set. Then, the panel displays the new set temperature. Note that it will take time for the refrigerator to reach the new temperature. This is normal. During this time, you need not set the temperature again.

• If no button is pressed for 10 seconds after Control Lock is deactivated, the display will turn off except for the Control Lock button. To turn the display on, press Control Lock again.

• If the main panel has moisture or liquid on its surface, it may fail. Wipe up the moisture or liquid using a dry cloth, and then try again. 01 Fridge / Power Cool (3 sec) Fridge You can use the Fridge button to set the fridge temperature or to activate/deactivate Power Cool. The temperature indicator displays the currently set or selected temperature. Press Fridge repeatedly to select a desired temperature between 34 °F (1 °C) and 44 °F (7 °C). Power Cool Power Cool speeds up the cooling process using maximum fan speed. The fridge keeps running at full speed for several hours and then returns to its previous temperature.

• To activate Power Cool, press and hold Fridge for 3 seconds. The corresponding indicator ( ) lights up and the refrigerator speeds up the cooling process.

• To deactivate Power Cool, press and hold Fridge again for 3 seconds. The fridge returns to the previous temperature setting. NOTE Using Power Cool increases power consumption. Make sure you turn it off if you no longer need it and let the refrigerator return to its previous temperature. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 20 2023-03-15() 2:50:22English 21 Operations 02 Freezer / Power Freeze (3 sec) Freezer You can use the Freezer button to set the freezer temperature or to activate/deactivate Power Freeze. To set the freezer temperature, press Freezer repeatedly. Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C). Power Freeze Power Freeze lowers the freezer temperature and speeds up the freezing process. In Power Freeze mode, the freezer runs at full power for several hours and then returns to normal operation and the previous temperature setting.

• To activate Power Freeze, press and hold Freezer for 3 seconds. The corresponding indicator ( ) lights up and the refrigerator speeds up the freezing process.

• To deactivate, press and hold Freezer for 3 seconds again. NOTE Using Power Freeze increases power consumption. If you do not need the Power Freeze function on, make sure you turn it off so that the refrigerator can return to normal operation and its previous temperature setting. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 21 2023-03-15() 2:50:22Operations English22 Operations 03 FreshZone The FreshZone is a full-width drawer featuring temperature control. It has a temperature sensor that adjusts the amount of cold air it allows in.

• Press FreshZone repeatedly to select a desired mode. By default, Cheese is selected.

• The refrigerator adjusts the temperature in the FreshZone according to the selected mode. Mode Description Examples Cheese Select this to keep food fresh for an extended period of time. The temperature of the FreshZone depends on the set fridge temperature. Pineapples, lemons, biscuits, potatoes, cheese Cold Drinks Select this to keep drinks cold and refreshing. The temperature of the FreshZone will be kept around 33 °F (1 °C). Bottled water, juice, soft drinks, beer Chill/Meat Select this to keep meat or sh fresh for a longer time. The temperature of the FreshZone will be kept around 29 °F (-1 °C). Steaks, cold cuts, bacon, chili dogs CAUTION

• Do not use the FreshZone for storing fruit or leafy vegetables. They may suffer cold- temperature damage.

• Do not store glass bottles in the FreshZone in Chill/Meat mode. They may break and cause physical injury. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 22 2023-03-15() 2:50:22English 23 Operations 04 FreshZone+ With the FreshZone+ function, you can select an appropriate temperature for the food you have stored in the FreshZone+. The FreshZone+ is located on the bottom right of the refrigerator. To initiate the FreshZone+ function, press FreshZone+ repeatedly to cycle through the modes. When a desired mode is selected, release the button. The FreshZone+ function has the following four modes: Cool Select Cool to set the FreshZone+ to 41 °F (5 °C). Use when storing beverages that you will use fairly quickly or beverages you want to keep cold such as water, juice, soft drinks, and beer. Chill/Meat Select Chill/Meat to set the FreshZone+ to 30 °F (-1 °C). Use when storing deli food such as steak, cold cuts, sh, bacon, and cheese. Soft Freezing Select Soft Freezing to set the FreshZone+ to 23 °F (-5 °C). Use to keep meat and sh fresh for an extended time. Freezer Select Freezer to set the FreshZone+ to the same temperature as the freezer. Use to keep frozen food fresh. CAUTION

• When you switch or turn off this function, blood in meat or moisture in food may come out due to the temperature change.

• Do not store meat or food in the FreshZone+ at the Cool setting. The meat or food may spoil. 05 AutoFill Pitcher (applicable models only) AutoFill Pitcher indicator * The AutoFill Pitcher has 2 indicators (AutoFill Pitcher On / Off) to indicate its operating status.

• When the AutoFill operates, the corresponding indicator (AutoFill Pitcher On) turns on.

• When the AutoFill is turned off, the corresponding indicator (AutoFill Pitcher Off) turns on.

• To enable AutoFill Pitcher, you must turn on the AutoFill Pitcher. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 23 2023-03-15() 2:50:22Operations English24 Operations 06 Whisky Ball Ice (applicable models only) Whisky Ball Ice Press Whisky Ball Ice to turn the Whisky Ball ice on or off. If the Whisky Ball Ice Indicator indicates OFF mode, ice making is disabled. You must change the indicator to ON mode. 07 Cubed Ice (applicable models only) Cubed Ice Press Cubed Ice to turn the Cubed ice on or off. If the Cubed Ice Indicator indicates OFF mode, ice making is disabled. You must change the indicator to ON mode. °C °F You can use the Cubed Ice button to switch the temperature scale between Celsius and Fahrenheit. To switch the temperature scale, press and hold Cubed Ice for 3 seconds. 08 Filter Reset (3 sec) Filter Reset After about 6 months of using the original water lter (which typically amounts to about 300 gallons or 1136 liters of water), the lter indicator blinks red to remind you that the lter needs to be replaced. When this happens, replace the lter, and then press and hold Filter Reset for 3 seconds. This resets the lter lifecycle detector and turns off the lter indicator. NOTE

• Some areas have relatively large amounts of lime in their water. This may reduce the lifecycle of the lter. In these areas, you will have to replace the water lter more often than specied above.

• If water is not dispensing properly, the water lter is most likely clogged. Even if the lter indicator is not blinking, replace the water lter. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 24 2023-03-15() 2:50:23English 25 Operations 09 Deodorizer Reset (3 sec) Deodorizer Reset After about 18 months of using the original deodorizer lter, the lter indicator blinks red to remind you that the lter needs to be replaced. When this happens, replace the lter, and then press and hold Deodorizer Reset for 3 seconds. The lter lifecycle will be reset and the lter indicator turns off. 10 Override (3 sec) Override The Override function activates/deactivates Smart Grid. Press and hold Override for 3 seconds to set/clear the Override function. 11 Control Lock (3 sec) Control Lock To prevent accidental setting changes, press and hold Control Lock for 3 seconds. The main panel will be disabled and the lock indicator ( ) will turn on. If you press and hold the button again for more than 3 seconds, Control Lock will be deactivated. However, Control Lock will be reactivated if no button is pressed within the next minute. Device authentication To authenticate your device, press and hold Control Lock for 5 seconds. A chime sounds and 'on' appears on the fridge temperature display for 5 seconds. Authorized devices can be used with Samsung Smart TV apps where the privacy information on the refrigerator can be shared to the TV. Availability of this function depends on the TV and refrigerator model. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 25 2023-03-15() 2:50:23Operations English26 Operations 12 AI Energy Mode (applicable models only) The icon appears if you turn on the AI Energy Mode in the SmartThings app. (applicable models only) 13 Sabbath Mode The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate Sabbath mode, press and hold Freezer and Deodorizer Reset simultaneously for 5 seconds. When the refrigerator is in Sabbath mode, you cannot adjust the temperature of the fridge or freezer, the ice maker does not work, and the inside lamps are disabled so they will not go on when you open the door.

• To deactivate Sabbath mode, press and hold Freezer and Deodorizer Reset again simultaneously for 5 seconds. NOTE

• If the Control Lock indicator turns on, you must rst deactivate Control Lock.

• Even if the refrigerator powers off and restarts (for example, when there is a power failure), the Sabbath mode remains active. To exit Sabbath mode, you must deactivate it. 14 Cooling Off Cooling Off mode (also called Shop mode) is designed for use by retailers when they are displaying refrigerators on a retail oor. In Cooling Off mode, the fan motor and lights operate normally, but the compressors do not run so both the refrigerator and the freezer do not get cold.

• Type A - To enter Cooling Off mode, press and hold AutoFill Pitcher, Whisky Ball Ice, and Control Lock simultaneously for 5 seconds. The refrigerator chime sounds and the temperature display ashes “OFF”. - To exit Cooling Off mode, press and hold AutoFill Pitcher, Whisky Ball Ice, and Control Lock simultaneously for 5 seconds again.

• Type B - To enter Cooling Off mode, press and hold Ice Maker, Filter Reset, and Control Lock simultaneously for 5 seconds. The refrigerator chime sounds and the temperature display ashes “OFF”. - To exit Cooling Off mode, press and hold Ice Maker, Filter Reset, and Control Lock simultaneously for 5 seconds again. NOTE If the Control Lock indicator turns on, you must rst deactivate Control Lock. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 26 2023-03-15() 2:50:24English 27 Operations 15 Ice Maker (3 sec) (applicable models only) Ice Maker To turn the ice maker on, press and hold Ice Maker for more than 3 seconds. The indicator switches to ON. To turn the ice maker off, press and hold Ice Maker for more than 3 seconds again. The indicator switches to OFF. °C °F You can use the Ice Maker button to switch the temperature scale between Celsius and Fahrenheit. To switch the temperature scale, press and hold Ice Maker for 3 seconds. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 27 2023-03-15() 2:50:24Operations English28 Operations SmartThings Installation Visit the Google Play Store, Galaxy Store, or Apple App Store and search for “SmartThings”. Download and install the SmartThings app provided by Samsung Electronics to your smart device. NOTE

• The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons.

• The SmartThings app is subject to change without notice to improve usability or performance. As the mobile phone OS version is updated every year, the SmartThings is also updated continually according to the latest OS. If you have enquiries regarding the items mentioned above, please contact us on [e-mail]

• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.

• In addition, further updates on the app or the function in the app may stop due to usability and security reasons, even if updates are currently supported on your OS.

• Wireless networks may be affected by the surrounding wireless communication environment.

• If your Internet service provider has registered the MAC address of your PC or modem for identication, your Dacor Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.

• The rewall settings of your network system may prevent your Dacor Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Dacor service center or retailer.

• To congure the wireless access point (AP) settings, see the user manual of the AP (router).

• Dacor Smart Refrigerators support both IEEE 802.11 b/g/n (2.4 GHz) and 802.11 a/n/ac (5 GHz) protocols. (IEEE 802.11 n and 802.11 ac are recommended.)

• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Dacor Smart Refrigerators. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 28 2023-03-15() 2:50:24English 29 Operations Samsung account You are required to register your Samsung account to use the app. If you don’t have a Samsung account, follow the app’s onscreen instructions to create a free Samsung account. Getting started Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below. If a pop-up appears saying that a new device has been found, tap ADD NOW. If a pop-up doesn’t appear, tap the + button, and then select the device you want to connect from the list of available devices. If your device isn’t in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specic device model. Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a “card” on your Devices screen. Refrigerator app Integrated control You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator “card” to open the Refrigerator page.

• Check the operation status or notications related to your refrigerator, and then change options or settings if necessary. NOTE Some options or settings of the refrigerator may not be available for remote control. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 29 2023-03-15() 2:50:24Operations English30 Operations Category Item Description Monitoring Fridge temperature Displays the current temperature setting of the fridge. Freezer temperature Displays the current temperature setting of the freezer. FreshZone settings Displays the settings of the FreshZone. FreshZone+ settings Displays the settings of the FreshZone+. Functions Ice Maker (applicable models only) You can check or change the settings of the cubed and whiskey ball ice makers.

• Cubed Ice: You can tap to turn the cubed ice maker on or off.

• Whiskey ball ice: You can select the number of whiskey ball ice or turn the whiskey ball ice maker off. Power Cool You can turn Power Cool on or off, and check the current settings. Power Freeze You can turn Power Freeze on or off, and check the current settings. Fridge temperature You can set the desired temperature of the fridge. Freezer temperature You can set the desired temperature of the freezer. Sabbath Mode You can activate and deactivate the Sabbath mode. Alarms Abnormally high temperature This alarm is triggered when the fridge, the freezer, or the FreshZone+ has abnormally high temperatures. Door opening This alarm is triggered if the fridge or freezer door, or the FreshZone+ drawer is left open for a specic time. Deodorizer lter replacement (applicable models only) This alarm reminds you that the deodorizer lter must be replaced. AutoFill Pitcher overowing (applicable models only) If the AutoFill Pitcher function senses an overow, it triggers this alarm to let you know the status of the overow. Water lter replacement This alarm reminds you that the water lter must be replaced. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 30 2023-03-15() 2:50:24English 31 Operations Category Item Description Remote View You can check the inner view of the refrigerator, and use different labels to register item-specic storage periods and keep track of them for food-management purposes. AI Energy Mode (applicable models only) You can turn on or off the AI Energy Mode under the Energy menu in the SmartThings app. You can check the status of the AI Energy Mode on the SmartThings app. On some models, the icon appears on the main panel to indicate that AI Energy Mode is on. (applicable models only) Turning on the AI Energy Mode decreases energy consumption, but it may also reduce the cooling performance. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 31 2023-03-15() 2:50:24Operations English32 Operations SMART GRID Function (Demand Response) (applicable models only) When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy Management Refrigerator function can control energy usage or delay the operation of some functions to save money when energy prices or demand are the highest. NOTE

• You can deactivate the SMART GRID (Demand Response) function at any time using the Override On/Off function.)

• To use the SMART GRID (Demand Response) function, you need a separate contract with your electric utility company. In addition, to use the Smart Grid (Demand Response) function, you must register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy prole). Using the SMART GRID (Demand Response) Function This feature monitors energy prices and demand information from your utility company and sends notications to the refrigerator to run high energy consuming tasks during off- peak times when electricity costs and demand are lower. If the refrigerator receives a control signal from the utility company, the refrigerator will display the DAL (L3) ~ TALR (L4) levels on the refrigerator display and control the power consumption according to the level. [Exception condition] The DAL and TALR control signals from a utility company work as long as product performance is maintained. If the refrigerator receives the SMART GRID (Demand Response) signal (DAL or TALR), the refrigerator will operate in Delay Appliance Load (Display: Turns on “DAL” icon) or Temporary Appliance Load Reduction (Display: Turns on “TALR” icon) mode.

• Delay Appliance Load (L3): The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period. This function controls functions that consume a lot of energy such as adjusting the Cooling system, running the defrost cycle, and making ice. - When the refrigerator operates in DAL (L3) mode, it turns on the “DAL” icon on the refrigerator display. - DAL mode is automatically deactivated after it lasts for the amount of time stipulated by the DAL signal (max. 4.5 hours) or when the Override key is pressed.

• Temporary Appliance Load Reduction (L4): The refrigerator responds to a TALR signal by aggressively reducing the load for a short time period. This function reduces energy consumption by stopping the compressor and controlling the functions that consume a lot of energy such as the defrost cycle and making ice. - When the refrigerator operates in TALR (L4) mode, it turns on the “TALR” icon on the refrigerator display. - TALR (L4) mode is automatically deactivated after it lasts for the received duration (max. 15 minutes), or when the Override key is pressed. The mode is immediately deactivated and the refrigerator returns to the normal state when the door is opened or closed, or the dispenser is used. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 32 2023-03-15() 2:50:24English 33 Operations To check the MAC address In this mode, the MAC address appears in the temperature panel (on both the freezer and the fridge sections of the panel) sequentially for 1 minute.

1. Press and hold both Freezer and Fridge for 6 seconds. The temperature panel blinks.

Then, press Freezer again to display the MAC address. The fridge beeps.

2. For example, if the MAC address is “11-22-33-44-55-66”, the temperature panel

displays the address for 1 minute in this sequence: “-- / --” “11 / 22” “33 / 44” “55 / 66” “-- / --”. After 1 minute, the MAC address disappears and the temperature panel returns to the normal state. NOTE The temperature panel displays “-- / --” for an unknown MAC address or if a Wi-Fi connection is not established or is lost. Override Mode When you want the refrigerator to ignore the SMART GRID (Demand Response) signal from the utility company, you can activate OVERRIDE mode. When you activate OVERRIDE mode, the refrigerator ignores the SMART GRID (Demand Response) signal and is not controlled by the utility company. Activating and deactivating Override mode

1. Press and hold Override for 3 seconds.

2. A chime sounds and ‘Or’ and ‘on’ is displayed in the fridge and freezer temperature

displays for 5 seconds.

3. If the refrigerator receives a SMART GRID (Demand Response) signal from the utility

company, ‘Or’ is displayed in the freezer temperature display.

4. To deactivate OVERRIDE mode, press and hold Override for 3 seconds.

5. A chime sounds and ‘Or’ and ‘oF’ is displayed in the fridge and freezer temperature

displays for 5 seconds. NOTE Alternatively, you can activate or deactivate OVERRIDE mode using the SmartThings app and the Energy Management function. See the next page. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 33 2023-03-15() 2:50:24Operations English34 Operations Using the Energy Management Function The Energy Management function enables you to control and monitor your Energy Management refrigerator using the SmartThings app for your convenience. NOTE

• To use the Energy Management refrigerator functions, you have to install the corresponding app rst.

1. Operational Status, User Settings & Messages

- You can view the freezer and fridge temperature settings. - You can receive an alarm when the freezer or fridge door is open for 2 minutes. - You can check the DR and Override status. - You can check the operational condition of the ice maker in the freezer.

2. Remote Management

- Power Freeze Setting: You can remotely activate the Power Freeze function. - Power Cool Setting: You can remotely activate the Power Cool function. - Ice On/Off Setting: You can remotely set up the Ice On/Off Setting function. You can only control the Ice maker in the freezer remotely.

3. Energy Consumption Reporting

- Shows the accumulated power consumption. Power consumption data is updated every 10 minutes. NOTE The energy consumption report may differ from the power consumption specications of the product depending on the operating environment and the stored food.

4. Delay Defrost Capability

- The Delay Defrost Capability function saves energy by delaying the defrost operation to a time specied by the user. You can congure the time. and this function will save energy during the specied period in a 24 hour cycle. If the time is not set, the function works with the default time settings. The default time settings are below: - 6 am to 10 am: 1st. November ~ 30th. April - 3 pm to 7 pm: 1st. May ~ 31th. October To change the time setting for the Delay Defrost Capability You can change the time setting for the Delay Defrost Capability on the app. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 34 2023-03-15() 2:50:24English 35 Operations Provision for Open Access to the Connected Product Requirements

1. SGIP Open Standards (Smart Energy Prole 2.0 - http://www.csep.org/)

- Energy Consumption Reporting - Demand Response

- Operational Status, User Settings & Messages - ICE Maker Status: GET /icemaker/status/vs/0 - Door Open Alarm: GET /doors/vs/0/ - DR Status: GET /drlc/vs/0 - Delay Defrost Capability - Set Schedule of the Defrost Delay: POST /defrost/reservation/vs/0?op=add - Get Schedule of the Defrost Delay: GET /defrost/reservation/vs/0 - Delete Schedule of the Defrost Delay: POST /defrost/reservation/vs/0?op=remove - Defrost Delay On/OFF: POST /defrost/delay/vs/0 Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 35 2023-03-15() 2:50:24Operations English36 Operations Special features Water dispenser To dispense chilled water, put a water glass on the dispenser lever and push it. Chilled water will be dispensed from the dispenser. CAUTION

• For rst-time use or after you have replaced the water lter, dispense 3 gallons of water (dispense for about 6 minutes) to remove impurities from the water line beforehand.

• If you are going on vacation or leaving home for an extended period of time, shut off the water supply to the refrigerator and close the water valve. This will help prevent an accidental leak. NOTE

• To prevent spills, wait a second before removing the glass after dispensing. When you remove the glass, the dispenser lever returns to its original position.

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.

• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out. Water pitcher (AutoFill Pitcher) (applicable models only) Cold, puried water is always ready in the AutoFill Pitcher. You can put tea or fruits in the infuser to enjoy the various infused water you like.

then pull up to open the lid.

2. Put tea leaves or fruit to your taste into

the infuser. NOTE If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off.

3. Enable the AutoFill Pitcher function on

the main panel. Open the left door of the fridge, and then mount the water pitcher onto the holder. Push it straight in as shown in the gure. CAUTION Make sure the water pitcher ts in the water pitcher holder.

4. Close the door. The water pitcher will

start to ll with chilled water a short time later.

5. To drink tea, open the left door of

the fridge, and then detach the water pitcher. Pull it straight out. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 37 2023-03-15() 2:50:25Operations English38 Operations CAUTION

• We recommend consuming fruit infused water within 24 hours. After that, the infused water can spoil over time.

• You must clean the water pitcher after you have consumed the infused water. Also clean the water pitcher if you haven’t used it for a long time.

• To prevent the water pitcher from tipping over or leaking, make sure the water pitcher ts in the water pitcher holder.

• To prevent the water pitcher from spilling over or leaking, make sure the infuser holder is properly inserted. NOTE

• If the front side (specically marked area) of the water pitcher has too much moisture, the water pitcher may not fully ll. Remove the moisture, and then try again.

• AutoFill Pitcher function will stop supplying water to the water pitcher if the water pitcher does not ll after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water pitcher, and then try again. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 38 2023-03-15() 2:50:26English 39 Operations

• Wipe around the water pitcher holder if the water pitcher overows or leaks.

• Water drops off if the rubber cap is opened.

• An alert message appears on the main panel if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. If the alert message does not disappear after draining, there might be a system failure. Contact your local Samsung service center. NOTE

• You must clean the water pitcher after you have consumed the infused water. You must also clean the water pitcher if you have not used it for a long time or left the full pitcher for more than three days.

• If the infuser is not properly cleaned, the scent of the tea or fruits you previously used in the infuser may remain. If you are not going to use the infuser, separate it from the pitcher and store it safely.

• If you have not used the water lter for a long time, pour away the rst two pitchers of water. Then, clean the water pitcher thoroughly and use it. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 39 2023-03-15() 2:50:26Operations English40 Operations Auto dual ice maker (applicable models only)

• The refrigerator has a built-in ice maker that automatically dispenses ice.

• After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice.

• When you use the ice maker for the rst time, let the ice maker make ice for 1-2 days and discard the rst 1-2 buckets of ice to remove impurities in the water supply system. A B C D A. Whisky ball ice B. Cubed ice C. Whisky ball ice maker pad D. Cubed ice maker pad On the main panel, you can set the ice maker to make cubed ice and whisky ball ice.

• Cubed Ice: The ice maker makes cubed ice.

• Whisky Ball Ice: The ice maker makes ice balls. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 40 2023-03-15() 2:50:27English 41 Operations CAUTION

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure to turn the ice-making function (Cubed Ice / Whisky Ball Ice) off.

• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.

• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.

• Do not put your nger, food, or other objects into the ice maker. This can cause physical injury or property damage.

• Use the new hose sets supplied with the appliance only. Do not re-use an old hose set.

• Do not freeze water directly in the ice bucket. The ice bucket can get damaged.

• If you leave the door open too long, ice in the ice bucket may melt and clump together.

• If the ice inside the ice bucket melts into water (due to a power outage, etc.) empty the ice bucket. Otherwise, it may cause the ice bucket to break when the water refreezes.

• Be careful when emptying the ice bucket with whisky ball ice in it. Dropping whisky ball ice may cause injury.

• When the Cubed Ice or Whisky Ball Ice function is on, the ice maker will keep making ice even if there is no ice bucket in place. Make sure you turn off the function if you do not want to make ice. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 41 2023-03-15() 2:50:27Operations English42 Operations

• Make sure to put the whisky ball ice maker pad in the right direction, and do not get it mixed up with the cubed ice maker pad. - The ice maker may stop making whisky ball ice if you remove the whisky ball ice maker pad from the ice bucket or if it is inserted the wrong direction. NOTE

• Empty the ice bucket regularly. - Newly produced ice may clump with old ice, and old ice may stick to the ice bucket.

• The size, shape, and transparency of the ice may vary depending on the water pressure and the usage condition (such as ambient temperature, freezer temperature, and frequency of the door opening).

• Due to sublimation, ice stored in the freezer for a long time gets smaller and then forms large ice chunks. Therefore, if unused for a long period of time, turn the ice maker off and empty the ice bucket.

• You may hear a sound when the ice drop into the ice bucket.

• Hold the ice bucket with both hands when you remove it from the freezer to prevent dropping it. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 42 2023-03-15() 2:50:27English 43 Operations Handling and care AutoFill Pitcher (applicable models only)

1. Grasp a handle groove of the lid, and

then pull up to remove.

2. Grasp both sides of the infuser holder,

and then lift to remove.

3. While slightly twisting the infuser, pull

it out of the sealed mouth.

4. Clean the infuser with neutral agents

and running water. Rinse and dry well.

5. Reassemble the AutoFill Pitcher in the

reverse order of disassembly. CAUTION The water pitcher and lid are not microwave safe and can melt or deform if exposed to heat (including hot water). Please hand wash in cool or warm water as needed. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 43 2023-03-15() 2:50:28Operations English44 Operations Tempered glass shelves To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and slide out. To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 44 2023-03-15() 2:50:28English 45 Operations Door bins To remove, lift up the door bin, and then pull out straight. The door bin may not move easily the rst time you try to remove it. If this is the case, remove the inner cap of the door rst, and then try again. CAUTION The door bin has 4 tting holes, 2 for each side. When reinserting the door bin, make sure the 2 holes on one side of the door bin t into the 2 guiding ttings on the corresponding side of the door. In short, the 4 holes of the door bin t in the 4 ttings of the door. If you do not match the holes to the ttings, you cannot insert the door bin so that it is level. Drawers To remove, gently lift up the front of the drawer and slide out. We recommend that you remove the door bins before removing a drawer. This is to prevent damage to the door bins. Pulling a drawer Removing a drawer Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 45 2023-03-15() 2:50:29Operations English46 Operations Metal/ceramic shelf Insert the shelf along the guides on both sides to the rear of the rails. Insert the shelf fully to the end, and then put it down to the bottom. On the bottom, the shelf stoppers must not be put over the rails but outside the rails on each side. Make sure the shelf settles down with no forward or backward uctuation. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 46 2023-03-15() 2:50:29English 47 Operations Replacement Water lter WARNING

• Do not use third-party water lters. Use only Dacor-provided or approved lters.

• Unapproved lters may leak and damage the freezer, causing electric shock. Dacor is not responsible for any damage that may occur from use of third-party water lters. The lter indicator ( ) turns red to let you know it is time to replace the water lter. Before replacing the lter, make sure the water supply line is shut off.

1. Open up the water lter cover (A) on the

left bottom of the freezer.

2. Turn the water lter (B) counter

clockwise to remove.

3. Replace with a new water lter.

4. Close the water lter cover (A).

5. Press and hold Filter Reset on the

feature panel for 3 seconds to reset the life cycle detector. The lter indicator ( ) turns off.

6. When you are done replacing the

lter, open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line. NOTE

• A newly installed lter may cause the water dispenser to spurt water briey. This is because air has entered the waterline.

• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the oor with a dry towel. Ordering a new lter To purchase a new water lter, contact a local service agent. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 47 2023-03-15() 2:50:30Operations English48 Operations Deodorizer lter To remove, take out the FreshZone+ drawer rst to reveal the lter on the rear wall. Hold down the tab of the lter to unlock and remove. To insert, insert the rear of the lter rst, and then push the front to lock into position. NOTE The lifecycle of the deodorizer lter is about 18 months. This can vary, depending on the conditions of use. You can purchase a new lter at a local Dacor service center. LED lamps To replace the LED lights on the refrigerator, contact a local service agent. WARNING The LED lamps are not user-serviceable. Do not attempt to replace an LED lamp yourself. This can cause electric shock. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 48 2023-03-15() 2:50:30English 49 Care and Maintenance Care and Maintenance Cleaning WARNING

• Do not use benzene, thinner, home/car detergent, or bleach (Clorox, etc.) for cleaning. They can damage the surface of the refrigerator and cause a re.

• Do not spray water onto the refrigerator. This may cause electric shock.

• Do not put ngers or any objects into the dispenser outlet. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points. To clean the refrigerator, follow these steps:

1. Power off the refrigerator.

2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior

3. When done, use a dry cloth or paper towel to dry well.

4. Power on the refrigerator.

Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 49 2023-03-15() 2:50:30English50 Troubleshooting Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution Fridge/freezer does not operate. Fridge/freezer temperature is warm.

• Power cord is not plugged in properly.

• Properly plug in the power cord.

• Temperature control is not set correctly.

• Set the temperature lower.

• Refrigerator is located near a heat source or direct sunlight.

• Keep the refrigerator away from direct sunlight or a heat source.

• Not enough clearance between refrigerator and nearby walls or cabinets.

• Make sure there is a gap of at least 2.5 inches (5 cm) between the refrigerator back and sides and any nearby walls or cabinets.

• The refrigerator is overloaded. Food is blocking the refrigerator vents.

• Do not overload the refrigerator. Do not allow food to block vents. Fridge/freezer is over-cooling.

• Temperature control is not set correctly.

• Set the temperature higher. Interior wall is hot.

• Refrigerator has heat-proof piping in the interior wall.

• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 50 2023-03-15() 2:50:30English 51 Troubleshooting Odors Symptom Possible causes Solution Refrigerator has odors.

• Clean the refrigerator and remove any spoiled food.

• Food with strong odors.

• Make sure strong smelling food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the vents.

• Food is blocking the vents.

• Make sure no food blocks the refrigerator vents. Frost on interior walls.

• Door is not closed properly.

• Make sure food does not block the door. Clean the door gasket. Fruits or vegetables are frozen.

• Fruits or vegetables are stored in the FreshZone+.

• Do not store most kinds of fruit or vegetables in the FreshZone+. Condensation Symptom Possible causes Solution Condensation forms on the interior walls.

• If door is left open, moisture enters the refrigerator.

• Wipe up the moisture and do not leave a door open for extended periods of time.

• Food with high moisture content.

• Make sure food is wrapped airtight. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 51 2023-03-15() 2:50:31Troubleshooting English52 Troubleshooting Water/ice (dispenser models only) Symptom Possible causes Solution Water ow is weaker than normal.

• Water pressure is too low.

• Make sure the water pressure is between 20 and 120 psi (138 and 872 KPa). Ice maker makes a buzzing sound.

• The ice maker function is activated, but the water supply to the refrigerator has not been connected.

• Press to turn the Whisy Ball Ice and Cubed Ice off. (applicable models only) Ice maker does not make ice.

• Ice maker has just been installed.

• You must wait for 12 hours for the refrigerator to make ice.

• Freezer temperature is too high.

• Set the freezer temperature below 0 °F (-18 °C) or -4 °F (-20 °C) in warm ambient air.

• Dispenser panel Lock is activated.

• Deactivate dispenser panel Lock.

• Ice maker is off. • Turn on the ice maker. Ice does not dispense.

• Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).

• If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.

• Ice bucket is not properly inserted.

• Make sure the ice bucket is properly inserted.

• Water line is not connected properly or water supply is not on.

• Check the water installation conditions. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 52 2023-03-15() 2:50:31English 53 Troubleshooting Symptom Possible causes Solution Water does not dispense.

• Water line is not connected properly or water supply is not on.

• Check the water installation conditions.

• Dispenser panel Lock is activated.

• Deactivate dispenser panel Lock.

• A third-party water lter was installed.

• Use only Dacor-provided or approved lters.

• Unapproved lters may leak and damage the refrigerator.

• Water lter indicator turns on or blinks.

• Replace the water lter. After replacing, reset the lter indicator sensor. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 53 2023-03-15() 2:50:31Troubleshooting English54 Troubleshooting Do you hear abnormal sounds from your refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal.

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine ignition. As the operation stabilizes, the sounds will decrease. Clicking! or Chirping!Buzzing!

• While the fan is operating, the sounds below may occur. When the refrigerator reaches the set temperature, the fan sound will stop. SSSRRR!Whir!

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds. HiSS! Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 54 2023-03-15() 2:50:31English 55 Troubleshooting

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling!

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working. Cracking!

• For ice maker models: When the water valve opens to ll the ice maker, you may hear a buzzing sound.

• Due to pressure equalizing when you open and close the refrigerator door, you may hear a whooshing sound. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 55 2023-03-15() 2:50:32Troubleshooting English56 Troubleshooting SmartThings Symptom Action Could not nd “SmartThings” in the app market.

• The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons. The SmartThings app fails to operate.

• The SmartThings app is available for applicable models only.

• The old Dacor Smart Refrigerator app cannot connect with Dacor Smart Home models. The SmartThings app is installed but is not connected to my refrigerator.

• You must log into your Samsung account to use the app.

• Make sure that your router is operating normally.

• If the Wi-Fi icon on the refrigerator’s display is off, this indicates that no network connection has been established yet. In this case, use the SmartThings app to connect and register your refrigerator to the access point (AP) of your house. Could not log into the app.

• You must log into your Samsung account to use the app.

• If you don’t have a Samsung account, follow the app’s onscreen instructions to create one. An error message appears when I try to register my refrigerator.

• Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again. The SmartThings app is successfully connected to my refrigerator but does not run.

• Exit and restart the SmartThings app, or disconnect and reconnect the router.

• Power off the refrigerator, and then power it on again after 1 minute. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 56 2023-03-15() 2:50:32English 57 Troubleshooting Smart Grid (applicable models only) Symptom Action What Do I Need to use the Energy Management and Smart Grid functions?

• To use the Smart Grid (Demand Response) and Energy Management function on your Refrigerator, you need the following devices and apps: - Devices: 1) A Wireless Router, 2) A SmartThings Refrigerator, 3) A Smartphone. (Recommended: Android OS

6.0 or later version)

- Applications: 1) “SmartThings App” from the Goolge Play Store. You also need to:

• Connect the Refrigerator and the Smartphone to the same Wi-Fi network in your home.

• Install and run the SmartThings App on your Smartphone.

• In addition, to use the Smart Grid (Demand Response) function, you must Register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy prole). Why isn’t the Energy Management function working normally?

• Conrm that the router in your home and the internet are working properly. - Connect a Smartphone to the router (AP, Access Point), and then conrm that you can browse the Internet on the phone.

• Conrm that refrigerator is connected to the AP. - Check for Wi-Fi icon on the panel of the refrigerator. If the refrigerator is connected, the icon will be on.

• Conrm that the refrigerator and Smartphone are connected to the same router. Why isn’t the Delay Defrost Capability working normally?

• Conrm that the router in your home and the Internet are working properly.

• Connect a Smartphone to the router (AP, Access Point), and then conrm that you can browse the Internet on the phone.

• Conrm that the rear where you live is properly entered into the SmartThings App.

• Conrm that the Smart Grid function works correctly. (Check the main panel. The DAL or TALR icon should not be displayed on the panel.) Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 57 2023-03-15() 2:50:32English58 Warranty Customer Service Before you request help or schedule service:

1. Try the Solutions offered in the Problem—Solution table in the “Troubleshooting” section.

2. Become familiar with the warranty terms and conditions of your product.

3. If none of these tips or suggestions resolves your problem, visit dacor.com or call our

Customer Service center at [phone] (United States), [phone] (Canada) United States - Warranty CERTIFICATE OF WARRANTY ON DACOR REFRIGERATOR - UNITED STATES:

FULL TWO-YEAR WARRANTY

This warranty covers any defects in materials or workmanship in the Dacor-branded new appliance purchased from a Dacor Authorized Dealer or other seller authorized by Dacor. This full warranty runs for two years starting from the date of original retail purchase receipt or closing date for new construction, whichever period is longer. Dacor will repair or replace your product. LIMITED WARRANTY After the Full Warranty period has ended, this product is warranted against defects in materials or workmanship reported to us during the applicable warranty periods as follows: Years 3–6 of your ownership – Parts and Labor on Sealed System For the third through sixth years of your ownership, we will pay for factory specied parts and repair labor costs to correct defects in materials or workmanship in the sealed refrigeration system (the compressor, evaporator, condenser, dryer and connecting tubing). Years 7-12 of your ownership – Parts only on the Sealed System For the seventh through twelfth years of your ownership, we will pay for factory-specied parts only to correct defects in the sealed refrigeration system. Years 13-15 of your ownership – Parts only on the Compressor For the thirteenth through fteenth years of your ownership, we will pay for factory-specied parts only to correct defects in the compressor. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 58 2023-03-15() 2:50:32English 59 Cosmetic Defects. In addition, for 60 days from the date of purchase, your product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the nish). Color variations are excluded, and display, oor-model, “as-is” or refurbished products are specically excluded. COVERAGE LIMITATIONS Service will be provided by a Dacor designated service company during regular business hours. Please note service providers are independent entities and are not agents of Dacor. The owner must provide proof-of-purchase or a closing statement for new construction upon request. All Dacor products must be accessible for service. Warranty will be null and void on product that has altered, defaced, or missing serial numbers and tags. Warranty is null and void if non-CSA approved product is transported from the U.S.A. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 59 2023-03-15() 2:50:32Warranty English60

• Due to differences in painted parts, kitchen lighting, product placement, and other factors; this warranty does not apply to color variation.

• Service calls to educate the customer on proper use and care of the product.

• Service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses.

• Consequential or incidental damage, including but not limited to: food or medicine loss, time away from work, or restaurant meals.

• Commercial, business, or rental use, or any application other than residential consumer use.

• Failure of the product caused by improper product installation.

• Replacement of house fuses, fuse boxes, or resetting of circuit breakers.

• Damage caused by accident, re, ood, power interruption, power surges, or acts of God.

• Liability or responsibility for damage to surrounding property including cabinetry, oors, ceilings and other structures or objects.

• Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic nish caused by improper usage, care, abuse, or neglect.

• Except as noted above, consumable parts such as lters and light bulbs are not covered and are the responsibility of the purchaser. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 60 2023-03-15() 2:50:32English 61 THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY’S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE. Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of inconsequential damages, therefore the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights that vary from state-to-state. Warrantor: Samsung Electronics America, Ridgeeld Park, NJ, 07660 Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 61 2023-03-15() 2:50:32Warranty English62 CANADA – Warranty CERTIFICATE OF WARRANTY ON DACOR REFRIGERATOR - CANADA: This Limited Warranty covers only those Products supplied and distributed in Canada by us and delivered new, in the original carton or packaging, to the original consumer purchaser that are purchased from an authorized reseller or distributor, except as otherwise stated herein. Except where prohibited by applicable provincial law, only the original consumer purchaser of the Product has any rights under this Limited Warranty and this Limited Warranty may not be transferred or assigned. Any additional statements such as dealer advertising or presentation, whether oral or written, that make additional warranties or modications to this Limited Warranty do not constitute warranties by us and should not be relied upon.

1. WHAT IS COVERED AND FOR HOW LONG

We warrant to the original purchaser (“Purchaser”) that your Dacor Refrigerator purchased from an authorized reseller or distributor in Canada (the “Products”) is free from defects in material and workmanship encountered in normal use for the warranty period identied below, effective as of the date of purchase or closing date for new construction, whichever period is longer. Dacor Product or Part Warranty Period and Warranty Coverage Refrigerator Two (2) Years: Parts and Labour Refrigerator Sealed System (compressor, evaporator, condenser, dryer and connecting tubing) Six (6) Years: Parts and Labour Refrigerator Sealed System (compressor, evaporator, condenser, dryer and connecting tubing) Twelve (12) Years: Parts Only Refrigerator Compressor Fifteen (15) Years: Parts Only Cosmetic Defects. For sixty (60) days from the date of purchase, the Product is warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the nish). Color variations are excluded, and display, oor-model, “as-is” or refurbished products are specically excluded. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 62 2023-03-15() 2:50:32English 63

2. COVERAGE LIMITATIONS

If the Product fails to operate according to the Product’s specications during the applicable warranty period and the failure is due to improper workmanship or defective material, we will repair or replace, at our sole option, and without charge to the Purchaser, the Product or any defective component part of the Product. We may, at our sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product. If the same model Product or part is not available for replacement, we may, at our sole option, replace the Product or part with any rebuilt, refurbished, reconditioned or new Product or part of similar utility and value to the Product or part being replaced. We expressly reserve the exclusive right, at our sole option, and in lieu of any service, repair or replacement of a Product under this Limited Warranty, to offer the Purchaser a partial refund of the original purchase price paid by the Purchaser for that Product (a “Partial Refund”). The amount of any Partial Refund to be offered shall be determined in our discretion based on the fair market value of the Product given its age and condition. If Purchaser accepts that offer of a Partial Refund, the Purchaser shall be deemed to have released us from any claim or liability whatsoever under this Limited Warranty or under any other applicable express or implied warranty or condition in respect of that Product. All repaired parts or replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer.

3. WHAT IS NOT COVERED

The remedies provided for in this Limited Warranty are available only within Canada. This Limited Warranty does not cover any defect, malfunction, failure or damage caused by or resulting from any of the following: (a) removal, installation, re-installation, maintenance, or service of the Product that was not authorized by us; (b) accident, re, ood, power interruption, power surges, incorrect line voltage or supply or electrical current, fuses, house wiring, circuit breakers, connectors not supplied by us, unusual electrical or electromechanical stress, acts of God, or acts of nature; (c) misuse, abuse, neglect, mishandling, misapplication, alteration or modication of the Product or any part of the Product; (d) use of the Product in conjunction with products, equipment, utilities, services, parts, supplies, accessories, applications, external wiring, connectors, or ancillary or peripheral equipment not supplied or authorized by us; (e) uses for which the Product was not intended. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 63 2023-03-15() 2:50:32Warranty English64 Further, this Limited Warranty does not cover: (i) any Product or part from which the serial number has been removed or on which the serial number has been made illegible. Removing the serial number on any Product or rendering it illegible on any Product will immediately void the Limited Warranty for that Product; (ii) any damage whatsoever that occurs during shipment of the Product once the Product has been accepted by the Purchaser; (iii) any damage whatsoever resulting from any failure to follow operating, maintenance or environmental instructions contained in any instruction booklet or owner’s manual available in connection with the Product; (iv) service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads, or other travel expenses; (v) replacement of house fuses, fuse boxes, or resetting of circuit breakers; (vi) liability or responsibility for damage to surrounding property including cabinetry, oors, ceilings and other structures or objects; (vii) the cost of service calls for instructions, for the correction of installation errors, for customer adjustments that are explained in the Product owner’s manual, or where the Product operates according to the Product’s specications. There may be a service charge for service calls made for issues not covered under this Limited Warranty; (viii) breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, or other cosmetic nish caused by improper usage, care, abuse, or neglect; (ix) except as noted above, consumable parts such as lters and light bulbs are not covered and are the responsibility of the Purchaser; (x) commercial, business, or rental use, or any application other than residential consumer use; (xi) colour variation due to differences in painted parts, kitchen lighting, product placement, and other factors; We do not warrant or guarantee uninterrupted or error-free operation of the Product. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 64 2023-03-15() 2:50:32English 65

4. WHAT ARE THE LIMITATIONS ON IN-HOME WARRANTY SERVICE?

In-home service is subject to availability, and it is not available in all areas of Canada. In-home service will only be provided if the Product is unobstructed and easily accessible from oor level to service personnel. If repair cannot be completed during in-home service or if in-home service is not available in your area, you may be directed to deliver the Product to a Dacor Authorized Service Center for warranty service. The cost of transportation of the Product to and from a Dacor Authorized Service Centre shall be paid by the Purchaser unless we elect to provide that transportation at our discretion. To receive in-home service, the Purchaser must rst contact Dacor Customer Care for problem determination and service procedures. All in-home warranty repairs must be performed by a Dacor Authorized Service Center. Valid proof of purchase must be presented to us at the time that service is requested and before warranty services are rendered. When in-home service is not available, the Purchaser must return the Product to a Dacor Authorized Service Center for analysis. Assistance on where to deliver the Product can be obtained by contacting our Customer Service center. The cost of transporting the Product to or from the Authorized Service Center must be paid by the Purchaser.

RESPECT TO THE PRODUCT

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B. factory to replace the defective part. All delivery, installation, labor costs, and other service fees are the responsibility of the purchaser. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 67 2023-03-15() 2:50:32English68 Open Source Announcement The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail]. It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required. The following URL http://opensource.samsung.com/opensource/REF_A20_TZ/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 68 2023-03-15() 2:50:33English 69 Regulatory Notice FCC Notice FCC CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Contains Transmitter Module FCC ID: A3LWCA720M (DRF48750***), A3LCCAR210R (DRF48530***) This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause undesired operation. For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna

• Increasing the separation between the equipment and receiver

• Connecting the equipment to an outlet that is on a different circuit than the receiver.

• Consulting the dealer or an experienced radio/TV technician for help. FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Dacor_T-TYPE_BRF9000C_DA68-03574K-00_EN.indd 69 2023-03-15() 2:50:33Regulatory Notice English70 IC Notice Contains Transmitter Module IC: 649E-WCA720M (DRF48750***), 649E-CCAR210R (DRF48530***) The term “IC” before the radio certication number only signies that Industry Canada technical specications were met. Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels. IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
