USER MANUAL IBAR1220T Tripp Lite

Designed to Occupy One Standard (1U) 19" Rack Space

Models:

DRS-1215

IBAR12

IBAR12-20T

ISOBAR12ULTRA

ISOBAR12/20ULTRA

RS-0615-F

RS-0615-R

RS-1215

RS-1215-20

RS-1215-20T

RS1215-HG

RS-1215-RA

Important Safety Instructions 2

Installation 3

Features 4

Specifications 5

Warranty & Product Registration 5

Ultimate Lifetime Insurance Policy 6

Espanol 7

Français 13

Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS. This manual contains information concerning the proper installation and use of Eaton Tripp Lite series Rack-Mount Power Strips and Isobar Surge Protectors. SAVE THESE INSTRUCTIONS.

The Surge Protector features an internal protection that will disconnect the surge-protective component at the end of its useful life but will maintain power to the load—now unprotected.

(IBAR12, ISOBAR12ULTRA, RS-1215, RS-1215-RA, RS-1215-HG, DRS-1215): DO NOT exceed the MAXIMUM LOAD of 15 amps that can be drawn from each AC outlet. DO NOT exceed the MAXIMUM LOAD of 15 amps that can be drawn from all the outlets combined.

(IBAR12/20ULTRA, IBAR12-20T, RS-1215-20): DO NOT exceed the MAXIMUM LOAD of 15 amps that can be drawn from each AC outlet located on the front of the IBAR12/20ULTRA and IBAR12-20T. DO NOT exceed the MAXIMUM LOAD of 20 amps that can be drawn from each AC outlet on the RS-1215-20, or each AC outlet located on the rear of the IBAR12/20ULTRA and IBAR12-20T. DO NOT exceed the MAXIMUM LOAD of 20 amps that can be drawn from all the outlets combined.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Installation

Rackmount Installation

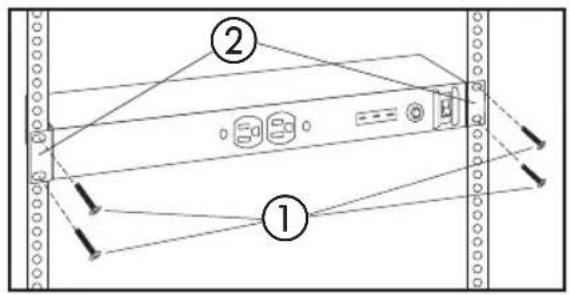

To Mount Unit in Rack: Put four user-supplied rack-mount screws ① through the unit's mounting ears ② and into the rack rails as shown. The user must determine the tness of the rack-mount screws to hold the unit in the rack before installation.

Wallmount/Under Counter Installation

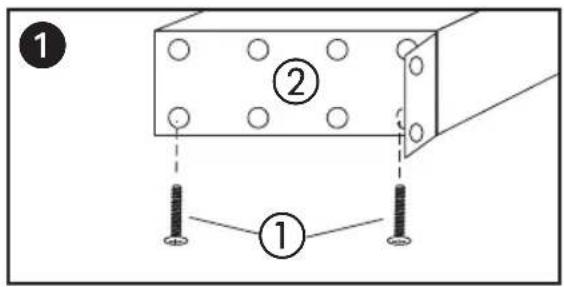

1 Detach Mounting Ears: Unscrew the screws ① holding the unit's mounting ears ② to the sides of the unit.

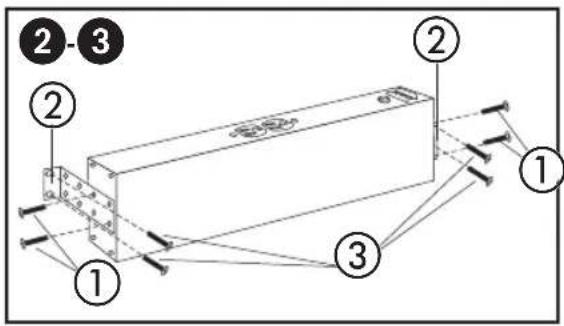

Reorient Mounting Ears: Use the screws from Step 1 ① to reattach the mounting ears ② to the unit as shown. Use only the manufacturer-supplied screws or their equivalent (#6-32, ¼" at head) to reattach the mounting ears. The screws should be put through diagonally opposite holes on the ear.
3 Mount Unit on Surface: Put four user-supplied screws ③ or similar mounting hardware through the unit's mounting ears ② and into the mounting surface as shown. The user must determine the tness of the user-supplied mounting hardware to support the unit before mounting.

Features

Circuit Breaker (All Models)

If the current draw of the equipment connected to your model exceeds your model's circuit breaker rating for longer than a few seconds, the circuit breaker will trip to prevent any possible damage. When the circuit breaker trips, its plunger will be extended. Remove excess equipment and allow the breaker to cool one minute before depressing its plunger to reset the breaker.

Illuminated "On/Off" Switch (All Models)

When your model is plugged into an AC outlet providing power of appropriate voltage and frequency (see Specifications), this switch will illuminate RED when moved to the "ON" position. This indicates 120V AC power is present at the model's AC receptacles.

Diagnostic Indicator Lights (ISOBAR Models Only)

When your surge protector is plugged into an AC outlet providing power of appropriate voltage and frequency (see Speci cations), the three LEDs on the front panel show current power conditions as follows, from left to right across the front of the unit:

Line "OK" (Green LED): Indicates that nominal AC power is present with no wiring faults detected. When this LED is illuminated, AC power is safe for connected equipment.

Line Fault (Red LED): Indicates a wiring fault has been detected. If this LED illuminates at any time the unit is plugged in, the fault should be repaired by a qualified electrician as soon as possible. This LED indicates that phases are reversed, ground is missing or some other sort of wiring error exists in the circuit the ISOBAR is plugged into. The Line Fault detector circuitry will identify most common wiring faults, but will not necessarily detect every possible type of fault.

If the Line Fault indicator light illuminates, carefully check the AC receptacle the ISOBAR is plugged into. The receptacle must be tight and securely grounded. A loose AC receptacle may cause the Line Fault LED to illuminate. It must be understood that this Red LED indicates the presence of a wiring fault, but does not indicate the exact nature of the fault. Therefore, a qualified electrician should make necessary repairs.

If the Line Fault indicator light illuminates and power is not present at the outlets, the ISOBAR's surge-suppression components have been compromised as a result of surge damage.

Protection Present (Green LED)*: Indicates the surge-suppression components are intact and providing full protection against spikes and surges. This LED should be lit anytime the ISOBAR "ON/OFF" switch is turned ON and power is present, as indicated by the lighted power switch. If the Protection Present LED does not light, then some of the surge suppression components are not functioning and the unit should be returned for repair as soon as possible. You may still use the unit; however, connected equipment will be protected from spikes and surges at a lesser level than normal.

Features

ISOLATED FILTER BANKS & CASCADE CIRCUITRY (IBAR12 and ISOBAR12ULTRA Models Only)

Isolated Filter Banks prevent equipment plugged into each layer bank from interacting with equipment plugged into the other layer bank. Cascade Circuitry provides di erent levels of protection between the Isolated Filter Banks.

There are two Isolated Filter Banks on IBAR12 and ISOBAR12ULTRA models. Isolated Filter Bank #1 provides basic protection for less-sensitive or noise-producing equipment. Outlets protected on this bank are black and can be found on the front and rear panels of these models. Isolated Filter Bank #2 provides enhanced, or the highest level of protection for your most sensitive equipment. Outlets protected on this bank are white and can be found on the rear panel of these models.

Specifications

All Models: Nominal Input Voltage: 120VAC; Input Frequency: 60 Hz

All ISOBAR Models: Transient Response Time: Instantaneous (0 ns). Transient amplitude reduction occurs faster than the clamp response of the varistors because of the high rejection rate of the ISOBAR Iter networks.

Warranty and Product Registration

Lifetime Limited Warranty

Eaton warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for life. If the product should prove defective in material or workmanship within that period, we will, subject to the foregoing terms and limitations, replace the product, in its sole discretion, as your exclusive remedy for our breach of the limited warranty. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Eaton, 10000 Woodward Avenue, Woodridge, IL 60517. Seller will pay return shipping charges.

The warranties of all Eaton Tripp Lite series surge protectors are null and void if they have been connected to the output of any UPS system. The warranties of all Eaton Tripp Lite series UPS Systems are null and void if a surge protector has been connected to its output receptacles.

THIS LIMITED WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. Eaton MAKES NO WARRANTY OTHER THAN THE LIMITED WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations or exclusion of implied warranties, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specic legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate, or safe for the use intended. Because individual applications are subject to great variation, we make no representation or warranty as to the suitability or thickness of these devices for any specific application.

Product Registration

Visit Triplite. Eaton.com/warranty today to register your new product. You'll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Eaton product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

Ultimate Lifetime Insurance Policy

Applicable only to ISOBAR models. Valid in U.S. and Canada Only

We warrant, for the lifetime of the product, (at our option) to repair or replace (on a pro rata basis) directly connected equipment that is damaged due to power transients while properly connected to Eaton Tripp Lite series products or ering the Ultimate Lifetime Insurance Policy. Power transients include spikes and surges on the AC power, data or telephone lines that the Eaton Tripp Lite series products have been designed to protect against (as recognized by industry standards). The following four paragraphs are conditions that must be complied with before the warranty becomes valid; failure to comply with these requirements will void the warranty.

AC Power Line Transients: To claim damages, the Eaton Tripp Lite series product must be plugged into a properly wired and grounded outlet. No extension cords or other electrical connections may be used. The installation must comply with all applicable electrical and safety codes set forth by the National Electrical Code (NEC). Except as provided above, this warranty does not cover any damage to properly connected electronic equipment resulting from a cause other than an "AC power transient". If user meets all of the above requirements, Eaton will repair or replace (at our option) equipment up to the speci ed value (See Ultimate Lifetime Insurance Policy Limits). No coverage is allowed for damage entering from telephone or data lines, unless they are separately protected, as described below.

Telephone and Data Line Transients: Eaton will repair or replace directly connected equipment that is damaged by transients on telephone and/or data lines only when all such paths are protected by a Eaton Tripp Lite series product(s) and the AC power (utility) line is simultaneously protected by a Eaton Tripp Lite series power protection device (UPS, surge protector or line conditioner) with Ultimate Lifetime Insurance coverage. Additional telephone and/or data line connected devices downstream must have their own telephone and/or dataline protectors.

Reimbursement dollar limits will be equal to that of the Eaton Tripp Lite series power protection protector. Coverage is excluded where a suitable environment for the protection device is not provided, including, but not limited to, lack of a proper safety ground. Telephone service equipment must also include a properly installed and operating "primary protection" device at the telephone service entrance (such devices are normally added during telephone line installation).

All above warranties are null and void if the Eaton Tripp Lite series product has been improperly installed, tampered with or altered in any way, or if the connected equipment was not used under normal operating conditions or in accordance with any labels or instructions. All claims under this warranty must be submitted in writing to Eaton within 30 days of the occurrence of the claim will not be considered. This warranty does not include damage resulting from accident or misuse, and applies to the domestic (USA & Canada) use of these products only. We reserve the right to determine whether the damage to the connected equipment is due to malfunction of the Eaton Tripp Lite series product by requesting the equipment in question be sent to Eaton for examination. This policy is above and beyond, only to the extent needed, of that provided by any coverage of connected equipment provided by other sources, including, but not limited to, any manufacturer's warranty and/or any extended warranties.

EXCEPT AS PROVIDED ABOVE, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Speci cally, we are not liable for any costs, such as lost pro t s or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties or otherwise. Coverage also does not apply to connected medical and industrial equipment.

To receive service under this warranty, you must be the original purchaser/user of the product in question. You must obtain a Returned Material Authorization (RMA) number from us. Products must be returned to Eaton with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase.

Eaton has a policy of continuous improvement. Speci cations are subject to change without notice.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2023 Eaton
