USER MANUAL PDUMV20HVNET2LX Tripp Lite

Monitored Rack PDU Switched Rack PDU

0U (Vertical) Format

PDUMNV20HVLX

(208/230V 16 Amp Monitored Model)

Series Number: AGPD7897

PDUMV20HVNET2LX

(208/230V 16 Amp

Switched Model)

Series Number: AGPD7897

PDUMNV30HVLX

(208/240V 24 Amp Monitored Model)

Series Number: AGPD7898

PDUMV30HVNETLX

(208/230V 24 Amp Switched Model)

Series Number: AGPD7898

PDUMNV32HV2LX

(200-240V 32A Monitored Model)

Series Number: AG-00CA

Important Safety Instructions 2

Monitored Rack PDU Features 2

Switched Rack PDU Features 3

Installation 3

Features 8

Configuration and Operation 11

Service 11

Warranty and Product Registration 12

Español 13

Français 25

Русский 37

Deutsch 49

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation, operation, and storage of this product. Failure to heed these instructions and warnings will void the product warranty.

• The PDU provides the convenience of multiple outlets, but DOES NOT provide surge or line noise protection for connected equipment.
• The PDU is designed for indoor use only, in a controlled environment, away from excess moisture, temperature extremes, conductive contaminants, dust or direct sunlight.
• Keep indoor ambient temperature between 0^ and 50^ (32°F and 122°F).
• The PDU must be installed by a qualified technician only.
• Do not attempt to mount the PDU to an insecure or unstable surface.
  • Install in accordance with National Electrical Code standards. Be sure to use the proper overcurrent protection for the installation, in accordance with the plug/equipment rating.
• Connect the PDU to an outlet that is in accordance with your local building codes and that is adequately protected against excess currents, short circuits and earth faults.
• The electrical outlets supplying power to the equipment should be installed near the equipment and easily accessible.
• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that eliminate the connection to ground.
• Be sure to provide a local disconnect device on any models that are permanently installed without a plug that is easily accessible.
• Never attempt to install electrical equipment during a thunderstorm.
• Individual equipment connected to the PDU should not draw more current than the individual PDU's outlet's rating.
• The total load connected to the PDU must not exceed the maximum load rating for the PDU.
• Do not attempt to modify the PDU, input plugs or power cables.
• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable parts inside.
• Do not attempt to use the PDU if any part of it becomes damaged.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Monitored Rack PDU Features

• Network interface enables remote power monitoring and event notification.
• Digital amp meter for on-site load monitoring.
- Optional EnviroSense2 modules (E2MT, E2MTDO, E2MTDI, E2MTHDI) allow for a variety of environmental monitoring and control options.
- Toolless button-mount installation in Tripp Lite SmartRack® and many third-party enclosures.

Switched Rack PDU Features

• Network interface enables remote power monitoring and individual outlet control.
- Individually controllable outlets allow remote rebooting of locked-up network devices.
• Digital amp meter for on-site load monitoring.
- Optional EnviroSense2 modules (E2MT, E2MTDO, E2MTDI, E2MTHDI) allow for a variety of environmental monitoring and control options.
- Toolless button-mount installation in Tripp Lite SmartRack and many third-party enclosures.

Installation

Mounting the PDU

Note: The illustrations may differ somewhat from your PDU model. Regardless of configuration, the user must determine the fitness of hardware and procedures before mounting. The PDU and included hardware are designed for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting configurations may vary. Screws for attaching the mounting brackets and cord retention shelf to the PDU are included. Use only the screws supplied by the manufacturer, or their exact equivalent (#6-32, 14 " flat head).

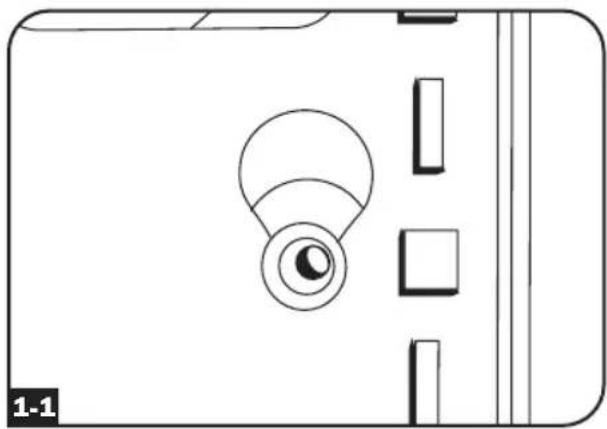

If installing the PDU in a rack that has button-mount slots, you only need to perform step 1-1. If your rack enclosure does not have button-mount slots, proceed to step 1-2.

To install the PDU in a rack equipped with button-mount slots, insert the mounting buttons on the rear of the PDU into the button-mount slots on the rack and slide the PDU down until the mounting buttons engage the narrow section of the button-mount slots.

Note: To install the PDU with its outlets facing the rear of the rack, use the included PDUMVROTATEBRKT accessory. This V-shaped bracket provides a mounting button on one leg of the V and a button-mount slot on the other, effectively repositioning the mounting buttons. See Features section for image.

Pure technical line drawing of a device casing with no text or symbols

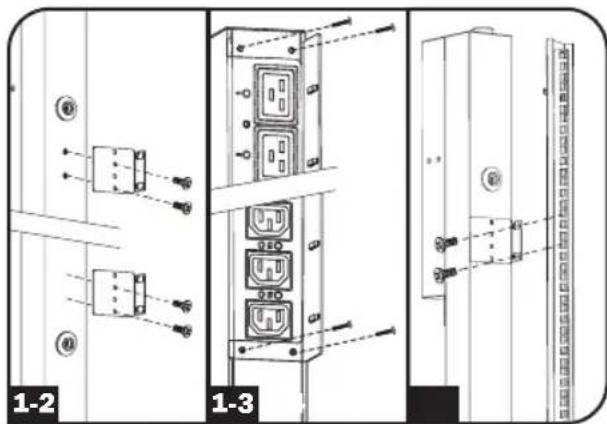

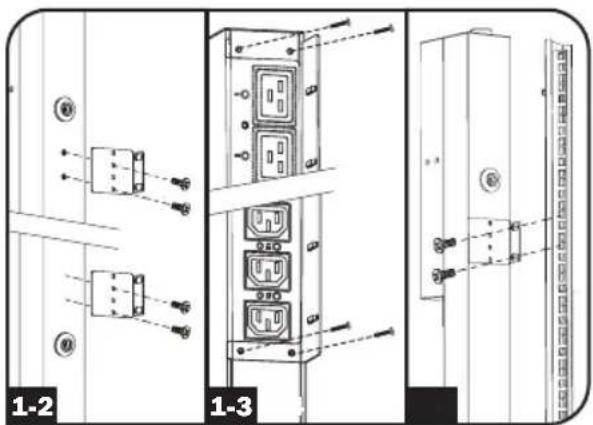

Attach the mounting brackets to the PDU.

(Optional) Attach the cord retention bracket(s) to the PDU.

Attach the PDU to a vertical rail in your rack or rack enclosure. Use the included mounting hardware to attach the mounting brackets to the rail.

Installation

Connecting the PDU

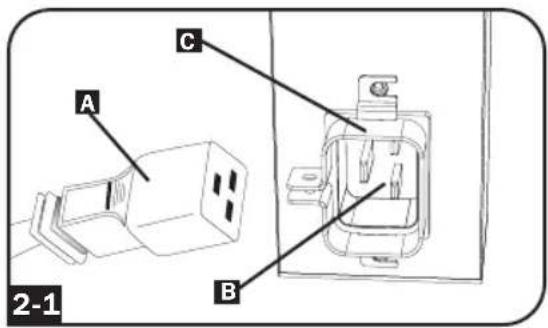

2-1

(Models with IEC power inlet or 3-pole IEC 309 plug only) Select models have a detachable power cord. Attach the included power cord to the PDU by inserting the IEC connector A of the power cord into the IEC power inlet B located near the end of the PDU. Use the included bracket C to secure the power cord connection.

Note: Optionally, a user-supplied power cord can be attached to the PDU by connecting it to the IEC inlet. Do not attempt to attach a user-supplied power cord unless it is certified to be compatible with the input power source that will be used by the PDU.

2-2

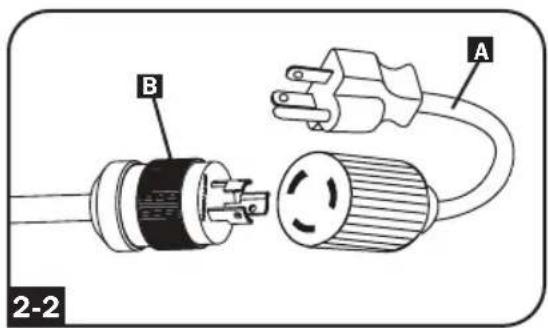

(Optional - models with input plug adapter only) Select models include an input plug adapter that converts the twist-lock input plug to a straight-blade input plug. Attach the input plug adapter A to the input plug B if you wish to plug the PDU into a compatible straight-blade outlet.

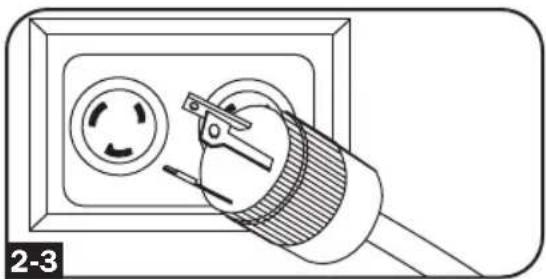

2-3

Connect the input plug to a compatible AC power outlet. If the PDU does not have a circuit breaker, it should be provided with a branch-rated over-current protection device that matches the rated amperage of the PDU.

Note: The AC power source should not share a circuit with a heavy electrical load.

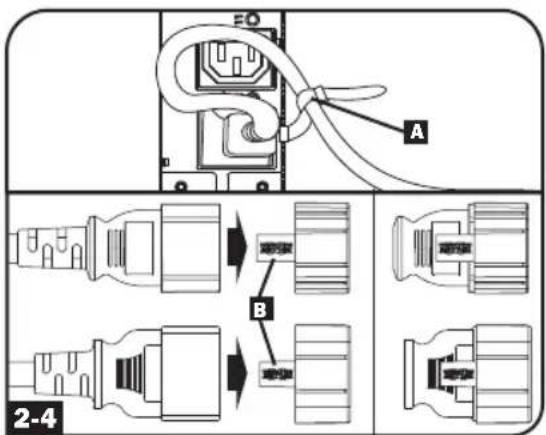

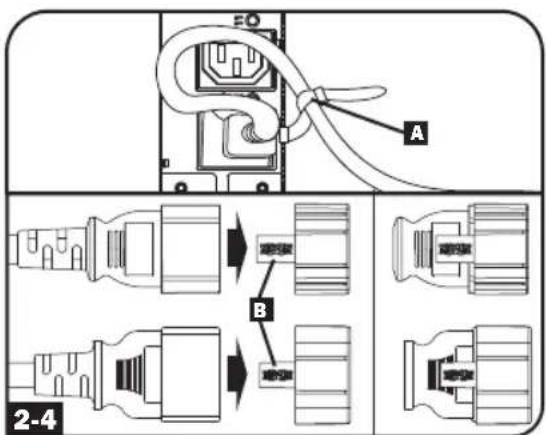

2-4

(Option 1 - select models only) If you attached the cord retention bracket(s), tie each equipment power cord to the retention bracket. Attach each cord to the retention shelf by looping the cord and securing it with one of the included cable ties A. Make sure that each cord can be unplugged from the PDU without removing the cable tie.

(Option 2) Use the included C14 and C20 plug-lock inserts to secure plugs to receptacles. Attach the insert onto the plug, making sure that the pull tabs B remain outside the plug and that the fit is secure. To unplug equipment properly, use the pull tabs to remove the plug and insert from the receptacle.

Line drawing of an electrical outlet with a cable and socket (no text or symbols)

Installation

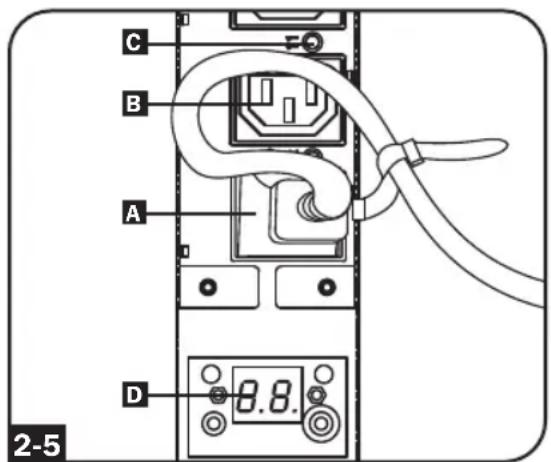

Connect your equipment's input plugs A to the outlets B of the PDU. The LED C near each outlet (Switched Models Only) illuminates when the outlet is ready to distribute live AC power. The digital load meter D displays the total connected equipment load in amps. (Select models provide additional load data. See the Features section for more information.)

Note: In order to minimize interference among connected devices, connect each device to the nearest PDU outlet and coil excess power cord length.

(Configuration may vary by model.)

Networking the PDU

Note: The MAC address of the PDU (a 12-digit string in this format: 00 06 67 XX XX XX) is printed on a label attached to the PDU enclosure.

If your network's DHCP server will assign a dynamic IP address to the PDU automatically, go to Step 3-1. If you will assign a static IP address to the PDU manually, go to Step 4-1. If you are uncertain which method to use, contact your network administrator for assistance before continuing the installation process.

Dynamic IP Address Assignment

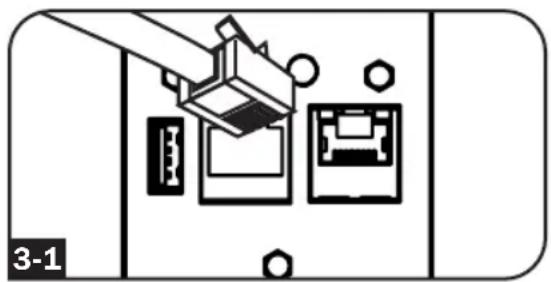

Connect Web Management Card to Network: Connect a standard Ethernet patch cable to your network using the RJ45 Ethernet port on your Web Management Card.

Note: This port does not support PoE (Power over Ethernet) applications.

The card will attempt to obtain an IP address via DHCP. This may take as long as several minutes, depending on your network environment.

Diagram of a device with a lever and two labeled ports (no text or symbols present)

Determine IP Address: To identify the IP address assigned to the Web Management Card, contact your network administrator and provide the MAC address of the Web Management Card. You can also determine the IP address locally at the card.

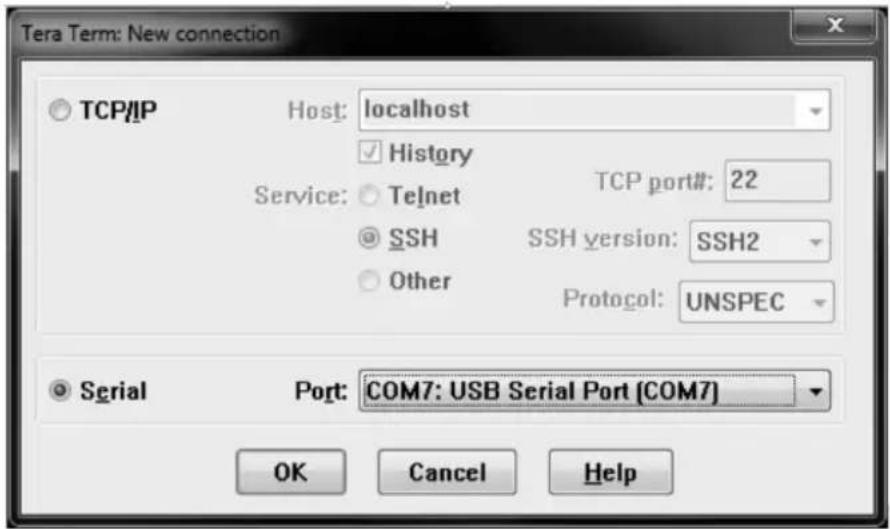

Start a terminal emulation program, such as Tera Term Pro. Configure the COM port intended for use by following these settings: 115.2 Kbps, 8, NONE, 1. Using the included RJ45 to DB9 cable (part number 73-1243), connect your PC to the PDU's CONFIG port. When the login prompt appears, login as localadmin / localadmin. When the Menu appears, navigate to "3- Network Configuration", then to "1- IP Configuration". The assigned IP address will be displayed. After you have determined the IP address, proceed to the Test Network

Connection section.

Note: You may wish to request a long-term lease period for the IP address, depending on your application.

Note: PowerAlert Device Manager and the Web Management Card support both IPv4 and IPv6. The card is set up by default to receive a DHCP address for IPv4, IPv6 or both. Receiving both addresses allows connection to the card via either the IPv4 or IPv6 address.

Installation

Static IP Address Assignment / Terminal Menu Configuration Settings

Determine IP Information: The Web management card can support a single static IPv4 address (requires setting the IP address, subnet mask and gateway) and/or a single static IPv6 address. In addition, the Web management card can support a single static IPv4 or an IPv6 DNS address that is required to be entered.

Configure Terminal Emulation Program: Set your terminal emulation program to use the COM port with its corresponding USB port.

Select Option 3: IPv4 setting, or Option 4: IPv6 settings. Select Option 1: Method. Select Option 2: Static.

Assign the address, subnet mask, gateway, etc. Save your settings by selecting "A" (apply). Choose "y" to restart PowerAlert now. Close your terminal session.

Remove Cable: Remove the cable and proceed to the Test Network Connection section.

Installation

Testing Network Connection

Test Network Connection: After an IP address has been assigned to the card, try to access it with a Web browser. Open Firefox or Chrome on a computer connected to the network and enter http:// or https:// followed by the IP address. The login screen for PowerAlert Device Manager will display. The default user name is localadmin and the password is localadmin. After you enter the user name and password, the PowerAlert Device Manager Overview page will appear in the browser window. For more information about configuration and operation of the managed device, refer to the LX Platform User's Guide located in the support section of the product web page.

Features

Simple line drawing of an electrical plug with a smiley face (no text or symbols)

Input Plug Adapter (Select Models): Converts the PDU's twist-lock input plug to a straight-blade input plug.

Technical line drawing of a wall-mounted electrical socket (no text or symbols)

Power Inlet (Select Models): The IEC power inlet connects to the included power cord or a compatible user-supplied power cord. The inlet includes a bracket to secure the cord connection.

Simple line drawing of a circular connector or socket with three holes, enclosed in a rounded rectangle (no text or symbols)

IEC 309 3-Pole Input Plug: Available on select models.

Simple line drawing of two identical electrical socket sockets (no text or symbols)

Outlets (Vary by Model): During normal operation, the outlets distribute AC power to connected equipment. Select models feature an LED that indicates outlet status.

Diagram of a vertical rack-mounted device with multiple slots and mounting holes (no text or labels)

Outlet LEDs: On switched models, each outlet LED illuminates when the associated outlet is ready to distribute live AC power.

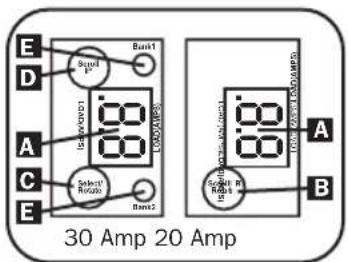

Digital Load Meter (Ammeter): The total connected equipment load in amperes is displayed by the digital meter A. 20-amp models feature a Scroll IP/Rotate Switch B. Press this switch for one second to display the PDU's IP address (two characters at a time). Press for two seconds to rotate the LED display for ease of reading in vertical installations with the input cord at the top or bottom of the PDU. 30-amp models feature a Select/Rotate Switch C and a dedicated Scroll IP Switch D. Press the Select/Rotate Switch once to display the total load (in amps) on the PDU. Press again to display the load on Bank 1 of the PDU and again to display the load on Bank 2. The Load Bank LEDs E will indicate display status as follows. Both outlet bank LEDs illuminated: total PDU load displayed. Bank 1 or Bank 2 LED illuminated: load on corresponding load bank displayed. Press the Select/Rotate Switch for two seconds to rotate the LED display for ease of reading in vertical installations with the input cord at the top or bottom of the PDU.

Features

Simple diagram of a rectangular box with two side rectangles and four corner holes, enclosed in a rounded rectangle (no text or symbols)

Circuit Breakers (Select Models): If the connected equipment load on a load bank exceeds the Maximum Load Rating of the load bank, the circuit breaker will trip. Disconnect excess equipment and switch breaker to the on position to reset the breaker. Models with multiple outlet banks have a circuit breaker for each bank. Circuit breakers are only used to protect output load banks.

Simple line drawing of a ruler with measurement markings and a pointer (no text or symbols)

Cord Retention Bracket (Select Models): Provides secure attachment points for connected equipment cords.

Technical line drawing of a hexagonal mechanical component with a handle (no text or symbols)

C14 Plug-Lock Inserts (Optional): Use the included C14 plug-lock inserts to secure plugs to C13 receptacles. Attach the sleeve to the plug making sure the pull tabs remain outside the plug and that the fit is secure. To unplug equipment properly, use the pull tabs to remove the plug and insert from the receptacle.

Isometric line drawing of a rectangular connector or housing (no text or symbols)

C20 Plug-Lock Inserts (Optional): Use the included C20 plug-lock inserts to secure plugs to C19 receptacles. Attach the sleeve to the plug making sure the pull tabs remain outside the plug and that the fit is secure. To unplug equipment properly, use the pull tabs to remove the plug and insert from the receptacle.

Simple line drawing of a rectangular object with four circular holes, enclosed in a rounded rectangle (no text or symbols)

Mounting Brackets: Use these brackets to mount the PDU.

Simple line drawing of a 3D box with a circular vent and a handle, enclosed in a rounded rectangle (no text or symbols)

PDUMVROTATEBRKT Mounting Accessory: Use these V-shaped brackets to mount the PDU with its outlets facing the rear of the rack.

Features

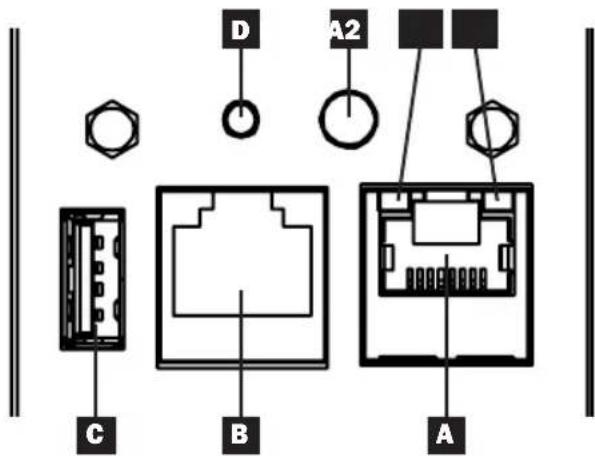

Web Management Card

A Ethernet Port: RJ45 jack connects the WEBCARDLX to the network using a standard Ethernet patch cable. LEDs A1 and A2 indicate the operating conditions (shown in the table below).

B RJ45 Configuration Port: Use this port to provide a direct terminal connection to a computer with a terminal emulation program. An RJ45 to DB9 cable (part number 73-1243) is included with the PDU. To request a replacement cable, visit www.tripplite.com for ordering information.

USB Type-A Port: Use this port to connect a Tripp Lite EnviroSense2 module (E2MT, E2MTDO, E2MTDI, E2MTHDI) for a variety of environmental monitoring and control options. See www.triplite.com for more information about these modules.

Note: Do not connect a keyboard or mouse to this port.

D Reset Button: Accessible through a small hole on the faceplate above the RJ45 Configuration Port. Press once to reset the Web Management Card. Press and hold for 15 seconds to reset the Web Management Card to factory default settings.

Note: PDU loads will not be affected.

E Status LED: Shows Web Management Card status (shown in the table below).

Identifier	LED Function LED	Color Status	Description
A1	Ethernet Link/Activity Indicator	Green Flashing	There is network activity on the port
			Off	There is no network activity on the port
A2	Ethernet Network Speed Indicator	Yellow On steady 100 Mbps network speed
E	Web Management Card Status	Green On steady Normal operation
		Green Single flash		Power up indicator
		Green/Orange	Off No power or card is initializing
		Green/Orange	Alternating (~1/sec.)	Software update in progress
		Green/Orange	Alternating (~2/sec.)	Restoring factory default configuration

Configuration and Operation

Remote Monitoring and Control

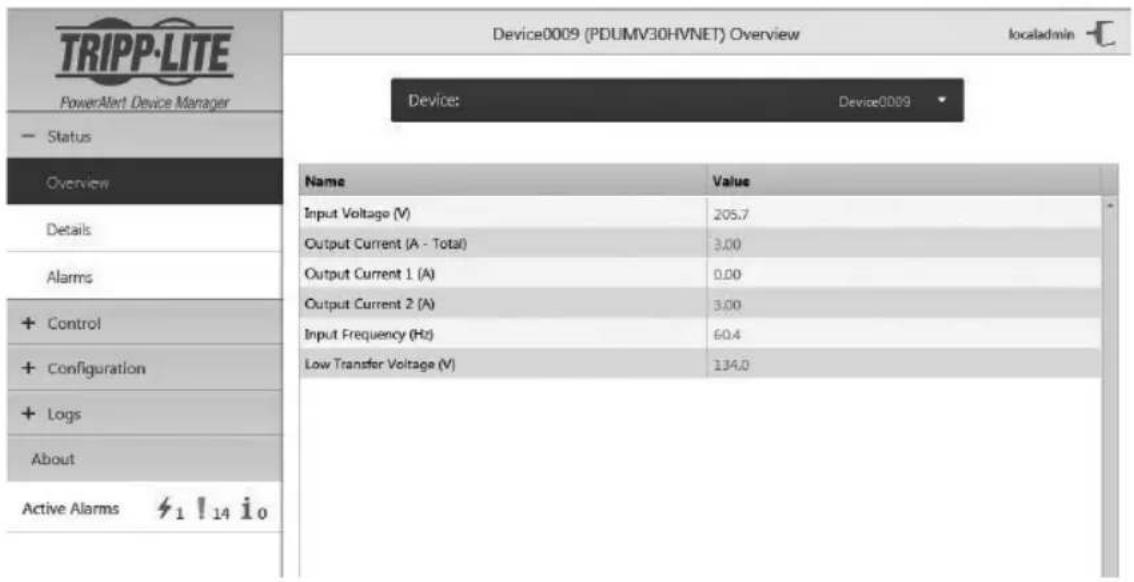

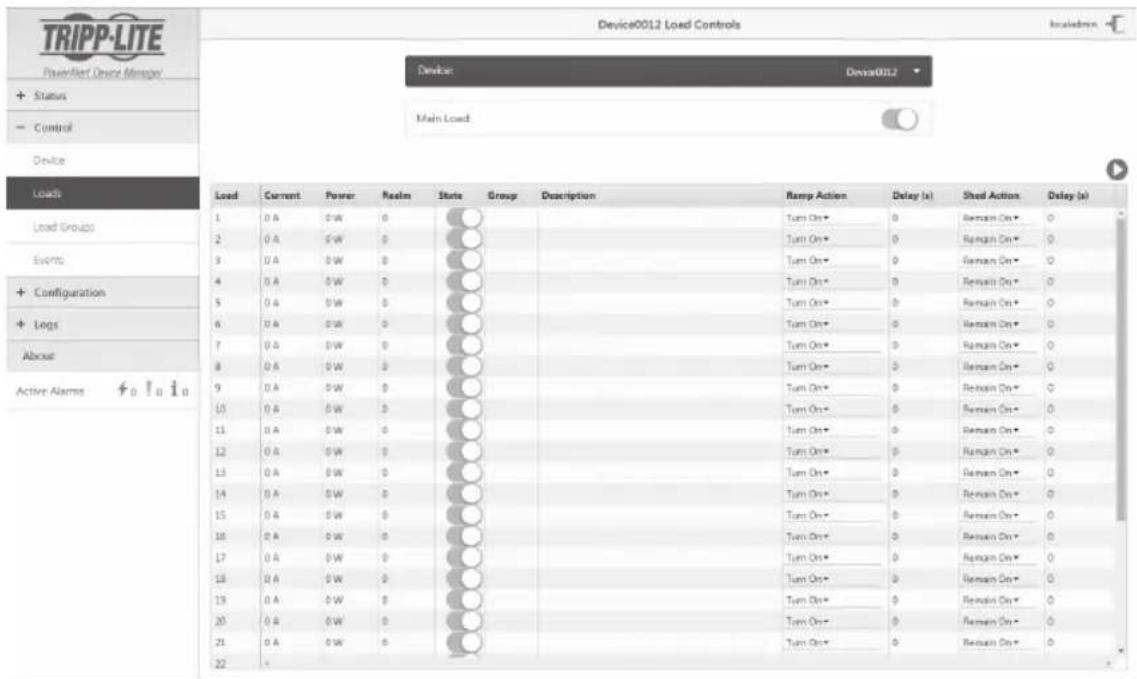

The PDU provides remote monitoring, outlet control and more via Web browser, telnet and SNMP-based Network Management Systems. For more information about configuration and operation of the PDU via the PowerAlert Device Manger, refer to the LX Platform User's Guide User's Guide, which can be found by going to www.tripplite.com/support and typing LX Platform in the search field.

Service

Your Tripp Lite product is covered by the warranty described in this manual. A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For more information on service, visit www.triplite.com/support. Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to insure that the service problem does not originate from a misreading of the instructions.

2. If the problem continues, do not contact or return the product to the dealer. Instead, visit www.tripplite.com/support.

3. If the problem requires service, visit www.triplite.com/support and click the Product Returns link. From here you can request a Returned Material Authorization (RMA) number, which is required for service. This simple on-line form will ask for your unit's model and serial numbers, along with other general purchaser information. The RMA number, along with shipping instructions will be emailed to you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorized Tripp Lite service center is not covered under warranty. Products shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to the address given to you when you request the RMA.

Warranty and Product Registration

LIMITED WARRANTY

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years (except internal UPS system batteries outside USA and Canada, 1 year) from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges. Visit www.tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class A

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

21-03-417 93-3667_RevD

(Modelo 208/230V 24 Amp, Controllable)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Simple line drawing of a device casing with a circular component and rectangular cutouts (no text or symbols)

Line drawing of a power outlet plug with two circular socket and switch (no text or symbols)

2-4

Dynamic IP Address Assignment

Diagram of a device with two connectors and internal components, no text or symbols present

Simple line drawing of an electrical plug with a smiley face (no text or symbols)

Technical line drawing of a wall-mounted electrical socket or connector (no text or symbols)

Simple line drawing of a circular connector or socket with three holes, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of two identical electrical socket sockets (no text or symbols)

Diagram of a vertical rack-mounted device with multiple slots and mounting holes (no text or labels)

Simple diagram of a rectangular box with two side rectangles and four corner holes, enclosed in a rounded rectangle (no text or symbols)

Interruptores de Circuitos de Salida (Modelos Selectos):

Simple line drawing of a ruler with tick marks and a small protrusion at the end (no text or symbols)

Technical line drawing of a hexagonal mechanical component with a protruding rod (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

Simple line drawing of a rectangular object with four circular holes and two small square holes, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of a 3D box with a circular element on top, enclosed in a rounded rectangle (no text or symbols)

Servicio técnico

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

21-03-417 93-3667_RevD

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Pure technical line drawing of a device casing with no text or symbols

Line drawing of an electrical outlet with a cable and socket (no text or symbols)

Installation

Diagram of a device with three ports and a cable, no text or symbols present

Three technical line drawings of electrical outlets: a simple bulb, a socket with three pins, and a circular socket (no text or symbols)

Diagram of a vertical panel with three internal socket switches (no text or labels)

Simple diagram of a rectangular box with two side rectangles and four corner holes, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of a ruler with measurement markings and a pointer (no text or symbols)

Technical line drawing of a hexagonal mechanical component with a clip (no text or symbols)

Isometric line drawing of a 3D rectangular component with a protruding rod (no text or symbols)

Simple line drawing of a rectangular object with four circular holes and two square ends, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of a door with a cloud symbol on the handle (no text or labels)

Entretien

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

21-03-417 93-3667_RevD

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Diagram of a device casing with internal components and labeled section 1-1 (no text or symbols on the diagram itself)

Установка

Подключение PDU

2-1

Line drawing of a plug inserted into an electrical socket (no text or symbols)

Diagram of a device with three ports and a cable, no text or symbols present

Simple line drawing of an electrical plug with a smiley face (no text or symbols)

Line drawing of a wall-mounted electrical outlet with mounting holes (no text or symbols)

Simple line drawing of a three-pin electrical connector (no text or symbols)

Back panel diagram showing three connected ports with mounting holes (no text or labels)

Simple diagram of a rectangular box with two side rectangles and four corner holes, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of a diagonal ruler with tick marks, no text or symbols present

Technical line drawing of a hexagonal mechanical component with a clip (no text or symbols)

Isometric line drawing of a rectangular connector or housing (no text or symbols)

Simple line drawing of a rectangular object with four circular holes and two square holes, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of a 3D box with a cloud-like shape on its side, enclosed in a rounded rectangle (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

21-03-417 93-3667_RevD

Benutzerhandbuch

(208/230 V 16 Ampere

Überwachtes Modell)

(208/230 V 16 Ampere

(208/240 V 24 Ampere

Überwachtes Modell)

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Line drawing of a device casing with handle and buttons, no text or symbols present

Line drawing of a plug inserted into an electrical socket (no text or symbols)

Installation

Diagram of a device with three ports and a cable, no text or symbols present

Installation

Three technical line drawings of electrical outlets: a circular socket, a rectangular socket with internal components, and a circular socket (no text or symbols)

Pure electrical circuit lines without any symbols

Simple diagram of a rectangular box with two side rectangles and four corner holes, enclosed in a rounded square frame (no text or symbols)

Simple line drawing of a ladder with tick marks and a small object on top (no text or symbols)

Technical line drawing of a hexagonal mechanical component (no text or symbols)

Isometric line drawing of a rectangular mechanical component with a protruding rod (no text or symbols)

Simple line drawing of a rectangular object with four circular holes, enclosed in a rounded rectangle (no text or symbols)

Simple line drawing of a 3D box with a cloud-like shape on its side, enclosed in a rounded rectangle (no text or symbols)

BESCHRÄNKTE GARANTIE

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

21-03-417 93-3667 RevD
