COAXIAL, OPTICAL1, OPTICAL2:

Left, Center, Right, Surround Right, Surround Left, Subwoofer

Left, Center 1, Right, Surround Right, Surround Left

-12dBa0dBa+12dBparpasde1dB.

Subwoofer

-15dBa0dBa+12dBparpasde1dB.

Remarque

Turn this setting on to soften overly bright movie soundtracks, which are typically mixed for reproduction in a movie theater.

CinemaFILTER can be used with the following listening modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic II Movie, Multichannel, DTS, DTS Neo6 Cinema, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio and DTS Express.

Remarque

• The CinemaFILTER may not work when used with certain input sources.

HDMI Ctrl (RIHD) : On
- Audio Return Ch (ARC): Auto

5 Hz - 100 kHz + 1 dB, -3 dB (DSP bypass)

±10 dB, 20 kHz (ALGUS)

Rapport signal-bruit 100 dB (LINE, IHF-A)

5Hz-100MHz/+0dB,-3dB

Sectiontuner

87.5 MHz - 107.9 MHz

Plage de frequenc

522/530kHz-1611/1710kHz

Stations programmables

40

Généralités

Alimentation 120 V CA, 60 Hz

Consummation 3.7 A

Consommation electrique insonore

40W

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A

Tel: [phone] Fax: [phone]

http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: [phone] Fax: [phone]

http://www.eu.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK

Tel: [phone] Fax: [phone]

ONKYO CHINA LIMITED

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: [phone] Fax: [phone]

http://www.onkyochina.com/

ONKYO CHINA PRC

1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai,

China 200041, Tel: [phone] Fax: [phone]

http://www.cn.onkyo.com/

SN 29401049FB

(C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.

Y1112-1

ONKYO

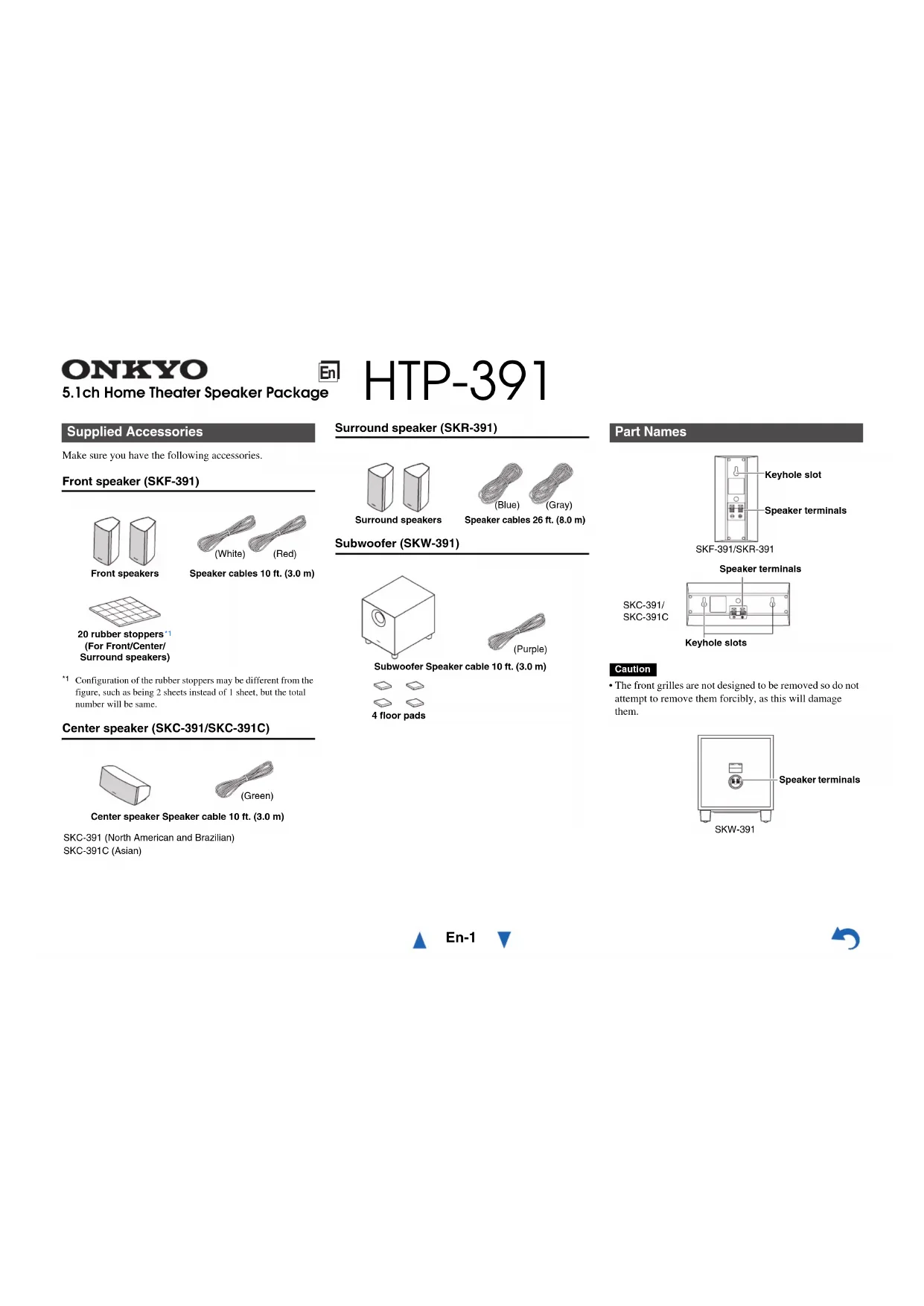

5.1ch Home Theater Speaker Package

HTP-391

Supplied Accessories

Make sure you have the following accessories.

Front speaker (SKF-391)

Front speakers

Speaker cables 10 ft. (3.0m)

20 rubber stoppers

[For Front/Center/ Surround speakers]

*1 Configuration of the rubber stoppers may be different from the figure, such as being 2 sheets instead of 1 sheet, but the total number will be same.

Center speaker (SKC-391/SKC-391C)

Center speaker Speaker cable 10 ft. (3.0 m)

SKC-391 (North American and Brazilian)

SKC-391C (Asian)

Surround speaker (SKR-391)

Surround speakers

Speaker cables 26 ft. (8.0 m)

Subwoofer (SKW-391)

Subwoofer Speaker cable 10 ft. (3.0 m)
4 floor pads

Part Names

SKC-391/ SKC-391C

Keyhole slot
Speaker terminals
SKF-391/SKR-391

Speaker terminals
Keyhole slots

Caution

The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.

SKW-391
Speaker terminals

Before Using the Home Theater Speaker Package

Using the Rubber Stoppers for a More Stable Platform

We recommend using the supplied rubber stoppers to achieve the best possible sound from your speakers. The rubber stoppers prevent the speakers from moving, providing a more stable platform.

Using the Floor Pads for Subwoofer

If the subwoofer is placed on a hard floor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer's feet may damage the flooring. To prevent this, place the supplied pads underneath the subwoofer's feet. The pads also provide a stable base for the subwoofer.

Wall Mounting

To mount the front/surround speakers vertically, use the keyhole slot shown to hang each speaker on a screw that's securely screwed into the wall.

To mount the center speaker horizontally, use the two keyhole slots shown to hang the speaker on two screws that are securely screwed into the wall.

Keyhole slots for wall mounting
SKC-391/ SKC-391C
6-5/16" (160 mm)

Tip

• If the center speaker is tilted, loosen the screw on the inclined side to move upward so that the speaker could be adjusted vertically.

Caution

• A mounting screw's ability to support a speaker depends on how well it's anchored to the wall. If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors. Use screws with a head

diameter of 5 / 16^ (9 mm) or less and a shank diameter of 1 / 8^ (4 mm) or less. With hollow walls, use a cable/pipe detector to check for any power cables or water pipes before making any holes.

• Leave a gap of between 3/16'' (5 mm) and 7/16'' (10 mm) between the wall and the base of the screw head, as shown (We recommend that you consult a home installation professional).

Enjoying Home Theater

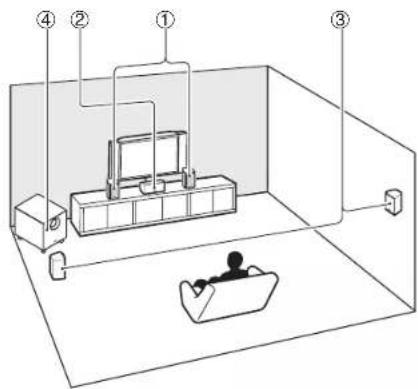

The Home Theater means that you can enjoy surround sound with a real sense of movement in your own home just like being in a movie theater or concert hall.
① Front left and right speakers (SKF-391)

They should be positioned facing the listener at about ear level, and equally spaced from the TV. Angle them inward slightly so as to create a triangle, with the listener at the apex.
Center speaker (SKC-391/SKC-391C)

Position it close to your TV (preferably on top) facing forward at about car level, or at the same height as the front left and right speakers.
③ Surround left and right speakers (SKR-391)

Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100cm above ear level. Ideally they should be equally spaced from the listener.

④ Subwoofer (SKW-391)

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel and bass from the satellite speakers when a crossover is specified. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the way along the front wall, as shown.

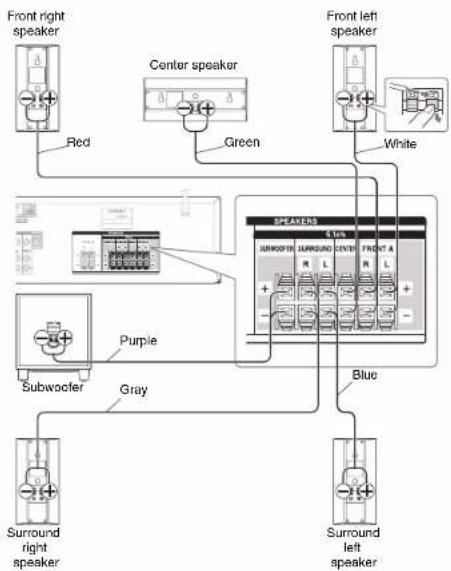

Connecting the Speakers

Speaker Connection Precautions

Read the following before connecting your speakers:
- Turn off your receiver before making any connections.
- Pay close attention to speaker wiring polarity. Connect positive (+) terminals to only positive (+) terminals, and negative (-) terminals to only negative (-) terminals. If the speakers are wired incorrectly, the sound will phase and will sound unnatural.
- Be careful not to short the positive and negative wires. Doing so may damage your amp.

Specifications

Passive Subwoofer (SKW-391)

Type Bass-reflex type Passive subwoofer

Impedance 6 Ω

Maximum input power 130 W

Sensitivity 83 dB/W/m

Frequency response 30Hz to 150Hz

Cabinet capacity 0.88 cubic feet (25 L)

Dimensions (W× H× D) 11-5/8" 13 - 9 / 16^ = 14 - 1 / 2^

(295 mm × 345 mm × 368 mm)

(incl. projection)

Weight 14.1 lbs. (6.4kg)

Drivers unit 8" (20 cm) Conc × 1

Terminal Spring type color coded

Other Non-magnetic shielding

■Front Speakers (SKF-391)

Type Full Range Bass-reflex

Impedance 6 Ω

Maximum input power 120 W

Sensitivity 80dB / W / m

Frequency response 80 Hz to 20 kHz

Cabinet capacity 0.039 cubic feet (1.1 L)

Dimensions (W× H× D) 4^ × 7 - 7 / 8^ × 4 - 1 / 2^

(101mm× 200mm× 114mm)

(incl. grille and projection)

Weight 1.5 lbs (0.7kg)

Drivers unit 3-1/4" (8 cm) Cone × 1

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Non-magnetic shielding

Center Speaker Surround Speakers (SKR-391)

SKC-391 (North American and Brazilian)

Type Full Range Bass-reflex

Impedance 6 Ω

Maximum input power 120 W

Sensitivity 80 dB/W/m

Frequency response 80 Hz to 20 kHz

Cabinet capacity 0.064 cubic feet (1.8 L)

Dimensions (W× H× D) 9-7/16"4"4"4-3/4"

(240mm× 102mm× 121mm)

(incl. grille and projection)

Weight 1.8 lbs (0.8kg)

3-1/4" (8 cm) Cone × 1

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Non-magnetic shielding

SKC-391C (Asian)

Type Full Range Closed Box

Impedance 6Ω

Maximum Input power 120 W

Sensitivity 84.5 dB/W/m

Frequency response 80 Hz to 20 kHz

Cabinet capacity 0.064 cubic feet (1.8 L)

Dimensions (W× H× D) 9-7/16"×4"×4-3/4"

(240 mm × 102 mm × 121 mm)

(incl. grille and projection)

Weight 2.9 lbs (1.3 kg)

Drivers unit

3-1/4" (8 cm) Cone × 2

Terminal Spring type color coded

Keyhole slot Available

Grille

Other Magnetic shielding

Type Full Range Bass-reflex

Impedance 6 Ω

Maximum input power 120 W

Sensitivity 80 dB/W/m

Frequency response 80 Hz to 20 kHz

Cabinet capacity 0.039 cubic feet (1.1 L)

Dimensions (W× H× D) 4^ 7 - 7 / 8^ 4 - 1 / 2^

(101mm× 200mm× 114mm)

(incl. grille and projection)

Weight 1.5 lbs. (0.7kg)

Drivers unit

3-1/4" (8 cm) Cone × 1

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Non-magnetic shielding

Specifications and appearance are subject to change without prior notice.

Note

For non-magnetic shielded speakers:

Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor,

wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which

neutralizes the magnetic field, thereby removing any discoloration effects.

ONKYO

Type Bass-reflex a large hande

Impedance 6 Ω

Dimensio (LxHxP 9-7/16"4"4-3/4"

(240 mm × 102 mm × 121 mm)

Type Bass-rcflex a largc bande

Impedance 6 Ω
