USER MANUAL EMRH908VRTW EAS Electric

Line drawing of a kitchen air conditioner unit with a chimney and ventilation slots (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

Simple line drawing of a heating lamp with a control panel and evaporating substance (no text or symbols)

Simple line drawing of a campfire setup with a stove and fire, no text or symbols present

COMPONENTES

Two circular fan-like structures with radial blades, one labeled with number 5 (no text or symbols on the fan itself)

20 21 12 11 10

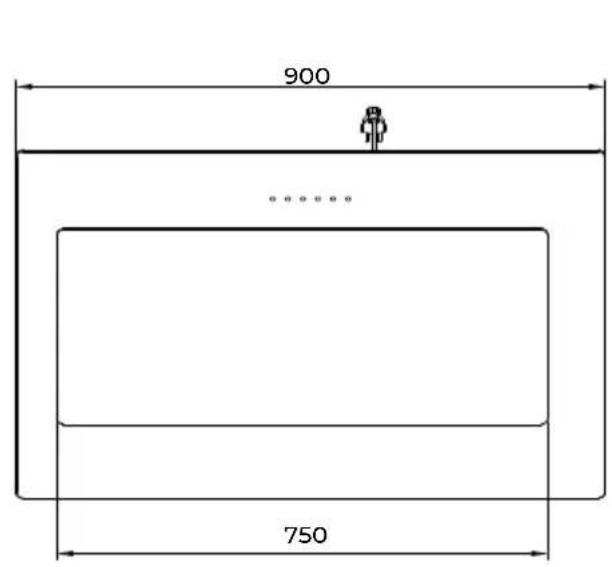

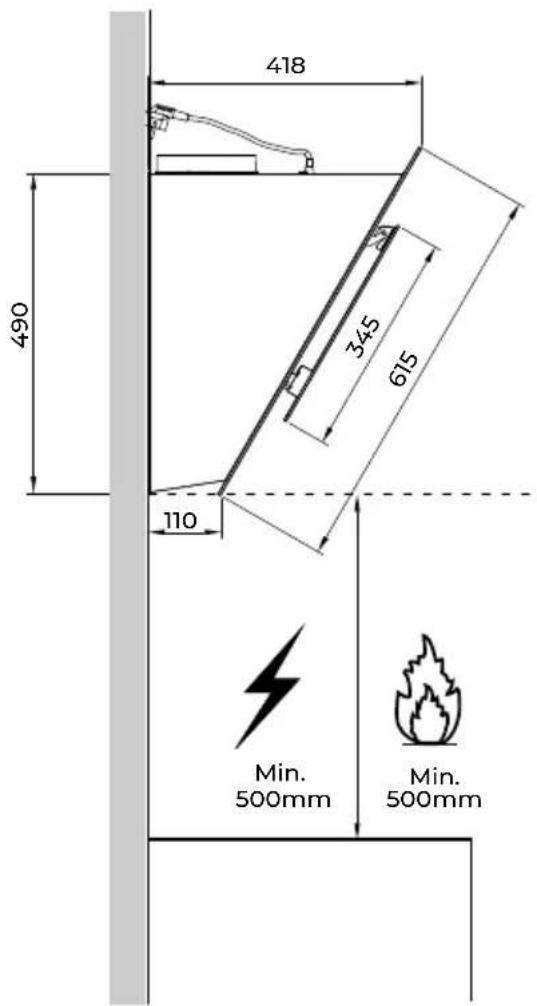

DIMENSIONES

900 ...... 750

400

418 490 345 615 110 Min. 500mm Min. 500mm

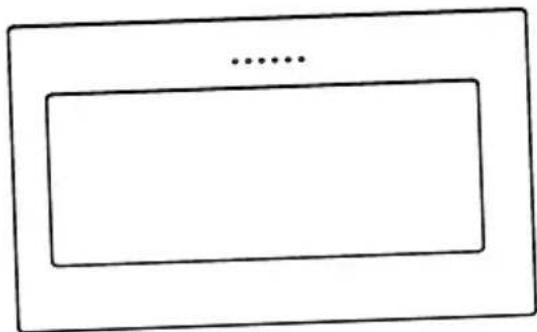

INSTALACIÓN

Simple rectangular outline with a dotted line above it, no text or symbols present.

Correcto

Simple line drawing of a rectangular frame with a dotted line above it (no text or symbols)

Incorrecto

CONEXIONES

Technical diagram showing a 3D box assembly with labeled parts and an inset magnified view of the component.

Technical line drawing of a mechanical assembly with a dashed circular inset showing a component detail (no text or symbols)

USO

Panel de control

Diagram of hands installing or adjusting a cabinet panel with a dial and rotating arrow (no text or symbols)

Illustration of a hand pointing at a device screen with a download arrow (no text or symbols)

FIX REMOVE REMOVE FIX

Technical line drawings of two mechanical components with internal cavities (no text or symbols)

Line drawing of a hand gripping a surface with a small object nearby (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

RECOMMENDATIONS AND SUGGESTIONS

3 Installation

3 Use Maintenance

COMPONENTS DIMENSIONS

INSTALLATION CONNECTIONS USE: CONTROL PANEL

MAINTENANCE Cleaning the grease filters Activated charcoal filters Light replacement

DISPOSAL OF OLD APPLIANCE TROUBLESHOOTING WARRANTY CONDITIONS

RECOMMENDATIONS AND SUGGESTIONS

The instructions for use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for: non-combustible parts of range hoods, and parts operating at safety extra low voltage, Provided these parts do not give access to live parts if deformed).

Simple line drawing of a laboratory setup with a heated lamp and control panel (no text or symbols)

- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.

- For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Regulations concerning the discharge of air have to be fulfilled.

USE

- The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes. Never use the hood for purposes other than for which it has been designed.

- Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

2°

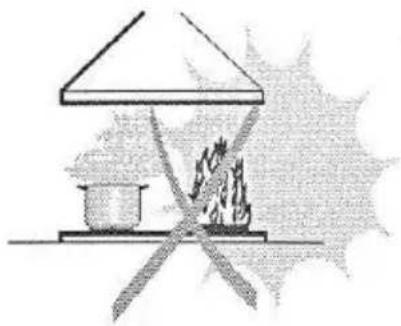

- Do not flame under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

MAINTENANCE

• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
• The appliance uses 4 hob elements at most.

Simple line drawing of a campfire setup with a stove, fire, and a triangular roof (no text or symbols)

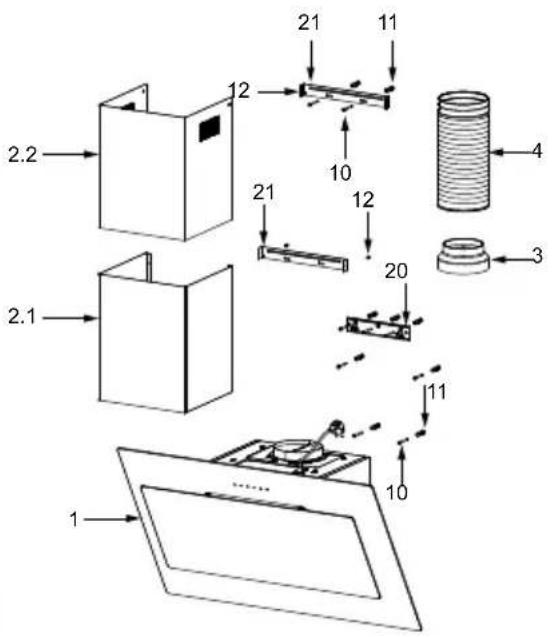

COMPONENTS

Ref. Qty.	Product Components
1 1	Hood Body,complete with: Controls, Light, Blower, Filter.
2.1 1 Lower Decorative Chimney
2.2 1 Upper Decorative Chimney
3 1	Flange (optional)
4 1 Exhaust Pipe

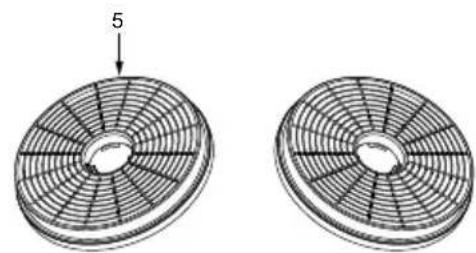

5 2 Activated Charcoal filter (optional)

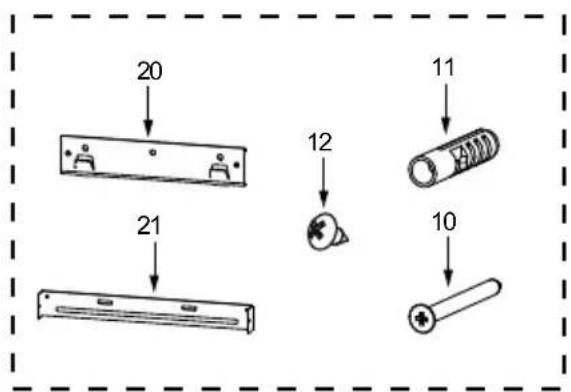

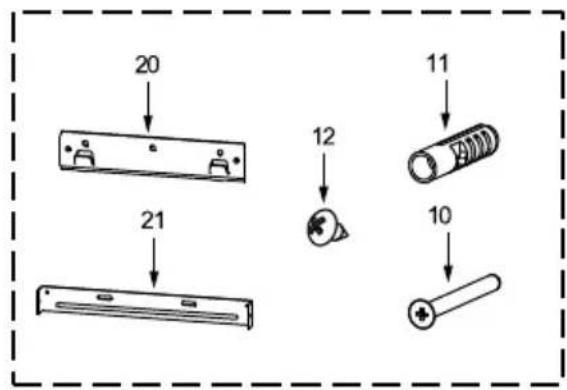

Ref. Qty. Optional Installation Components
10	7	Screws 5 x 50
11	7 Wall Plugs
12	6 Screws 4,2 x 9,5
20	1	Hood fixing bracket
21	2	Chimney fixing bracket

Qty.	Documentation
1	Instruction Manual

2.2 2.1 1 21 11 10 21 12 12 20 4 3 11 10 1

Two circular fan-like structures with radial blades, one labeled with number 5 (no text or symbols on the fan itself)

20 21 12 11 10

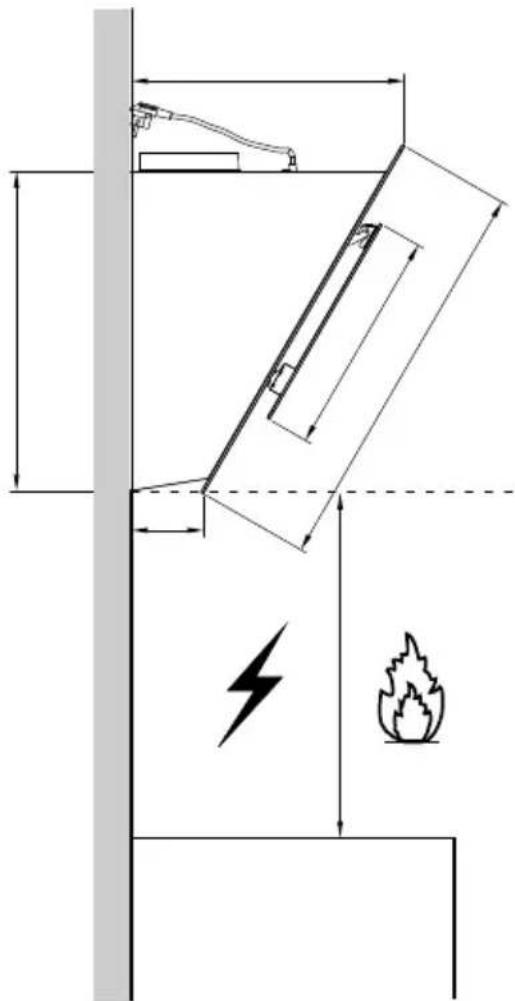

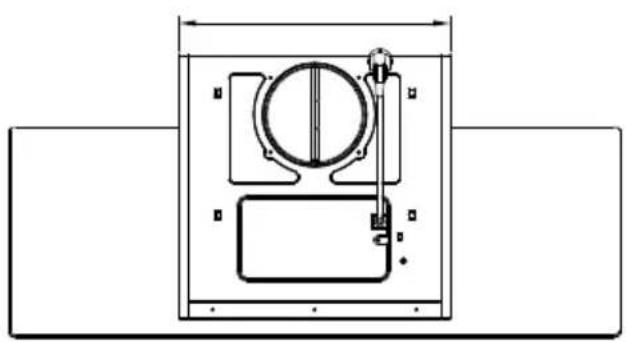

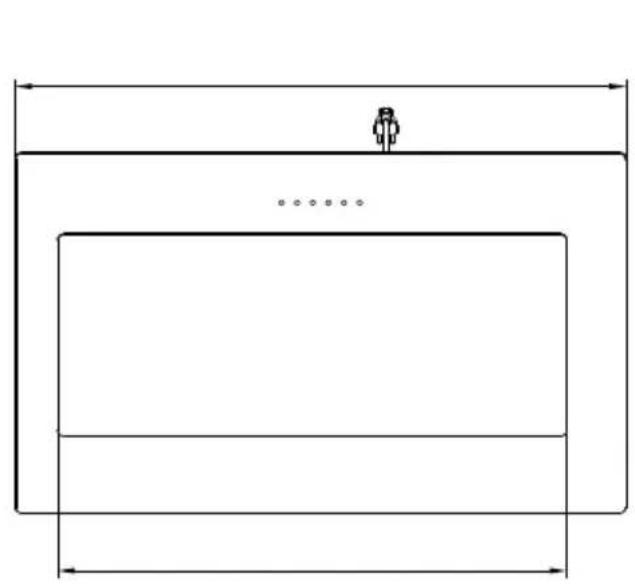

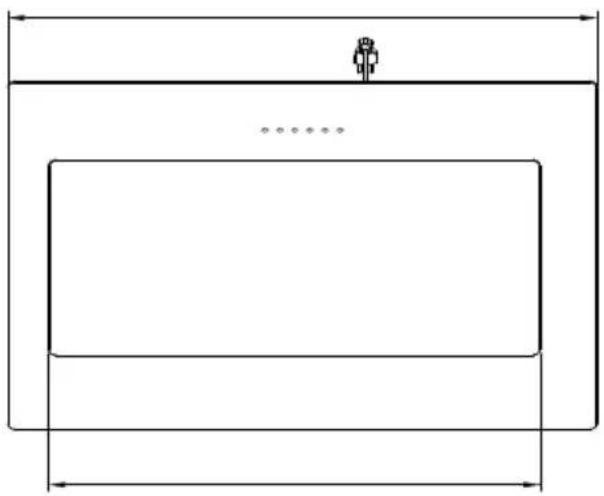

DIMENSIONS

Simple line drawing of a rectangular frame with a small human figure above it, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing fire safety system with labeled components and directional arrows

INSTALLATION

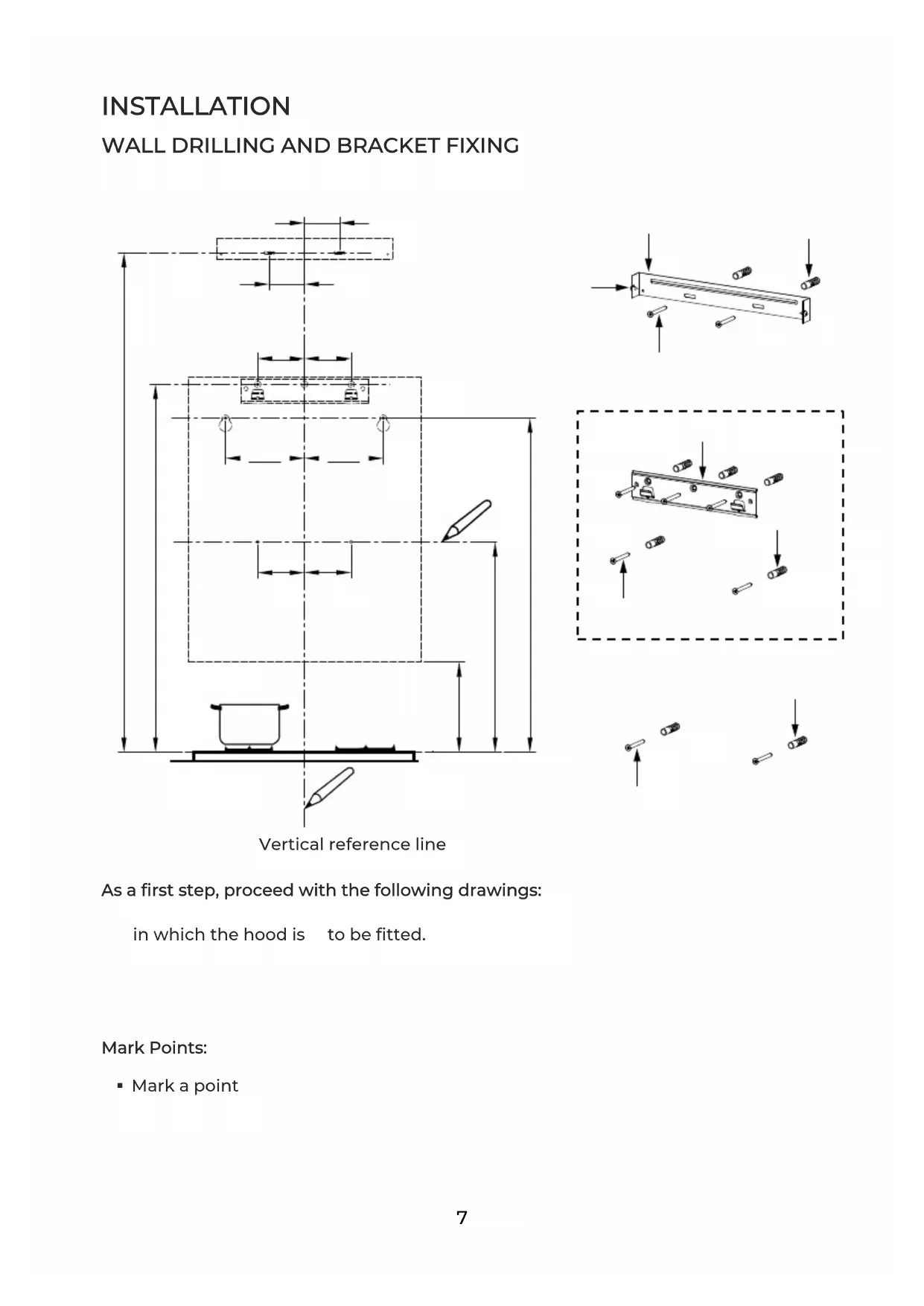

WALL DRILLING AND BRACKET FIXING

As a first step, proceed with the following drawings:

in which the hood is to be fitted.

Mark Points:

- Mark a point

• Mark a point
• Repeat this operation on the other side, checking that the two marks are leveled.
• Drill at the marked points

Simple diagram with a rectangle and dotted line above it, no text or symbols present.

Simple line drawing of a rectangular frame with a dotted top line (no text or symbols)

Ø150 Ø120

The chimney can only be installed with exhausting hood.

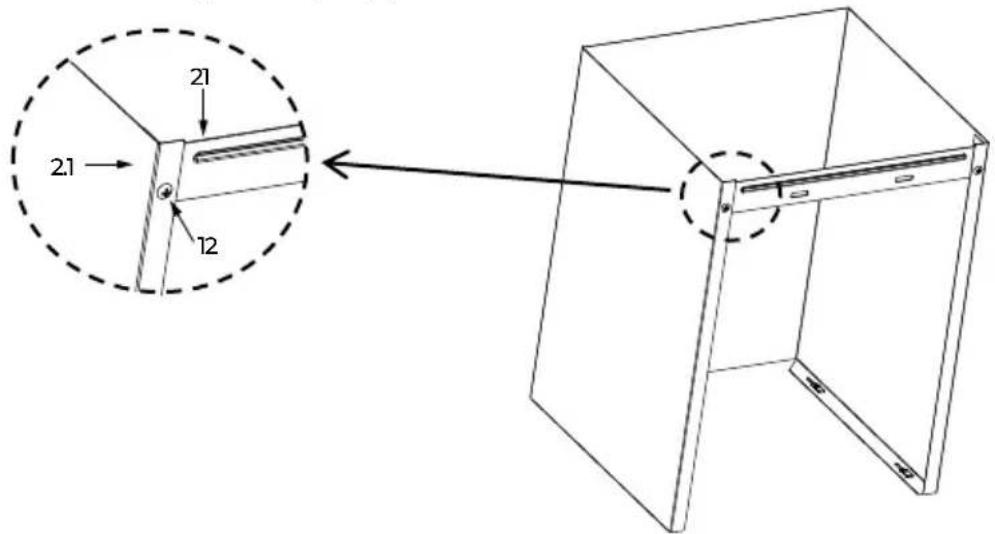

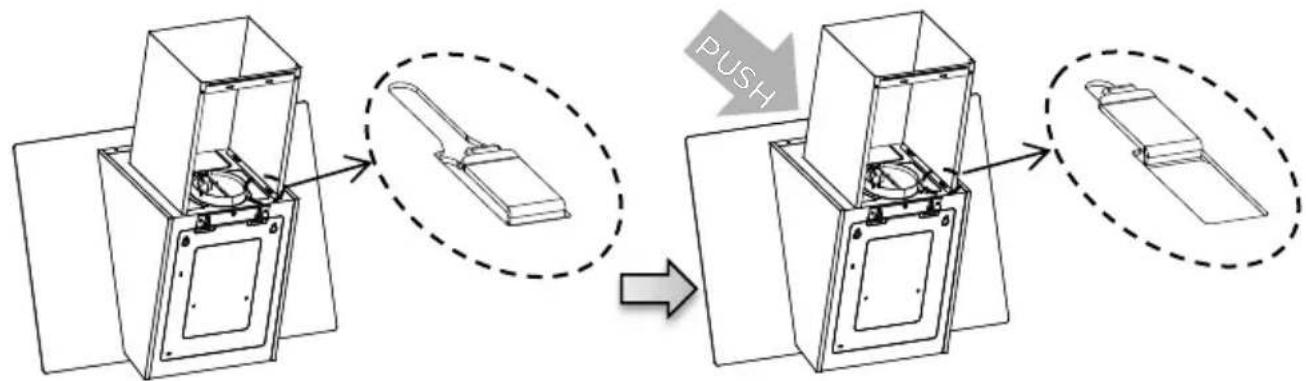

Lower Decorative Chimney

- Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12 (4.2 x 9.5) supplied with the hood.

21 21 12

- Slightly widen the two sides of the flue and hook them onto the hood body, making sure that they are well seated.
    note right of C
        PUSH
    end

Upper Decorative Chimney

• Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 21 which is fixed on the Lower Decorative Chimney.
• Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

Technical diagram showing a mechanical assembly with a dashed circular inset view of a cabinet and a cylindrical component (no text or symbols)

➊	➊	➊
	➊	➊
		➊
➂		➊ ➂
➃		➊ ➂
➄		➊ ➂
➌
B		➊ B

MAINTENANCE

Diagram of hands holding a rectangular panel with a dial and arrow indicating rotation (no text or symbols)

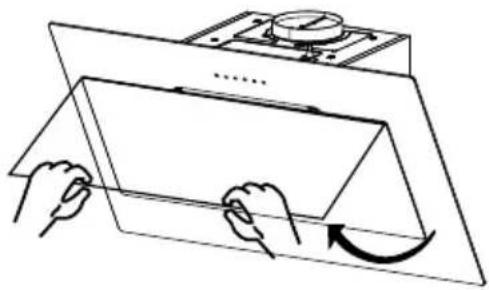

GREASE FILTERS

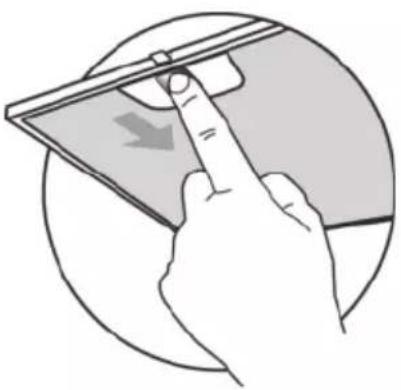

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

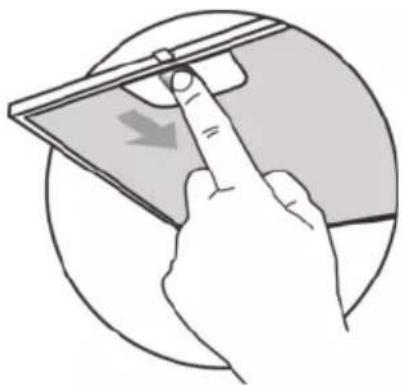

• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand holding a tablet device with a scroll, no text or symbols present

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

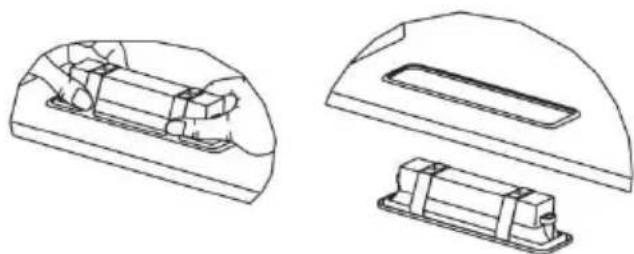

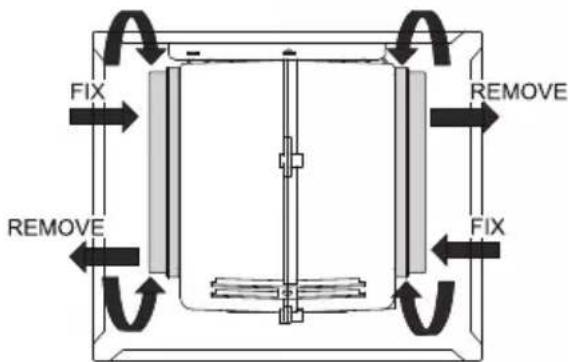

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter. Fit the new filters.
• Replace the metal grease filters.

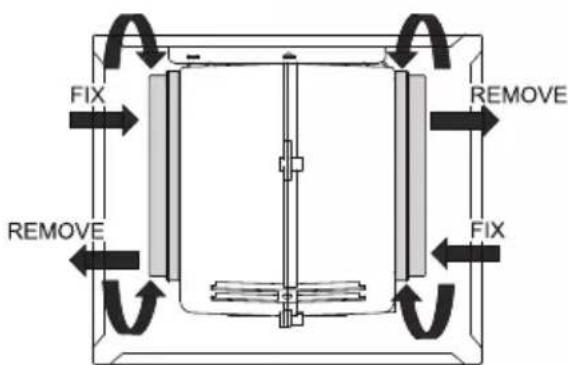

FIX REMOVE REMOVE FIX

Technical line drawings of two mechanical components with internal mechanisms (no text or symbols)

Line drawing of a hand gripping a small object, possibly a tool or device (no text or symbols present)

DISPOSAL OF OLD ELECTRICAL APPLIANCES

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

TROUBLE SHOOTING

Fault Cause Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/ disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fix the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors/windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

Solid black right-pointing triangle shape on white background (no text or symbols)

RECOMMANDATIONS ET SUGGESTIONS

3 Installation

3 Usage Maintenance

COMPOSANTS DIMENSIONS

INSTALLATION CONNECTIONS UTILISATION: PANNEAU DE CONTRÔLE

RECOMMANDATIONS ET SUGGESTIONS

Simple line drawing of a laboratory setup with a conical flask, thermometer, and heating element (no text or symbols)

Simple line drawing of a campfire setup with a stove and fire, no text or symbols present

COMPOSANTS

Two circular fan-like structures with radial blades, one labeled with number 5 (no text or symbols on the fan itself)

20 21 12 11 10

DIMENSIONS

Simple line drawing of a rectangular frame with a small human figure above it, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing fire safety system with labeled components and warning symbols

INSTALLATION

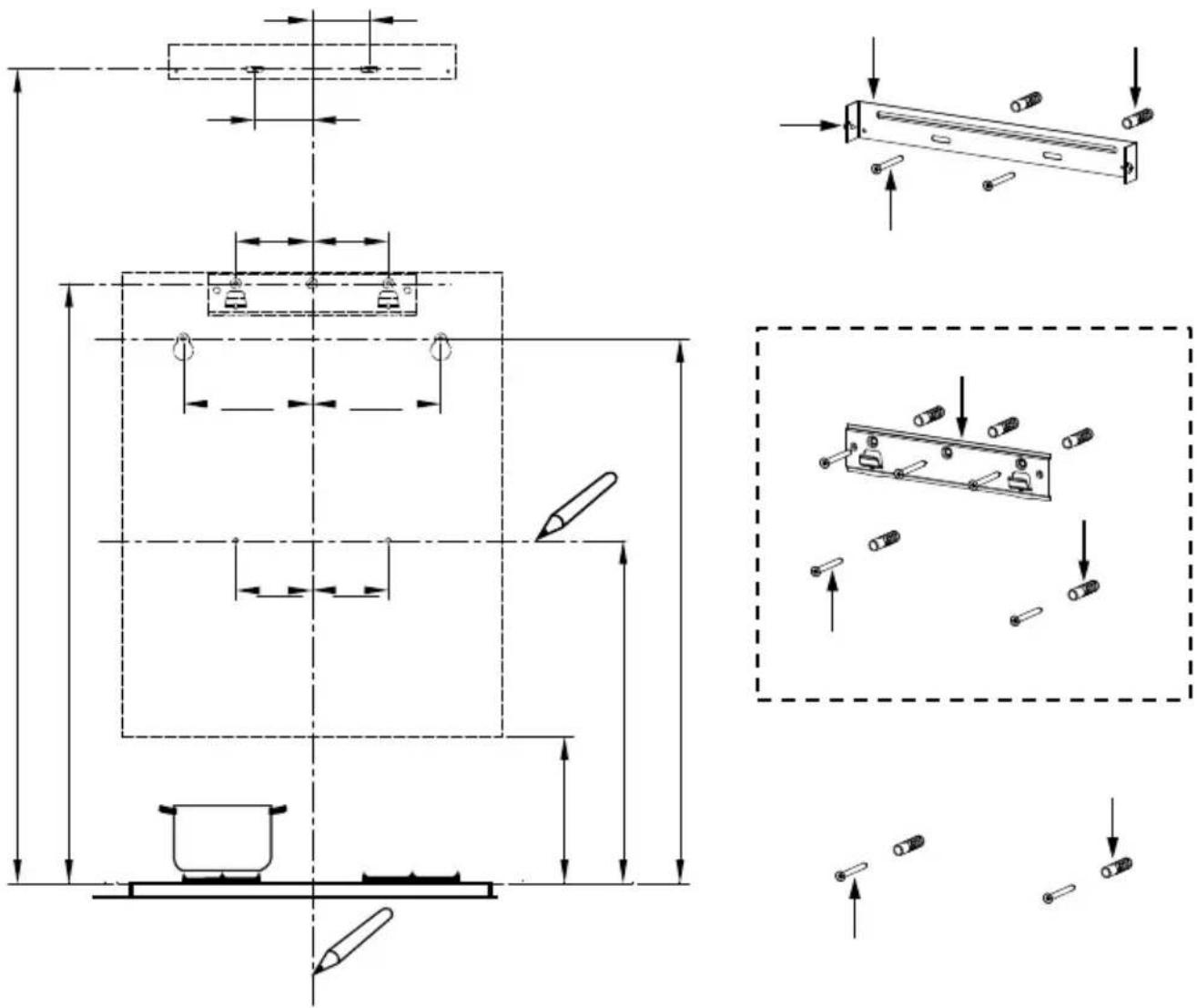

TROUS DANS LE MUR ET FIXATION DES SUPPORTS

Technical schematic diagram showing assembly steps and component placement with dimension annotations

Simple diagram with a rectangular box and dotted line above it, no text or symbols present.

Correct

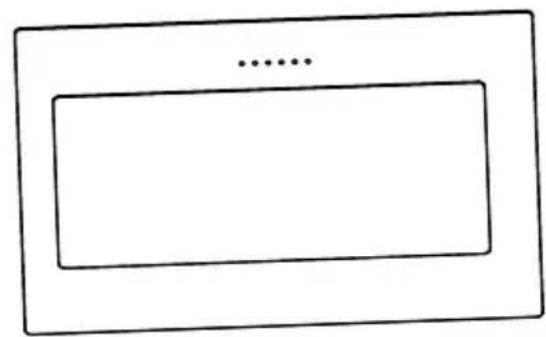

Simple line drawing of a rectangular frame with a dotted line above it (no text or symbols)

Incorrect

CONNECTIONS

SYSTÈME D'EXTRACTION PAR CONDUITS

Diagram of hands holding a flatboard with a rotating arrow, no text or symbols present

FILTRES À GRAISSE

Illustration of a hand pressing down on a tablet device with a curved arrow indicating rotation (no text or symbols)

FILTRE À CARBONE ACTIF (version recirculation)

FIX REMOVE REMOVE FIX

Technical line drawings of two mechanical components with internal brackets (no text or symbols)

Line drawing of a hand holding a tool near a small object (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Solid black right-pointing triangle shape on white background (no text or symbols)

RECOMENDAÇÕES E SUGESTÕES

3 Instalação

Illustration of a lamp illuminating a steaming lamp with a flame (no text or symbols)

Simple line drawing of a heating setup with a stove, flame, and smoke (no text or symbols)

COMPONENTES

Two circular fan diagrams with radial blades, one labeled with number 5 (no text or symbols on the diagrams themselves)

20 21 12 11 10

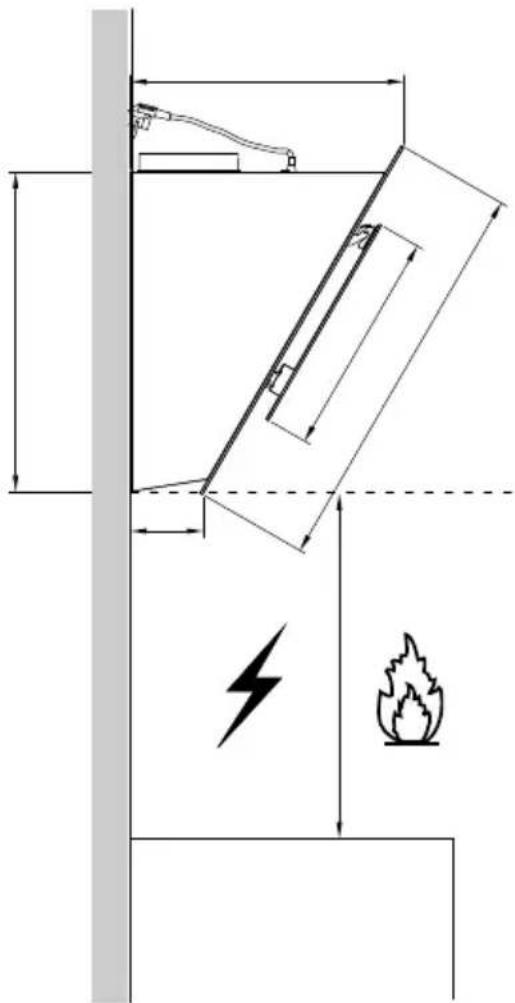

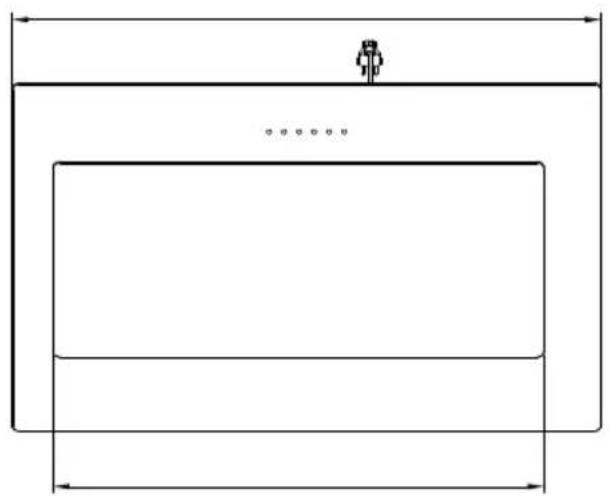

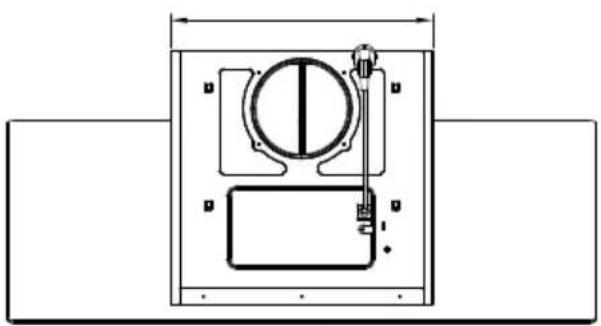

DIMENSÕES

unidade: mm

Pure technical line drawing of a rectangular frame with dimension lines and no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing fire safety system with labeled components and warning symbols

INSTALAÇÃO

Diagram of hands installing or adjusting a cabinet panel with a rotating arrow (no text or symbols)

FILTROS DE GASES

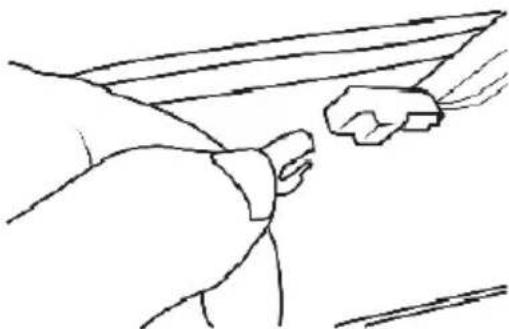

LIMPEZA DE FILTROS METÁLICOS

Illustration of a hand pressing down on a device with a downward arrow, enclosed in a circular frame (no text or symbols)

FIX REMOVE REMOVE FIX

Technical line drawings of two mechanical components with internal mechanisms (no text or symbols)

Line drawing of a hand gripping a small object, possibly a tool or device, with no visible text or symbols.

Scan for manual in other languages and further updates:
