EMRH706X - Basket EAS Electric - Free user manual and instructions

Product type	Range hood
Brand	EAS Electric
Model	EMRH706X
Usage	Indoor only, for domestic use
Dimensions (W × D × H)	500 × 300 × 286 mm (approx.)
Adjustable chimney height	From 485 to 1220 mm (depending on option)
Power supply voltage	220-240 V ~ 50 Hz
Control type	Push buttons
Number of speeds	3 (Low – Medium – High)
Lighting	LED, max. 1.5 W (replaceable module)
Filter type	Metal grease filters (dishwasher safe) + optional activated charcoal filter (non-washable)
Exhaust duct diameter	150 mm (120 mm adapter included)
Minimum distance to gas	65 cm (or according to hob instructions)
Installation	External extraction or recirculation with charcoal filter
Maximum number of burners supported	4
Grease filter maintenance	Clean every 2 months (or more if heavy use)
Charcoal filter replacement	Every 4 months (or more if heavy use)
Lighting replacement	Complete LED module, carried out by a professional
Electrical protection	Class I, mandatory grounding
Warranty	3 years (Spain and Portugal, excluding wear parts and aesthetic damage)

Frequently Asked Questions - EMRH706X EAS Electric

What minimum distance should be observed between the hood and the hob?

For a gas hob, the minimum distance between the pan support and the underside of the hood is 65 cm. If the hob instructions specify a greater distance, that takes precedence. This distance can be reduced for non-combustible parts of the hood.

How to clean the metal grease filters?

Grease filters should be cleaned every 2 months (or more often with heavy use). They are dishwasher safe. To remove them, push them towards the back of the hood and pull downwards. Do not bend them. Reinstall with the tab facing outwards.

When should the activated charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced every 4 months (or more often if the hood is used heavily). To replace it, first remove the metal grease filters, then replace the charcoal filter, and finally reassemble the metal filters.

How to replace the LED bulb?

The individual bulb cannot be replaced: you must replace the entire lighting module. Unplug the appliance, remove the grease filters, unscrew the screws on the front panel, disconnect the LED connector, then replace the module. Use a compatible LED lamp (max. 1.5 W). This operation must be carried out by a professional.

What to do if the motor does not run but the light works?

Check the fan blades (they may be blocked). If not, the capacitor or the motor itself may be defective and need replacement. The internal wiring may also be disconnected. Contact a professional.

What to do in case of hood vibrations?

Vibrations may be caused by damaged blades (replace the impeller), a loose motor (tighten the mountings), or improper installation (check wall brackets). Make sure all screws are tight.

Can the hood be used in recirculation mode?

Yes, the hood can operate in recirculation mode (without external exhaust) provided an activated charcoal filter is installed (available as an option). In this case, the air is filtered and then returned to the room.

What are the possible exhaust duct diameters?

The duct can be 150 mm or 120 mm. A 120 mm adapter is supplied for connecting a smaller duct. Use a rigid or flexible pipe and secure it with clamps (not supplied).

Is the hood under warranty?

Yes, the appliance is warranted for 3 years from the date of purchase against manufacturing defects (labor and parts) but only in Spain and Portugal. The warranty does not cover wear parts, aesthetic damage, or defects due to incorrect installation or non-domestic use. Keep the receipt.

What to do if the hood is tilted?

Check that the fixing screws and anchor bolts are properly tightened. If necessary, loosen slightly, level the hood, then tighten again. The hood should be horizontal.

USER MANUAL EMRH706X EAS Electric

Line drawing of a kitchen air conditioner unit with a chimney and ventilation slots (no text or symbols)

EMRH706X

QR code with embedded logo and text 'EAS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Simple line drawing of a laboratory setup with a conical flask, thermometer, and heating element (no text or symbols)

Simple line drawing of a cooking setup with a pot, stove, and fire (no text or symbols)

COMPONENTES

Simple line drawing of a T-shaped object with a vertical centerline and two horizontal bars below (no text or symbols)

Correcto

Simple line drawing of a rectangular block resting on a horizontal beam with a vertical centerline (no text or symbols)

Incorrecto

CONEXIONES

Five circular diagrams with symbols: one with a number 1, three with crescent and star-like shapes, two with circles, and one with a sun-like symbol.

Illustration of a hand pressing down on a smartphone screen with a downward arrow (no text or symbols)

FIX REMOVE REMOVE FIX

LUZ

Line drawings showing three steps of inserting a device into a rack (no text or symbols present)

RECOMMENDATIONS AND SUGGESTIONS

3 Installation

3 Use

4 Maintenance

5 COMPONENTS

6 DIMENSIONS

7 INSTALLATION

8 CONNECTIONS

9 USE: CONTROL PANEL

10 MAINTENANCE

10 Cleaning the grease filters

10 Activated charcoal filters

10 Light replacement

11 DISPOSAL OF OLD APPLIANCE

12 TROUBLESHOOTING

13 WARRANTY CONDITIONS

RECOMMENDATIONS AND SUGGESTIONS

⚠️ The instructions for use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

- The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for: non-combustible parts of range hoods, and parts operating at safety extra low voltage, Provided these parts do not give access to live parts if deformed).

Simple line drawing of a laboratory setup with a conical flask, thermometer, and heating element (no text or symbols)

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
• When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ■ Regulations concerning the discharge of air have to be fulfilled.

USE

- The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes. Never use the hood for purposes other than for which it has been designed.

- Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

- Do not flame under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2°

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

MAINTENANCE

• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
• The appliance uses 4 hob elements at most.

Simple line drawing of a campfire setup with a pot and fire, no text or symbols present

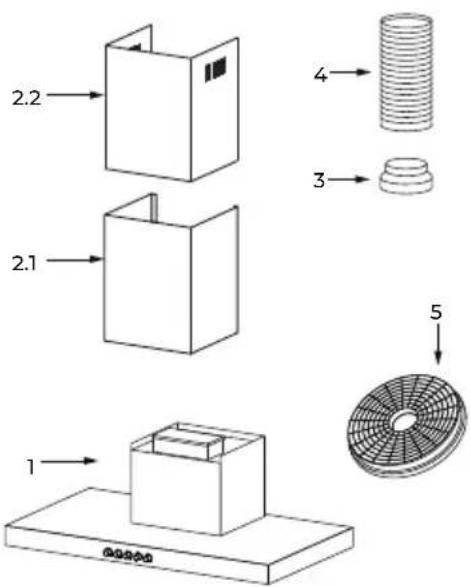

COMPONENTS

Ref. Qty.	Product Components
1 1	Hood Body,complete with: Controls, Light, Blower,Filter.
2.1 1 Lower Decorative Chimney
2.2 1 Upper Decorative Chimney
3 1	Flange (optional)
4 1 Exhaust Pipe
5 2 Activated Charcoal filter (optional)

Qty. Documentation

1 Instruction Manual

Ref. Qty. Optional Installation Components
10	7 Screws 5 x 50
11	7 Wall Plugs
12	6 Screws 4,2 x 9,5
20	1 Hood fixing bracket
21	2 Chimney fixing bracket

2.2 2.1 4 3 5 1

20 12 11 21 10

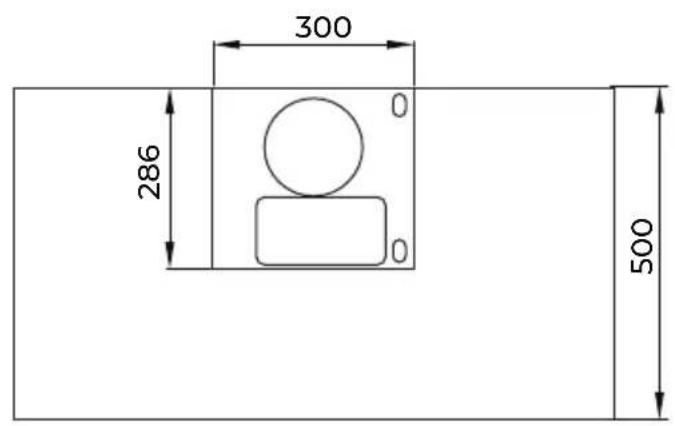

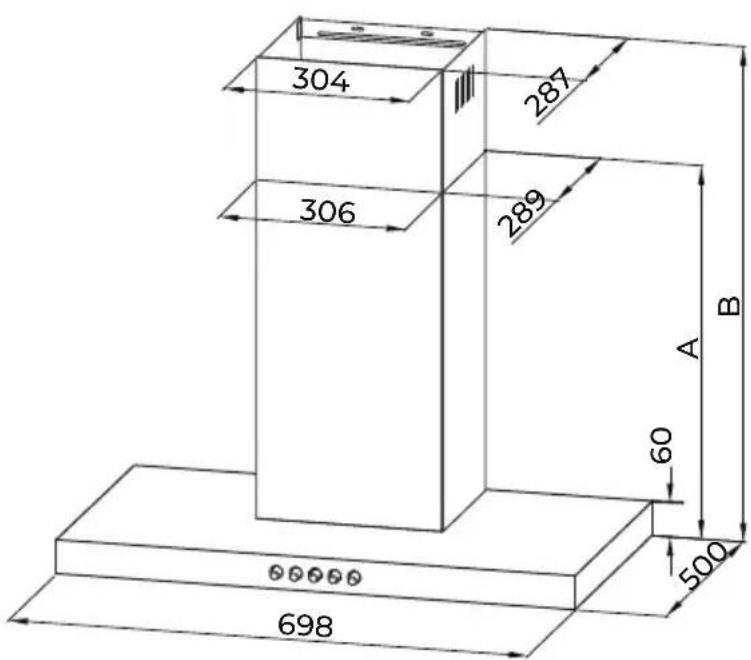

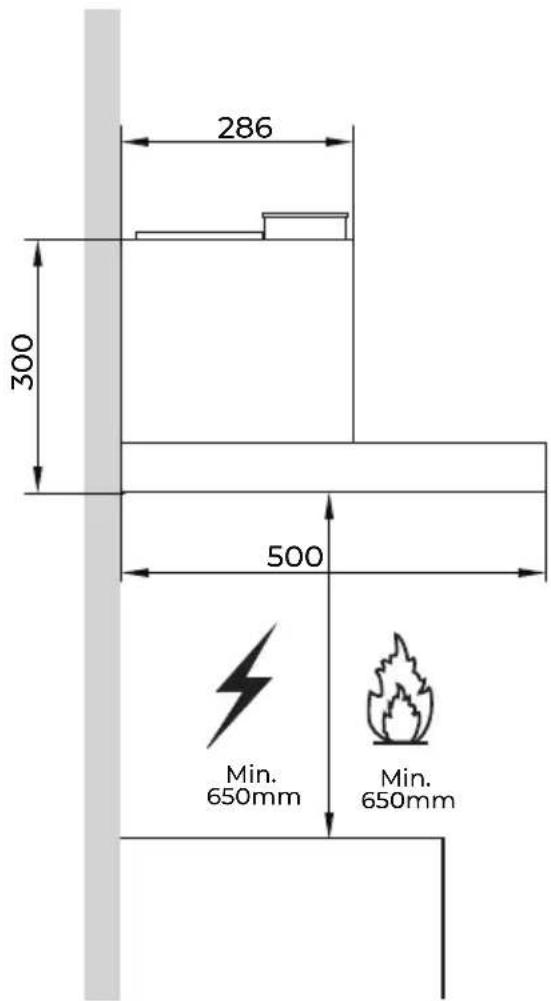

DIMENSIONS

unit: mm

300 286 0 0 500

240

286 300 500 Min. 650mm Min. 650mm

304 287 306 289 A B 60 500 698

Option	Chimney	A	B	Height
1	400+390	450	485-820	450-820
2	500+490	550	585-1020	550-1020
3	600+590	650	685-1220	650-1220

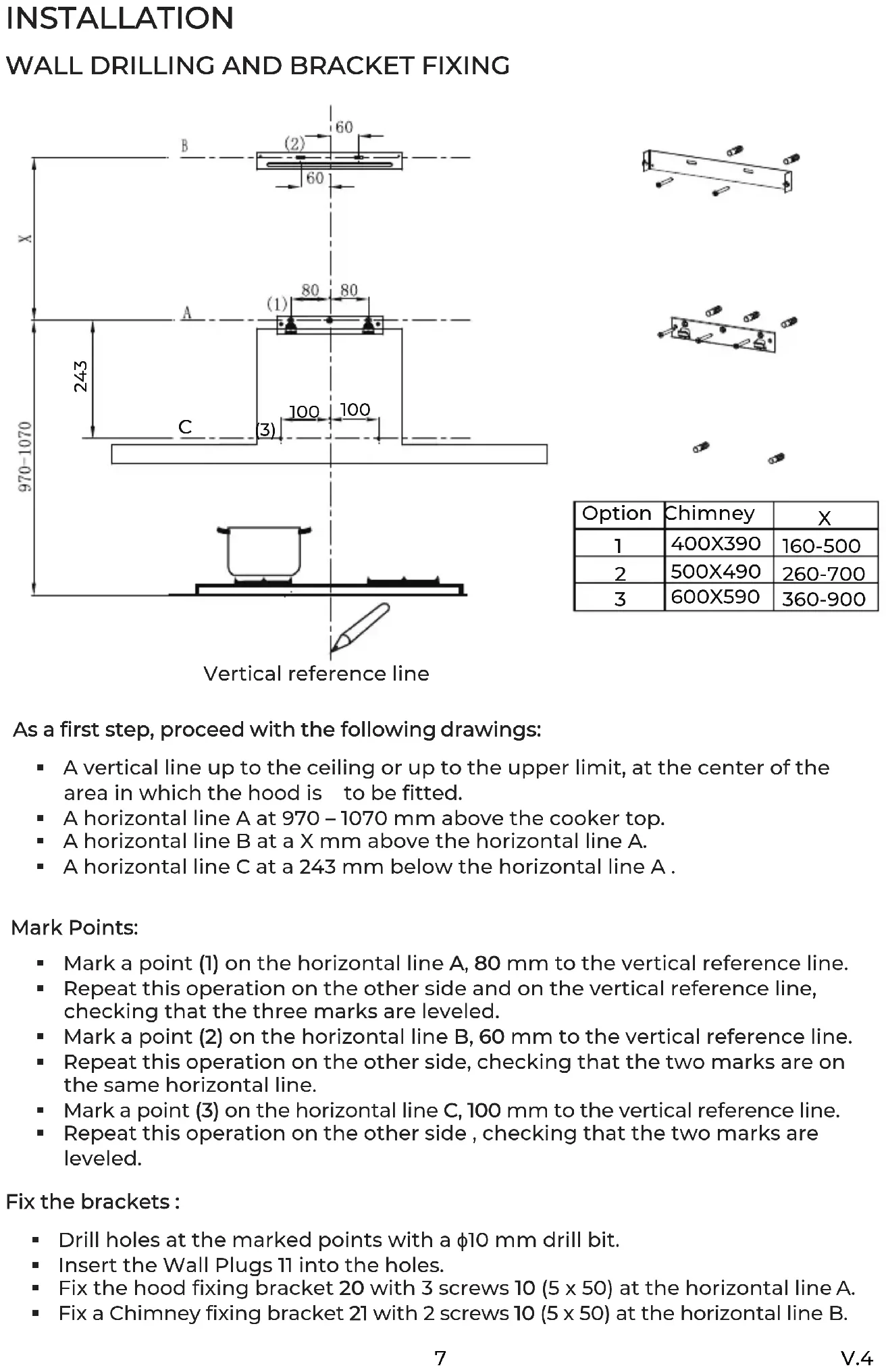

INSTALLATION

WALL DRILLING AND BRACKET FIXING

B (2) 60 60 X A (1) 80 80 243 C (3) 100 100 970-1070

Vertical reference line

Option	Chimney	X
1	400X390	160-500
2	500X490	260-700
3	600X590	360-900

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
• A horizontal line A at 970 – 1070 mm above the cooker top.
• A horizontal line B at a X mm above the horizontal line A.
• A horizontal line C at a 243 mm below the horizontal line A.

Mark Points:

• Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
• Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.
• Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
• Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

• Drill holes at the marked points with a 10 mm drill bit.
• Insert the Wall Plugs 11 into the holes.
• Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
• Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

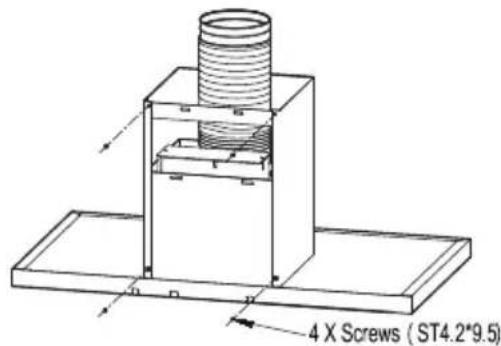

Lower decorative chimney

- Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws 12. Connect chimney fixing bracket and chimney with 2 screws 12.

4 X Screws ( ST4.2*9.5 )

Hook the hood body

• Hook the hood body to the bracket 20.
  ■ Level the hood body itself.
• Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below, no text or symbols present.

Right

Simple line drawing of a rectangular block resting on a horizontal beam with a vertical centerline (no text or symbols)

Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

Ø150 9 Ø120

• If to install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
• Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
  ■ Remove possible charcoal filters.

Upper Decorative Chimney

• Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to the horizontal line B
• Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12.

2 X Screws (ST4.2*9.5) B

USE

Speed adjustment

Five circular diagrams with symbols: one with a number 1, three with crescent and star-like shapes, two with circles, and one with a sun-like symbol.

1	OFF MOTOR SWITCH: Press on this switch to stop the motor operation.
	SPEED SWITCH: Press on this switch, the motor runs at LOW speed.
	SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed.
	SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.
	ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights, and press again to turn them off.

MAINTENANCE

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand pressing down on a smartphone screen with a downward arrow (no text or symbols)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

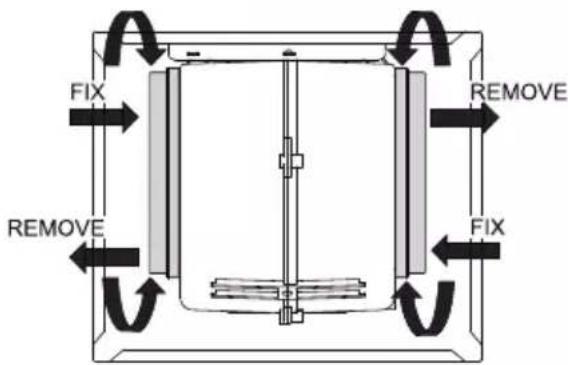

REPLACING THE ACTIVATED CHARCOAL FILTER

■ Remove the metal grease filters.
- Remove the saturated activated charcoal filter. Fit the new filters.
- Replace the metal grease filters.

FIX REMOVE REMOVE FIX

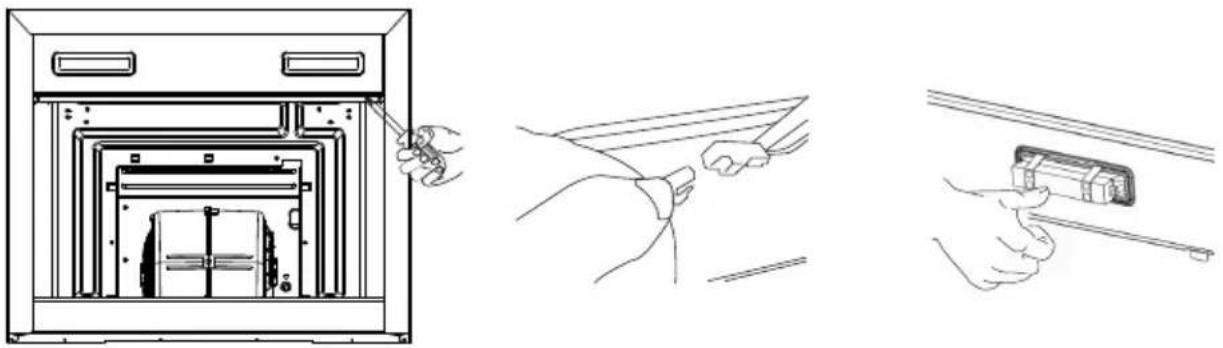

LIGHTING

LIGHT REPLACEMENT (Completed by professionals) Replacing the light modules

• Cannot replace the light bulbs, the entire light module has to be replaced.

• When changing the light modules, the contacts are live.
  ■ Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).

• Disconnect the terminal of LED light.
• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp (commercially available LED lamp (max.1.5w).

Technical line drawings showing three steps of installing or adjusting a device panel (no text or symbols present)

	Max Power Voltage Picture Lamp Cap ILCOS D code
Square/ Diameter:33.2mm x 120mm	1.5W DC	12 V		—	DSS-1.5-S-33.2/120

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Carefully fasten the 2 screws on the front plate, reinstall the grease filter.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

TROUBLE SHOOTING

Fault Cause Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/ disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fix the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors/windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC SMART TECHNOLOGY

www.easelectric.es

Contenu

RECOMMANDATIONS ET SUGGESTIONS

3 Installation

3 Usage

4 Maintenance

5 COMPOSANTS

6 DIMENSIONS

7 INSTALLATION

8 CONNECTIONS

9 UTILISATION: PANNEAU DE CONTRÔLE

10 NETTOYAGE ET ENTRETIEN

RECOMMANDATIONS ET SUGGESTIONS

Illustration of a heating lamp emitting smoke from a conical lamp, with no visible text or symbols.

Simple line drawing of a house with a stove and fire, no text or symbols present

COMPOSANTS

Simple line drawing of a T-shaped object with a vertical centerline and two horizontal bars below (no text or symbols)

Correct

Simple line drawing of a rectangular block resting on a horizontal beam with a vertical centerline (no text or symbols)

Incorrect

CONNECTIONS

SYSTÈME D'EXTRACTION PAR CONDUITS

Five circular diagrams with symbols: one with a number 1, four with crescent and star-like shapes, five with three circles, and one with a sun-like symbol.

Illustration of a hand pressing a tablet with a finger, showing a download icon (no text or symbols)

FILTRE À CARBONE ACTIF (version recirculation)

FIX REMOVE REMOVE FIX

LUMIÈRE

Technical line drawings showing three steps of installing or adjusting a device panel (no text or symbols present)

	Puissance max.	Tension	Image	Couvercle	Code ILCOS D
Dimensions:33.2x120mm	1.5W DC 12	V		—	DSS-1.5-S-33.2/120

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Simple line drawing of a laboratory setup with a conical flask, thermometer, and gas stove (no text or symbols)

Simple line drawing of a house with a stove and fire, no text or symbols present

COMPONENTES

Simple line drawing of a T-shaped object with a vertical centerline and two horizontal bars below (no text or symbols)

Correto

Simple line drawing of a rectangular block resting on a horizontal beam with a vertical centerline (no text or symbols)

Incorreto

CONEXÕES

Five circular diagrams with symbols: one with a number 1, four with crescent and star-like shapes, five with three circles, and one with a sun-like symbol.

Illustration of a hand pointing at a tablet device with a downward arrow (no text or symbols)

FIX REMOVE REMOVE FIX

LUZ

Technical line drawing showing three steps of installing or adjusting a device panel (no text or symbols present)

Scan for manual in other languages and further updates:
