EMRH608BX - Basket EAS Electric - Free user manual and instructions

Product Type	Wall-mounted range hood
Brand	EAS Electric
Model	EMRH608BX
Width	60 cm
Depth	50 cm
Adjustable height	970 – 1070 mm
Air outlet diameter	150 mm / 120 mm
Main material	Stainless steel and tempered glass
Lighting	Integrated LED (2 x 1.5 W)
Number of speeds	3 speeds + intensive
Control type	Electronic push buttons
Grease filter	Aluminum filter dishwasher safe
Charcoal filter (optional)	Compatible for recirculation
Energy class	A
Motor power	150 W
Maximum air flow	650 m³/h
Maximum noise level	65 dB(A)
Power supply	220 – 240 V / 50 Hz
Net weight	12 kg
Installation	Wall-mounted, external evacuation or recirculation
Warranty	2 years

Frequently Asked Questions - EMRH608BX EAS Electric

How to install the EMRH608BX hood?

Installation must be carried out by a qualified professional. Fix the hood to the wall using the provided plugs, respecting safety distances (60 cm minimum above an electric hob, 70 cm for a gas hob). Connect the air outlet to a 150 mm diameter exhaust duct (or 120 mm with adapter). Plug in the power supply after ensuring the voltage matches that indicated on the rating plate.

How to clean the grease filters?

The aluminum grease filters can be washed in the dishwasher at 60 °C or by hand with a non-abrasive sponge and mild detergent. Let them dry completely before replacing. It is recommended to clean them every 2 months of normal use.

Why is the hood noisy?

A normal noise level can reach up to 65 dB(A) at maximum speed. If the noise is abnormal, check that the filters are clean and properly installed, that the exhaust duct is not obstructed, and that the hood is firmly fixed to the wall. A vibrating noise may come from motor imbalance or loose parts.

The LED lights do not turn on, what to do?

First check that the power supply is correct (fuse or circuit breaker). If the LEDs are burnt out, they cannot be replaced individually; contact after-sales service for a replacement of the lighting module. Also ensure that the control buttons are not stuck.

Can I use the hood in recirculation mode?

Yes, the EMRH608BX hood can operate in recirculation mode. To do this, you must install an activated charcoal filter (not supplied) instead of the outlet grille. The charcoal filter should be changed every 3 to 4 months depending on use. Note that this mode is less efficient than external evacuation.

What is the safety distance between the hood and the cooking surface?

The minimum distance is 60 cm for an electric hob and 70 cm for a gas hob. Respect these distances to avoid any risk of overheating or fire. Consult the manual for specific recommendations for your model.

How to adjust the hood speeds?

Use the push buttons on the control panel: press the '-' button to decrease the speed and '+' to increase it. There are 3 normal speeds and an intensive function (if available). The intensive speed automatically returns to the previous speed after a few minutes.

The hood does not turn on at all, what to check?

Check the power outlet and fuse. If the hood is directly wired, check the circuit breaker. Make sure the power button (symbol ⏻) is pressed. If nothing works, call an authorized technician.

What is the power consumption of the hood?

The motor power is 150 W, the LED lighting is 3 W. In normal use, consumption is about 0.15 kWh per hour at maximum speed. The hood is rated A in energy efficiency.

Where can I find spare parts?

Spare parts (filters, LED bulbs, buttons) are available from EAS Electric customer service or authorized dealers. Always use original parts to ensure safety and performance. The model number EMRH608BX will help you identify the correct references.

USER MANUAL EMRH608BX EAS Electric

Line drawing of a kitchen air conditioner unit with a chimney and ventilation slots (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

Simple line drawing of a laboratory setup with a lamp, control panel, and evaporating substance (no text or symbols)

2°

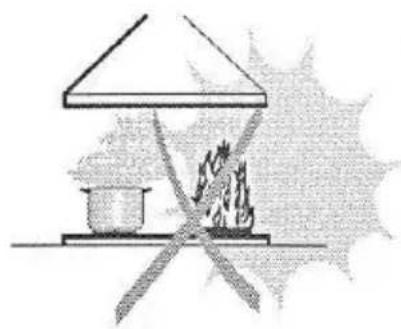

Simple line drawing of a campfire setup with a stove and fire, no text or symbols present

Diagram illustrating the assembly of a box into a plastic component, showing steps from opening to final packaging.

Pure geometric diagram showing a rectangle with a circle inside and dimension arrows, no text or symbols present.

Simple line drawing of a mechanical component with a vertical dimension arrow (no text or symbols)

Technical diagram showing structural dimensions and symbols for a fire safety or ventilation system, including lightning bolt and flame icon.

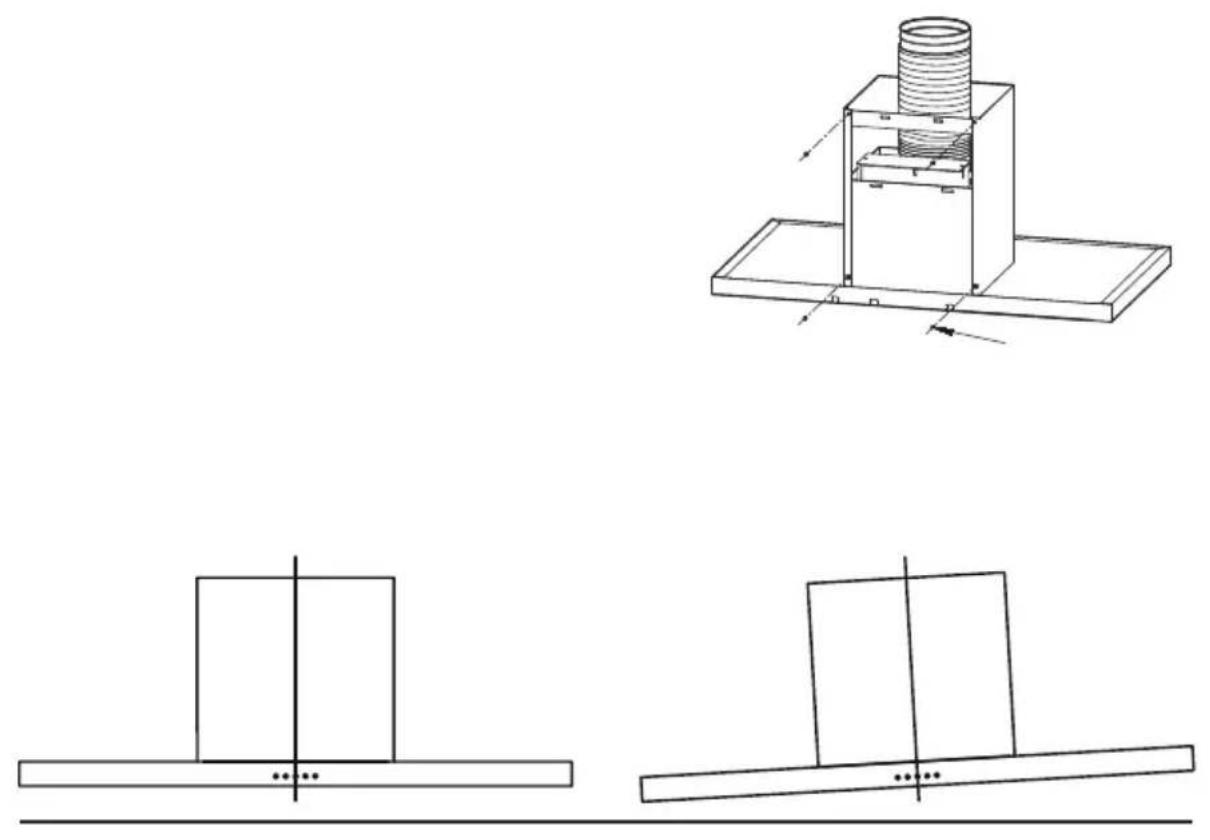

Technical line drawing of a mechanical assembly with dimension lines and arrows indicating forces or motion (no text or symbols)

B (2) 60 60 X A (1) 80 80 970-1070 5

Ø150 Ø120

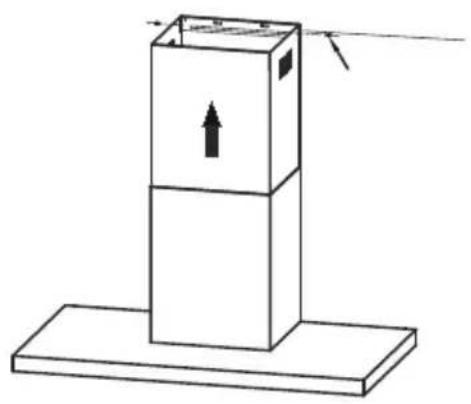

Simple line drawing of a box with an upward arrow and a base, no text or symbols present

- - 8 + Ⓧ

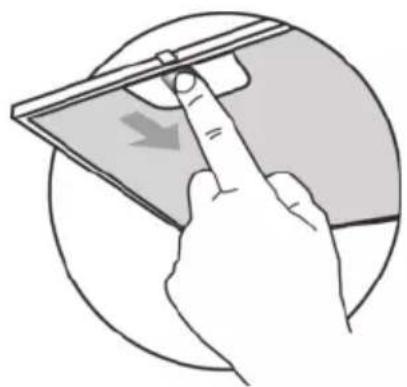

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

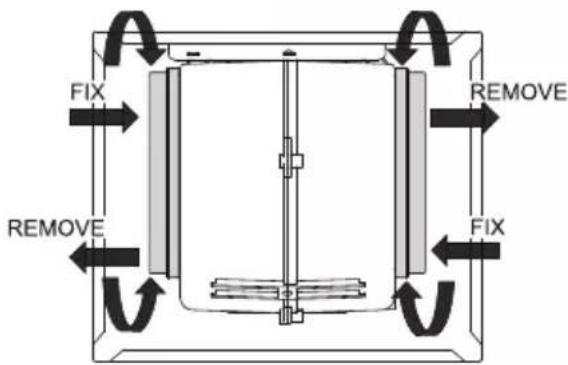

FIX REMOVE REMOVE FIX

Solid black right-pointing triangle shape on white background (no text or symbols)

Simple line drawing of a heating lamp with a control panel and smoke, no text or symbols present.

2°

Simple line drawing of a house with a stove and fire, no text or symbols present

Diagram illustrating the assembly of a box with internal components and a fan-shaped component, showing directional flow.

Pure geometric diagram showing a rectangle with a circle inside and dimension arrows, no text or symbols present.

Simple line drawing of a mechanical component with a vertical dimension arrow (no text or symbols)

Technical diagram showing structural dimensions and symbols for a fire safety or ventilation system, including lightning bolt and flame icon.

Technical line drawing of a mechanical assembly with dimension lines and arrows indicating forces or motion (no text or symbols)

B (2) 60 60 X A (1) 80 80 970-1070 5

Ø150 Ø120

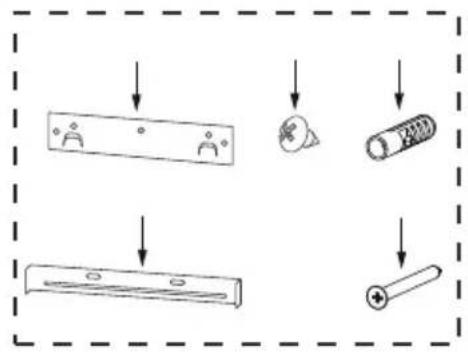

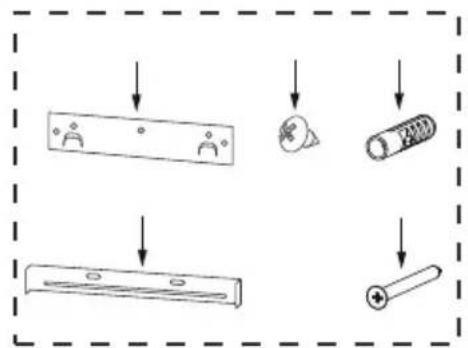

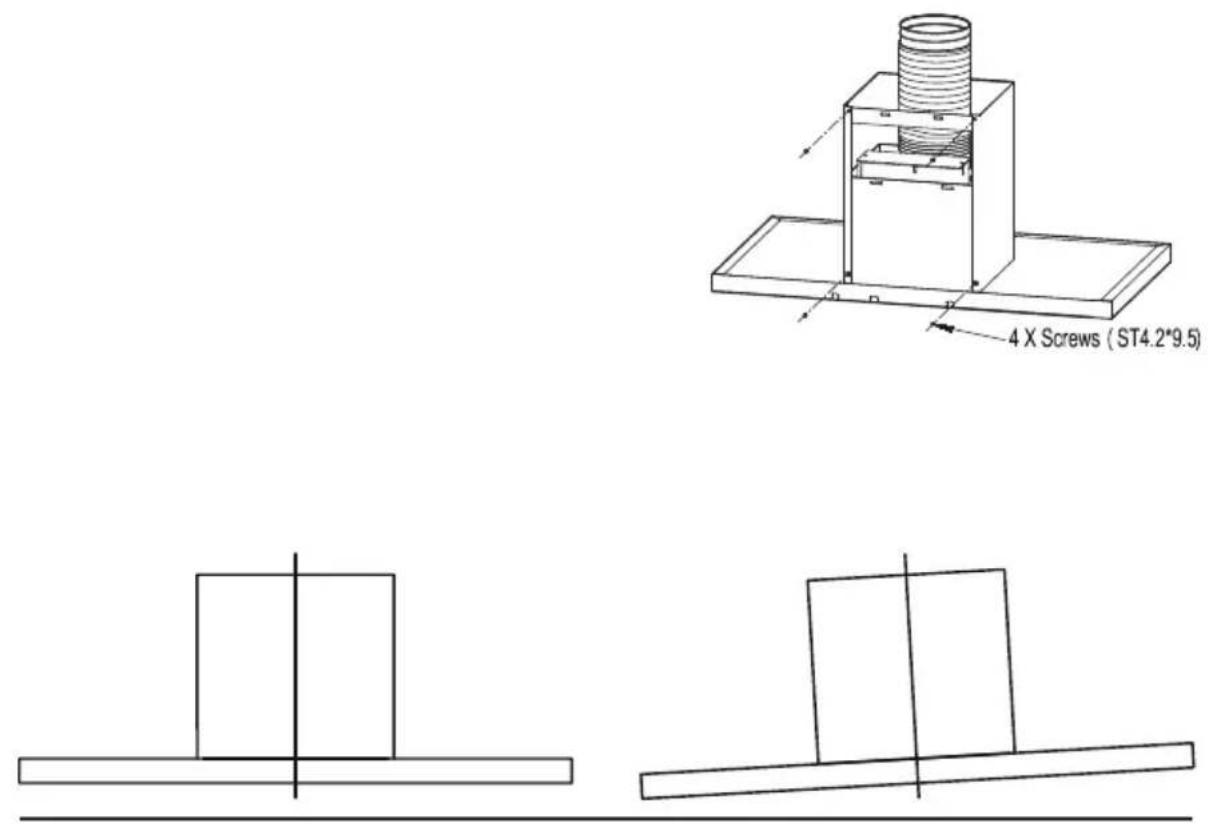

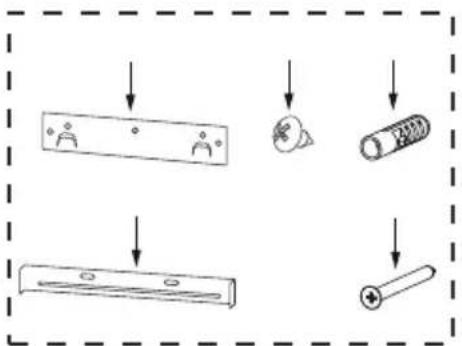

2 X Screws (ST4.2*9.5)

- 8 + ⏻

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

FIX REMOVE REMOVE FIX

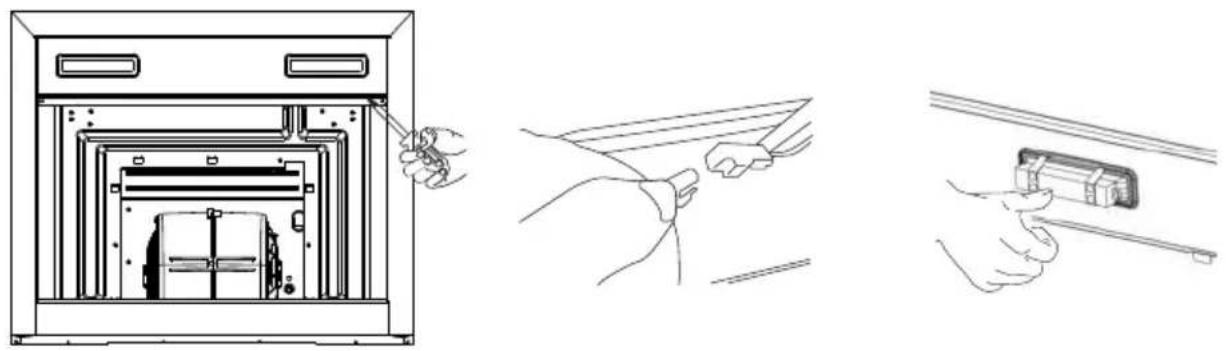

Technical line drawing showing three steps of installing or adjusting a device panel (no text or symbols present)

Solid black right-pointing triangle shape on white background (no text or symbols)

Simple line drawing of a laboratory setup with a conical flask, thermometer, and evaporating dish (no text or symbols)

2°

Simple line drawing of a campfire setup with a stove, fire, and a triangular roof (no text or symbols)

Diagram illustrating the assembly of a box into a plastic component, showing stages from raw material to final packaging.

Pure geometric diagram showing a rectangle with a circle inside and dimension arrows, no text or symbols present.

Simple line drawing of a mechanical component with a vertical dimension arrow (no text or symbols)

Technical diagram showing structural dimensions and symbols for a fire safety or ventilation system, including lightning bolt and flame icon.

Technical line drawing of a mechanical assembly with dimension lines and arrows indicating forces or motion (no text or symbols)

B (2) 60 60 X A (1) 80 80 970-1070 5

Ø150 Ø120

Simple line drawing of a box with an upward arrow and a base, no text or symbols present

- - 8 + ⏻

Illustration of a hand interacting with a tablet device (no text or symbols visible)

FIX REMOVE REMOVE FIX

©

Solid black right-pointing triangle shape on white background (no text or symbols)

Simple line drawing of a laboratory setup with a conical flask, thermometer, and gas stove (no text or symbols)

2°

Simple line drawing of a house with a pot and fire, no text or symbols present

Diagram illustrating the assembly of a box into a cylindrical component, then to produce a fan-shaped fan.

B (2) 60 60 X A (1) 80 80 970-1070 5

Ø150 Ø120

Simple line drawing of a box with an upward arrow and a base, no text or symbols present

Illustration of a hand pointing at a device with a download arrow (no text or symbols)

FIX REMOVE REMOVE FIX

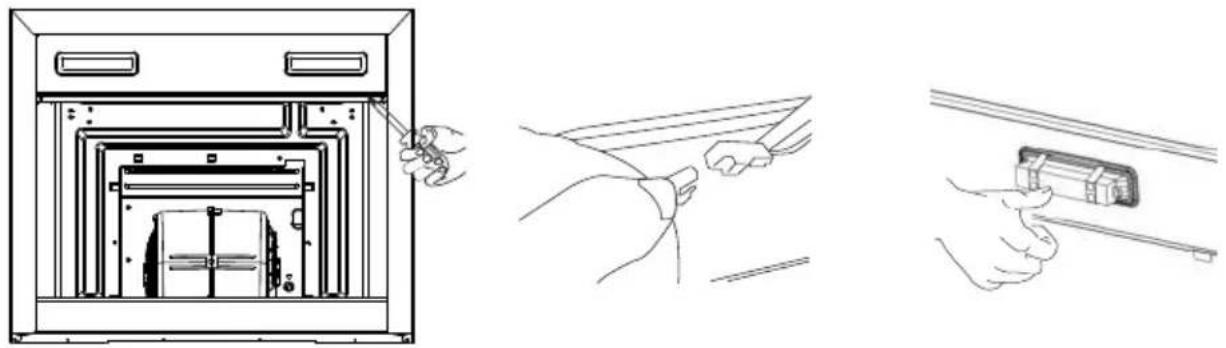

Technical line drawings of a device interior with hands holding tools, showing three sequential steps (no text or symbols)
