EMRH608VRT-N - Basket EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EMRH608VRT-N
Product Type	Decorative hood (chimney)
Usage	Domestic use only
Width	60 cm (estimate based on model)
Extraction Type	Ducted (extraction) or recirculation with optional carbon filter
Outlet Diameter	120 mm or 150 mm
Minimum Distance to Gas	65 cm (between pan support and hood underside)
Grease Filter	Metal, dishwasher-safe, clean every 2 months
Activated Carbon Filter	Optional, non-washable, replace every 4 months
Lighting	Lamp (replaceable)
Number of Speeds	Not specified (probably 3 speeds)
Power Supply	230-240 V, 50 Hz (standard estimate)
Insulation Class	Class I (must be grounded)
Material	Stainless steel (estimate)
Motor Power	Not specified
Noise Level	Not specified
Weight	Not specified
Warranty	Warranty conditions available in the manual

Frequently Asked Questions - EMRH608VRT-N EAS Electric

What is the minimum distance between the hood and the gas hob?

The minimum distance between the pan support and the hood underside is 65 cm. If the hob instructions specify a greater distance, that must be respected.

How to clean the metal grease filters?

Metal grease filters should be cleaned every 2 months (more often with heavy use). They can be washed in the dishwasher. To remove them, push them towards the back of the hood and pull down.

Do I need to replace the activated carbon filter?

The activated carbon filter is optional for recirculation mode. It is not washable and should be replaced every 4 months (more often if heavy use). Replace it by first removing the metal filters.

What to do if the hood does not work (no light or motor)?

First check the power cable and connection. If the light is faulty, replace the bulb. If the motor does not run while the light is on, check the blades and capacitor (see troubleshooting in the manual).

Can I use the hood with an electric hob?

Yes, the hood is suitable for all types of hobs (gas, electric, induction) provided the minimum distance and safety instructions are respected.

How to install the hood in extraction mode?

Connect the hood to an exhaust duct of diameter 120 mm or 150 mm. Use a rigid or flexible pipe. If the diameter is 120 mm, install the supplied adapter. Remove the carbon filters if present.

The hood vibrates, what to do?

Check that the hood is properly fixed to the wall and that the motor is tight. Damaged blades can also cause vibrations: replace the impeller if necessary.

The extraction is insufficient, why?

Possible causes: excessive distance between the hood and the hob, too much ventilation from doors/windows, or dirty filters. Readjust the distance, close doors/windows, or clean/replace filters.

Can I flambé under the hood?

No, flambéing under the hood is strictly forbidden due to fire risk. Always monitor cooking, especially frying.

How to maintain the hood?

Clean the hood with a damp cloth and a neutral liquid detergent. Disconnect the appliance before any maintenance. Grease filters should be cleaned regularly and carbon filters replaced.

USER MANUAL EMRH608VRT-N EAS Electric

RECOMMENDATIONS AND SUGGESTIONS

3 Installation
3 Use

Maintenance

COMPONENTS

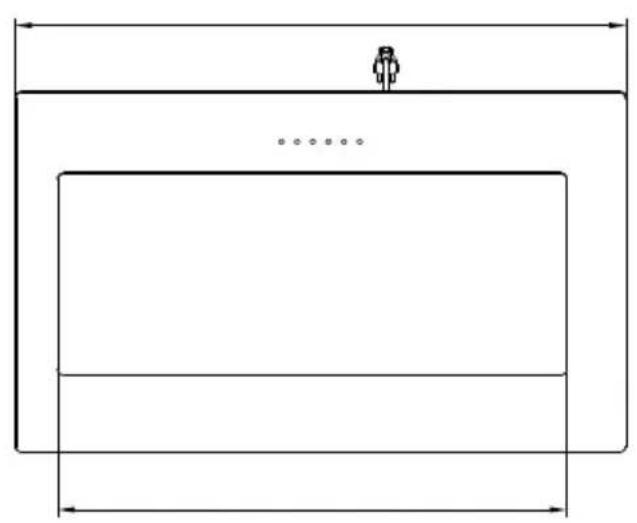

DIMENSIONS

INSTALLATION

CONNECTIONS

USE:CONTROL PANEL

MAINTENANCE

Cleaning the grease filters

Activated charcoal filters

Light replacement

DISPOSAL OF OLD APPLIANCE

TROUBLESHOOTING

WARRANTY CONDITIONS

RECOMMENDATIONS AND SUGGESTIONS

The instructions for use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65~cm . If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65~cm can be reduced for: non-combustible parts of range hoods, and parts operating at safety extra low voltage, Provided these parts do not give access to live parts if deformed).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
• When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  Regulations concerning the discharge of air have to be fulfilled.

USE

• The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes. Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flame under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- CAUTION: Accessible parts may become hot when used with cooking appliances.

MAINTENANCE

• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified period (Fire hazard).
  Clean the hood using a damp cloth and a neutral liquid detergent.
  The appliance uses 4 hob elements at most.

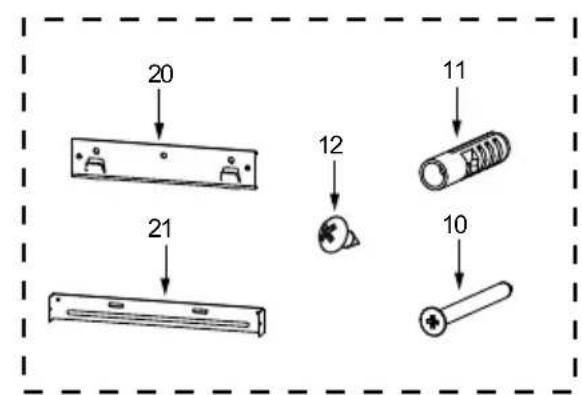

COMPONENTS

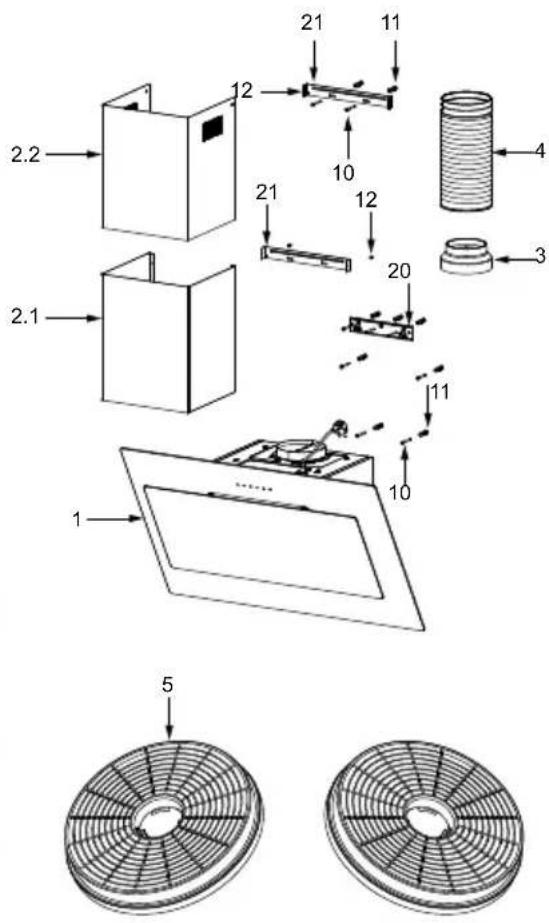

Ref.	Qty.	Product Components
1	1	Hood Body,complete with: Controls, Light, Blower, Filter.
2.1	1 Lower Decorative Chimney
2.2	1 Upper Decorative Chimney
3	1	Flange (optional)
4	1 Exhaust Pipe
5	2 Activated Charcoal filter (optional)

Ref.	Qty.	Optional Installation Components
10	7	Screws 5 x 50
11	7	Wall Plugs
12	6	Screws 4,2 x 9,5
20	1	Hood fixing bracket
21	2	Chimney fixing bracket

Qty.	Documentation
1	Instruction Manual

DIMENSIONS

INSTALLATION

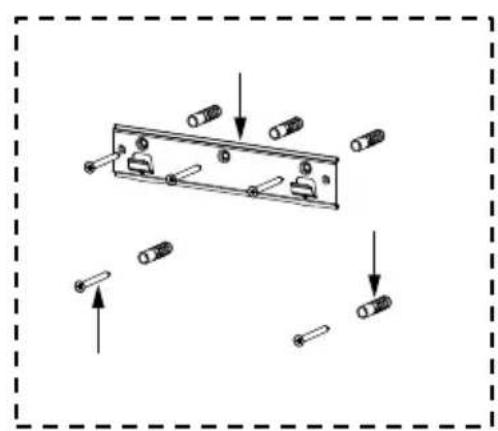

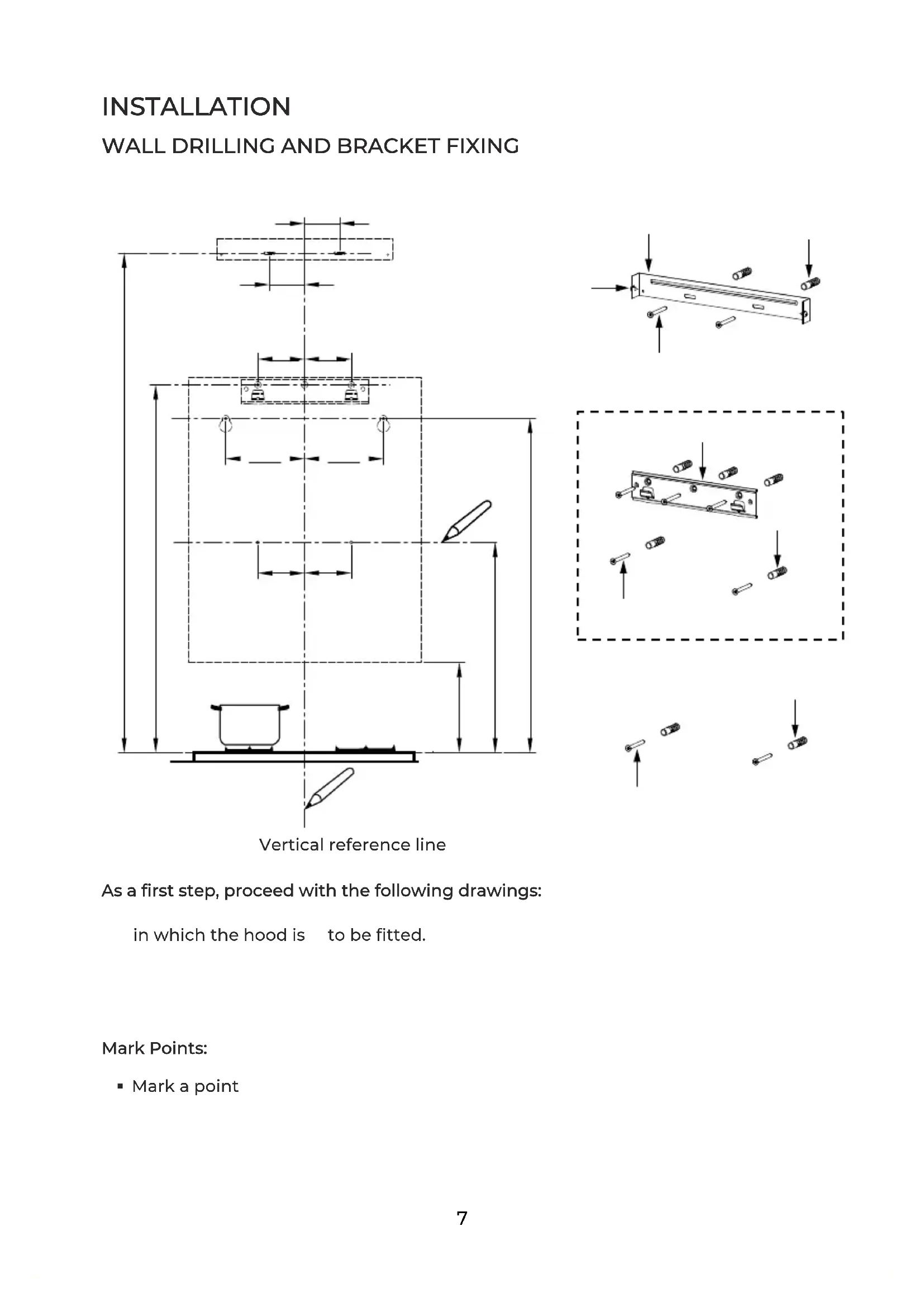

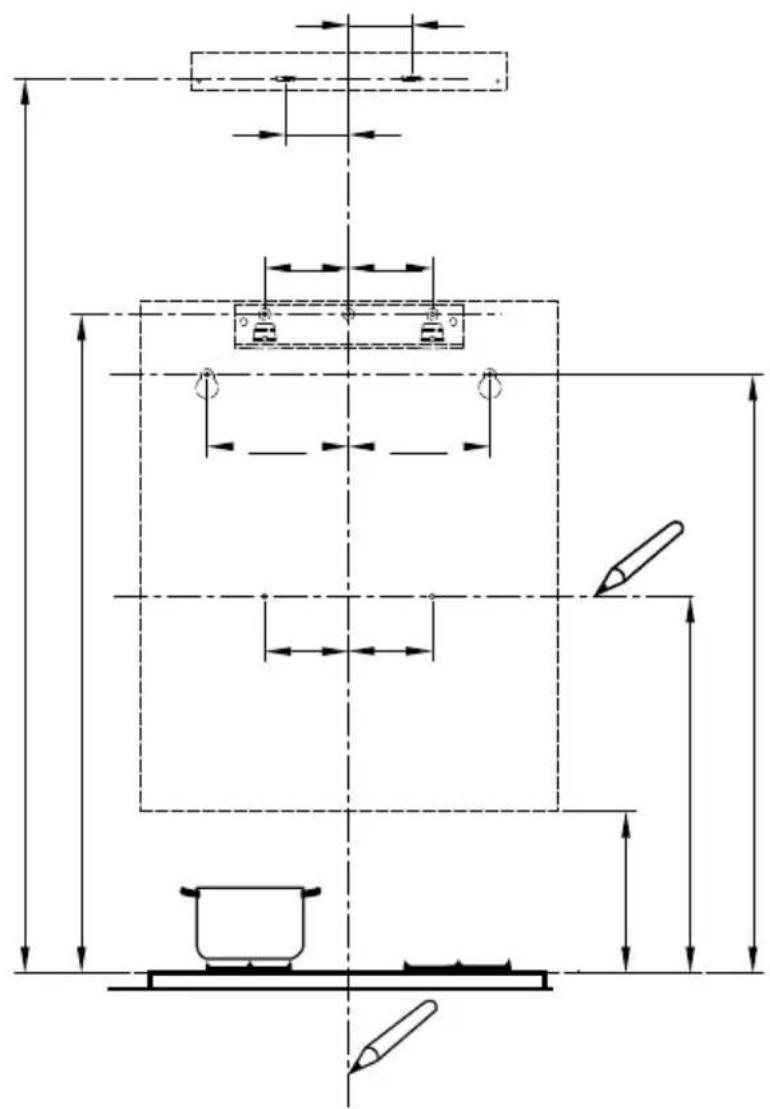

WALL DRILLING AND BRACKET FIXING

Vertical reference line

As a first step, proceed with the following drawings:

in which the hood is to be fitted.

Mark Points:

Mark a point

Mark a point
- Repeat this operation on the other side, checking that the two marks are leveled.
- Drill at the marked points

The chimney can only be installed with exhausting hood.

Lower Decorative Chimney

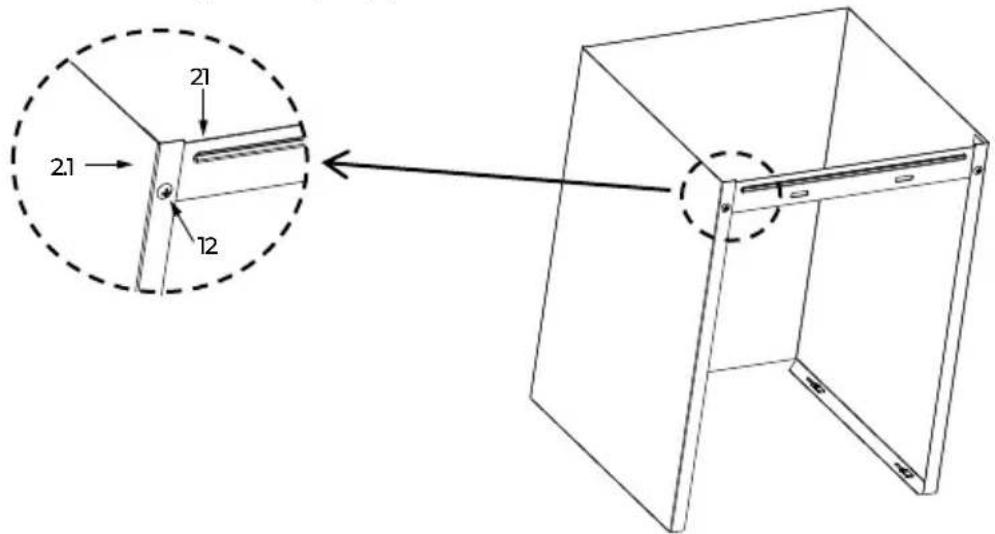

Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12 (4.2 x 9.5) supplied with the hood.

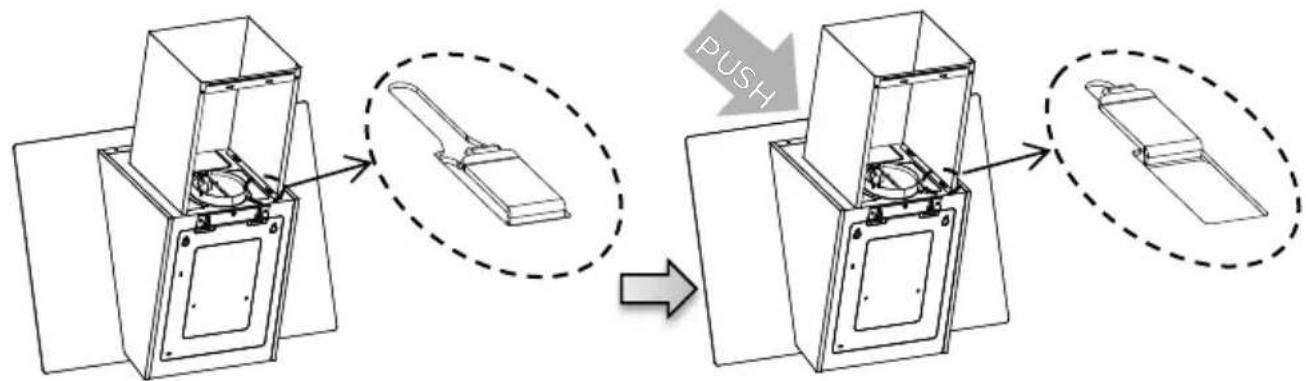

• Slightly widen the two sides of the flue and hook them onto the hood body, making sure that they are well seated.

Upper Decorative Chimney

• Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 21 which is fixed on the Lower Decorative Chimney.
  Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

B

MAINTENANCE

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

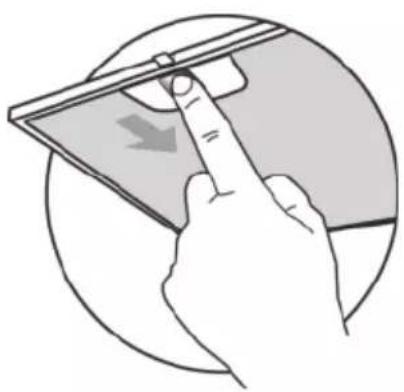

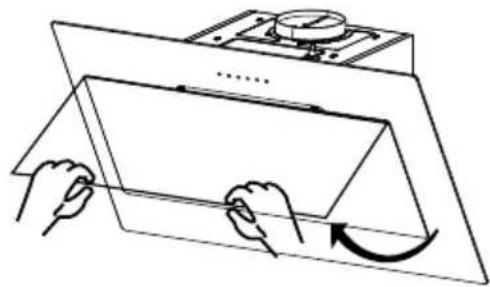

• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.

• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).

• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

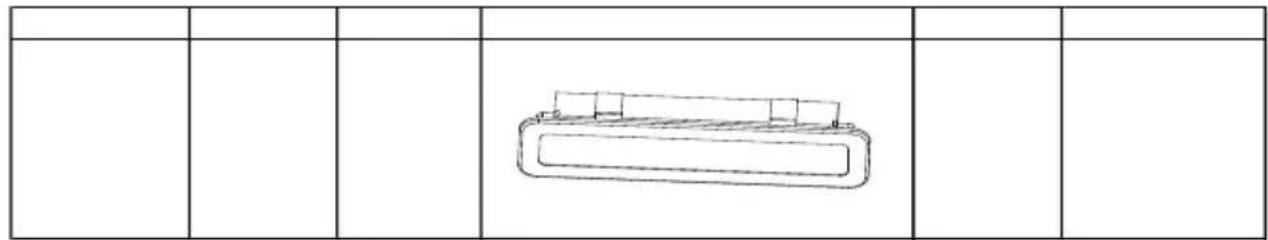

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter. Fit the new filters.
• Replace the metal grease filters.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

TROUBLE SHOOTING

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/ disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fix the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors Windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.
