RE455 - Wifi repeater TP-LINK - Free user manual and instructions

Product type	WiFi Repeater
Brand	TP-Link
Model	RE455
Dimensions (L x W x H)	200 x 170 x 120 mm
Weight	200 g
Power supply	100-240 V AC, 50/60 Hz
Frequency bands	2.4 GHz and 5 GHz
Max wireless speed	300 Mbit/s (2.4 GHz) + 867 Mbit/s (5 GHz)
Ethernet port	1x 10/100/1000 Mbit/s
Buttons	Reset, WPS
Setup	Via TP-Link Tether app or web browser (http://tplinkrepeater.net)
Wireless security	WPA/WPA2
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety instructions	Keep away from water, fire, and moisture. Do not disassemble.
Warranty	3 years limited
Spare parts and repairability	No user-serviceable parts. Contact TP-Link support.

Frequently Asked Questions - RE455 TP-LINK

How to set up the TP-Link RE455 repeater?

You can configure the repeater via the TP-Link Tether app or via a web browser by connecting to the repeater's WiFi network (e.g., TP-Link_Extender) and accessing http://tplinkrepeater.net or 192.168.0.254.

Why is the login page not showing?

Make sure your computer is connected to the repeater (via WiFi or Ethernet cable) and that it receives an IP address automatically. Try the IP address 192.168.0.254 or reset the repeater.

How to reset the repeater to factory settings?

With the repeater powered on, press and hold the RESET button until all LEDs briefly turn off, then release it.

Where to place the repeater for best coverage?

Plug the repeater halfway between your router and the area to cover, preferably at height and away from metal obstacles.

Is the repeater compatible with all routers?

Yes, the RE455 is compatible with most WiFi routers on the market as it follows 802.11 b/g/n/ac standards.

How to connect a wired device (TV, console) to the repeater?

Connect the repeater to the WiFi router, then connect your device (TV, console, etc.) to the repeater's Ethernet port using an Ethernet cable. It will act as a WiFi client.

What do the LEDs on the repeater mean?

The Signal LED indicates the connection quality to the router (solid blue = good, orange = weak, red = poor). The other LEDs indicate power and connections.

Can I use the repeater with a public WiFi network requiring authentication?

No, the repeater cannot extend a network requiring a login page (captive portal). It only works with private networks.

Is it safe to leave the repeater on permanently?

Yes, the repeater is designed for continuous operation. Just make sure it is placed in a well-ventilated area away from water.

How to change WiFi password after setup?

Log in to the repeater's web interface (tplinkrepeater.net), go to WiFi settings, and change the password or SSID.

USER MANUAL RE455 TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2021 TP-Link 7106509184 REV3.1.1

*Images may differ from actual products.

Contents

Deutsch- 1

English 4

Espanol -7

Eλληνικα- 10

Francais- 13

Italiano 16

Portugues 19

Suomi 22

Nederlands 25

Svenska- 28

Norsk- 31

Dansk 34

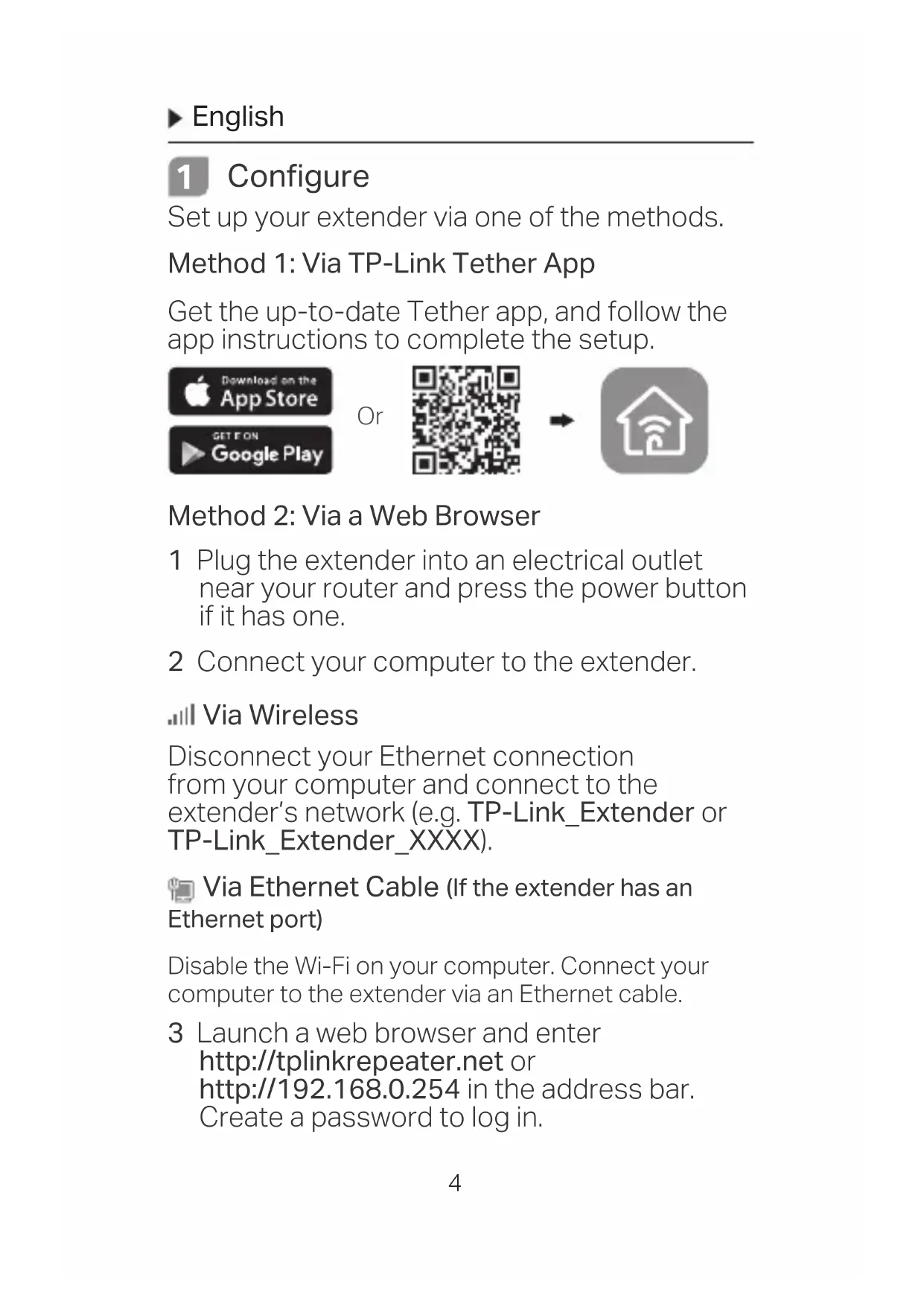

1 Konfigurieren

Set up your extender via one of the methods.

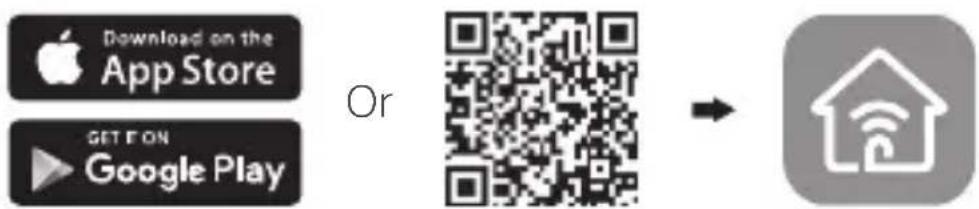

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

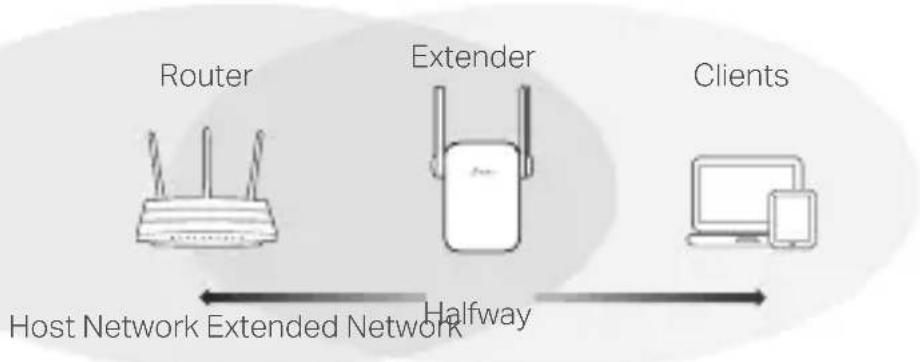

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

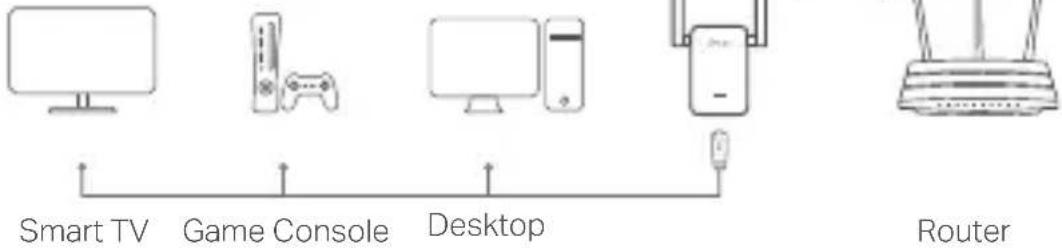

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Configure tu extensor a工程技术 de uno de los métodos.

Método 1: Via App Tether TP-Link

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.

• Do not use the device where wireless devices are not allowed.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at

https://www.tp-link.com/en/ce.

Espanol

https://www.tp-link.com/en/ce.

Portuqués

https://www.tp-link.com/en/ce.

Nederlandss

https://www.tp-link.com/en/ce.

Dansk
