Product type	Electric deep fryer
Brand	Continental Edison
Model	CEFR4IX2
Maximum oil capacity	3 litres
Power consumption	2000 W
Supply voltage	220-240 V ~ 50/60 Hz
Protection class	I
Tank material	Aluminium
Recommended fat type	Liquid frying oil or frying fat
Adjustable thermostat	Yes, from 130°C to 190°C approx
Indicator lights	Power indicator and heating indicator
Removable basket	Yes, with handle
Safety button	Yes, overheat protection
Reset button	Yes, located at the back of the control element
Tank cleaning	Wipe with absorbent paper then damp cloth, do not immerse
Basket cleaning	Washable in warm soapy water
Heating element cleaning	With absorbent paper and damp cloth, do not immerse
Repairability	Do not repair yourself, contact an approved professional
Intended use	Domestic, indoor use only
Power cord	With storage compartment
Approximate weight	2.5 kg

Frequently Asked Questions - CEFR4IX2 CONTINENTAL EDISON

How to use the Continental Edison CEFR4IX2 deep fryer for the first time?

Before first use, wash the tank, basket and lid thoroughly in warm soapy water, then dry them. Fill the tank with oil or fat between the min and max levels (3 L max). Plug in the appliance and turn the thermostat to the desired temperature. The heating indicator lights up. Once the oil is hot, place the food in the basket and lower it into the oil, then close the lid. Never add water to the oil.

How much oil should I put in the tank?

The maximum oil capacity is 3 litres. Fill the tank until the level is between the minimum and maximum marks indicated inside the tank. Overfilling may cause overflow during cooking.

Can I use olive oil or butter?

No, the use of olive oil, butter or margarine is not recommended because they smoke at low temperatures. Use exclusively liquid frying oil or frying fat suitable for high temperatures.

What to do if the deep fryer does not heat up?

First check the electrical connection and the thermostat setting. If the appliance still does not heat, it may be that the overheat protection has activated (if the tank was empty). Unplug the appliance, let it cool completely, then press the reset button located at the back of the control element using a plastic or wooden object at least 4 cm long.

How to clean the deep fryer after use?

Unplug the appliance and let the oil cool completely. Remove the oil (filter if reusable). Clean the tank with absorbent paper then a damp cloth with a little dish soap. Never immerse the tank or heating element in water. The basket can be washed in warm soapy water. Wipe the exterior with a damp cloth. Dry thoroughly before storing.

Why did the deep fryer turn off during use?

This is likely due to the activation of the overheat protection if the appliance operated without oil or if the oil reached too high a temperature. Let the appliance cool, then reset it by pressing the reset button at the back. If the problem persists, contact an approved technician.

Can I fry frozen foods?

Yes, but be careful: frozen foods (like frozen fries) contain a lot of moisture, which can cause excessive foam formation and oil overflow. Dry the food with a towel before frying and do not fill the basket more than two-thirds full.

How to change the oil?

Let the oil cool completely. Remove the basket and filter the used oil through a fine sieve to remove residues. You can store the oil in the refrigerator for later reuse. Clean the tank before adding new oil. Replace the oil after several uses to preserve the taste of food.

Where is the reset button located?

The reset button is located at the back of the control element (the housing with the indicators and thermostat). It is accessible only when the appliance is unplugged and cooled. Use a plastic or wooden object at least 4 cm long to press it.

What are the cooking times for fries?

For fresh fries, set the thermostat to 190°C and cook for 8 to 10 minutes. For frozen fries, the time may vary slightly. Consult the cooking chart in the manual for other foods. Times are given as a guide.

USER MANUAL CEFR4IX2 CONTINENTAL EDISON

Protectioncontreessurchauffes

Specifications techniques

Réf:

CEFRRIX2

Modèle:DF-62

Alimentation

220 -240 V CA, 50/60 Hz

Puisance absorbee:

2000 W

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person order to avoid a hazard.
3. The appliance is not intended to be operated by means of a external timer or a separate remote-control system.
4. For indoor use only.
5. For household use only.
6. Never immerse the appliance in water
7. This appliance is intended to be used in household and similar applications such as:
8. staff kitchen areas in shops, offices and other working environments;
9. farm houses;
10. by clients in hotels, motels and other residential type environments;

11. bed and breakfast type environments.

12. Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

9.The surfaces are liable to get hot during use.

10.The temperature of the accessible surfaces may be

very high when the appliance is operating.

1. For details on how to clean the surfaces in contact with food or oil, please refer to part "Cleaning and maintenance".

This appliance complies with CE -Directives for EMC is engineered to the latest safety technical requirements.

Subject to technical changes without notice.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE!

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.

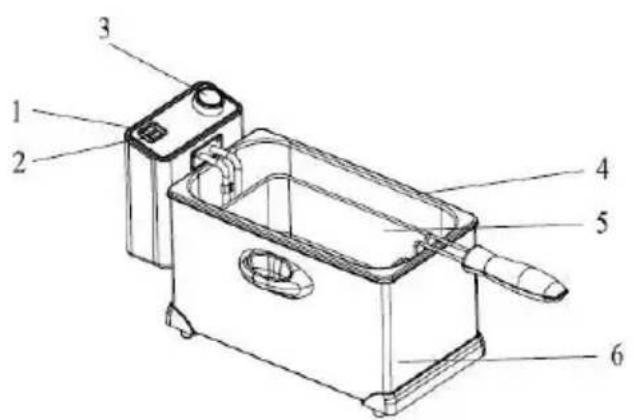

Overview of the Components

1. Power indicator light
2. Heating indicator light
3. Thermostat knob
4. Oil pot
5. Frying basket
6. Housing
7. Safety switch
8. RESTART button
9. Cable compartment

WARNING:

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors, it away from sources of heat, direct sunlight, humidity (never dip it into any and sharp edges. Do not use the appliance with wet hands. If the appliance humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull the plug from the socket (pull the plug itself, not the lead) if the appliance being used and remove the attached accessories.
• Do not operate the machine without supervision.

If you leave the room, you should always turn the device off. Remove the from the socket.

• The device and the mains lead must be checked regularly for signs of damage is found the device must not be used.
• Do not try to repair the appliance on your own.

Always contact an authorized technician. To avoid the exposure to danger, all have a faulty cable be replaced only by the manufacturer, by our customer or by a qualified person and with a cable of the same type.

• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the plastic bags as there danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the Children should always be supervised in order to ensure that they do not with the device.

CAUTION:

This refers to possible hazards to the machine or other objects.

Special Safety Instructions for this Device

WARNING:

• Never add water to the oil!
• Oils and fats may burn when overheated. Please be careful! Do not forget to switch the device off after use! First turn the thermostat to the lowest position then remove the mains plug.
• Please do not operate the device with an external timer or a separate relay control system.

Intended Use

This device is used for deep-frying food.

It is intended exclusively for this purpose and may only be used as such. I only be used in the manner described in these instructions for use. The dem must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use may result in damage to materials or even personal injury.

Before using for the first time

1. Remove the packaging. Then take the lid off the deep fat fryer. In the of fryer you will find a frying basket. Take all objects out of the fryer.
2. It is highly recommended to clean the lid, casing, container and frying bar as described in Cleaning.
3. Please pull the connecting cable out of the cable compartment.

Electrical connection

• Make sure that the input voltage (see name plate) and the line voltage m
• The mains plug should only be inserted into a correctly installed 220-240 50/60 Hz socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 2000W. With this connected load a separate supply line protected by a 10 A household circuit breaker is recommended.

Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of French fries) the device has been used several times you should change the oil.

Use high quality frying oil or frying grease.

1. Fats and oils must be heatable to high temperatures.

Do not use margarine, olive oil or butter: they are not fit for frying, because start to smoke already at low temperatures.

We recommend the use of liquid frying oil.

WARNING:

Please note this important information if you intend to use fat!

1. If you use fat, please divide it up into small pieces. Turn the thermostat temperature and add the pieces slowly. Once the fat has melted and the coil level is reached you can set the desired temperature on the thermostat.
2. In order to reduce the acrylamide content of food containing starch (potato cereals) the temperature during deep-fat frying should not exceed 170^ .

Furthermore, the frying time should be kept as short as possible and the fo fried until it turns golden yellow.

1. Please note that the safety switch (7) is operated when the control element is inserted into the guide mechanism.
2. Choose the right frying temperature and check the conditions of the food fried. A rule of thumb is that pre-fried foods require a higher temperature than foods.

3. Do not carry or move the deep fryer if the oil or grease is still hot.

4. When frying dough-like foods scrape off the excess dough and put the p carefully into the oil.

5. Please ensure that the handle of the deep fat frying basket has been cc attached.

6. Press the ends of the wire together at the free end of the handle.

7. Insert the brackets into wire hoops inside the basket.

8. The deep fat frying basket must not be more than 2/3 full. Do not overfrying basket.

9. Rub dry humid foods with a cloth before frying.

CAUTION:

In the case of foodstuffs which are too moist (e.g. frozen chips etc.) large a of foam may form, which under certain circumstances may cause the oil to overflow.

Use

1. Make sure that the appliance is unplugged and switched off (The control are off.).
2. Take the lid off the deep fryer.
3. Remove the frying basket and fill the container with oil or grease (maximum
   3.0 L). The filling level must be located between the minimum and the maxi level.
4. Turn fryer to desired temperature position.
5. Temperature indicator light will be off when oil is pre-heated.
   6 . Remove Lid and place Frying Basket with food into oil and close lid soon
6. Remove lid and lift Frying Basket and hang basket onto the edge of oil container. To remove excess grease and retain crispness, let food drain in F Basket at least 10-20 seconds. Then lift Frying Basket by handle and pour contents onto plate covered with paper towels before serving.
7. When finished cooking, make sure thermostat knob in Min position

WARNING:

Always pull out the plug from the mains socket before cleaning and wait un unit has cooled down.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Under no circumstances should the device be immersed in water for clean

MAINTENANCE AND CLEANING

1.Make sure the deep fryer is switched off both the thermostat and timer kr before cleaning and maintenance.

1. Allow the oil or fat to cool down.

Caution: Do not move the deep fry and the contents until it is completely o down.

3.If the deep fryer is not used regularly. It is recommended to store the oil fat after cooling in a container preferably in the fridge or some other cool p Open the lid and remove the bastet. Filter the oil or fat through a fine siev the container to remove food particles from the oil or fat.

4.If the deep fryer contains solid fat, allow the fat to solidify in the deep fr store the fat in the deep fat fryer.

1. Empty the fryer and clean the inner part of oil tank with a paper towel, t with a wet cloth dipped in soapy water. Wipe with a damp cloth and allow 6.Clean regularly the outer part of the fryer with damp clothe and dry it wit and clean towel.

Note: Do not use abrasive detergents.

7.Clean the basket and the handle in warm soapy water. Dry thoroughly before reusing.

8.Dry completely before storage.

1. Store the appliance in a dry, well-ventilated position which is out of reach children, when the deep fryer is not in use.

2. Store in its original package when not using for a long time to avoid soil

Trouble Shooting

• Check the mains connection.
• Check the position of the thermostat.

Other possible causes:

The device is fitted with a safety switch (7).

This prevents the heater being switched on accidentally.

Check that the control element is correctly in place.

Overheating Protection

• If you should accidentally switch on your deep fat fryer when there is no in it the overheating protection is automatically turned on. The appliance is n longer ready to be used. Unplug the deep fryer.
• Only after the device has been left to cool down completely should the "RESTART" button (8) on the rear of the control element be operated in order

use the deep fat fryer again. For this you should use a plastic or wooden object thatistheleast4cmlong.

TechnicalData

Ref: CEFRIX2

Model: .DF-62

Power supply: AC220 -240V, 50/60Hz

Power consumption: 2000 W

Protection class:

Filling quantity: max. 4.0L

REFERENCEMENU

Thefryingtimegiveninthischartisonlyforreference.

FOODTYPETEMPERATURE(°C)TIME (min)

Shrimp130°C 2-4

Mushrooms150°C 3-5

Crumbedchicken170°C 12-14

Fishcakes170°C 3-5

Fillets170°C 5

Onions190°C 2-4

Frenchfries 190°C 8-10

Potatoes190°C 10-15

Meaningofthe"Dustbin"Symbol

Protectourenvironment:donotdisposeoelectricalequipmentinthedomestic waste.

Please return any electrical equipment that you will no longer use to the collection pointsprovidedfortheirdisposal.

This helps avoid the potential effects of incorrect disposal on the environment and humanhealth.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
